MAZDA MODEL RX 8 2007 Owners Manual (in English)

Black plate (90,1)
Turning on the alarm
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.
lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
qTransmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
lInstall the battery with the positive
pole (
) facing down. Battery
leakage could occur if it is not
installed correctly.
lWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also be
careful not to get dirt in the
transmitter as it could be damaged.
lThere is the danger of explosion if
the battery is not correctly replaced.
lReplace only with the same type
battery (CR1620 or equivalent).
lDispose of used batteries according
to the following instructions.
lInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
lNever disassemble.lNever throw the battery into fire
and/or water.
lNever deform or crush.
Replacing the transmitter battery
1. Unfold the key (page 3-22).
3-26
Knowing Your Mazda
Doors and Locks
RX-8_8V89-EA-06F_Edition1 Page90
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (91,1)
2. Insert a small screwdriver into the slot
and push the tab to remove the key
from the transmitter.
Ta b
3. Insert a small screwdriver into the slot
and gently pry open the transmitter.
4. Press the portion of the battery
indicated by A and remove the battery.
A
NOTE
If it is difficult to remove the battery by
pressing with a finger, use a small
screwdriver to press out the battery.
5. Put in the new battery (CR1620 or
equivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and
snap the transmitter shut.
7. Install the key to the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
Knowing Your Mazda
Doors and Locks
3-27
RX-8_8V89-EA-06F_Edition1 Page91
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (92,1)
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended in
a parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle
can become high enough to cause
brain damage or even death.
Do not leave the keys in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall out
if a door is accidentally opened and
can more easily be thrown out in an
accident.
Always close all the windows, lock the
doors and take the key with you when
leaving your vehicle unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.
3-28
Knowing Your Mazda
Doors and Locks
RX-8_8V89-EA-06F_Edition1 Page92
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (93,1)

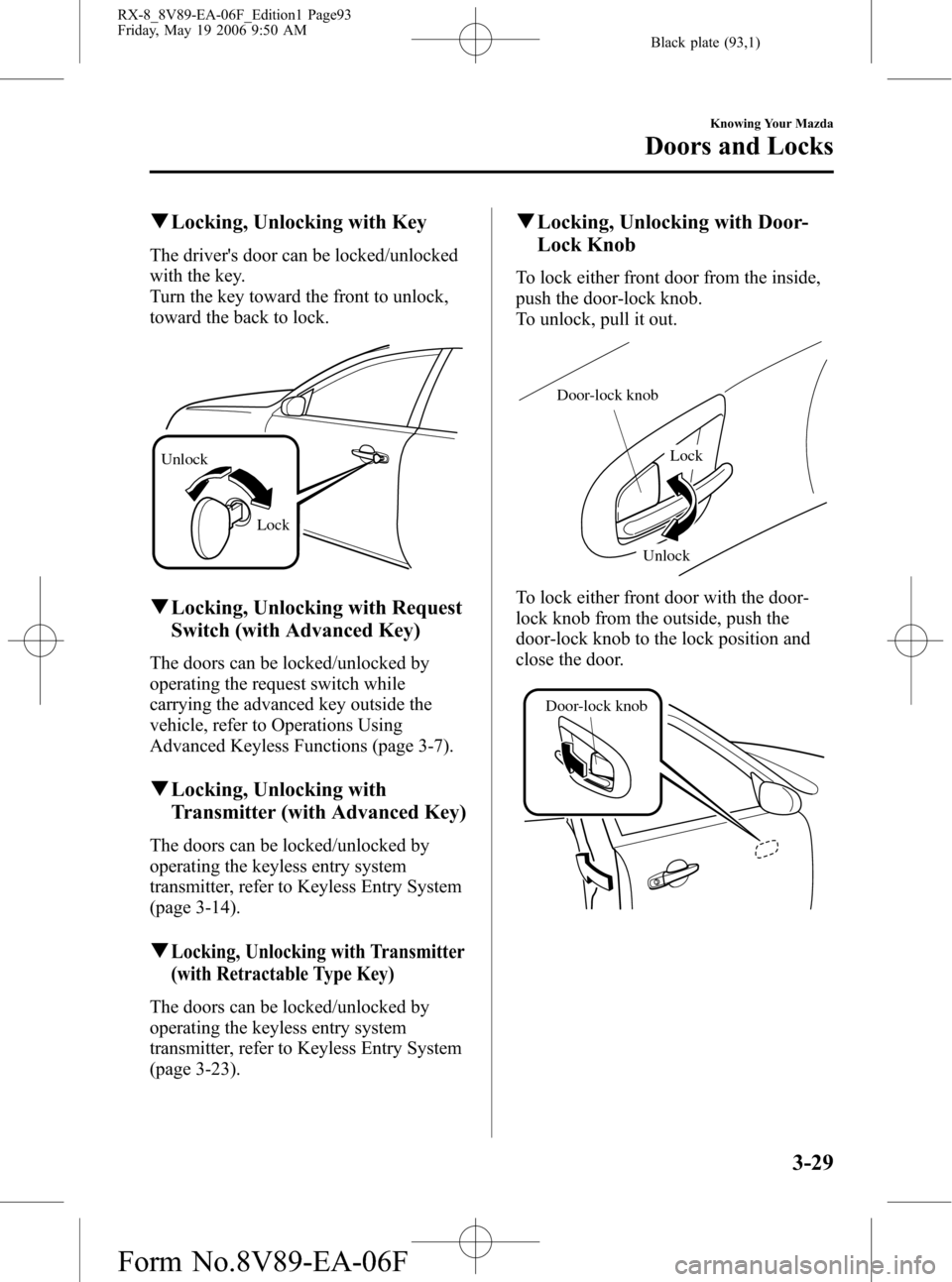

qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Lock Unlock
qLocking, Unlocking with Request
Switch (with Advanced Key)
The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-14).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-23).
qLocking, Unlocking with Door-
Lock Knob
To lock either front door from the inside,
push the door-lock knob.
To unlock, pull it out.
Lock
Unlock Door-lock knob
To lock either front door with the door-
lock knob from the outside, push the
door-lock knob to the lock position and
close the door.
Door-lock knob
Knowing Your Mazda
Doors and Locks
3-29
RX-8_8V89-EA-06F_Edition1 Page93
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (94,1)
NOTE
l(With advanced key)
The driver's door cannot be locked
using the door-lock knob from the
outside.
l(Without advanced key)
The driver's door cannot be locked
using the door-lock knob from the
outside if the key is in the ignition
switch.
lWhen locking the doors this way, be
careful not to leave the key inside the
vehicle.
qPower Door Locks
Vehicle lock-out prevention
(With advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. All doors will automatically
unlock if they are locked using the power
door locks with any door open.
(Without advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors will automatically unlock
if they are locked using the power door
locks with any door open.
Locking, unlocking with key
All doors lock automatically when the
driver's door is locked with the key. All
doors unlock when the driver's door is
unlocked and the key is held in the unlock
position for one second or longer.
Lock Unlock
NOTE
Holding the key in the unlocked
position in the driver's door lock for
about a second unlocks all doors. To
unlock only the driver's door, insert the
key into the driver's door lock and turn
the key briefly to the unlock position
and then immediately return it to the
center position.
Locking, unlocking with door-lock
switch
All doors lock automatically when LOCK
is pushed. They all unlock when the
unmarked part of the door-lock switch is
pushed.
3-30
Knowing Your Mazda
Doors and Locks
RX-8_8V89-EA-06F_Edition1 Page94
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (95,1)
Driver's door
Unlock
Lock
Passenger's door
Unlock
Lock
Locking, unlocking with request switch
(with advanced key)
All doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
Locking, unlocking with transmitter
(with advanced key)
All doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-14).
Locking, unlocking with transmitter
(with retractable type key)
All doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-23).
qFreestyle Doors
The pillarless freestyle doors are front and
rear-hinged for ease of ingress and egress
to the rear seat.
Opening the freestyle doors
1. Open the front door first.
Front door
2. Pull the rear door handle and open the
rear door.
Rear door handle
Knowing Your Mazda
Doors and Locks
3-31
RX-8_8V89-EA-06F_Edition1 Page95
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (96,1)
CAUTION
Before closing a front door make sure
other passengers are not operating a
rear door and a rear passenger's head or
hands are away from the rear door. If
the front door is closed while a
passenger is operating the rear door
handle, a hand or fingers could be
injured if the handle is forced back.
Also, a rear passenger could hit their
head against the door during access to
the rear seat.
NOTE
lThe rear door cannot be opened
while the front door is closed.
lMake sure the front seatbelt is
unfastened before the rear door is
opened. The rear door can't be
opened with the front seatbelt
fastened because the front seatbelt
may lock.
lIf any door is left open for more than
about an hour, the front seatbelt will
lock, and the rear door cannot be
opened. If this happens, close all
doors and open the rear door again.
lThis vehicle is not equipped with
child safety locks due to the design
of the front and rear doors. The rear
doors must be closed before the front
doors, and the rear doors cannot be
opened until the front doors are
opened.
Closing the freestyle doors
1. Close the rear door first, and then close
the front door.
Front door
Rear door
CAUTION
Before closing a front door make sure
other passengers are not operating a
rear door and a rear passenger's head or
hands are away from the rear door. If
the front door is closed while a
passenger is operating the rear door
handle, a hand or fingers could be
injured if the handle is forced back.
Also, a rear passenger could hit their
head against the door during access to
the rear seat.
NOTE
The front door cannot latch or lock
while the rear door is opened.
2. Make sure the freestyle doors are
securely closed.
3-32
Knowing Your Mazda
Doors and Locks
RX-8_8V89-EA-06F_Edition1 Page96
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (97,1)
WARNING
Make sure the rear door is closed
securely before closing the front door:
Driving with the doors not securely
closed is dangerous. If the rear door is
not completely closed, the front door
will not be securely closed. This could
cause the front door to open
unexpectedly while driving and may
result in an accident.
Trunk Lid
WARNING
Never allow a person to ride in the
trunk:
Allowing a person to ride in the trunk
is dangerous. In addition, the person
in the trunk could be seriously injured
or killed during sudden braking or a
collision.
Keep the trunk closed when driving:
Exhaust gas entering the cabin of a
vehicle through an open trunk is
dangerous. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous. If
inhaled, it can cause loss of
consciousness and death.
Knowing Your Mazda
Doors and Locks
3-33
RX-8_8V89-EA-06F_Edition1 Page97
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (98,1)
qOpening and Closing the Trunk
WARNING
Close the trunk lid and do not allow
children to play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking
doors and the trunk, and keeping the
keys where children can not play with
them:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car or the trunk
unlocked.
Opening the trunk lid with the key
Insert the key into the slot and turn it
clockwise.
Open
Opening the trunk lid with the request
switch (with advanced key)
The trunk lid can be opened by operating
the request switch on the trunk lid while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
Opening the trunk lid with the
transmitter (with advanced key)
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-14).
Opening the trunk lid with the
transmitter (with retractable type key)
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-23).
3-34
Knowing Your Mazda
Doors and Locks
RX-8_8V89-EA-06F_Edition1 Page98
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (99,1)
Opening the trunk lid with the remote
release button
Push the release button.
Closing the trunk lid
Grasp the inner handle and pull the trunk
lid down, then push the trunk lid down
until it locks securely. Be careful not to
slam it. Pull up on the trunk lid to make
sure it is secured.
Handle
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
Knowing Your Mazda
Doors and Locks
3-35
RX-8_8V89-EA-06F_Edition1 Page99
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F
