Black plate (70,1)
3. Insert a flathead screwdriver into the
crack and press the battery out.
4. Insert the new battery (CR2025 or
equivalent) with the positive pole (
)
facing the (
) mark on the cap.
5. Rotate and close the cap.
Cap
6. Reinsert the auxiliary key.
qService
If you have a problem with the advanced
keyless functions, consult an Authorized
Mazda Dealer.
If your advanced key is lost or stolen,
bring all remaining advanced keys to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen advanced key
inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
3-6
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8V89-EA-06F_Edition1 Page70
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (71,1)
Operation Using Advanced
Keyless Functions
qOperational Range
The system operates only when the driver
is in the vehicle or within operational
range while the advanced key is being
carried.
NOTE
When the battery power is low, or in
places where there are high-intensity
radio waves or noise, the operational
range may become narrower or the
system may not operate.
Locking, unlocking the doors
The operational range for locking/
unlocking the doors is an area of up to 80
cm (2.6 ft) from the center of the front
door handles.
Exterior transmitter
Operational range
NOTE
The system may not operate if you are
too close to the windows, door handles.
Opening the trunk lid
The operational range for opening the
trunk lid is an area of up to 80 cm (2.6 ft)
from the center of the trunk lid.
Exterior transmitter
Operational range
Starting the engine
The operational range for starting the
engine includes nearly the entire cabin
area.
Interior transmitter
O
perational range
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-7
RX-8_8V89-EA-06F_Edition1 Page71
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (72,1)
NOTE
lThe trunk is out of the operational
range, however, starting the engine
may be possible.
lThe engine may not start if the
advanced key is placed in the
following areas:
lAround the dashboardlIn the storage compartments such
as the glove box
lOn the rear parcel shelf
lStarting the engine may be possible
even if the advanced key is outside
of the vehicle and extremely close to
a door and window, however, always
start the engine from the driver's seat.
If the vehicle is started and the
advanced key is not in the vehicle,
the vehicle will not restart after it is
shut off and the ignition switch is
turned to the lock position.
lIf the advanced key is detected
within operational range, the
operation indicator light flashes
momentarily.
qLocking, Unlocking the Doors
with Request Switch
All doors can be locked/unlocked by
pressing the request switch on the front
doors while the advanced key is being
carried.
Request switch
To lock
To lock the doors, press the request
switch. A beep sound will be heard once
and the hazard warning lights will flash
once.
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock all doors , press the request
switch again within 3 seconds and two
more beep sounds will be heard.
3-8
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8V89-EA-06F_Edition1 Page72
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (73,1)
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash
twice to indicate that the doors are
unlocked.
(With theft-deterrent system)
lThe hazard warning lights will not
flash.
lThe hazard warning lights only flash
when the theft deterrent system is
armed or turned off, refer to the
theft-deterrent system (page 3-51).
Front passenger door request switch
To unlock the doors, press the request
switch. A beep sound will be heard twice
and the hazard warning lights will flash
twice.
NOTE
lConfirm that all doors are securely
locked.
lAll doors cannot be locked when any
door is open.
lA beep sound is heard for
confirmation when the doors are
locked/unlocked using the request
switch. If your prefer, the beep sound
can be turned off (page 3-20).
NOTE
lThe setting can be changed so that
the doors are locked automatically
without pressing the request switch
(page 3-20).
(Auto-lock function)
A beep sound is heard when all
doors are closed while the advanced
key is being carried. All doors are
locked automatically after about 3
seconds when the advanced key is
out of the operational range. Also,
the hazard warning lights flash once.
(Even if the driver is in the
operational range, all doors are
locked automatically after about 30
seconds.)
If you are out of the operational
range before the doors are
completely closed, the auto-lock
function will not work. Always make
sure that all doors are locked before
leaving the vehicle.
lAfter unlocking all doors by pressing
the request switch, all doors will
automatically lock if any of the
following operations are not
performed within about 30 seconds.
If your vehicle has a theft-deterrent
system, the hazard warning lights
will flash for confirmation.
lA door is opened.lThe auxiliary key is inserted into
the ignition switch.
lThe start knob is pushed.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-9
RX-8_8V89-EA-06F_Edition1 Page73
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (74,1)
qOpening the Trunk Lid with
Request Switch
The trunk lid can be opened by pressing
the request switch on the under side of the
trunk lid above the license plate while the
advanced key is being carried.
Request switch
NOTE
If the advanced key is left in the trunk,
the trunk lid will close. However, the
trunk lid can be opened by pressing the
request switch.
qStarting the Engine
Ignition switch positions
Without a traditional key, some of the
ignition switch functions are different.
Start knob
LOCK (Released)
The steering wheel locks to help protect
against theft.
LOCK (Depressed)
The ignition switch can be turned to the
ACC position when the KEY indicator
light (green) illuminates in the instrument
cluster.
WARNING
Before leaving the driver's seat,
always set the parking brake and
make sure the shift lever is in P with
an automatic transmission or in 1 or R
with a manual transmission:
Leaving the driver's seat without
setting the parking brake and the shift
lever is dangerous. Unexpected vehicle
movement could occur. This could
cause an accident.
NOTE
lIf turning the ignition switch is
difficult, jiggle the steering wheel
from side to side.
l(Automatic transmission)
The ignition switch cannot be turned
from the ACC position to the LOCK
position when the shift lever is not in
P.
ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
3-10
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8V89-EA-06F_Edition1 Page74
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (75,1)
NOTE
The Advanced Keyless Entry System
does not function in the ACC position,
and the doors will not lock/unlock even
if they have been locked manually or
the advanced key is carried away from
the vehicle.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-39).
NOTE
When the ignition switch is turned to
the ON position, the sound of the fuel
pump motor operating near the fuel
tank can be heard. This does not
indicate an abnormality.
START
The engine is started in this position. It
will crank until you release the start knob;
then it returns to the ON position. The
brake warning light can be checked after
the engine is started (page 5-39).
Starting the engine
NOTE
lEngine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of
radio noise.
lThe advanced key must be carried
because the advanced key carries an
immobilizer chip that must
communicate with the engine
controls at short range.
lWhen starting the engine, be sure the
start knob is securely attached before
trying to operate it. If the knob
becomes detached from the ignition
switch, re-attach it by pushing it on
to the ignition switch.
1. Make sure the advanced key is being
carried.
2. Occupants should fasten their seat
belts.
3. Make sure the parking brake is on.
4. Depress the brake pedal.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
RX-8_8V89-EA-06F_Edition1 Page75
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (76,1)
5.(Manual transmission)
Depress the clutch pedal all the way
and shift into neutral.
Keep the clutch pedal depressed while
cranking the engine.
(Automatic transmission)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transmission)
The starter will not operate if the clutch
pedal isnotdepressed all the way.
(Automatic transmission)
The starter will not operate if the shift
lever is not in P or N.
6. Push the start knob slowly all the way
in.
7. Verify that the KEY indicator light
(green) illuminates in the instrument
cluster. The KEY warning light (red)
means you cannot continue to start the
engine (page 3-21).
NOTE
In the following cases, the KEY
warning light (red) illuminates and the
engine will not start.
lThe advanced key battery is dead.
lThe advanced key is out of
operational range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
3-12
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8V89-EA-06F_Edition1 Page76
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (77,1)

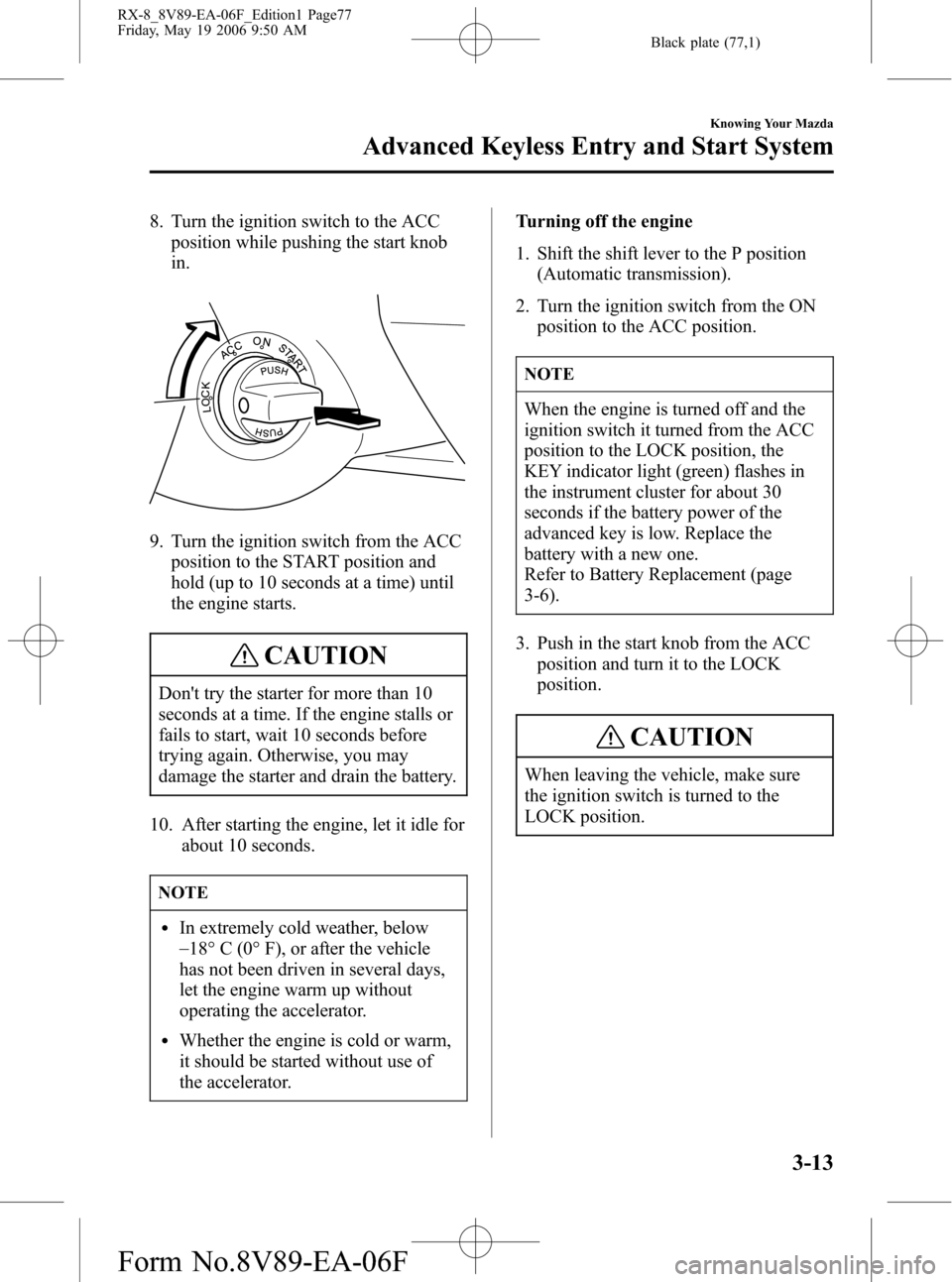

8. Turn the ignition switch to the ACC
position while pushing the start knob
in.
9. Turn the ignition switch from the ACC
position to the START position and
hold (up to 10 seconds at a time) until
the engine starts.
CAUTION
Don't try the starter for more than 10
seconds at a time. If the engine stalls or
fails to start, wait 10 seconds before
trying again. Otherwise, you may
damage the starter and drain the battery.
10. After starting the engine, let it idle for
about 10 seconds.
NOTE
lIn extremely cold weather, below
_
18° C (0° F), or after the vehicle
has not been driven in several days,
let the engine warm up without
operating the accelerator.
lWhether the engine is cold or warm,
it should be started without use of
the accelerator.Turning off the engine
1. Shift the shift lever to the P position
(Automatic transmission).
2. Turn the ignition switch from the ON
position to the ACC position.
NOTE
When the engine is turned off and the
ignition switch it turned from the ACC
position to the LOCK position, the
KEY indicator light (green) flashes in
the instrument cluster for about 30
seconds if the battery power of the
advanced key is low. Replace the
battery with a new one.
Refer to Battery Replacement (page
3-6).
3. Push in the start knob from the ACC
position and turn it to the LOCK
position.
CAUTION
When leaving the vehicle, make sure
the ignition switch is turned to the
LOCK position.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-13
RX-8_8V89-EA-06F_Edition1 Page77
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (78,1)
NOTE
lWhen turning the ignition switch to
the LOCK position, the ignition
switch has to be pushed in from the
ACC position and turned. Without
being pushed in, the ignition switch
stops at the ACC position and the
vehicle battery may be discharged if
the ignition switch is left in the ACC
position. When leaving the vehicle,
make sure the ignition switch is
turned to the LOCK position.
lIf the vehicle is left with the ignition
switch not in the LOCK position, a
beep sound is heard and the indicator
light flashes to notify the driver.
Refer to Warning Beep (page 3-18).
Operation Using Advanced
Key Functions
qKeyless Entry System
This system remotely locks and unlocks
the doors and opens the trunk lid.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed
to operate up to about 2.5 m (8 ft)
from the center of the vehicle, but
this may vary due to local
conditions.
lThe system does not operate when
the ignition switch is not in the
LOCK position or the start knob is
pushed in.
lWith the start knob installed in the
LOCK position, the system is fully
operational. If the ignition switch is
not in the LOCK position or the start
knob is pushed in, the system does
not operate.
lAll doors cannot be locked by
pressing the lock button while any
door is open. The hazard warning
lights will also not flash.
lIf the transmitter does not operate
when pressing a button or the
operational range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-5).
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8V89-EA-06F_Edition1 Page78
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (79,1)
Transmitter
Panic button
Unlock buttonLock button
Trunk button
NOTE
l(U.S.A.)
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
this device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors, press the lock button. A
beep sound will be heard once and the
hazard warning lights will flash once.To confirm that all doors have been
locked, press the lock button again within
5 seconds. If they are closed and locked,
the horn will sound.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash
once to indicate that all doors are
locked.
(With theft-deterrent system)
lThe hazard warning lights will not
flash.
lThe hazard warning lights only flash
when the theft deterrent system is
armed or turned off, refer to the
theft-deterrent system (page 3-51).
NOTE
lAll doors cannot be locked when any
door is open.
lConfirm that all doors are locked
visually or audibly by use of the
double click.
Unlock button
To unlock the driver's door, press the
unlock button. A beep will be heard twice
and the hazard warning lights will flash
twice.
To unlock all doors , press the unlock
button again within 3 seconds and two
more beep sounds will be heard.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-15
RX-8_8V89-EA-06F_Edition1 Page79
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F
