NOTElEach mark from the Full mark equates to
about 0.5 L (0.5 US qt, 0.4 Imp qt).
There are 3 marks between Low and Full.
Full
Low
0.5 L (0.5 US qt, 0.4 Imp qt)
1.0 L (1.1 US qt, 0.9 Imp qt)
1.5 L (1.6 US qt, 1.3 Imp qt)
2.0 L (2.1 US qt, 1.8 Imp qt)
lVerify that the engine cover is securely
installed.
Engine Coolant
qInspecting Coolant Level
WARNING
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become
very hot. You could be burned.
Carefully inspect the engine coolant
in the coolant reservoir, but do not
open it.
Turn off the ignition switch and
make sure the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove the cooling
system cap when the engine and
radiator are hot:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
8-14
Maintenance and Care
Owner Maintenance
RX-8_8AT5-EA-09E_Edition1 Page344
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (345,1)
NOTE
Once the engine coolant exceeds a preset
temperature, an electrical cooling fan turns
on. It will continue running for about 10
minutes after the Turn the ignition switch to
the ACC position.
NOTE
Changing the coolant should be done by an
Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of the
winter season―and before traveling
where temperatures may drop below
freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the F and L marks
on the coolant reservoir when the engine
is cool.
If it's at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
CAUTION
ØRadiator coolant will damage
paint.
Rinse it off quickly if spilled.
ØUse only soft (demineralized)
water in the coolant mixture.
Water that contains minerals will
cut down on the coolant's
effectiveness.
ØDon't add only water. Always add
a proper coolant mixture.
ØThe engine has aluminum parts
and must be protected by an
ethylene-glycol-based coolant to
prevent corrosion and freezing.
ØDO NOT USE coolants Containing
Alcohol, methanol, Borate or
Silicate.
These coolants could damage the
cooling system.
ØDO NOT MIX alcohol or methanol
with the coolant. This could
damage the cooling system.
ØDon't use a solution that contains
more than 60% antifreeze.
This would reduce effectiveness.
Maintenance and Care
Owner Maintenance
8-15
RX-8_8AT5-EA-09E_Edition1 Page345
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (346,1)
NOTE
If the“FL22”mark is shown on or near the
cooling system cap, use FL22 type engine
coolant. If engine coolant other than FL22
type is used, the engine coolant must be
replaced earlier than the specified replacement
interval indicated in the scheduled
maintenance (page 8-3).
If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
Brake/Clutch Fluid
qInspecting Brake/Clutch Fluid Level
The brakes and clutch draw fluid from the
same reservoir.
Inspect the fluid level in the reservoir
regularly. It should be kept at MAX.
The level normally drops with
accumulated distance, a condition
associated with wear of brake and clutch
linings. If it is excessively low, have the
brake/clutch system inspected by an
Authorized Mazda Dealer.
8-16
Maintenance and Care
Owner Maintenance
RX-8_8AT5-EA-09E_Edition1 Page346
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (347,1)

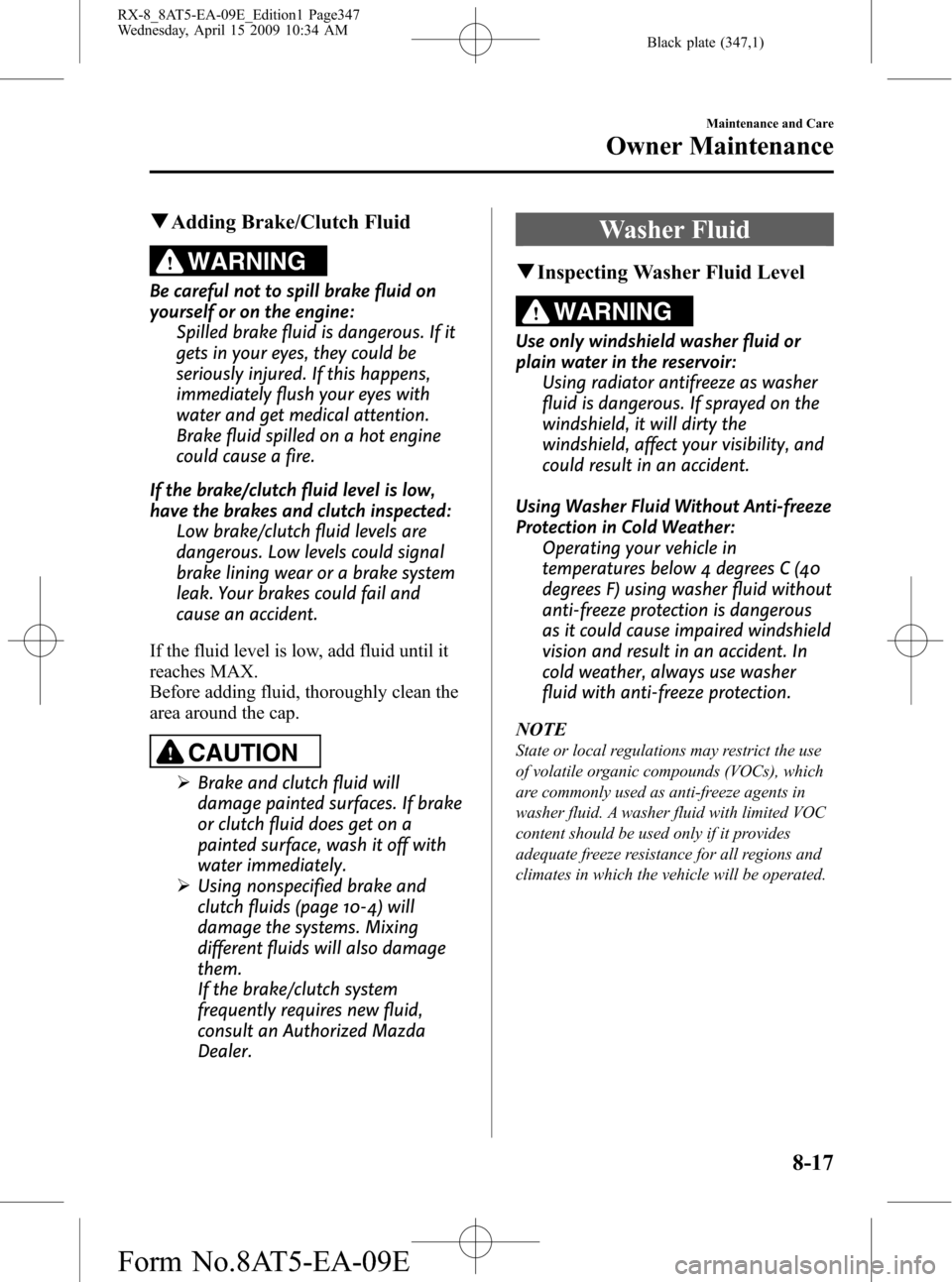

qAdding Brake/Clutch Fluid
WARNING
Be careful not to spill brake fluid on
yourself or on the engine:
Spilled brake fluid is dangerous. If it
gets in your eyes, they could be
seriously injured. If this happens,
immediately flush your eyes with
water and get medical attention.
Brake fluid spilled on a hot engine
could cause a fire.
If the brake/clutch fluid level is low,
have the brakes and clutch inspected:
Low brake/clutch fluid levels are
dangerous. Low levels could signal
brake lining wear or a brake system
leak. Your brakes could fail and
cause an accident.
If the fluid level is low, add fluid until it
reaches MAX.
Before adding fluid, thoroughly clean the
area around the cap.
CAUTION
ØBrake and clutch fluid will
damage painted surfaces. If brake
or clutch fluid does get on a
painted surface, wash it off with
water immediately.
ØUsing nonspecified brake and
clutch fluids (page 10-4) will
damage the systems. Mixing
different fluids will also damage
them.
If the brake/clutch system
frequently requires new fluid,
consult an Authorized Mazda
Dealer.
Washer Fluid
qInspecting Washer Fluid Level
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.
Using Washer Fluid Without Anti-freeze
Protection in Cold Weather:
Operating your vehicle in
temperatures below 4 degrees C (40
degrees F) using washer fluid without
anti-freeze protection is dangerous
as it could cause impaired windshield
vision and result in an accident. In
cold weather, always use washer
fluid with anti-freeze protection.
NOTE
State or local regulations may restrict the use
of volatile organic compounds (VOCs), which
are commonly used as anti-freeze agents in
washer fluid. A washer fluid with limited VOC
content should be used only if it provides
adequate freeze resistance for all regions and
climates in which the vehicle will be operated.
Maintenance and Care
Owner Maintenance
8-17
RX-8_8AT5-EA-09E_Edition1 Page347
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (348,1)
Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.
Full
LowOK
Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold weather
to prevent it from freezing.
Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
8-18
Maintenance and Care
Owner Maintenance
RX-8_8AT5-EA-09E_Edition1 Page348
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (353,1)
NOTElRemove the engine and battery covers
before performing battery maintenance.
Engine cover
Battery cover
lIf the cover has been removed, install it in
the reverse order of removal.
qBattery Maintenance
To get the best service from a battery:lKeep it securely mounted.lKeep the top clean and dry.lKeep terminals and connections clean,
tight, and coated with petroleum jelly
or terminal grease.
lRinse off spilled electrolyte
immediately with a solution of water
and baking soda.
lIf the vehicle will not be used for an
extended time, disconnect the battery
cables.
Tires
For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inflation pressures and
stay within the recommended load limits
and weight distribution.
WARNING
Using Different Tire Types:
Driving your vehicle with different
types of tires is dangerous. It could
cause poor handling and poor
braking; leading to loss of control.
Use all radial, all bias-belted, or all
bias-type tires.
Using Wrong-Sized Tires:
Using any other tire size than what is
specified for your Mazda (page 10-6)
is dangerous. It could seriously affect
ride, handling, ground clearance, tire
clearance, and speedometer
calibration. This could cause you to
have an accident. Use only tires that
are the correct size specified for your
Mazda.
qTire Inflation Pressure
WARNING
Always inflate the tires to the correct
pressure:
Overinflation or underinflation of
tires is dangerous. Adverse handling
or unexpected tire failure could result
in a serious accident.
Refer to specification charts on page
10-6.
Maintenance and Care
Owner Maintenance
8-23
RX-8_8AT5-EA-09E_Edition1 Page353
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (359,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
Replacing a headlight bulb
Low-beam bulb
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.High-beam bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. If you are changing the right headlight
bulb, start the engine, turn the steering
wheel all the way to the right, and turn
off engine. If you are changing the left
headlight bulb, turn the steering wheel
to the left.
3. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Removal
Installation
4. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
Maintenance and Care
Owner Maintenance
8-29
RX-8_8AT5-EA-09E_Edition1 Page359
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (361,1)

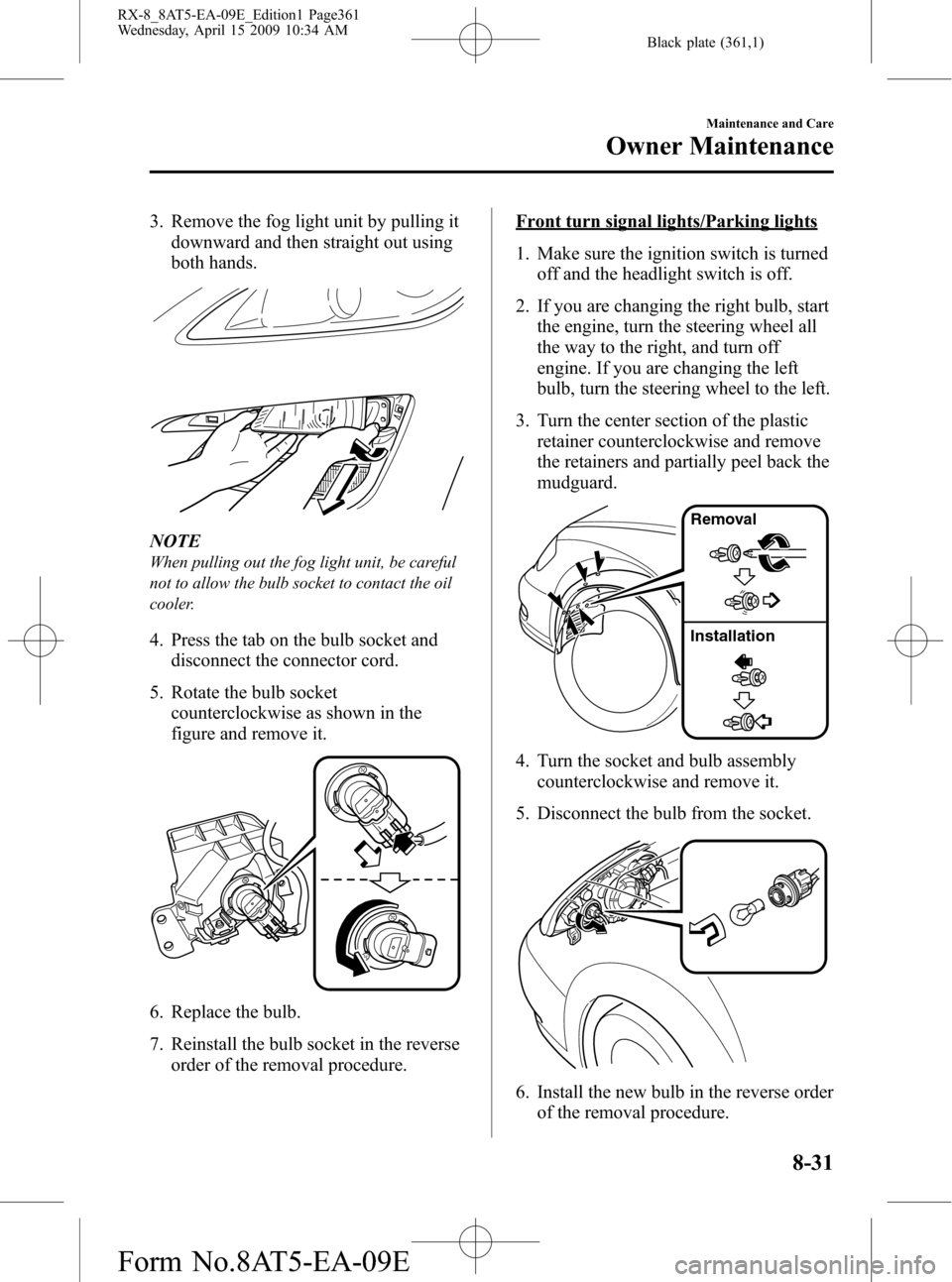

3. Remove the fog light unit by pulling it
downward and then straight out using
both hands.
NOTE
When pulling out the fog light unit, be careful
not to allow the bulb socket to contact the oil
cooler.
4. Press the tab on the bulb socket and
disconnect the connector cord.
5. Rotate the bulb socket
counterclockwise as shown in the
figure and remove it.
6. Replace the bulb.
7. Reinstall the bulb socket in the reverse
order of the removal procedure.
Front turn signal lights/Parking lights
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
3. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Removal
Installation
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order
of the removal procedure.
Maintenance and Care
Owner Maintenance
8-31
RX-8_8AT5-EA-09E_Edition1 Page361
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (367,1)
3. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
4. Inspect the fuse and replace it if it's
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
Next to air filter
Engine cover
Battery cover
Near battery
NOTE
Remove the engine and battery covers before
removing the fuse block cover near the battery.
Maintenance and Care
Owner Maintenance
8-37
RX-8_8AT5-EA-09E_Edition1 Page367
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E

Black plate (368,1)
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
NOTE
Verify that the engine cover is securely
installed.
8-38
Maintenance and Care
Owner Maintenance
RX-8_8AT5-EA-09E_Edition1 Page368
Wednesday, April 15 2009 10:34 AM
Form No.8AT5-EA-09E
