Black plate (105,1)

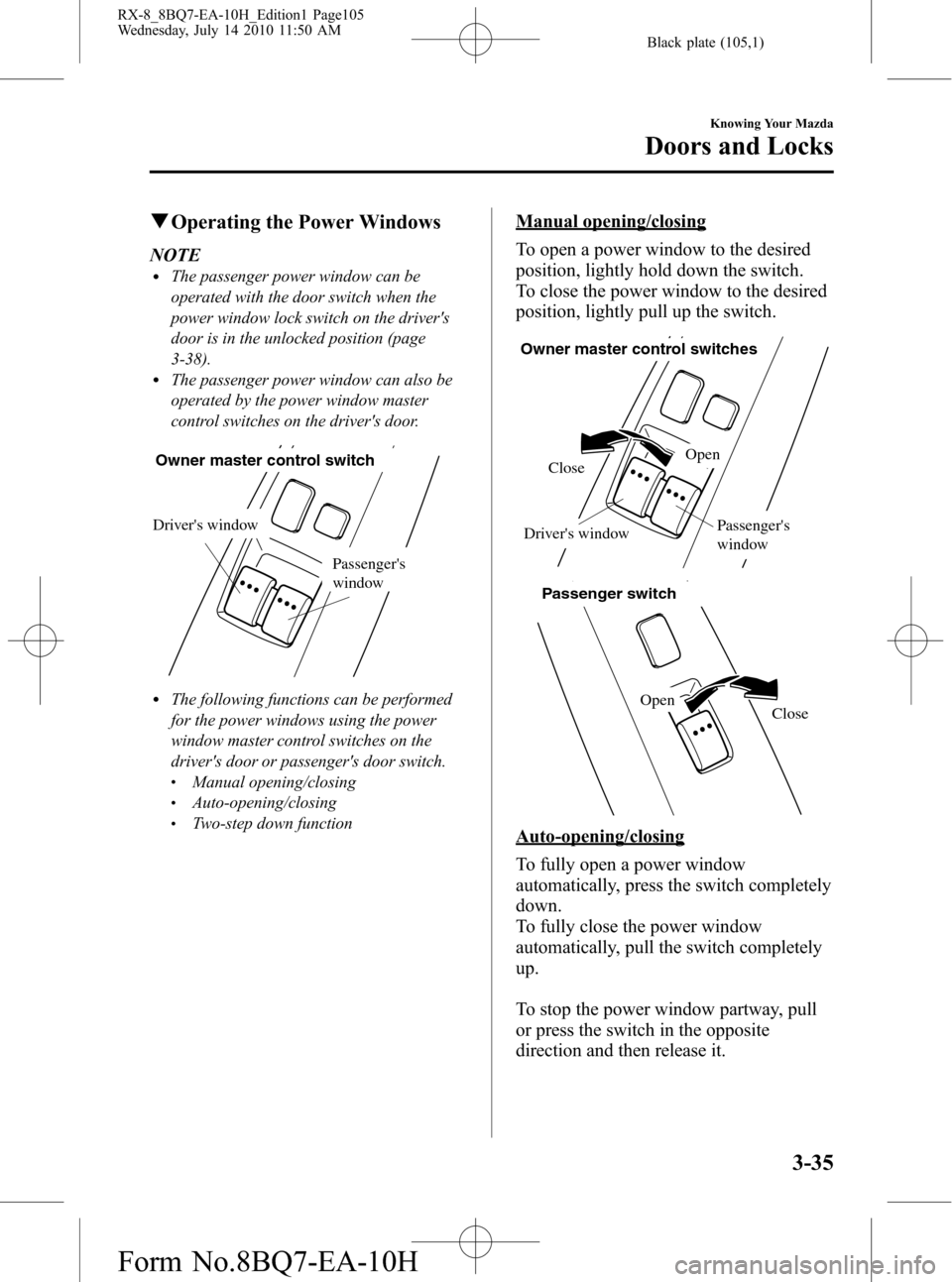

qOperating the Power Windows
NOTElThe passenger power window can be
operated with the door switch when the
power window lock switch on the driver's
door is in the unlocked position (page
3-38).
lThe passenger power window can also be
operated by the power window master
control switches on the driver's door.
Driver's window
Owner master control switch
Passenger's
window
lThe following functions can be performed
for the power windows using the power
window master control switches on the
driver's door or passenger's door switch.
lManual opening/closinglAuto-opening/closinglTwo-step down function
Manual opening/closing
To open a power window to the desired
position, lightly hold down the switch.
To close the power window to the desired
position, lightly pull up the switch.
Driver's windowCloseOpen
Passenger's
window
Owner master control switches
OpenClose
Passenger switch
Auto-opening/closing
To fully open a power window
automatically, press the switch completely
down.
To fully close the power window
automatically, pull the switch completely
up.
To stop the power window partway, pull
or press the switch in the opposite
direction and then release it.
Knowing Your Mazda
Doors and Locks
3-35
RX-8_8BQ7-EA-10H_Edition1 Page105
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (106,1)
NOTE
(POWER WINDOW RESET PROCEDURE)
If the battery was disconnected during vehicle
maintenance, or for other reasons such as a
switch continues to be operated after the
window is fully open/close, the power windows
will not fully open and close automatically.
Resetting of the automatic function can be
performed using the driver's master control
switch or the passenger door switch.
The power window auto function reset
procedure can be done on one or both door
switches. The power window auto function will
only resume on the side that has been reset.
1. Switch the ignition ON.
2. Make sure that the power window lock
switch located on the driver's door is not
depressed.
3. Press the switch and fully open the power
window.
4. Pull up the switch to fully close the power
window and continue holding the switch for
about 2 seconds after the window fully
closes.
5. Repeat Steps 3-4 for the passenger power
window.
6. Make sure that the power windows operate
correctly using the door switches.
Two-step down function
With the power window completely
closed, press the switch lightly and it will
open and stop about 3 cm (1 in) from the
top.
If you continue to press and hold the
switch, the window will resume opening
all the way.NOTE
Pressing the power window switch once when
the window is fully closed will only open it
about 3 cm (1 in) to allow convenient
ventilation of the cabin.
Canceling the two-step down function
To cancel the two-step down function for
the power windows, carry out the
following procedure using the master
control switches.
1. Switch the ignition ON and complete
the following procedure within 5
seconds:
Press the power window switch 2 times
firmly, then pull it 2 times firmly.
Driver's windowPassenger's
window
Owner master control switches
2. Switch the ignition off.
3. With the ignition off, and within 40
seconds, switch the ignition ON and
complete the following procedure
within 5 seconds:
Press the power window switch 2 times
firmly, then pull 2 times firmly.
3-36
Knowing Your Mazda
Doors and Locks
RX-8_8BQ7-EA-10H_Edition1 Page106
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (107,1)
NOTElThe two-step down function cannot be
canceled if the procedure is not completed
within the specified times, or the procedure
is changed along the way. To redo the
procedure, first switch the ignition off and
proceed from the beginning.
lIf you are unable to cancel the function
despite carrying out the cancellation
procedure, consult an Authorized Mazda
Dealer.
Restoring the two-step down function
With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.
NOTE
If you are unable to restore the function despite
doing the restore procedure, consult an
Authorized Mazda Dealer.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:
Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.NOTE
lDepending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is
similar to something blocking it.
In the event the jam-safe function activates
and the power window cannot be closed
automatically, pull and hold the switch fully
and the window will close.
lThe jam-safe window function does not
operate until the system is re-initialized.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power window will be inoperable.
NOTE
lFor engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.
lThe two-step down function is inoperable
during engine-off operation.
Knowing Your Mazda
Doors and Locks
3-37
RX-8_8BQ7-EA-10H_Edition1 Page107
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (108,1)
qPower Window Lock Switch
With the lock switch in the unlocked
position (button not depressed), all power
windows on each door can be operated.
With the lock switch in the locked
position (button depressed), only the
driver's side power window can be
operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
qOpening/Closing the Power
Windows from Outside
Both power windows can be opened or
closed from outside the vehicle after the
doors are closed.
The power windows may be operated
remotely when the power window lock
switch on the driver's door is in the lock
or unlocked position.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
NOTE
lThe power windows cannot be opened or
closed from outside the vehicle under the
following condition:
lA door is opened.lThe key is inserted into the ignition
switch.
lThe ignition is in any position except
OFF. (With advanced key)
lThe power windows may not close
completely. Make sure all the windows are
closed.
If the power windows cannot be closed
completely, operate each power window
switch from inside the vehicle. After closing
the windows from outside the vehicle, verify
that they are completely closed.
Opening
Because nobody likes getting into a very
hot car, Mazda has introduced a way to
open the both windows as you approach
the vehicle to get the air moving before
you get in.
3-38
Knowing Your Mazda
Doors and Locks
RX-8_8BQ7-EA-10H_Edition1 Page108
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (109,1)
WARNING
Use the remote auto-window function
only when you can see the vehicle and
it is in a secure area:
Do not let children play with your
keys. If they open the window
without your knowing, the open
windows are an even bigger
invitation to a thief than leaving the
doors unlocked.
The windows can be opened for
ventilating the cabin before getting in the
vehicle.
With unlock button (Keyless entry
system)
Press the unlock button on the transmitter
once, then press again within 1.5 seconds
and hold.
After the doors are unlocked, both
windows open while the unlock button is
pressed.
To stop the windows while opening,
release the button.
If the operation is performed from the
beginning again, the windows open.
Advanced key
Panic button
Unlock buttonLock button
Trunk button
Retractable type key
Lock button
Unlock button
Trunk buttonPanic button
Operation
indicator light
NOTElThe unlock button does not operate unless
it is pressed twice sequentially.
lThe lock button cannot be used to close the
power windows.
With key
1. Insert the key in the driver's door key
cylinder.
2. Turn the key counterclockwise and
hold until the windows are completely
open. After the doors are unlocked, the
windows fully open automatically.
Open
To stop this operation, turn the key to the
center position, then turn it
counterclockwise again.
Knowing Your Mazda
Doors and Locks
3-39
RX-8_8BQ7-EA-10H_Edition1 Page109
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (110,1)
NOTE
The window opening operation also can be
stopped by turning the key clockwise. However,
the doors will lock.
Closing
The windows can be closed in case they
are left open after getting out of the
vehicle.
NOTE
(With advanced key)
If the auto-lock function (page 3-8) has been
activated, the doors automatically lock as you
walk away from the vehicle, however, the
power windows cannot be closed. When
leaving the vehicle, close the windows using
the power window switch inside the vehicle,
the key, or a request switch on the front door
handles.
With key
1. Insert the key in the driver's door key
cylinder.
2. Turn the key clockwise and hold until
the windows are completely close.
After the doors are locked, the
windows close as long as the key is
turned.
Close
With request switch on the driver's
door (Advanced key)
1. If the doors are locked, unlock them.
2. Press and hold the request switch on
the driver's door. After the doors are
locked, the windows close as long as
the request switch is pressed.
Request switch
To stop the windows from closing, release
the request switch. If the operation is
performed from the beginning again, the
windows close.
3-40
Knowing Your Mazda
Doors and Locks
RX-8_8BQ7-EA-10H_Edition1 Page110
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (111,1)
Rear Quarter Windows
Open or close a swing-out rear quarter
window by releasing the latch and moving
the window.
NOTE
When parked in public areas, it is best to keep
the rear quarter windows closed for security.
qOpening a Window
Pull the latch inward and then push the
window outward.
qClosing a Window
Pull the latch inward and then push it
backward until it snaps shut. Make sure
the window is securely closed.
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
Knowing Your Mazda
Doors and Locks
3-41
RX-8_8BQ7-EA-10H_Edition1 Page111
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (121,1)
NOTElIf the security indicator light illuminates
and stays on or flashes when the ignition is
switched ON, the engine will not start.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone, could
interfere with your immobilizer system. If
you are using the proper key and your
engine fails to start, check the security
indicator light. If it is flashing, remove the
ignition key and wait 2 seconds or more,
then reinsert it and try starting the engine
again. If it does not start after 3 or more
tries, contact an Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If you
shut off the engine while the light is
flashing you will not be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the keys
are needed. Bring all the existing keys to an
Authorized Mazda Dealer.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
Theft-Deterrent System
If the theft deterrent system detects an
inappropriate entry into the vehicle, which
could result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.
Refer to Operation on page 3-51.
NOTE
lThe theft-deterrent system operates with the
key or the keyless entry system transmitter.
l(With advanced key)
The theft-deterrent system can also be
operated using the advanced keyless
function.
The system operates only when the driver is
in the vehicle or within operational range
while the advanced key is being carried.
lThe system will not function unless it is
properly armed. To properly secure the
vehicle, always make sure all windows are
completely closed and all doors and the
trunk lid are locked before leaving the
vehicle. Remember to take your key and
transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 3
minutes when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
trunk lid.
lUnlocking a door with the inside door-
lock knob.
lUnlocking a door with the door lock
switch.
lOpening the hood by operating the
hood release handle.
Knowing Your Mazda
Security System
3-51
RX-8_8BQ7-EA-10H_Edition1 Page121
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (122,1)
lOpening the trunk lid by operating the
trunk lid release button.
If the system is triggered again, the lights
and horn will activate until a door is
unlocked or the trunk lid is opened with
the key or with the transmitter.
(With advanced key)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
NOTE
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights will
flash when the battery is charged or replaced.
qHow to Arm the System
1. Close the windows and the moonroofí
securely.
2. Remove the key from the ignition
switch.
(With advanced key)
Switch the ignition off with the start
knob.
3. Make sure all windows, the
moonroof
í, the hood and the trunk lid
are closed. Close and lock all doors
from the outside using the key or press
the lock button on your keyless entry
system transmitter.
The hazard warning lights will flash
once to indicate that the system is
armed.
The following method will also arm the
theft-deterrent system:
(With advanced key)
Press a request switch on the doors or
the lock button on the transmitter.
(Without advanced key)
Close the hood and the trunk lid. Press
the area on the door-lock switch
marked“LOCK”once. Close all doors.NOTE
Locking the doors with the inside door-lock
knob will not arm the system.
NOTE
When the doors are locked by pressing the lock
button on the transmitter or request switch on
the front doors or using the key while the theft-
deterrent system is armed, the hazard warning
lights will flash once to indicate that the
system is armed.
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and switch the ignition ON.
l(With advanced key)lPress a request switch on the doors
or the unlock button on the
transmitter.
lSwitch the ignition ON with the
start knob.
The hazard warning lights will flash twice
to indicate that the system is turned off.
NOTE
lThe trunk lid can be opened with the key or
the transmitter even when the system is
armed. The alarm will not come on and the
system will remain armed.
lWhen the doors are unlocked by pressing
the unlock button on the transmitter or
request switch on the front doors or using
the key while the theft-deterrent system is
turned off, the hazard warning lights will
flash twice to indicate that the system is
turned off.
3-52
Knowing Your Mazda
íSome models.
Security System
RX-8_8BQ7-EA-10H_Edition1 Page122
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (123,1)
qTo Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.lOpen the trunk lid with the key.lPress the unlock button or press and
hold the trunk button on the keyless
entry system transmitter.
l(With advanced key)lPress a request switch on the doors.lPress the unlock button or press and
hold the trunk button on the
transmitter.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized Mazda
Dealer.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
Knowing Your Mazda
Security System
3-53
RX-8_8BQ7-EA-10H_Edition1 Page123
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H
