Rear Quarter Windows
Open or close a swing-out rear quarter
window by releasing the latch and moving
the window.
NOTE
When parked in public areas, it is best to keep
the rear quarter windows closed for security.
qOpening a Window
Pull the latch inward and then push the
window outward.
qClosing a Window
Pull the latch inward and then push it
backward until it snaps shut. Make sure
the window is securely closed.
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
Knowing Your Mazda
Doors and Locks
3-41
RX-8_8BQ7-EA-10H_Edition1 Page111
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (112,1)
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
To close the fuel-filler cap, turn it
clockwise until two or more clicks are
heard.
Open
Close
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap is
not tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven,
and restarted the engine several
times), it may indicate a different
problem. Contact an Authorized
Mazda Dealer as soon as possible.
3-42
Knowing Your Mazda
Doors and Locks
RX-8_8BQ7-EA-10H_Edition1 Page112
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (113,1)
Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Insert your hand into the hood opening
and slide the hood latch lever to the
right and lift the hood.
3. Grasp the support rod in the padded
area and secure it in the stay hole
indicated by the arrow to hold the hood
open.
Clip
Support rod Pad
qClosing the Hood
WARNING
Do not leave items in the engine
compartment:
After you have finished checking or
doing servicing in the engine
compartment, do not forget and
leave items such as tools or rags in
the engine compartment.
Tools or other items left in the engine
compartment could cause engine
damage or a fire leading to an
unexpected accident.
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while
holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
Knowing Your Mazda
Doors and Locks
3-43
RX-8_8BQ7-EA-10H_Edition1 Page113
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (114,1)
Moonroofí
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Tilt switch Slide switch
WARNING
Do not let passengers stand up or
extend part of their body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a
person―especially a child―could
be caught in it as it closes, causing
serious injury or even death.NOTE
Before washing your Mazda, make sure the
moonroof is completely closed so that water
does not get inside the cabin area. After
washing your Mazda or after it rains, wipe the
water off the moonroof before operating it to
avoid water penetration which could cause
rust and water damage to your headliner.
qTilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
press the rear of the tilt switch.
To stop tilting partway, press any part of
the tilt or slide switch.
To close to the desired position, press the
front of the tilt or slide switch.
CloseTilt up
Close
qSlide Operation
To fully open automatically, momentarily
press the rear of the slide switch.
To stop sliding partway, press any part of
the tilt or slide switch.
3-44
Knowing Your Mazda
íSome models.
Doors and Locks
RX-8_8BQ7-EA-10H_Edition1 Page114
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (115,1)

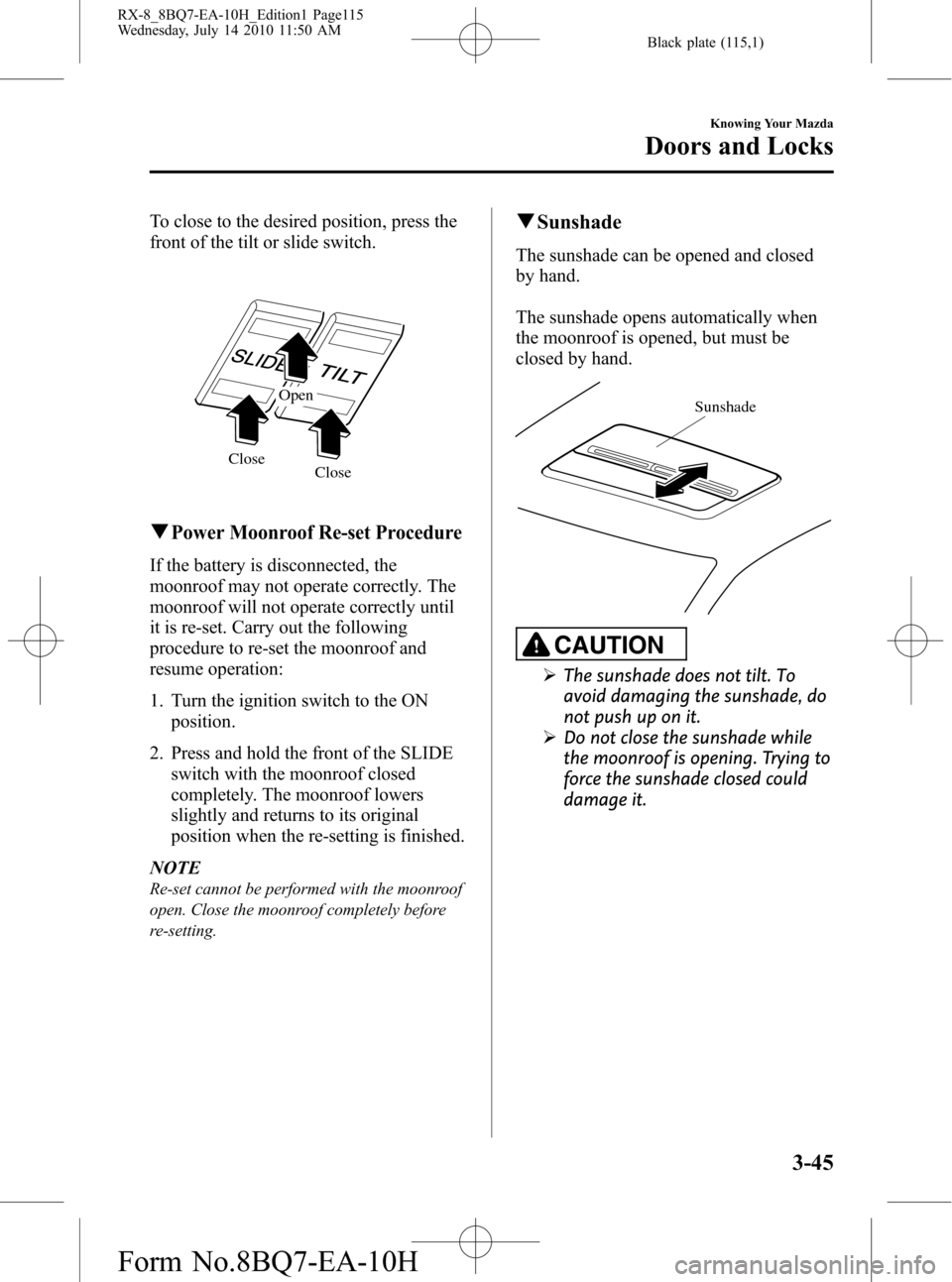

To close to the desired position, press the
front of the tilt or slide switch.
Close CloseOpen
qPower Moonroof Re-set Procedure
If the battery is disconnected, the
moonroof may not operate correctly. The
moonroof will not operate correctly until
it is re-set. Carry out the following
procedure to re-set the moonroof and
resume operation:
1. Turn the ignition switch to the ON
position.
2. Press and hold the front of the SLIDE
switch with the moonroof closed
completely. The moonroof lowers
slightly and returns to its original
position when the re-setting is finished.
NOTE
Re-set cannot be performed with the moonroof
open. Close the moonroof completely before
re-setting.
qSunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
CAUTION
ØThe sunshade does not tilt. To
avoid damaging the sunshade, do
not push up on it.
ØDo not close the sunshade while
the moonroof is opening. Trying to
force the sunshade closed could
damage it.
Knowing Your Mazda
Doors and Locks
3-45
RX-8_8BQ7-EA-10H_Edition1 Page115
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (121,1)
NOTElIf the security indicator light illuminates
and stays on or flashes when the ignition is
switched ON, the engine will not start.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone, could
interfere with your immobilizer system. If
you are using the proper key and your
engine fails to start, check the security
indicator light. If it is flashing, remove the
ignition key and wait 2 seconds or more,
then reinsert it and try starting the engine
again. If it does not start after 3 or more
tries, contact an Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If you
shut off the engine while the light is
flashing you will not be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the keys
are needed. Bring all the existing keys to an
Authorized Mazda Dealer.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
Theft-Deterrent System
If the theft deterrent system detects an
inappropriate entry into the vehicle, which
could result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.
Refer to Operation on page 3-51.
NOTE
lThe theft-deterrent system operates with the
key or the keyless entry system transmitter.
l(With advanced key)
The theft-deterrent system can also be
operated using the advanced keyless
function.
The system operates only when the driver is
in the vehicle or within operational range
while the advanced key is being carried.
lThe system will not function unless it is
properly armed. To properly secure the
vehicle, always make sure all windows are
completely closed and all doors and the
trunk lid are locked before leaving the
vehicle. Remember to take your key and
transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 3
minutes when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
trunk lid.
lUnlocking a door with the inside door-
lock knob.
lUnlocking a door with the door lock
switch.
lOpening the hood by operating the
hood release handle.
Knowing Your Mazda
Security System
3-51
RX-8_8BQ7-EA-10H_Edition1 Page121
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (122,1)
lOpening the trunk lid by operating the
trunk lid release button.
If the system is triggered again, the lights
and horn will activate until a door is
unlocked or the trunk lid is opened with
the key or with the transmitter.
(With advanced key)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
NOTE
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights will
flash when the battery is charged or replaced.
qHow to Arm the System
1. Close the windows and the moonroofí
securely.
2. Remove the key from the ignition
switch.
(With advanced key)
Switch the ignition off with the start
knob.
3. Make sure all windows, the
moonroof
í, the hood and the trunk lid
are closed. Close and lock all doors
from the outside using the key or press
the lock button on your keyless entry
system transmitter.
The hazard warning lights will flash
once to indicate that the system is
armed.
The following method will also arm the
theft-deterrent system:
(With advanced key)
Press a request switch on the doors or
the lock button on the transmitter.
(Without advanced key)
Close the hood and the trunk lid. Press
the area on the door-lock switch
marked“LOCK”once. Close all doors.NOTE
Locking the doors with the inside door-lock
knob will not arm the system.
NOTE
When the doors are locked by pressing the lock
button on the transmitter or request switch on
the front doors or using the key while the theft-
deterrent system is armed, the hazard warning
lights will flash once to indicate that the
system is armed.
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and switch the ignition ON.
l(With advanced key)lPress a request switch on the doors
or the unlock button on the
transmitter.
lSwitch the ignition ON with the
start knob.
The hazard warning lights will flash twice
to indicate that the system is turned off.
NOTE
lThe trunk lid can be opened with the key or
the transmitter even when the system is
armed. The alarm will not come on and the
system will remain armed.
lWhen the doors are unlocked by pressing
the unlock button on the transmitter or
request switch on the front doors or using
the key while the theft-deterrent system is
turned off, the hazard warning lights will
flash twice to indicate that the system is
turned off.
3-52
Knowing Your Mazda
íSome models.
Security System
RX-8_8BQ7-EA-10H_Edition1 Page122
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (123,1)
qTo Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.lOpen the trunk lid with the key.lPress the unlock button or press and
hold the trunk button on the keyless
entry system transmitter.
l(With advanced key)lPress a request switch on the doors.lPress the unlock button or press and
hold the trunk button on the
transmitter.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized Mazda
Dealer.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
Knowing Your Mazda
Security System
3-53
RX-8_8BQ7-EA-10H_Edition1 Page123
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (124,1)
Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:
Adjusting the steering wheel while
the vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident.
qTilt Steering Wheel
To change the angle of the steering wheel,
stop the vehicle, pull the tilt wheel release
lever under the steering column down,
adjust the wheel, then push the release
lever up to lock the column.
Tilt wheel release
lever
After adjusting, push the wheel up and
down to be certain it's locked before
driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Power mirror
The ignition must be switched to ACC or
ON.
To adjust:
1. Press the left or right side of the
selector switch to choose the left or
right side mirror.
3-54
Knowing Your Mazda
Steering Wheel and Mirrors
RX-8_8BQ7-EA-10H_Edition1 Page124
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (125,1)
2. Depress the mirror switch in the
appropriate direction.
Mirror switchSelector switch
Outside mirror
After adjusting the mirror, lock the control
by placing the selector switch in the
center position.
Folding the mirror
Fold the outside mirror rearward until it is
locked.
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
qRearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Manual day/night mirror
Auto-dimming mirror
Knowing Your Mazda
Steering Wheel and Mirrors
3-55
RX-8_8BQ7-EA-10H_Edition1 Page125
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H
