Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
lDo not race the engine.lDo not maintain one constant speed,
either slow or fast, for a long period of
time.
lDo not drive constantly at full-throttle
or high engine rpm (over 7,000 rpm)
for extended periods of time.
lAvoid unnecessary hard stops.lAvoid full-throttle starts.
Money-Saving Suggestions
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
lAvoid long warm-ups. Once the engine
runs smoothly, begin driving.
lAvoid fast starts.lKeep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
lUse the air conditioner only when
necessary.
lSlow down on rough roads.lKeep the tires properly inflated.lDo not carry unnecessary weight.lDo not rest your foot on the brake
pedal while driving.
lFor improved engine starting
performance the next time you start the
engine after only driving the vehicle a
short distance, turn off the engine after
1 or more of the variable red zone
lamps in the tachometer have turned
off.
In addition, it is recommended that
short trips be avoided to ensure that the
engine reaches operating temperature
before turning off the engine.
lKeep the wheels in correct alignment.lKeep windows closed at high speeds.lSlow down when driving in crosswinds
and headwinds.
4-6
Before Driving Your Mazda
Driving Tips
RX-8_8BQ7-EA-10H_Edition1 Page134
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (218,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switched ON
when the engine is not running.
qClearing the Air Inlet
Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along with the
heater to dehumidify the air.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
6-2
Interior Comfort
Climate Control System
RX-8_8BQ7-EA-10H_Edition1 Page218
Wednesday, July 14 2010 11:51 AM
Form No.8BQ7-EA-10H

Black plate (333,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance ............................................................ 8-3
Owner Maintenance ..................................................................... 8-8
Owner Maintenance Schedule .................................................. 8-8
Owner Maintenance Precautions ............................................... 8-9
Engine Compartment Overview .............................................. 8-11
Engine Oil ............................................................................... 8-12
Engine Coolant ....................................................................... 8-14
Brake/Clutch Fluid .................................................................. 8-16
Washer Fluid ........................................................................... 8-17
Body Lubrication .................................................................... 8-18
Wiper Blades ........................................................................... 8-19
Battery ..................................................................................... 8-21
Tires ........................................................................................ 8-23
Light Bulbs ............................................................................. 8-28
Fuses ....................................................................................... 8-36
Appearance Care ........................................................................ 8-42
How to Minimize Environmental Paint Damage .................... 8-42
Exterior Care ........................................................................... 8-44
Interior Care ............................................................................ 8-48
8-1
RX-8_8BQ7-EA-10H_Edition1 Page333
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (335,1)

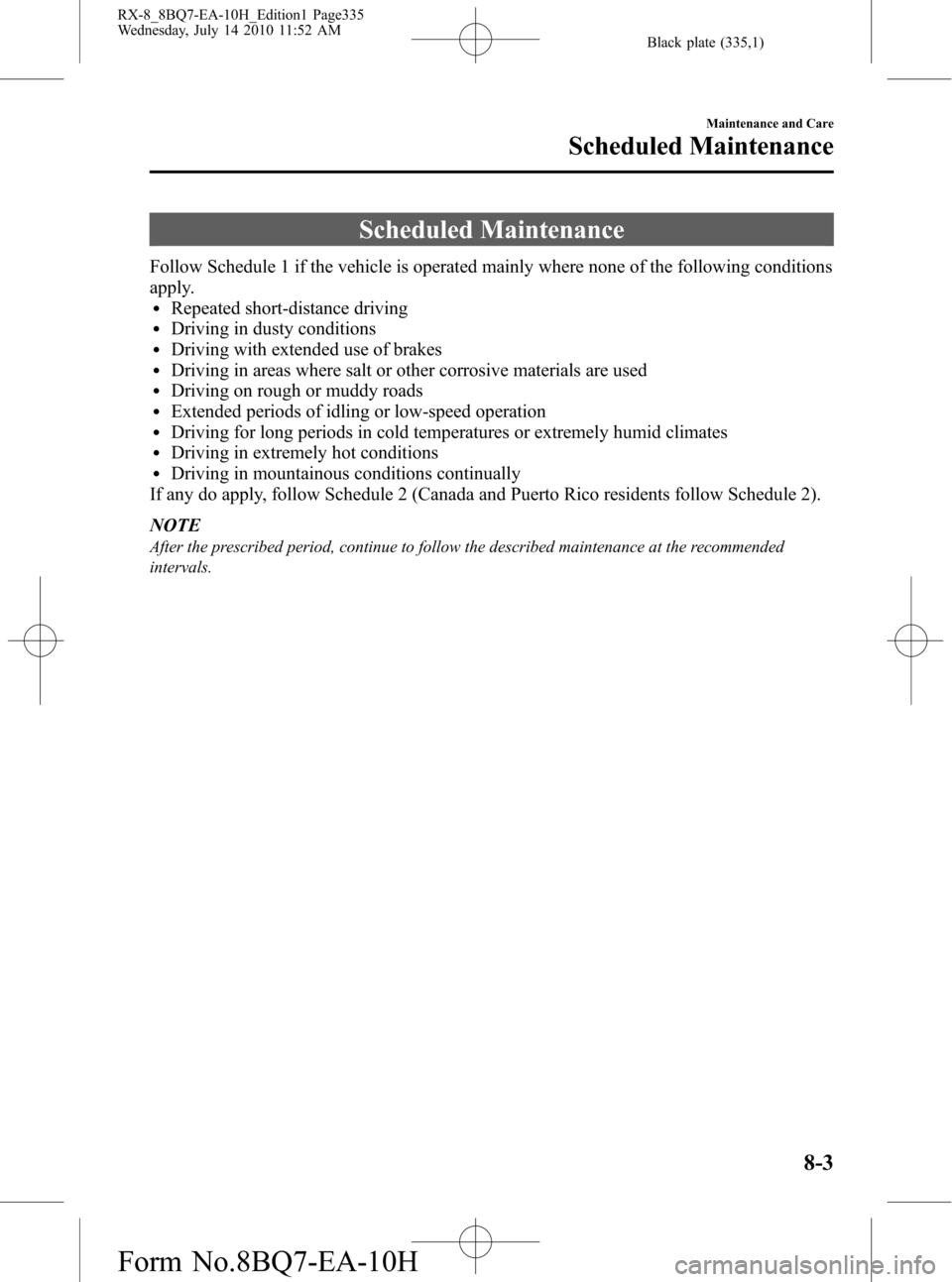

Scheduled Maintenance
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
lRepeated short-distance drivinglDriving in dusty conditionslDriving with extended use of brakeslDriving in areas where salt or other corrosive materials are usedlDriving on rough or muddy roadslExtended periods of idling or low-speed operationlDriving for long periods in cold temperatures or extremely humid climateslDriving in extremely hot conditionslDriving in mountainous conditions continually
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).
NOTE
After the prescribed period, continue to follow the described maintenance at the recommended
intervals.
Maintenance and Care
Scheduled Maintenance
8-3
RX-8_8BQ7-EA-10H_Edition1 Page335
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (336,1)
qSchedule 1
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
ENGINE
Engine oilRRRRRRRR
Engine oil filterRRRRRRRR
Drive belts I I
COOLING SYSTEM
Engine coolantFL22 type
*1Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years
OthersReplace at first 96,000 km (60,000 miles) or 4 years; after that,
every 2 years
FUEL SYSTEM
Air filter R
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs R
CHASSIS and BODY
Brake lines, hoses and connections I I
Disc brakesIIII
Tire (Rotation) Rotate every 12,000 km (7,500 miles)
Flat tire repair kit
*3Inspect annually
Steering operation and linkages I I
Front and rear suspension, ball joints and wheel
bearing axial playII
Manual transmission oilR
Rear differential oilR
Driveshaft dust boots I I
Bolts and nuts on chassis and body T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years
All locks and hingesLLLLLLLL
8-4
Maintenance and Care
Scheduled Maintenance
RX-8_8BQ7-EA-10H_Edition1 Page336
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (337,1)
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
AIR CONDITIONER SYSTEM
Cabin air filter Replace every 40,000 km (25,000 miles) or 2 years
Chart symbols:
I:Inspect: Inspect and clean, repair, adjust, fill up or replace if necessary.
R:Replace
L:Lubricate
T:Tighten
Remarks:
*1 Use FL22 type coolant in vehicles with the inscription“FL22”on the radiator cap itself or the surrounding
area. Use FL22 when replacing the coolant.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
*3 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
Maintenance and Care
Scheduled Maintenance
8-5
RX-8_8BQ7-EA-10H_Edition1 Page337
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (338,1)
qSchedule 2
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Engine oilPuerto Rico Replace every 5,000 km (3,000 miles) or 3 months
OthersRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
Drive belts I I
COOLING SYSTEM
Engine coolantFL22 type
*1Replace at first 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years
OthersReplace at first 96,000 km (60,000 miles) or 4 years; after that,
every 2 years
Engine coolant levelIIIIIIIIIIII
FUEL SYSTEM
Air filter R
Fuel lines and hoses
*2II
Hoses and tubes for emission*2I
IGNITION SYSTEM
Spark plugs R
ELECTRICAL SYSTEM
Function of all lightsIIIIIIIIIIII
8-6
Maintenance and Care
Scheduled Maintenance
RX-8_8BQ7-EA-10H_Edition1 Page338
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (339,1)
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
CHASSIS and BODY
Brake lines, hoses and connections I I
Brake and clutch fluid levelIIIIIIIIIIII
Brake fluid R R
Disc brakesIIII
Tire (Rotation) Rotate every 8,000 km (5,000 miles)
Tire inflation pressure and tire wearIIIIIIIIIIII
Flat tire repair kit
*3Inspect annually
Steering operation and linkages I I
Front and rear suspension, ball joints and wheel
bearing axial playII
Manual transmission oil R R
Rear differential oil R R
Driveshaft dust boots I I
Bolts and nuts on chassis and body T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
AIR CONDITIONER SYSTEM
Cabin air filter Replace every 40,000 km (25,000 miles) or 2 years
Chart symbols:
I:Inspect: Inspect and clean, repair, adjust, fill up or replace if necessary.
R:Replace
L:Lubricate
T:Tighten
Remarks:
*1 Use FL22 type coolant in vehicles with the inscription“FL22”on the radiator cap itself or the surrounding
area. Use FL22 when replacing the coolant.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
*3 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
Maintenance and Care
Scheduled Maintenance
8-7
RX-8_8BQ7-EA-10H_Edition1 Page339
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (340,1)
Owner Maintenance Schedule
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
qWhen Refueling
lBrake and clutch fluid level (page 8-16)lEngine coolant level (page 8-14)lEngine oil level (page 8-13)lWasher fluid level (page 8-17)
qAt Least Monthly
Tire inflation pressures (page 8-24)
qAt Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
lEngine coolant (page 8-14)lEngine oil (page 8-12)
8-8
Maintenance and Care
Owner Maintenance
RX-8_8BQ7-EA-10H_Edition1 Page340
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H

Black plate (357,1)
qTire Rotation
WARNING
Rotate tires periodically:
Irregular tire wear is dangerous. To
equalize tread wear for maintaining
good performance in handling and
braking, rotate the tires according to
the scheduled maintenance charts.
Refer to Scheduled Maintenance on
page 8-3.
During rotation, inspect them for correct
balance.
NOTE
Because your vehicle is not equipped with a
spare tire, you cannot do a tire rotation safely
with the jack that comes with your vehicle.
Have an Authorized Mazda Dealer perform
tire rotation.
Do not include (TEMPORARY USE ONLY)
spare tire in rotation.Forward
Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:
lIncorrect tire pressurelImproper wheel alignmentlOut-of-balance wheellSevere brakingAfter rotation, inflate all tire pressures to
specification (page 10-6) and inspect the
lug nuts for tightness.
CAUTION
Rotate unidirectional tires and radial
tires that have an asymmetrical tread
pattern or studs only from front to
rear, not from side to side. Tire
performance will be reduced if
rotated from side to side.
CAUTION
Limited-Slip Differential system;
don't use the following:
ØTires not of the designated size
ØTires of different sizes or types at
the same time
ØTires not sufficiently inflated
If these instructions aren't followed,
the rotation of the left and right
wheels will be different and will thus
apply a constant load on the limited-
slip differential.
This will cause a malfunction.
qReplacing a Tire
WARNING
Always use tires that are in good
condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.
Replace all four tires at the same time:
Replacing just one tire is dangerous.
It could cause poor handling and
poor braking resulting in loss of
vehicle control. Mazda strongly
recommends that you replace all four
tires at the same time.
Maintenance and Care
Owner Maintenance
8-25
RX-8_8BQ7-EA-10H_Edition1 Page357
Wednesday, July 14 2010 11:52 AM
Form No.8BQ7-EA-10H
