Black plate (22,1)
Programmed seat positions can be
activated using the following function:
lProgramming buttons 1, 2, or 3.
Operation using the seat-side buttons
Programming
Park the vehicle in a safe location before
performing the seat position
programming. (Vehicle must be stopped)
1. Adjust the seat to the desired position.
For each seat position adjustment
method refer to the following pages:
Seat Slide (page 2-7)
Seat Recline (page 2-8)
Height Adjustment (page 2-9)
2. While holding the SET button in, press
the desired programming button 1, 2,
or 3 until a beep sound is heard.
The button is programmed after a beep
sound is heard. Other buttons can be
programmed using the same procedure.
NOTE
Vehicle maintenance or other reasons
requiring the vehicle battery to be
disconnected will result in the seat position
memory being erased.
In this case, re-program the seat positions.
Seat position activation
While the vehicle is parked safely, press
and hold a programming button 1, 2, or 3
for the desired seat position.
When the seat is in the programmed
position, a beep sound is heard.NOTE
If any of the following occurs, the seat position
activation function cancels:
lA seat adjustment switch other than a
lumbar support switch is operated.
lThe vehicle moves or starts to move.lThe selected programming button 1, 2, or 3
or the SET button is pressed again.
lThe SET button is operated.
qLumbar Support Adjustment
The amount of lumbar support can be
adjusted by pressing the switch.
To increase the seat firmness, press and
hold the front part of the switch to the
desired position, then release it.
Press the rear part of the switch to
decrease firmness.
qFolding the Seat
WARNING
Never lower a front seatback while an
occupant is seated in the seat, even if
the vehicle is parked safely:
Lowering a front seatback while an
occupant is seated in the seat is
dangerous because the seatback
folds down suddenly when operated
which could cause an injury.
2-10
Essential Safety Equipment
Seats
RX-8_8BQ7-EA-10H_Edition1 Page22
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (23,1)
Because your vehicle has free-style doors
(page 3-29), the rear door cannot be
opened while the front door is closed. To
exit the rear seating area, fold the front
seatback forward using the following
procedure and open the front door first.
Seatback folding
Press and hold the upper part of the
switch while the vehicle is parked safely
to slide the seat forward and fold the
seatback forward.
To return the seatback to its on-road
position
Press and hold the lower part of the switch
while the vehicle is parked safely to slide
the seat rearward and raise the seatback.
NOTE
The operation cancels in the following cases:lA seat adjustment switch other than a
lumbar support switch is operated.
lThe set button is operated.lAny programming button―is
pressed.
lThe vehicle moves or starts to move.
The seat stops moving when it returns to
its on-road position. A beep sound is
heard at this time.
NOTE
lPressing and holding the lower part of the
switch again after the seat has returned to
its on-road position will move the seat
farther rearward.
lVehicle maintenance or other reasons
requiring the vehicle battery to be
disconnected will result in the seat position
memory being erased. As a result, the seat
will continue to slide rearward and the
seatback will lower rearward. Operate a
switch other than a lumbar support
adjustment switch to adjust the seat
position.
Essential Safety Equipment
Seats
2-11
RX-8_8BQ7-EA-10H_Edition1 Page23
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (83,1)
Turning the engine off
NOTE
For improved engine starting performance the
next time you start the engine after only
driving the vehicle a short distance, turn off
the engine after 1 or more of the variable red
zone lamps in the tachometer have turned off.
1. Move the shift lever to the P position
(Automatic transmission).
2. Switch the ignition from ON to ACC.
NOTE
When the engine is turned off and the ignition
is switched from ACC to OFF/LOCK, the KEY
indicator light (green) flashes in the instrument
cluster for about 30 seconds if the battery
power of the advanced key is low. Replace the
battery with a new one.
Refer to Battery Replacement (page 3-6).
3. Push in the start knob from the ACC
position and turn it to the OFF/LOCK.
CAUTION
When leaving the vehicle, make sure
the ignition is switched to OFF/LOCK.
NOTE
lWhen switching the ignition to OFF/LOCK,
the ignition switch has to be pushed in from
the ACC position and turned. Without being
pushed in, the ignition switch stops at the
ACC position and the vehicle battery may
be discharged if the ignition switch is left in
the ACC position. When leaving the vehicle,
make sure the ignition is switched to OFF/
LOCK.
lIf the vehicle is left with the ignition not
switched to OFF/LOCK, a beep sound is
heard and the indicator light flashes to
notify the driver.
Refer to Warning Beep (page 3-17).
Operation Using Advanced
Key Functions
qKeyless Entry System
This system uses the more traditional
keyless entry buttons to remotely lock and
unlock the doors and opens the trunk lid,
and opens the power windows.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
auxiliary key is in the ignition switch.
lWith the start knob installed in the OFF/
LOCK position, the system is fully
operational. If the ignition is not switched
off or the start knob is pushed in, the system
does not operate.
lAll doors cannot be locked by pressing the
lock button while any door is open. The
hazard warning lights will also not flash.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-13
RX-8_8BQ7-EA-10H_Edition1 Page83
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (85,1)
NOTE
The hazard warning lights flash when the theft
deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
When the doors are unlocked by pressing the
unlock button on the transmitter while the
theft-deterrent system is turned off, the hazard
warning lights will flash twice to indicate that
the system is turned off.
Refer to the theft-deterrent system on page
3-51.
NOTE
(Auto re-lock function)
After unlocking with the transmitter, all doors
will automatically lock and the hazard
warning light will flash if any of the following
operations are not performed within about 30
seconds.
lA door is opened.lThe auxiliary key is inserted into the
ignition switch.
lThe start knob is pressed.
Trunk button
To open the trunk, press the trunk button
for more than 1 second.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
NOTE
However, if the driver is too close to the
vehicle the panic button may not function.
(Turning off the alarm)
The alarm stops by pressing any button on
the transmitter.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-15
RX-8_8BQ7-EA-10H_Edition1 Page85
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (87,1)
Warning and Beep Sounds
qSystem Malfunction Warning Light
If any malfunction occurs in the advanced
keyless function, the KEY warning light
(red) in the instrument cluster illuminates
continuously.
CAUTION
If the KEY warning light (red) remains
illuminated, do not continue to drive
the vehicle with the advanced keyless
function. Park the vehicle in a safe
place and use the auxiliary key to
continue driving the vehicle. Have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Ignition Switch (page 5-2).
qStart Knob Not in LOCK
Warning Beep
If the ignition is switched to ACC and the
driver's door is opened, a continuous beep
sound will be heard to notify the driver
that the ignition has not been switched off.
In this case, the keyless entry system does
not operate, the car cannot be locked, and
the battery will run down.
qAdvanced Key Removed from
Vehicle Warning Beep
Under the following conditions, a beep
sound will be heard and the KEY warning
light (red) will flash continuously when
the ignition has not been switched off to
notify the driver that the advanced key has
been removed. The KEY warning light
(red) will stop flashing when the advanced
key is back inside the vehicle:
lThe ignition has not been switched off,
the driver's door is open, and the
advanced key is removed from the
vehicle. (A beep sound will be heard
three times.)
However the beep sound will be heard
continuously when the ignition is
switched to ACC and the door is open
due to the activation of the warning
beep sound indicating that the ignition
is not switched off.
lThe ignition has not been switched off
and all the doors are closed after
removing the advanced key from the
vehicle. (A beep sound will be heard
six times.)
NOTE
Because the advanced key utilizes low-intensity
radio waves, the Advanced Key Removed From
Vehicle Warning may activate if the advanced
key is carried together with a metal object or it
is placed in a poor signal reception area
within the vehicle.
qRequest Switch Inoperable
Warning Beep
If the request switch for a front door is
pressed under the following conditions
while the advanced key is being carried, a
beep will be heard 6 times to indicate that
the front doors cannot be locked.
lA door is open (door ajar included).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-17
RX-8_8BQ7-EA-10H_Edition1 Page87
Wednesday, July 14 2010 11:49 AM
Form No.8BQ7-EA-10H

Black plate (107,1)
NOTElThe two-step down function cannot be
canceled if the procedure is not completed
within the specified times, or the procedure
is changed along the way. To redo the
procedure, first switch the ignition off and
proceed from the beginning.
lIf you are unable to cancel the function
despite carrying out the cancellation
procedure, consult an Authorized Mazda
Dealer.
Restoring the two-step down function
With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.
NOTE
If you are unable to restore the function despite
doing the restore procedure, consult an
Authorized Mazda Dealer.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:
Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.NOTE
lDepending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is
similar to something blocking it.
In the event the jam-safe function activates
and the power window cannot be closed
automatically, pull and hold the switch fully
and the window will close.
lThe jam-safe window function does not
operate until the system is re-initialized.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power window will be inoperable.
NOTE
lFor engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.
lThe two-step down function is inoperable
during engine-off operation.
Knowing Your Mazda
Doors and Locks
3-37
RX-8_8BQ7-EA-10H_Edition1 Page107
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (132,1)
Engine Exhaust (Carbon Monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:
Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss
of consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine:
Exhaust gas is dangerous. When your vehicle is stopped with the windows closed
and the engine running for a long time even in an open area, exhaust gas, which
contains poisonous carbon monoxide, could enter the cabin. Loss of consciousness or
even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe,
before starting the engine:
Running the engine when a vehicle is stopped in deep snow is dangerous. The
exhaust pipe could be blocked by the snow, allowing exhaust gas to enter the cabin.
Because exhaust gas contains poisonous carbon monoxide, it could cause loss of
consciousness or even death to occupants in the cabin.
4-4
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
RX-8_8BQ7-EA-10H_Edition1 Page132
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (134,1)

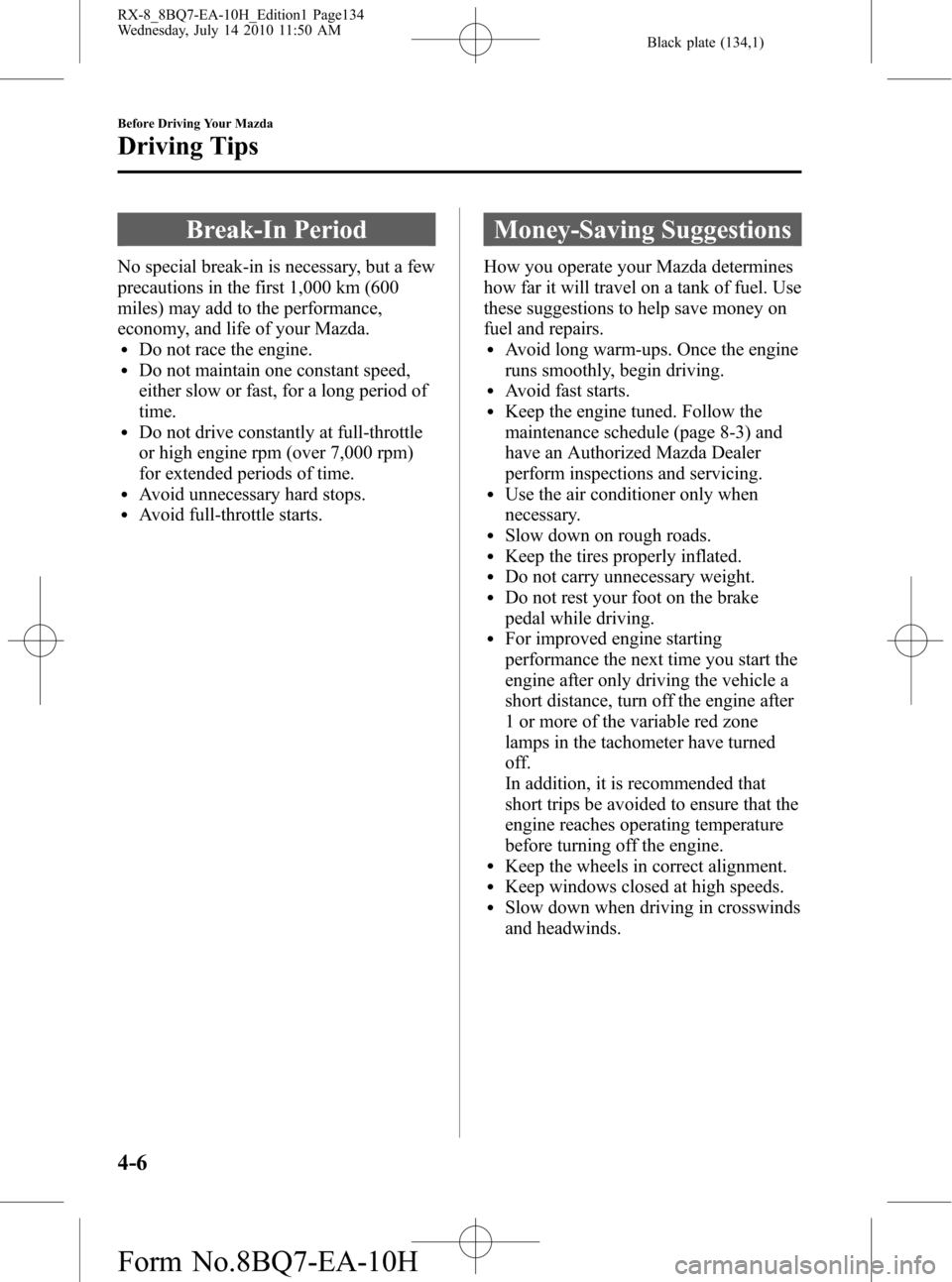

Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
lDo not race the engine.lDo not maintain one constant speed,
either slow or fast, for a long period of
time.
lDo not drive constantly at full-throttle
or high engine rpm (over 7,000 rpm)
for extended periods of time.
lAvoid unnecessary hard stops.lAvoid full-throttle starts.
Money-Saving Suggestions
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
lAvoid long warm-ups. Once the engine
runs smoothly, begin driving.
lAvoid fast starts.lKeep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
lUse the air conditioner only when
necessary.
lSlow down on rough roads.lKeep the tires properly inflated.lDo not carry unnecessary weight.lDo not rest your foot on the brake
pedal while driving.
lFor improved engine starting
performance the next time you start the
engine after only driving the vehicle a
short distance, turn off the engine after
1 or more of the variable red zone
lamps in the tachometer have turned
off.
In addition, it is recommended that
short trips be avoided to ensure that the
engine reaches operating temperature
before turning off the engine.
lKeep the wheels in correct alignment.lKeep windows closed at high speeds.lSlow down when driving in crosswinds
and headwinds.
4-6
Before Driving Your Mazda
Driving Tips
RX-8_8BQ7-EA-10H_Edition1 Page134
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (135,1)
WARNING
Never stop the engine when going
down a hill:
Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause
damage to the drivetrain. Any loss of
steering or braking control could
cause an accident.
Hazardous Driving
WARNING
Be extremely careful if it is necessary to
downshift on slippery surfaces:
Downshifting into lower gear while
driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid.
This could lead to loss of vehicle
control and an accident.
Do not rely on ABS as a substitute for
safe driving:
The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), driving on ice and
snow, and hydroplaning (reduced tire
friction and road contact because of
water on the road surface). You can
still have an accident.
When driving on ice or in water, snow,
mud, sand, or similar hazards:
lBe cautious and allow extra distance
for braking.
lAvoid sudden braking and sudden
maneuvering.
lDo not pump the brakes. Continue to
press down on the brake pedal.
Refer to Anti-Lock Brake System
(ABS) on page 5-9.
lIf you get stuck, select a lower gear and
accelerate slowly. Do not spin the rear
wheels.
lFor more traction in starting on
slippery surfaces such as ice or packed
snow, use sand, rock salt, chains,
carpeting, or other nonslip material
under the rear wheels.
NOTE
Use snow chains only on the rear wheels.
Before Driving Your Mazda
Driving Tips
4-7
RX-8_8BQ7-EA-10H_Edition1 Page135
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (147,1)
6. After starting the engine, let it idle for
about 15 seconds. Then perform the
shift operation.
NOTE
lIn extremely cold weather (below 0°C
(32°F)) or after the vehicle has not been
driven in several days, let the engine warm
up without operating the accelerator.
lWhether the engine is cold or warm, it
should be started without use of the
accelerator.
lThe display of the variable red zone in the
tachometer changes according to the
temperature of the engine coolant. To
protect the engine, when the engine coolant
temperature is low, the engine does not run
at high speeds. The fuel supply will be cut
at an rpm lower than the red zone.
Refer to Tachometer on page 5-38.
lIf the engine does not start the first time,
refer to Starting a Flooded Engine under
Emergency Starting. If the engine still does
not start, have your vehicle inspected by an
Authorized Mazda Dealer (page 7-19).
Turning the Engine Off
1. Stop the vehicle completely.
2.(Manual transmission)
Shift into neutral.
(Automatic transmission)
Shift the shift lever to the P position.
3. Switch the ignition from ON to OFF/
LOCK.
WARNING
Do not stop the engine while the
vehicle is moving:
Stopping the engine while the vehicle
is moving for any reason other than
in an emergency is dangerous.
Stopping the engine while the vehicle
is moving will result in reduced
maneuverability and braking ability
due to the loss of power steering and
power braking, which could cause an
accident and serious injury.
CAUTION
When leaving the vehicle, make sure
the ignition is switched off.
NOTE
The electrical fan in the engine compartment
could turn on for a few minutes after the
ignition is switched from ON to OFF, whether
or not the A/C is on or off, to cool the engine
compartment quickly.
Driving Your Mazda
Starting and Driving
5-5
RX-8_8BQ7-EA-10H_Edition1 Page147
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H
