Your Vehicle at a Glance
Form No. 8T02-EA-03L
Dashboard Overview
Hood release handle
Climate control systemCup holder
Glove box
Shift lever
Parking brake
Audio system*
Passenger-side air bag
Hazard warning flasher switch
Fog lights switch* Lighting control/Turn signals Instrument cluster
Driver-side air bag
Wiper and washer lever
Ignition switch Ashtray
Center console
Power window
switches
Cruise control switches*
Cruise main switch*(page 2-20)
(page 5-18)
(page 5-31)
(page 5-15)
(page 5-32) (page 5-33)
(page 5-15)
(page 5-36)
(page 6-9)
(page 5-10)
(page 6-62)
(page 3-14)
(page 3-17)
(page 5-2)
(page 6-2) (page 5-5)
(page 6-60) (page 6-61) (page 6-62)
(page 2-20)
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 2 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

2-10
Essential Safety Equipment
Seat Belt Systems
Form No. 8T02-EA-03L

Air Bag/Seat Belt Pretensioner
System Warning Light
If the air bag/seat belt pretensioner system
is normal, the warning light illuminates
when the ignition switch is turned to the
ON position or after the engine is cranked.
After about 6 seconds it goes out.
A system malfunction is indicated when
the warning light constantly flashes,
illuminates or doesn
’t illuminate at all
when the ignition switch is turned to the
ON position. If any of these occur, consult
an Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident. If your seat belt is not long enough, even
when fully extended, a seat belt extender
may be available to you at no charge from
your Authorized Mazda Dealer.
This extender will be only for you and for
the particular vehicle and seat. Even if it
plugs into other seat belts, it may not hold
in the critical moment of a crash.
When ordering an extender, only order
one that provides the necessary additional
length to fasten the seat belt properly.
Please contact your Authorized Mazda
Dealer for more information.
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
performs all servicing and repairs.
WARNING
Seat Belt Extender
J07S_8T02-EA-03L_Edition1.book Page 10 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

2-12
Essential Safety Equipment
Seat Belt Systems
Form No. 8T02-EA-03L
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer. If the driver
’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep sound will be heard
for about 6 seconds.
Seat Belt Warning LightSeat Belt Warning Beep
J07S_8T02-EA-03L_Edition1.book Page 12 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

2-24
Essential Safety Equipment
SRS Air Bags
Form No. 8T02-EA-03L
When the ignition switch is turned to the
ON position, the passenger air bag
deactivation indicator light comes on for
about 6 seconds.
If the passenger air bag deactivation
switch is in the OFF position, the
indicator light remains on to warn that the
passenger air bag has been deactivated.
To Deactivate The Passenger Air
Bag
1. Insert the key into the switch.
2. Turn the key clockwise until the key
points to OFF.
3. Remove the key.
4. Make sure the air bag deactivation indicator light remains on when the
ignition is in the ON position.
The passenger air bag will remain
deactivated until the passenger air bag
deactivation switch is turned to the ON
position.
NOTE
Have the passenger air bag
deactivation switch inspected by an
Authorized Mazda Dealer if any of
these conditions occur:
• The indicator doesn
’t come on
when the ignition switch is turned to
the ON position.
• The indicator doesn
’t remain on
when the ignition switch is in the
ON position and the passenger air
bag deactivation switch is in the
OFF position.
• The indicator remains on when the
ignition switch is in the ON position
and the passenger air bag
deactivation switch is in the ON
position.
Leaving the Key in the Passenger Air
Bag Deactivation Switch:
Unintentional deactivation of the
passenger air bag is dangerous. In an
accident, the passenger will not be
properly protected. Serious injuries or
even death could occur. To avoid
unintentional deactivation, always
use the same key to operate the
passenger air bag deactivation switch
and the ignition switch, that way you
won
’t leave the key in the passenger
air bag deactivation switch.
WARNING
J07S_8T02-EA-03L_Edition1.book Page 24 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

2-25
Essential Safety Equipment
SRS Air Bags
Form No. 8T02-EA-03L

To Ready The Passenger Air Bag
1. Insert the key into the switch.
2. Turn the key counterclockwise until the
key points to ON.
3. Remove the key.
4. Make sure the air bag deactivation indicator light goes off after 6 seconds
when the ignition switch is turned to
the ON position.
J07S_8T02-EA-03L_Edition1.book Page 25 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

2-29
Essential Safety Equipment
SRS Air Bags
Form No. 8T02-EA-03L

Constant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
• SAS unit
• Crash sensor
• Air bag modules
• Seat belt pretensioners
• Related wiring
• Passenger air bag deactivation switch
A diagnostic module continuously
monitors the systems ’ readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.

Air Bag/Seat Belt Pretensioner
System Warning Light
If the air bag/seat belt pretensioner system
is normal, the warning light illuminates
when the ignition switch is turned to the
ON position or after the engine is cranked.
After about 6 seconds it goes out.
A system malfunction is indicated when
the warning light constantly flashes,
illuminates or doesn
’t illuminate at all
when the ignition switch is turned to the
ON position. If any of these occur, consult
an Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident.
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
performs all servicing and repairs.
WARNING
J07S_8T02-EA-03L_Edition1.book Page 29 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

2-30
Essential Safety Equipment
SRS Air Bags
Form No. 8T02-EA-03L

Maintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
• The air bag system warning light
flashes.
• The air bag system warning light
remains illuminated.
• The air bag system warning light
remains off when the ignition switch is
turned to the ON position.
• The air bags inflate.
Damaged Air Bag Sensors:
Driving with damaged air bag sensors
is dangerous. A collision, even one
not strong enough to inflate the air
bags, could damage the sensors. If
there was a subsequent collision, a
damaged sensor would not inflate the
air bags. Always have an Authorized
Mazda Dealer inspect the air bag
systems after a collision.
Removing Interior Parts:
Removing any components such as
the front dashboard, the steering
wheel or parts containing air bag
parts or sensors is dangerous. These
parts contain essential air bag parts.
The air bag could accidentally
activate and cause serious injuries.
Always have an Authorized Mazda
Dealer remove these parts.
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
WARNING
J07S_8T02-EA-03L_Edition1.book Page 30 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

3-3
Knowing Your Mazda
Doors and Locks
Form No. 8T02-EA-03L
This system locks and unlocks the doors
and opens the trunk.
It can also help you signal for attention in
an emergency.
Press the button slowly and accurately.
Keyless Entry System*
To avoid damage to the transmitter, do
not:
•Drop it.
• Get it wet.
• Disassemble it.
• Expose it to heat or sunlight.
CAUTION
NOTE
•The keyless entry system is
designed to operate up to about 2.5
m (8 ft) from the center of the
vehicle, but this may vary because
of local conditions.
• The system doesn
’t operate when
the ignition switch is in the ON
position.
• If the transmitter does not operate
when pressing a button or the
operation range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-5).
• Additional transmitters can be
obtained at an Authorized Mazda
Dealer. Up to 3 transmitters can be
used with the keyless entry system
per vehicle. Bring all transmitters to
an Authorized Mazda Dealer when
the electronic codes need to be
reset.
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 3 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

3-7
Knowing Your Mazda
Doors and Locks
Form No. 8T02-EA-03L

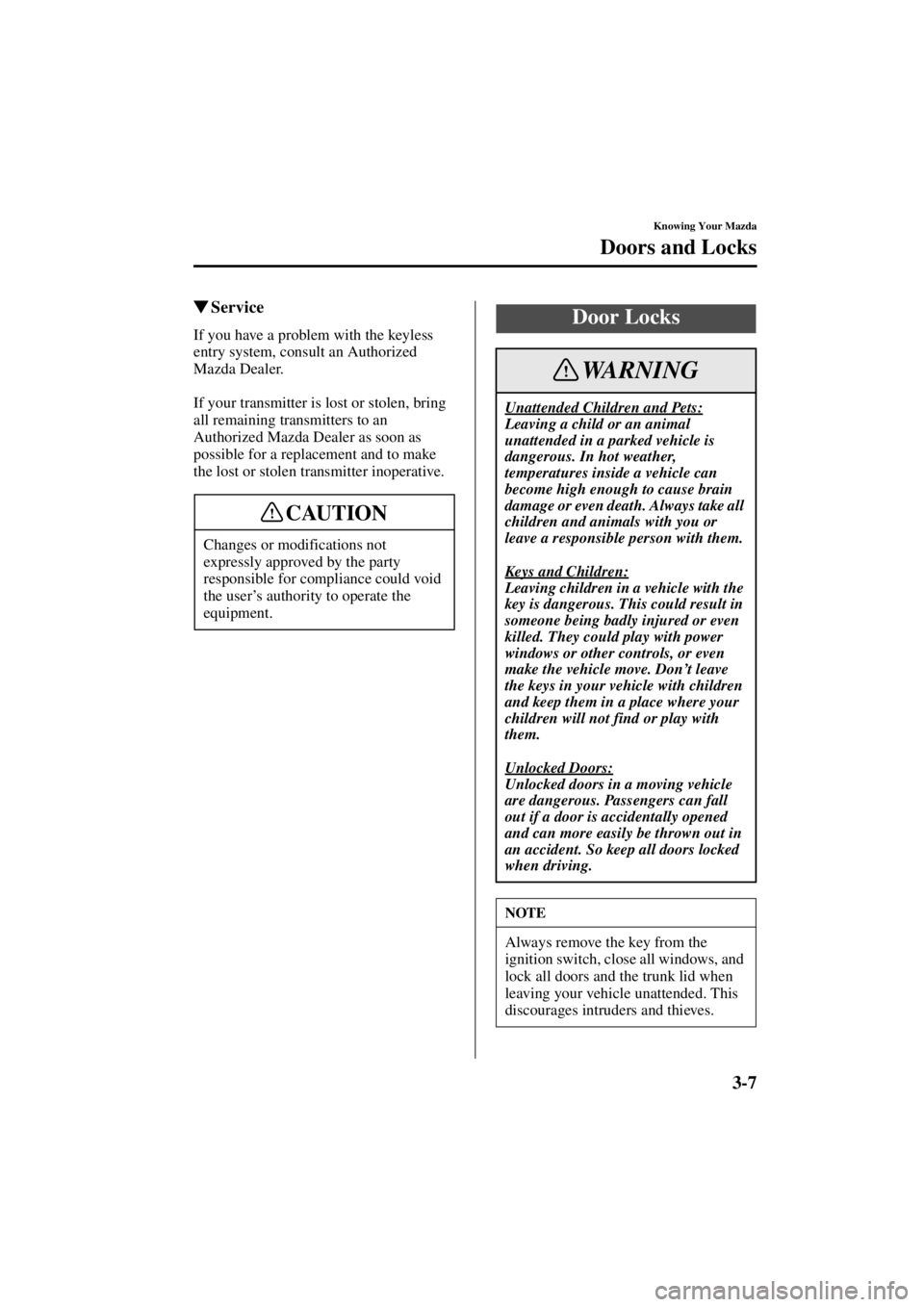

Service
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user ’s authority to operate the
equipment.
CAUTION
Door Locks
Unattended Children and Pets:
Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don ’t leave
the keys in your vehicle with children
and keep them in a place where your
children will not find or play with
them.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident. So keep all doors locked
when driving.
NOTE
Always remove the key from the
ignition switch, close all windows, and
lock all doors and the trunk lid when
leaving your vehicle unattended. This
discourages intruders and thieves.
WARNING
J07S_8T02-EA-03L_Edition1.book Page 7 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

3-14
Knowing Your Mazda
Doors and Locks
Form No. 8T02-EA-03L
The ignition switch must be in the ON
position for the power windows to
operate.

Operating the Driver’s Side
Power Window
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
Power Windows
Closing Power Windows:
Closing power windows are
dangerous. A person
’s hands, head,
or even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don ’t leave
the keys in your vehicle with children
and keep them in a place where your
children will not find or play with
them.
WARNING
Open
Close
Left
window
J07S_8T02-EA-03L_Edition1.book Page 14 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
