qOpening and Closing the Trunk
WARNING
Open Trunk Lid and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid and do
not allow children to play inside the
vehicle.
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don't leave your children
or pets alone in a car at any time.
Don't leave the car or the trunk
unlocked. Always keep the car from
being a tempting place to play by
locking doors and the trunk, and
keeping the keys where children won't
play with them.
Opening the trunk lid with the key
Insert the key into the slot and turn it
clockwise.
Open
Opening the trunk lid with the
transmitter
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-3).
Opening the trunk lid with the remote
release lever
The remote trunk lid release is mounted in
the center console.
To open the console, unlock it and pull
the release catch.
3-12
Knowing Your Mazda
Doors and Locks
MX-5 Miata_8T72-EA-04G_Edition2 Page54
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (55,1)
To release the trunk lid, pull up on the
trunk lid release lever.
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
qRemote Trunk Lid Release Lock-
Out
The remote release may be canceled to
prevent anyone in the vehicle from
opening the trunk.
Close the trunk, insert the key, and turn it
counterclockwise, then return the key to
the center position and remove it.
To activate the remote release, insert the
key, turn it clockwise and open the trunk
lid at the same time.
NOTE
If the remote trunk lid release does not
work, insert the key and turn it
clockwise.
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
lTo prevent the battery from being
discharged, do not leave the trunk
open for a long period when the
engine is not running.
lThe trunk and license plate lights
share the same light bulbs.
Knowing Your Mazda
Doors and Locks
3-13
MX-5 Miata_8T72-EA-04G_Edition2 Page55
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (56,1)
Inside Trunk Release
Handle
Your vehicle is equipped with an inside
trunk release handle that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside release handle so
that all children can be told about it in an
appropriate way, keeping in mind that
most vehicles don't have such handles.
WARNING
Open Trunk Lid and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid and do
not allow children to play inside the
vehicle.
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don't leave your children
or pets alone in a car at any time.
Don't leave the car or the trunk
unlocked. Always keep the car from
being a tempting place to play by
locking doors and the trunk, and
keeping the keys where children won't
play with them.
3-14
Knowing Your Mazda
Doors and Locks
MX-5 Miata_8T72-EA-04G_Edition2 Page56
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (57,1)
qOpening the Trunk Lid from the
Inside
Pull the illuminated “T ” shaped handle.
The handle is made of material that will
glow for hours in the darkness of the
trunk following a brief exposure to
ambient light.
The “T ” shaped handle is located on the
inside of the trunk end trim.
Handle
CAUTION
Always keep the handle firmly attached
to the holder and in the recessed
position. Not securing the handle this
way could allow it to snag luggage in
the trunk and open the trunk lid.
Power Windows
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Closing Power Windows:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don't leave the
keys in your vehicle with children and
keep them in a place where your
children will not find or play with
them.
Knowing Your Mazda
Doors and Locks
3-15
MX-5 Miata_8T72-EA-04G_Edition2 Page57
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (58,1)
qOperating the Driver's Side
Power Window
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Open
Close
Left
window
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
q
Operating the Passenger Power
Window
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Close
Open
Right window
3-16
Knowing Your Mazda
Doors and Locks
MX-5 Miata_8T72-EA-04G_Edition2 Page58
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (59,1)
Fuel-Filler Lid and Cap
WARNING
Fuel Spray:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness if
ingested. Fuel spray is released when
there is pressure in the fuel tank and
the fuel cap is removed too quickly.
When removing the fuel cap, loosen
the cap slightly and wait for any
hissing to stop. Then remove it.
Fuel Vapor:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries. Before
refueling, stop the engine, and always
keep sparks and flames away from the
filler neck. Additionally, use of the
incorrect fuel filler cap or not using a
fuel filler cap may result in fuel leak,
which could result in serious burns or
death in an accident.
CAUTION
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
The remote fuel-filler lid release is
mounted in the center console.
To open the console, unlock it and pull
the release catch.
To open the fuel-filler lid, pull up on the
remote fuel-filler lid release.
Knowing Your Mazda
Doors and Locks
3-17
MX-5 Miata_8T72-EA-04G_Edition2 Page59
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (60,1)
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Open
Close
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate on when the cap
isn't tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven, and
restarted the engine several times), it
may indicate a different problem.
Contact an Authorized Mazda Dealer as
soon as possible.
Hood
WARNING
Closed and Securely Locked Hood:
A hood that is not closed and securely
locked is dangerous as it could fly
open while the vehicle is moving and
block the driver's vision which could
result in a serious accident. Always
check that the hood is closed and
securely locked.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Pull the hood latch up and lift the hood.
3-18
Knowing Your Mazda
Doors and Locks
MX-5 Miata_8T72-EA-04G_Edition2 Page60
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (61,1)
3. Use the support rod to hold the hoodopen.
Clip
Support rod
qClosing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
Knowing Your Mazda
Doors and Locks
3-19
MX-5 Miata_8T72-EA-04G_Edition2 Page61
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (62,1)

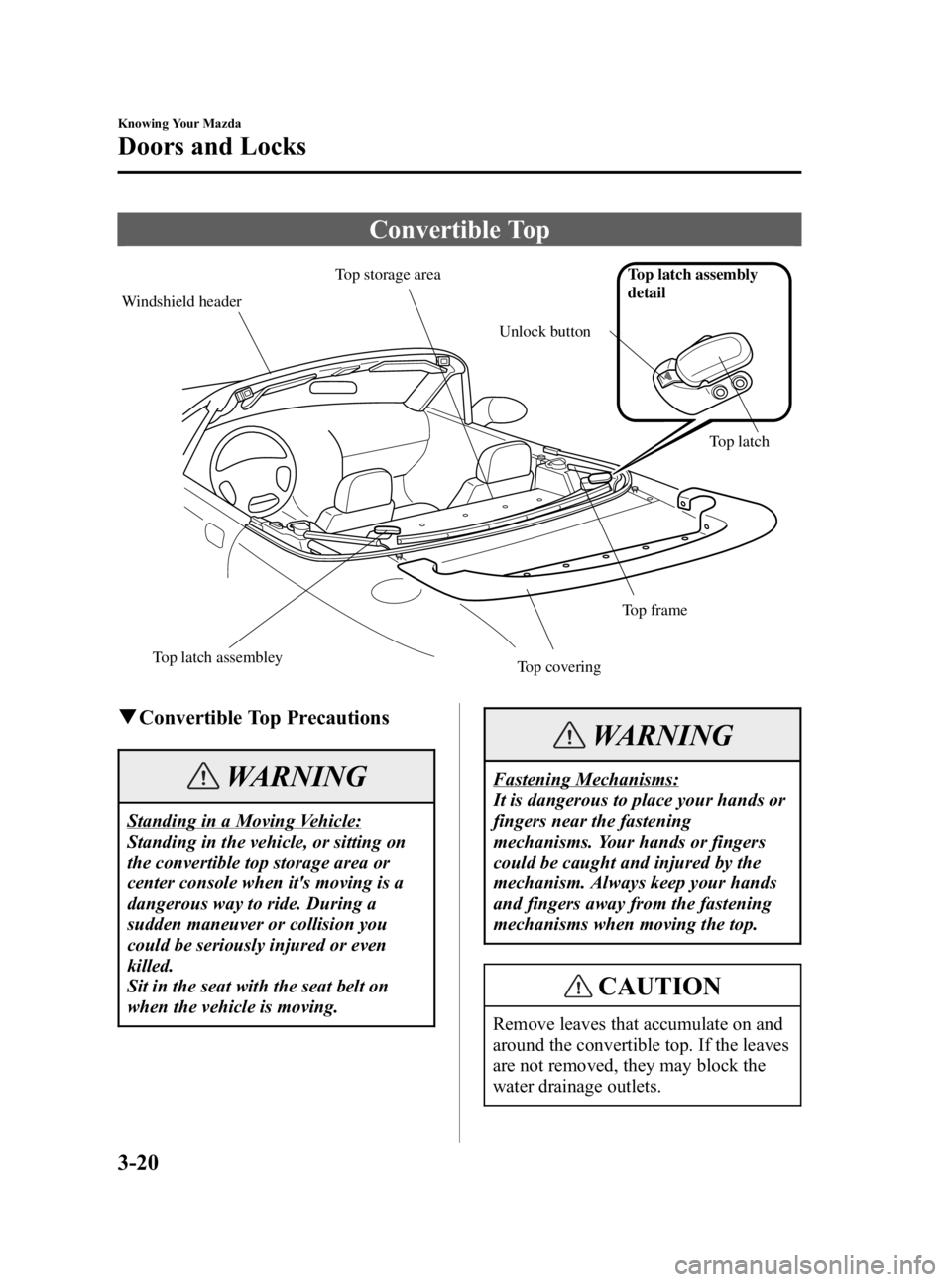

Convertible Top
Windshield headerTop storage area
Top latch assembley
Top coveringTop latch assembly
detail
Top frame
Top latch
Unlock button
q
Convertible Top Precautions
WARNING
Standing in a Moving Vehicle:
Standing in the vehicle, or sitting on
the convertible top storage area or
center console when it's moving is a
dangerous way to ride. During a
sudden maneuver or collision you
could be seriously injured or even
killed.
Sit in the seat with the seat belt on
when the vehicle is moving.
WARNING
Fastening Mechanisms:
It is dangerous to place your hands or
fingers near the fastening
mechanisms. Your hands or fingers
could be caught and injured by the
mechanism. Always keep your hands
and fingers away from the fastening
mechanisms when moving the top.
CAUTION
Remove leaves that accumulate on and
around the convertible top. If the leaves
are not removed, they may block the
water drainage outlets.
3-20
Knowing Your Mazda
Doors and Locks
MX-5 Miata_8T72-EA-04G_Edition2 Page62
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (63,1)
lBefore lowering or raising the top, stop
in a safe place off the right-of-way and
park on a level surface.
lMake sure nothing is on the top or near
the back window when raising or
lowering the top.
Even small objects may interfere and
cause damage.
lWhen lowering the top, make sure
objects inside the vehicle aren't blown
away by the wind.
lSecure all loose objects inside before
driving with the top down.
lTo help prevent burglary or vandalism
and to ensure that the passenger
compartment stays dry, close the top
securely and lock all doors when
leaving the vehicle.
lDon't drive through an automatic car
wash; it may damage the top.
lDon't raise or lower the top when the
temperature is below 5 °C (41 °F) ; this
will damage the top material.
lDon't lower the top when it's wet. If the
top dries while folded, it will
deteriorate and shrink.
lLowering the top while it's wet can
also cause water to drip into the
passenger compartment.
lDon't raise or lower the top when the
wind is strong; the wind could damage
the top.
qLowering the Convertible Top
1. Park the vehicle on a level surface and
firmly set the parking brake.
2. Lower the side windows, then turn off the ignition. 3. Pull down the sunvisors.
Sunvisor
Sunvisor
4. Remove all objects in the top storage
area.
WARNING
Objects in the Storage Area:
Putting heavy or sharp objects in the
top storage area is dangerous.
During a sudden stop or collision, they
can become projectiles that might hit
and injure passengers.
Don't place heavy or sharp objects in
the top storage area.
5. Push the unlock buttons and fully release the top latches.
Unlock button
Top latch
Knowing Your Mazda
Doors and Locks
3-21
MX-5 Miata_8T72-EA-04G_Edition2 Page63
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G
