window MAZDA MODEL SPEED MX-5 MIATA 2005 Owner's Manual

Black plate (93,1)
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ..................................................................... 5-2Ignition Switch .......................................................................... 5-2
Starting the Engine .................................................................... 5-3
Brake System ............................................................................ 5-4
Manual Transmission Operation ............................................... 5-8
Automatic Transmission Controls ........................................... 5-10
Power Steering ........................................................................ 5-14
Cruise Control
í...................................................................... 5-14
Instrument Cluster and Indicators ............................................ 5-18 Meters and Gauges .................................................................. 5-18
Warning/Indicator Lights and Beep Sounds ............................ 5-22 Warning/Indicator Lights ........................................................ 5-22
Beep Sounds ........................................................................... 5-28
Switches and Controls ................................................................ 5-29 Lighting Control ..................................................................... 5-29
Turn and Lane-Change Signals ............................................... 5-30
Fog Lights
í............................................................................ 5-30
Daytime Running Lights (Canada) ......................................... 5-31
Windshield Wipers and Washer .............................................. 5-31
Rear Window Defroster ........................................................... 5-33
Horn ........................................................................................ 5-33
Hazard Warning Flasher .......................................................... 5-34
5-1íSome models.
MX-5 Miata_8T72-EA-04G_Edition2 Page93
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (125,1)

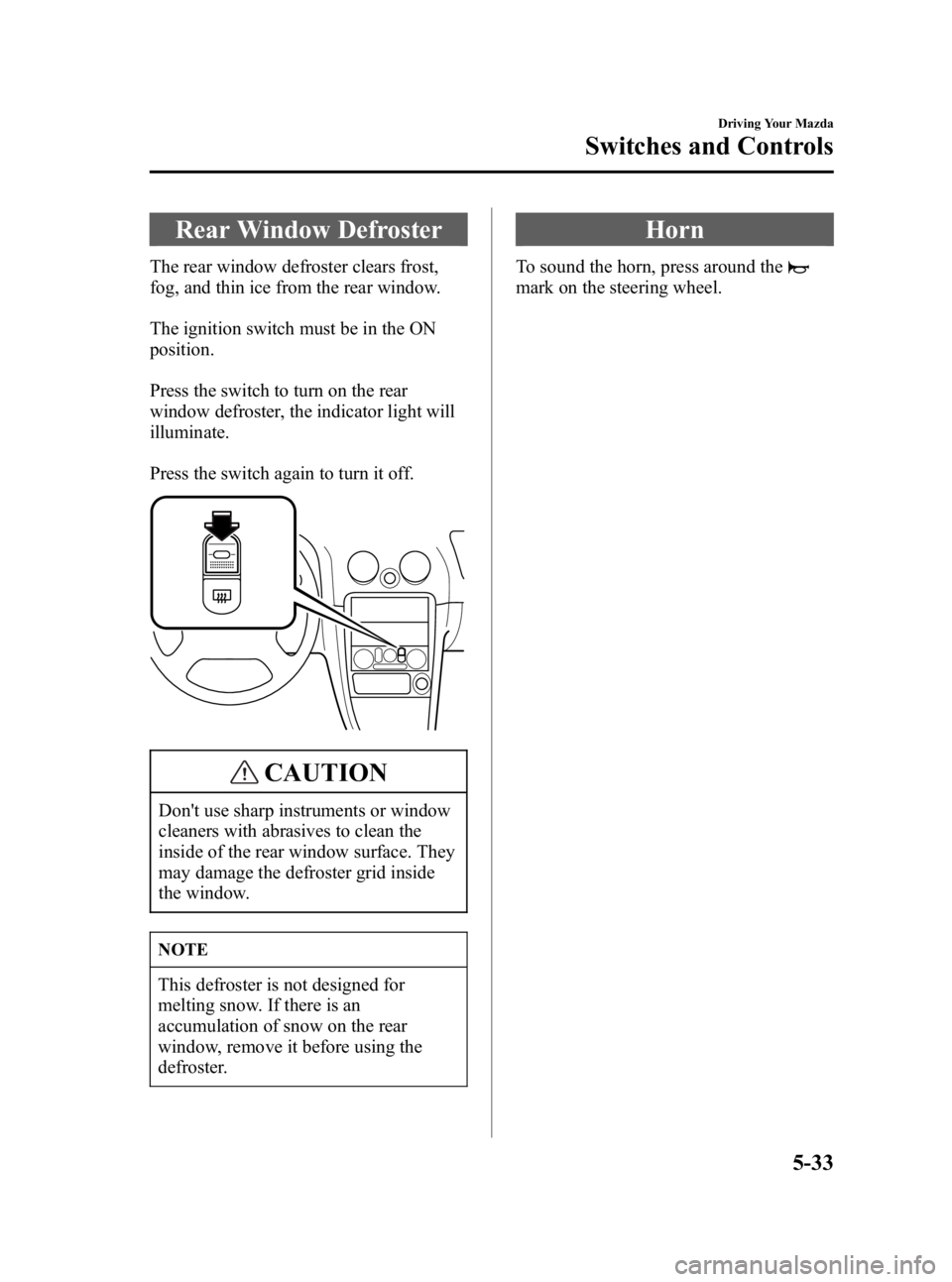

Rear Window Defroster
The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition switch must be in the ON
position.
Press the switch to turn on the rear
window defroster, the indicator light will
illuminate.
Press the switch again to turn it off.
CAUTION
Don't use sharp instruments or window
cleaners with abrasives to clean the
inside of the rear window surface. They
may damage the defroster grid inside
the window.
NOTE
This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defroster.
Horn
To sound the horn, press around the
mark on the steering wheel.
Driving Your Mazda
Switches and Controls
5-33
MX-5 Miata_8T72-EA-04G_Edition2 Page125
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (128,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time when
the engine is not running.
qClearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
6-2
Interior Comfort
Climate Control System
MX-5 Miata_8T72-EA-04G_Edition2 Page128
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (131,1)
Control Panel
A/C switchFan control dial
Rear window defroster switch
Temperature control dial Air intake selector Mode selector dial
Some models.
q Control Switches
Temperature control dial
Hot
Cold
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
This dial allows variable fan speeds.
0 ― Fan off
1 ― Low speed
2 ― Medium low speed
3 ― Medium high speed
4 ― High speed
Interior Comfort
Climate Control System
6-5
MX-5 Miata_8T72-EA-04G_Edition2 Page131
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (132,1)
Mode selector dial
Turn the mode selector dial to select
airflow mode (page 6-4).
A/C switchí
Push the switch to turn the air conditioner
on. The indicator light on the switch will
illuminate when the fan control dial is set
at position 1, 2, 3, or 4.
Push the switch once again to turn the air
conditioner off.
NOTE
The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).
Air intake selector
This lever controls the source of air
entering the vehicle.
It is recommended that under normal
conditions the lever be kept in the outside
air position.
Outside air position (
)
Outside air is taken into the vehicle. Use
this position for normal ventilation and
heating.
Recirculated air position (
)
Outside air is shut off. Air within the
vehicle is recirculated.
This position can be used when driving on
a dusty road or in similar conditions. It
also helps to provide quicker cooling of
the interior.
WARNING
The Recirculated Air Position:
Using the
position in cold or
rainy weather will cause the windows
to fog up. Your vision will be
hampered, which could lead to a
serious accident. Do not use the
position in cold or rainy weather.
6-6
Interior Comfort
íSome models.
Climate Control System
MX-5 Miata_8T72-EA-04G_Edition2 Page132
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (133,1)
Rear window defroster switch
When using the rear window defroster
switch, refer to Rear Window Defroster
(page 5-33).
qHeating
1. Set the mode selector dial to the
position.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the hot position.
4. Set the fan control dial to the desired speed.
5. If dehumidified heating is desired, turn on the air conditioner.
NOTE
lIf the windshield fogs up easily, set
the mode selector dial to the
position.
lIf cooler air is desired at face level,
set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.
lThe air to the floor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
qCooling (With Air Conditioner)í
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the cold position. 3. Set the fan control dial to the desired
speed.
4. Turn on the air conditioner.
5. Adjust the fan control dial and temperature control dial to maintain
maximum comfort.
CAUTION
When using the air conditioner while
driving up long hills or in heavy traffic,
closely monitor the temperature gauge
(page 5-20).
The air conditioner may cause engine
overheating. If the gauge indicates
overheating, turn the air conditioner off.
NOTE
lWhen maximum cooling is desired,
set the temperature control dial to the
extreme cold position and set the air
intake selector to the
position,
then set the fan control dial to
position 4.
lIf warmer air is desired at floor level,
set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.
lThe air to the floor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
Interior Comfort
Climate Control System
6-7íSome models.
MX-5 Miata_8T72-EA-04G_Edition2 Page133
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (134,1)
qVentilation
1. Set the mode selector dial to the
position.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the desired position.
4. Set the fan control dial to the desired speed.
qWindshield Defrosting and
Defogging
1. Set the mode selector dial to the
position.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the desired position.
4. Set the fan control dial to the desired speed.
WARNING
Foggy Windshield:
Using the
position with the
temperature control set to the cold
position will cause the outside of the
windshield to fog up. Your vision will
be hampered, which could lead to a
serious accident. Set the temperature
control to the hot or warm position
when using the
position.
NOTE
lFor maximum defrosting, set the
temperature control dial to the
extreme hot position and the fan
control dial to position 4.
lIf warm air is desired at the floor, set
the mode selector dial to the
position.
q Dehumidifying (With Air
Conditioner)í
Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.
1. Set the mode selector dial to the
desired position.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the desired position.
4. Set the fan control dial to the desired speed.
5. Turn on the air conditioner.
6-8
Interior Comfort
íSome models.
Climate Control System
MX-5 Miata_8T72-EA-04G_Edition2 Page134
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (227,1)
MaintenanceInterval Number of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96
×1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
×1000 miles
6.25 12.5 18.752531.25 37.5 43.755056.25 62.5 68.757581.25 87.5 93.75100
Exhaust system and heat shields Inspect every 80,000 km (50,000 miles)
Tire (including spare tire)
(with inflation pressure adjustment) IIIIIIII
Chart symbols
I:
Inspect: Inspect and repair, clean, adjust, or replace if necessary.
R: Replace
C: Clean
T: Tighten
Remarks
*1 Also inspect and adjust the power steering and air conditioner drive belts, if installed.
*2 Replacement of the timing belt is required at every 100,000 km {62,500 miles}. Failure to replace the timing
belt may result in damage to the engine.
*3 If the vehicle is operated under any of the following conditions, change the engine oil and oil filter more often than recommended intervals.
a) Driving in dusty conditions.
b) Extended periods of idling or low speed operation.
c) Driving for long period in cold temperatures or driving regularly at short distance only.
*4 If the vehicle is operated in very dusty or sandy areas, inspect and if necessary, clean or replace the air filter more often than the recommended intervals.
*5 This is a full function check of electrical systems such as lights, wiper and washer systems (including wiper blades), and power windows.
*6 If the brakes are used extensively (for example, continuous hard driving or mountain driving) or if the vehicle is operated in extremely humid climates, change the brake fluid annually.
Maintenance and Care
Scheduled Maintenance
8-11
MX-5 Miata_8T72-EA-04G_Edition2 Page227
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G

Black plate (243,1)
2. Unfasten the clamps.
3. Lift off the air filter cover and removethe filter.
Air filter cover
Air filter
4. Wipe inside the air cleaner housing
with a damp cloth.
5. Clean or replace the filter.
6. Install in the reverse order of removal.
Replace the filter according to Scheduled
Maintenance (page 8-3).
Wiper Blades
CAUTION
lHot waxes applied by automatic car
washers have been known to affect
the wiper's ability to clean windows.
lTo prevent damage to the wiper
blades, don't use gasoline, kerosene,
paint thinner, or other solvents on or
near them.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
q Replacing Windshield Wiper
Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
CAUTION
To prevent damage to the wiper arms
and other components, don't move the
wipers by hand.
Maintenance and Care
Owner Maintenance
8-27
MX-5 Miata_8T72-EA-04G_Edition2 Page243
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G

Black plate (257,1)
Fuse panel (Driver's side)
DESCRIPTIONFUSE
RATING PROTECTED
COMPONENT
1 AD
FA N
*120A Add fan motor, Magnet
clutch
2
HEAD.LH15A Headlights (LH)
3
HEAD.RH15A Headlights (RH)
4 ―― ―
5 ST.SIG 7.5A Instrument cluster, Cruise
control
í
6FAN*230ACooling fan, Additional fan
(air conditioner)
7 CIGAR 20A Cigar lighter
8 RADIO 10A Audio
í
9 F.FOG 15A Fog lightsí
10 TAIL 15A Taillights, Front parking
lights, Side-marker lights
11 ENGINE 15A Engine control system
12 METER 15A Instrument cluster
13 TURN 7.5A Turn signal lights
DESCRIPTIONFUSE
RATING PROTECTED
COMPONENT
14 A/B 10A Supplemental restraint
system, Antilock brake
system
í
15 WIPER 20A
Windshield wipers and
washer
16 P.WIND 30A Power windows
17 A/C 7.5A Air conditioner
í
18HAZARD10A Turn signal lights
19 D.LOCK 10A Power door lockí
20 AUDIO 20A Audio ampí
21 DEFOG 15A Rear defroster
22 ROOM 10A Interior light, Auto
antenna, Warning buzzers
*1 MX-5/Miata
*2 MAZDASPEED MX-5
Maintenance and Care
Owner Maintenance
8-41íSome models.
MX-5 Miata_8T72-EA-04G_Edition2 Page257
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G
