Keys
WARNING
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don't leave the
keys in your vehicle with children and
keep them in a place where your
children will not find or play with
them.
NOTE
(With immobilizer system)
Refer to Immobilizer System (page
3-31) for information regarding keys
and engine starting on vehicles
equipped with the immobilizer system.
The keys operate all locks.
Type A
Key code number plate
Retractable
type key
Type B
Key code number plate
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
Also write down the code number and
keep it in another safe and handy place,
but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer with the code
number ready.
3-2
Knowing Your Mazda
Doors and Locks
MX-5 Miata_8T72-EA-04G_Edition2 Page44
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G
Page 73 of 298
Black plate (73,1)
Immobilizer Systemí
The optional immobilizer system allows
the engine to start only with a key the
system recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
CAUTION
lChanges or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
lTo avoid damage to the key, do not:
lDrop the key.lGet the key wet.lExpose the key to any kind of
magnetic field.
lExpose the key to high
temperatures on places such as the
dashboard or hood, under direct
sunlight.
CAUTION
When starting the engine do not allow
the following, as the engine may not
start due to the electronic signal from
the ignition key not being transmitted
correctly.
lA key ring rests on the key grip.
lMetal parts of other keys or metal
objects touch the key grip.
lSpare keys or keys for other vehicles
equipped with an immobilizer
system touch or come near the key
grip.
lDevices for electronic purchases, or
security passage touch or come near
the key.
Knowing Your Mazda
Security System
3-31íSome models.
MX-5 Miata_8T72-EA-04G_Edition2 Page73
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G
Page 74 of 298
Black plate (74,1)
NOTE
l(U.S.A.)
This device complies with part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
qImmobilizer System Warning
Light
If the immobilizer system is working
properly, the light will come on when the
ignition switch is turned to the ON or
START position. The light will go out
when confirmation by the immobilizer
system is completed.
If the light flashes rapidly, fails to come
on, or comes on and stays on, it indicates
a system malfunction. If any of these
occur, contact an Authorized Mazda
Dealer as soon as possible.
NOTE
lIf the warning light comes on and
stays on when the ignition switch is
turned to the ON position, the engine
will not start.
lSignals from a TV or radio station, or
from a transceiver or a mobile
telephone, could interfere with your
immobilizer system. If you are using
the proper key and your engine fails
to start, check the warning light. If it
is flashing, remove the ignition key
and wait 2 seconds or more, then
reinsert it and try starting the engine
again. If it doesn't start after 3 or
more tries, contact an Authorized
Mazda Dealer.
lIf the warning light flashes
continuously while you are driving,
don't shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If you shut off the engine
while the light is flashing you won't
be able to restart it.
lSince the electronic codes are reset
when repairing the immobilizer
system, the keys are needed. Bring
all the existing keys to an Authorized
Mazda Dealer.
3-32
Knowing Your Mazda
Security System
MX-5 Miata_8T72-EA-04G_Edition2 Page74
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G
Page 75 of 298
Black plate (75,1)
qMaintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
NOTE
lThe keys carry a unique electronic
code. For this reason, and to assure
your safety, obtaining replacement
key requires some waiting time.
They are only available through an
Authorized Mazda Dealer.
lAlways keep a spare key, in case one
is lost. If a key is lost, contact an
Authorized Mazda Dealer as soon as
possible.
lIf you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system. Bring
all the remaining keys to an
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that
has not been reset is not possible.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed to it.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to it.
Knowing Your Mazda
Security System
3-33
MX-5 Miata_8T72-EA-04G_Edition2 Page75
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G
Page 115 of 298
Black plate (115,1)
SignalWarning/Indicator Lights Page
Immobilizer System Warning Light 5-26
Headlight High-Beam Indicator Light5-27
O/D OFF Indicator Light5-27
Cruise Set Indicator Light5-27
Turn-Signal/Hazard Warning Indicator Lights5-27
qBrake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way. Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-20).
2. After adding fluid, check the light again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-23
MX-5 Miata_8T72-EA-04G_Edition2 Page115
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G
Page 118 of 298
Black plate (118,1)
A system malfunction is indicated when
the warning light constantly flashes,
illuminates or doesn't illuminate at all
when the ignition switch is turned to the
ON position. If any of these occur, consult
an Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
qLow Fuel Warning Light
This warning light signals that the fuel
tank will soon be empty.
Refuel as soon as possible.
qSeat Belt Warning Light
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.
qImmobilizer System Warning
Lightí
If the immobilizer system is working
properly, the light will come on when the
ignition switch is turned to the ON or
START position. The light will go out
when confirmation by the immobilizer
system is completed.
If the light flashes rapidly, fails to come
on, or comes on and stays on, it indicates
a system malfunction. If any of these
occur, contact an Authorized Mazda
Dealer as soon as possible.
5-26
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
MX-5 Miata_8T72-EA-04G_Edition2 Page118
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G
Page 296 of 298
Black plate (296,1)
I
IgnitionSwitch .......................................... 5-2
Immobilizer System .......................... 3-31
Indicator Lights ................................. 5-22
Cruise set .................................... 5-27
Headlight high-beam .................. 5-27
O/D OFF .................................... 5-27
Turn-signal/hazard warning ....... 5-27
Instrument Cluster ............................. 5-18
Interior Care ...................................... 8-48
Interior Light ..................................... 6-67
J
Jump-Starting .................................... 7-13
K
Keyless Entry System ......................... 3-3
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-30
Light Bulbs Replacement ............................... 8-34
Specifications ............................. 10-6
Lighter ............................................... 6-68
Lighting Control ............................... 5-29
Lubricant Quality .............................. 10-4
M
Maintenance ........................................ 8-2 Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-13
Owner maintenance schedule ..... 8-12
Scheduled ..................................... 8-3
Manual Transmission Operation ......... 5-8 Recommendations for shifting ..... 5-9
Mesh Pocket ..................................... 6-71
Mirrors Outside mirrors .......................... 3-34
Rearview mirror ......................... 3-34
Money-Saving Suggestions ................ 4-8
O
Odometer and Trip Meter .................. 5-19
Outside Mirrors ................................. 3-34
Overhead Light ................................. 6-67
Overheating ....................................... 7-11
Overloading ...................................... 4-12
P
Paint Damage .................................... 8-42
Parking Brake ..................................... 5-5
Parking in an Emergency .................... 7-2
Power Door Locks ............................ 3-10
Power Steering .................................. 5-14 Fluid ........................................... 8-22
Power Windows ................................ 3-15
Push-Starting ..................................... 7-15
R
Rear Window Defroster .................... 5-33
Rearview Mirror ................................ 3-34
Recreational Towing ......................... 7-17
11-4
Index
MX-5 Miata_8T72-EA-04G_Edition2 Page296
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G
Page 297 of 298
Black plate (297,1)
R
Rocking the Vehicle ............................ 4-9
S
Safety Defects, Reporting ................. 9-16
Seat Belt System3-point type .................................. 2-7
Automatic locking ........................ 2-6
Emergency locking ...................... 2-5
Extender ..................................... 2-10
Pregnant women .......................... 2-5
Pretensioner and load limiting ..... 2-8
Seat belt precautions .................... 2-4
Warning beep ............................. 2-12
Warning light .............................. 2-11
Seats Front seat ...................................... 2-2
Security System Immobilizer system .................... 3-31
Service Publications .......................... 9-18
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-19
SRS Air Bags Air bag system description ......... 2-26
Supplemental restraint systems
precautions ................................. 2-20
Warning light ............................. 2-28
Starting the Engine .............................. 5-3
Steering Wheel Horn ........................................... 5-33
Storage Compartments ...................... 6-70 Center console ............................ 6-70
Glove box ................................... 6-70
Mesh pocket ............................... 6-71
Sunvisors .......................................... 6-67
T
Tachometer ........................................ 5-20
Temporary Spare Tire ....................... 8-32
Tiedown Hook .......................................... 7-17
Tires Flat tire ......................................... 7-3
Inflation pressure ........................ 8-31
Replacement ............................... 8-32
Rotation ...................................... 8-31
Snow tires .................................. 4-10
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................. 4-11
Uniform tire quality grading system
(UTQGS) ................................... 9-14
Tool ..................................................... 7-3
Towing Description ................................. 7-16
Emergency towing ..................... 7-16
Recreational towing ................... 7-17
Trailer towing ............................. 4-14
Trailer Towing .................................. 4-14
Trip Meter ......................................... 5-19
Trunk Lid .......................................... 3-11
Trunk Light ....................................... 3-13
Trunk Release Handle ....................... 3-14
Turn and Lane-Change Signals ......... 5-30
V
Vanity Mirrors ................................... 6-67
Vehicle Information Labels ............... 10-2
Index
11-5
MX-5 Miata_8T72-EA-04G_Edition2 Page297
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G
Page 298 of 298
Black plate (298,1)

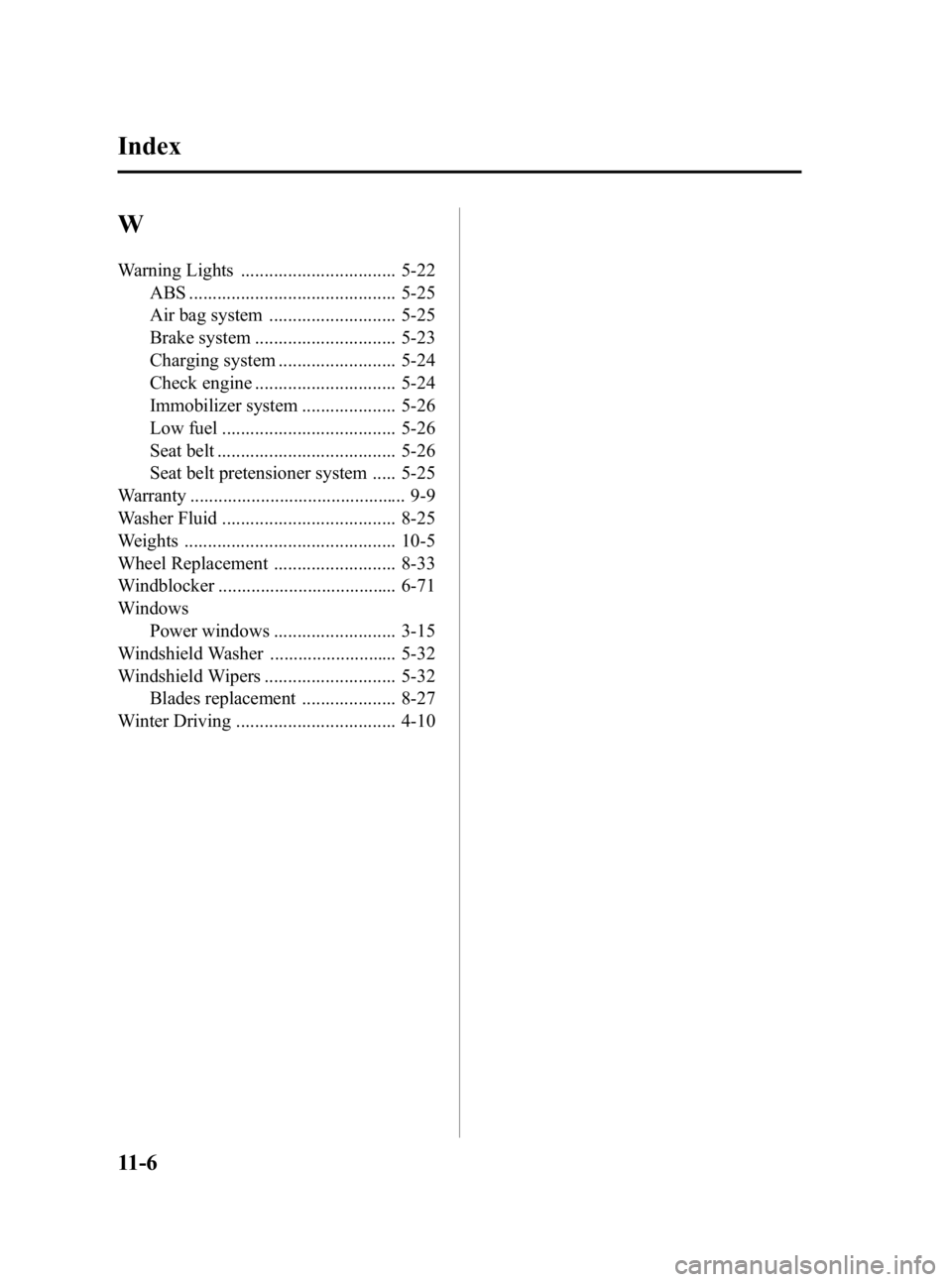

W
Warning Lights ................................. 5-22ABS ............................................ 5-25
Air bag system ........................... 5-25
Brake system .............................. 5-23
Charging system ......................... 5-24
Check engine .............................. 5-24
Immobilizer system .................... 5-26
Low fuel ..................................... 5-26
Seat belt ...................................... 5-26
Seat belt pretensioner system ..... 5-25
Warranty .............................................. 9-9
Washer Fluid ..................................... 8-25
Weights ............................................. 10-5
Wheel Replacement .......................... 8-33
Windblocker ...................................... 6-71
Windows
Power windows .......................... 3-15
Windshield Washer ........................... 5-32
Windshield Wipers ............................ 5-32 Blades replacement .................... 8-27
Winter Driving .................................. 4-10
11-6
Index
MX-5 Miata_8T72-EA-04G_Edition2 Page298
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G
