Cleaning and maintaining the safety belts
Clean the safety belts with a mild soap solution recommended for
cleaning upholstery or carpets.
WARNING: Do not bleach or dye the belts, because these
actions may weaken the belt webbing.
Check the safety belt system periodically to make sure there are no
nicks, wear or cuts. If your vehicle has been involved in an accident,
refer to theSafety belt maintenancesection in theSeating and safety
restraintschapter.
Woodtone trim
Wipe stains with a soft cloth and a multi-purpose cleaning solution.
Inside windows
Use glass cleaner for the inside windows if they become fogged.
Cleaning mirrors
Do not clean your mirrors with a dry cloth or abrasive materials. Use a
soft cloth and mild detergent and water. Be careful when removing ice
from outside mirrors because you may damage the reflective surface.
Maintenance and care
211

REFILL CAPACITIES
Fluid Classification Application Capacity
Brake fluid High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Engine oil
(including filter
change)API service SJ,
SAE 5W-20,
5W-30 Super
Premium Motor
Oil2.0L I4 Zetec
engine4.25L (4.5
quarts)
API service SH
or SJ, SAE
5W-20, 5W-30,
10W-30, ACEA
A1/B1 Super
Premium Motor
Oil3.0L V6 Duratec
engine5.2L (5.5
quarts)
Fuel tank N/A 2.0L I4 Zetec
engine57L (15 gallons)
3.0L V6 Duratec
engine61L (16 gallons)
Power steering
fluidMERCONtAll Fill to line on
reservoir
Transmission
fluid
1API service GL-4
or GL-5, SAE
75W-90Manual transaxle
(2WD)2.7L (2.85
quarts)2
Manual transaxle
(4X4)2.2L (2.32
quarts)2
MERCONtATF 3.0L engine with
Automatic
transaxle and oil
cooler12.7L (13.4
quarts)3
Capacities and specifications
212

Fluid Classification Application Capacity
Transfer Case SAE 75W-140
Synthetic
Lubricant4X4 (Automatic) 0.35L (12
ounces)
API service
GL-5, SAE
80W-904X4 (Manual) 0.35L (12
ounces)
Engine coolant
4Use only
ethylene-glycol-
based coolant2.0L I4 Zetec
engine with
manual
transaxle5.0L (5.3
quarts)
3.0L V6 Duratec
engine with
automatic
transaxle10.0L (10.6
quarts)
Rear axle
lubricantSAE 80W-90
Premium Rear
Axle Lubricant4X4 1.4L (2.96 pints)
5
Windshield
washer fluidn/a All 2.6L (2.7
quarts)
1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONtand MERCONtV are not interchangeable. DO NOT
mix MERCONtand MERCONtV. Refer to your scheduled maintenance
section to determine the correct service interval.
2Service refill capacity is determined by filling the transmission to the
bottom of the filler hole with the vehicle on a level surface.
3Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick's normal operating range.
4Use Premium Engine Coolant (green in color). DO NOT USE Extended
Life Engine Coolant (orange in color). Refer toAdding engine coolant,
in the Maintenance and Care chapter.
5Fill to 6 mm to 14 mm (1/4 inch to 9/16 inch) below bottom of fill hole.
Capacities and specifications
213

For further information on your lubrication specifications, see your
authorized Mazda dealer.
WHEEL AND TIRE SIZES
Vehicle
GradeWheel Tire Spare
WheelSpare Tire
DX/DX-V6 6.5JJx16 215/70R16 17x4T 135/90R17
LX-V6/ES-V6 7.0JJx16 235/70R16 17x4T 145/90R17
ENGINE SPECIFICATIONS
Engine 2.0L DOHC I4 Zetec
engine3.0L DOHC V6
Duratec engine
Cubic inches 121 181
Required fuel 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6
Spark plug gap 1.22-1.32 mm
(0.048-0.052 inch)1.3-1.4 mm
(0.052-00.056 inch)
Ignition system DIS Coil on plug
Compression ratio 9.6:1 10.0:1

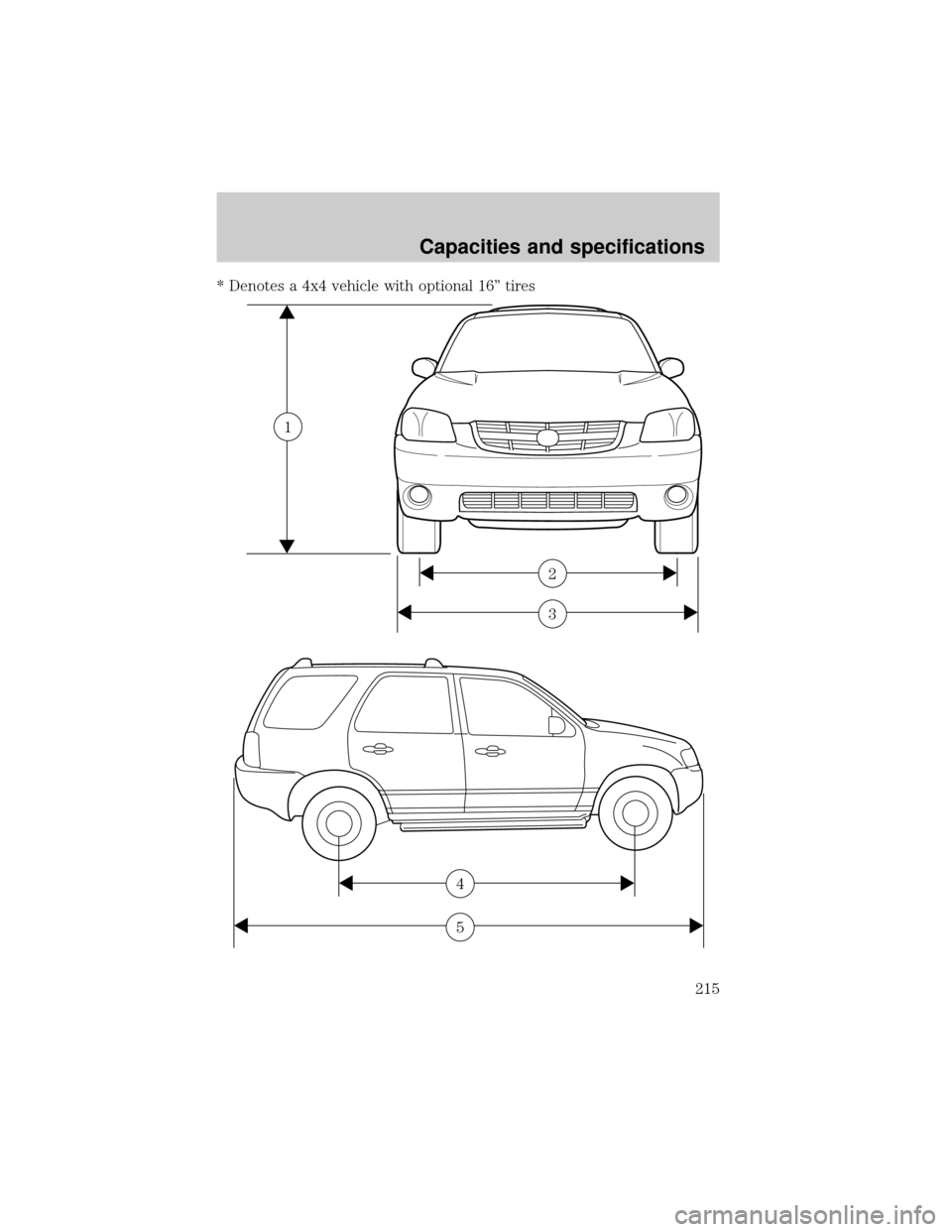

VEHICLE DIMENSIONS
Dimensions 4 Door mm (in.)
(1) Vehicle height/ Maximum
height*1,681 (66.2)/1,744 (68.7)*
(2) Front track / rear 1,550 (61.0)/1,530 (60.2)
(3)Overall width (body) 1,783 (70.2)
(4) Wheelbase 2,620 (103.1)
(5)Overall length 4,394 (173.0)
Capacities and specifications
214

* Denotes a 4x4 vehicle with optional 16º tires
3
2
1
5
4
Capacities and specifications
215

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety Administration Regulations require
that a Certification Label be affixed to a vehicle and prescribe where the
Certification Label may be located. The Certification Label is located on
the front door latch pillar on the driver's side.
Vehicle identification number
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
Capacities and specifications
216

Customer Assistance (Except Puerto Rico)
Your complete and permanent satisfaction is our business. We are here to
serve you. All Authorized Mazda Dealers have the knowledge and the
tools to keep your Mazda vehicle in top condition.
If you have any questions or recommendations for improvement
regarding the service of your Mazda vehicle or servicing by Mazda Dealer
personnel, we recommend that you take the following steps:
STEP 1: Contact Your Mazda Dealer
Discuss the matter with an Authorized Mazda Dealer. This is the quickest
and best way to address the issue. If your concern has not been resolved
by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS
MANAGER, then please contact the GENERAL MANAGER of the
dealership or the OWNER.
STEP 2: Call the Mazda National Customer Assistance Center #800
If for any reason you feel the need for further assistance after contacting
your dealership management, call Mazda North American Operations'
Customer Assistance Center toll-free at:1 (800) 222±5500
In order to serve you efficiently and effectively, please help us by
providing the following information:
1. Your name, address, and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (17 digits, noted on your registration
or title or located on the upper driver's side corner of the dash)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)
If you would like to write a letter, please address it to the following,
Attn: Customer Assistance, which corresponds with your state:
REGIONAL OFFICE
Mazda North American Operations
7755 Irvine Center Drive
Irvine, CA 92618±2922
P.O. Box 19734
Irvine, CA 92623±9734
This way, we can be sure to respond to you as efficiently as possible.
That is our goal.
Customer assistance
217

If you live outside the U.S.A., please contact your nearest Mazda
Distributor.
Customer Assistance (Puerto Rico)
Your complete and permanent satisfaction is our business. That is why all
Authorized Mazda Dealers have the knowledge and the tools to keep
your Mazda vehicle in top condition.
If you have any questions or recommendations for improvement
regarding the service of your Mazda vehicle or servicing by Mazda Dealer
personnel, we recommend that you take the following steps:
STEP 1
Discuss the matter with an Authorized Mazda Dealer. This is the quickest
and best way to address the issue. If your concern has not been resolved
by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS
MANAGER, then please contact the GENERAL MANAGER of the
dealership or the OWNER.
STEP 2
If, after following STEP 1, you feel the need for further assistance, please
contact your area's Mazda representative (Indicated on the next page).
Please help us by providing the following information:
1. Your name, address, and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (17 digits, noted on your registration
or title or located on the upper driver's side corner of the dash)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)
If you would like to write a letter, please address it to the following,
Attn: Customer Assistance, which corresponds with your state:
REGIONAL OFFICE
Mazda North American Operations
7755 Irvine Center Drive
Irvine, CA 92618±2922
P.O. Box 19734
Irvine, CA 92623±9734
Customer assistance
218

This way, we can be sure to respond to you as efficiently as possible.
That is our goal.
If you live outside the U.S.A., please contact your nearest Mazda
Distributor.
Mazda Importers/Distributors
U.S.A (Importer/Distributor)
Mazda North American Operations
7755 Irvine Center Drive
Irvine, CA 92618±2922
P.O. Box 19734
Irvine, CA 92623±9734
TEL: 1 (800) 222±5500 (in U.S.A.)
(949) 727±1990 (outside U.S.A.)
(Distributor in each area)
CANADA
Mazda Canada Inc.
305 Milner Avenue, Suite 400
Scarborough, Ontario M1B 3V4 Canada
TEL: 1 (800) 263±4680 (in Canada)
(416) 609±9909 (outside Canada)
PUERTO RICO
Plaza Motors Corp. (Mazda de Puerto Rico)
P.O Box 362722, San Juan, Puerto Rico 00936±2722
TEL: (787) 788±9300
GUAM
Triple J. Motors
P.O. Box 6066 Tamuning, Guam
TEL: (671) 649±6555
SAIPAN
Pacific International Marianas, Inc.
(d.b.a. Midway Motors)
P.O. Box 887 Saipan, MP 96950
TEL: (670) 234±7524
Customer assistance
219

AMERICAN SAMOA
Polynesia Motors, Inc.
P.O. Box 1120, Pago Pago, American Samoa 96799
TEL: (684) 699±9347
WARRANTIES FOR YOUR MAZDA
²New Vehicle Limited Warranty
²Safety Restraint System Limited Warranty
²Anti-perforation Limited Warranty
²Federal Emission Control Warranty
± Emission Defect Warranty
± Emission Performance Warranty
²California Emission Control Warranty (if applicable)
²Replacement Parts and Accessories Limited Warranty
²Tire Warranty
NOTE:Detailed warranty information is provided with your Mazda.
OUTSIDE THE UNITED STATES AND CANADA
Government regulations in the United States require that automobiles
meet specific emission regulations and safety standards. Therefore,
vehicles built for use in the United States, its territories, and Canada may
differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle
to receive satisfactory servicing in other countries. We strongly
recommend that you NOT take your Mazda outside these areas.
You may have these problems if you do:
²Recommended fuel may be unavailable. Any kind of leaded fuel or
low-octane fuel will affect vehicle performance and damage the
emission controls and engine.
²Proper repair facilities, tools, testing equipment, and replacement
parts may not be available.
The manufacturer's warranty applies only to Mazda vehicles registered
and normally operated in the United States, its territories, and Canada.
