To install the rear cushion 1. Insert rod ends into floor mounting points and push the
cushion to the inboard side of
the vehicle.
2. Make sure that the hinges are locked into place.
SAFETY RESTRAINTS
Personal Safety System
The Personal Safety System provides an improved overall level of
frontal crash protection to front seat occupants and is designed to help
further reduce the risk of airbag-related injuries. The system is able to
analyze different occupant conditions and crash severity before activating
the appropriate safety devices to help better protect a range of
occupants in a variety of frontal crash situations.
Your vehicle’s Personal Safety System consists of:
• Driver and passenger dual-stage airbag supplemental restraints.
• Front seat belts with pretensioners (front row only), load limiter
(front row only), and seat belt usage sensors (front row only).
• Front passenger sensing system
• “Passenger airbag off” or “pass airbag off” indicator lamp
• Front crash severity sensor.
• Restraints Control Module (RCM) with impact and safing sensors.
• Restraint system warning light and back-up tone.
• The electrical wiring for the airbags, crash sensor(s), seat belt
pretensioners, front seat belt usage sensors, driver seat position
sensor, front passenger sensing system, and indicator lights.
2008 Tribute (j14)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
81

How does the Personal Safety Systemwork?
The Personal Safety System can adapt the deployment strategy of your
vehicle’s safety devices according to crash severity and occupant
conditions. A collection of crash and occupant sensors provides
information to the Restraints control module (RCM). During a crash, the
RCM activates the seat belt pretensioners and/or either one or both
stages of the dual-stage airbag supplemental restraints based on crash
severity and occupant conditions.
The fact that the pretensioners or airbags did not activate for both front
seat occupants in a collision does not mean that something is wrong with
the system. Rather, it means the Personal Safety System determined
the accident conditions (crash severity, belt usage, etc.) were not
appropriate to activate these safety devices. Front airbags and
pretensioners are designed to activate only in frontal and near-frontal
collisions, not rollovers, side-impacts, or rear-impacts unless the collision
causes sufficient longitudinal deceleration.
Driver and passenger dual-stage airbag supplemental restraints
The dual-stage airbags inflation energy is tailored to crash severity, belt
use, driver seat position, and other factors. A lower, less forceful energy
level is provided for more common, moderate-severity impacts. A higher
energy level is used for the most severe impacts unless the driver’s seat
is forward for a small occupant. Refer to Airbag supplemental
restraints section in this chapter.
Front crash severity sensor
The front crash severity sensor enhances the ability to detect the
severity of an impact. Positioned up front, it provides valuable
information early in the crash event on the severity of the impact. This
allows your Personal Safety System to distinguish between different
levels of crash severity and modify the deployment strategy of the
dual-stage airbags and seat belt pretensioners.
Driver’s seat position sensor
The driver’s seat position sensor allows your Personal Safety System to
tailor the deployment level of the driver dual-stage airbag based on seat
position. The system is designed to help protect smaller drivers sitting
close to the driver airbag by providing a lower airbag output level.
2008 Tribute (j14)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
82

Front passenger sensing system
For airbags to do their job they must inflate with great force, and this
force can pose a potentially deadly risk to occupants that are very close
to the airbag when it begins to inflate. For some occupants, like infants
in rear-facing child seats, this occurs because they are initially sitting
very close to the airbag. For other occupants, this occurs when the
occupant is not properly restrained by seat belts or child safety seats and
they move forward during pre-crash braking. The most effective way to
reduce the risk of unnecessary injuries is to make sure all occupants are
properly restrained. Accident statistics suggest that children are much
safer when properly restrained in the rear seating positions than in the
front. WARNING: Air bags can kill or injure a child in a child seat.
NEVER place a rear-facing child seat in front of an active air
bag. If you must use a forward-facing child seat in the front
seat, move the seat all the way back.
WARNING: Always transport children 12 years old and under
in the back seat and always properly use appropriate child
restraints.
The front passenger sensing system can automatically turn off the
passenger front airbag. The system is designed to help protect small
(child size) occupants from airbag deployments when they are
improperly seated or restrained in the front passenger seat contrary to
proper child-seating or restraint usage recommendations. Even with this
technology, parents are STRONGLYencouraged to always properly
restrain children in the rear seat. The sensor also turns off the passenger
front airbag and passenger seat-mounted side airbag (if equipped) when
the passenger seat is empty.
When the front passenger seat is occupied and the sensing system has
turned off the passenger’s frontal airbag, the “pass airbag off” indicator
will light and stay lit to remind you that the front passenger frontal
airbag is off. See Front passenger sensing system in the airbags section
of this chapter.
Front seat belt usage sensors
The front seat belt usage sensors detect whether or not the driver and
front outboard passenger seat belts are fastened. This information allows
your Personal Safety System to tailor the airbag deployment and seat
belt pretensioner activation depending upon seat belt usage. Refer to
Safety restraints section in this chapter.
2008 Tribute(j14)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
83

Front seat belt pretensioners
The seat belt pretensioners at the front outboard seating positions are
designed to tighten the seat belts firmly against the occupant’s body
during frontal collisions, and in side collisions and rollovers when the
vehicle is equipped with the side-curtain airbag system. This helps
increase the effectiveness of the seat belts. In frontal collisions, the seat
belt pretensioners can be activated alone or, if the collision is of
sufficient severity, together with the front airbags.
Front seat belt load limiter
The front outboard seat belt load limiter allows webbing to be pulled out
of the retractor in a gradual and controlled manner in response to the
occupant’s forward momentum. This helps reduce the risk of
force-related injuries to the occupant’s chest by limiting the load on the
occupant. Refer to Load limiter feature section in this chapter.
Determining if the Personal Safety System is operational
The Personal Safety System uses a warning light in the instrument
cluster or a back-up tone to indicate the condition of the system. Refer
to the Warning light section in theInstrument cluster chapter. Routine
maintenance of the Personal Safety System is not required.
The Restraints control module (RCM) monitors its own internal circuits
and the circuits for the airbag supplemental restraints, crash sensor(s),
seat belt pretensioners, front seat belt buckle sensors, driver seat
position sensor, and front passenger sensing system. In addition, the
RCM also monitors the restraints warning light in the instrument cluster.
A malfunction with the system is indicated by one or more of the
following.
• The warning light will either flash or stay lit.
• The warning light will not illuminate immediately after ignition is
turned on.
• A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem and warning light are repaired.
If any of these things happen, even intermittently, have the Personal
Safety System serviced at an authorized dealer immediately. Unless
serviced, the system may not function properly in the event of a
collision.
2008 Tribute (j14)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
84

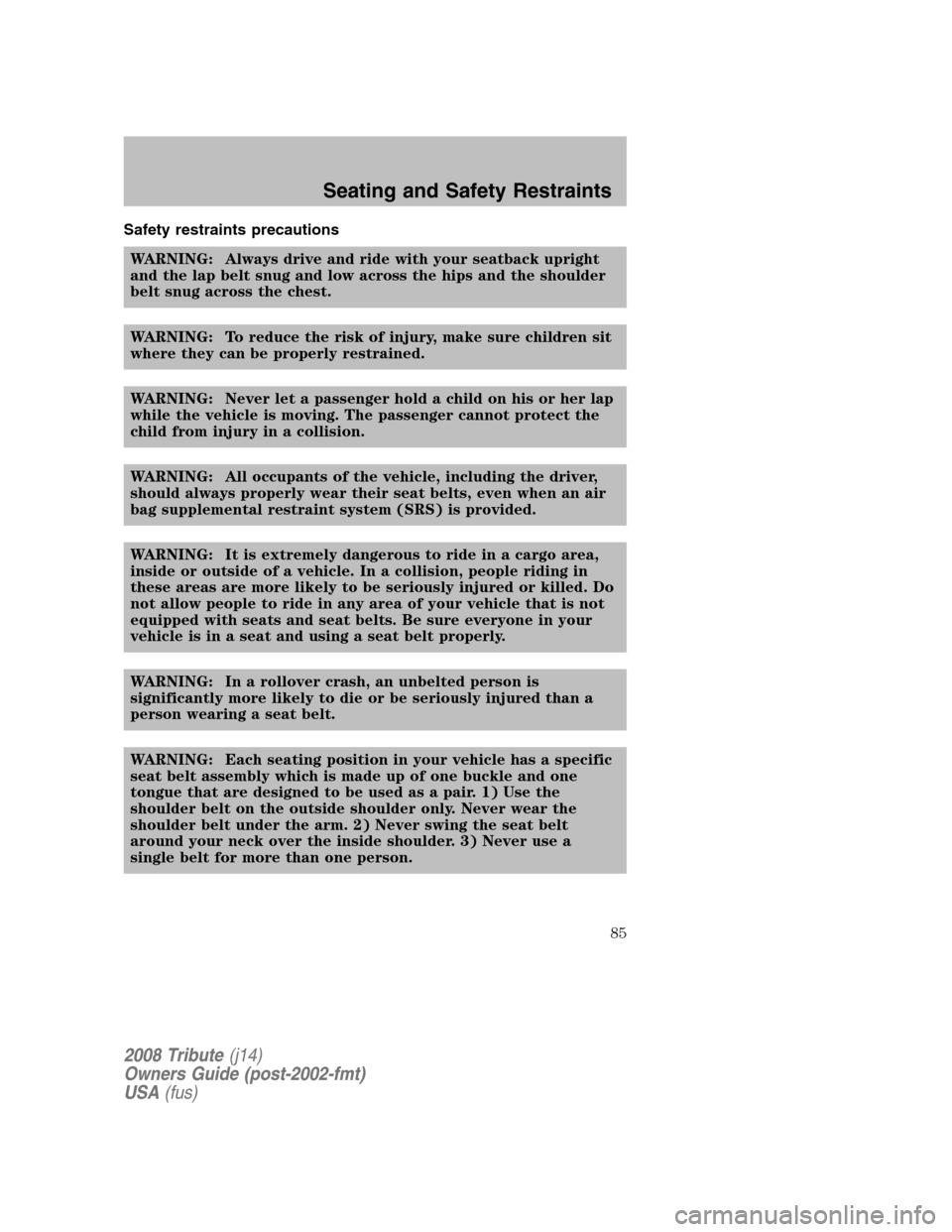

Safety restraints precautions WARNING: Always drive and ride with your seatback upright
and the lap belt snug and low across the hips and the shoulder
belt snug across the chest.
WARNING: To reduce the risk of injury, make sure children sit
where they can be properly restrained.
WARNING: Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot protect the
child from injury in a collision.
WARNING: All occupants of the vehicle, including the driver,
should always properly wear their seat belts, even when an air
bag supplemental restraint system (SRS) is provided.
WARNING: It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured or killed. Do
not allow people to ride in any area of your vehicle that is not
equipped with seats and seat belts. Be sure everyone in your
vehicle is in a seat and using a seat belt properly.
WARNING: In a rollover crash, an unbelted person is
significantly more likely to die or be seriously injured than a
person wearing a seat belt.
WARNING: Each seating position in your vehicle has a specific
seat belt assembly which is made up of one buckle and one
tongue that are designed to be used as a pair. 1) Use the
shoulder belt on the outside shoulder only. Never wear the
shoulder belt under the arm. 2) Never swing the seat belt
around your neck over the inside shoulder. 3) Never use a
single belt for more than one person.
2008 Tribute (j14)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
85

WARNING: Placing a child, 12 years or younger, in the front
seat is dangerous. The child could be hit by a deploying airbag
and be seriously injured or even killed. A sleeping child is more
likely to lean against the door and be hit by the side airbag (if
equipped) in a moderate collision. Whenever possible, always
secure a child, 12 years or younger, in the rear seat, with an
appropriate child restraint system for the child’s age and size.
Never use a rear-facing child restraint system in the front seat
with an airbag that could deploy.
Combination lap and shoulder belts 1. Insert the belt tongue into the proper buckle (the buckle
closest to the direction the
tongue is coming from) until
you hear a snap and feel it
latch. Make sure the tongue is
securely fastened in the buckle.
2. To unfasten, push the release button and remove the tongue
from the buckle.
Load Limiter Feature
• This vehicle has a seat belt system with a load limiter feature at the
front seating positions to help further reduce the risk of injury in the
event of a head-on collision.
• This seat belt system has a retractor assembly that is designed to pay
out webbing in a controlled manner. This feature is designed to help
reduce the belt force acting on the occupant’s chest.
2008 Tribute (j14)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
86

All seat belts in the vehicle are combination lap and shoulder belts. The
passenger seat belts have two types of locking modes described below:
Vehicle sensitive mode
This is the normal retractor mode, which allows free shoulder belt length
adjustment to your movements and locking in response to vehicle
movement. For example, if the driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of approximately 5 mph (8 km/h)
or more, the combination seat belts will lock to help reduce forward
movement of the driver and passengers.
Automatic locking mode for use with child safety seats
When to use the automatic locking mode
In this mode, the shoulder belt is automatically pre-locked. The belt will
still retract to remove any slack in the shoulder belt. The automatic
locking mode is not available on the driver seat belt.
This mode should be used any timea child safety seat, except a
booster, is installed in passenger front or rear seating positions. Children
12 years old and under should be properly restrained in the rear seat
whenever possible. Refer to Safety restraints for children orSafety
seats for children later in this chapter.
How to use the automatic locking mode for use with child safety
seats
• Buckle the combination lap and
shoulder belt.
2008 Tribute (j14)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
87

•Grasp the shoulder portion and
pull downward until the entire
belt is pulled out.
• Allow the belt to retract. As the belt retracts, you will hear a clicking
sound. This indicates the seat belt is now in the automatic locking
mode.
How to disengage the automatic locking mode
Disconnect the combination lap/shoulder belt and allow it to retract
completely to disengage the automatic locking mode and activate the
vehicle sensitive (emergency) locking mode.
If the seat belt is not coming out of the retractor when it looks to be
fully retracted, check to see if it might still be attached to the side of the
vehicle by the snaps designed to keep it out of the way when you last
put the rear seat into cargo configuration. Refer to Returning the rear
seats to upright position in this chapter.
WARNING: After any vehicle collision, the seat belt systems at
all seating positions (except the driver position, which doesn’t
have this feature) must be checked by an authorized dealer to
verify that the automatic locking retractor feature for child
seats is still functioning properly. In addition, all seat belts
should be checked for proper function.
WARNING: BELT AND RETRACTOR ASSEMBLY MUST BE
REPLACED if the seat belt assembly “automatic locking
retractor” feature or any other seat belt function is not
operating properly when checked according to the procedures in
Workshop Manual. Failure to replace the Belt and Retractor
assembly could increase the risk of injury in collisions.
2008 Tribute (j14)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
88

Seat belt height adjustment
Your vehicle has seat belt height
adjustments at the front outboard
seating positions. Adjust the height
of the shoulder belt so the belt rests
across the middle of your shoulder.
To adjust the shoulder belt height,
squeeze and hold the buttons on the
side and slide the height adjuster up
or down. Release the buttons and
pull down on the height adjuster to
make sure it is locked in place. WARNING: Position the seat belt height adjusters so that the
belt rests across the middle of your shoulder. Failure to adjust
the seat belt properly could reduce the effectiveness of the seat
belt and increase the risk of injury in a collision.
Seat belt pretensioner
Your vehicle is equipped with seat belt pretensioners at the driver and
right front passenger seating positions.
The seat belt pretensioner removes some slack from the seat belt system
at the start of a crash. The seat belt pretensioner uses the same crash
sensor system as the front airbags and side-curtain airbags (if equipped).
When the seat belt pretensioner deploys, the lap and shoulder belt are
tightened.
When the side-curtain airbags (if equipped) and/or the front airbags are
activated, the seat belt pretensioners for the driver and right front
passenger seating positions will be activated when the respective seatbelt
is properly buckled. WARNING: The driver and the right front passenger seat belt
system (including retractors, buckles and height adjusters)
must be replaced if the vehicle is involved in a collision that
results in deployment of front airbags, seat-mounted side
airbags, or side-curtain airbags (if equipped) and seat belt
pretensioners.
2008 Tribute (j14)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
89

WARNING: Failure to replace both front restraints under the
above conditions could result in severe personal injuries in the
event of a collision. The seat belt pretensioners will only
function once. After they are deployed, they will not work again
and must be replaced immediately, even if there was no front
seat occupant seated at the time.
WARNING: Modifying the components or wiring of the
pretensioner system, including the use of electronic testing
devices is dangerous. You could accidentally activate it or make
it inoperable which would prevent it from activating in an
accident. Front occupants could be seriously injured. Never
modify the components or wiring, or use electronic testing
devices on the pretensioner system.
WARNING: Improper disposal of the pretensioner system or a
vehicle with non-deactivated pretensioners is dangerous. Unless
all safety procedures are followed, injury could result. Ask an
authorized Mazda dealer how to safely dispose of the
pretensioner system or how to scrap a front
pretensioner-equipped vehicle.
Refer to the Seat belt maintenance section in this chapter.
Seat belt extension assembly
If the seat belt is too short when fully extended, a 9 inch (23 cm) or 12
inch (31 cm) seat belt extension assembly can be added (part numbers
611C22–A and 611C22–B respectively). Seat belt extension assemblies
can be obtained from your authorized Mazda dealership.
Use only extensions manufactured by the same supplier as the seat belt.
Manufacturer identification is located at the end of the webbing on the
label. Also, use the seat belt extension only if the seat belt is too short
for you when fully extended.
When you are not using the extensions store them in another location so
that no one will accidentally use them.
NOTE: Do not use extensions to change the fit of the shoulder belt
across the torso.
2008 Tribute (j14)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
90
