BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer toWarning lights and
chimesin theInstrument Cluster
chapter for information on the brake
system warning light.
Four-wheel anti-lock brake system (ABS)
Since your vehicle is equipped with an anti-lock braking system (ABS), a
noise from the hydraulic pump motor and pulsation in the pedal may be
observed during ABS braking events. Pedal pulsation coupled with noise
while braking under panic conditions or on loose gravel, bumps, wet or
snowy roads is normal and indicates proper functioning of the vehicle’s
anti-lock brake system.
NOTE:The ABS performs a self-check after you start the engine and
begin to drive away.
A brief mechanical noise may be heard during this test. This is normal. If
a malfunction is found, the ABS warning light will come on. If the vehicle
has continuous vibration or shudder in the steering wheel while braking,
the vehicle should be inspected by an authorized dealer.
The ABS operates by detecting the
onset of wheel lockup during brake
applications and compensates for
this tendency. The wheels are
prevented from locking even when
the brakes are firmly applied. The
accompanying illustration depicts
the advantage of an ABS equipped
vehicle (on bottom) to a non-ABS
equipped vehicle (on top) during hard braking with loss of front braking
traction.
WARNING:The Anti-Lock system does not decrease the time
necessary to apply the brakes or always reduce stopping
distance. Always leave enough room between your vehicle and the
vehicle in front of you to stop.
P!
BRAKE
Driving
193
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 197 of 320

normal system self-check, or during driving if a driving situation causes
the DSC system to operate. The stability control off light will illuminate if
traction control or trailer sway control are disabled after pressing the
TCS OFF switch. If the stability control light remains steadily
illuminated, have the system serviced by an authorized dealer
immediately.
Note:If the system cannot be turned off, refer toMyKey™in theLocks
and Securitychapter for more information.
When DSC performs a normal system self-check, some drivers may
notice a slight movement of the brake, and/or a rumble, grunting, or
grinding noise after startup and when driving off.
When an event occurs that activates DSC, you may experience the
following:
•A slight deceleration of the vehicle
•The stability control light will flash.
•A vibration in the pedal when your foot is on the brake pedal
•If the driving condition is severe and your foot is not on the brake, the
brake pedal may move as the systems applies higher brake forces. You
may also hear a whoosh of air from under the instrument panel during
this severe condition.
•The brake pedal may feel stiffer than usual.
Traction control (TCS)
Traction control is a driver aid feature that helps your vehicle maintain
traction of the wheels, typically when driving on slippery and/or hilly
road surfaces, by detecting and controlling wheel spin.
Excessive wheel spin is controlled in two ways, which may work
separately or in tandem: engine traction control and brake traction
control. Engine traction control works to limit drive-wheel spin by
momentarily reducing engine power. Brake traction control works to limit
wheel spin by momentarily applying the brakes to the wheel that is
slipping. Traction control is most active at low speeds.
During traction control events, the stability control light in the
instrument cluster will flash.
If the traction control system is activated excessively in a short period of
time, the braking portion of the system may become temporarily disabled
to allow the brakes to cool down. In this situation, traction control will
use only engine power reduction or transfer to help control the wheels
from over-spinning. When the brakes have cooled down, the system will
Driving
197
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 199 of 320

•Quick maneuvering to avoid an accident, pedestrian or obstacle
Switching off traction control
If the vehicle is stuck in snow, mud or sand, and seems to lose engine
power, switching off the traction control features of the DSC system may
be beneficial because the wheels are allowed to spin. This will restore
full engine power and will enhance momentum through the obstacle. To
switch off the traction control, press the traction control off button. Full
features of the stability control system can be restored by pressing the
traction control off button again, or by turning off and restarting the
engine.
If you switch off the traction control, the stability control “OFF” light will
illuminate steadily. Pressing the stability control off button again will turn
off the stability control “OFF” light.
In R (Reverse), ABS and the engine and brake traction control features
will continue to function; however, ESC and RSCare disabled.
Dynamic Stability Control Features
Button
functionsStability
control
light
RSC/
ESC/
Traction
controlStability
control
“OFF”Trailer
sway
Default at
start-upIlluminated
during bulb
checkEnabledIlluminated
during bulb
checkEnabled
Button pressed
momentarilyNot
IlluminatedEnabled
1Illuminated
solidEnabled
Button pressed
again after
deactivationNot
illuminatedEnabledNot
illuminatedEnabled
2
1
When the DSC button is pressed momentarily, traction control is
disabled.
2When the DSC button is pressed and held for more than five seconds,
trailer sway control is disabled.
Trailer sway control (if equipped)
Your vehicle may be equipped with trailer sway control (TSC). When
properly equipped, trailer sway control will use the sensors of the
vehicle’s DSC system to detect and attempt to mitigate trailer sway by
applying brake force at individual wheels and, if necessary, by reducing
engine power. No driver action is required.
Driving
199
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 214 of 320

Driving through deep water may damage the transmission.
If the rear axle is submerged in water, the axle lubricant should be
checked and changed, if necessary. The rear axle is filled with a lubricant
that does not normally require a lubricant change for the life of the
vehicle. Rear axle lubricant quantities should not need to be checked
unless a leak is suspected.
“Tread Lightly” is an educational
program designed to increase public
awareness of land-use regulations
and responsibilities in our nations
wilderness areas. Mazda Motor
Corporation joins the U.S. Forest Service and the Bureau of Land
Management in encouraging you to help preserve our national forest and
other public and private lands by “treading lightly.”
Driving on hilly or sloping terrain
Although natural obstacles may make it necessary to travel diagonally up
or down a hill or steep incline, you should always try to drive straight up
or straight down.Avoid driving crosswise or turning on steep
slopes or hills. A danger lies in losing traction, slipping sideways and
possibly rolling over. Whenever driving on a hill, determine beforehand
the route you will use. Do not drive over the crest of a hill without
seeing what conditions are on the other side. Do not drive in reverse
over a hill without the aid of an observer.
When climbing a steep slope or hill,
start in a lower gear rather than
downshifting to a lower gear from a
higher gear once the ascent has
started. This reduces strain on the
engine and the possibility of stalling.
If you do stall out, Do not try to
turnaround because you might roll
over. It is better to back down to a
safe location.
Apply just enough power to the wheels to climb the hill. Too much
power will cause the tires to slip, spin or lose traction, resulting in loss of
vehicle control.
Driving
214
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 237 of 320

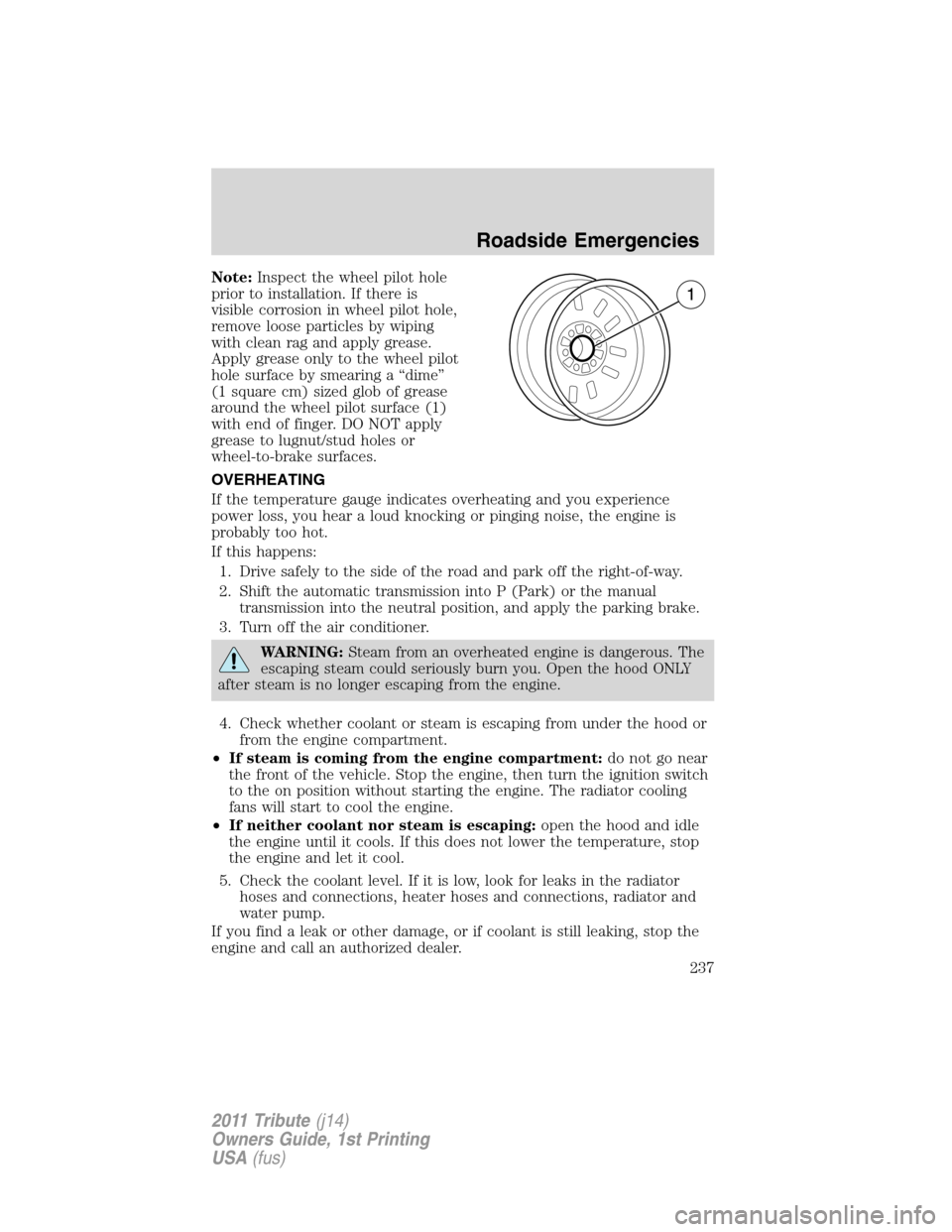

Note:Inspect the wheel pilot hole
prior to installation. If there is
visible corrosion in wheel pilot hole,
remove loose particles by wiping
with clean rag and apply grease.
Apply grease only to the wheel pilot
hole surface by smearing a “dime”
(1 square cm) sized glob of grease
around the wheel pilot surface (1)
with end of finger. DO NOT apply
grease to lugnut/stud holes or
wheel-to-brake surfaces.
OVERHEATING
If the temperature gauge indicates overheating and you experience
power loss, you hear a loud knocking or pinging noise, the engine is
probably too hot.
If this happens:
1. Drive safely to the side of the road and park off the right-of-way.
2. Shift the automatic transmission into P (Park) or the manual
transmission into the neutral position, and apply the parking brake.
3. Turn off the air conditioner.
WARNING:Steam from an overheated engine is dangerous. The
escaping steam could seriously burn you. Open the hood ONLY
after steam is no longer escaping from the engine.
4. Check whether coolant or steam is escaping from under the hood or
from the engine compartment.
•If steam is coming from the engine compartment:do not go near
the front of the vehicle. Stop the engine, then turn the ignition switch
to the on position without starting the engine. The radiator cooling
fans will start to cool the engine.
•If neither coolant nor steam is escaping:open the hood and idle
the engine until it cools. If this does not lower the temperature, stop
the engine and let it cool.
5. Check the coolant level. If it is low, look for leaks in the radiator
hoses and connections, heater hoses and connections, radiator and
water pump.
If you find a leak or other damage, or if coolant is still leaking, stop the
engine and call an authorized dealer.
Roadside Emergencies
237
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 239 of 320

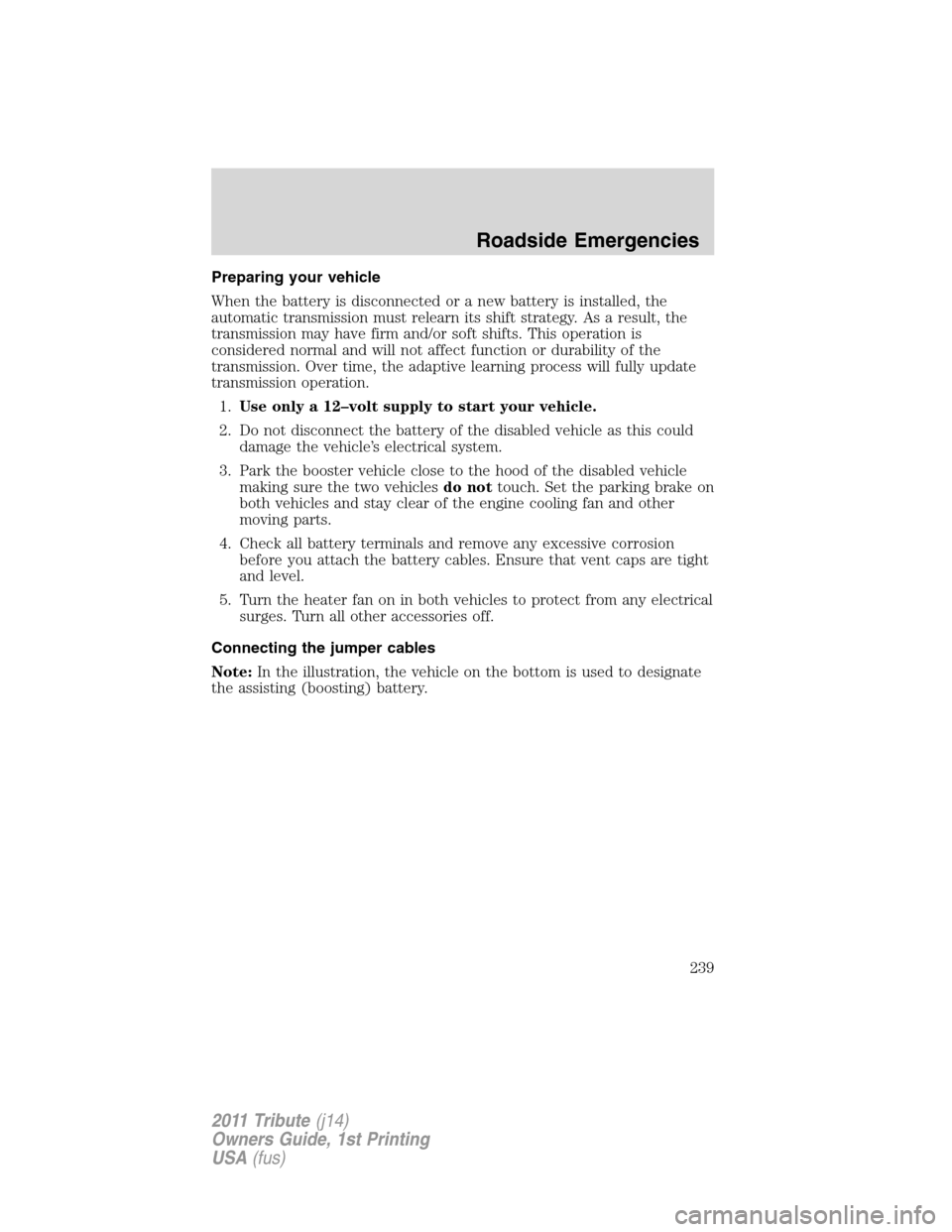

Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other
moving parts.
4. Check all battery terminals and remove any excessive corrosion
before you attach the battery cables. Ensure that vent caps are tight
and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Connecting the jumper cables
Note:In the illustration, the vehicle on the bottom is used to designate
the assisting (boosting) battery.
Roadside Emergencies
239
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 266 of 320
![MAZDA MODEL TRIBUTE 2011 (in English) User Guide Maintenance ItemMaintenance Interval (Months or miles [km], whichever
comes first)
Months 6 12 18 24 30 36 42 48 54 60 66 72
Miles x 1,000 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
(Km x 1,000) ( MAZDA MODEL TRIBUTE 2011 (in English) User Guide Maintenance ItemMaintenance Interval (Months or miles [km], whichever
comes first)
Months 6 12 18 24 30 36 42 48 54 60 66 72
Miles x 1,000 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
(Km x 1,000) (](/img/28/15623/w960_15623-265.png)

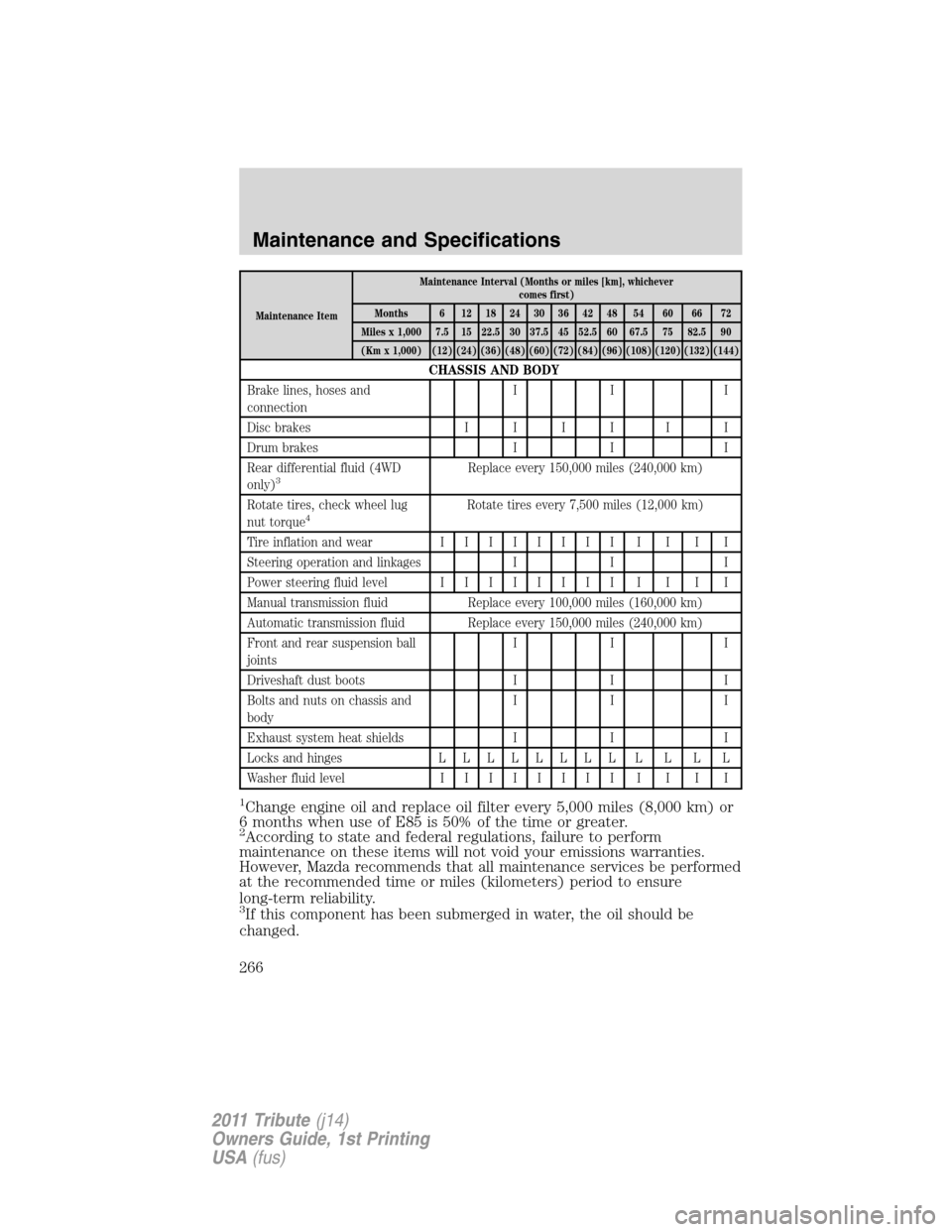

Maintenance ItemMaintenance Interval (Months or miles [km], whichever
comes first)
Months 6 12 18 24 30 36 42 48 54 60 66 72
Miles x 1,000 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
(Km x 1,000) (12) (24) (36) (48) (60) (72) (84) (96) (108) (120) (132) (144)
CHASSIS AND BODY
Brake lines, hoses and
connectionII I
Disc brakes I I I I I I
Drum brakes I I I
Rear differential fluid (4WD
only)
3Replace every 150,000 miles (240,000 km)
Rotate tires, check wheel lug
nut torque
4Rotate tires every 7,500 miles (12,000 km)
Tire inflation and wear I I I I I I I IIIII
Steering operation and linkages I I I
Power steering fluid level I I I I I I I IIIII
Manual transmission fluid Replace every 100,000 miles (160,000 km)
Automatic transmission fluid Replace every 150,000 miles (240,000 km)
Front and rear suspension ball
jointsII I
Driveshaft dust boots I I I
Bolts and nuts on chassis and
bodyII I
Exhaust system heat shields I I I
Locks and hingesLLLLLLLLLLLL
Washer fluid level I I I I I I I IIIII
1Change engine oil and replace oil filter every 5,000 miles (8,000 km) or
6 months when use of E85 is 50% of the time or greater.
2According to state and federal regulations, failure to perform
maintenance on these items will not void your emissions warranties.
However, Mazda recommends that all maintenance services be performed
at the recommended time or miles (kilometers) period to ensure
long-term reliability.
3If this component has been submerged in water, the oil should be
changed.
Maintenance and Specifications
266
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 268 of 320
![MAZDA MODEL TRIBUTE 2011 (in English) User Guide Maintenance ItemMaintenance Interval (Months or miles [km], whichever
comes first)
Months 4 8 12 16 20 24 28 32 36 40 44 48
Miles x 1,000 5 10 15 20 25 30 35 40 45 50 55 60
(Km x 1,000) (8) (16) (24) MAZDA MODEL TRIBUTE 2011 (in English) User Guide Maintenance ItemMaintenance Interval (Months or miles [km], whichever
comes first)
Months 4 8 12 16 20 24 28 32 36 40 44 48
Miles x 1,000 5 10 15 20 25 30 35 40 45 50 55 60
(Km x 1,000) (8) (16) (24)](/img/28/15623/w960_15623-267.png)

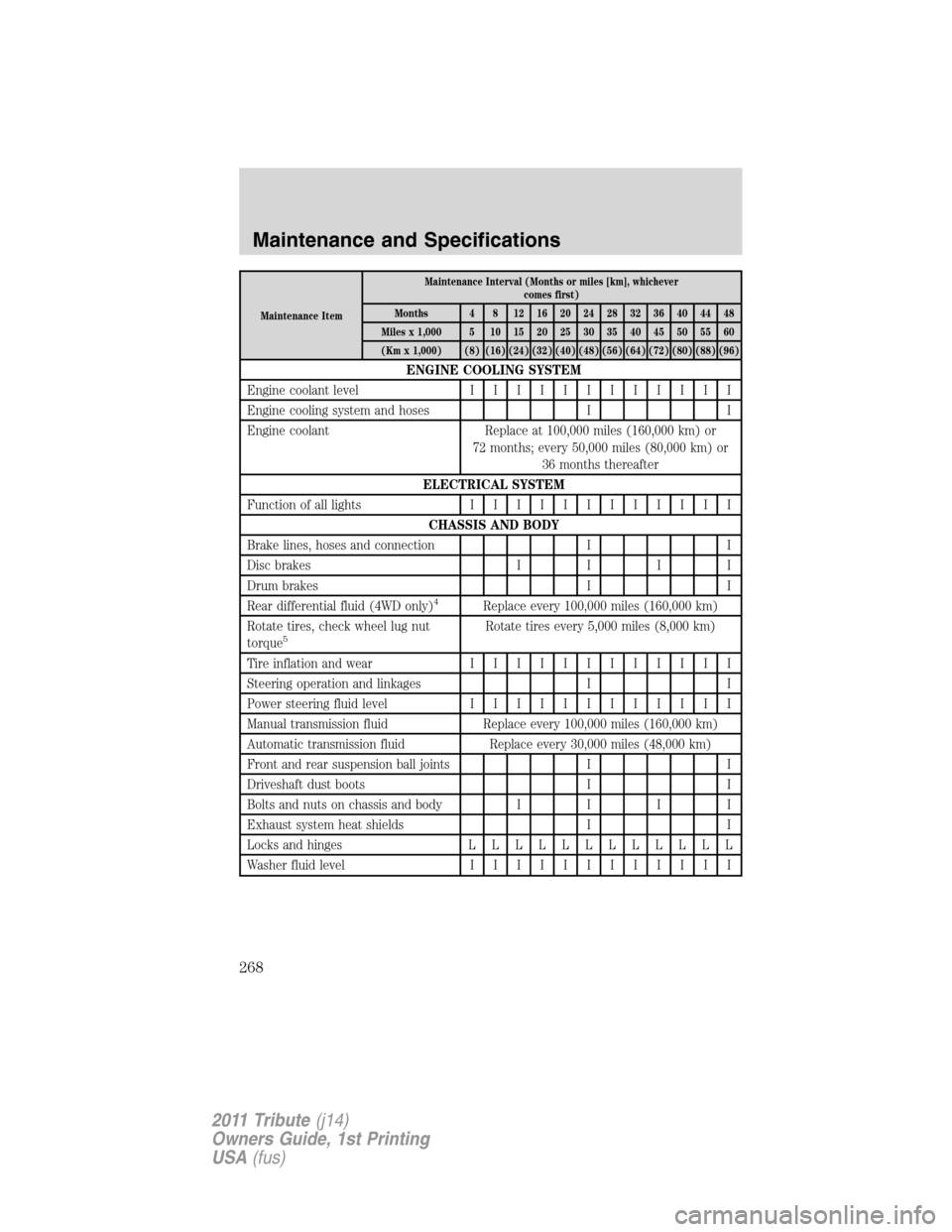

Maintenance ItemMaintenance Interval (Months or miles [km], whichever
comes first)
Months 4 8 12 16 20 24 28 32 36 40 44 48
Miles x 1,000 5 10 15 20 25 30 35 40 45 50 55 60
(Km x 1,000) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96)
ENGINE COOLING SYSTEM
Engine coolant level IIIIIIIIIIII
Engine cooling system and hoses I I
Engine coolant Replace at 100,000 miles (160,000 km) or 72 months; every 50,000 miles (80,000 km) or36 months thereafter
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
CHASSIS AND BODY
Brake lines, hoses and connection II
Disc brakes IIII
Drum brakes II
Rear differential fluid (4WD only)
4Replace every 100,000 miles (160,000 km)
Rotate tires, check wheel lug nut
torque
5Rotate tires every 5,000 miles (8,000 km)
Tire inflation and wear IIIIIIIIIIII
Steering operation and linkages I I
Power steering fluid level IIIIIIIIIIII
Manual transmission fluid Replace every 100,000 miles (160,000 km)
Automatic transmission fluid Replace every 30,000 miles (48,000 km)
Front and rear suspension ball joints I I
Driveshaft dust boots I I
Bolts and nuts on chassis and body I I I I
Exhaust system heat shields I I
Locks and hinges LLLLLLLLLLLL
Washer fluid level IIIIIIIIIIII
Maintenance and Specifications
268
2011 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)
Page 270 of 320

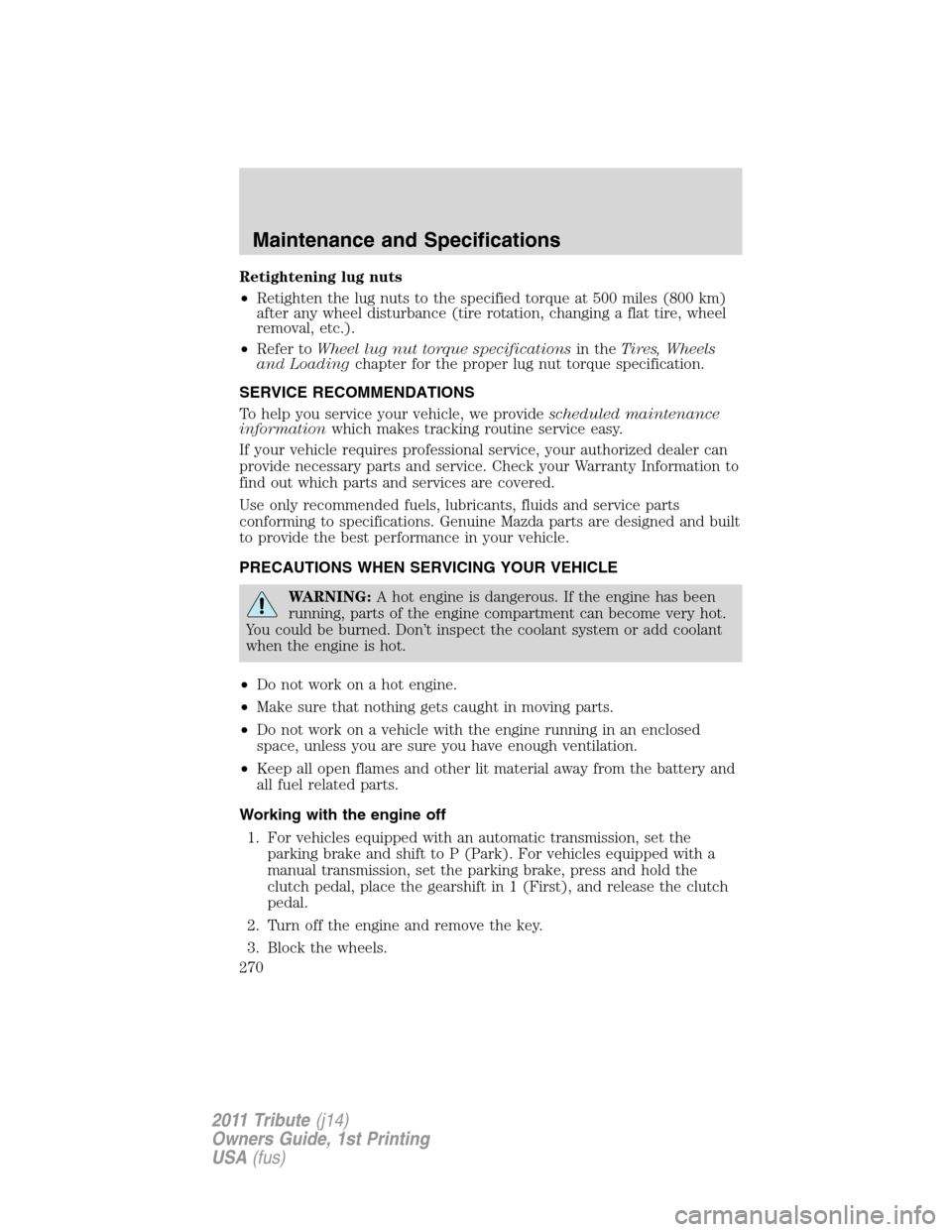

Retightening lug nuts
•Retighten the lug nuts to the specified torque at 500 miles (800 km)
after any wheel disturbance (tire rotation, changing a flat tire, wheel
removal, etc.).
•Refer toWheel lug nut torque specificationsin theTires, Wheels
and Loadingchapter for the proper lug nut torque specification.
SERVICE RECOMMENDATIONS
To help you service your vehicle, we providescheduled maintenance
informationwhich makes tracking routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide necessary parts and service. Check your Warranty Information to
find out which parts and services are covered.
Use only recommended fuels, lubricants, fluids and service parts
conforming to specifications. Genuine Mazda parts are designed and built
to provide the best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
WARNING:A hot engine is dangerous. If the engine has been
running, parts of the engine compartment can become very hot.
You could be burned. Don’t inspect the coolant system or add coolant
when the engine is hot.
•Do not work on a hot engine.
•Make sure that nothing gets caught in moving parts.
•Do not work on a vehicle with the engine running in an enclosed
space, unless you are sure you have enough ventilation.
•Keep all open flames and other lit material away from the battery and
all fuel related parts.
Working with the engine off
1. For vehicles equipped with an automatic transmission, set the
parking brake and shift to P (Park). For vehicles equipped with a
manual transmission, set the parking brake, press and hold the
clutch pedal, place the gearshift in 1 (First), and release the clutch
pedal.
2. Turn off the engine and remove the key.
3. Block the wheels.
Maintenance and Specifications
270
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
Page 274 of 320

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets Mazda specifications. Do not use any
special washer fluid such as windshield water repellent type fluid or bug
wash. They may cause squeaking, chatter noise, streaking and smearing.
Refer to theMaintenance product specifications and capacities
section in this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
WARNING:If you operate your vehicle in temperatures below
40°F (5°C), use washer fluid with antifreeze protection. Failure
to use washer fluid with antifreeze protection in cold weather could
result in impaired windshield vision and increase the risk of injury or
accident.
Note:Do not put washer fluid in the engine coolant reservoir. Washer
fluid placed in the cooling system may harm engine and cooling system
components.
Checking and adding washer fluid for the liftgate
Washer fluid for the liftgate is supplied by the same reservoir as the
windshield.
Maintenance and Specifications
274
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
