headlamp MAZDA MODEL TRIBUTE 4WD 2001 Owners Manual

RSM
CST
SETACC
OFF
ON
Instrument cluster
(pg. 8) Windshield wiper/washer
control
(pg. 44)
Manual tilt steering wheel lever(pg. 39)
Speed controls*
(pg. 40)
Instrument panel dimmer control (pg. 18)
Power mirror
control*
(pg. 18)
Fog lamp
control*
(pg. 50) Headlamp and turn
signal control(pg. 49)
Driver air bag(pg. 83)
* if equipped
Instrumentation
6

WARNING: If the light remains on, continues to flash or fails
to illuminate, have the system serviced immediately. With the
ABS light on, the anti-lock brake system is disabled and normal
braking is still effective unless the brake warning light also
remains illuminated with the parking brake released.
Turn signal
Illuminates when the left or right
turn signal or the hazard lights are
turned on. If one or both of the
indicators stay on continuously or
flash faster, check for a burned-out
turn signal bulb. Refer to Bulbsin the Maintenance and care chapter.
High beams
Illuminates when the high beam
headlamps are turned on.
Speed control
This light comes on when the
vehicle speed control is engaged and
actively controlling the vehicle
speed. It turns off when the speed control OFF or CANCEL controls are
pressed, the brake or clutch (if equipped) is applied or the ignition is
turned to the OFF position after stopping the vehicle.
Anti-theft system
Refer to SecuriLock ypassive
anti-theft system in theControls
and features chapter.
CRUISE
Instrumentation
11

Check fuel cap (if equipped)
Momentarily illuminates when the
ignition is turned to the ON position
to ensure your bulb is working.
When this light turns on, check the
fuel filler cap. Continuing to operate
the vehicle with the check fuel cap light on, can activate the
warning light. When the fuel filler cap is properly re-installed, the
light(s) will turn off after a period of normal driving. This period will
vary depending on driving conditions.
It may take a long period of time for the system to detect an
improperly installed fuel filler cap.
For more information, refer toFuel filler capin theMaintenance and
care chapter.
Safety belt warning chime
Sounds to remind you to fasten your safety belts.
For information on the safety belt warning chime, refer to the Seating
and safety restraints chapter.
Belt minder chime
Sounds intermittently to remind you to fasten your safety belts.
For information on the safety belt minder chime, refer to the Seating
and safety restraints chapter.
Supplemental restraint system (SRS) warning chime
For information on the SRS warning chime, refer to the Seating and
safety restraints chapter.
Key-in-ignition warning chime
Sounds when the key is left in the ignition in the OFF/LOCK or ACC
position and any door, liftgate or liftgate window is opened.
Headlamps ON warning chime
Sounds when the headlamps or parking lamps are on, the ignition is off
(and the key is not in the ignition) and the driver's door is opened.
CHECK FUELCAP
Instrumentation
14

WARNING: Do not let children play with the moon roof. They
may seriously injure themselves.
INTERIOR LAMPS
Cargo and dome lamp
Rear cargo lamp equipped with an
ON/OFF/DOOR control will light
when:
² the doors are closed and the
control is in the ON position.
² the control is in the DOOR
position and any door is open.
² the headlamp control is rotated
fully counterclockwise.
When the control is in the OFF
position, it will not illuminate when you open the doors or fully rotate
the headlamp control.
Dome lamps and map lamps
The front dome lamp is located overhead between the driver and
passenger seats.
The dome lamp will stay on if the
control is moved to the passenger
side position. When the control is in
the middle position, the lamp will
only come on when a door is
opened. If the control is moved to
the driver's side position, the lamp
will not come on at all.
With the control in the middle position, the dome lamp will illuminate
whenever any door is opened. If any door has been opened from the
outside, the lamp will remain on for 15 seconds after the door is shut.
DOOR OFF ON
Controls and features
48

The map lamp controls (without
moon roof) are located on the dome
lamp. Press the controls on either
side of each map lamp to activate
the lamps.
If equipped with a moon roof, the
map lamps are located on the moon
roof control panel. Press the
controls on either side of each map
lamp to activate the lamps.
HEADLAMP CONTROL
Rotate the headlamp control to the
first position to turn on the parking
lamps. Rotate to the second position
to also turn on the headlamps.
Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output. To activate:
²the ignition must be in the ON position and
² the headlamp control is in the OFF or Parking lamps position.
WARNING: Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate with your tail lamps and
generally may not provide adequate lighting during these
conditions. Failure to activate your headlamps under these
conditions may result in a collision.
OFF
Controls and features
49

High beams
Push forward to activate.
Pull toward you to deactivate.
Flash to pass
Pull toward you to activate and
release to deactivate.
TURN SIGNAL CONTROL
²Push down to activate the left
turn signal.
² Push up to activate the right turn
signal.
FOG LAMP CONTROL (IF EQUIPPED)
The fog lamps can be turned on
when the headlamp control is in low
beams position.
Press the fog lamp control to
activate the fog lamps. The fog lamp
indicator light will illuminate. When
the highbeams are activated, the fog
lamps will not operate.
Press the fog lamp control again to deactivate the fog lamps.
OFF
OFF
OFF
Controls and features
50

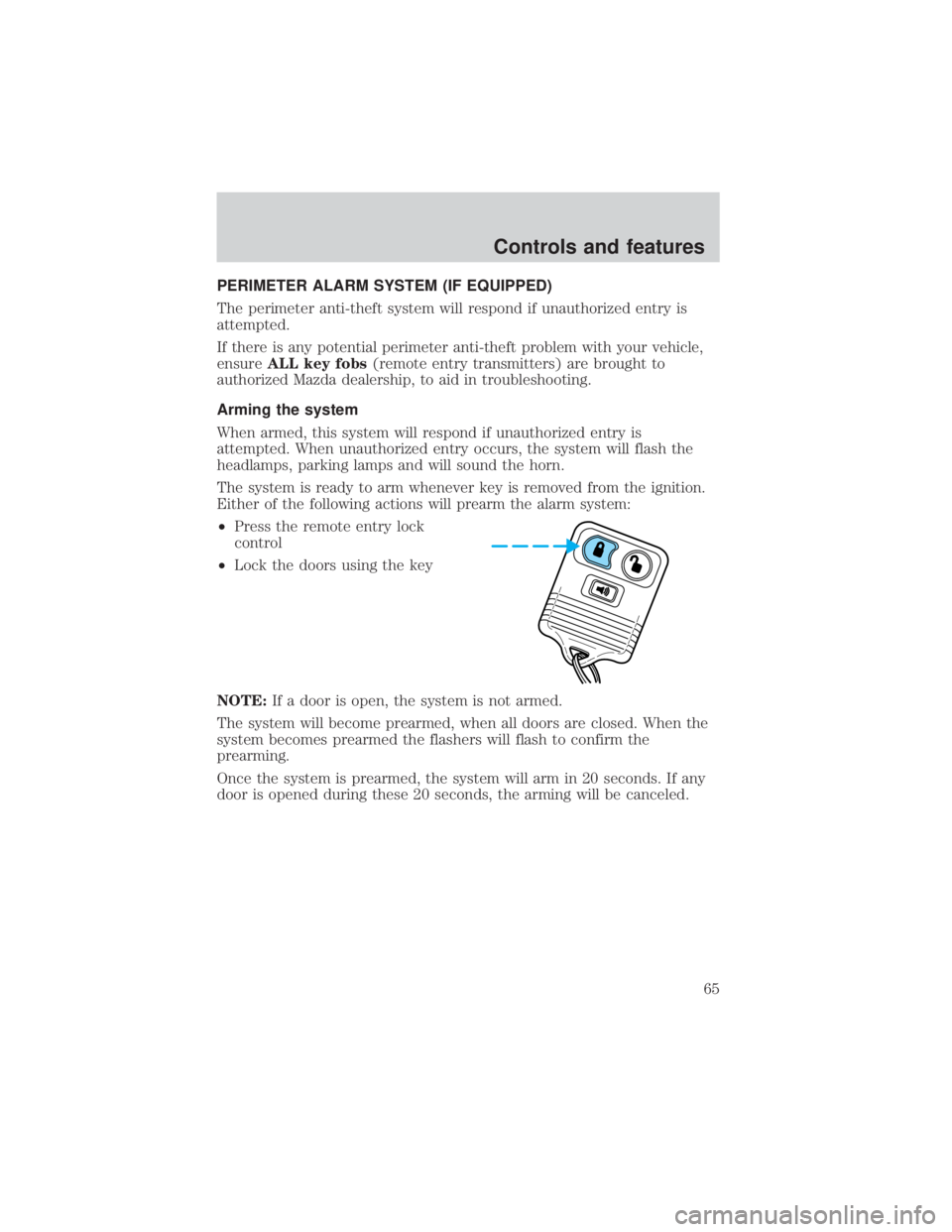

PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will respond if unauthorized entry is
attempted.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL key fobs (remote entry transmitters) are brought to
authorized Mazda dealership, to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
headlamps, parking lamps and will sound the horn.
The system is ready to arm whenever key is removed from the ignition.
Either of the following actions will prearm the alarm system:
² Press the remote entry lock
control
² Lock the doors using the key
NOTE: If a door is open, the system is not armed.
The system will become prearmed, when all doors are closed. When the
system becomes prearmed the flashers will flash to confirm the
prearming.
Once the system is prearmed, the system will arm in 20 seconds. If any
door is opened during these 20 seconds, the arming will be canceled.
Controls and features
65

2. Make sure the headlamps and vehicle accessories are off.
If starting a vehicle with an
automatic transmission:
² Make sure the parking brake is
set.
² Make sure the gearshift is in P
(Park).
If starting a vehicle with a manual
transmission:
² Make sure the parking brake is
set.
² Push the clutch pedal to the
floor.
R D 2 1ODO
Starting
103

The high-current fuses are coded as follows.
Fuse/RelayLocation Fuse Amp
Rating Power Distribution Box Description
Horn 15A Horn
H/L LH 15A* Headlamp (High/Low Left, High Beams)
H/L RH 15A* Headlamp (High/Low Right,, High Beams) EEC 5A* EEC (KPWR)
HEGO 15A* HEGO 1,2, CMS 1,2, VMV FUEL 20A* Fuel Pump, EEC (FPM)
DIODE Ð Ð
MAIN 120A
HEGO 15A
ALT 15A FOG 20A (DRL) 5A
PWR 1 15A
(ABS) 25A PWR 2
15A
A/C 15A FUEL
20A DIODE DIODE
H/L LH
15A H/L RH
15A EEC 5A
HEGO
15A
HORN
15A
FUEL20A DIODE DIODE
H/L LH
15A H/L RH
15A EEC 5A
INJ
30A
HTR 40A
BTN 1 40ABTN 240AR DEF30AIG
MAIN 40A
H/L
RELAY MICRO
MAIN FAN(ABS) 60AST RELAY ISO DEF RELAY
ISO ADD FAN 2
ISO
A/C RELAYMICRO
FOG RELAY
MICRO
MAIN FAN ISO
ADD FAN
ISO
EEC MAIN
ISO FUEL PUMP
ISO
ALT 15A
FOG 20A (DRL) 15A
PWR 115A
DRLZ 15A
HLEV 10A
(ABS)25A PWR 2
15A
A/C 15A
40/50A
ADD
FAN
40/50A
Roadside emergencies
140

Fuse/RelayLocation Fuse Amp
Rating Power Distribution Box Description
DIODE Ð Ð
H/L RELAY MICRO Ð Headlamp (High/Low, Right/Left Relay)
ÐÐÐ
INJ 30A** EEC (VPWR), EVR, MAF, IAC, Bulkhead
MAIN 120A Main ALT 15A* Alternator/ Regulator
(DRL) 15A* DRL Unit (feed), DRL Relay
(DRLZ)
(HELV) 15A*(DRLZ)
10A(HLEV) Daytime Running Lamps (DRL) Module,
HLEV
PWR 1 15A* Auxiliary Power Point FOG 20A* Foglamps RH/LH, Foglamp IndicatorA/C 15A* A/C Clutch
(ABS) 25A* Anti-Lock Brake System SOL
PWR 2 15A* Auxiliary Power Point
IG MAIN 40A** Starter HTR 40A** Blower Motor, Blower Motor Relay
BTN 1 40A** JB Ð Acc. Relay, Radio, Cigar Lighter, Cluster, Power Mirror, GEM, Electronic
Flasher Control
(ABS) 60A** Anti-Lock Brake System Motor
BTN 2 40A** JB Ð Radio, Cluster, Dome Lamps, Map Lamps, Cargo Lamps, Cruise Control, Power
Seat, Horn
MAIN FAN 40A** (2.0L)
50A(3.0L) Main Fan
R DEF 30A** Rear Defroster
ADD FAN 40A**(2.0L) 50A(3.0L)Add Fan
EEC MAIN ISO Ð EEC Relay
Roadside emergencies
141
