T SRS AIR BAG SYSTEM Installation Note Crash sensor (D-sensor) 1. If the crash sensor mounting area is damaged, repair the area to its original shape before reinstalling the sensor. i/ 2. Point the arrow on the crash sensor toward the front of the vehicle. Then install it and tighten the bolts to the specified torque. Inspection 1. Disconnect the D-sensor connectors (center, RH, and LH). Measure resistance of each sensor. 2. If not as specified, replace the crash sensor. (Refer to pages T-210,211.) Resistance Approx. 1.1 8 WZ Terminal A B Gartner Banana

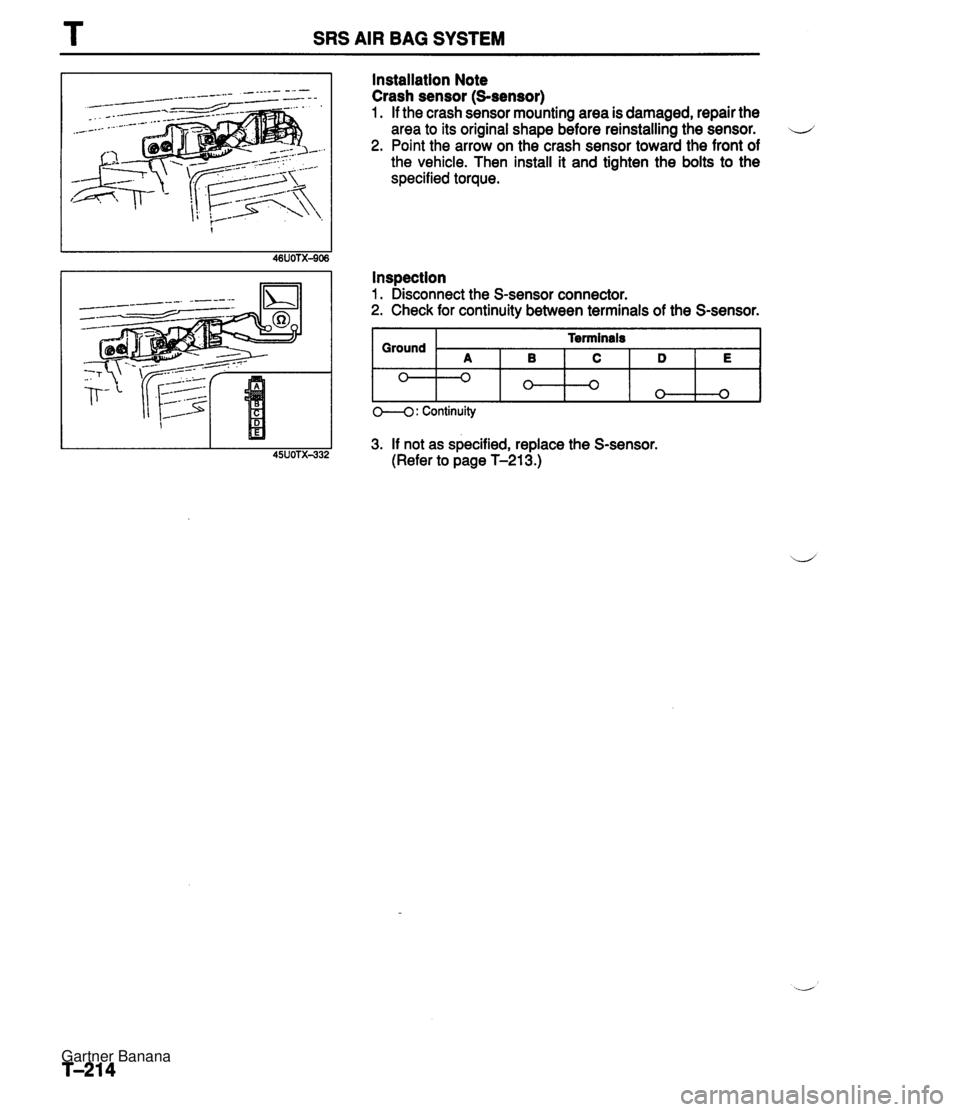

T SRS AIR BAG SYSTEM Installation Note Crash sensor (S-sensor) 1. If the crash sensor mounting area is damaged, repair the area to its original shape before reinstalling the sensor. 4 2. Point the arrow on the crash sensor toward the front of the vehicle. Then install it and tighten the bolts to the specified torque. Inspection 1. Disconnect the S-sensor connector. 2. Check for continuity between terminals of the S-sensor. 0---0 : Continuity Terminals I Ground I 3. If not as specified, replace the S-sensor. (Refer to page T-213.) A I B 1 C D I E Gartner Banana

GENERAL SERVICE INFORMATION SERVICE PRECAUTIONS ............................................ 2 JACKING AND SAFETY STAND POSITIONS ............ 8 VEHICLE LIFT (2-SUPPORT TYPE) POSITIONS ....... 8 TOW CABLE ATTACHMENT POSITIONS .................. 9 IDENTIFICATION NUMBER LOCATIONS ................... 9 VEHICLE DIMENSIONS ................................................ 10 WHEEL ALIGNMENT .................................................... 10 Gartner Banana

u GENERAL SERVICE INFORMATION TIEDOWN HOOK - FRONT /'-- TIEDOWN HOOK - REAR -?-A TOWING Proper towing equipments are necessary to prevent damage to the vehicle during any towing operation. Laws and regulations applicable to vehicles in tow must always be observed. Release the parking brake, place the shift lever in neutral, and set the ignition switch in the ACC posi- tion. As a rule, towed vehicles should be pulled with the driving wheels off the ground. WITH MANUAL TRANSMISSION If the transmission, rear axle, and steering system are not damaged, the vehicle may be towed on all four wheels. If any of these components are damaged, use a towing dolly. CAUTION The power assist for the brakes and steering are inoperable while the engine is off. Do not use the tiedown hooks under the front or rear of the vehicle for towing. These hooks are designed ONLY for transport tiedown. If the tiedown hooks are used for towing, the front or rear skirt and bumper will be damaged. IDENTIFICATION NUMBER LOCATIONS VEHICLE IDENTIFICATION NUMBER (VIN) ENGINE MODEL AND NUMBER L i Gartner Banana

.- 1OlU -1 CYLINDER HEAD 8 COVER 1010 CYLiNDER HEAD COVER PbRT SO. 1~1.1 .- HEAU,CVLINDER CLIP,VALVE GUIDF STUD BOLT,CAMSWAFT CAP BOLT, CYLIHDER HEAD WAStiER ,PLAIN CVL . HE hD STUDDEX. MANIFOLD PLATE ,OIL BAFFLE-III. SIDE PLATE,OIL BAFFLE-EX. COVER,CYLIHDER HEAD PLATE, BAFFLE PLATE ,OIL BAFFLE GASKtT ,HEAD COVER PROTECTOW,HT.CUWD-5. T ANR Gartner Banana

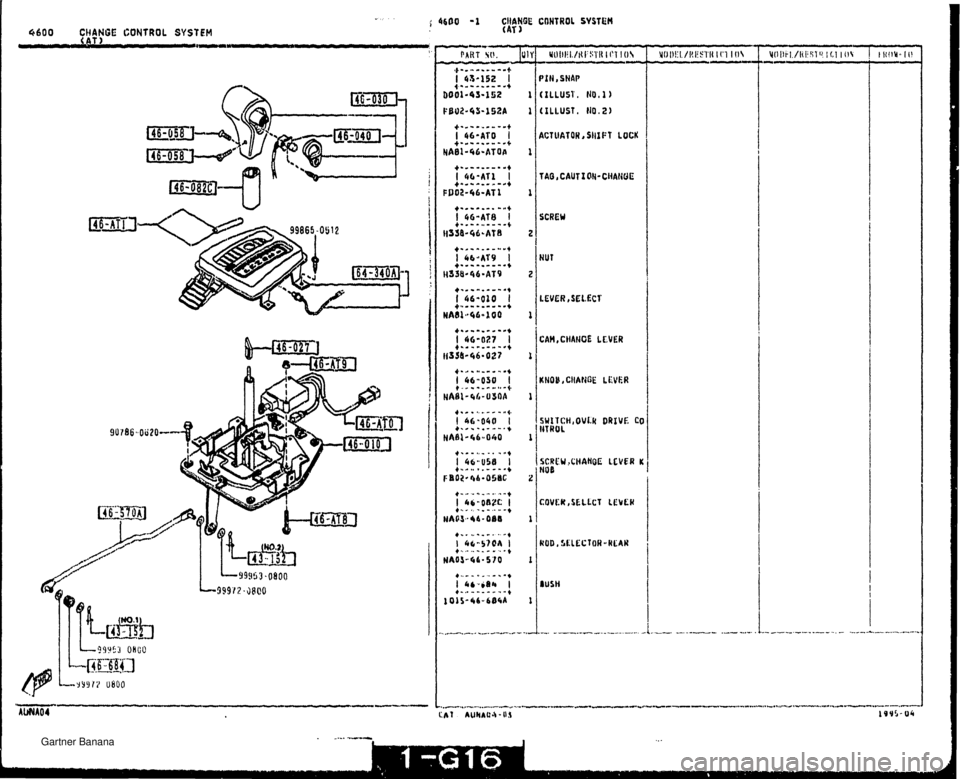

4600 CHANGE CONTROL SYSTEM 4CTlIATOW, SIIIFT LOCK SCREW HUT LEVER ,SELECT SWITCN,OVi.k DRIVE CO I HTWCII. Gartner Banana
