7 –47 If Trouble Arises
Warning/Indicator Lights and Warning Sounds Verify Display ContentDisplays in the following cases: Display Indicated Condition/Action to be taken
The following message is displayed when the
temperature around the center display is high.
Lowering the temperature in the cabin or the
temperature around the center display by avoiding
direct sunlight is recommended.
MX-5_8FR4-EA-16J_Edition1.indb 47 2016/08/11 20:30:05

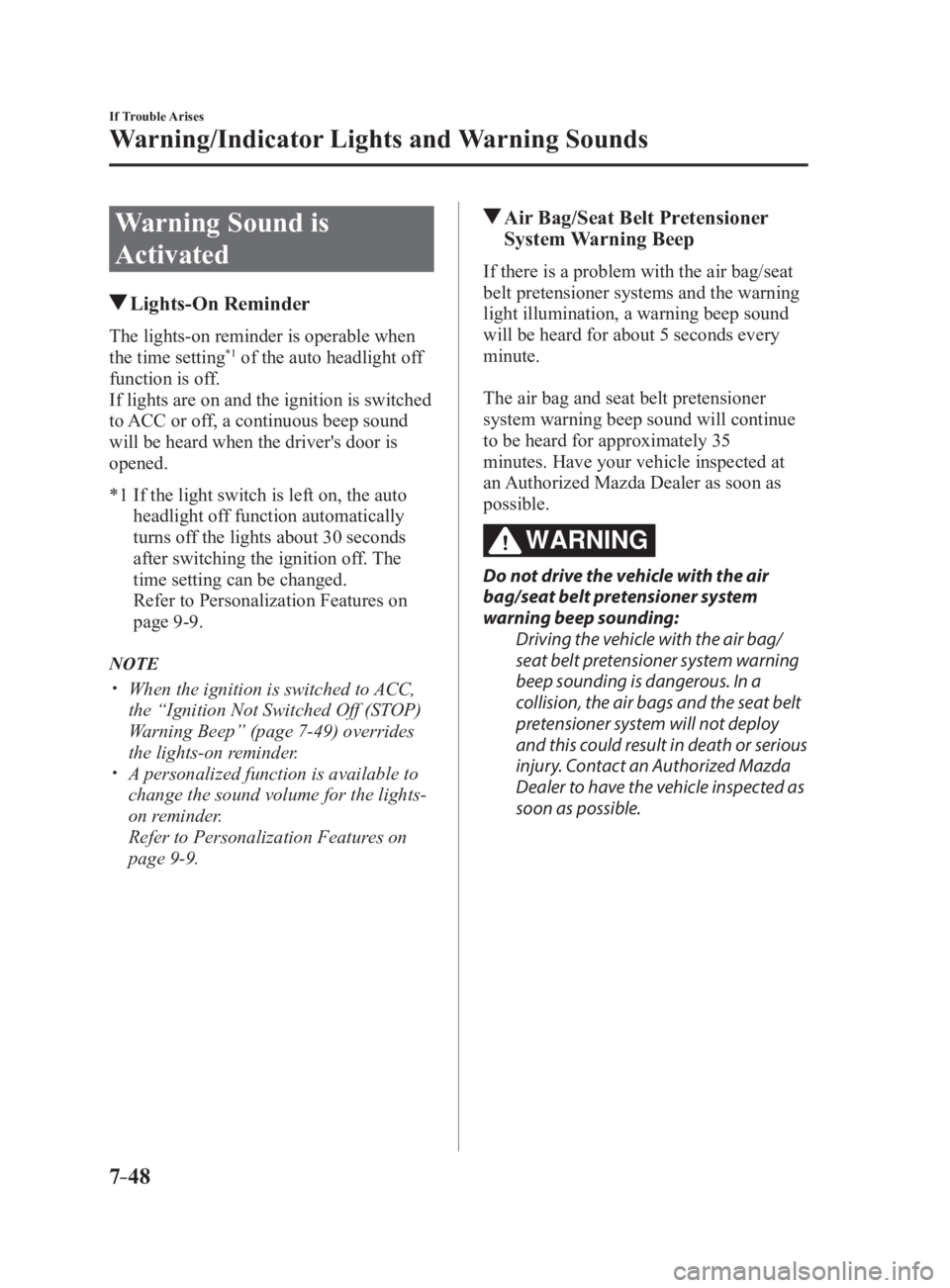

7 –48 If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Warning Sound is
Activated Lights-On ReminderThe lights-on reminder is operable when
the time setting *1
of the auto headlight off
function is off.
If lights are on and the ignition is switched
to ACC or off, a continuous beep sound
will be heard when the driver's door is
opened.
*1 If the light switch is left on, the auto
headlight off function automatically
turns off the lights about 30 seconds
after switching the ignition off. The
time setting can be changed.
Refer to Personalization Features on
page 9-9 .
NOTE 
When the ignition is switched to ACC,
the “Ignition Not Switched Off (STOP)
Warning Beep” (page 7-49 ) overrides
the lights-on reminder. 
A personalized function is available to
change the sound volume for the lights-
on reminder.
Refer to Personalization Features on
page 9-9 . Air Bag/Seat Belt Pretensioner
System Warning Beep If there is a problem with the air bag/seat
belt pretensioner systems and the warning
light illumination, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35
minutes. Have your vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.
WARNING Do not drive the vehicle with the air
bag/seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
seat belt pretensioner system warning
beep sounding is dangerous. In a
collision, the air bags and the seat belt
pretensioner system will not deploy
and this could result in death or serious
injury. Contact an Authorized Mazda
Dealer to have the vehicle inspected as
soon as possible.
MX-5_8FR4-EA-16J_Edition1.indb 48 2016/08/11 20:30:06

7 –49 If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models. Seat Belt Warning BeepExcept Mexico
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds.
If the driver or the passenger's seat belt is
not fastened and the vehicle is driven at a
speed faster than about 20 km/h (12 mph),
a beep sound will be heard again for a
specified period of time.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE 
To allow the passenger occupant
classification sensor to function
properly, do not place and sit on
an additional seat cushion on the
passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference. 
If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Mexico
If the vehicle speed exceeds about 20 km/h
(12 mph) with the driver or passenger's
seat belt unfastened, a warning beep
sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph). NOTE 
Placing heavy items on the passenger's
seat may cause the passenger's seat belt
warning function to operate depending
on the weight of the item. 
To allow the passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion
on the passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause
sensor interference. 
If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Retractable Fastback Warning
Beep *
When operating the retractable fastback
switch, the warning beep is activated when
the retractable fastback operation begins
and when it is completed.
If there is a problem with the retractable
fastback, the warning beep is activated
continuously while operating the switch. If
the warning beep is activated continuously
while operating the switch, have the
vehicle inspected at an Authorized Mazda
Dealer .
Ignition Not Switched Off (STOP)
Warning Bee p
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard continuously in the cabin to
notify the driver that the ignition has not
been switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be locked,
and the battery voltage will be depleted.
MX-5_8FR4-EA-16J_Edition1.indb 49 2016/08/11 20:30:06

7 –50 If Trouble Arises
Warning/Indicator Lights and Warning Sounds Key Removed from Vehicle
Warning BeepVehicles with advanced keyless function
If the key is taken out of the vehicle while
the ignition is not switched OFF and
all the doors are closed, the beep which
sounds outside of the vehicle will be heard
6 times, the beep which sounds inside
the vehicle will be heard 6 times, and the
KEY warning light (red) in the instrument
cluster flashes continuously to notify
the driver that the ignition has not been
switched OFF.
Vehicles without advanced keyless
function
If the key is taken out of the vehicle while
the ignition is not switched OFF and all
the doors are closed, a beep will be heard
in the cabin 6 times and the KEY warning
light (red) in the instrument cluster turns
on continuously to notify the driver that
the ignition has not been switched OFF.
NOTE
Because the key utilizes low-intensity
radio waves, the Key Removed From
Vehicle Warning may activate if the key is
carried together with a metal object or it
is placed in a poor signal reception area.
Request Switch Inoperable
Warning Beep (With the advanced
keyless function)
If the request switch is pressed with the
door open or ajar, or the ignition is not
switched OFF with a key being carried,
a beep will be heard outside for about 2
seconds to notify the driver that the door
or trunk lid cannot be locked. Key Left-in-trunk Warning Beep
(With the advanced keyless
function) If the key is left in the trunk with all the
doors locked and the trunk lid closed, a
beep will be heard outside for about 10
seconds to notify the driver that the key is
in the trunk. In this case, take out the key
by pressing the electric trunk lid opener
and opening the trunk lid. The key taken
out of the trunk may not operate because
its functions have been temporarily
stopped. To restore the key's functions,
perform the applicable procedure (page
3-7 ).
Key Left-in-vehicle Warning Beep
(With the advanced keyless
function) If all the doors and trunk are locked using
another key while the key is left in the
cabin, the beep which sounds outside of
the vehicle will be heard for about 10
seconds to notify the driver that the key
is in the cabin. In this case, take out the
key by opening the door. A key taken
out of the vehicle using this method may
not operate because its functions have
been temporarily stopped. To restore the
key's functions, perform the applicable
procedure (page 3-7 ).
Power Steering Warning Buzzer
If the power steering system has
a malfunction, the power steering
malfunction light turns on or flashes and
the buzzer operates at the same time.
Refer to Warning Indication/Warning
Lights on page 4-26 .
MX-5_8FR4-EA-16J_Edition1.indb 50 2016/08/11 20:30:07

7 –51 If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models. Tire Inflation Pressure Warning
Beep *
The warning beep sound will be heard
for about 3 seconds when there is any
abnormality in tire inflation pressures
(page 4-105 ).
Blind Spot Monitoring (BSM)
System Warning Beep *
Driving forward
The warning beep operates when the turn
signal lever is operated to the side where
the Blind Spot Monitoring (BSM) warning
light is illuminated.
NOTE
A personalized function is available to
change the Blind Spot Monitoring (BSM)
warning beep sound volume.
Refer to Personalization Features on page
9-9 .
Reversing
If a moving object such as a vehicle or
two-wheeled vehicle approaches on the
left or right from behind your vehicle, the
Blind Spot Monitoring (BSM) warning
sound is activated. Lane Departure Warning Sound *
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound. NOTE 
The volume of the LDWS warning sound
can be changed.
Refer to Personalization Features on
page 9-9 . 
The type of the LDWS warning sound
can be changed.
Refer to Personalization Features on
page 9-9 .
MX-5_8FR4-EA-16J_Edition1.indb 51 2016/08/11 20:30:07

7 –52 If Trouble Arises
When Trunk Lid Cannot be Opened
When Trunk Lid Cannot
be Opened If the battery is dead, the trunk cannot be
unlocked and opened.
In this case, the trunk can be unlocked by
taking care of the dead battery situation.
Refer to Jump-Starting on page 7-23 .
If the trunk cannot be unlocked even
if the dead battery situation has been
resolved, the electrical system may have a
malfunction.
Soft top model
1. Close the convertible top.
Refer to Raising the Convertible Top
on page 3-37 .
2. Remove the windblocker.
Windblocker
3. Remove the fasteners on the right side
of the vehicle.
4. Partially peel back the cover on the
right side of the vehicle.

5. Turn and loosen the cap screws until
the screws start to spin free.

MX-5_8FR4-EA-16J_Edition1.indb 52 2016/08/11 20:30:07

7 –53 If Trouble Arises
When Trunk Lid Cannot be Opened6. Pull out the cap and open the trunk lid.
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.

CAUTION Do not pull the screw when pulling the
cap. Otherwise, the screw may fall off
and become lost. Retractable fastback model
CAUTION Do not touch the linkage and gears. If
sharp edges and gears are touched, it
could cause injury.
Roof operates electrically
1. Remove the antenna if it is installed.
Refer to Antenna on page 5-13 .
2. Start the engine.
3. Continue pressing the retractable
fastback switch in the open direction
until the rear roof is completely open.
Refer to Opening the Roof on page
3-45 . Multi-information
display indication
NOTE
Stop operating the switch before the front
roof opens. If the switch is continuously
pressed, the front roof opens and the
following procedures cannot be performed.
4. Switch the ignition OFF.
MX-5_8FR4-EA-16J_Edition1.indb 53 2016/08/11 20:30:07

7 –54 If Trouble Arises
When Trunk Lid Cannot be Opened 5. Remove the fasteners on the right side
of the vehicle.

6. Push the stopper rubber through the
cover on the right side of the vehicle
while slightly lifting the cover up.

C ove r
Stopper Rubber
7. Lift up the cover from the outside of
the vehicle.
8. Insert your hand beneath the lifted
cover and loosen the cap screws until
they spin freely.

NOTE
At this point, do not pull out the cap. If
the cap is pulled out, the trunk lock will
release but the rear roof will not operate
electrically.
9. Start the engine.
10. Continue pressing the retractable
fastback switch in the close direction
until the rear roof is completely closed.
Refer to Closing the Roof on page
3-45 .
Multi-information
display indication
11. Switch the ignition OFF.
MX-5_8FR4-EA-16J_Edition1.indb 54 2016/08/11 20:30:07

7 –55 If Trouble Arises
When Trunk Lid Cannot be Opened12. Remove the windblocker.
Windblocker
13. Partially peel back the cover on the
right side from the middle of the
vehicle.

14. Pull out the cap and release the trunk
lock.
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon as
possible. CAUTION Do not pull the screw when pulling the
cap. Otherwise, the screw may fall off
and become lost.
Roof does not operate electrically
1. Remove the antenna if it is
installed.Refer to Antenna on page
5-13 .
2. Lift up the rear roof by hand.
Refer to When the Roof Cannot be
Closed on page 7-57 .
3. Remove the fasteners on the right side
of the vehicle.

4. Push the stopper rubber through the
cover on the right side of the vehicle
while slightly lifting the cover up.

C ove r
Stopper Rubber
MX-5_8FR4-EA-16J_Edition1.indb 55 2016/08/11 20:30:08

7 –56 If Trouble Arises
When Trunk Lid Cannot be Opened 5. Lift up the cover from the outside of
the vehicle.

6. Insert your hand beneath the lifted
cover and loosen the cap screws until
they spin freely.

7. Pull out the cap and release the trunk
lock.
CAUTION At this point, do not open the trunk.
If the trunk is opened before the rear
roof is completely closed, the trunk
may contact the rear roof and cause
damage and become scratched.
8. Close the rear roof by hand.Refer to
When the Roof Cannot be Closed on
page 7-57 .
9. Open the trunk lid.
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.
MX-5_8FR4-EA-16J_Edition1.indb 56 2016/08/11 20:30:08
