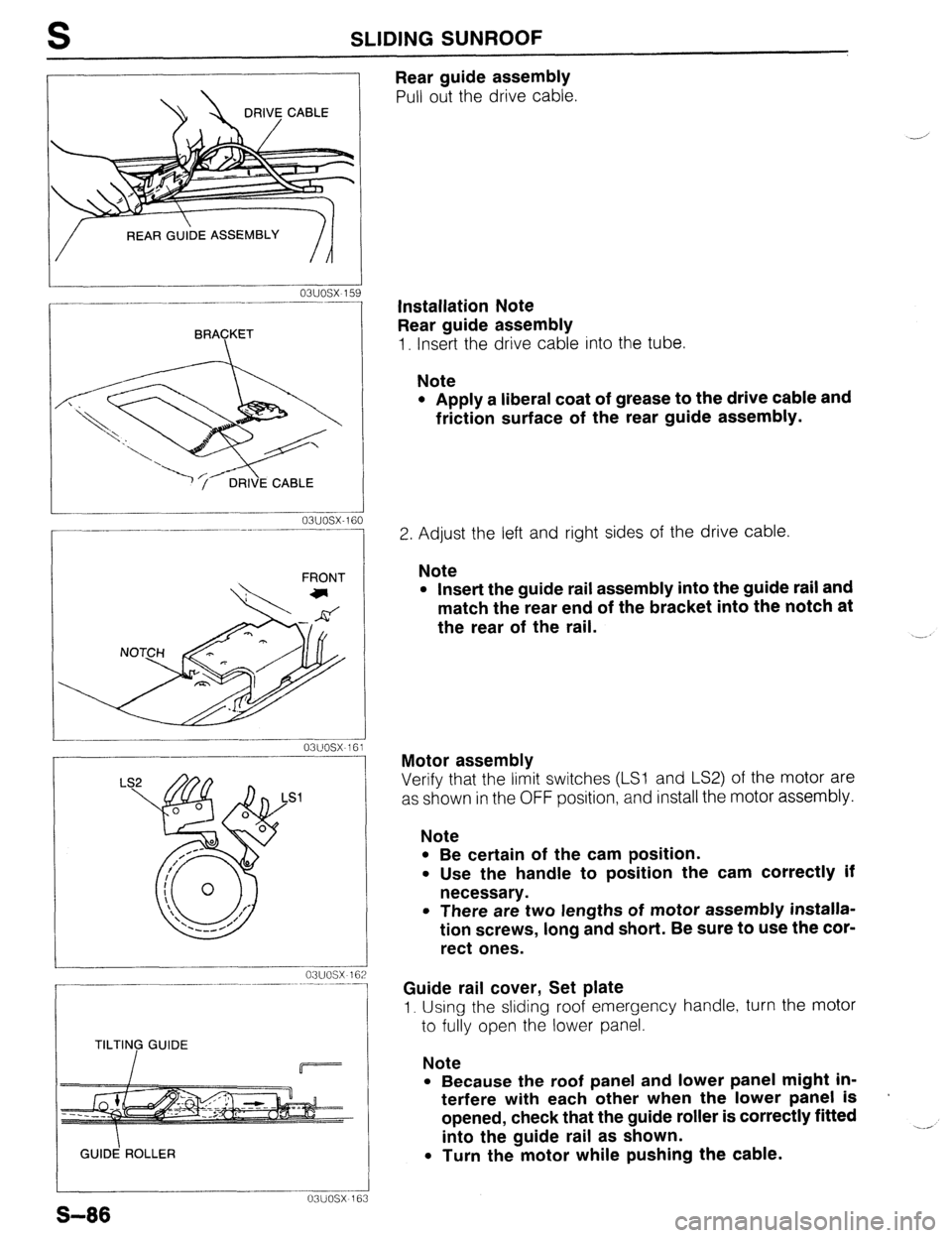

S SLIDING SUNROOF
DRIVE CABLE
o3uosx15
I-- _-_- ~_..___ -~--
BRACKET

- 031JOSX-1E 1 i0
FRONT
03uoti ----1
03uosx 163
S-86
TILTING GUIDE
GUID! ROLLER
Rear guide assembly
Pull out the drive cable.
installation Note
Rear guide assembly
1, Insert the drive cable into the tube.
Note
l Apply a liberal coat of grease to the drive cable and
friction surface of the rear guide assembly.
2. Adjust the left and right sides of the drive cable.
Note
l Insert the guide rail assembly into the guide rail and
match the rear end of the bracket into the notch at
the rear of the rail.
Motor assembly
Verify that the limit switches (LSI and LS2) of the motor are
as shown in the OFF position, and install the motor assembly.
Note
l Be certain of the cam position.
l Use the handle to position the cam correctly if
necessary.
l There are two lengths of motor assembly installa-
tion screws, long and short. Be sure to use the cor-
rect ones.
Guide rail cover, Set plate
1. Using the sliding roof emergency handle, turn the motor
to fully open the lower panel.
Note
l Because the roof panel and lower panel might in-
terfere with each other when the lower panel is ’
opened, check that the guide roller is correctly fitted
into the guide rail as shown. ..J
l Turn the motor while pushing the cable.

S HEADLINER
Y
PROTEGfi
(WITHOUT PASSIVE SHOULDER BELT)
1. Assist handle
2. Interior lamp
3. Seaming welt (With sliding
sunroof)
4. Sunvisor
IJ”“DA-“oC
5. Sunvisor adapter
9. Headliner
6. Rearview mirror Removal Note . . page S-93
7. Overhead console (With slid- Installation Note page S-93
ing sunroof)
IO. Front top bracket
8. Seaming welt (Pillar)
s-90

s HEADLINER
HATCHBACK
(WITHOUT PASSIVE SHOULDER BELT)
R.H. SIDE
1. Assist handle
2. Interior lamp
3. Seaming welt (With sliding sunroof)
4. Sunvisor
5. Sunvisor adapter
6. Rearview mirror
13uosx-03
7. Overhead console (With sliding sunroof)
8. Seaming welt (Pillar)
9. Headliner
Removal Note ,..........,,,....,..,....... page S-93
Installation Note . . . . . . . . . . . . . . . . . . . . . . . . . . page S-93
10. Front top bracket ---
