Index
....................................................... 4Introduction
......................................... 21 At a glance
........................................... 27 Safety
................................................... 39 Opening and closing
...........................73 Seats, steering wheel and mirrors
....91 Lights and windscreen wipers
.........103 Climate control
................................. 121 Driving and parking
..........................141 On-board computer and displays
....207 Stowing and features
.......................267 Maintenance and care
......................283 Breakdown assistance
.....................297 Wheels and tyres
.............................. 317 Technical data
................................... 335 Contents
3

Dashboard lighting
see Instrument cluster lighting
Data
see Technical data
Daytime driving lights
Display message ............................ 242
Switching on/off (on-board com-
puter) ............................................ .221
Switching on/off (switch) .............. 105
Dealership
see Qualified specialist workshop
Declarations of conformity ................. 23
Delayed switch-off
Exterior lighting (on-board com-
puter) ............................................. 222
Interior lighting .............................. 223
Diagnostics connection ......................23
Diesel .................................................. 341
Digital speedometer .........................212
Dipped-beam headlamps
Changing bulbs .............................. 113
Display message ............................ 239
Setting for driving abroad (sym-
metrical) ........................................ 104
Setting for driving on the right/
left ................................................. 221
Switching on/off ........................... 105
DIRECT SELECT lever
see Automatic transmission
Display (cleaning instructions) ........295
Display message
Driving systems ............................ .245
Display messages
ASSYST PLUS ................................ 289
Calling up (on-board computer) ..... 229
Engine ............................................ 243
General information ....................... 229
Hiding (on-board computer) ........... 229
Key ................................................ 256
Lights ............................................. 239
Safety systems .............................. 230
Tyres .............................................. 251
Vehicle .......................................... .252
Distance recorder
see Trip meter
Distance warning function
Activating/deactivating ................. 218 Function/notes ................................ 62
Warning lamp ................................. 266
DISTRONIC PLUS
Activation conditions ..................... 175
Cruise control lever ....................... 174
Deactivating ................................... 177
Display message ............................ 249
Displays in the multifunction dis-
pla y................................................ 175
Driving tips .................................... 178
Function/note s............................. 174
Important safety notes .................. 173
Selecting ........................................ 175
Setting the specified minimum
distance ......................................... 177
Warning lamp ................................. 266
Door
Automatic locking (on-board com-
puter) ............................................. 223
Automatic locking (switch) ............... 81
Central locking/unlocking (key) ...... 75
Control panel ................................... 37
Display message ............................ 254
Emergency locking ........................... 81
Emergency unlocking ....................... 81
Important safety notes .................... 79
Opening (from the inside) ................ 80
Drive program
Automatic ...................................... 156
Display ........................................... 153
Display (DIRECT SELECT lever) ...... 152
Manual ........................................... 156
Driver's door
see Door
Driving abroad
Service24h .................................... 290
Symmetrical dipped beam ............. 104
Driving on flooded roads .................. 167
Driving safety systems
ABS (Anti-lock Braking System) ....... 61
ADAPTIVE BRAK E............................. 69
Adaptive Brake Assist ...................... 63
Adaptive brake lights ....................... 64
BAS (Brake Assist System) .............. 62
COLLISION PREVENTION ASSIST .... 62
Distance warning function ............... 62
Electronic Brake-force Distribu-
tion .................................................. 68 8
Index

ESP® (Electronic Stability Pro-
gram) ......................................... 65, 66
ETS/4ETS (Electronic Traction
System) ........................................... 65
Important safety guidelines ............ .61
Overview .......................................... 61
STEER CONTROL ............................. 69
Driving systems
Active Parking Assist ..................... 186
ATTENTION ASSIST ........................ 195
Blind Spot Assist ............................1 97
Cruise control ................................ 168
Display message ............................ 245
Distronic Plus ................................ 173
HOLD function ............................... 179
Lane Keeping Assist ..................... .199
Lane package ................................ 197
PARKTRONIC ................................. 182
RACE START (AMG vehicles) .......... 181
Reversing camera .......................... 191
Speed Limit Assist ......................... 196
SPEEDTRONIC ............................... 171
Driving tips
Aquaplaning ................................... 167
Automatic transmission ................. 154
Brakes .......................................... .166
DISTRONIC PLUS ........................... 178
Downhill gradient ........................... 166
Driving abroad ............................... 104
Driving in winter ............................ .167
Driving on flooded roads ................ 167
Driving on wet roads ..................... .167
General .......................................... 165
Icy road surfaces ........................... 168
Limited braking efficiency on sal-
ted roads ....................................... 167
New brake pads/linings ................ 167
Running-in tips ............................... 142
Snow chains .................................. 321
Symmetrical dipped bea m............. 104

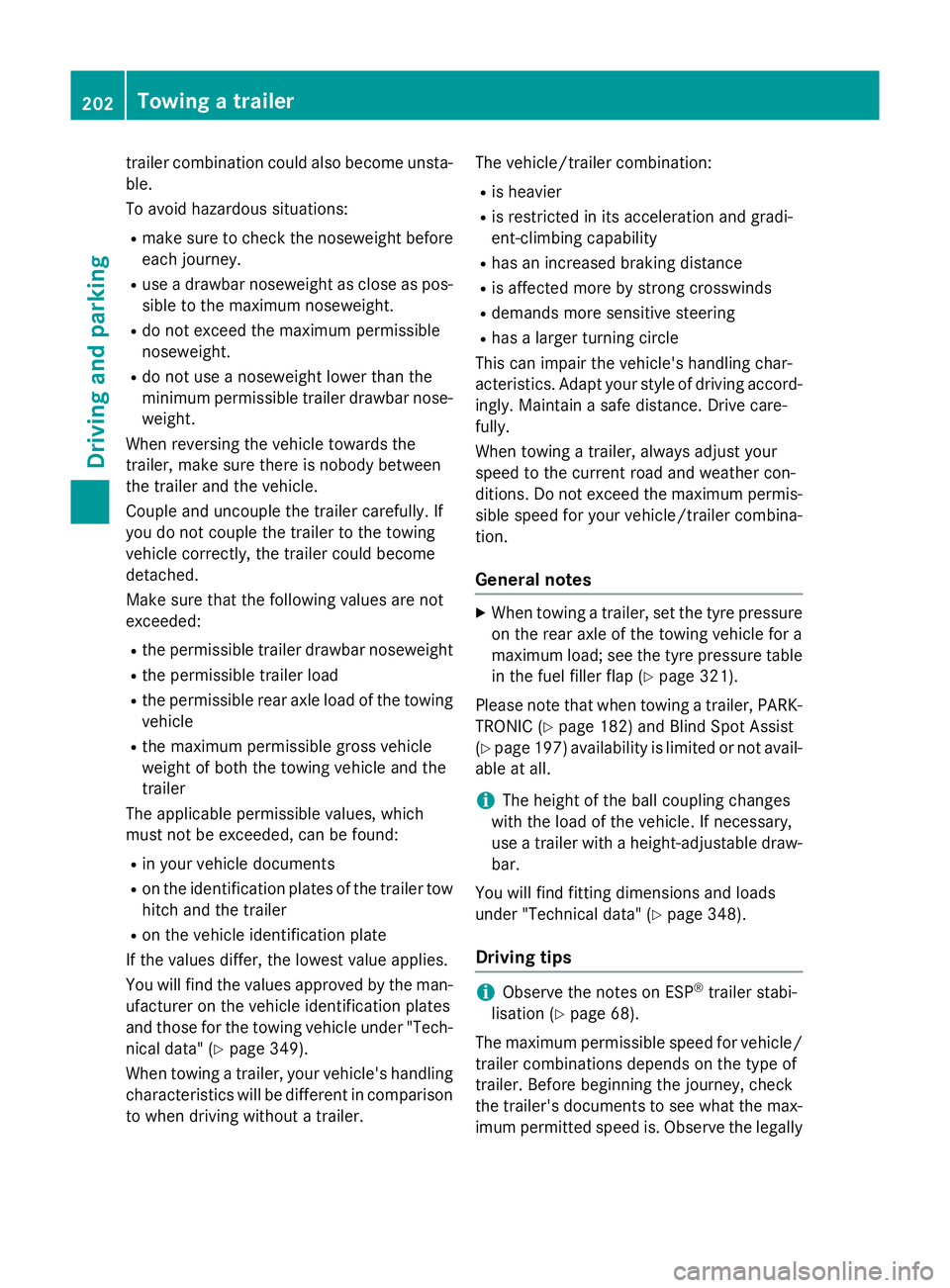

Towing a trailer .............................. 201
Wet road surface ........................... 166
DVD audio (on-board computer) ...... 215 E
EASY-VARIO-PLUS system Luggage compartment enlarge-
ment .............................................. 271
EBD (electronic brake force distri-
bution)
Display message ............................ 232
Function/note s................................ 68
ECO display
Function/note s............................. 165
On-board computer ....................... 212
ECO start/stop function
Automatic engine start .................. 147
Automatic engine switch-off .......... 146
Deactivating/activating ................. 147
General information ....................... 146
Important safety notes .................. 146
Introduction ................................... 145
Electrical fuses
see Fuses
Electronic Stability Program
see ESP® (Electronic Stability Program)
Emergency key
Unlocking the driver's door .............. 81
Emergency key element
Function/note s................................ 75
Locking vehicle ................................ 81
Emergency release
Driver's door .................................... 81

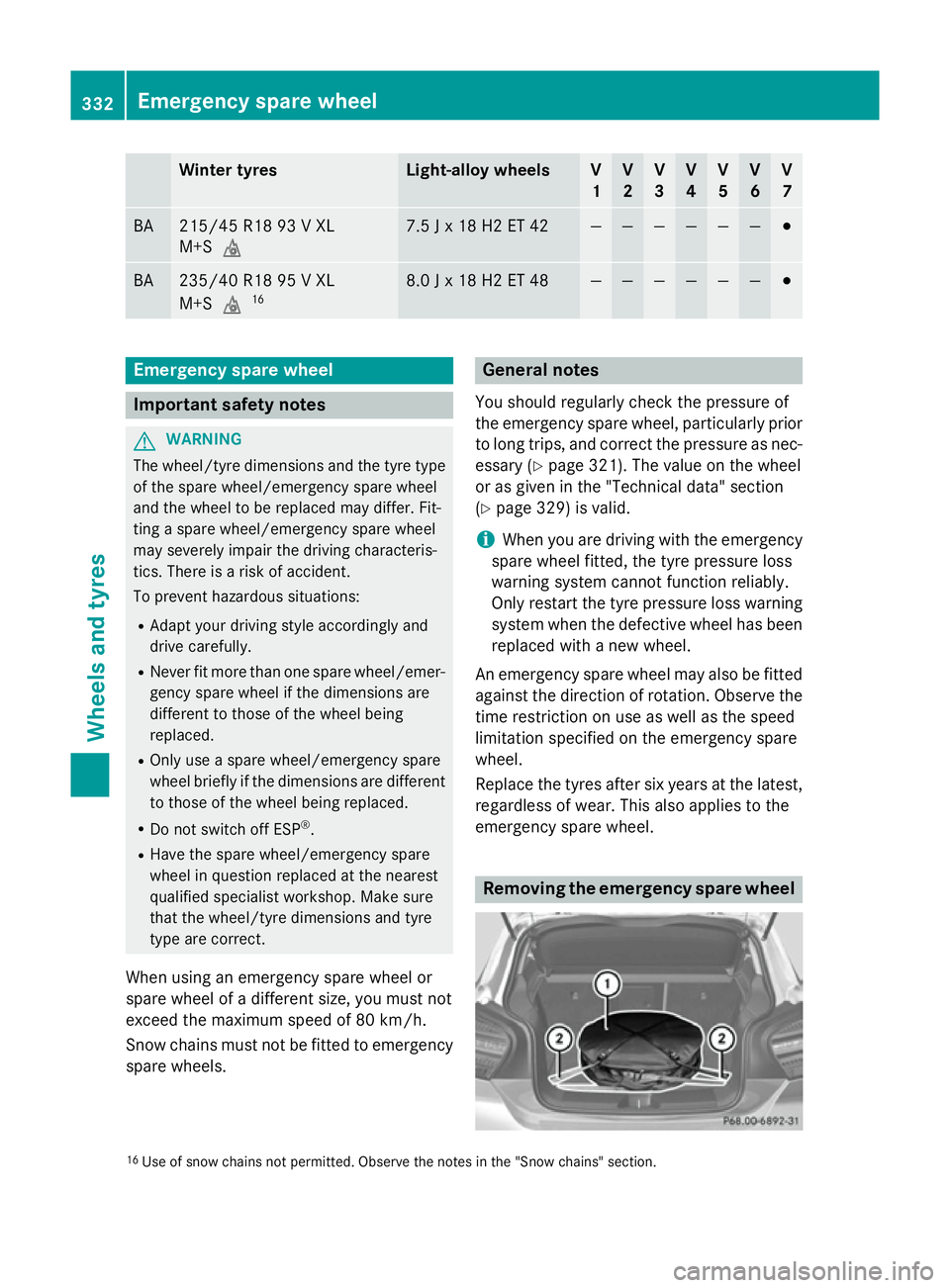

Emergency spare wheel
General notes ................................ 332
Important safety notes .................. 332
Removing ....................................... 332

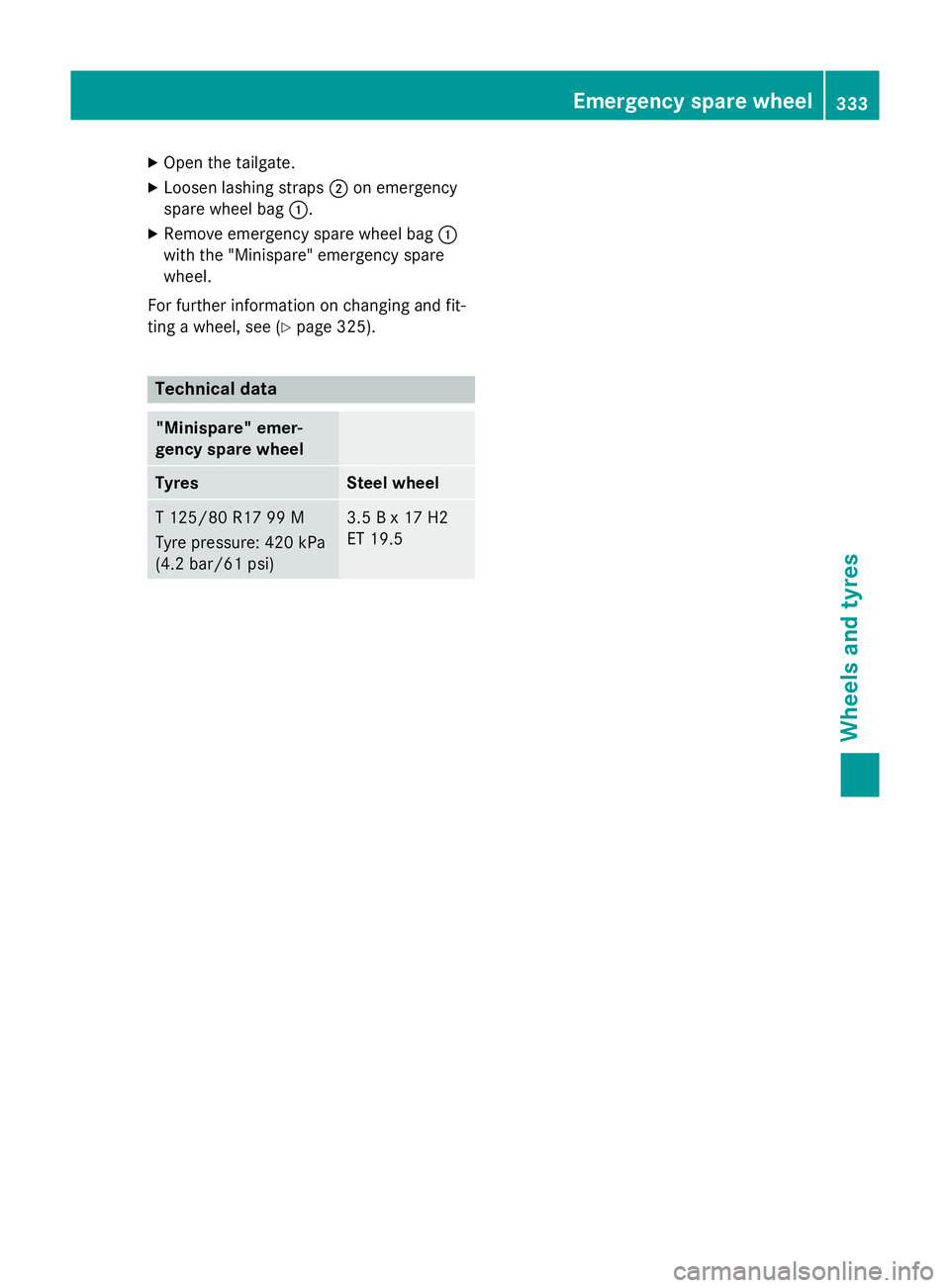

Technical data ............................... 333
Emergency unlocking
Tailgate ............................................ 83
Vehicle ............................................. 81
Engine
Display message ............................ 243
ECO start/stop function ................ 145
Engine number ............................... 338
Jump-starting ................................. 308
Running irregularly ......................... 149
Starting problems .......................... 149
Starting the engine with the key .... 144
Stopping ........................................ 162
Tow-starting (vehicle) ..................... 314 Index
9

Speed, controlling
see Cruise control
Speedometer
Activating/deactivating the addi-
tional speedometer ........................ 220
Digital ............................................ 212
In the Instrument cluster ................. 30
Segments ...................................... 209
Selecting the unit of measure-
ment ..............................................2 20
see Instrument cluster
SPEEDTRONIC
Deactivating variable ..................... 172
Display message ............................ 250
Function/notes ............................ .171
Important safety notes .................. 171
LIM indicator lamp ......................... 171
Permanent ..................................... 172
Selecting ........................................ 171
Storing the current spee d.............. 172
Variabl e......................................... 171
SPORT handling mode
Activating/deactivating (AMG
vehicles) .......................................... 66
Warning lamp ................................. 261
SRS (Supplemental Restraint Sys-
tem)
Display message ............................ 238
Introduction ..................................... 41
Warning lamp ................................. 263
Warning lamp (function) ................... 41
Start/stop function
see ECO start/stop function
Starting (engine) ................................ 143
STEER CONTROL .................................. 69
Steering (display message) .............. 255
Steering wheel
Adjusting (manually) ........................ 98
Button overview ............................... 33
Buttons (on-board computer) ......... 209
Cleaning ......................................... 295
Gearshift paddle s........................... 156
Important safety notes .................... 98
Steering wheel gearshift paddles .... 156
Stopwatch (RACETIMER) ................... 226
Stowage areas ................................... 269 Stowage compartments
Armrest (front) ............................... 270
Armrest (under) ............................. 270
Centre console .............................. 269
Centre console (rear) ..................... 271
Cup holde r..................................... 275
Glove compartment ....................... 269
Important safety information ......... 269
Luggage net ................................... 271
Spectacles compartment ............... 269
Under driver's seat/front-
passenger sea t.............................. 270
Summer tyres .................................... 320
Sun visor ............................................ 277
Supplemental Restraint System
see SRS (Supplemental Restraint
System)
Surround lighting (on-board com-
puter) .................................................. 222
Switching off the alarm (ATA) ............ 69 T
Tail lamps Display message ............................ 241
see Lights
Tailgate
Display message ............................ 254
Emergency unlocking ....................... 83
Important safety notes .................... 82
Opening dimensions ...................... 346
Opening/closing (from outside) ....... 82
Technical data
Capacities ...................................... 338
Emergency spare whee l................. 333
Information .................................... 336
Trailer load s................................... 349
Tyres/wheels ................................. 329
Vehicle data ................................... 346
Telephone
Accepting a call ............................. 216
Display message ............................ 256
Menu (on-board computer) ............ 215
Number from the phone book ........ 216
Redialling ....................................... 217
Rejecting/ending a call ................. 216
Telephone compartment ................ 270 Index
17

G
WARNING
Objects in the driver's footwell can restrict the pedal travel or obstruct a depressed pedal.
The operating and road safety of the vehicle is
jeopardised. There is a risk of an accident.
Make sure that all objects in the vehicle are
stowed correctly, and that they cannot enter
the driver's footwell. Fit the floormats
securely and as specified in order to ensure
sufficient clearance for the pedals. Do not use loose floormats.
! If the engine is switched off and equip-
ment on the diagnostics connection is
used, the starter battery may discharge.
Connecting equipment to the diagnostics
connection can lead to emissions monitoring
information being reset, for example. This
may lead to the vehicle failing to meet the
requirements of the next emissions test dur-
ing the main inspection. Qualified specialist workshop
A qualified specialist workshop has the nec-
essary special skills, tools and qualifications
to correctly carry out any necessary work on
your vehicle. This particularly applies to work relevant to safety.
Observe the notes in the Service Booklet.
Always have the following work carried out at a qualified specialist workshop:
R work relevant to safety
R service and maintenance work
R repair work
R modifications, installations and conver-
sions
R work on electronic components
Mercedes-Benz recommends that you use a
Mercedes-Benz Service Centre. Vehicle registration
Mercedes-Benz may ask its Service Centres
to carry out technical inspections on certain
vehicles. The quality or safety of the vehicle is
improved as a result of the inspection.
Mercedes-Benz can only inform you about
vehicle checks if it has your registration data.
It is possible that your vehicle has not yet
been registered in your name in the following
cases:
R if your vehicle was not purchased at an
authorised specialist dealer.
R if your vehicle has not yet been examined at
a Mercedes-Benz Service Centre.
It is advisable to register your vehicle with a
Mercedes-Benz Service Centre.
Inform Mercedes-Benz as soon as possible
about any change in address or vehicle own-
ership. Correct use
If you remove any warning stickers, you or
others could fail to recognise certain dangers. Leave warning stickers in position.
Observe the following information when driv-
ing your vehicle:
R the safety notes in this manual
R the technical data in this manual
R traffic rules and regulations
R laws and safety standards pertaining to
motor vehicles Implied warranty
! Follow the instructions in this manual
about the proper operation of your vehicle
as well as about possible vehicle damage.
Damage to your vehicle that arises from
culpable contraventions against these
instructions are not covered either by
Mercedes-Benz implied warranty or by the
New or Used-Vehicle Warranty. 24
Introduction

Data stored in the vehicle
A number of electronic components in your
vehicle contain data memories.
These data memories temporarily or perma-
nently store technical information about:
R the vehicle's operating state
R events
R faults
This technical information generally docu-
ments the condition of a component, a mod-
ule, a system or an environment.
These are, for example:
R operating conditions of system compo-
nents. This includes, e.g. fluid levels.
R status messages from the vehicle and from
individual vehicle components. This
includes, e.g. number of wheel revolu-
tions/speed, deceleration, lateral acceler-
ation.
R malfunctions and faults in important sys-
tem components. This includes, e.g. lights,
brakes.
R reactions of the vehicle in special driving
situations. This includes, e.g. deployment
of an airbag, intervention of stability control
systems.
R environmental conditions. This includes,
e.g. the outside temperature.
This data is exclusively technical in nature
and is used to:
R assist in the detection and rectification of
faults and defects
R optimise vehicle functions
The data cannot be used to trace the vehicle's movements over distances travelled.
When your vehicle is serviced, this technical
information can be read out from the event
and fault memory.
Services include:
R repairs
R service processes R
warranty claims
R quality assurance
The information is read out by authorised
employees of the service network (including
manufacturers) using special diagnostic devi-
ces. You can find more information there if
necessary.
After a fault has been rectified, the informa-
tion in the fault memory is deleted or consec- utively overwritten.
In normal vehicle operation, situations may
arise in which this technical data could
become personal in nature in conjunction
with other information and, if necessary, on
consultation of an approval official.
Examples include:
R accident reports
R vehicle damage
R witness testimonies
Further additional features which are con-
tractually agreed with the customer likewise
allow specific vehicle data to be obtained
from the vehicle. Such additional features
include vehicle locating in an emergency, for
example. Copyright information
General notes
You can find information on licences for free
and open-source software used in your vehi-
cle and its electronic components on the fol- lowing website:
http://www.mercedes-benz.com/
opensource Int
roduction
25 Z

trailer combination could also become unsta-
ble.
To avoid hazardous situations:
R make sure to check the noseweight before
each journey.
R use a drawbar noseweight as close as pos-
sible to the maximum noseweight.
R do not exceed the maximum permissible
noseweight.
R do not use a noseweight lower than the
minimum permissible trailer drawbar nose-
weight.
When reversing the vehicle towards the
trailer, make sure there is nobody between
the trailer and the vehicle.
Couple and uncouple the trailer carefully. If
you do not couple the trailer to the towing
vehicle correctly, the trailer could become
detached.
Make sure that the following values are not
exceeded:
R the permissible trailer drawbar noseweight
R the permissible trailer load
R the permissible rear axle load of the towing
vehicle
R the maximum permissible gross vehicle
weight of both the towing vehicle and the
trailer
The applicable permissible values, which
must not be exceeded, can be found:
R in your vehicle documents
R on the identification plates of the trailer tow
hitch and the trailer
R on the vehicle identification plate
If the values differ, the lowest value applies.
You will find the values approved by the man- ufacturer on the vehicle identification plates
and those for the towing vehicle under "Tech-
nical data" (Y page 349).
When towing a trailer, your vehicle's handling
characteristics will be different in comparison to when driving without a trailer. The vehicle/trailer combination:
R is heavier
R is restricted in its acceleration and gradi-
ent-climbing capability
R has an increased braking distance
R is affected more by strong crosswinds
R demands more sensitive steering
R has a larger turning circle
This can impair the vehicle's handling char-
acteristics. Adapt your style of driving accord-
ingly. Maintain a safe distance. Drive care-
fully.
When towing a trailer, always adjust your
speed to the current road and weather con-
ditions. Do not exceed the maximum permis- sible speed for your vehicle/trailer combina-
tion.
General notes X
When towing a trailer, set the tyre pressure
on the rear axle of the towing vehicle for a
maximum load; see the tyre pressure table
in the fuel filler flap (Y page 321).
Please note that when towing a trailer, PARK-
TRONIC (Y page 182) and Blind Spot Assist
(Y page 197 )availability is limited or not avail-
able at all.
i The height of the ball coupling changes
with the load of the vehicle. If necessary,
use a trailer with a height-adjustable draw-
bar.
You will find fitting dimensions and loads
under "Technical data" (Y page 348).
Driving tips i
Observe the notes on ESP ®
trailer stabi-
lisation (Y page 68).
The maximum permissible speed for vehicle/
trailer combinations depends on the type of
trailer. Before beginning the journey, check
the trailer's documents to see what the max- imum permitted speed is. Observe the legally 202
Towing a trailerDriving and parking

prescribed maximum speed in the relevant
country.
For certain Mercedes-Benz vehicles, the max-
imum permissible rear axle load is increased
when towing a trailer. Refer to the "Technical
data" section to find out whether this applies to your vehicle. If you utilise any of the added
maximum rear axle load when towing a trailer, the vehicle/trailer combination may not
exceed a maximum speed of 100 km/ hfor
reasons concerning the operating permit.
This also applies in countries in which the
permissible maximum speed for vehicle/
trailer combinations is above 100 km/h.
When towing a trailer, your vehicle's handling
characteristics will be different in comparison
to when driving without a trailer and it will
consume more fuel.
Change into a lower gear in good time on long
and steep downhill gradients. For vehicles
with automatic transmission, you need to
have selected manual drive program
M(Y page 156).
i This also applies if you have activated
cruise control, SPEEDTRONIC or DIS-
TRONIC PLUS.
This will use the braking effect of the engine,
so less braking will be required to maintain
vehicle speed. This relieves the load on the
brake system and prevents the brakes from
overheating and wearing too quickly. If you
need additional braking, depress the brake
pedal repeatedly rather than continuously.
i Briefly depressing the accelerator pedal
on downhill gradients while the manual
drive program Mis temporarily activated
(vehicles with automatic transmission): the automatic transmission may switch back to
the last active automatic drive program Eor
S. The automatic transmission may shift to a higher gear. This can reduce the engine'sbraking effect. Driving tips If the trailer swings from side to side:
X Do not accelerate.
X Do not countersteer.
X Brake if necessary.
R Maintain a greater distance from the vehi-
cle in front than when driving without a
trailer.
R Avoid braking abruptly. If possible, brake
gently at first to allow the trailer to run on.
Then, increase the braking force rapidly.
R The values given for gradient-climbing
capabilities from a standstill refer to sea
level. When driving in mountainous areas,
note that the power output of the engine,
and consequently the vehicle's gradient-
climbing capability, decrease with increas-
ing altitude. Folding out the ball coupling
G
WARNING
If you release the ball coupling or it does not
engage correctly when folding in, it will swing out. Within pivoting range of the ball coupling,
there is an increased risk of an accident and
injury.
Only release the ball coupling if the pivoting
range is unobstructed. Always make sure that the ball coupling engages when folding in.
Before you can tow a trailer with your vehicle, you must fold out the ball coupling.
The release wheel is located behind the left-
hand side trim panel in the boot. Towing a trailer
203Driving and parking Z

Winter tyres Light-alloy wheels V
1 V
2 V
3 V
4 V
5 V
6 V
7 BA 215/45 R18 93 V XL
M+Si 7.5 J x 18 H2 ET 42 — — — — — — #
BA 235/40 R18 95 V XL
M+Si
16 8.0 J x 18 H2 ET 48 — — — — — — #
Emergency spare wheel
Important safety notes
G
WARNING
The wheel/tyre dimensions and the tyre type of the spare wheel/emergency spare wheel
and the wheel to be replaced may differ. Fit-
ting a spare wheel/emergency spare wheel
may severely impair the driving characteris-
tics. There is a risk of accident.
To prevent hazardous situations:
R Adapt your driving style accordingly and
drive carefully.
R Never fit more than one spare wheel/emer-
gency spare wheel if the dimensions are
different to those of the wheel being
replaced.
R Only use a spare wheel/emergency spare
wheel briefly if the dimensions are different
to those of the wheel being replaced.
R Do not switch off ESP ®
.
R Have the spare wheel/emergency spare
wheel in question replaced at the nearest
qualified specialist workshop. Make sure
that the wheel/tyre dimensions and tyre
type are correct.
When using an emergency spare wheel or
spare wheel of a different size, you must not
exceed the maximum speed of 80 km/h.
Snow chains must not be fitted to emergency
spare wheels. General notes
You should regularly check the pressure of
the emergency spare wheel, particularly prior
to long trips, and correct the pressure as nec- essary (Y page 321). The value on the wheel
or as given in the "Technical data" section
(Y page 329) is valid.
i When you are driving with the emergency
spare wheel fitted, the tyre pressure loss
warning system cannot function reliably.
Only restart the tyre pressure loss warning
system when the defective wheel has been replaced with a new wheel.
An emergency spare wheel may also be fitted against the direction of rotation. Observe the
time restriction on use as well as the speed
limitation specified on the emergency spare
wheel.
Replace the tyres after six years at the latest,
regardless of wear. This also applies to the
emergency spare wheel. Removing the emergency spare wheel
16
Use of snow chains not permitted. Observe the notes in the "Snow chains" section. 332
Emergency spare wheelWheels and tyres

X
Open the tailgate.
X Loosen lashing straps ;on emergency
spare wheel bag :.
X Remove emergency spare wheel bag :
with the "Minispare" emergency spare
wheel.
For further information on changing and fit-
ting a wheel, see (Y page 325). Technical data
"Minispare" emer-
gency spare wheel
Tyres Steel wheel
T 125/80 R17 99 M
Tyre pressure: 420 kPa
(4.2 bar/61 psi) 3.5 B x 17 H2
ET 19.5 Emergency spare wheel
333Wheels and tyres Z
