MERCEDES-BENZ A-CLASS HATCHBACK 2015 Owner's Guide

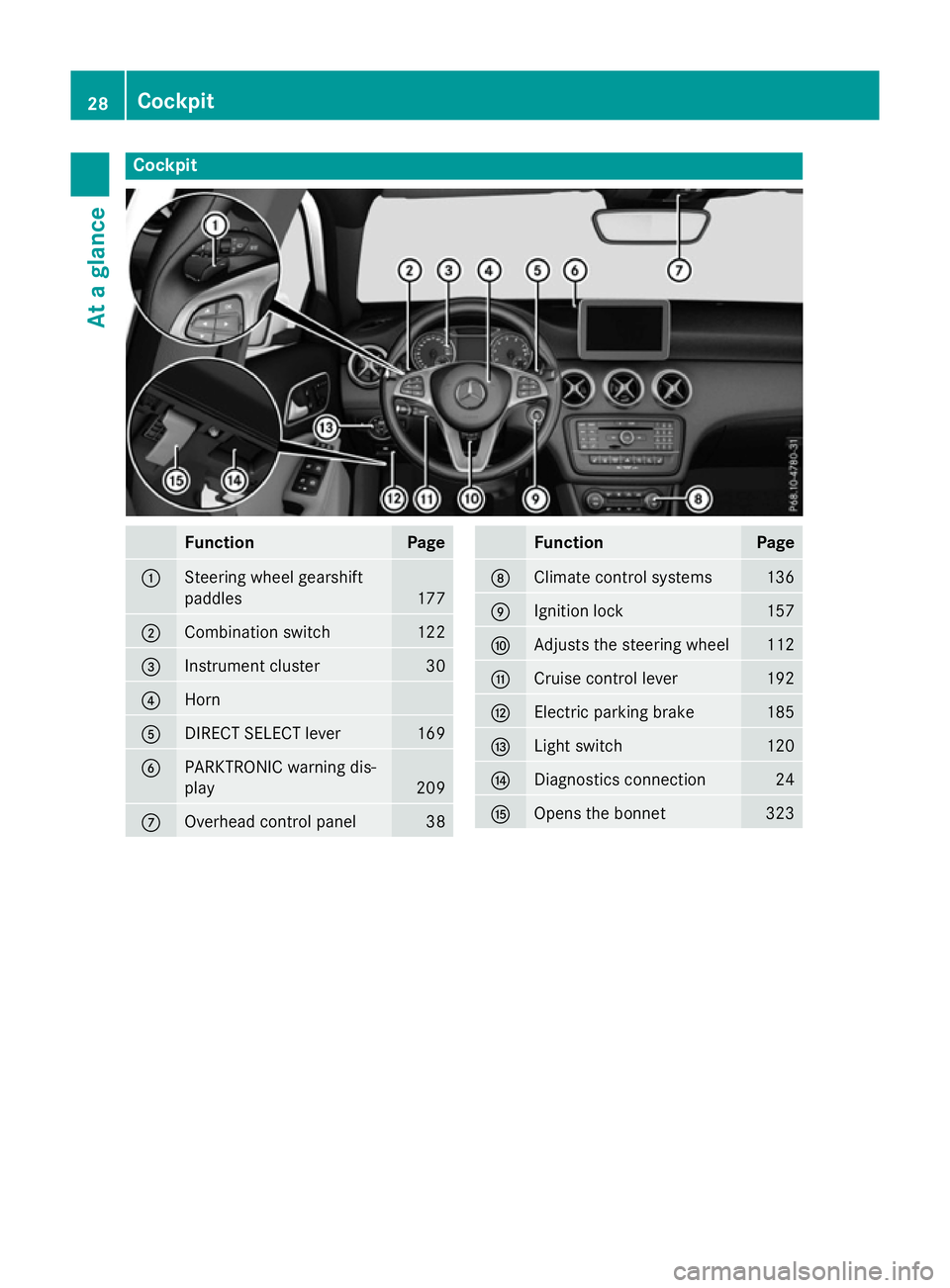

Cockpit
Function Page
:
Steering wheel gearshift
paddles
177
;
Combination switch 122
=
Instrument cluster 30
?
Horn
A
DIRECT SELECT lever 169
B
PARKTRONIC warning dis-
play
209
C
Overhead control panel 38 Function Page
D
Climate control systems 136
E
Ignition lock 157
F
Adjusts the steering wheel 112
G
Cruise control lever 192
H
Electric parking brake 185
I
Light switch 120
J
Diagnostics connection 24
K
Opens the bonnet 32328

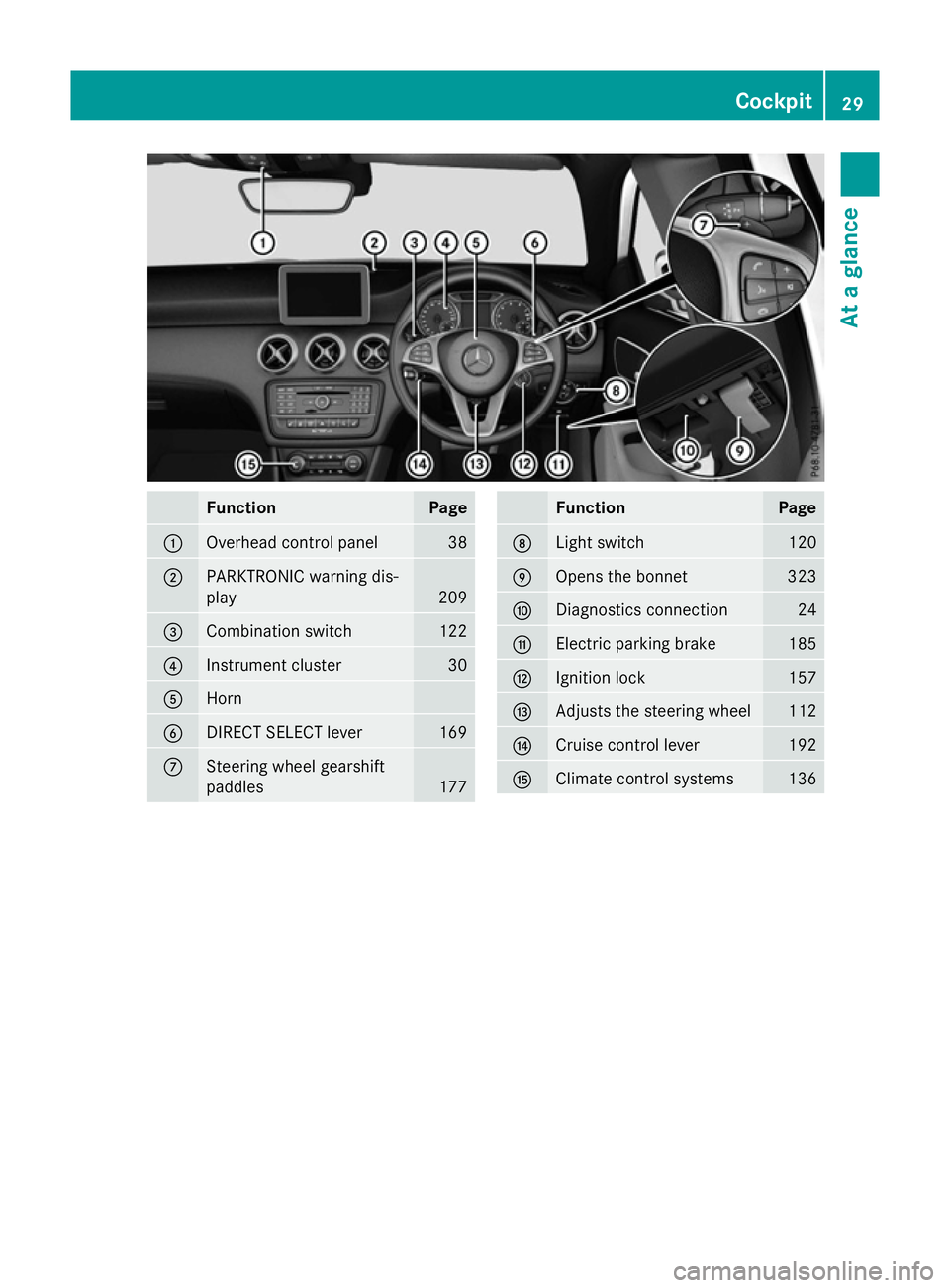

CockpitAt a glance

Function Page
:
Overhead control panel 38
;
PARKTRONIC warning dis-
play 209
=
Combination switch 122
?
Instrument cluster 30
A
Horn
B
DIRECT SELECT lever 169
C
Steering wheel gearshift
paddles
177 Function Page
D
Light switch 120
E
Opens the bonnet 323
F
Diagnostics connection 24
G
Electric parking brake 185
H
Ignition lock 157
I
Adjusts the steering wheel 112
J
Cruise control lever 192
K
Climate control systems 136Cockpit
29At a glance

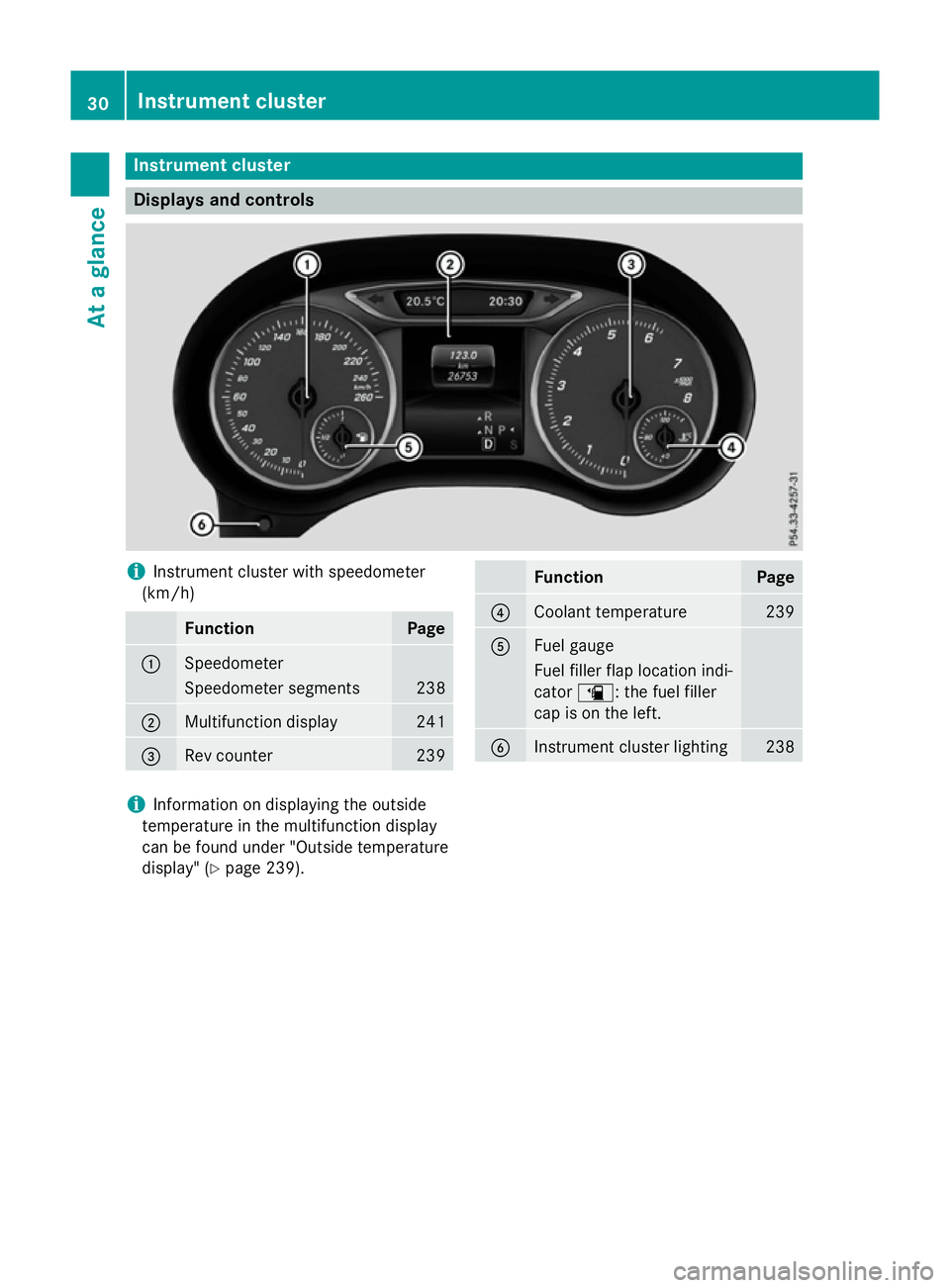

Instrument cluster
Displays and controls
i
Instrument cluster with speedometer
(km/h) Function Page
:
Speedometer
Speedometer segments 238
;
Multifunction display 241
=
Rev counter 239 Function Page
?
Coolant temperature 239
A
Fuel gauge
Fuel filler flap location indi-
cator æ: the fuel filler
cap is on the left. B
Instrument cluster lighting 238
i
Information on displaying the outside
temperature in the multifunction display
can be found under "Outside temperature
display" (Y page 239). 30
Instrument clusterAt a glance

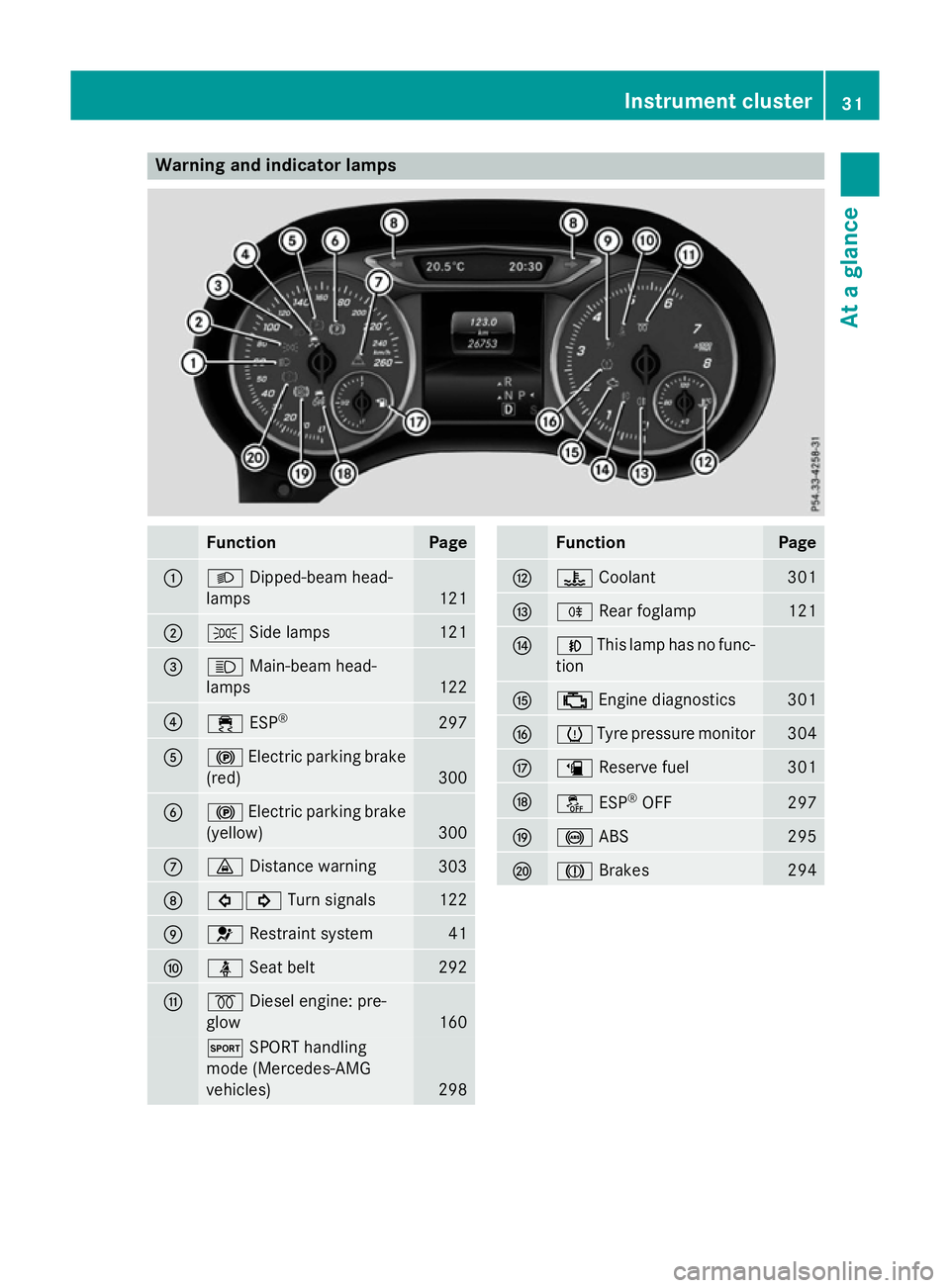

Warning and indicator lamps
Function Page
:
L
Dipped-beam head-
lamps 121
;
T
Side lamps 121
=
K
Main-beam head-
lamps 122
?
÷
ESP® 297
A
!
Electric parking brake
(red) 300
B
!
Electric parking brake
(yellow) 300
C
·
Distance warning 303
D
#!
Turn signals 122
E
6
Restraint system 41
F
ü
Seat belt 292
G
%
Diesel engine: pre-
glow 160
M
SPORT handling
mode (Mercedes-AMG
vehicles) 298 Function Page
H
?
Coolant 301
I
R
Rear foglamp 121
J
N
This lamp has no func-
tion K
;
Engine diagnostics 301
L
h
Tyre pressure monitor 304
M
æ
Reserve fuel 301
N
å
ESP®
OFF 297
O
!
ABS 295
P
J
Brakes 294Instrument cluster
31At a glance

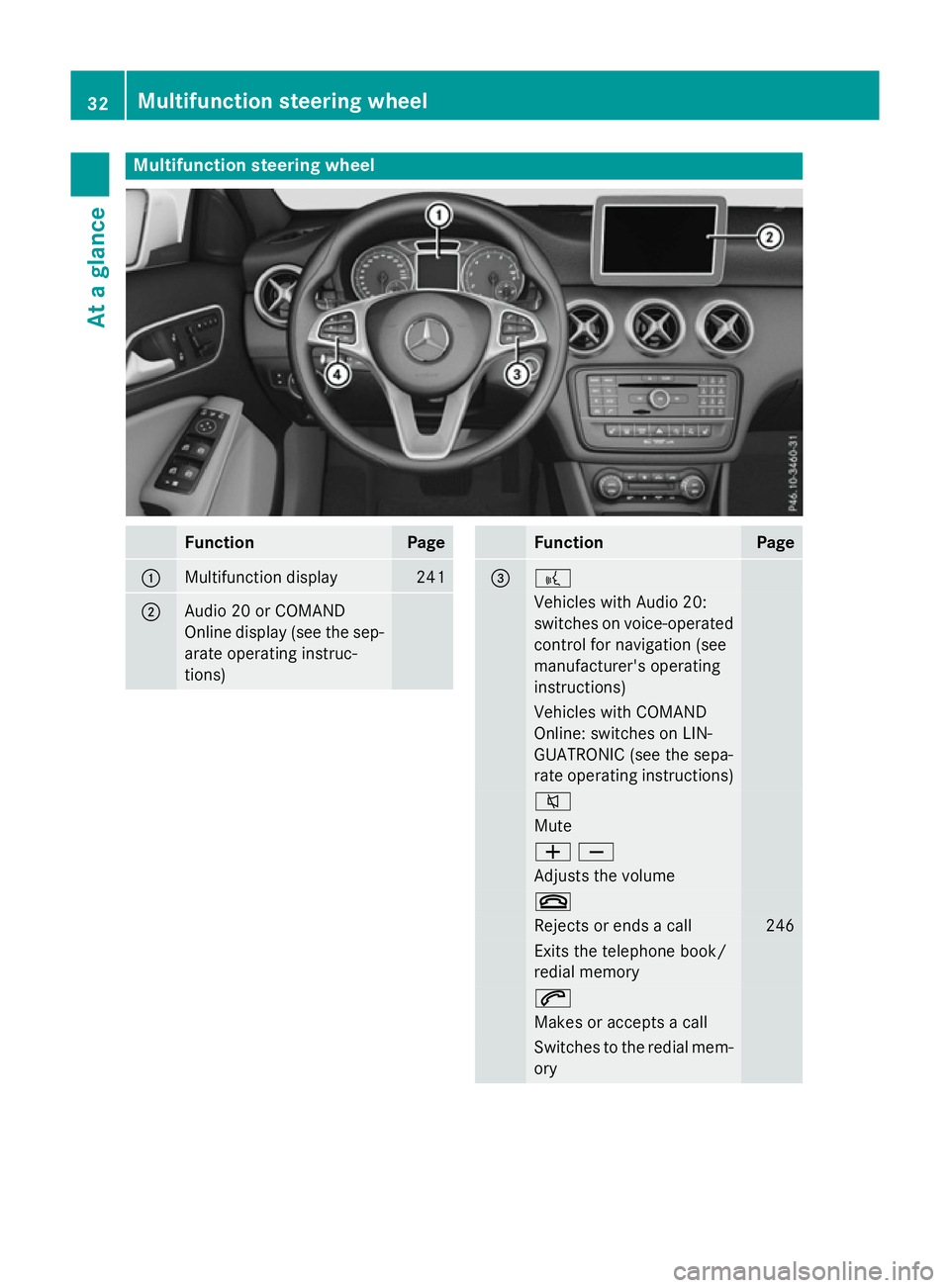

Multifunction steering wheel
Function Page
:
Multifunction display 241
;
Audio 20 or COMAND
Online display (see the sep-
arate operating instruc-
tions) Function Page
= ?
Vehicles with Audio 20:
switches on voice-operated
control for navigation (see
manufacturer's operating
instructions) Vehicles with COMAND
Online: switches on LIN-
GUATRONIC (see the sepa-
rate operating instructions)
8
Mute
WX
Adjusts the volume
~
Rejects or ends a call 246
Exits the telephone book/
redial memory 6
Makes or accepts a call
Switches to the redial mem-
ory 32

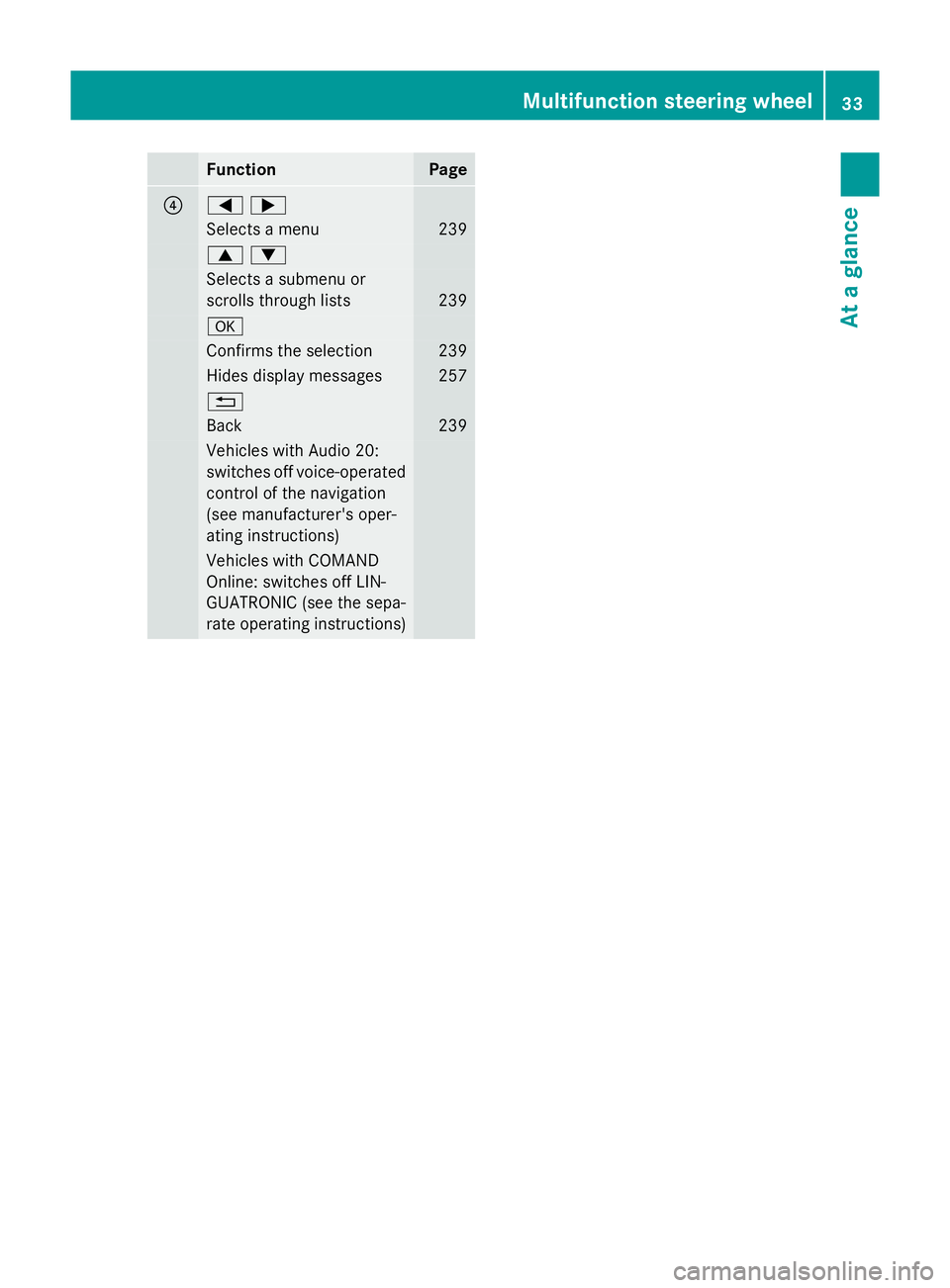

Multifunction steering wheelAt a glance

Function Page
?
=;
Selects a menu 239
9:
Selects a submenu or
scrolls through lists
239
a
Confirms the selection 239
Hides display messages 257
%
Back 239
Vehicles with Audio 20:
switches off voice-operated
control of the navigation
(see manufacturer's oper-
ating instructions) Vehicles with COMAND
Online: switches off LIN-
GUATRONIC (see the sepa-
rate operating instructions) Multifunction steering wheel
33At a glance

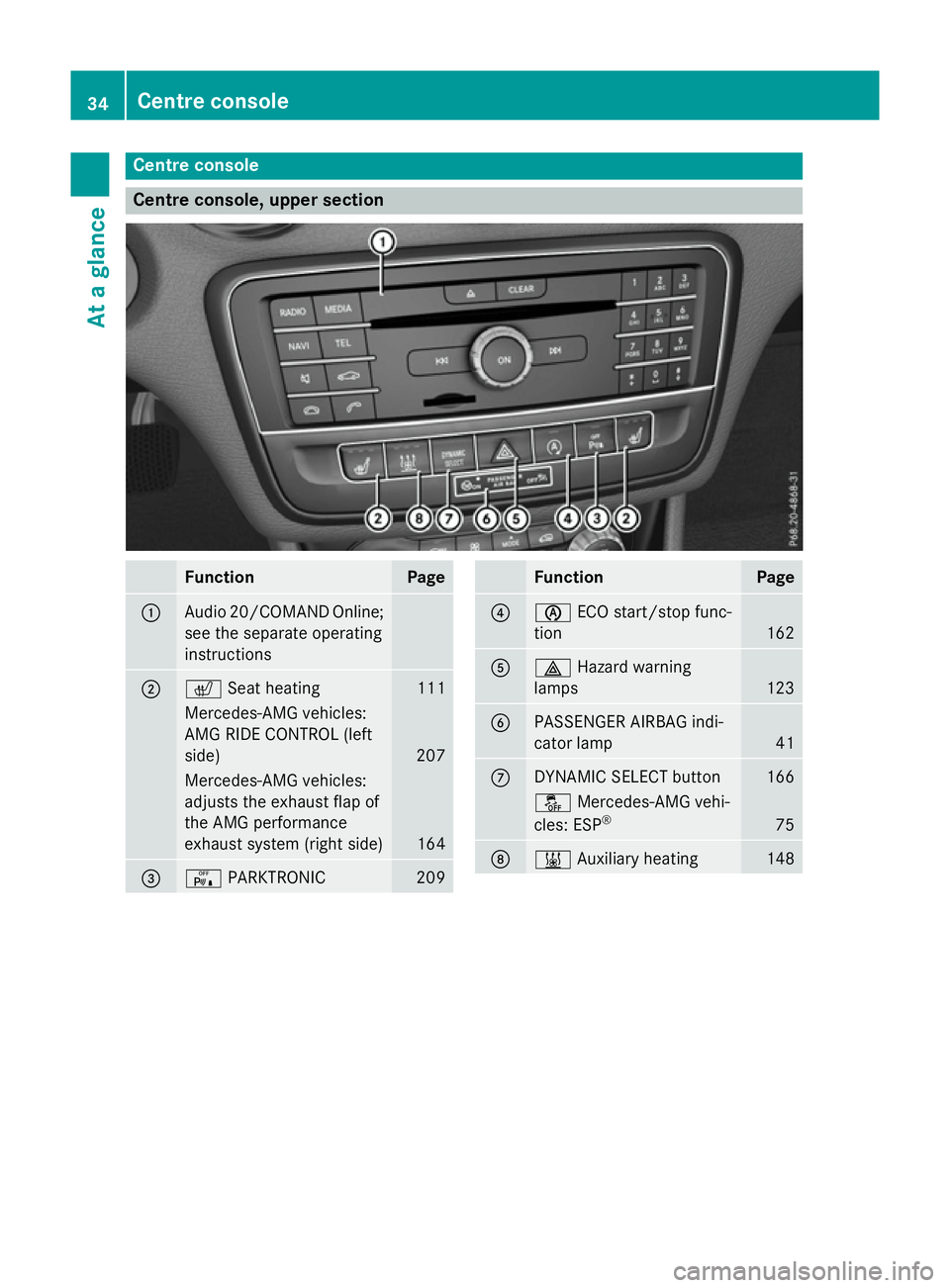

Centre console
Centre console, upper section
Function Page
:
Audio 20/COMAND Online;
see the separate operating
instructions ;
c
Seat heating 111
Mercedes-AMG vehicles:
AMG RIDE CONTROL (left
side)
207
Mercedes-AMG vehicles:
adjusts the exhaust flap of
the AMG performance
exhaust system (right side) 164
=
c
PARKTRONIC 209 Function Page
?
è
ECO start/stop func-
tion 162
A
£
Hazard warning
lamps 123
B
PASSENGER AIRBAG indi-
cator lamp
41
C
DYNAMIC SELECT button 166
å
Mercedes-AMG vehi-
cles: ESP ® 75
D
&
Auxiliary heating 14834
Centre consoleAt a glance

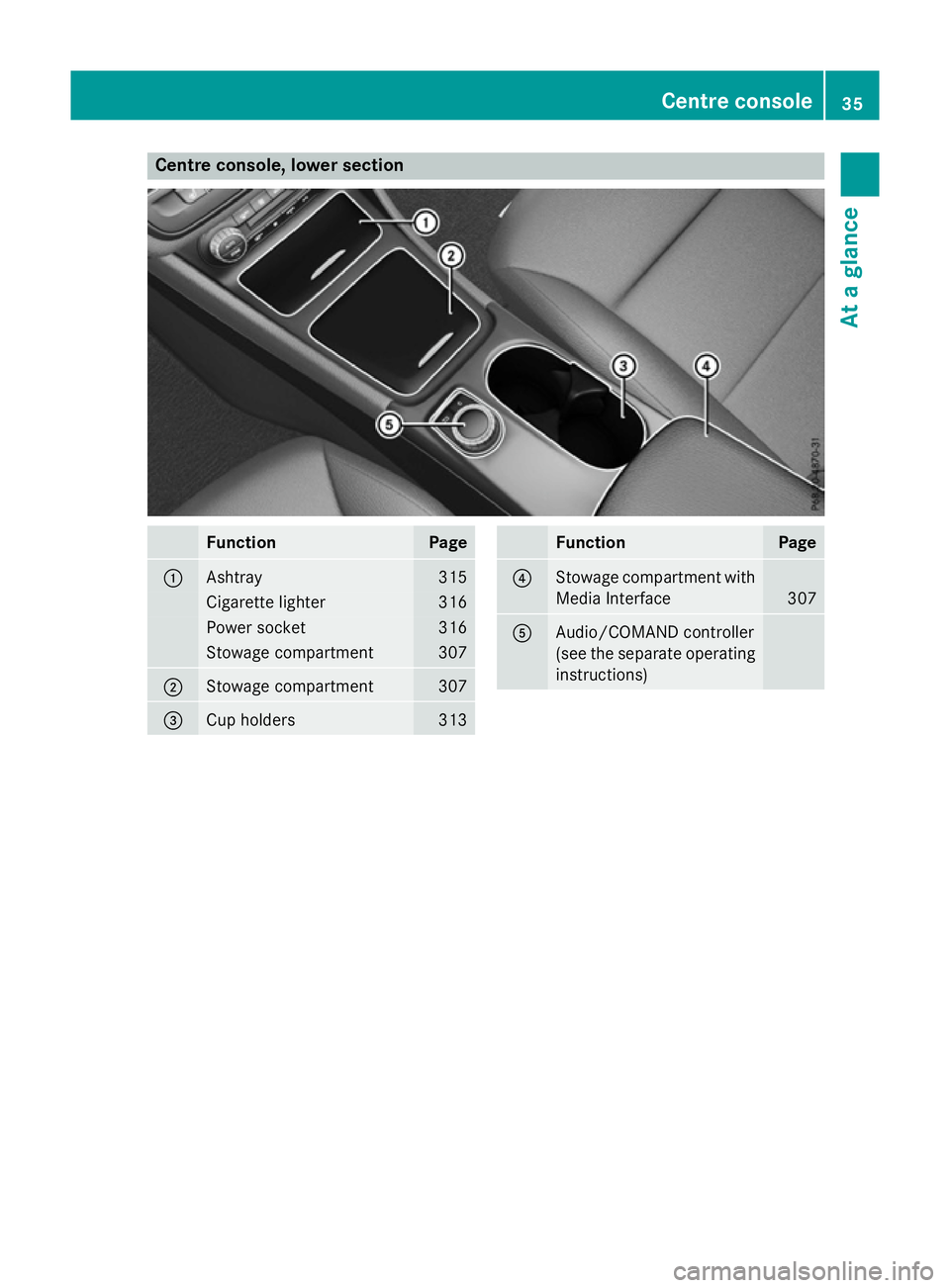

Centre console, lower section
Function Page
:
Ashtray 315
Cigarette lighter 316
Power socket 316
Stowage compartment 307
;
Stowage compartment 307
=
Cup holders 313 Function Page
?
Stowage compartment with
Media Interface 307
A
Audio/COMAND controller
(see the separate operating
instructions) Centre console
35At a glance

i

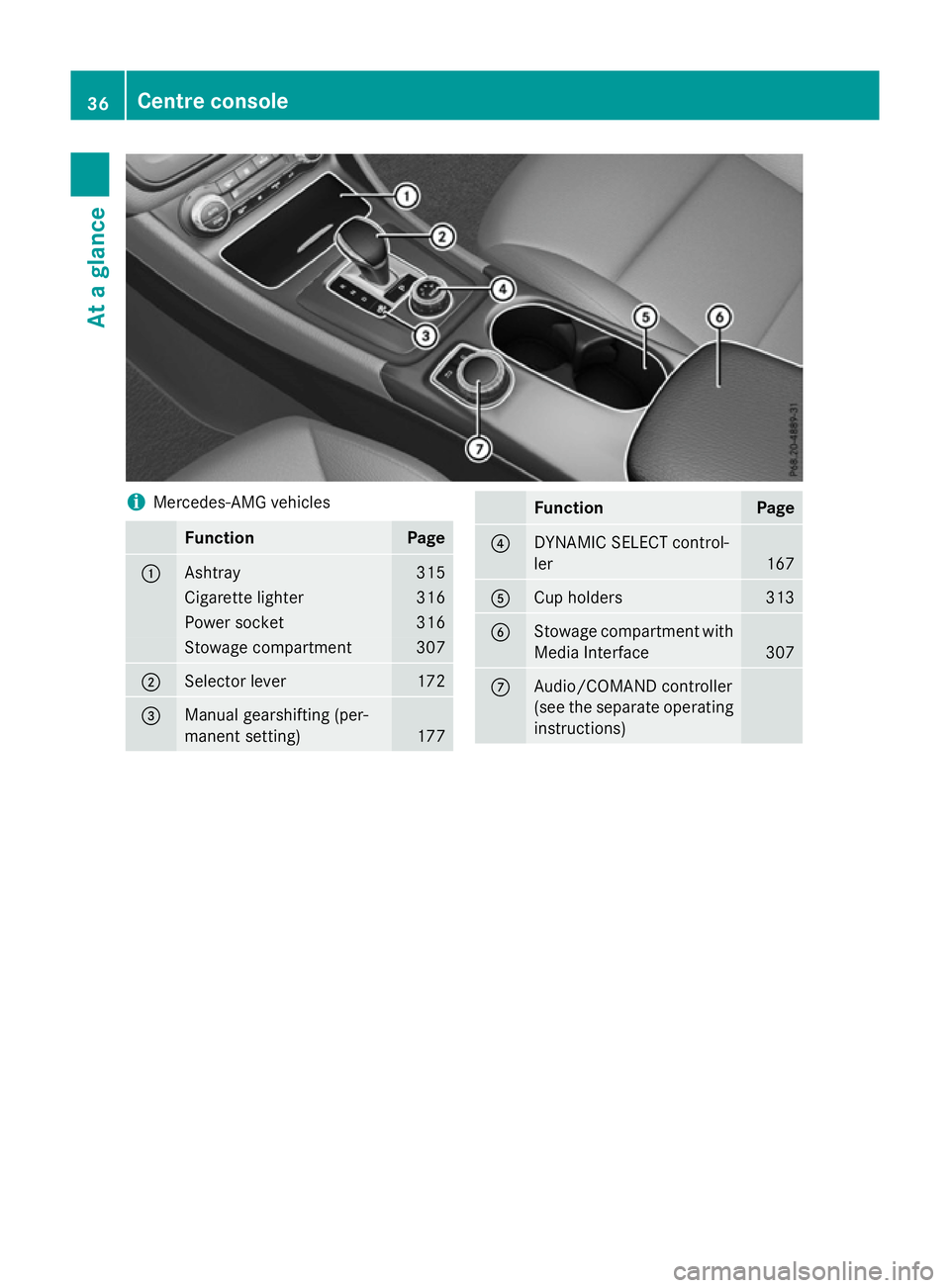

Mercedes-AMG vehicles Function Page
:
Ashtray 315
Cigarette lighter 316
Power socket 316
Stowage compartment 307
;
Selector lever 172
=
Manual gearshifting (per-
manent setting)
177 Function Page
?
DYNAMIC SELECT control-
ler 167
A
Cup holders 313
B
Stowage compartment with
Media Interface 307
C
Audio/COMAND controller
(see the separate operating
instructions) 36
Centre consoleAt a glance

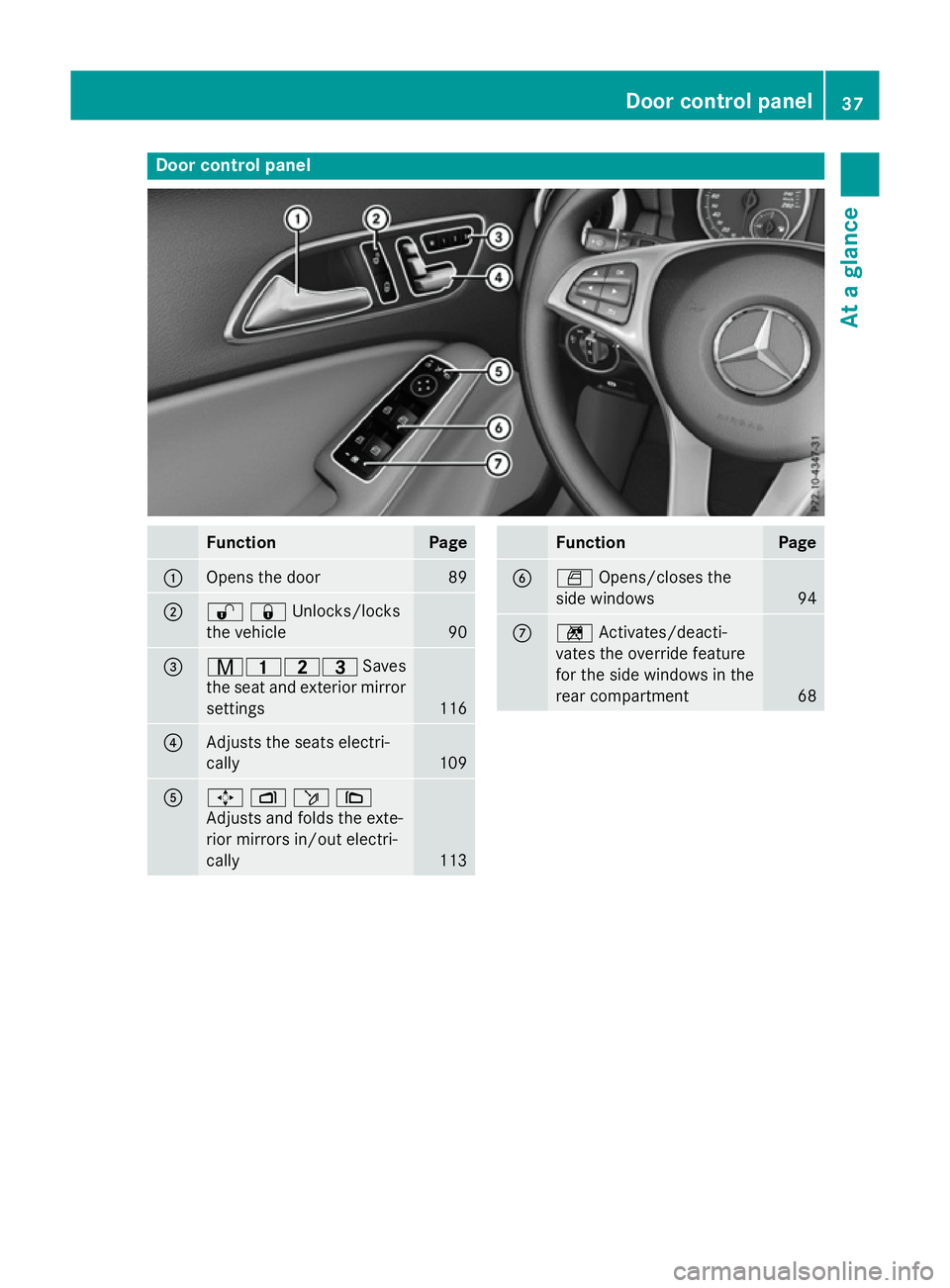

Door control panel
Function Page
:
Opens the door 89
;
%&Unlocks/locks
the vehicle
90
=
r45=
Saves
the seat and exterior mirror settings 116
?
Adjusts the seats electri-
cally
109
A
7
Zö\
Adjusts and folds the exte-
rior mirrors in/out electri-
cally 113 Function Page
B
W
Opens/closes the
side windows 94
C
n
Activates/deacti-
vates the override feature
for the side windows in the
rear compartment 68Door control panel
37At a glance
