Page 21 of 226

MERCEDES-BENZ AMG GT S 2017 C190 Comand Manual Overview.............................................. 20
Touchpad ............................................. 25
Basic functions .................................... 30
Character entry (telephony)

Page 22 of 226

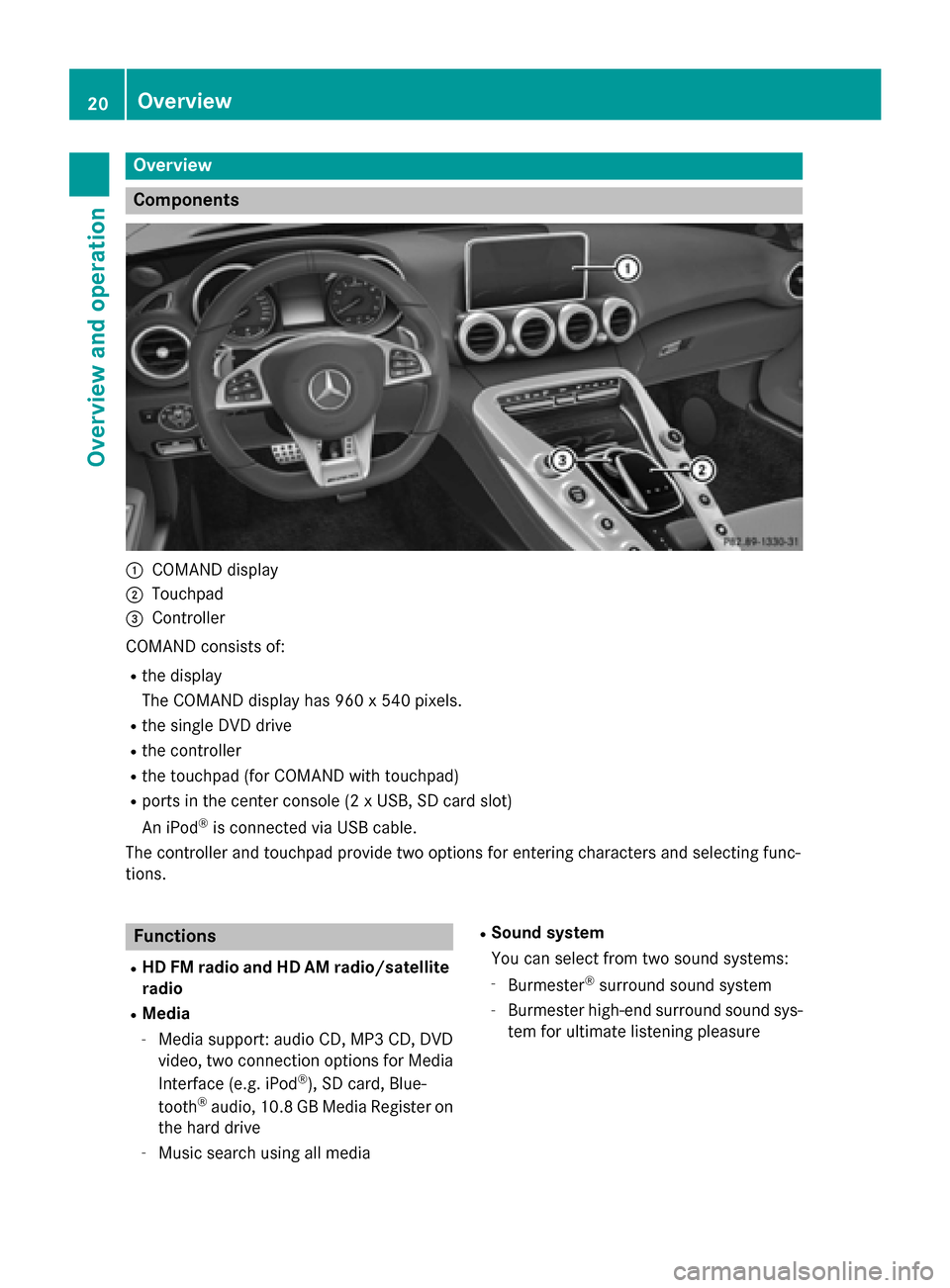

MERCEDES-BENZ AMG GT S 2017 C190 Comand Manual Overview
Components
:COMAND display
;Touchpad
=Controller
COMAND consists of:
Rthe display
The COMAND display has 960 x 540 pixels.
Rthe single DVD drive
Rthe controller
Rthe touchpad (for COMAND with

Page 23 of 226

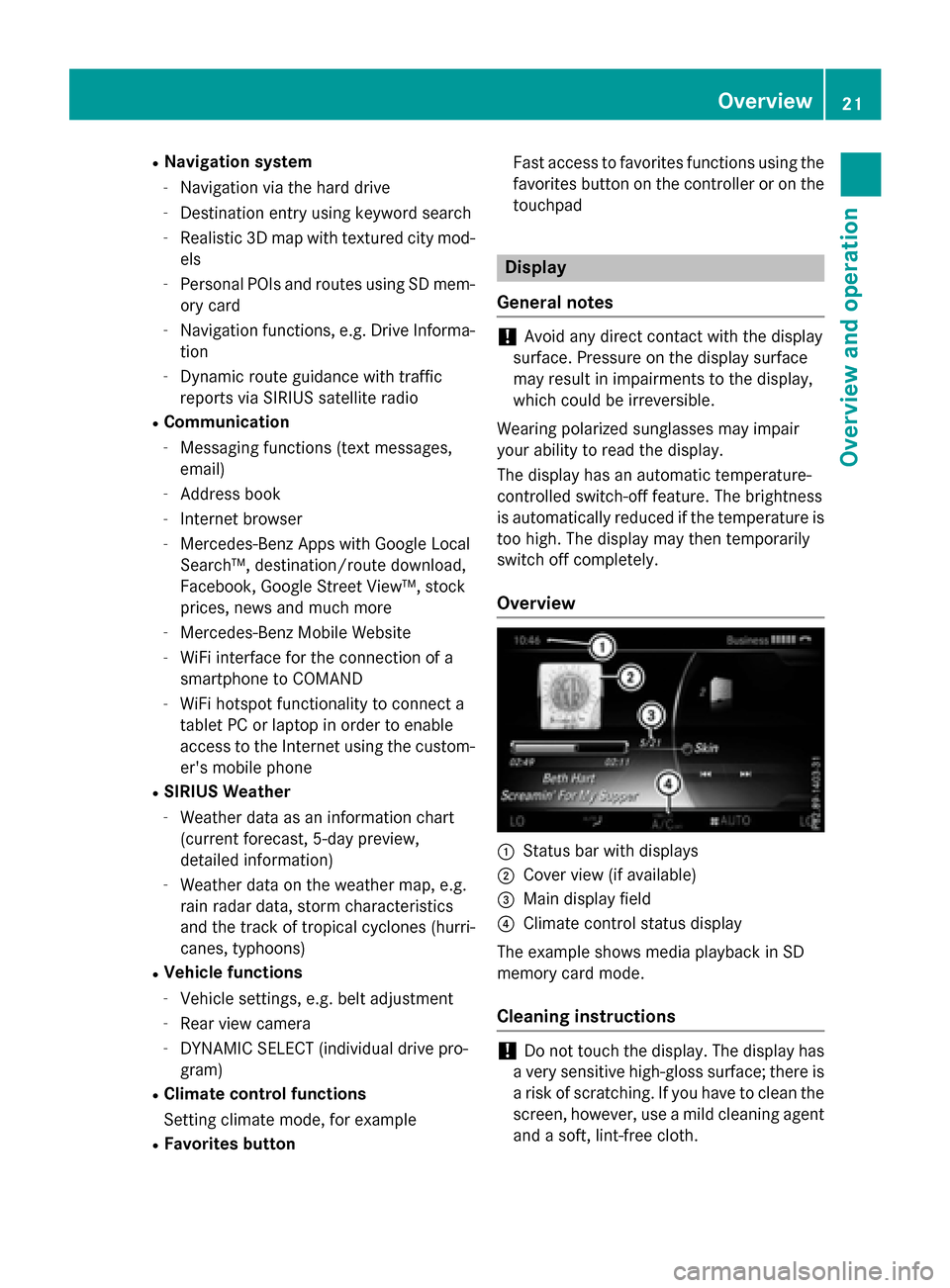

MERCEDES-BENZ AMG GT S 2017 C190 Comand Manual RNavigation system
-Navigation via the hard drive
-Destination entry using keyword search
-Realistic 3D map with textured city mod-
els
-Personal POIs and routes using SD mem-
ory card
-Navigation fun

Page 24 of 226

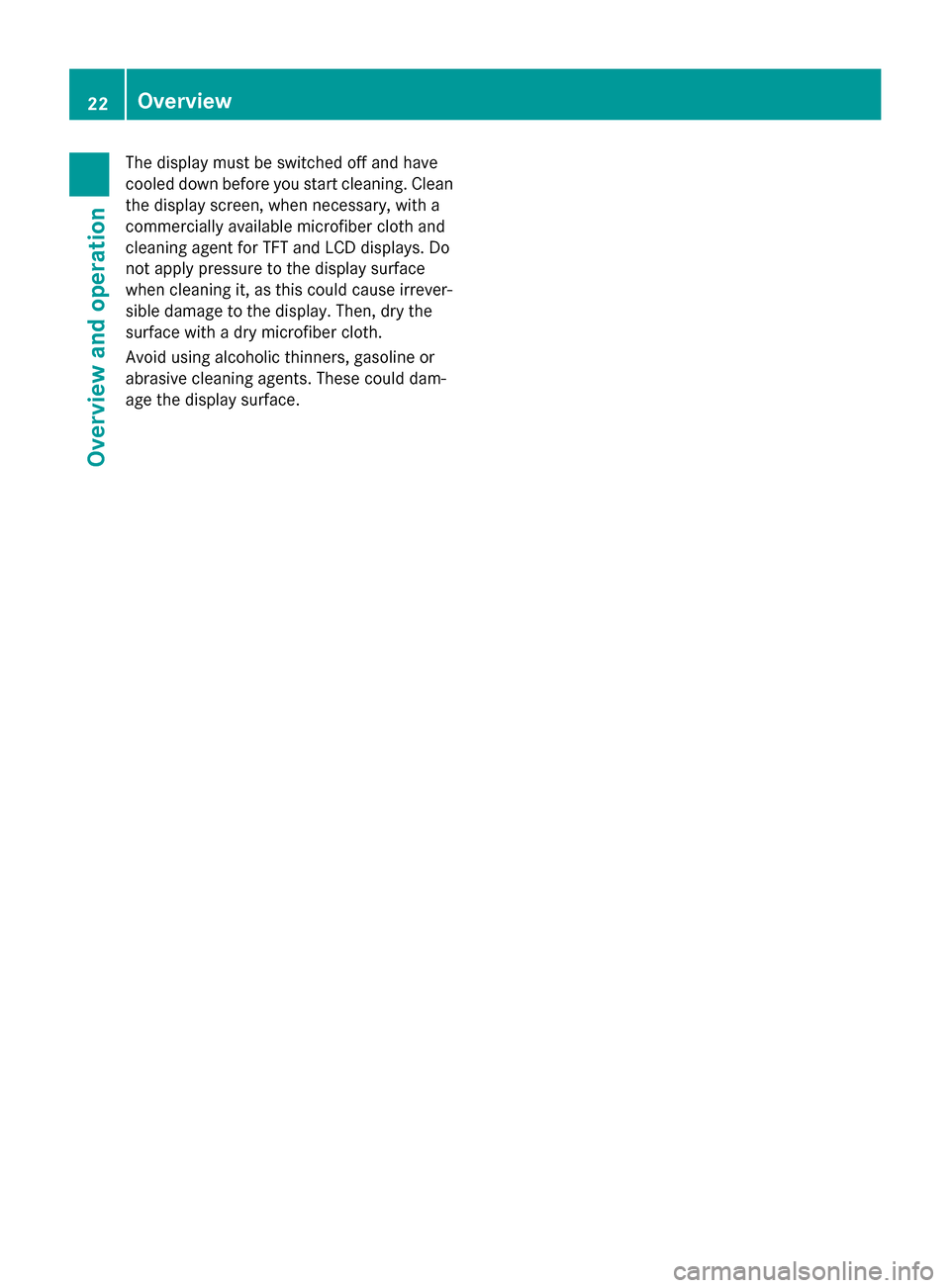

MERCEDES-BENZ AMG GT S 2017 C190 Comand Manual The display must be switched off and have
cooled down before you start cleaning. Clean
the display screen, when necessary, with a
commercially available microfiber cloth and
cleaning agent for TFT and

Page 25 of 226

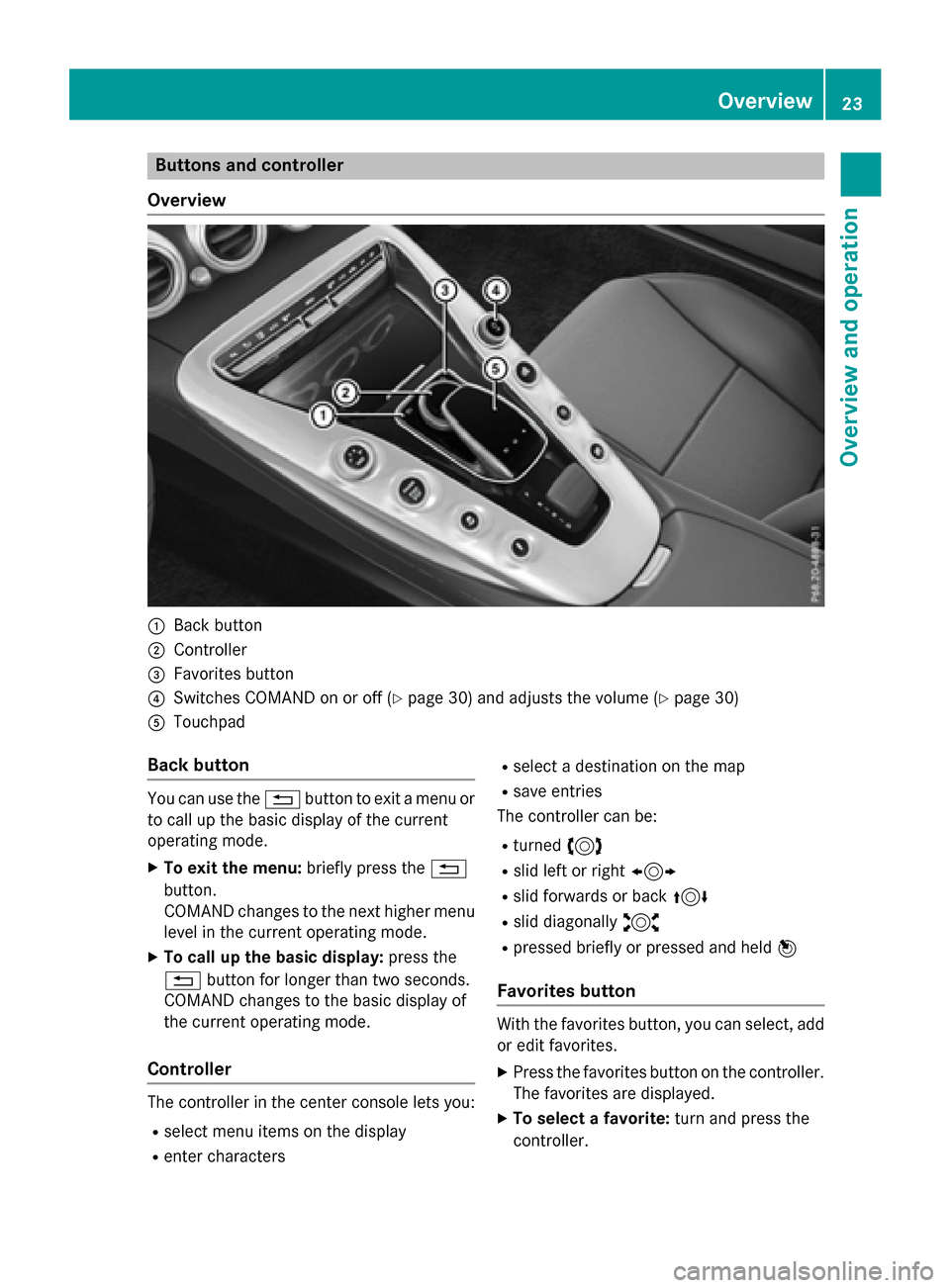

MERCEDES-BENZ AMG GT S 2017 C190 Comand Manual Buttons and controller
Overview
:Back button
;Controller
=Favorites button
?Switches COMAND on or off (Ypage 30) and adjusts the volume (Ypage 30)
ATouchpad
Back button
You can use the %button to exit

Page 26 of 226

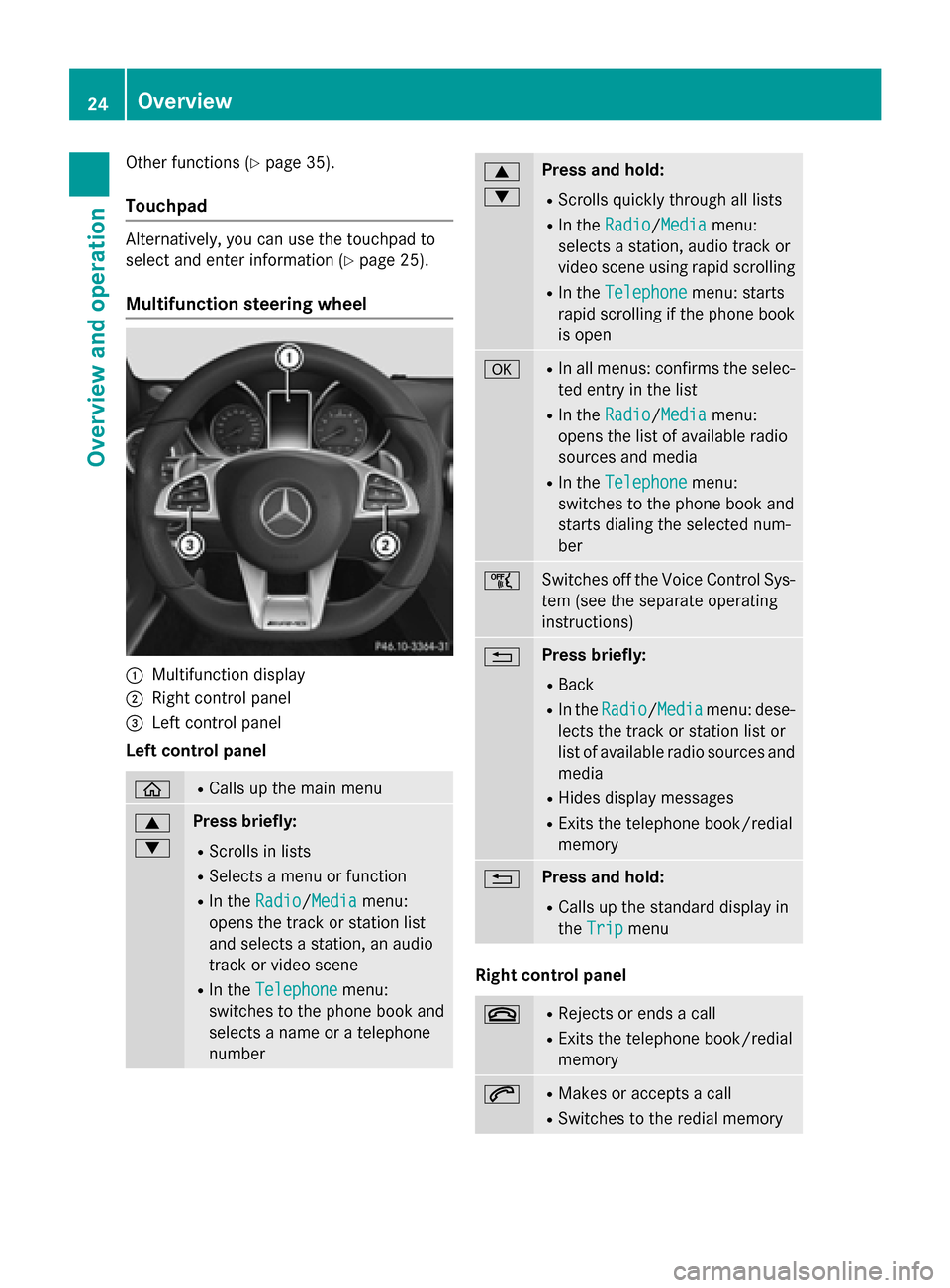

MERCEDES-BENZ AMG GT S 2017 C190 Comand Manual Other functions (Ypage 35).
Touchpad
Alternatively, you can use the touchpad to
select and enter information (
Ypage 25).
Multifunction steering wheel
:Multifunction display
;Right control panel
=Left

Page 27 of 226

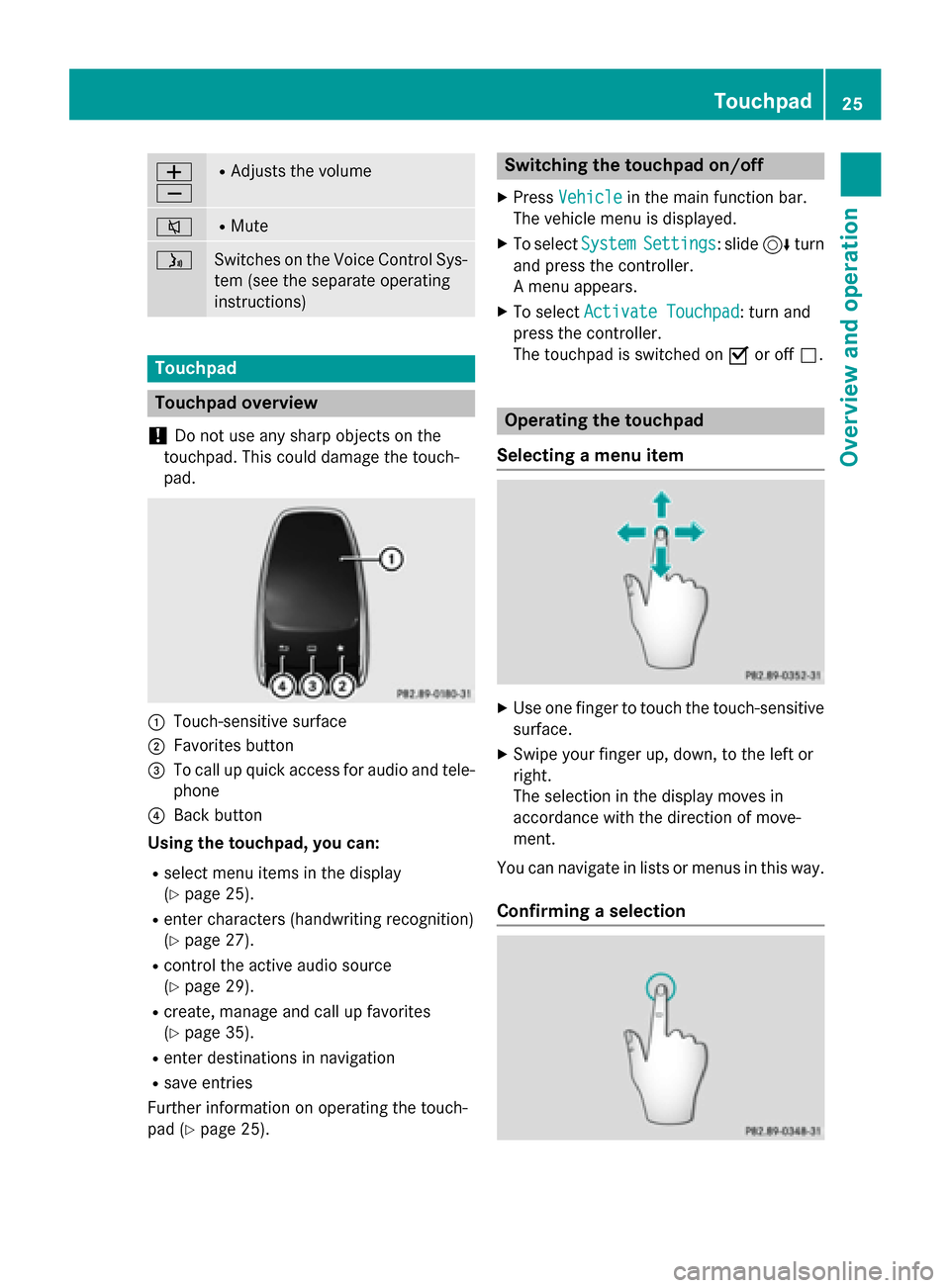

MERCEDES-BENZ AMG GT S 2017 C190 Comand Manual W
XRAdjusts the volume
8RMute
óSwitches on the Voice Control Sys-
tem (see the separate operating
instructions)
Touchpad
Touchpad overview
!
Do not use any sharp objects on the
touchpad. This could d

Page 28 of 226

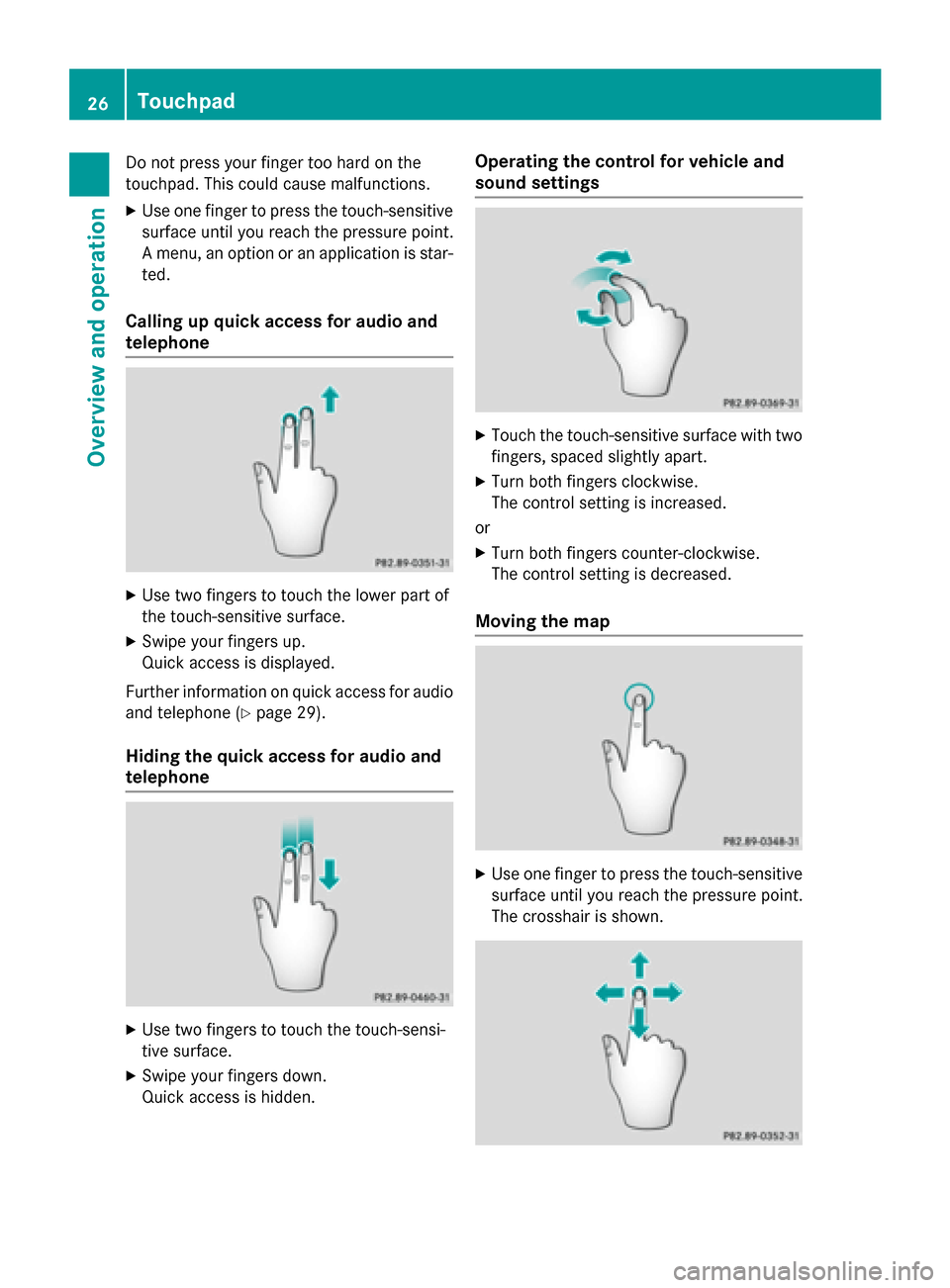

MERCEDES-BENZ AMG GT S 2017 C190 Comand Manual Do not press your finger too hard on the
touchpad. This could cause malfunctions.
XUse one finger to press the touch-sensitivesurface until you reach the pressure point.
A menu, an option or an applic

Page 29 of 226

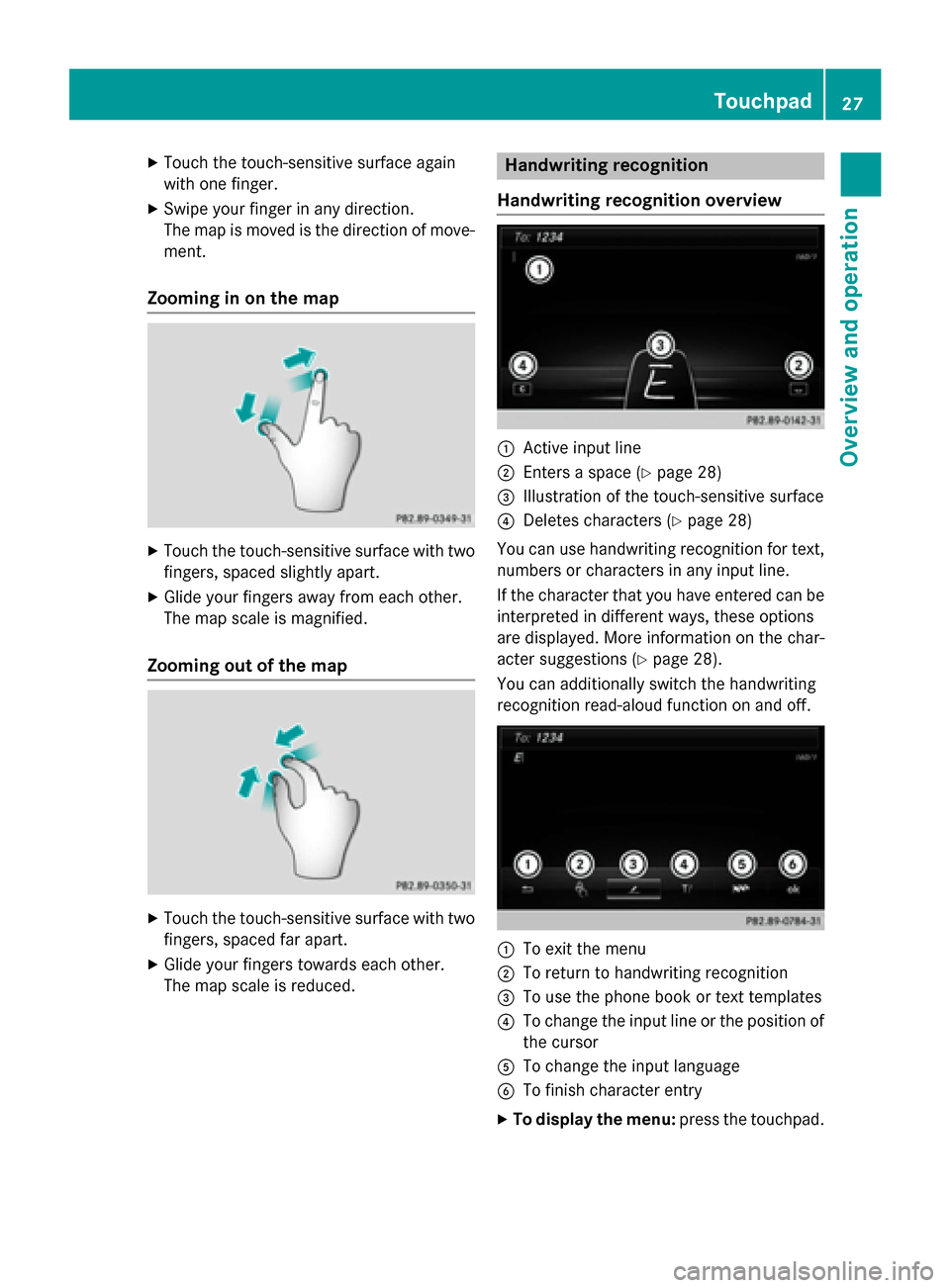

MERCEDES-BENZ AMG GT S 2017 C190 Comand Manual XTouch the touch-sensitive surface again
with one finger.
XSwipe your finger in any direction.
The map is moved is the direction of move-
ment.
Zooming in on the map
XTouch the touch-sensitive surface

Page 30 of 226

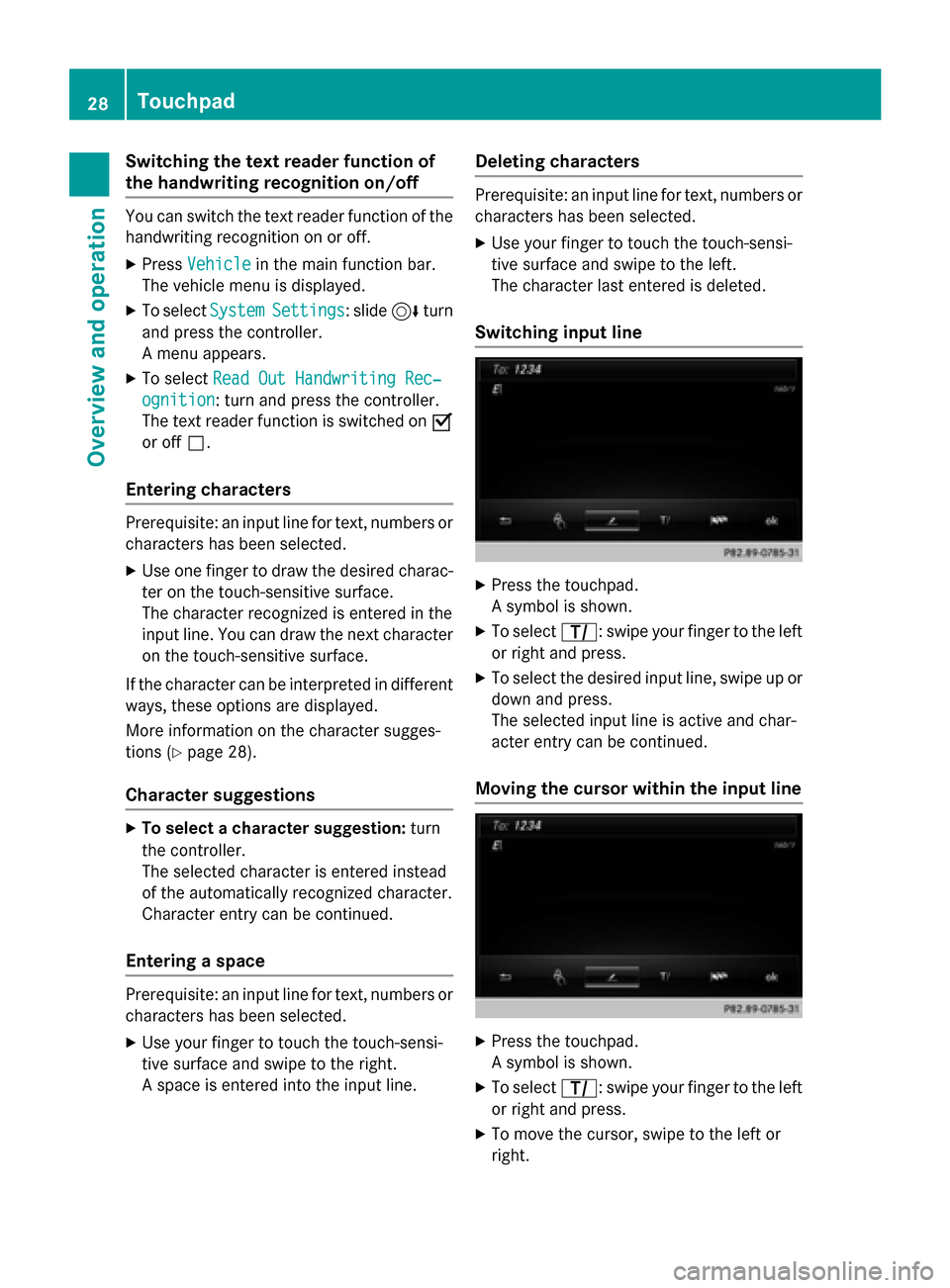

MERCEDES-BENZ AMG GT S 2017 C190 Comand Manual Switching the text reader function of
the handwriting recognition on/off
You can switch the text reader function of the
handwriting recognition on or off.
XPressVehiclein the main function bar.
The ve
