Cockpit................................................. 30
Instrument cluster ..............................31
Multifunction steering wheel .............33
Center console .................................... 35
Door control panel .............................. 37
Overhead control panel ......................38
29
At a glance
Page 32 of 342

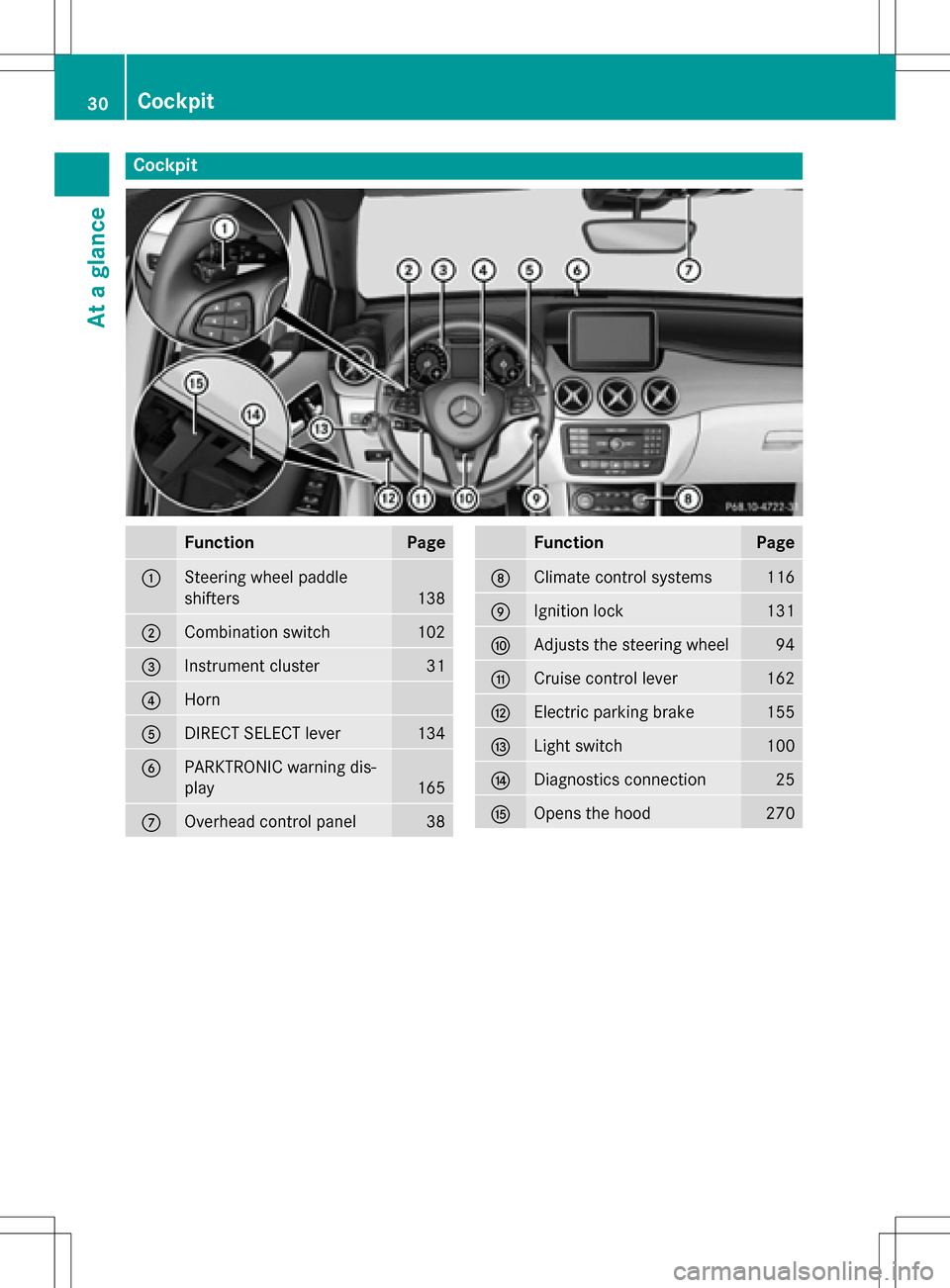

Cockpit
FunctionPage
:Steering wheel paddle
shifters
138
;Combination switch102
=Instrument cluster31
?Horn
ADIRECT SELECT lever134
BPARKTRONIC warning dis-
play
165
COverhead control panel38
FunctionPage
DClimate control systems116
EIgnition lock131
FAdjusts the steering wheel94
GCruise control lever162
HElectric parking brake155
ILight switch100
JDiagnostics connection25
KOpens the hood270
30Cockpit
At a glance
Page 33 of 342
Instrument cluster
Displays and controls
FunctionPage
:Speedometer
;Multifunction display186
with outside temperature
display
183
=Power display183
FunctionPage
?E-CELL display183
ADisplay for the condition of
charge of the high-voltage
battery
184
BInstrument cluster lighting182
Instrument cluster31
At a glance
Page 34 of 342

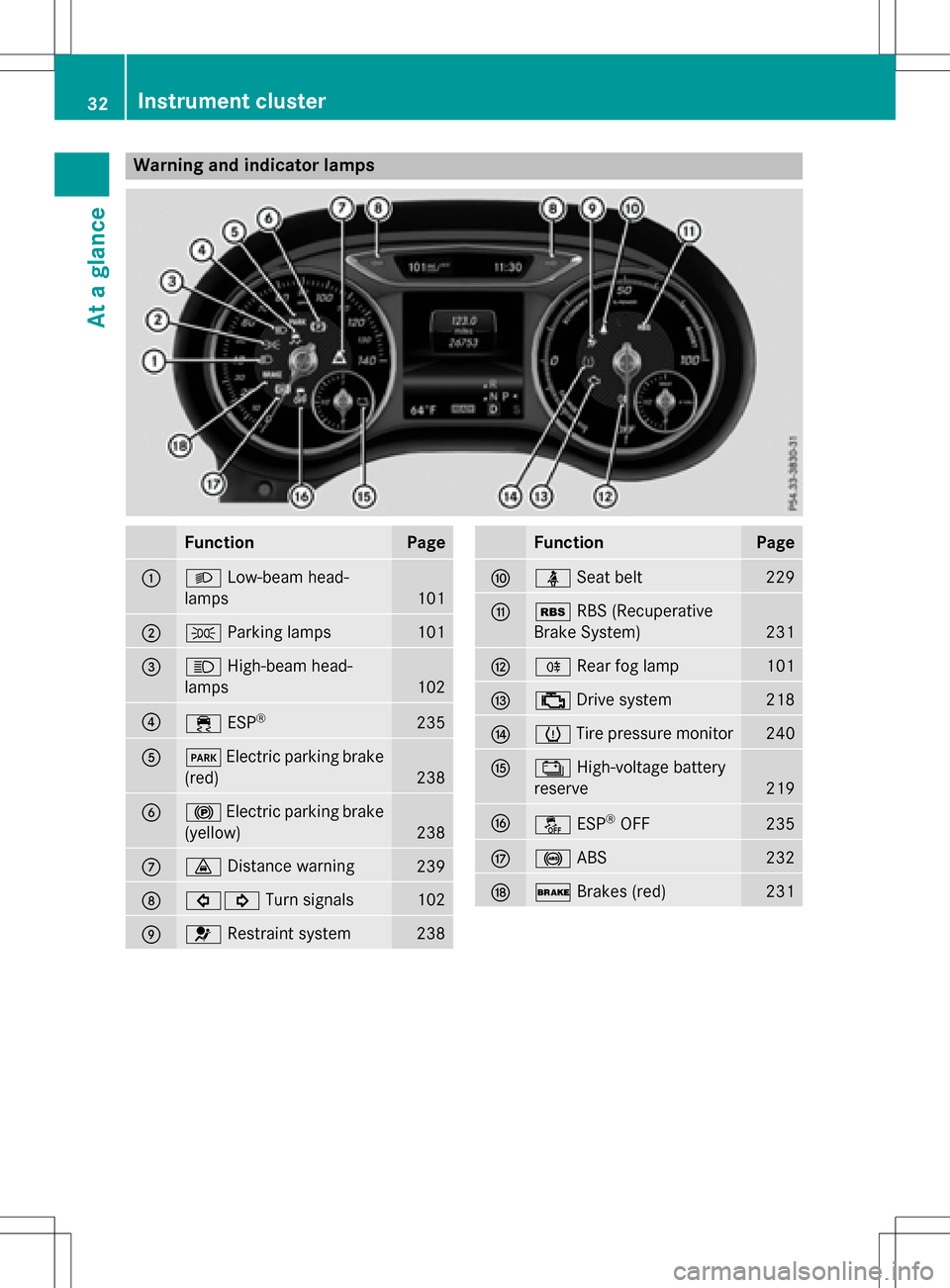

Warning and indicator lamps
FunctionPage
:LLow-beam head-
lamps
101
;T Parking lamps101
=KHigh-beam head-
lamps
102
?÷ ESP®235
AFElectric parking brake
(red)
238
B! Electric parking brake
(yellow)
238
C· Distance warning239
D#! Turn signals102
E6Restraint system238
FunctionPage
FüSeat belt229
GéRBS (Recuperative
Brake System)
231
HR Rear fog lamp101
I;Drive system218
Jh Tire pressure monitor240
KÝ High-voltage battery
reserve
219
Lå ESP®OFF235
M!ABS232
N$Brakes (red)231
32Instrument cluster
At a glance
Page 35 of 342

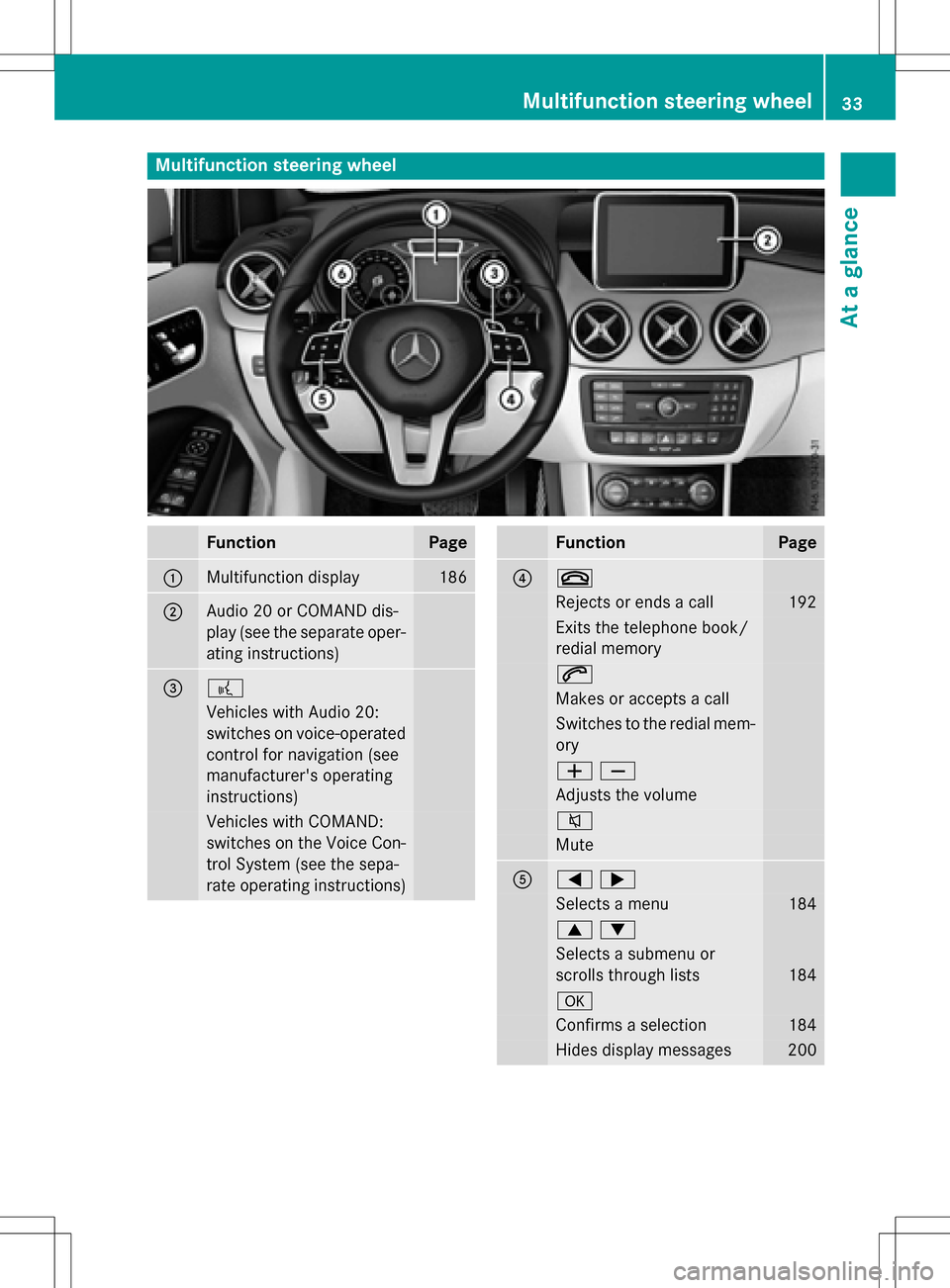

Multifunction steering wheel
FunctionPage
:Multifunction display186
;Audio 20 or COMAND dis-
play (see the separate oper-
ating instructions)
=?
Vehicles with Audio 20:
switches on voice-operated
control for navigation (see
manufacturer's operating
instructions)
Vehicles with COMAND:
switches on the Voice Con-
trol System (see the sepa-
rate operating instructions)
FunctionPage
?~
Rejects or ends a call192
Exits the telephone book/
redial memory
6
Makes or accepts a call
Switches to the redial mem-
ory
WX
Adjusts the volume
8
Mute
A=;
Selects a menu184
9:
Selects a submenu or
scrolls through lists
184
a
Confirms a selection184
Hides display messages200
Multifunction steering wheel33
At a glance
Page 36 of 342

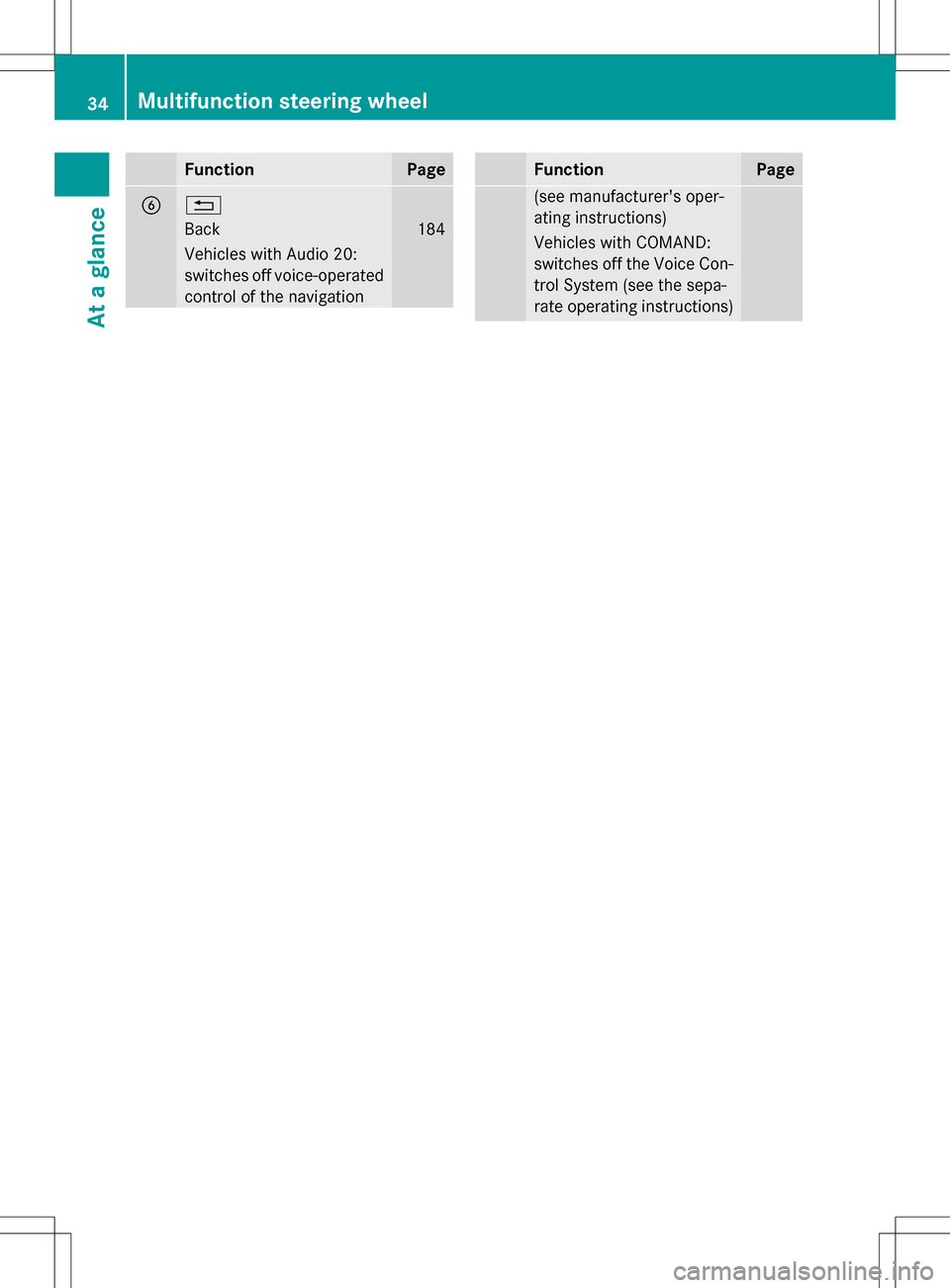

FunctionPage
B%
Back184
Vehicles with Audio 20:
switches off voice-operated
control of the navigation
FunctionPage
(see manufacturer's oper-
ating instructions)
Vehicles with COMAND:
switches off the Voice Con-
trol System (see the sepa-
rate operating instructions)
34Multifunction steering wheel
At a glance
Page 37 of 342
Center console

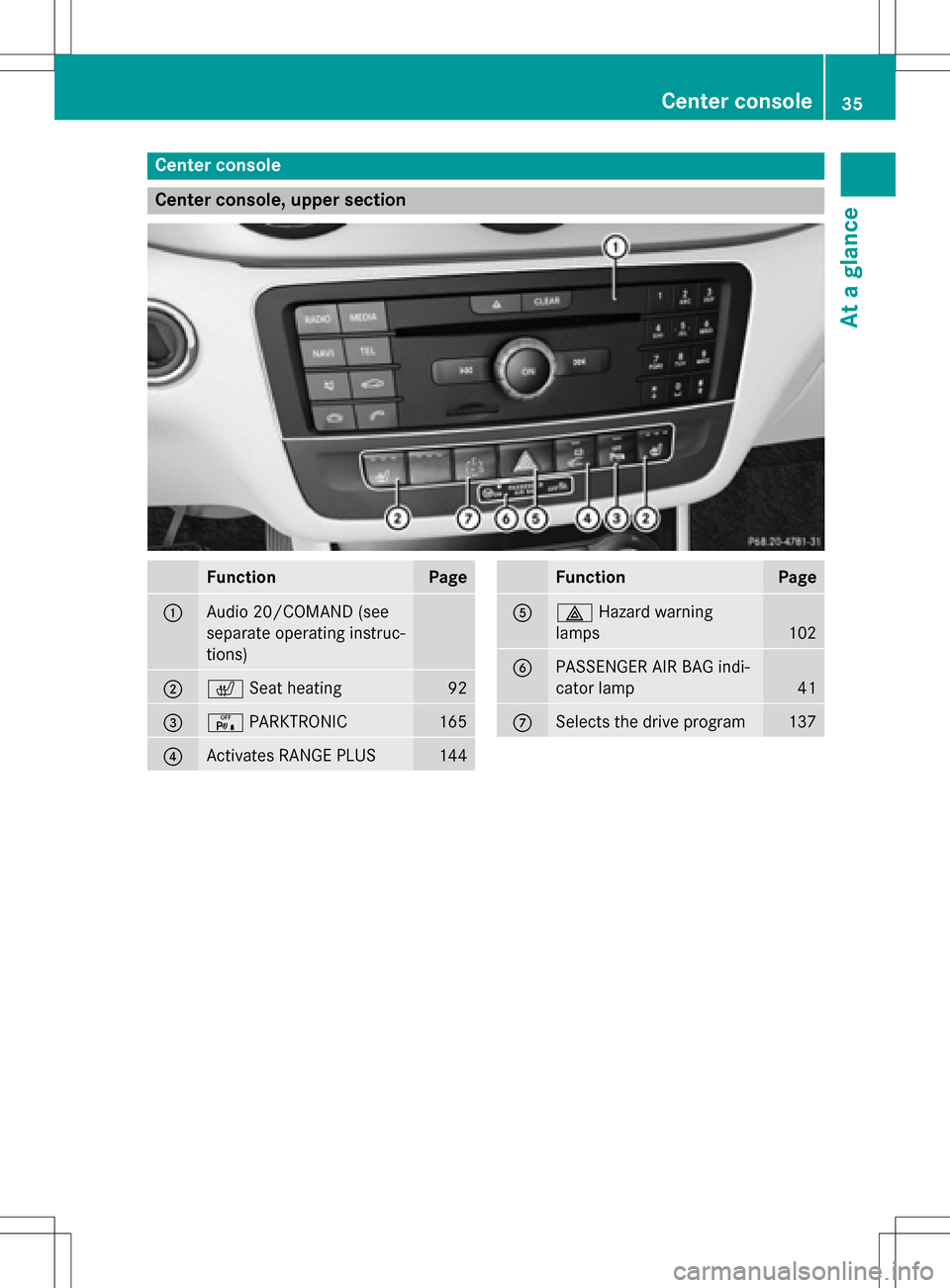

Center console, upper section
FunctionPage
:Audio 20/COMAND (see
separate operating instruc-
tions)
;cSeat heating92
=cPARKTRONIC165
?Activates RANGE PLUS144
FunctionPage
A£Hazard warning
lamps
102
BPASSENGER AIR BAG indi-
cator lamp
41
CSelects the drive program137
Center console35
At a glance
Page 38 of 342

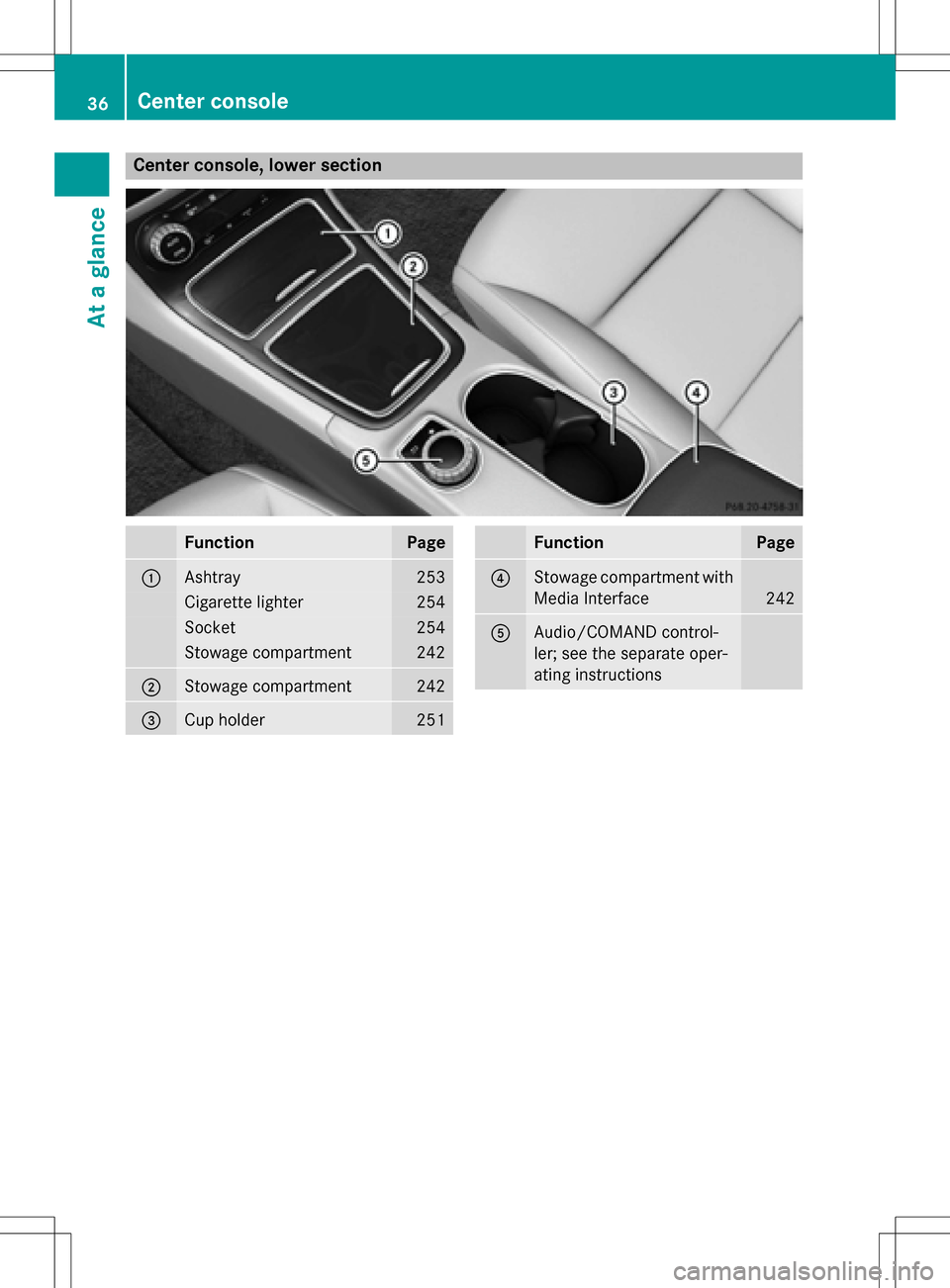

Center console, lower section
FunctionPage
:Ashtray253
Cigarette lighter254
Socket254
Stowage compartment242
;Stowage compartment242
=Cup holder251
FunctionPage
?Stowage compartment with
Media Interface
242
AAudio/COMAND control-
ler; see the separate oper-
ating instructions
36Center console
At a glance
Page 39 of 342

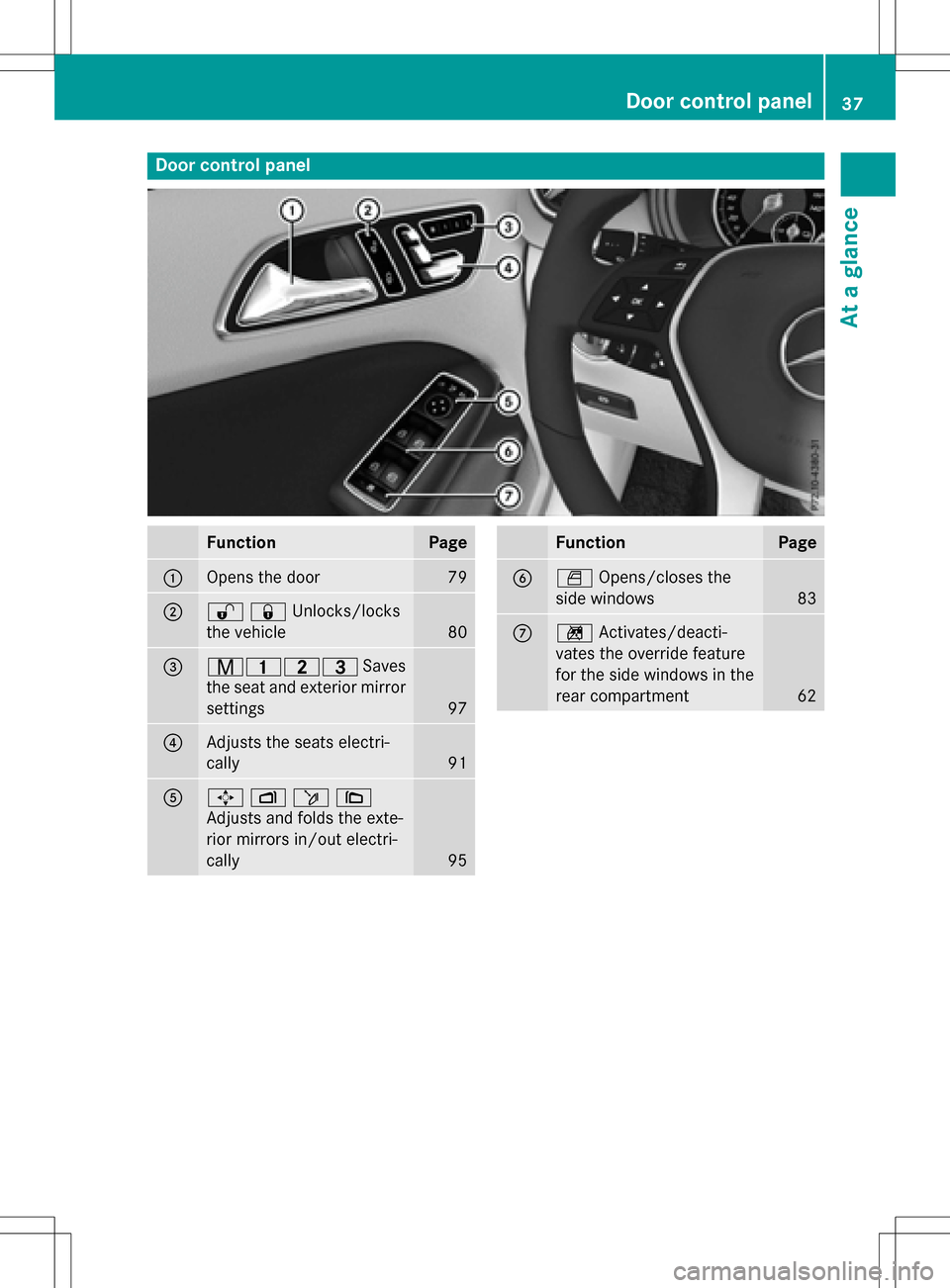

Door control panel
FunctionPage
:Opens the door79
;%&Unlocks/locks
the vehicle
80
=r45=Saves
the seat and exterior mirror
settings
97
?Adjusts the seats electri-
cally
91
A7 Zö\
Adjusts and folds the exte-
rior mirrors in/out electri-
cally
95
FunctionPage
BW Opens/closes the
side windows
83
Cn Activates/deacti-
vates the override feature
for the side windows in the
rear compartment
62
Door control panel37
At a glance
Page 40 of 342

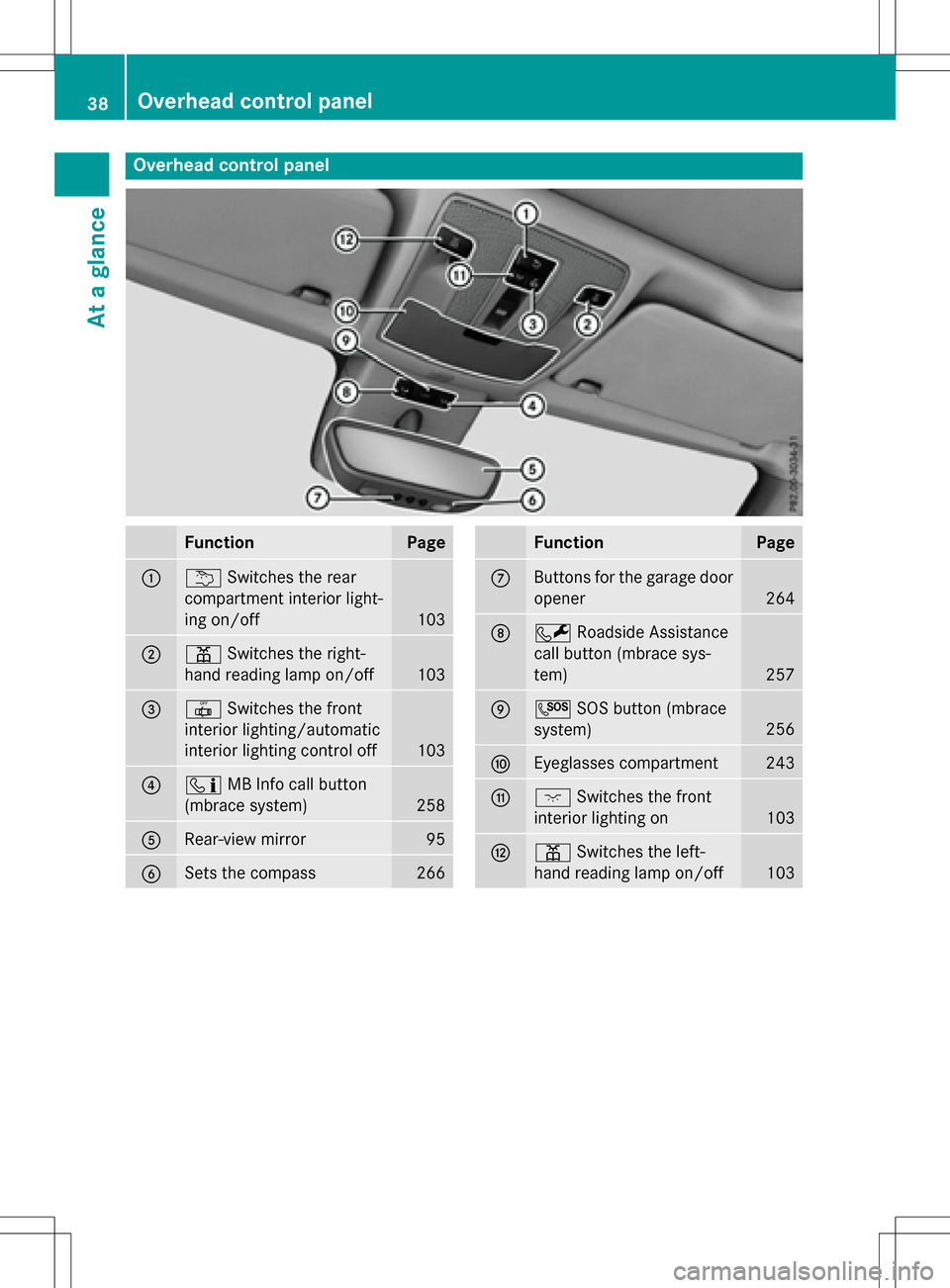

Overhead control panel
FunctionPage
:uSwitches the rear
compartment interior light-
ing on/off
103
;p Switches the right-
hand reading lamp on/off
103
=| Switches the front
interior lighting/automatic
interior lighting control off
103
?ï MB Info call button
(mbrace system)
258
ARear-view mirror95
BSets the compass266
FunctionPage
CButtons for the garage door
opener
264
DF Roadside Assistance
call button (mbrace sys-
tem)
257
EG SOS button (mbrace
system)
256
FEyeglasses compartment243
Gc Switches the front
interior lighting on
103
Hp Switches the left-
hand reading lamp on/off
103
38Overhead control panel
At a glance
