tow MERCEDES-BENZ C-CLASS 2002 Owner's Manual
[x] Cancel search | Manufacturer: MERCEDES-BENZ, Model Year: 2002, Model line: C-CLASS, Model: MERCEDES-BENZ C-CLASS 2002Pages: 399, PDF Size: 16.95 MB
Page 324 of 399
321
Spare wheel
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index
Spare wheel, storage compartment
1 Spare wheel
2 Storage tray with vehicle tool kit, towing eye bolt,
wheel bolts and jack
3 Mounting screw for spare wheel / cover for vehicle
tools Lift trunk floor and engage handle in upper edge of
trunk.
Always lower trunk floor before closing trunk lid.
To remove the spare wheel (1):
Turn the mounting screw (3) counterclockwise and
remove the spare wheel.
To store spare wheel:
Place spare wheel in wheel well and turn mounting
screw (3) clockwise to its stop.
P68.00-2648-26
ProCarManuals.com
Page 325 of 399
322
Spare wheel
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index
Vehicle tools and air pump
Vehicle tools and air pump are located in the wheel well
below the trunk floor. 1
Jack
2 Spare wheel bolts
3 Air pump
4 Towin g eyes
5 Alignment pin
6 Wrench
To remove vehicle tools and air pump:
Turn the mounting screw (3) counterclockwise, remove
spare wheel and cover for vehicle tools, see page 321.
P68.00-2708-26
ProCarManuals.com
Page 344 of 399
341
Towing the vehicle
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index
Towing the vehicle
Important!
When towing the vehicle, please, note the following:
With the automatic central locking activated and the
electronic key in starter switch position 2, the vehicle
doors lock if the left front wheel as well as the right rear
wheel are turning at vehicle speeds of approximately
9 mph (15 km / h) or more.
To prevent the vehicle door locks from locking,
deactivate the automatic central locking. See the
individual setting menu “VEHICLE” – “AUTOMATIC
DOOR LOCK” on page 132.
Towing of the vehicle should only be done using the
properly installed towing eye bolt. Never attach tow
cable, tow rope or tow rod to vehicle chassis, frame
or suspension parts.
Notes:
The selector lever will remain locked in position “P” and
the electronic key cannot be turned in the starter switch
if the battery is disconnected or discharged. See battery
on page 336 or jump starting on page 338.
Transmission selector lever, manually unlocking, see
page 344.
Wa r n i n g !
Prior to towing the vehicle with all wheels on the
ground, make certain that the electronic key is in
starter switch position 2.If the electronic key is left in the starter switch
position 0 for an extended period of time, it can no
longer be turned in the switch. In this case, the
steering is locked. To unlock, remove electronic key
from starter switch and reinsert.
ProCarManuals.com
Page 345 of 399
342
Towing the vehicle
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index

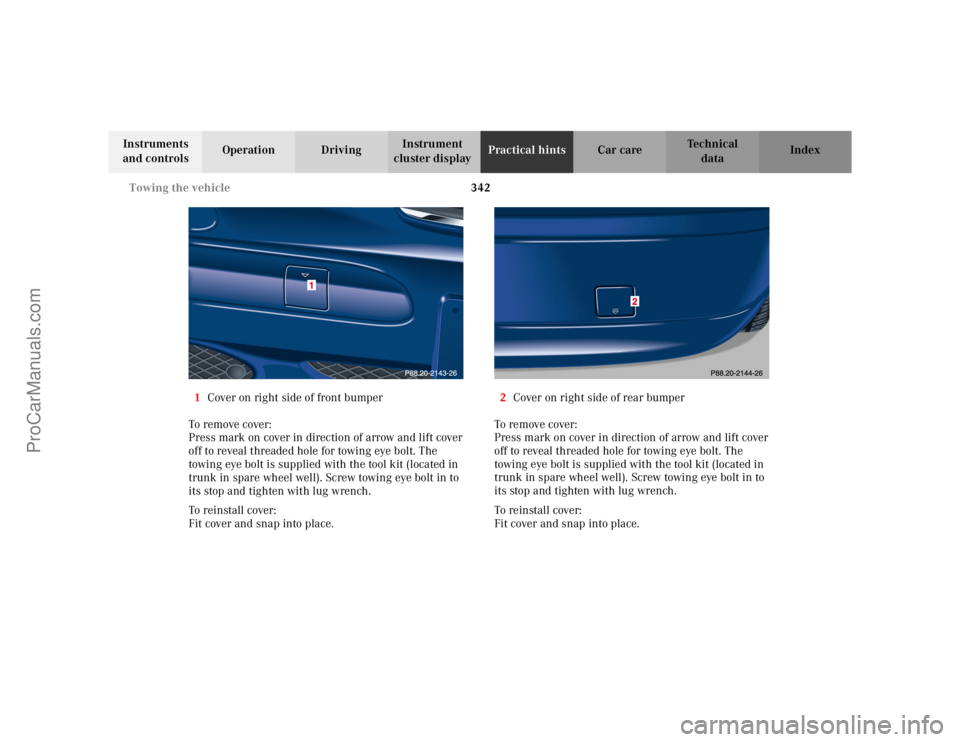

1 Cover on right side of front bumper
To remove cover:
Press mark on cover in direction of arrow and lift cover
off to reveal threaded hole for towing eye bolt. The
towing eye bolt is supplied with the tool kit (located in
trunk in spare wheel well). Screw towing eye bolt in to
its stop and tighten with lug wrench.
To reinstall cover:
Fit cover and snap into place. 2
Cover on right side of rear bumper
To remove cover:
Press mark on cover in direction of arrow and lift cover
off to reveal threaded hole for towing eye bolt. The
towing eye bolt is supplied with the tool kit (located in
trunk in spare wheel well). Screw towing eye bolt in to
its stop and tighten with lug wrench.
To reinstall cover:
Fit cover and snap into place.
ProCarManuals.com
Page 346 of 399
343
Towing the vehicle
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index
We recommend that the vehicle be transported using
flat bed equipment. This method is preferable to other
types of towing.
Important!
To prevent damage during transport, do not tie down
vehicle by its chassis or suspension parts.
Towing restrictions for vehicles with automatic
transmission:
The vehicle may be towed with all wheels on the ground
and the selector lever in position “N” for distances up to
30 miles (50 km) and at a speed not to exceed 30 mph
(50 km / h). The electronic key must be in starter switch
position 2.
To be certain to avoid a possibility of damage to the
transmission, however, we recommend the drive shaft
be disconnected at the rear axle drive flange for any
towing beyond a short tow to a nearby garage.
Do not tow with sling-type equipment. Towing with
sling-type equipment over bumpy roads will damage
radiator and supports.
Use wheel lift, dolly, or flat bed equipment, with
electronic key in starter switch turned to position 0.
Note:
To signal turns while being towed with hazard warning
flasher in use, turn electronic key in starter switch to
position 2 and activate combination switch for left or
right turn signal in usual manner – only the selected
turn signal will operate.
Upon canceling the turn signal, the hazard warning
flasher will operate again.
Caution!
If the vehicle is towed with the front axle raised, the
engine must be shut off (electronic key in starter switch
position 0 or 1). Otherwise, the ESP will immediately be
engaged and will apply the rear wheel brakes.
Switch off the tow-away alarm (see page 46) as well as
the ESP (see page 274).
Wa r n i n g !
With the engine not running, there is no power
assistance for the braking and steering systems. In
this case, it is important to keep in mind that a
considerably higher degree of effort is necessary to
brake and steer the vehicle.
ProCarManuals.com
Page 347 of 399
344
Towing the vehicle
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index

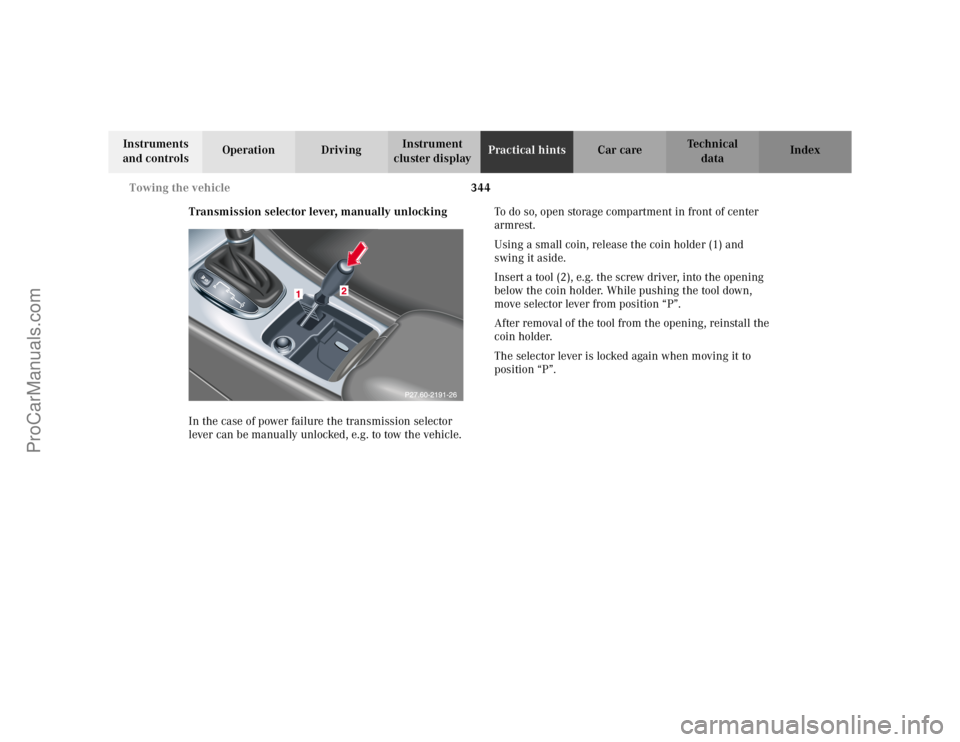

Transmission selector lever, manually unlocking
In the case of power failure the transmission selector
lever can be manually unlocked, e.g. to tow the vehicle. To do so, open storage compartment in front of center
armrest.
Using a small coin, release the coin holder (1) and
swing it aside.
Insert a tool (2), e.g. the screw driver, into the opening
below the coin holder. While pushing the tool down,
move selector lever from position “P”.
After removal of the tool from the opening, reinstall the
coin holder.
The selector lever is locked again when moving it to
position “P”.
ProCarManuals.com
Page 353 of 399
350
Exterior lamps
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index
Side marker lamp, front (5 W/4 cp bulb)
Carefully slide lamp towards rear (arrow 1), and remove
front end first (arrow 2).
Twist bulb socket counterclockwise and pull out.
Remove bulb from socket.
Insert new bulb in socket. Reinstall bulb socket, push in
and twist clockwise.
To reinstall lamp, set rear end of lamp in bumper and let
front end snap into place. High mounted stop lamp,
Additional turn signals on the exterior mirror
The high mounted stop lamp (3rd brake lamp). The
additional turn signals on the exterior mirrors are
equipped with incandescent bulbs.
Have the system checked at an authorized
Mercedes-Benz Center if a malfunction occurs.
Standby bulb function
The stop lamps, dimmed, will act as a replacement lamp,
if one taillamp stops working.
The left stop lamp acts as
a replacement for the rear fog
lamp, if it stops working.
The respective fog lamp, dimmed, will act as a
replacement lamp, if the left or right standing lamp
stops working.
Notes:
The multifunction display will indicate that a bulb has
failed. See malfunction and warning messages on
page 290.
2
1P82.10-2799-26
ProCarManuals.com
Page 365 of 399
362
Cleaning and care of the vehicle
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints
Car care Index
Engine cleaning
Prior to cleaning the engine compartment make sure to
protect electrical components and connectors from the
intrusion of water and cleaning agents.
Corrosion protection, such as MB Anticorrosion Wax
should be applied to the engine compartment after
every engine cleaning. Before applying, all control
linkage bushings and joints should be lubricated. The
poly-V-belt and all pulleys should be protected from any
wax. Ve h i c l e w a s h i n g
Do not use hot water or wash your vehicle in direct
sunlight. Use only a mild car wash detergent, such as
Mercedes-Benz approved Car Shampoo.
Thoroughly spray the vehicle with a diffused jet of
water. Direct only a very weak spray towards the
ventilation intake. Use plenty of water and rinse the
sponge and chamois frequently.
Rinse with clear water and thoroughly wipe dry with a
chamois. Do not allow cleaning agents to dry on the
finish.
Due to the width of the vehicle, prior to running the
vehicle through an automatic car wash, fold back the
outside mirrors to prevent them from getting damaged.
In the winter, thoroughly remove all traces of road salt
as soon as possible.
When washing the underbody, do not forget to clean the
inner sides of the wheels.
ProCarManuals.com
Page 394 of 399
391
Index
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints Car care
Index
Unfastening .................................................................. 66
Warning lamp ............................................................ 288
Seat belts and integrated restraint system .................. 62
Seats Front seat adjustment ................................................ 48
Heated seat .................................................................. 58
Manual seat ................................................................. 51
Memory ........................................................................ 93
Selective locking See Central locking system ....................................... 31
Self-test BabySmart
TM without special child seat
installed ........................................................................ 69
Setting the audio volume.............................................. 136
Side impact airbags ......................................................... 75
Side marker lamp........................................................... 350
Sliding/pop-up roof Opening and closing................................................... 34
Synchronizing ........................................................... 202
SOS-call See Tele Aid ............................................................... 228
Spare wheel, storage compartment............................. 321
Split folding rear seat bench ........................................ 215
Standby bulb function ................................................... 350
Start lock-out..................................................................... 30
Starter switch ................................................................. 240
Starting and turning off the engine ............................ 242 Steering lock
See starter switch ..................................................... 240
Steering wheel Easy-entry/exit feature .............................................. 47
STEERING WHEEL ADJUST. - malfunction and warning messages ..................... 308
Steering wheel adjustment electrical ....................................................................... 88
manual .......................................................................... 87
Storage compartments and armrests .......................... 206
Storing mirror positions.................................................. 90
Storing seat positions ...................................................... 50
Stowing things in the vehicle....................................... 311
Sun visors....................................................................... 205
Sunshade for panorama sliding/pop-up roof............. 199
Supplemental Restraint System (SRS) .......................... 70
TTechnical data ................................................................ 373
Electrical system ....................................................... 376
Main Dimensions ...................................................... 376
Rims – Tires ............................................................... 374
Weights ....................................................................... 376
Tele Aid ........................................................................... 228
ProCarManuals.com
Page 395 of 399
392
Index
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints Car care
Index
Emergency calls ........................................................ 229
Information ................................................................ 233
Initiating an emergency call ................................... 231
Roadside Assistance ................................................. 232
Telephone ......................................................................... 111 Incoming call .............................................................. 115
Redialing ..................................................................... 113
Telephone book .......................................................... 111
Telephone, general ........................................................ 220
Telephones and two-way radios ................................... 226
Telescoping steering column - malfunction and warning messages ...................... 308
The first 1 000 miles (1 500 km) ................................ 227
Tire inflation pressure .................................................. 335
Tires Rims and tires ........................................................... 374
Tool kit See Vehicle tools and air pump .............................. 322
Tow-away alarm ................................................................ 46
Towing the vehicle ......................................................... 341
Transmission selector lever, manually unlocking .................................................. 344
Trip computer .................................................................. 117
Trunk ................................................................................. 41
Trunk lid emergency release ......................................... 43
UUnlocking the vehicle with remote control ................. 33VVanity mirrors ............................................................... 205
VEHICLE (audio and central locking system) ........... 132
Vehicle keys ...................................................................... 28
Vehicle tools and air pump .......................................... 322WWa r n i n g l a m p s See Malfunction and indicator lamps in the instrument cluster............................................... 282
What you should know at the gas station ................. 278
Wheel bolts .................................................................... 332
Wheels ............................................................................ 324 Rims and tires ........................................................... 374
Where to find it ................................................................ 13
Window curtain airbag.................................................... 76
Windows See Power windows................................................... 197
Windshield washer system .......................................... 320
ProCarManuals.com
