MERCEDES-BENZ C CLASS 2016 Owners Manual

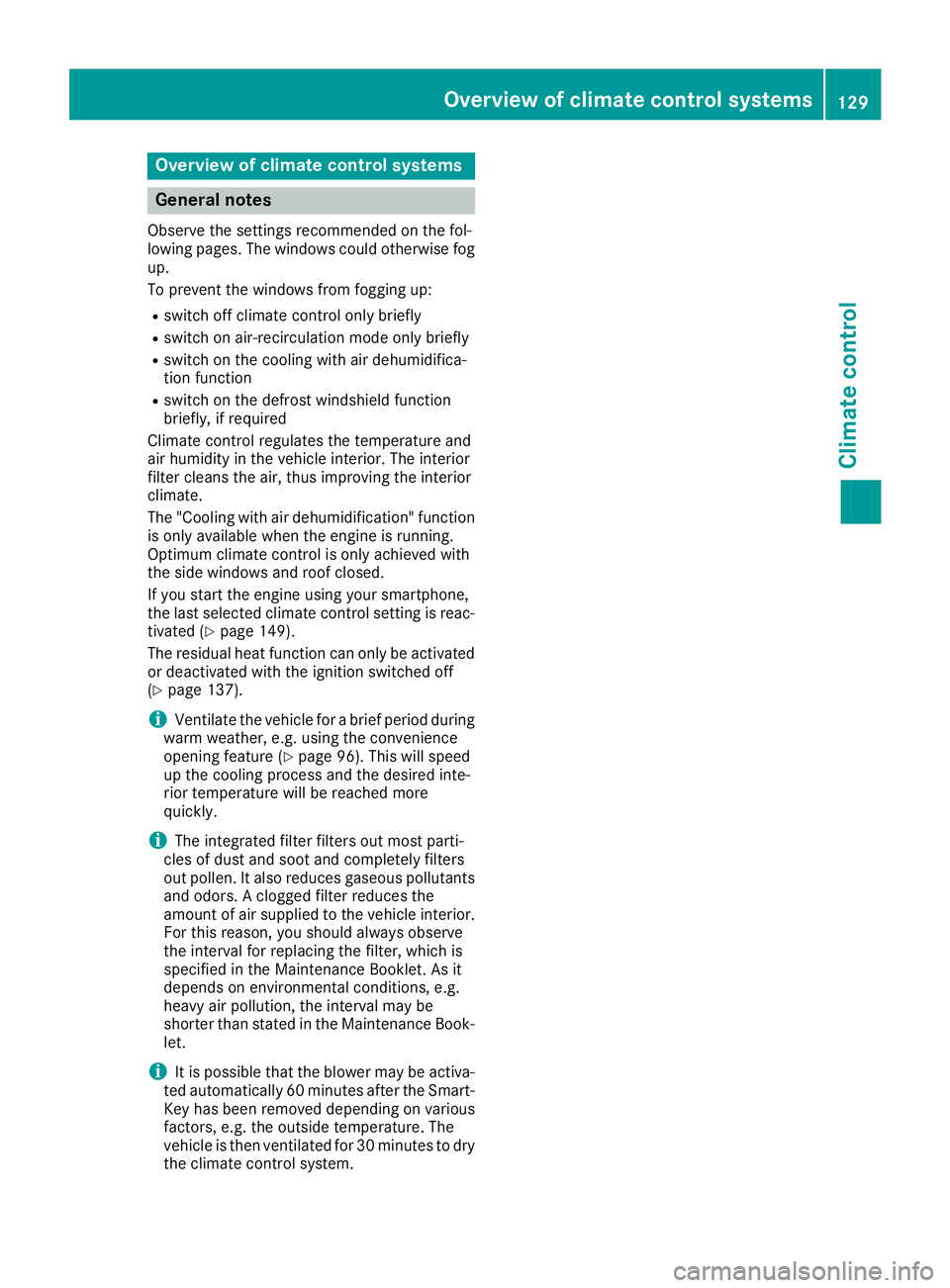

Overview of climate control systems
General notes Observe the settings recommended on the fol-
lowing pages. The windows could otherwise fog
up.
To prevent the windows from fogging up: R
switch off climate control only briefly R
switch on air-recirculation mode only briefly R
switch on the cooling with air dehumidifica-
tion function R
switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature and
air humidity in the vehicle interior. The interior
filter cleans the air, thus improving the interior
climate.
The "Cooling with air dehumidification" function
is only available when the engine is running.
Optimum climate control is only achieved with
the side windows and roof closed.
If you start the engine using your smartphone,
the last selected climate control setting is reac-
tivated ( Y
page 149).
The residual heat function can only be activated
or deactivated with the ignition switched off
( Y
page 137).
i Ventilate the vehicle for a brief period during
warm weather, e.g. using the convenience
opening feature ( Y
page 96). This will speed
up the cooling process and the desired inte-
rior temperature will be reached more
quickly.
i The integrated filter filters out most parti-
cles of dust and soot and completely filters
out pollen. It also reduces gaseous pollutants
and odors. A clogged filter reduces the
amount of air supplied to the vehicle interior.
For this reason, you should always observe
the interval for replacing the filter, which is
specified in the Maintenance Booklet. As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Maintenance Book-
let.
i It is possible that the blower may be activa-
ted automatically 60 minutes after the Smart-
Key has been removed depending on various
factors, e.g. the outside temperature. The
vehicle is then ventilated for 30 minutes to dry
the climate control system. Overview of climate control systems 129
Climate control

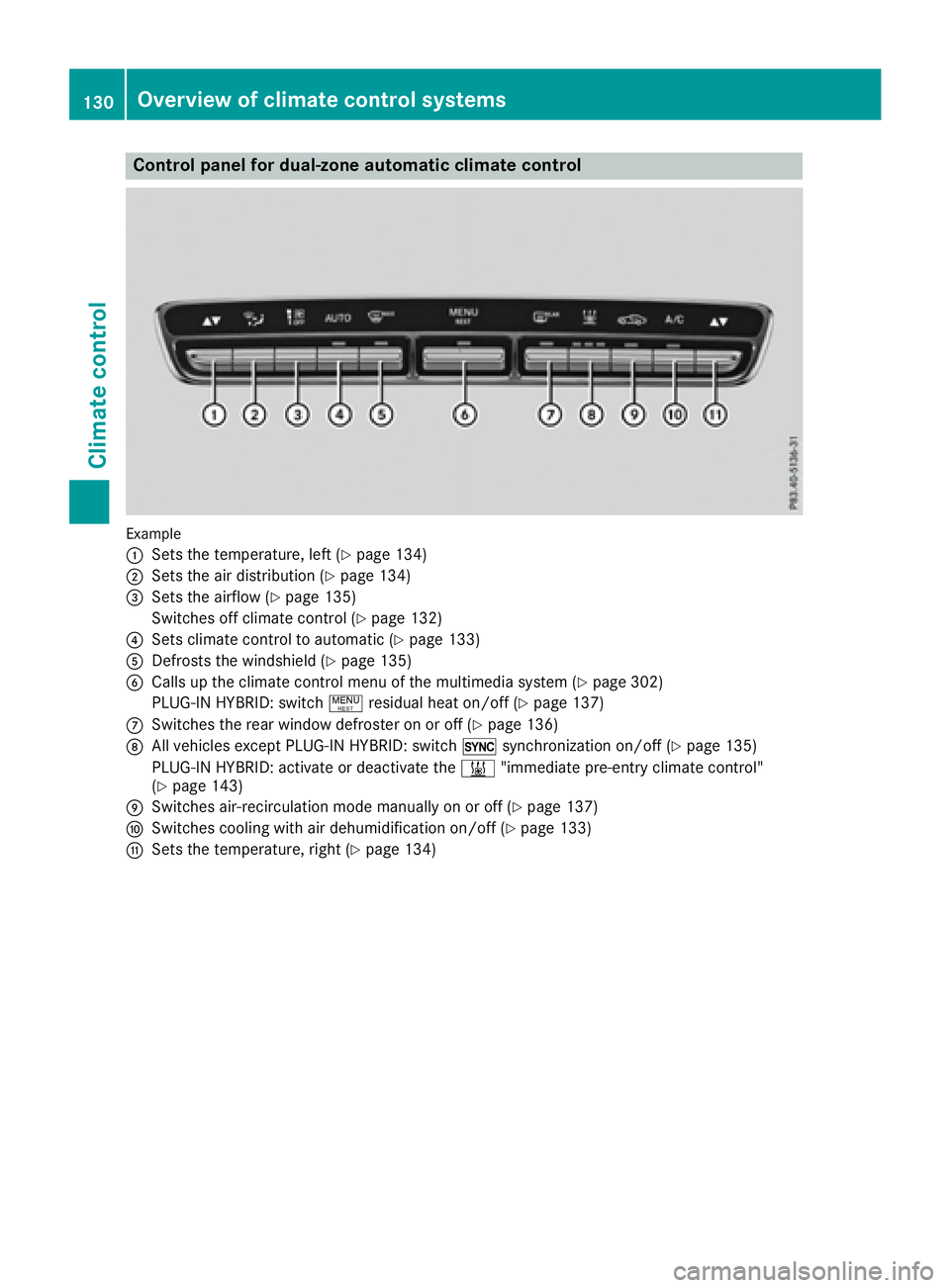

Control panel for dual-zone automatic climate control
Example
C
Sets the temperature, left ( Y
page 134)D
Sets the air distribution ( Y
page 134)

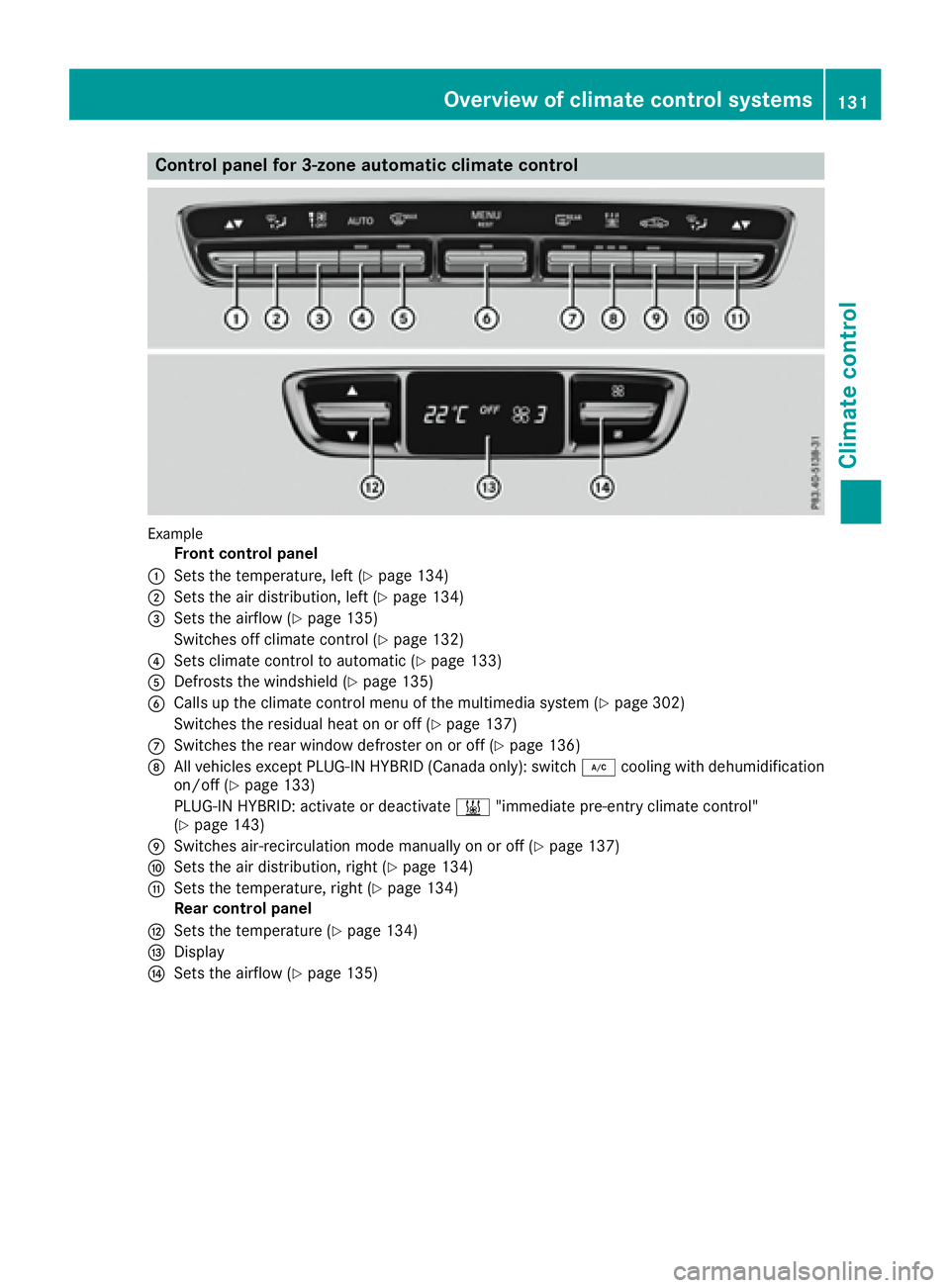

Control panel for 3-zone automatic climate control
Example
Front control panelC
Sets the temperature, left ( Y
page 134)D
Sets the air distribution, left ( Y
page 134)

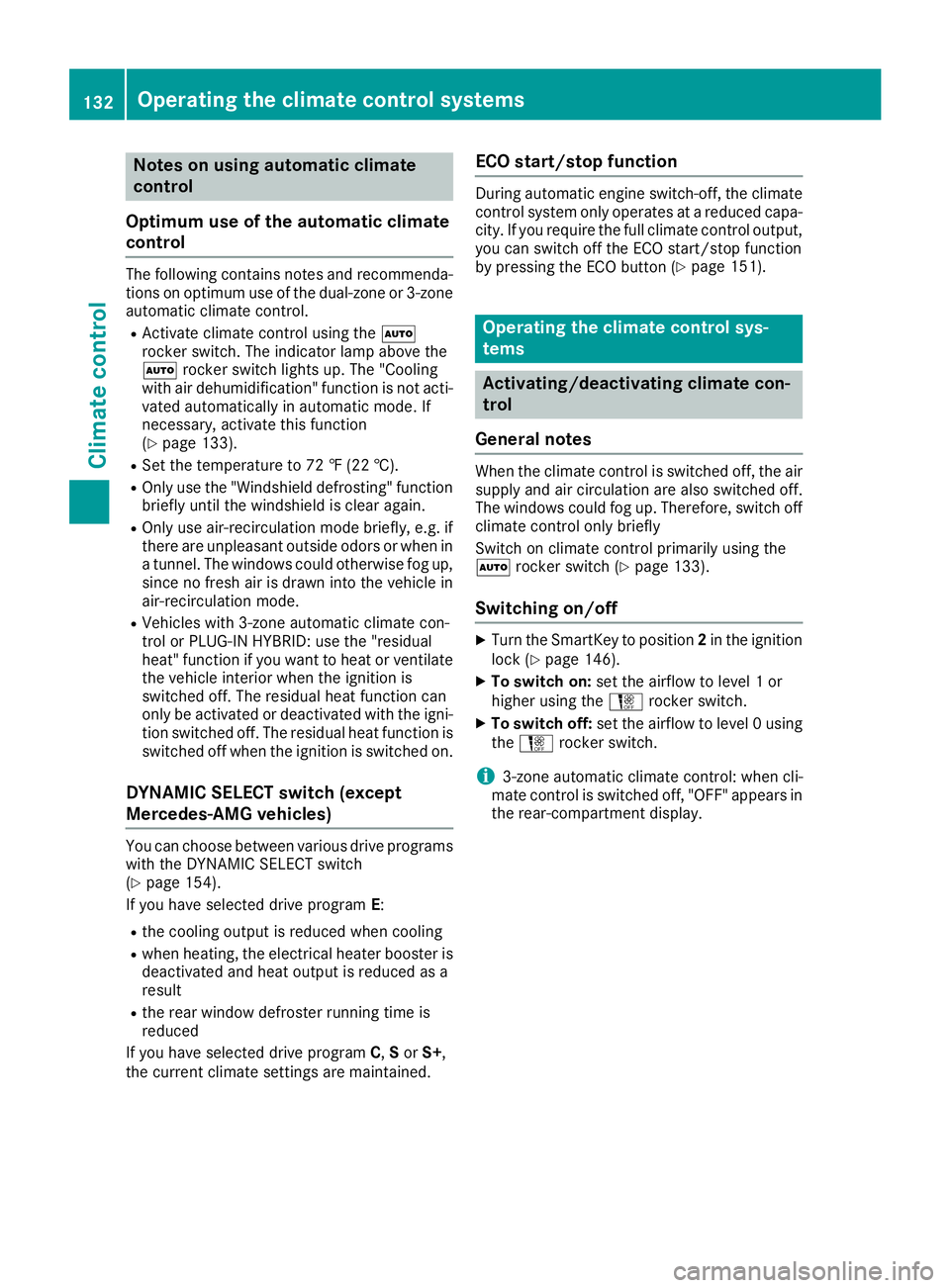

Notes on using automatic climate
control
Optimum use of the automatic climate
control The following contains notes and recommenda-
tions on optimum use of the dual-zone or 3-zone
automatic climate control. R
Activate climate control using the X
rocker switch. The indicator lamp above the
X rocker switch lights up. The "Cooling
with air dehumidification" function is not acti-
vated automatically in automatic mode. If
necessary, activate this function
( Y
page 133).R
Set the temperature to 72 ‡ (22 †). R
Only use the "Windshield defrosting" function
briefly until the windshield is clear again. R
Only use air-recirculation mode briefly, e.g. if
there are unpleasant outside odors or when in
a tunnel. The windows could otherwise fog up,
since no fresh air is drawn into the vehicle in
air-recirculation mode. R
Vehicles with 3-zone automatic climate con-
trol or PLUG-IN HYBRID: use the "residual
heat" function if you want to heat or ventilate
the vehicle interior when the ignition is
switched off. The residual heat function can
only be activated or deactivated with the igni-
tion switched off. The residual heat function is
switched off when the ignition is switched on.
DYNAMIC SELECT switch (except
Merc edes-AMG vehicles)You can choose between various drive programs
with the DYNAMIC SELECT switch
( Y
page 154).
If you have selected drive program E :R
the cooling output is reduced when cooling R
when heating, the electrical heater booster is
deactivated and heat output is reduced as a
result R
the rear window defroster running time is
reduced
If you have selected drive program C , S or S+ ,
the current climate settings are maintained. ECO start/stop function During automatic engine switch-off, the climate
control system only operates at a reduced capa-
city. If you require the full climate control output,
you can switch off the ECO start/stop function
by pressing the ECO button ( Y
page 151).
Operating the climate control sys-
tems
Activating/deactivating climate con-
trol
General notes When the climate control is switched off, the air
supply and air circulation are also switched off.
The windows could fog up. Therefore, switch off
climate control only briefly
Switch on climate control primarily using the
X rocker switch ( Y
page 133).
Switching on/off X
Turn the SmartKey to position 2 in the ignition
lock ( Y
page 146). X
To switch on: set the airflow to level 1 or
higher using the H rocker switch.X
To switch off: set the airflow to level 0 using
the H rocker switch.
i 3-zone automatic climate control: when cli-
mate control is switched off, "OFF" appears in
the rear-compartment display.132
Operating the climate control systems
Climate control

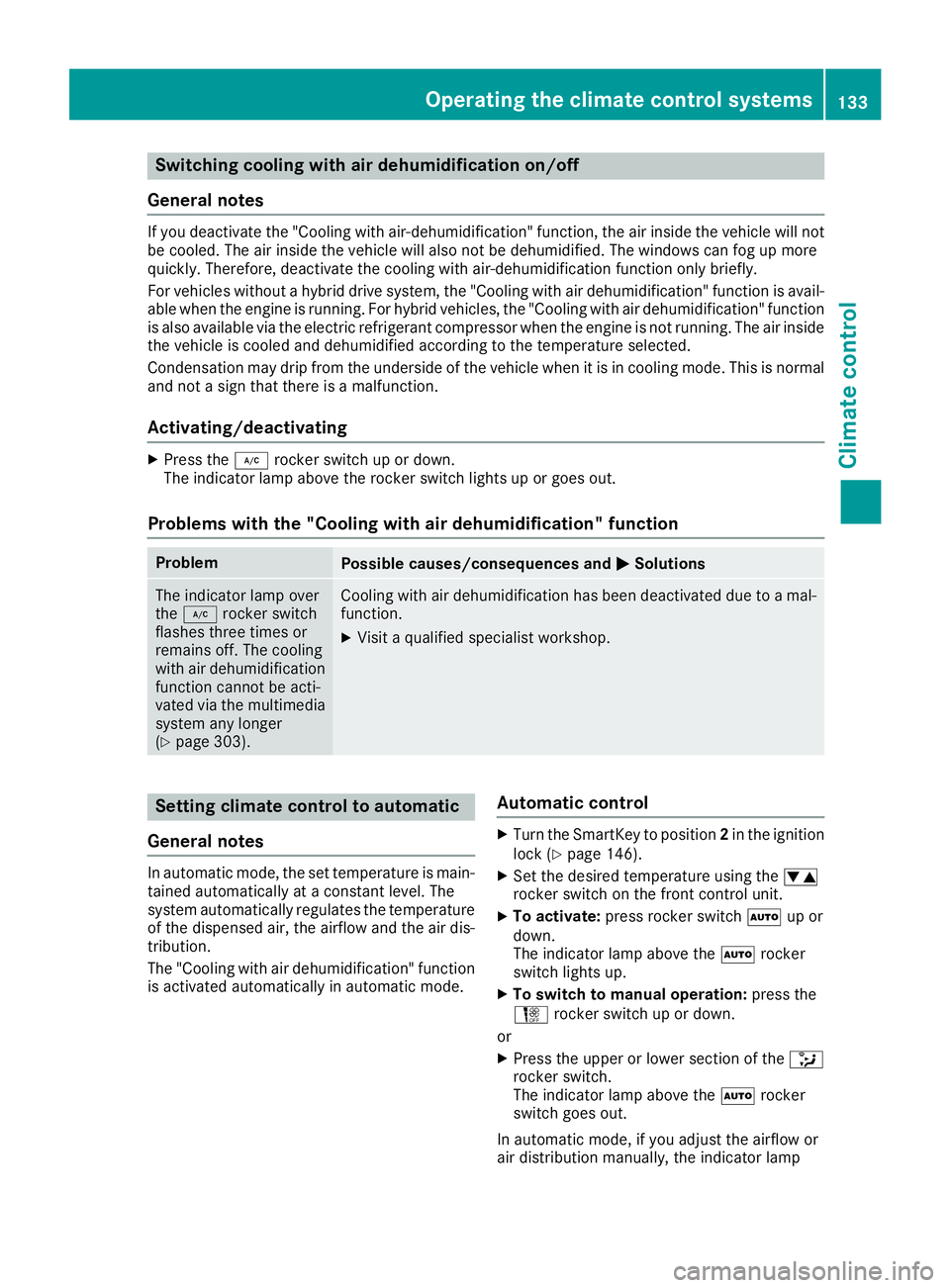

Switching cooling with air dehumidification on/off
General notes If you deactivate the "Cooling with air-dehumidification" function, the air inside the vehicle will not
be cooled. The air inside the vehicle will also not be dehumidified. The windows can fog up more
quickly. Therefore, deactivate the cooling with air-dehumidification function only briefly.
For vehicles without a hybrid drive system, the "Cooling with air dehumidification" function is avail-
able when the engine is running. For hybrid vehicles, the "Cooling with air dehumidification" function
is also available via the electric refrigerant compressor when the engine is not running. The air inside
the vehicle is cooled and dehumidified according to the temperature selected.
Condensation may drip from the underside of the vehicle when it is in cooling mode. This is normal
and not a sign that there is a malfunction.
Activating/deactivating X
Press the Z rocker switch up or down.
The indicator lamp above the rocker switch lights up or goes out.
Problems with the "Cooling with air dehumidification" function Problem
Possible causes/consequences and P Solutions
The indicator lamp over
the Z rocker switch
flashes three times or
remains off. The cooling
with air dehumidification
function cannot be acti-
vated via the multimedia
system any longer
( Y
page 303). Cooling with air dehumidification has been deactivated due to a mal-
function. X
Visit a qualified specialist workshop.
Setting climate control to automatic
General notes In automatic mode, the set temperature is main-
tained automatically at a constant level. The
system automatically regulates the temperature
of the dispensed air, the airflow and the air dis-
tribution.
The "Cooling with air dehumidification" function
is activated automatically in automatic mode. Automatic control X
Turn the SmartKey to position 2 in the ignition
lock ( Y
page 146). X
Set the desired temperature using the

above the X rocker switch goes out. The
function which has not been changed manually,
however, continues to be controlled automati-
cally. When the manually set function switches
back to automatic mode, the indicator lamp
above the X rocker switch lights up again.

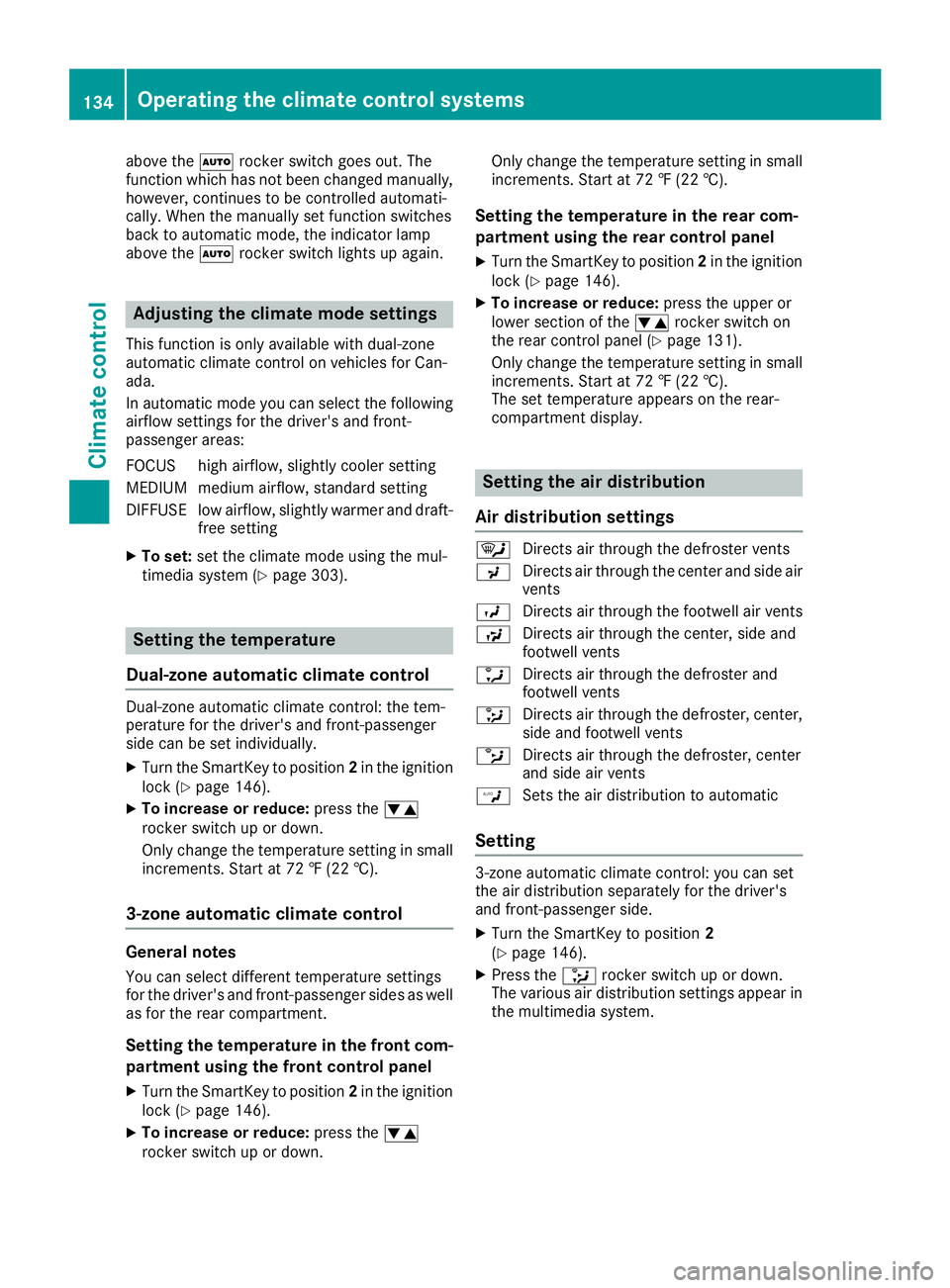

Adjusting the climate mode settings This function is only available with dual-zone
automatic climate control on vehicles for Can-
ada.
In automatic mode you can select the following
airflow settings for the driver's and front-
passenger areas:
FOCUS high airflow, slightly cooler setting
MEDIUM medium airflow, standard setting
DIFFUS El ow airflow, slightly warmer and draft-
free settingX
To set: set the climate mode using the mul-
timedia system ( Y
page 303).
Setting the temperature
Dual-zone automatic climate control Dual-zone automatic climate control: the tem-
perature for the driver's and front-passenger
side can be set individually. X
Turn the SmartKey to position 2 in the ignition
lock ( Y
page 146).X
To increase or reduce: press the

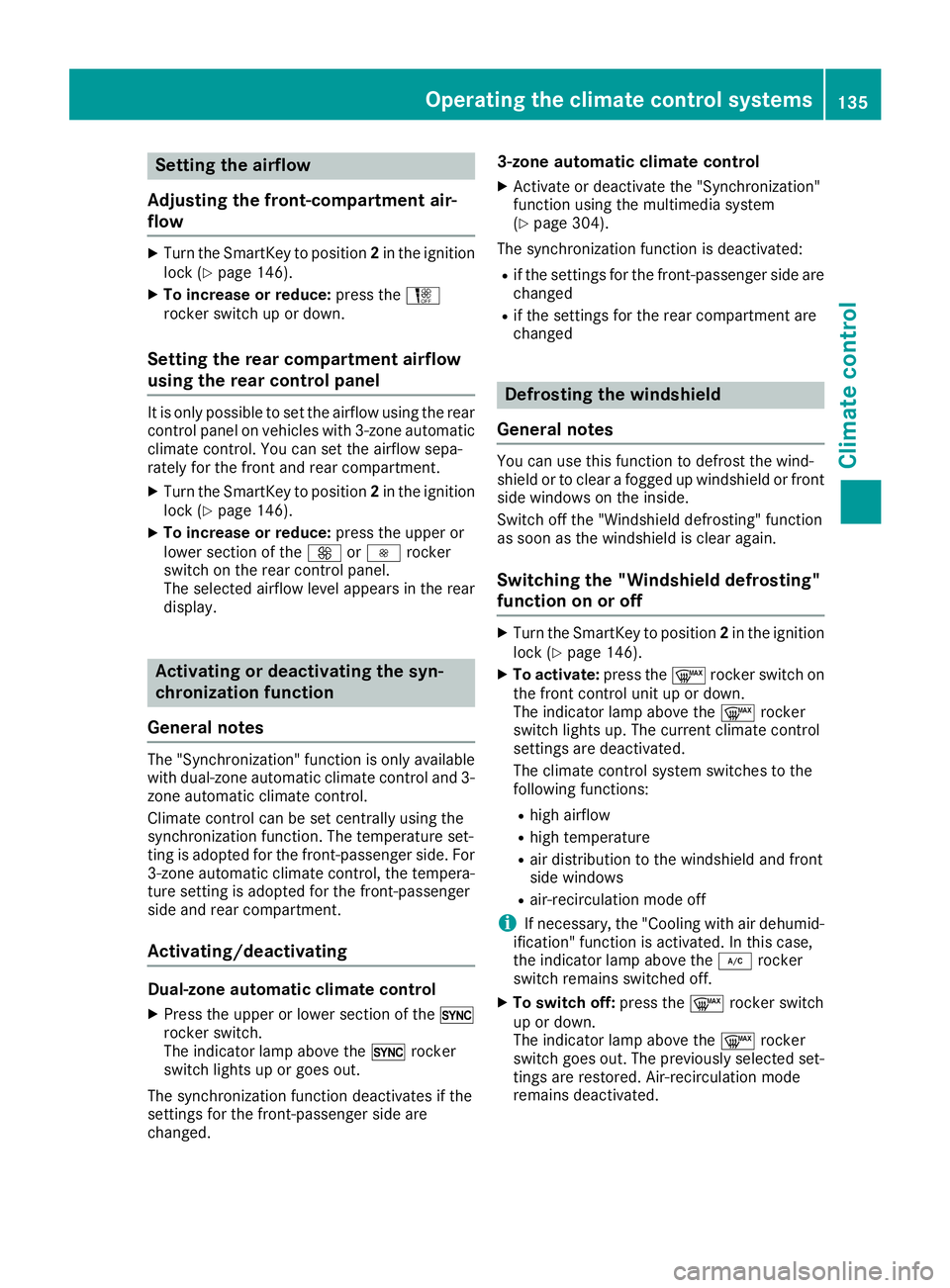

Setting the airflow
Adjusting the front-compartment air-
flow X
Turn the SmartKey to position 2 in the ignition
lock ( Y
page 146).X
To increase or reduce: press the H
rocker switch up or down.
Setting the rear compartment airflow
using the rear control panel It is only possible to set the airflow using the rear
control panel on vehicles with 3-zone automatic
climate control. You can set the airflow sepa-
rately for the front and rear compartment. X
Turn the SmartKey to position 2 in the ignition
lock ( Y
page 146).X
To increase or reduce: press the upper or
lower section of the

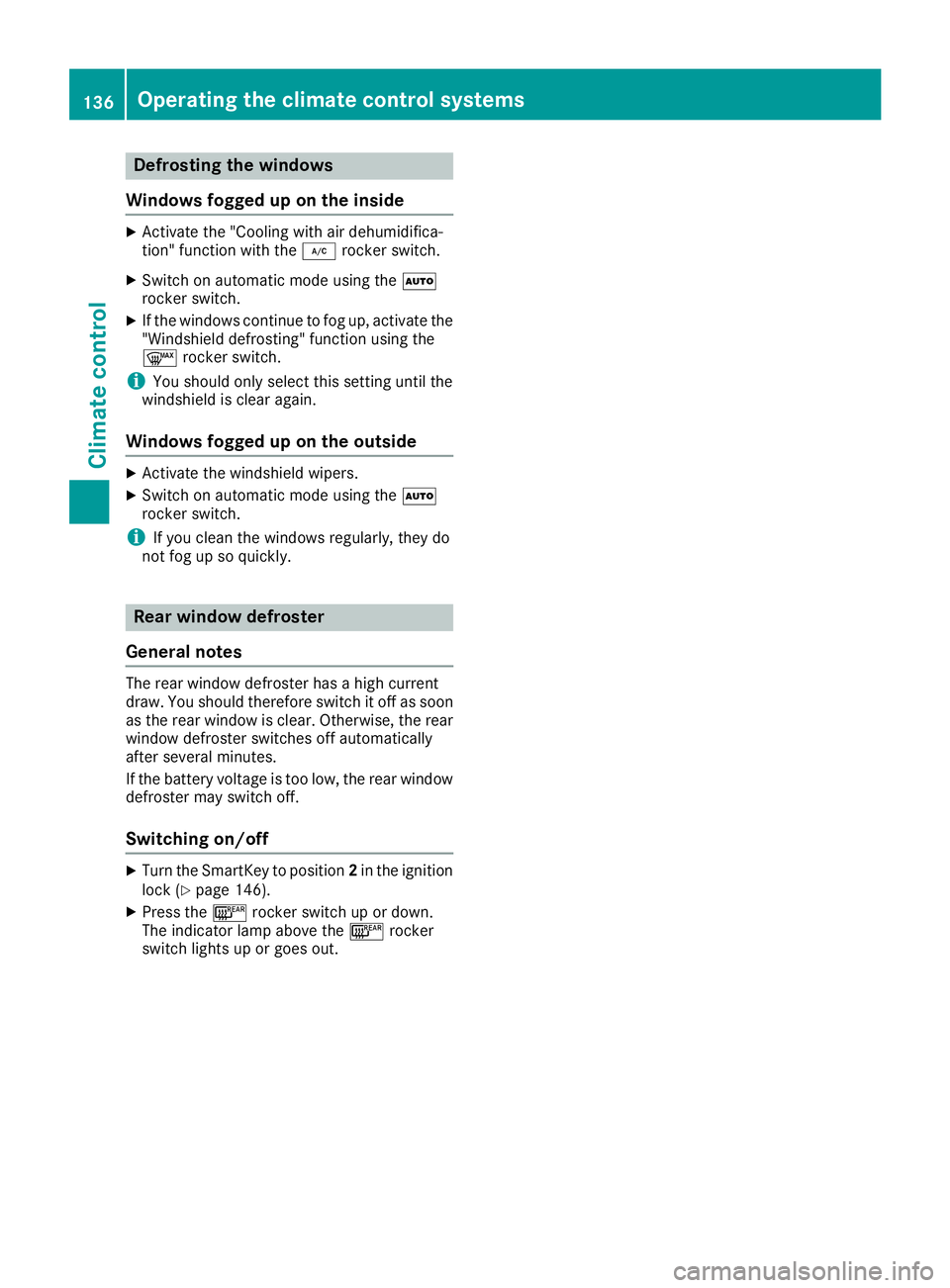

Defrosting th e windows
Windows fogged up on th e insideX
Activat e th e "Coolin g wit h air dehumidifica-
tion " function wit h th e Z rocker switch .X
Switc h on automatic mode usin g th e X
rocker switch .X
If th e windows continue to fo g up, activat e th e
"Windshield defrosting" function usin g th e
d rocker switch .
i You should only selec t this setting until th e
windshield is clear again .
Windows fogged up on th e outsid eX
Activat e th e windshield wipers .X
Switc h on automatic mode usin g th e X
rocker switch .
i If you clean th e windows regularly, they do
no t fo g up so quickly.
Rea r window defroster
General notes The rea r window defroster has a hig h curren t
draw. You should therefore switch it of f as soo n
as th e rea r window is clear . Otherwise , th e rea r
window defroster switches of f automatically
after severa l minutes.
If th e battery voltage is to o low, th e rea r window
defroster may switch off.
Switchin g on/of fX
Tur n th e SmartKey to position 2 in th e ignition
loc k ( Y
page 146).X
Press th e l rocker switch up or down .
The indicator lamp abov e th e l rocker
switch lights up or goe s out .136
Operating the climate control systems
Climate control

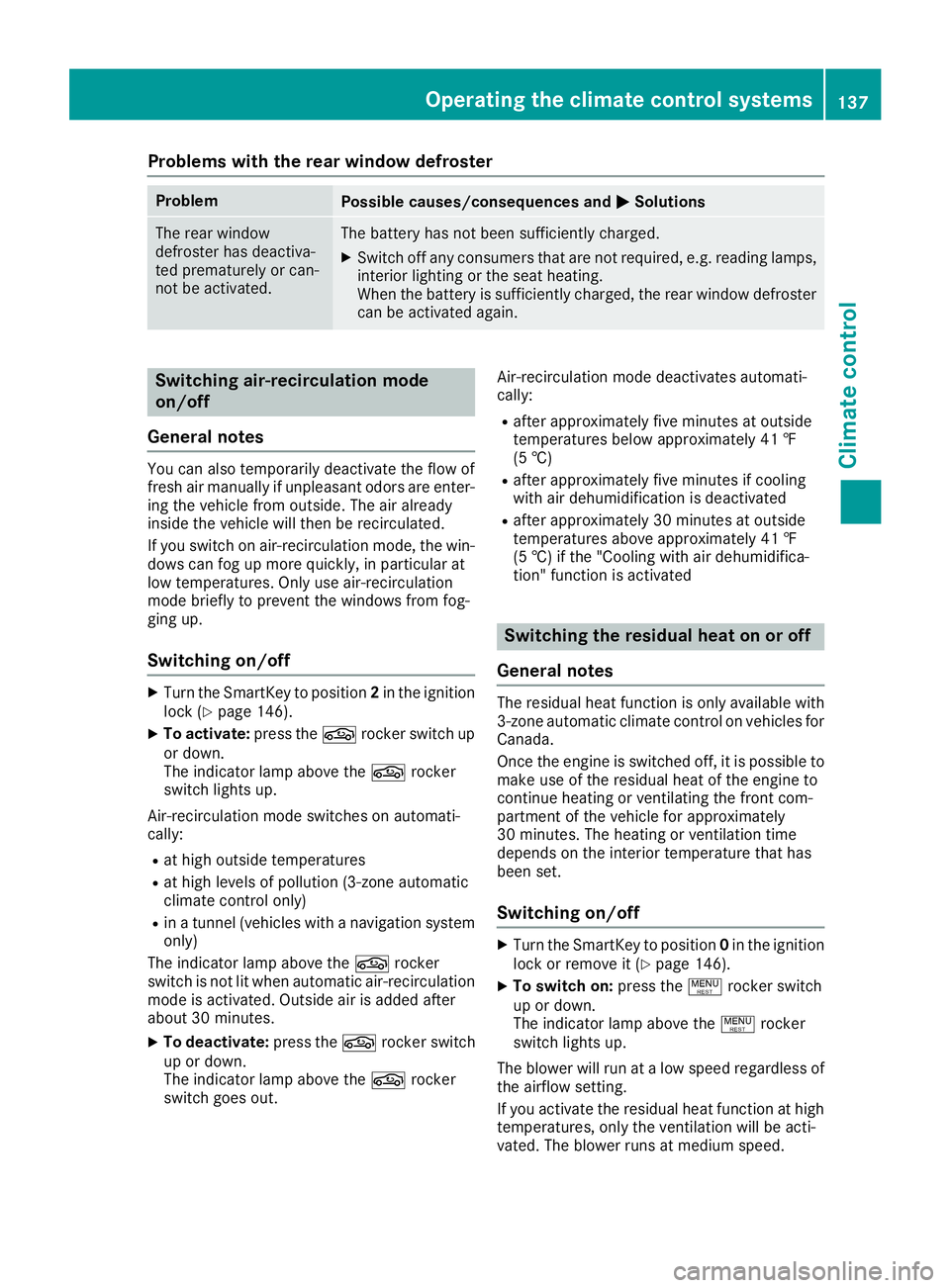

Problems with the rear window defroster Problem
Possible causes/consequences and P Solutions
The rear window
defroster has deactiva-
ted prematurely or can-
not be activated. The battery has not been sufficiently charged. X
Switch off any consumers that are not required, e.g. reading lamps,
interior lighting or the seat heating.
When the battery is sufficiently charged, the rear window defroster
can be activated again.
Switching air-recirculation mode
on/off
General notes You can also temporarily deactivate the flow of
fresh air manually if unpleasant odors are enter-
ing the vehicle from outside. The air already
inside the vehicle will then be recirculated.
If you switch on air-recirculation mode, the win-
dows can fog up more quickly, in particular at
low temperatures. Only use air-recirculation
mode briefly to prevent the windows from fog-
ging up.
Switching on/off X
Turn the SmartKey to position 2 in the ignition
lock ( Y
page 146).X
To activate: press the r rocker switch up
or down.
The indicator lamp above the r rocker
switch lights up.
Air-recirculation mode switches on automati-
cally: R
at high outside temperatures R
at high levels of pollution (3-zone automatic
climate control only) R
in a tunnel (vehicles with a navigation system
only)
The indicator lamp above the r rocker
switch is not lit when automatic air-recirculation
mode is activated. Outside air is added after
about 30 minutes. X
To deactivate: press the r rocker switch
up or down.
The indicator lamp above the r rocker
switch goes out. Air-recirculation mode deactivates automati-
cally: R
after approximately five minutes at outside
temperatures below approximately 41 ‡
(5 †) R
after approximately five minutes if cooling
with air dehumidification is deactivated R
after approximately 30 minutes at outside
temperatures above approximately 41 ‡
(5 †) if the "Cooling with air dehumidifica-
tion" function is activated
Switching the residual heat on or off
General notes The residual heat function is only available with
3-zone automatic climate control on vehicles for
Canada.
Once the engine is switched off, it is possible to
make use of the residual heat of the engine to
continue heating or ventilating the front com-
partment of the vehicle for approximately
30 minutes. The heating or ventilation time
depends on the interior temperature that has
been set.
Switching on/off X
Turn the SmartKey to position 0 in the ignition
lock or remove it ( Y
page 146).X
To switch on: press the ! rocker switch
up or down.
The indicator lamp above the ! rocker
switch lights up.
The blower will run at a low speed regardless of
the airflow setting.
If you activate the residual heat function at high
temperatures, only the ventilation will be acti-
vated. The blower runs at medium speed.Operating the climate control systems 137
Climate control

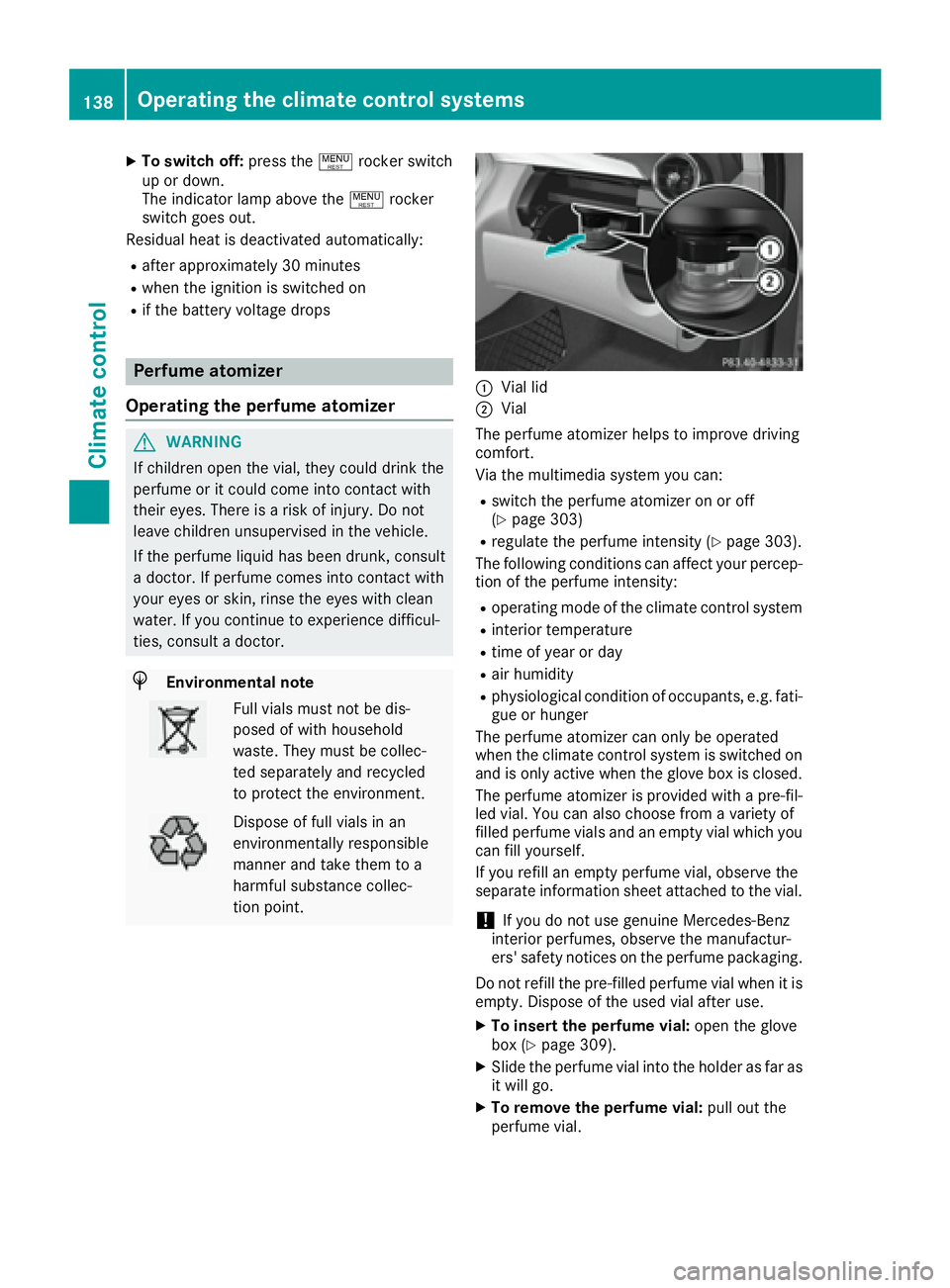

X
To switch off: press the ! rocker switch
up or down.
The indicator lamp above the ! rocker
switch goes out.
Residual heat is deactivated automatically: R
after approximately 30 minutes R
when the ignition is switched on R
if the battery voltage drops
Perfume atomizer
Operating the perfume atomizer
G WARNING
If children open the vial, they could drink the
perfume or it could come into contact with
their eyes. There is a risk of injury. Do not
leave children unsupervised in the vehicle.
If the perfume liquid has been drunk, consult
a doctor. If perfume comes into contact with
your eyes or skin, rinse the eyes with clean
water. If you continue to experience difficul-
ties, consult a doctor.
H Environmental note
Full vials must not be dis-
posed of with household
waste. They must be collec-
ted separately and recycled
to protect the environment.
Dispose of full vials in an
environmentally responsible
manner and take them to a
harmful substance collec-
tion point. C
Vial lid D
Vial
The perfume atomizer helps to improve driving
comfort.
Via the multimedia system you can: R
switch the perfume atomizer on or off
( Y
page 303) R
regulate the perfume intensity ( Y
page 303).
The following conditions can affect your percep-
tion of the perfume intensity: R
operating mode of the climate control system R
interior temperature R
time of year or day R
air humidity R
physiological condition of occupants, e.g. fati-
gue or hunger
The perfume atomizer can only be operated
when the climate control system is switched on
and is only active when the glove box is closed.
The perfume atomizer is provided with a pre-fil-
led vial. You can also choose from a variety of
filled perfume vials and an empty vial which you
can fill yourself.
If you refill an empty perfume vial, observe the
separate information sheet attached to the vial.
! If you do not use genuine Mercedes-Benz
interior perfumes, observe the manufactur-
ers' safety notices on the perfume packaging.
Do not refill the pre-filled perfume vial when it is
empty. Dispose of the used vial after use. X
To insert the perfume vial: open the glove
box ( Y
page 309). X
Slide the perfume vial into the holder as far as
i t will go. X
To remove the perfume vial: pull out the
perfume vial.138
Operating the climate control systems
Climate control
