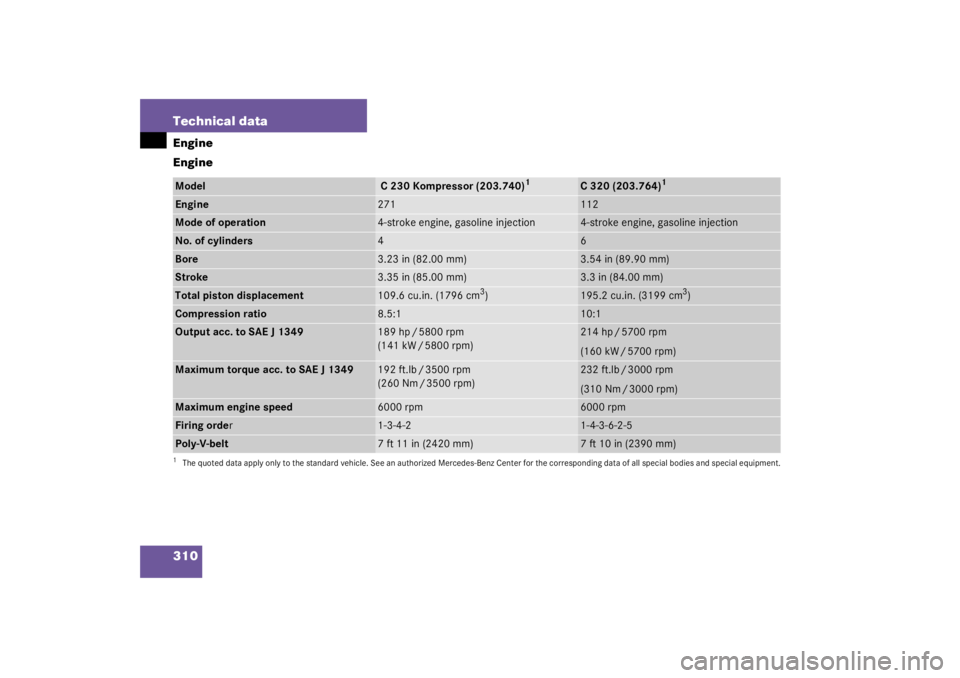

310 Technical dataEngine
EngineModel
C 230 Kompressor (203.740)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
C 320 (203.764)
1
Engine
271
112
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
4
6
Bore
3.23 in (82.00 mm)
3.54 in (89.90 mm)
Stroke
3.35 in (85.00 mm)
3.3 in (84.00 mm)
Total piston displacement
109.6 cu.in. (1796 cm
3)
195.2 cu.in. (3199 cm
3)
Compression ratio
8.5:1
10:1
Output acc. to SAE J 1349
189 hp / 5800 rpm
(141 kW / 5800 rpm)
214 hp / 5700 rpm
(160 kW / 5700 rpm)
Maximum torque acc. to SAE J 1349
192ft.lb/3500rpm
(260 Nm / 3500 rpm)
232ft.lb/3000rpm
(310 Nm / 3000 rpm)
Maximum engine speed
6000 rpm
6000 rpm
Firing order
1-3-4-2
1-4-3-6-2-5
Poly-V-belt
7ft 11in (2420mm)
7 ft 10 in (2390 mm)
