jump start MERCEDES-BENZ C CLASS COUPE 2005 Owners Manual

Contents
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 320
Tire ply material ........................... 322
Tire and loading terminology ........ 323
Rotating tires ............................... 326
Winter driving .................................... 328 Winter tires .................................. 328
Block heater (Canada only) .......... 329
Snow chains................................. 329
Maintenance...................................... 330 Clearing the maintenance
service indicator........................... 331
Maintenance service term
exceeded ..................................... 331
Calling up the maintenance
service indicator........................... 331
Resetting the maintenance
service indicator........................... 332
Vehicle care ....................................... 333 Cleaning and care of the vehicle .. 333
Practical hints .................................. 339
What to do if … ................................... 340 Lamps in instrument cluster ......... 340
Lamp in center console................. 345
Vehicle status messages in the
multifunction display..................... 347
Where will I find ...? ............................ 373 First aid kit.................................... 373
Vehicle tool kit .............................. 373
Spare wheel .................................. 375
Unlocking/locking in an emergency... 377 Unlocking the vehicle.................... 377
Locking the vehicle ....................... 379
Fuel filler flap ................................ 379
Manually unlocking the gear
selector lever ................................ 380
Opening/closing in an emergency ..... 381 Panorama roof with power
tilt/sliding panel* ......................... 381
Replacing SmartKey batteries ............ 382 SmartKey ...................................... 383
Replacing bulbs .................................. 384 Bulbs ............................................. 384
Replacing bulbs for front lamps .... 386
Replacing bulbs for rear lamps ..... 390 Replacing wiper blades ...................... 393
Removing ...................................... 393
Installing ....................................... 393
Flat tire............................................... 394 Preparing the vehicle .................... 394
Mounting the spare wheel ............ 394
Battery ............................................... 401 Disconnecting the battery ............ 402
Removing the battery ................... 402
Charging and reinstalling battery .. 402
Reconnecting the battery ............. 403
Jump starting...................................... 404
Towing the vehicle.............................. 406 Installing towing eye bolt .............. 409
Fuses.................................................. 410 Aids for changing fuses ................ 410
Main fuse box in passenger
compartment ................................ 411
Fuse box in engine compartment . 411
Fuse box in trunk .......................... 412

34 Getting startedUnlocking
iWhen you switch on the ignition, the in-
dicator and warning lamps (except low
beam headlamp indicator lamp, high
beam headlamp indicator lamp, and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. This indicates that the respective
systems are operational. The indicator
and warning lamps (except low beam
headlamp indicator lamp, high beam
headlamp indicator lamp, and turn sig-
nal indicator lamps if activated) should
go out when the engine is running.iVehicles with automatic transmission:
The SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
!If the SmartKey cannot be turned in the
starter switch, the battery may not be
sufficiently charged.

Check the battery and charge it if
necessary (
page 401).


Get a jump start (
page 404).
To prevent accelerated battery dis-
charge and a possible dead battery, al-
ways remove the SmartKey from the
starter switch when the engine is not in
operation.

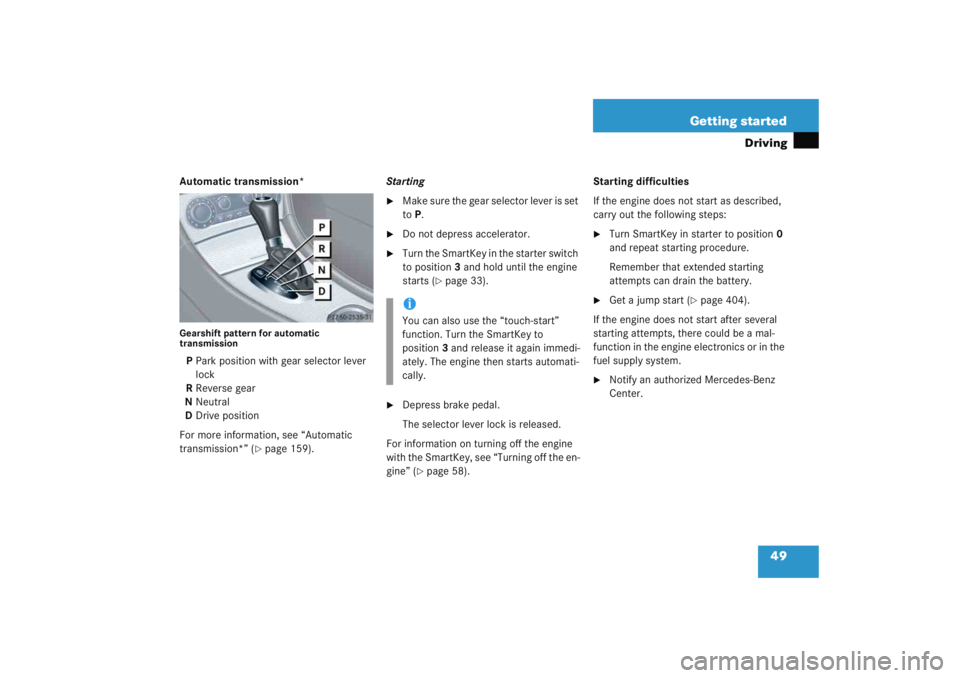

49
Getting started
Driving
Automatic transmission*Gearshift pattern for automatic
transmissionP
Park position with gear selector lever
lock
R Reverse gear
N Neutral
D Drive position
For more information, see “Automatic
transmission*” (
page 159). Starting

Make sure the gear selector lever is set
to
P.

Do not depress accelerator.

Turn the SmartKey in the starter switch
to position 3 and hold until the engine
starts (
page 33).

Depress brake pedal.
The selector lever lock is released.
For information on turning off the engine
with the SmartKey, see “Turning off the en-
gine” (
page 58). Starting difficulties
If the engine does not start as described,
carry out the following steps:

Turn SmartKey in starter to position
0
and repeat starting procedure.
Remember that extended starting
attempts can drain the battery.

Get a jump start (
page 404).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Notify an authorized Mercedes-Benz
Center.
iYou can also use the “touch-start”
function. Turn the SmartKey to
position 3 and release it again immedi-
ately. The engine then starts automati-
cally.

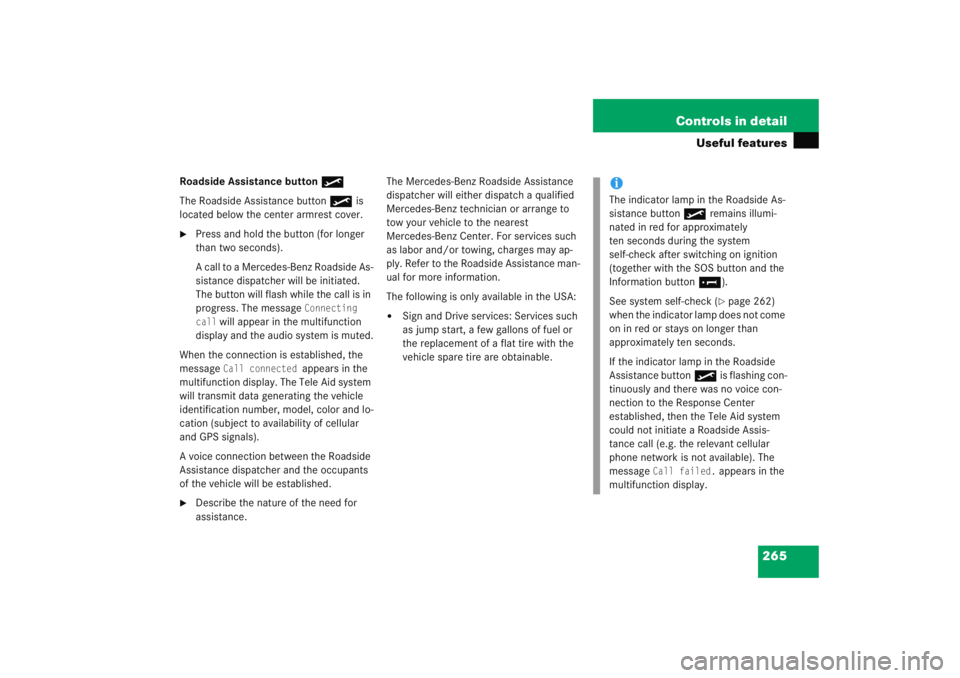

265
Controls in detail
Useful features
Roadside Assistance button
•
The Roadside Assistance button • is
located below the center armrest cover.
Press and hold the button (for longer
than two seconds).
A call to a Mercedes-Benz Roadside As-
sistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message
Connecting
call
will appear in the multifunction
display and the audio system is muted.
When the connection is established, the
message Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.

Describe the nature of the need for
assistance. The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest
Mercedes-Benz Center. For services such
as labor and/or towing, charges may ap-
ply. Refer to the Roadside Assistance man-
ual for more information.
The following is only available in the USA:


Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.
iThe indicator lamp in the Roadside As-
sistance button
• remains illumi-
nated in red for approximately
ten seconds during the system
self-check after switching on ignition
(together with the SOS button and the
Information button ¡).
See system self-check (
page 262)
when the indicator lamp does not come
on in red or stays on longer than
approximately ten seconds.
If the indicator lamp in the Roadside
Assistance button • is flashing con-
tinuously and there was no voice con-
nection to the Response Center
established, then the Tele Aid system
could not initiate a Roadside Assis-
tance call (e.g. the relevant cellular
phone network is not available). The
message
Call failed.
appears in the
multifunction display.

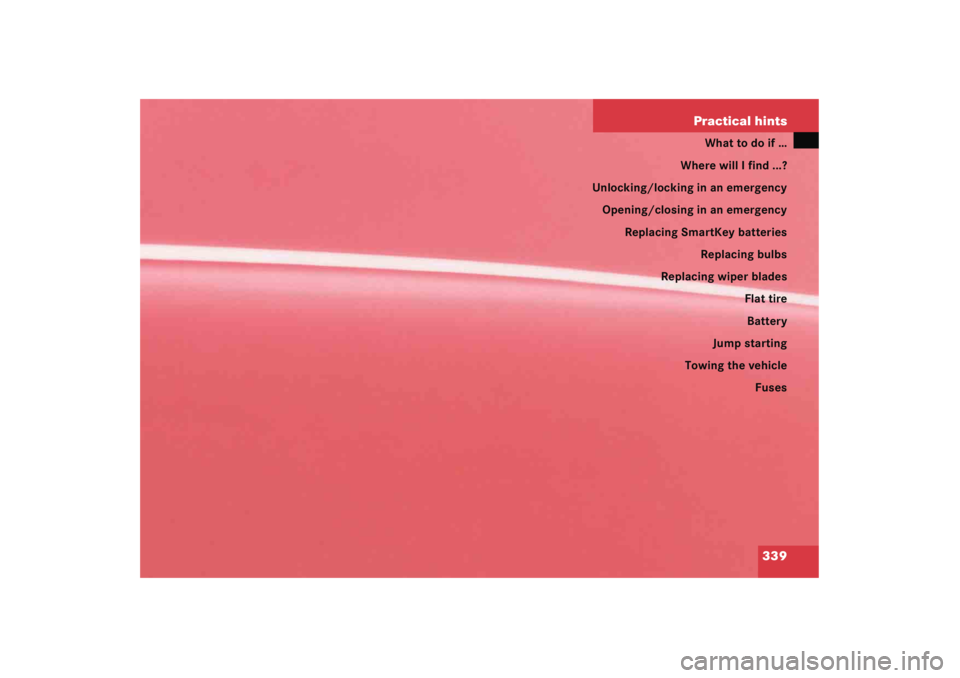

339
Practical hints
What to do if …
Where will I find ...?
Unlocking/locking in an emergency
Opening/closing in an emergency Replacing SmartKey batteries Replacing bulbs
Replacing wiper blades Flat tire
Battery
Jump starting
Towing the vehicle Fuses

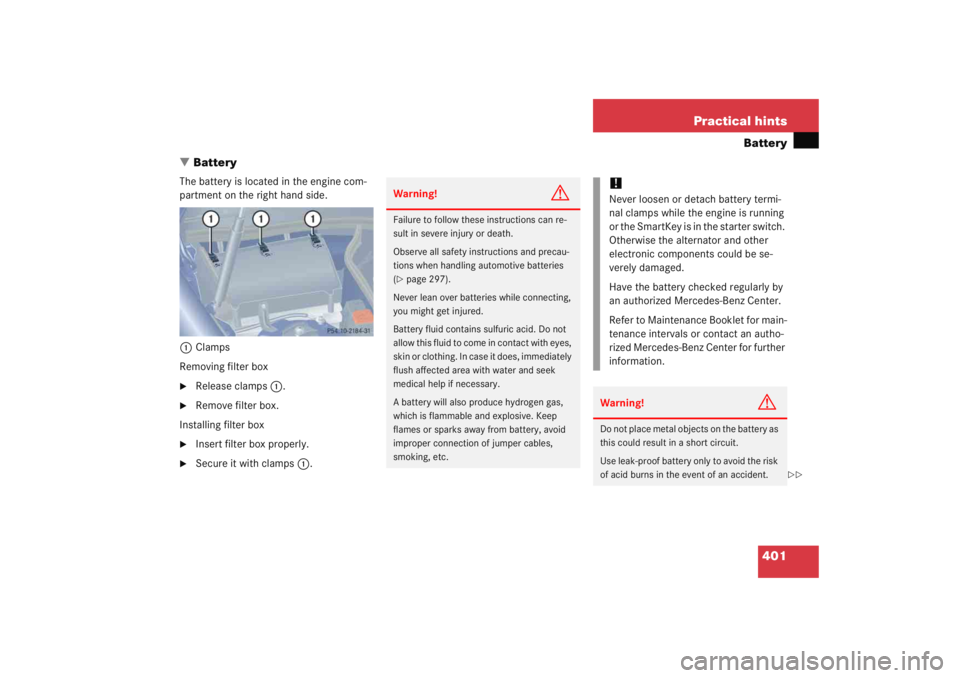

401
Practical hints
Battery
 Battery
The battery is located in the engine com-
partment on the right hand side.
1 Clamps
Removing filter box
Release clamps 1.

Remove filter box.
Installing filter box

Insert filter box properly.

Secure it with clamps 1.
Warning!
G
Failure to follow these instructions can re-
sult in severe injury or death.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 297).
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
!Never loosen or detach battery termi-
nal clamps while the engine is running
or the SmartKey is in the starter switch.
Otherwise the alternator and other
electronic components could be se-
verely damaged.
Have the battery checked regularly by
an authorized Mercedes-Benz Center.
Refer to Maintenance Booklet for main-
tenance intervals or contact an autho-
rized Mercedes-Benz Center for further
information.Warning!
G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.

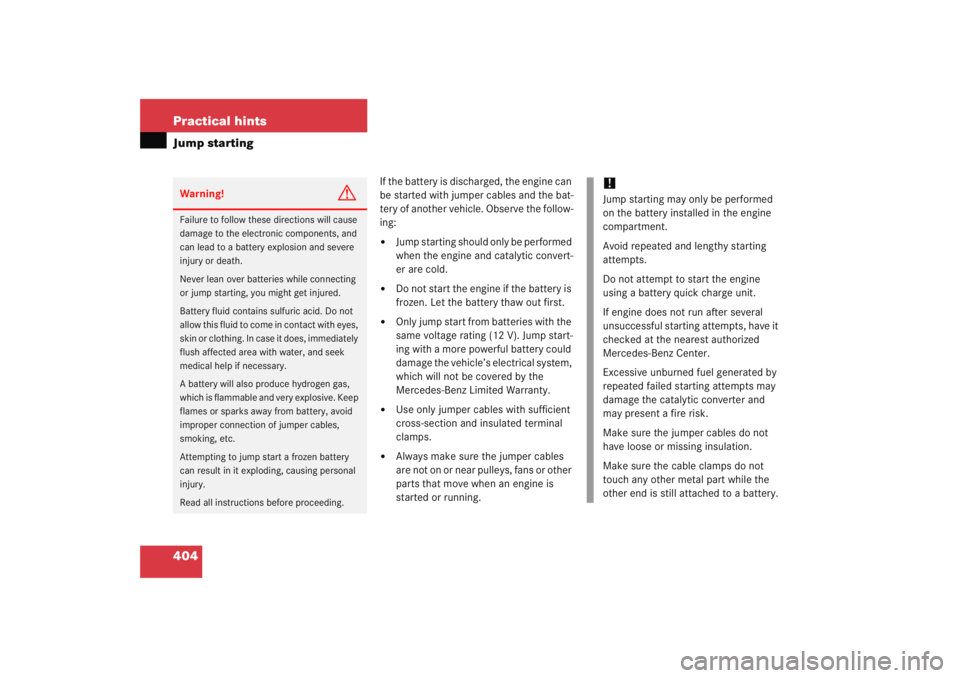

404 Practical hintsJump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:

Jump starting should only be performed
when the engine and catalytic convert-
er are cold.


Do not start the engine if the battery is
frozen. Let the battery thaw out first.


Only jump start from batteries with the
same voltage rating (12 V). Jump start-
ing with a more powerful battery could
damage the vehicle’s electrical system,
which will not be covered by the
Mercedes-Benz Limited Warranty.


Use only jumper cables with sufficient
cross-section and insulated terminal
clamps.


Always make sure the jumper cables
are not on or near pulleys, fans or other
parts that move when an engine is
started or running.
Warning!
G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!Jump starting may only be performed
on the battery installed in the engine
compartment.
Avoid repeated and lengthy starting
attempts.
Do not attempt to start the engine
using a battery quick charge unit.
If engine does not run after several
unsuccessful starting attempts, have it
checked at the nearest authorized
Mercedes-Benz Center.
Excessive unburned fuel generated by
repeated failed starting attempts may
damage the catalytic converter and
may present a fire risk.
Make sure the jumper cables do not
have loose or missing insulation.
Make sure the cable clamps do not
touch any other metal part while the
other end is still attached to a battery.

405
Practical hints
Jump starting
The battery is located in the engine com-
partment on the right hand side. The
terminals for jump starting are located in
front of the battery.
Make sure the two vehicles do not
touch.

Turn off the engine.
On both vehicles:

Turn off all electrical consumers.

Apply parking brake.

Shift gear selector lever to position P
(manual transmission to Neutral). 1
Positive terminal of charged battery
2 Positive under hood terminal in front of
discharged battery
3 Negative terminal of charged battery
4 Negative under hood terminal in front
of discharged battery

Connect positive terminal 1 of the
charged battery with positive under
hood terminal 2 in front of the dis-
charged battery with the jumper ca-
bles. Clamp cable to charged
battery 1 first.

Start engine of the vehicle with the
charged battery and run at idle speed.

Connect negative terminal 3 of the
charged battery with negative under
hood terminal 4 in front of the dis-
charged battery with the jumper
cables. Clamp cable to charged
battery 3 first.

Start the engine of the disabled
vehicle.
Now you can turn on the electrical con-
sumers. Do not turn on the lights under
any circumstances.

Remove the jumper cables first from
negative terminals 4 and 3 and then
from positive terminals 2 and 1.
You can now turn on the lights.

Have the battery checked at the
nearest authorized Mercedes-Benz
Center.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 297).
!Vehicles with automatic transmission:
Do not tow-start the vehicle.

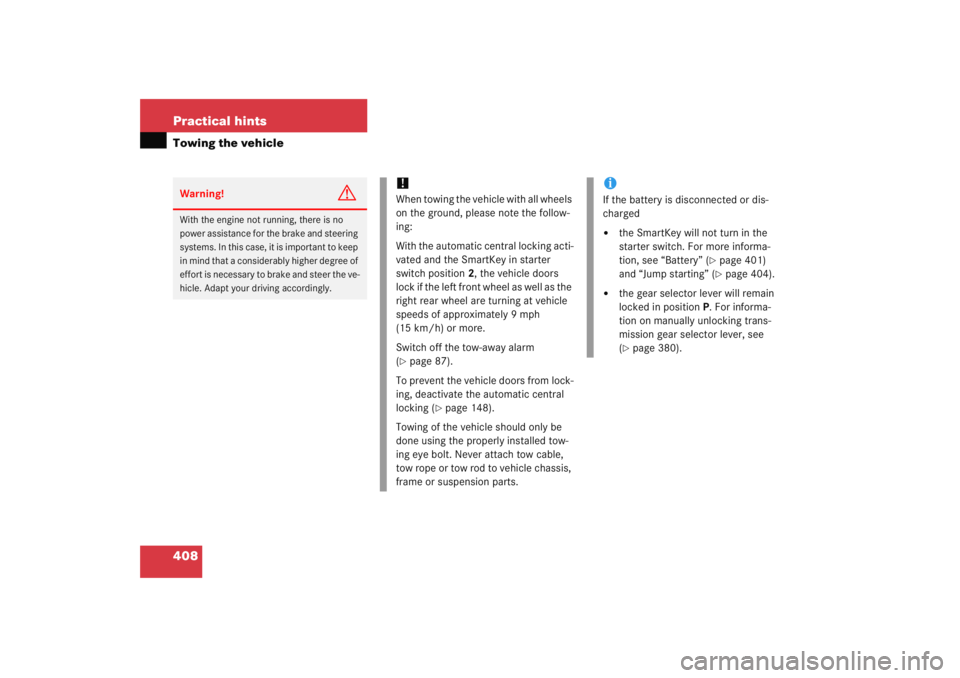

408 Practical hintsTowing the vehicleWarning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.
!When towing the vehicle with all wheels
on the ground, please note the follow-
ing:
With the automatic central locking acti-
vated and the SmartKey in starter
switch position2, the vehicle doors
lock if the left front wheel as well as the
right rear wheel are turning at vehicle
speeds of approximately 9 mph
(15 km/h) or more.
Switch off the tow-away alarm
(page 87).
To prevent the vehicle doors from lock-
ing, deactivate the automatic central
locking (
page 148).
Towing of the vehicle should only be
done using the properly installed tow-
ing eye bolt. Never attach tow cable,
tow rope or tow rod to vehicle chassis,
frame or suspension parts.
iIf the battery is disconnected or dis-
charged

the SmartKey will not turn in the
starter switch. For more informa-
tion, see “Battery” (
page 401)
and “Jump starting” (page 404).


the gear selector lever will remain
locked in position P. For informa-
tion on manually unlocking trans-
mission gear selector lever, see
(page 380).

445
Index
Audio system 195
Audio and telephone, operation 195
Button and soft key operation 198
CD* operation 213
Operating and display elements 196
Operating safety 195
Operation 198
Radio operation 203
Switching off 199
Switching on 198
Telephone* operation 220
Auto-dimming* for rear view mirror 168
Automatic central locking Activating/deactivating (control system) 148
Automatic climate control* 182 Activating 183
Adjusting air distribution 186
Air recirculation mode 189
Deactivating 183
Defrosting 188
Setting the temperature 185
Automatic headlamp mode 111
Automatic lighting control Activating 117
Deactivating 117 Automatic locking when driving 97
Automatic shift program*
Program mode selector switch 164
Automatic time change (summer-/winter) 141
Automatic transmission* 159, 296 Accelerator position 165
Automatic shift program 164
Comfort program mode 164
Emergency operation (Limp Home Mode) 166
Fluid level 296
Gear ranges 161
Gear selector lever 159
Gear selector lever position 159, 162
Gear shifting malfunctions 166
Kickdown 165
Manual shifting 160
One-touch gearshifting 160
Program mode selector switch 164
Starting with 49
Transmission fluid 296
Working on the vehicle 165 B
Backrest
Folding forward 251
Folding rearward 251
Backup lamps Bulbs 384
Bar 323
BAS 82, 437 Messages in display 354
Batteries, SmartKey Check lamp 93
Checking 93
Replacing 382, 383
Battery discharged Jump starting 404
Battery, vehicle 297, 401 Charging 402
Disconnecting 402
Reconnecting 403
Reinstalling 402
Removing 402
Bead 323
Bi-Xenon headlamps* 437
Bi-Xenon type* Front lamp bulbs 388
Block heater 329
