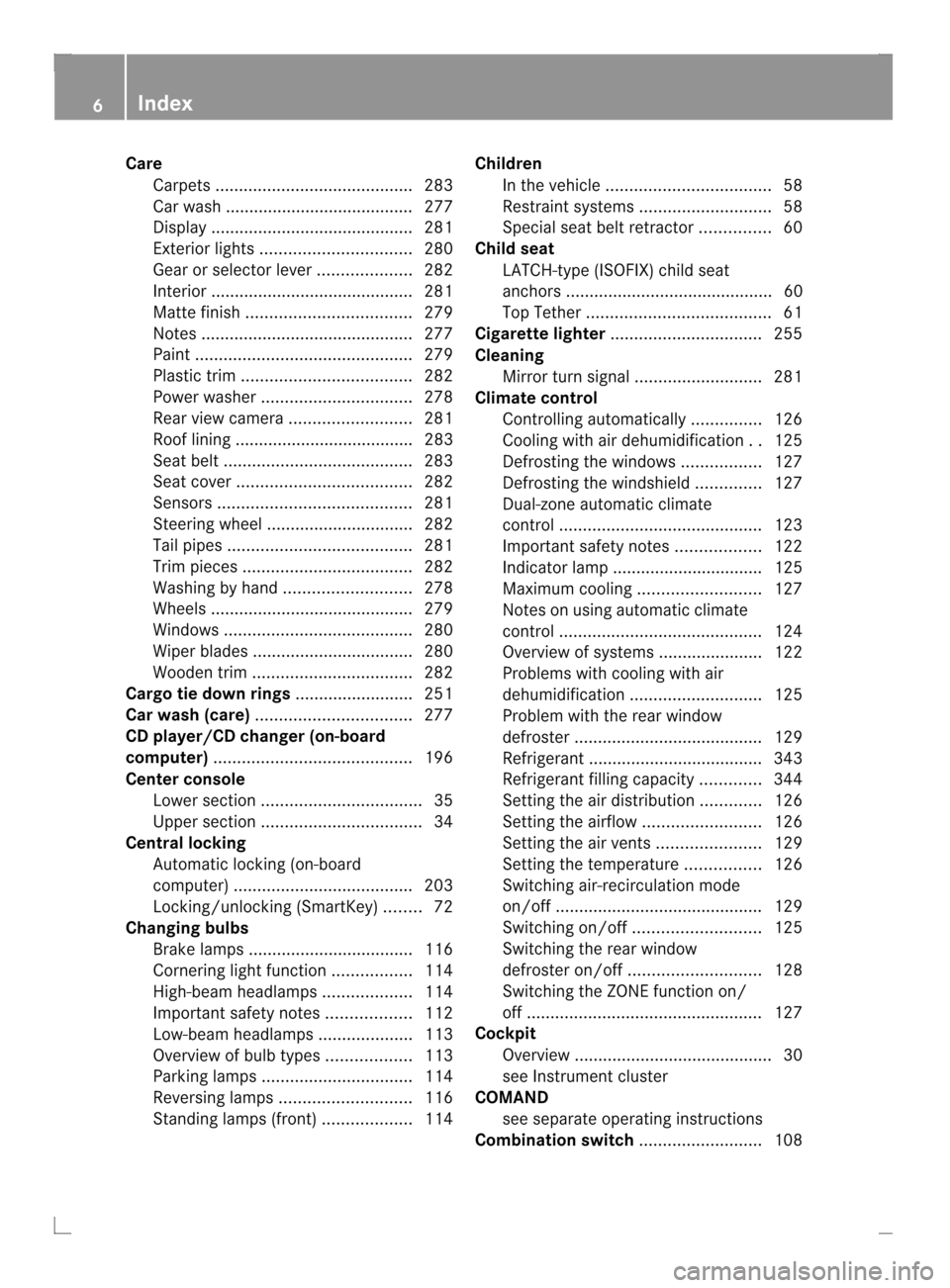

Care
Carpet s.......................................... 283
Car wash ........................................ 277
Display ........................................... 281
Exterior lights ................................ 280
Gea rors electo rlever .................... 282
Interior ........................................... 281
Matte finish ................................... 279
Notes ............................................. 277
Paint .............................................. 279
Plastic trim .................................... 282
Power washer ................................ 278
Rea rview camera .......................... 281
Roof lining ...................................... 283
Seat bel t........................................ 283
Seat cover ..................................... 282
Sensors ......................................... 281
Steering wheel ............................... 282
Tai lpipes ....................................... 281
Trim pieces .................................... 282
Washing by hand ........................... 278
Wheels ........................................... 279
Windows ........................................ 280
Wiper blades .................................. 280
Wooden trim .................................. 282
Cargo tie down rings .........................251
Car wash (care) ................................. 277
CD player/CD changer (on-board
computer) .......................................... 196
Center console Lowe rsection .................................. 35
Uppe rsection .................................. 34
Central locking
Automatic locking (on-board
computer) ...................................... 203
Locking/unlocking (SmartKey) ........72
Changing bulbs
Brake lamps ................................... 116
Cornering light function .................114
High-beam headlamps ...................114
Important safety notes ..................112
Low-beam headlamps ....................113
Overview of bul btypes .................. 113
Parking lamps ................................ 114
Reversing lamps ............................ 116
Standing lamps (front) ...................114Children
In the vehicle ................................... 58
Restraint systems ............................ 58
Specia lseat belt retractor ...............60
Child seat
LATCH-type (ISOFIX) child seat
anchors ............................................ 60
Top Tether ....................................... 61
Cigarette lighter ................................ 255
Cleaning Mirro rturn signal ........................... 281
Climate control
Controlling automatically ...............126
Cooling with aird ehumidification..125
Defrosting the windows .................127
Defrosting the windshield ..............127
Dual-zone automatic climate
control ........................................... 123
Important safety notes ..................122
Indicator lamp ................................ 125
Maximum cooling .......................... 127
Notes on using automatic climate
control ........................................... 124
Overview of systems ......................122
Problems with cooling with air
dehumidification ............................ 125
Problem with the rear window
defroster ........................................ 129
Refrigerant ..................................... 343
Refrigerant filling capacity .............344
Setting the aird istribution.............126
Setting the airflow .........................126
Setting the airv ents...................... 129
Setting the temperature ................126
Switching air-recirculation mode
on/off ............................................ 129
Switching on/off ........................... 125
Switching the rear window
defroster on/off ............................ 128
Switching the ZONE function on/
off .................................................. 127
Cockpit
Overview .......................................... 30
see Instrument cluster
COMAND
see separate operating instructions
Combination switch ..........................1086
Index

Rear fog lamp
................................ 108
Standing lamps .............................. 108
Switching Adaptive Highbeam
Assist on/off ................................. 202
Switching the daytime running
lamps on/off (on-board computer) 201
Switching the daytime running
lamps on/off (switch) ....................107
Switching the exterio rlighting
delayed switch-off on/off (on-
board computer )............................ 202
Switching the surround lighting
on/off (on-board computer) ..........202
Turn signals ................................... 108
see Changing bulbs
see Interior lighting
see Lighting
Light sensor (display message) .......219
Loading guidelines ............................248
Locking see Centra llocking
Locking (doors)
Automatic ........................................ 78
Emergency locking ........................... 79
From inside (central locking
button) ............................................. 78
Locking centrally
see Centra llocking
Locking verification signal (on-
board computer) ............................... 203
Low-beam headlamps Changing bulbs .............................. 113
Display message ............................ 216
Setting for driving abroad
(symmetrical) ................................. 106
Switching on/off ........................... 107
Lumbar support
Adjusting the 4-way lumbar
support ............................................ 96M
M+S tires ............................................ 302
Maintenance see ASSYST PLUS
Malfunction message
see Display messages
Matte finish (cleaning instructions) 279mbrace
Call priority .................................... 261
Display message ............................ 211
Downloading destinations
(COMAND) ..................................... 261
Downloading route s....................... 264
Emergency call .............................. 258
Geo fencing ................................... 264
Important safety notes ..................257
Locating astolen vehicl e............... 263
MB info call button ........................260
Remote vehicle locking ..................262
Roadside Assistance button ..........260
Search &Send ............................... 262
Self-test ......................................... 258
Speed alert .................................... 264
System .......................................... 258
Triggering the vehicle alarm ........... 265
Vehicle remote malfunction
diagnosi s....................................... 263
Vehicle remote unlocking ..............262
Mechanical key
Function/notes ................................ 74
Locking vehicle ................................ 79
Unlocking the driver's door ..............79
Memory card (audio) .........................196
Memory function ............................... 102
Message memory (on-board
computer) .......................................... 208
Messages see Display messages
Mirrors
see Exterior mirrors
see Rear-view mirror
see Vanity mirror (in the sun visor)
Mobile phone
Menu (on-board computer) ............197
Modifying the programming
(SmartKey) ........................................... 73
MOExtended run-flat system ...........287
Mounting wheels Lowering the vehicle ......................328
Mounting anew wheel ................... 327
Preparing the vehicle .....................324
Raising the vehicle .........................325
Removing awheel .......................... 327
Securing the vehicle against
rolling away ................................... 32512
Index

Parking Guidance
Display message ............................ 224
Important safety notes ..................174
Parking lamps
Changing bulbs .............................. 114
Switching on/off ........................... 108
PARKTRONIC
Deactivating/activating .................173
Driving system ............................... 171
Function/notes ............................. 171
Important safety notes ..................171
Problem (malfunction) ...................174
Range of the sensors .....................172
Warning displa y............................. 172
PASSENGE RAIR BAG OFF
Problems (malfunction) .................. 215
PASSENGER AIR BAG OFF indicator
lamp ...................................................... 46
Plastic trim (cleaning instructions) .282
Power washers .................................. 278
Power windows see Side windows
PRE-SAFE ®
(anticipatory occupant
protection) Display message ............................ 211
Operation ........................................ .52
PRE-SAFE ®
Brake
Activating/deactivating .................199
Display message ............................ 212
Function/notes ................................ 68
Warning lamp ................................. 245
Program selector button ..................142
Protection of the environment General notes .................................. 21
Pulling away
Automatic transmission .................136 Q
Qualifie dspecialis tworkshop ...........25 R
RACE START (AMG vehicles) .............169
RACETIMER (on-board computer) ....205
Radar sensor system Activating/deactivating .................203
Display message ............................ 223Radio
Selecting astation ......................... 196
see separate operating instructions
Reading lamp ..................................... 111
Rear compartment Setting the airv ents...................... 130
Rear fog lamp
Display message ............................ 218
Switching on/off ........................... 108
Rear seat (folding the backrest
forwards/back) ................................. 250
Rear view camera Cleaning instructions .....................281
Function/notes ............................. 177
Rear-view mirror
Anti-glar e(manual) .......................... 99
Dipping (automatic) .......................101
Rear window defroster
Problem (malfunction) ...................129
Switching on/off ........................... 128
Refrigerant (air-conditioning
system)
Important safety notes ..................343
Refueling
Fuel gauge ....................................... 31
Important safety notes ..................147
Notes for AMG vehicles .................339
Refueling proces s.......................... 148
see Fuel
Releasing the parking lock
manually (automatic transmission) 147
Remote control Garage door opener .......................265
Programming (garage door opener) 265
Reporting safety defects ....................26
Reserve (fuel tank) see Fuel
Reserve fuel
Display message ............................ 222
Warning lamp ................................. 242
see Fuel
Restraint system
see SRS (Supplemental Restraint
System)
Reverse gear
Engaging (automatic transmission) 140 14
Index

Reversing feature
Panorama sliding sunroof ................87
Roller sunblind ................................. 88
Side windows ................................... 83
Roadside Assistance (breakdown) ....23
Roller blind see Roller sunblind
Roller sunblind
Opening/closing .............................. 88
Panorama roof with power tilt/
sliding panel ..................................... 87
Roof carrier ........................................ 252
Roof lining and carpets (cleaning
guidelines) ......................................... 283
Roof load (maximum) ........................344
Route (navigation) see Route guidance (navigation)
Route guidance (navigation) ............195 S
Safety Childre ninthe vehicle ..................... 58
Child restraint systems ....................58
Occupant Classification System
(OCS) ............................................... 46
Overview of occupant safety
systems ........................................... 40
Safety system
see Driving safety systems
Seat belts
Adjusting the driver's and front-
passenger sea tbelt ......................... 56
Belt force limiters ............................ 57
Cleaning ......................................... 283
Correct usage .................................. 54
Emergency Tensioning Devices ....... .57
Fastening ......................................... 55
Important safety guidelines .............53
Releasing ......................................... 56
Safety guidelines ............................. 41
Switching belt adjustment on/off
(on-board computer) ......................204
Warning lamp ................................. 234
Warning lamp (function) ................... 56
see Seat belts Seats
Adjusting (electrically). ....................95
Adjusting (manually and
electrically). ..................................... 94
Adjusting the 4-way lumbar
support ............................................ 96
Adjusting the head restraint ............95
Cleaning the cover .........................282
Correct driver's seat position ........... 92
Folding the backrests forward/
back ................................................ .95
Important safety notes ....................93
Seat backres tdisplay message .....231
Seat backres tdisplay message
(12-button multifunction steering
wheel) ............................................ 231
Seat heating problem ......................96
Seat ventilation problem ..................97
Storing settings (memory function) 102
Switching sea theating on/off .........96
Switching sea tventilation on/off ....97
Sensors (cleaning instructions) .......281
Service menu (on-board computer) .200
Service products Brake fluid ..................................... 341
Coolant (engine) ............................ 341
Engine oil ....................................... 340
Fuel ................................................ 337
Important safety notes ..................337
Refrigerant (air-conditioning
system) .......................................... 343
Washer fluid .................................. .342
Settings
Factory (on-board computer) .........204
On-board computer .......................200
Setting the air distribution ...............126
Setting the airflow ............................126
SETUP (on-board computer) .............205
Side impact air bag .............................45
Side marker lamp (display
message) ............................................ 218
Side windows Cleaning ......................................... 280
Convenience closing feature ............85
Convenience opening feature ..........84
Important safety information ...........83
Opening/closing .............................. 84 Index
15

Protection of the environment
General notes
H
Environmental note
Daimler's declared policy is one of
comprehensive environmental protection.
The objectives are for the natural resources
that form the basis of our existence on this
planet to be used sparingly and in a manner
that takes the requirements of both nature
and humanity into account.
You too can help to protect the environment
by operating your vehicle in an
environmentally responsible manner.
Fuel consumption and the rate of engine,
transmission, brake and tire wear are affected
by these factors:
R operating conditions of your vehicle
R your personal driving style
You can influence both factors. You should
bear the following in mind:
Operating conditions:
R avoid short trips as these increase fuel
consumption.
R always make sure that the tire pressures
are correct.
R do not carry any unnecessary weight.
R remove roof racks once you no longer need
them.
R a regularly serviced vehicle will contribute
to environmental protection. You should
therefore adhere to the service intervals.
R always have service work carried out at a
qualified specialist workshop.
Personal driving style:
R do not depress the accelerator pedal when
starting the engine.
R do not warm up the engine when the vehicle
is stationary.
R drive carefully and maintain a safe distance
from the vehicle in front.
R avoid frequent, sudden acceleration and
braking. R
change gear in good time and use each gear
only up to 0001of its maximum engine speed.
R switch off the engine in stationary traffic.
R keep an eye on the vehicle's fuel
consumption. Environmental concerns and
recommendations
Wherever the operating instructions require
you to dispose of materials, first try to
regenerate or re-use them. Observe the
relevant environmental rules and regulations
when disposing of materials. In this way you
will help to protect the environment. Genuine Mercedes-Benz parts
H
Environmental note
Daimler AG also supplies reconditioned major
assemblies and parts which are of the same
quality as new parts. They are covered by the
same Limited Warranty entitlements as new
parts.
! Air bags and Emergency Tensioning
Devices, as well as control units and
sensors for these restraint systems, may be
installed in the following areas of your
vehicle:
R doors
R door pillars
R door sills
R seats
R cockpit
R instrument cluster
R center console
Do not install accessories such as audio
systems in these areas. Do not carry out
repairs or welding. You could impair the
operating efficiency of the restraint
systems. Introduction
21 Z

SRS (Supplemental Restraint System)
Introduction SRS consists of:
R
The 001E SRS warning lamp
R Air bags
R Air bag control unit (with crash sensors)
R Emergency Tensioning Devices
R Belt force limiters
SRS reduces the risk of occupants coming
into contact with the vehicle's interior in the
event of an accident. It can also reduce the
effect of the forces to which occupants are
subjected during an accident.
SRS warning lamp SRS functions are checked regularly when
you switch on the ignition and when the
engine is running. Therefore, malfunctions
can be detected in good time.
The 001E SRS warning lamp in the instrument
cluster lights up when the ignition is switched
on. It goes out no later than a few seconds
after the engine is started.
The SRS components are in operational
readiness when the 001ESRS warning lamp
goes out while the engine is running. G
WARNING
The SRS self-chec khas detected a
malfunction if the 001ESRS indicator lamp:
R does no tlight up at all
R does not go out after approximately four
seconds after the engine is started
R comes on after the engine was started or
while driving.
For your safety, Mercedes-Ben zstrongly
recommends tha tyou have the system
checked as soon as possible at an authorized
Mercedes-Benz Center. SRS may otherwise
fail to activate when it is needed in the event
of an accident, which could lead to serious or
fatal injuries. SRS might also be activated unexpectedly and unnecessarily, which could
also result in injury.
In addition, work carried out improperly on
SRS may render SRS inoperative or cause
unintended air bag deployment. Work on the
SRS system should only be carried out by
qualified specialist personnel. Consult an
authorized Mercedes-Benz Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact an authorized Mercedes-Benz Center
for details. USA only: for further information
contact our Customer Assistance center at
1-800-FOR-MERCedes (1-800-367-6372).
Safety guidelines for seat belts,
Emergency Tensioning Devices (ETDs)
and air bags G
WARNING
R Damaged seat belts or seat belts that have
been subjected to stress in an accident
must be replaced. Their anchoring points
must also be checked. Only use seat belts
installed or supplied by an authorized
Mercedes-Benz Center.
R Air bags and pyrotechnic Emergency
Tensioning Devices (ETDs) contain
perchlorate material, which may require
special handling and regard for the
environment.C heck your national disposal
guidelines. California residents, see
www.dtsc.ca.gov/HazardousWaste/
Perchlorate/index.cfm.
R Air bags and ETDs are designed to function
on a one-time-only basis. An air bag or ETD
that has deployed must be replaced.
R Do not pass seat belts over sharp edges.
They could tear.
R Do not make any modification that could
change the effectiveness of the seat belts.
R Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
R No modifications of any kind may be made
to any components or wiring of the SRS. Occupant safety
41Safety
Z

It is important to yours
afety and that of your
passenger to have deployed air bags replaced
and to have any malfunctioning air bags
repaired. This will help to make sure the air
bags will continue to provide supplemental
crash protection for occupants .
Front air bags The fron
tair bags increase protection for the
driver's and front-passenger's head and
chest. Driver's air bag
0002deploys in front of the
steering wheel; front-passenger front air
bag 0003deploys in front of and above the glove
box.
They are deployed:
R in the event of certain frontal impacts
R if the system determines that air bag
deploymen tcan offer additional protection
to that provided by the seat belt
R if the seat belt is fastened
R independently of other air bags in the
vehicle
Your vehicle has adaptive, two-stage fron tair
bags. In the even tofacollision, the ai rbag
control unit evaluates the vehicle
deceleration. In the first deploymen tstage,
the front ai rbag is filled with enough
propellan tgas to reduce th erisk of injuries.
The front air bag is fully deployed if a second
deploymen tthreshold is exceeded within a
few milliseconds.
The deployment of the front-passenger front
air bag is also influenced by the weight category of the front passenger, which is
determined by the Occupant Classification
System (OCS) (Y
page 46).
The lighter the passenger-side occupant, the
higher the vehicle deceleration rate required
(predicted at the start of the impact) for
second stage inflation of the front-passenger
front air bag. In the second stage, the front
air bags are inflated with the maximum
amount of propellant gas available.
The front air bags are not deployed in
situations where a low impact severity is
predicted. You will then be protected by the
fastened seat belt.
The front-passenger front air bag will only be
deployed if:
R the system, based on the OCS weight
sensor readings, detects that the front-
passenger seat is occupied
R the 0019001B indicator lamp on the center
console is not lit (Y page 46)
R the air bag control unit predicts a high-
impact severity.
Driver's knee bag Driver's knee bag
0002increases the driver's
protection against:
R knee injuries
R thigh injuries
R lower leg injuries
Driver's knee bag 0002deploys under the
steering column. If, during a frontal collision,
the system determines that air bag
deployment can offer additional protection to 44
Occupant safetySafety

tha
tprovided by the seat belt, driver's knee
bag 0002is deployed along with the driver's air
bag.D river's knee bag 0002operates best in
conjunction with correctly positioned and
fastened seat belts.
Side impact air bags G
WARNING
The pressure sensors for side impact air bag
control are located in the doors. Do not
modify any components of the doors or door
trim panels including, for example, the
addition of door speakers.
Improper repair work on the doors or the
modification or addition of components to the
doors create a risk of rendering the side
impact air bags inoperative or causing
unintended air bag deployment. Work on the
doors must therefore only be performed by
qualified technicians. Contact an authorized
Mercedes-Benz Center. G
WARNING
Only use seat covers which have been tested
and approved by Mercedes-Benz for your
vehicle model .Using seat covers or other seat
coverings can cause a malfunction of the side
impact air bags and/or the pelvis air bags.
Contact an authorized Mercedes-Benz Center
for availability.
When deployed, the side impact air bags offer
additional protection for the thorax of the
vehicle occupants on the side of the vehicle
on which the impact occurs. However, they
do not protect the:
R head
R neck
R arms Front side impact air bags
0002and rear side
impact air bags 0003deploy next to the outer
seat cushions.
The side impact air bags are deployed:
R on the side on which an impact occurs
R at the start of an accident with a high rate
of lateral vehicle deceleration or
acceleration, e.g. in aside impact
R independently of the use of the seat belt
R independently of the front air bags
R independently of the ETDs
Side impac tair bags will not deploy in side
impacts which do not exceed the system's
prese tdeployment thresholds for lateral
acceleration/deceleration .You will then be
protected by the fastened seat belt.
The side impact air bag on the front-
passenger side is not deployed in the
following situations:
R OCS has detected that the front-passenger
seat is unoccupied.
R the front-passenger seat belt is not
fastened.
The side impact air bag on the front-
passenger side will deploy if the front-
passenger seat belt is fastened, regardless of
whether the front-passenger seat is occupied
or not.
Pelvis air bags G
WARNING
Only use seat covers which have been tested
and approved by Mercedes-Benz for your Occupant safety
45Safety
Z

vehicle model
.Using seat covers or other seat
coverings can cause a malfunction of the side
impact air bags and/or the pelvis air bags.
Contact an authorized Mercedes-Benz Center
for availability.
Pelvis air bag deployment enhances the level
of protection of the vehicle occupants on the
side of the vehicle on which the impact
occurs. Pelvis air bags
0002deploy next to and below
the outer seat cushions. They are deployed:
R on the side on which an impact occurs
R at the start of an accident with a high rate
of lateral vehicle deceleration or
acceleration, e.g. in aside impact
R independently of the use of the seat belt
R independently of the front air bags
R independently of the ETDs
Pelvis air bags 0002will not deploy in side
impacts which do not exceed the system's
prese tdeployment thresholds for lateral
acceleration/deceleration .You will then be
protected by the fastened seat belt.
The pelvis air bag on the front-passenger side
is not deployed in the following situations:
R OCS has detected that the front-passenger
seat is unoccupied.
R the front-passenger seat belt is not
fastened.
The pelvis air bag on the front-passenger side
will deploy if the front-passenger seat belt is
fastened, regardless of whether the front-
passenger seat is occupied or not. Window curtain air bags The window curtain air bags enhance the level
of protection for the head, but not chest or
arms, of the vehicle occupants on the side of
the vehicle on which the impact occurs.
The window curtain air bags are integrated
into the side of the roof frame and deploy in
the area extending from the front door (A-
pillar) to the rear sidewall (C-pillar).
Window curtain air bags
0002are deployed:
R on the side on which an impact occurs
R at the start of an accident with a high rate
of lateral vehicle deceleration or
acceleration, e.g. in aside impact
R regardless of whether the front-passenger
seat is occupied
R independently of the use of the seat belt
R independently of the front air bags
Window curtain air bags 0002will not deploy in
the even tofimpacts which do not exceed the
system's preset deployment thresholds for
vehicle acceleration/deceleration. You will
then be protected by the fastened seat belt. Occupant Classification System
(OCS)
How the Occupant Classification
System works The Occupant Classification System (OCS)
categorizes the occupant on the front-
passenger seat by means of a weight sensor.
The front-passenger front air bag is 46
Occupant safetySafety

deactivated automatically for certain weight
categories. The 0019001Bindicator lamp
shows you the current status. If the
0019001B indicator lamp lights up, the front-
passenger air bag is disabled.
The system does not deactivate:
R the side impact air bag
R the pelvis air bag
R the window curtain air bag
R the Emergency Tensioning Devices
To be classified correctly, the fron tpassenger
must sit:
R with the seat belt fastened correctly
R in a positio nthat is as upright as possible
with their back against the seat backrest
R with their feet on the floor
If the front-passenger's weight is transferred
to another object in the vehicle (e.g. by
leaning on armrests), OCS may not be able to
approximate the occupant's weight category.
If the front-passenger seat, the seat cover or
the seat cushion are damaged, have the
necessary repair work carried out at an
authorized Mercedes-Ben zCenter.
For safety reasons, Mercedes-Benz
recommends that you only use seat
accessories that have been approved by
Mercedes-Benz.
Both the driver and the fron tpassenger
should always observe the 0019001B
indicator lamp to determine whether or not
the fron tpassenger is positioned correctly. G
WARNING
If the 0019001B indicator lamp illuminates
when an adult or someone large rthan a small
individual is in the front passenger seat, have
the front passenger reposition himself or
herself in the seat until the 0019001B
indicator lamp goes out.
In the event of a collision, the air bag control
unit will not allow front passenger front air bag
deployment when the OCS has classified the
front passenger seat occupant as weighing as
much as or less than a typical 12-month-old child in a standard child restraint or if the front
passenger seat is classified as being empty.
When the OCS senses that the front
passenger seat occupant is classified as
being up to or less than the weight of a typical
12-month-old child in a standard child
restraint, the
0019001Bindicator lamp will
illuminate when the engine is started and
remain illuminated. This indicates that the
front passenger front air bag is deactivated.
When the OCS senses that the front
passenger seat is classified as being empty,
the 0019001B indicator lamp will illuminate
when the engine is started and remain
illuminated. This indicates that the front
passenger front air bag is deactivated.
When the OCS senses that the front
passenger seat occupant is classified as
being heavier than the weight of a typical 12-
month-old child seated in astandard child
restraint or as being a small individual (such
as a young teenager or asmall adult), the
0019001B indicator lamp will illuminate for
approximately 6seconds when the engine is
started. Depending on occupant weight
sensor readings from the seat, it will then
remain illuminated or go out. With the
0019001B indicator lamp illuminated, the
fron tpassenger fron tair bag is deactivated.
With the 0019001B indicator lamp out, the
front passenger front air bag is activated.
When the OCS senses that the front
passenger seat occupant is classified as an
adult or someone larger than a small
individual, the 0019001Bindicator lamp will
illuminate for approximately six seconds
when the engine is started and the ngo out.
This indicates that the front passenger front
air bag is activated.
If the 0019001B indicator lamp is illuminated,
the front passenger front air bag is
deactivated and will not be deployed. Occupant safety
47Safety
Z
