refrigerant type MERCEDES-BENZ C-CLASS COUPE 2018 Owner's Manual

Rain closing feature (panorama
roof with power tilt/sliding panel).... 92
Reading lamp ..................................... 111
Rear compartment
Setting the air vents ...................... 124
Rear fog lamp
Display message ............................ 228
Switching on/off ........................... 109
Rear seat (folding the backrest for-
wards/back) ...................................... 268
Rear view camera
"Reverse parking" function ............ 179
Cleaning instructions ..................... 295
Display in the multimedia system .. 177
General notes ................................ 177
Object detection (function/
notes) ............................................ 180
Switching on/off ........................... 177
Wide-angle function ....................... 180
Rear window defroster
Problem (malfunction) ................... 121
Switching on/off ........................... 121
Rear-view mirror
Dipping (automatic) ....................... 104
Recuperation display ........................ 201
Reflective safety jacket .................... 299
Refrigerant (air-conditioning sys-
tem)
Important safety notes .................. 348
Refueling
Fuel gauge ....................................... 36
Important safety notes .................. 145
Refueling process .......................... 146
see Fuel
Remote control
Garage door opener ....................... 282
Programming (garage door
opener) .......................................... 283
Replacing bulbs
High-beam headlamps ................... 113
Important safety notes .................. 112
Installing/removing the cover
(front wheel arch) .......................... 113
Low-beam headlamps .................... 113
Overview of bulb types .................. 112
Replacing front bulbs (vehicles
with halogen headlamps) ............... 113 Turn signals (front) ......................... 113
Reporting safety defects .................... 31
Rescue card ......................................... 32
Reserve (fuel tank)
see Fuel
Reserve fuel
Display message ............................ 232
Warning lamp ................................. 250
Restrain t s
ystem
Display message ............................ 224
Introduction ..................................... 43
Warning lamp ................................. 250
Warning lamp (function) ................... 44
Reversing feature
Panorama sliding sunroof ................ 91
Roller sunblinds ............................... 92
Side windows ................................... 87
Sliding sunroof ................................. 91
Trunk lid ........................................... 83
Roadside Assistance (breakdown) .... 29
Roll away protection
see HOLD function
Roller sunblind
Operating ......................................... 93
Panorama roof with power tilt/
sliding panel ..................................... 92
Resetting ......................................... 93
Roof carrier ........................................ 271
Roof lining and carpets (cleaning
guidelines) ......................................... 298
Roof load (maximum) ........................ 349
Route guidance
see also Digital Operator's Man-
ual .................................................. 256
Route guidance active ...................... 202
S
Safety
Children in the vehicle ..................... 59
see Occupant safety
see Operating safety
Safety system
see Driving safety systems
SD card
Inserting/removing ........................ 265
Selecting ........................................ 205
18Index

The antifreeze concentrate/corrosion inhibitor
concentration in the engine cooling system
should:
Rbe at least 50%. This will protect the engine
cooling system against freezing down to
approximately -35 ‡ (-37 †).
Rnot exceed 55% (antifreeze protection down
to -49‡[-45 †]). Otherwise, heat will not be
dissipated as effectively.
Mercedes-Benz recommends an antifreeze/
corrosion inhibitor concentrate in accordance
with MB Specifications for Service Products
310.1.
iWhen the vehicle is first delivered, it is filled
with a coolant mixture that ensures adequate
antifreeze and anti-corrosion protection.
iThe coolant is checked with every mainte-
nance interval at a qualified specialist work-
shop.
Filling capacities
ModelCapacity
Mercedes-AMG
C 43 4MATIC11.5 US qt (10.9 l)
Mercedes-AMG
C 6311.7 US qt (11.1l)
Mercedes-AMG
C 63 S12.6 US qt (11.9l)
Allot her models9.5 US qt (9.0 l)
Windshield washer system
Important safety notes
GWARNING
Windshield washer concentrate could ignite if it comes into contact with hot engine compo-
nents or the exhaust system. There is a risk of
fire and injury.
Make sure that no windshield washer con-
centrate is spilled next to the filler neck.
!Only use washer fluid that is suitable for
plastic lamp lenses, e.g. MB SummerFit or MB WinterFit. Unsuitable washer fluid could dam-
age the plastic lenses of the headlamps.
!Only MB SummerFit and MB WinterFit
washer fluid should be mixed together. The
spray nozzles may otherwise become
blocked.
Do not use distilled or de-ionized water. Other-
wise, the level sensor may give a false reading.
When handling washer fluid, observe the impor-
tant safety notes on service products
(
Ypage 344).
At temperatures above freezing:
XFill the washer fluid reservoir with a mixture of
water and windshield washer fluid, e.g. MB
SummerFit.
Add 1 part MB SummerFit to 100 parts water.
At temperatures below freezing:
XFill the washer fluid reservoir with a mixture of
water and washer fluid, e.g. MB WinterFit.
For the correct mixing ratio refer to the infor-
mation on the antifreeze reservoir.
iAdd windshield washer fluid, e.g. MB Sum-
merFit or MB WinterFit, to the washer fluid all
year round.
Climate control system refrigerant
Important safety notes
The climate control system of your vehicle is fil-
led with refrigerant R ‑134a.
The instruction label regarding the refrigerant
type used can be found on the radiator cross
member.
!Only the refrigerant R ‑134a and the PAG oil
approved by Mercedes-Benz may be used.
The approved PAG oil may not be mixed with
any other PAG oil that is not approved for
R-134a refrigerant. Otherwise, the climate
control system may be damaged.
Service work, such as refilling with refrigerant or
replacing component parts, may only be carried
out by a qualified specialist workshop. All appli-
cable regulations, as well as SAE standard J639,
must be adhered to.
Always have work on the climate control system
carried out at a qualified specialist workshop.
348Service products and filling capacities
Technical data

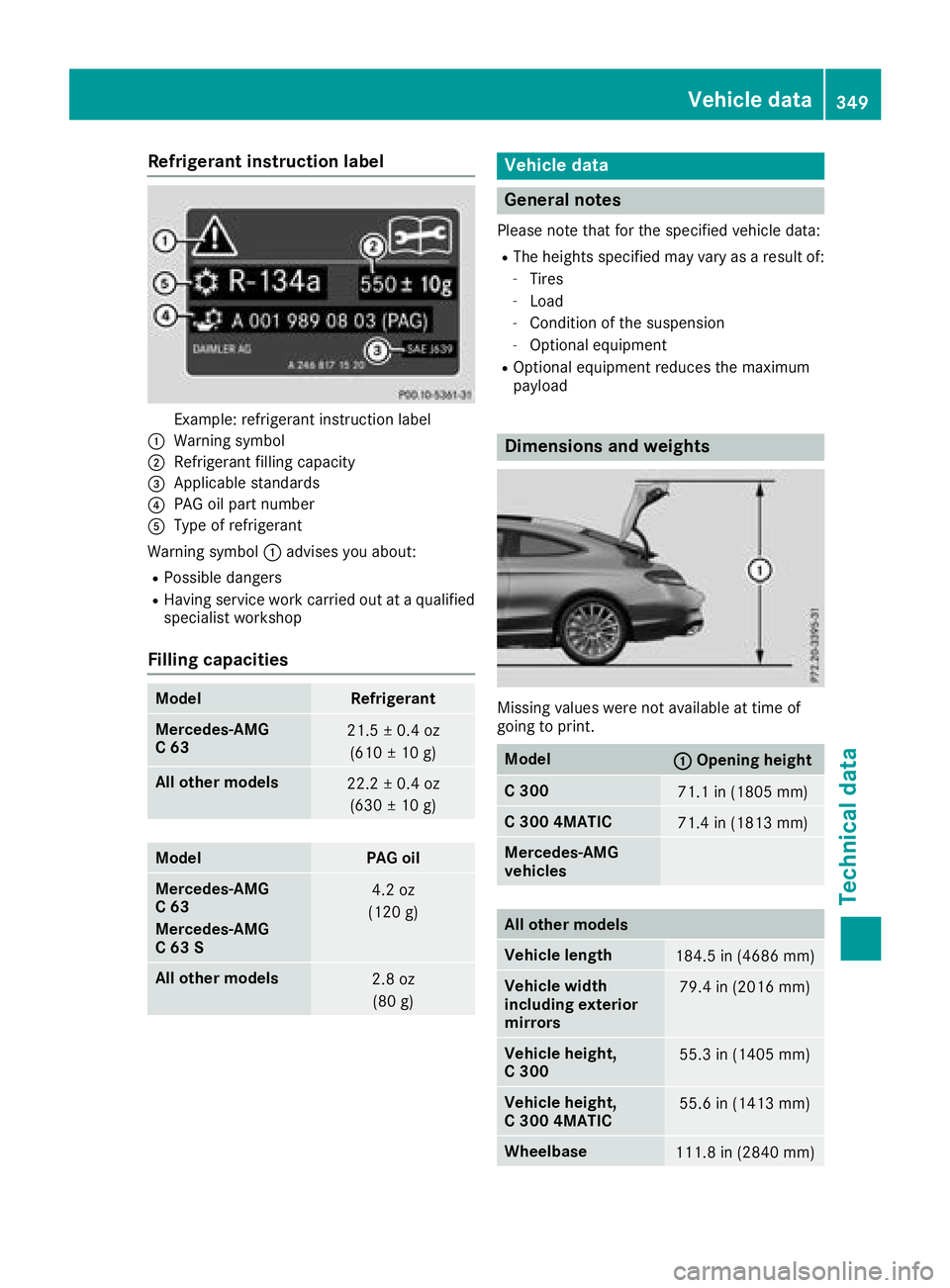

Refrigerant instruction label
Example: refrigerant instruction label
:Warning symbol
;Refrigerant filling capacity
=Applicable standards
?PAG oil part number
AType of refrigerant
Warning symbol :advises you about:
RPossible dangers
RHaving service work carried out at a qualified
specialist workshop
Filling capacities
ModelRefrigerant
Mercedes-AMG
C 6321.5 ± 0.4 oz
(610 ± 10 g)
Allot her models22.2 ± 0.4 oz
(630 ± 10 g)
ModelPAG oil
Mercedes-AMG
C 63
Mercedes-AMG
C 63 S4.2 oz
(120 g)
All other models2.8 oz (80 g)
Vehicle data
General notes
Please note that for the specified vehicle data:
RThe heights specified may vary as a result of:
-Tires
-Load
-Condition of the suspension
-Optional equipment
ROptional equipment reduces the maximum
payload
Dimensions and weights
Missing values were not available at time of
going to print.
Model:Opening height
C 30071.1 in (1805 mm)
C 300 4MATIC71.4 in (1813 mm)
Mercedes-AMG
vehicles
All other models
Vehicle length184.5 in (4686 mm)
Vehicle width
including exterior
mirrors79.4 in (2016 mm)
Vehicle height,
C 30055.3 in (1405 mm)
Vehicle height,
C 300 4MATIC55.6 in (1413 mm)
Wheelbase111.8 in (2840 mm)
Vehicle data349
Technical data
Z
