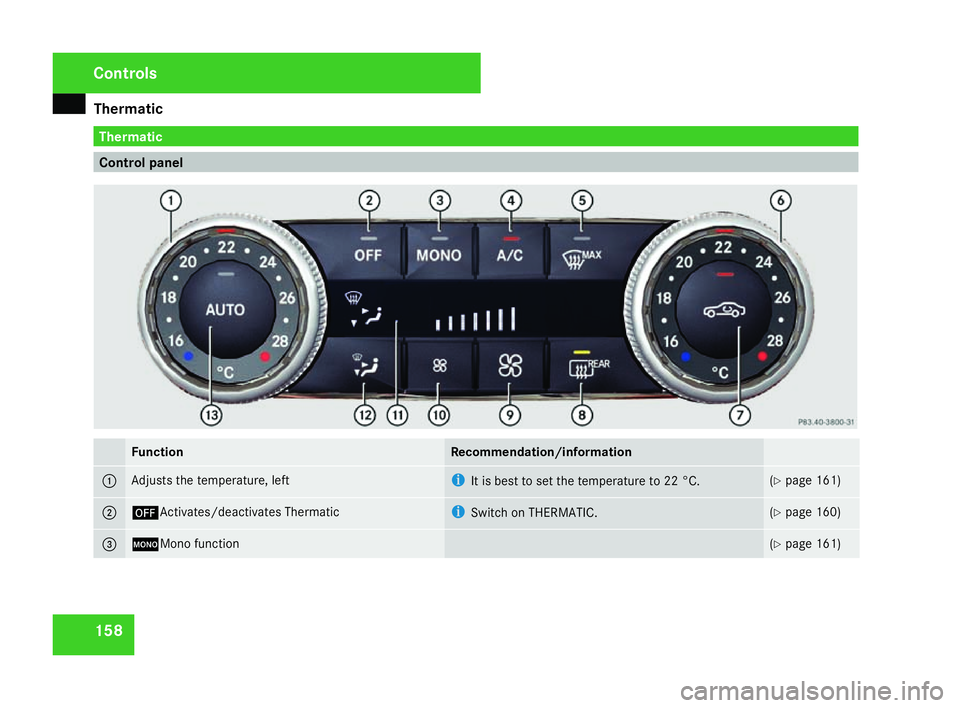

MERCEDES-BENZ C-CLASS ESTATE 2007 Owners Manual

Thermatic
15
8 Thermatic
Control pane
lFunctionRecommendation/information
1Adjusts the temperature, lefti
It is best to set the temperature to 22 °C.(Y page 161 )
2´Activates/deactivates Thermatici
Switch on THERMATIC.(Y page 160 )
3zMono function(Y page 161 )
Controls
204_AKB; 2; 3, en-GB
mkalafa, 2007-06-26T23:11:51+02:00 - Seite 158

Thermatic
15

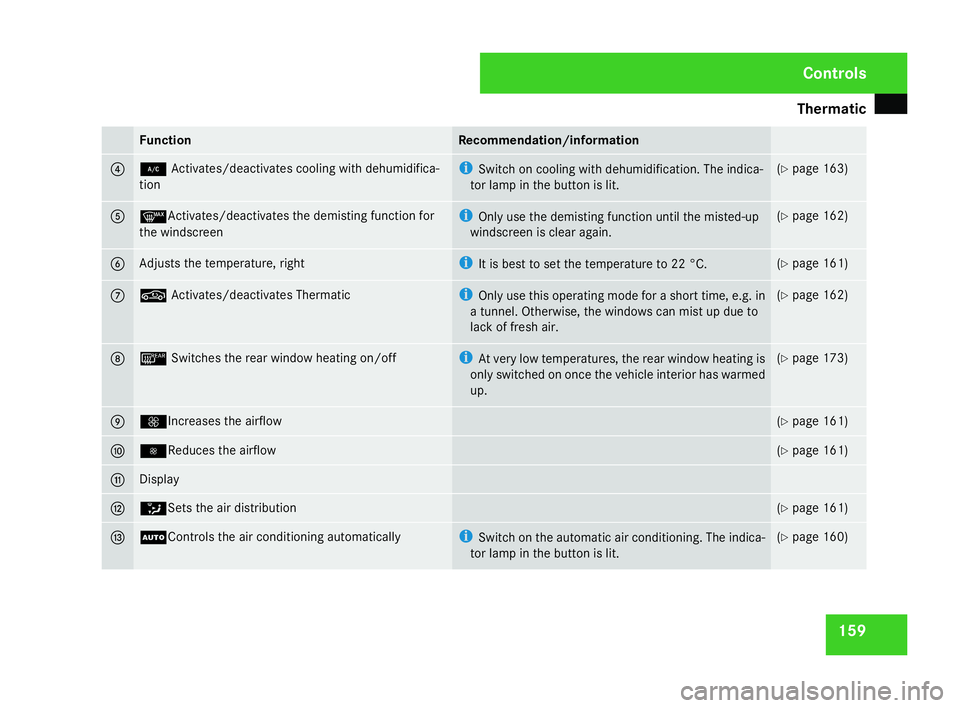

9 Function Recommendation/information
4 2
Activates/deactivates cooling with dehumidifica-
tio n i
Switch on cooling with dehumidification. The indica -
tor lamp in the button is lit. (
Y page 163 ) 5 y
Activates/deactivates the demisting function for
the windscree n i
Only use the demisting function until the misted-up
windscreen is clear again. (
Y page 162 ) 6 Adjusts the temperature, right i
It is best to set the temperature to 22 °C. (
Y page 161 ) 7 ,
Activates/deactivates Thermatic i
Only use this operating mode for a short time, e.g. in
a tunnel. Otherwise, the windows can mist up due to
lack of fresh air. (
Y page 162 ) 8 ¯
Switches the rear window heating on/of f i
At very low temperatures, the rear window heating is
only switched on once the vehicle interior has warme d
up. (
Y page 173 ) 9 Q
Increases the airflow (
Y page 161 ) a ·
Reduces the airflow (
Y page 161 ) b Display
c Z
Sets the air distribution (
Y page 161 ) d U
Controls the air conditioning automatically i
Switch on the automatic air conditioning. The indica -
tor lamp in the button is lit. (
Y page 160 ) Cont
rols
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 159

Thermatic
16
0

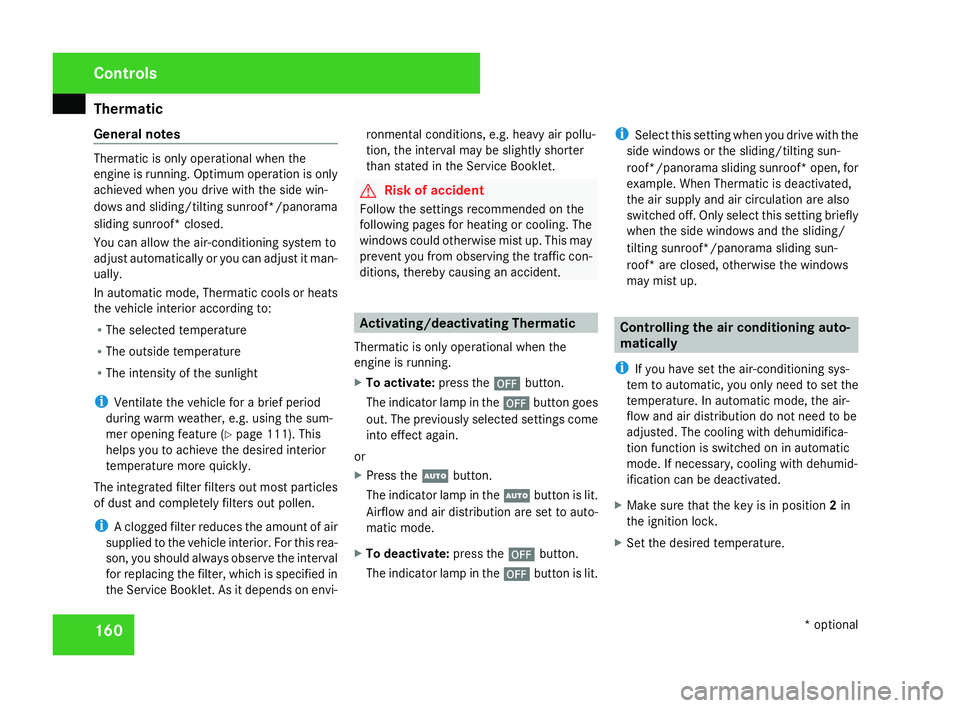

General notes Thermatic is only operational when the
engine is running. Optimum operation is only
achieved when you drive with the side win-
dows and sliding/tilting sunroof*/panorama
sliding sunroof* closed .
You can allow the air-conditioning system to
adjust automatically or you can adjust it man-
ually.
In automatic mode, Thermatic cools or heats
the vehicle interior according to:
R The selected temperature
R The outside temperature
R The intensity of the sunlight
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the sum-
mer opening feature (Y page 111). This
helps you to achieve the desired interior
temperature more quickly.
The integrated filter filters out most particles
of dust and completely filters out pollen.
i A clogged filter reduces the amount of ai r
supplied to the vehicle interior. For this rea-
son, you should always observe the interval
for replacing the filter, which is specified in
the Service Booklet. As it depends on envi- ronmental conditions, e.g. heavy air pollu-
tion, the interval may be slightly shorter
than stated in the Service Booklet. G
Risk of accident
Follow the settings recommended on the
following pages for heating or cooling. The
windows could otherwise mist up. This may
prevent you from observing the traffic con-
ditions, thereby causing an accident. Activating/deactivating Thermati
c
Thermatic is only operational when the
engine is running.
X To activate :press the ´button.
The indicator lamp in the ´button goes
out. The previously selected settings come
into effect again.
or
X Press the Ubutton.
The indicator lamp in the Ubutton is lit.
Airflow and air distribution are set to auto-
matic mode.
X To deactivate: press the´button.
The indicator lamp in the ´button is lit. i
Select this setting when you drive with the
side windows or the sliding/tilting sun-
roof*/panorama sliding sunroof* open, for
example. When Thermatic is deactivated,
the air supply and air circulation are also
switched off. Only select this setting briefl y
when the side windows and the sliding/
tilting sunroof*/panorama sliding sun-
roof* are closed, otherwise the windows
may mist up. Controlling the air conditioning auto-
matically
i If you have set the air-conditioning sys-
tem to automatic, you only need to set the
temperature. In automatic mode, the air-
flow and air distribution do not need to be
adjusted. The cooling with dehumidifica-
tion function is switched on in automatic
mode. If necessary, cooling with dehumid-
ification can be deactivated.
X Make sure that the key is in position 2in
the ignition lock .
X Set the desired temperature .Cont
rols
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 160

Thermatic
16
1

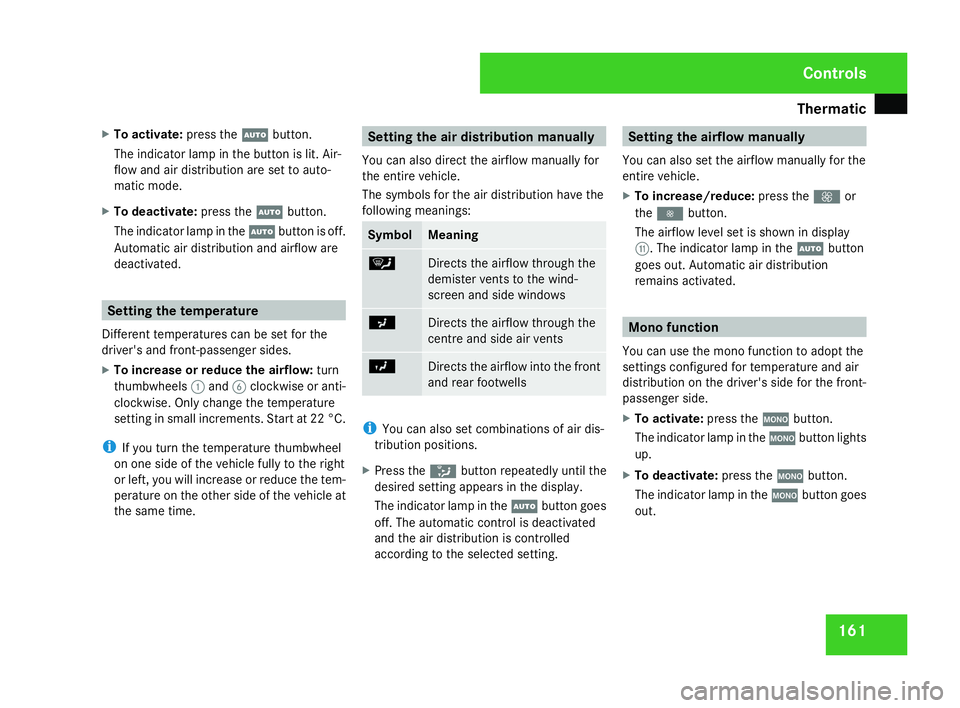

X
To activate :press the Ubutton.
The indicator lamp in the button is lit. Air-
flow and air distribution are set to auto-
matic mode.
X To deactivate: press theUbutton.
The indicator lamp in the Ubutton is off.
Automatic air distribution and airflow are
deactivated. Setting the temperatur
e
Different temperatures can be set for the
driver's and front-passenger sides.
X To increase or reduce the airflow: turn
thumbwheels 1and 6clockwise or anti -
clockwise. Only change the temperature
setting in small increments. Start at 22 °C .
i If you turn the temperature thumbwheel
on one side of the vehicle fully to the right
or left, you will increase or reduce the tem-
perature on the other side of the vehicle at
the same time. Setting the air distribution manually
You can also direct the airflow manually for
the entire vehicle .
The symbols for the air distribution have the
following meanings: Symbol Meaning
{
Directs the airflow through the
demister vents to the wind-
screen and side windows
a
Directs the airflow through the
centre and side air vents
Y
Directs the airflow into the front
and rear footwell
s i
You can also set combinations of air dis-
tribution positions .
X Press the Zbutton repeatedly until the
desired setting appears in the display.
The indicator lamp in the Ubutton goes
off. The automatic control is deactivated
and the air distribution is controlled
according to the selected setting. Setting the airflow manually
You can also set the airflow manually for the
entire vehicle.
X To increase/reduce: press theQor
the Ï button.
The airflow level set is shown in display
b . The indicator lamp in the Ubutton
goes out. Automatic air distribution
remains activated. Mono function
You can use the mono function to adopt the
settings configured for temperature and air
distribution on the driver's side for the front-
passenger side.
X To activate :press the zbutton.
The indicator lamp in the zbutton lights
up.
X To deactivate: press thezbutton.
The indicator lamp in the zbutton goes
out. Controls
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 161

Thermatic
16

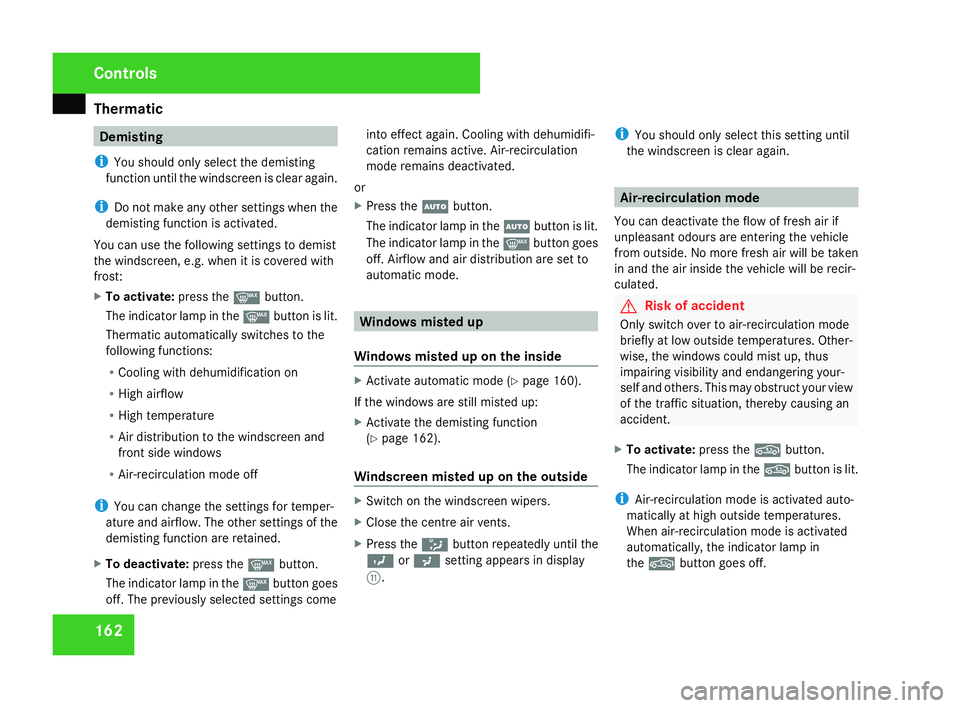

2 Demisting
i You should only select the demisting
function until the windscreen is clear again.
i Do not make any other settings when the
demisting function is activated .
You can use the following settings to demist
the windscreen, e.g. when it is covered with
frost:
X To activate :press the ybutton.
The indicator lamp in the ybutton is lit.
Thermatic automatically switches to the
following functions:
R Cooling with dehumidification on
R High airflo w
R High temperature
R Air distribution to the windscreen and
front side windows
R Air-recirculation mode off
i You can change the settings for temper-
ature and airflow. The other settings of the
demisting function are retained.
X To deactivate: press theybutton.
The indicator lamp in the ybutton goes
off. The previously selected settings come into effect again. Cooling with dehumidifi-
cation remains active. Air-recirculation
mode remains deactivated.
or
X Press the Ubutton.
The indicator lamp in the Ubutton is lit.
The indicator lamp in the ybutton goes
off. Airflow and air distribution are set to
automatic mode. Windows misted up
Windows misted up on the inside X
Activate automatic mode (Y page 160).
If the windows are still misted up:
X Activate the demisting functio n
( Y page 162).
Windscreen misted up on the outsid e X
Switch on the windscreen wipers.
X Close the centre air vents .
X Press the Zbutton repeatedly until the
Y ora setting appears in display
b . i
You should only select this setting until
the windscreen is clear again. Air-recirculation mod
e
You can deactivate the flow of fresh air if
unpleasant odours are entering the vehicle
from outside. No more fresh air will be taken
in and the air inside the vehicle will be recir-
culated. G
Risk of accident
Only switch over to air-recirculation mod e
briefly at low outside temperatures. Other -
wise, the windows could mist up, thus
impairing visibility and endangering your-
self and others. This may obstruct your view
of the traffic situation, thereby causing an
accident.
X To activate :press the ,button.
The indicator lamp in the ,button is lit.
i Air-recirculation mode is activated auto-
matically at high outside temperatures.
When air-recirculation mode is activated
automatically, the indicator lamp in
the , button goes off. Controls
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 162

Thermatic
16
3

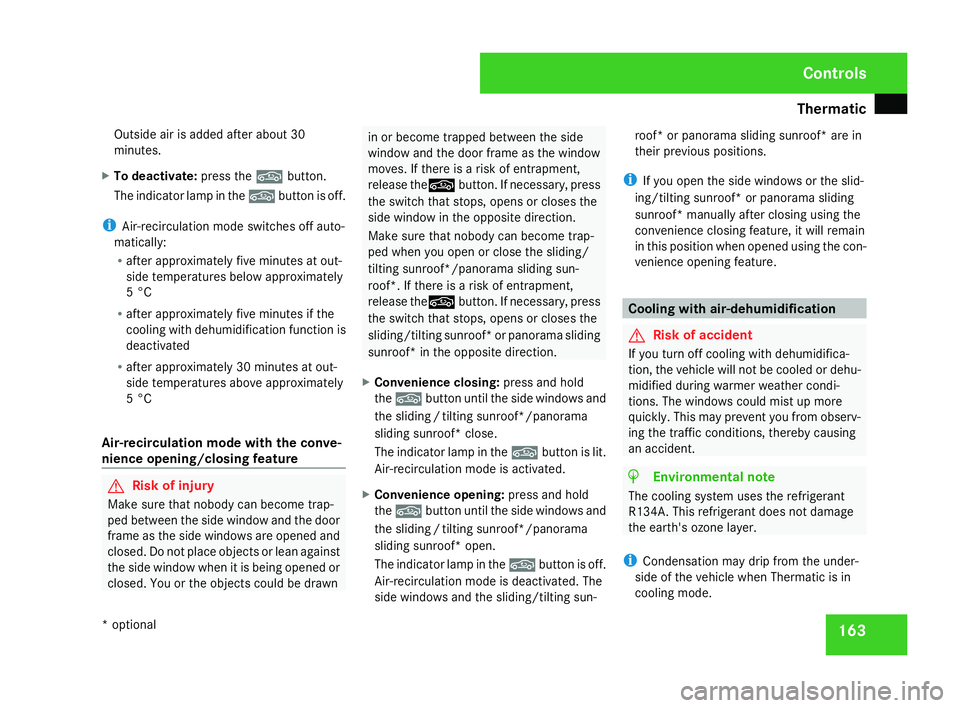

Outside air is added after about 30
minutes.
X To deactivate: press the,button.
The indicator lamp in the ,button is off.
i Air-recirculation mode switches off auto-
matically:
R after approximately five minutes at out -
side temperatures below approximately
5 °C
R after approximately five minutes if th e
cooling with dehumidification function is
deactivated
R after approximately 30 minutes at out -
side temperatures above approximately
5 °C
Air-recirculation mode with the conve-
nience opening/closing feature G
Risk of injury
Make sure that nobody can become trap -
ped between the side window and the door
frame as the side windows are opened and
closed. Do not place objects or lean against
the side window when it is being opened or
closed. You or the objects could be drawn in or become trapped between the side
window and the door frame as the window
moves. If there is a risk of entrapment,
release the
,button. If necessary, press
the switch that stops, opens or closes the
side window in the opposite direction.
Make sure that nobody can become trap-
ped when you open or close the sliding/
tilting sunroof*/panorama sliding sun-
roof*. If there is a risk of entrapment,
release the ,button. If necessary, press
the switch that stops, opens or closes the
sliding/tilting sunroof* or panorama sliding
sunroof* in the opposite direction.
X Convenience closing: press and hold
the , button until the side windows and
the sliding /tilting sunroof*/panorama
sliding sunroof* close.
The indicator lamp in the ,button is lit.
Air-recirculation mode is activated.
X Convenience opening: press and hold
the , button until the side windows and
the sliding /tilting sunroof*/panorama
sliding sunroof* open .
The indicator lamp in the ,button is off.
Air-recirculation mode is deactivated. The
side windows and the sliding/tilting sun- roof* or panorama sliding sunroof
*are in
their previous positions .
i If you open the side windows or the slid-
ing/tilting sunroof* or panorama slidin g
sunroof* manually after closing using the
convenience closing feature, it will remain
in this position when opened using the con-
venience opening feature. Cooling with air-dehumidification
G
Risk of accident
If you turn off cooling with dehumidifica -
tion, the vehicle will not be cooled or dehu -
midified during warmer weather condi-
tions. The windows could mist up more
quickly. This may prevent you from observ-
ing the traffic conditions, thereby causing
an accident. H
Environmental not
e
The cooling system uses the refrigerant
R134A. This refrigerant does not damage
the earth's ozone layer.
i Condensation may drip from the under-
side of the vehicle when Thermatic is in
cooling mode. Control
s
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 163

Thermatic
16
4

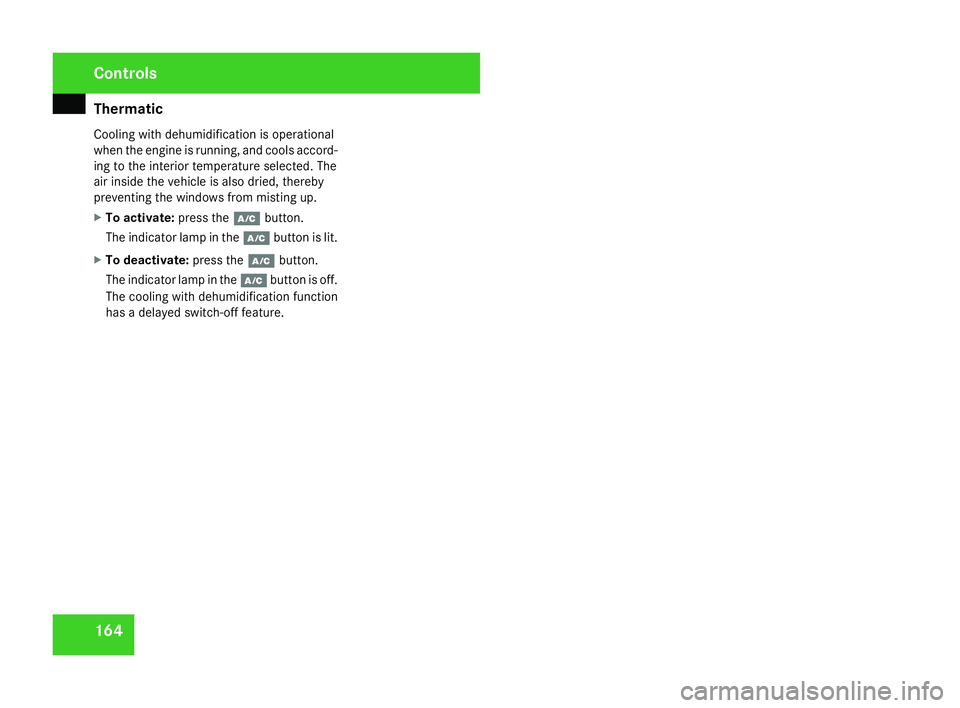

Cooling with dehumidification is operational
when the engine is running, and cools accord
-
ing to the interior temperature selected. The
air inside the vehicle is also dried, thereby
preventing the windows from misting up.
X To activate :press the œbutton.
The indicator lamp in the œbutton is lit.
X To deactivate: press theœbutton.
The indicator lamp in the œbutton is off.
The cooling with dehumidification function
has a delayed switch-off feature. Controls
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 164

Thermotronic*
16

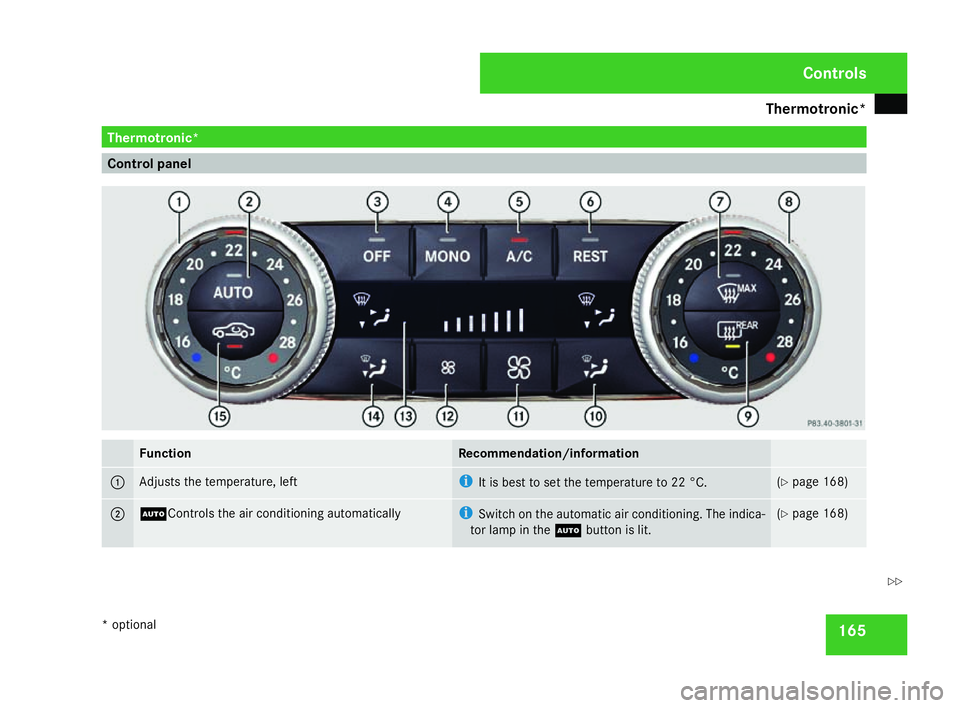

5 Thermotronic*
Control pane
l Function Recommendation/information
1 Adjusts the temperature, left i
It is best to set the temperature to 22 °C. (
Y page 168 ) 2 U
Controls the air conditioning automatically i
Switch on the automatic air conditioning. The indica -
tor lamp in the Ubutton is lit. (
Y page 168 ) Cont
rols
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 165 Z

Thermotronic*
16

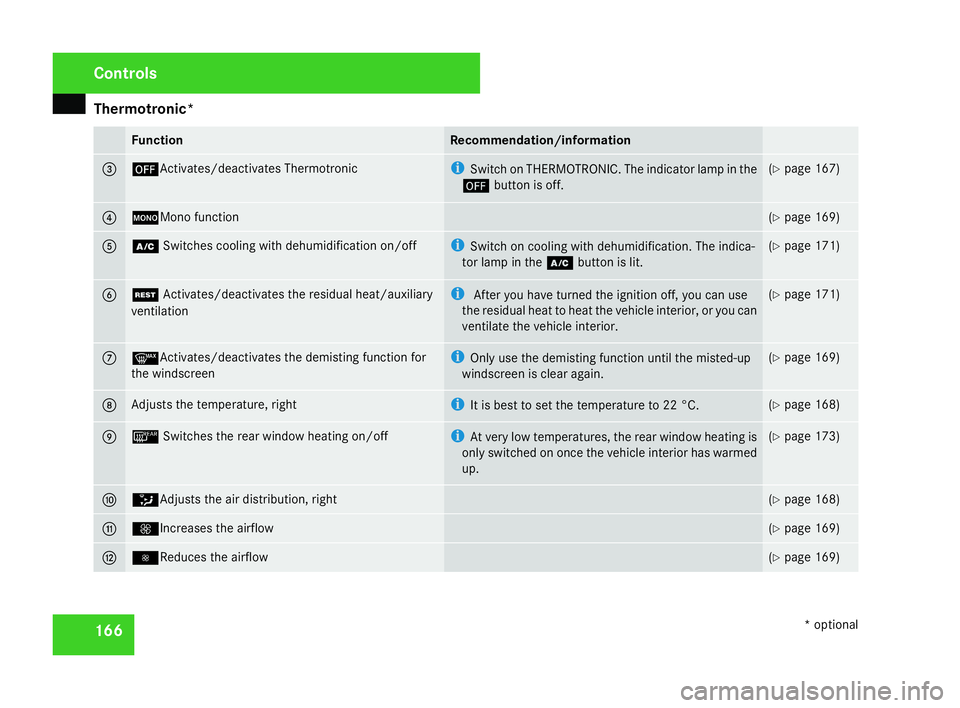

6 Function Recommendation/information
3 ´
Activates/deactivates Thermotroni c i
Switch on THERMOTRONIC. The indicator lamp in the
´ button is off. (
Y page 167 ) 4 z
Mono function (
Y page 169 ) 5 œ
Switches cooling with dehumidification on/of f i
Switch on cooling with dehumidification. The indica -
tor lamp in the œbutton is lit. (
Y page 171 ) 6 T
Activates/deactivates the residual heat/auxiliar y
ventilation i
After you have turned the ignition off, you can us e
the residual heat to heat the vehicle interior, or you can
ventilate the vehicle interior. (
Y page 171 ) 7 y
Activates/deactivates the demisting function for
the windscree n i
Only use the demisting function until the misted-up
windscreen is clear again. (
Y page 169 ) 8 Adjusts the temperature, right i
It is best to set the temperature to 22 °C. (
Y page 168 ) 9 ¯
Switches the rear window heating on/of f i
At very low temperatures, the rear window heating is
only switched on once the vehicle interior has warme d
up. (
Y page 173 ) a Z
Adjusts the air distribution, right (
Y page 168 ) b Q
Increases the airflow (
Y page 169 ) c ·
Reduces the airflow (
Y page 169 ) Cont
rols
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 166

Thermotronic*
16

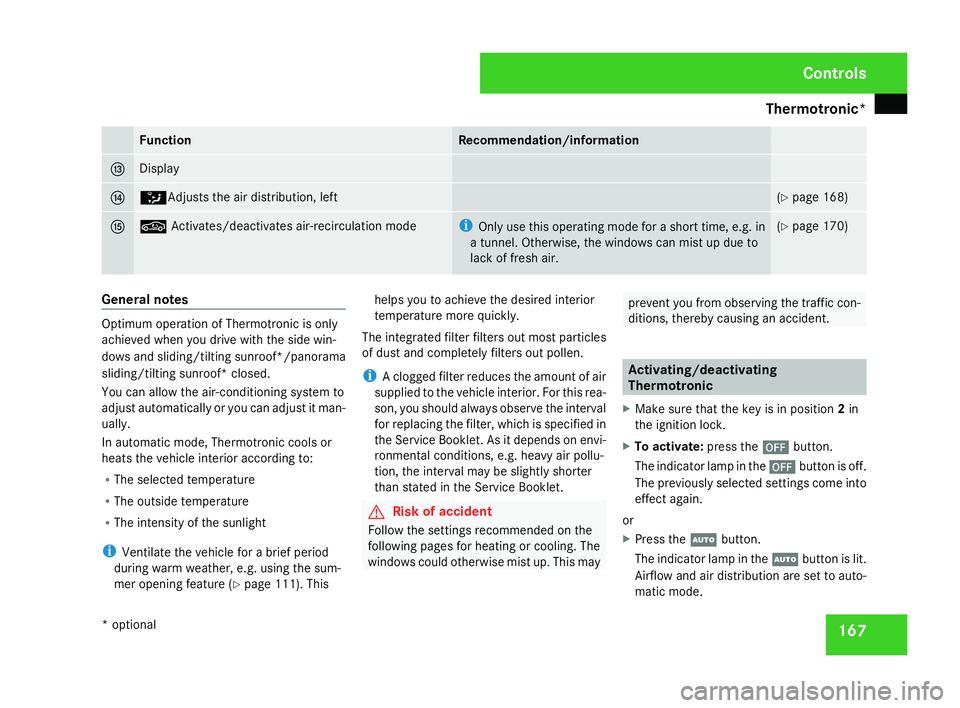

7 Function Recommendation/information
d Display
e Z
Adjusts the air distribution, left (
Y page 168 ) f ,
Activates/deactivates air-recirculation mod e i
Only use this operating mode for a short time, e.g. in
a tunnel. Otherwise, the windows can mist up due to
lack of fresh air. (
Y page 170 ) General notes
Optimum operation of Thermotronic is only
achieved when you drive with the side win-
dows and sliding/tilting sunroof*/panorama
sliding/tilting sunroof* closed
.
You can allow the air-conditioning system to
adjust automatically or you can adjust it man-
ually.
In automatic mode, Thermotronic cools or
heats the vehicle interior according to:
R The selected temperature
R The outside temperature
R The intensity of the sunlight
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the sum-
mer opening feature (Y page 111). This helps you to achieve the desired interior
temperature more quickly.
The integrated filter filters out most particles
of dust and completely filters out pollen.
i A clogged filter reduces the amount of ai r
supplied to the vehicle interior. For this rea-
son, you should always observe the interval
for replacing the filter, which is specified in
the Service Booklet. As it depends on envi-
ronmental conditions, e.g. heavy air pollu-
tion, the interval may be slightly shorter
than stated in the Service Booklet. G
Risk of accident
Follow the settings recommended on the
following pages for heating or cooling. The
windows could otherwise mist up. This may prevent you from observing the traffic con-
ditions, thereby causing an accident. Activating/deactivatin
g
Thermotroni c
X Make sure that the key is in position 2in
the ignition lock .
X To activate :press the ´button.
The indicator lamp in the ´button is off.
The previously selected settings come int o
effect again.
or
X Press the Ubutton.
The indicator lamp in the Ubutton is lit.
Airflow and air distribution are set to auto-
matic mode. Controls
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 167
