MERCEDES-BENZ C-CLASS ESTATE 2007 Owners Manual

Jump-starting

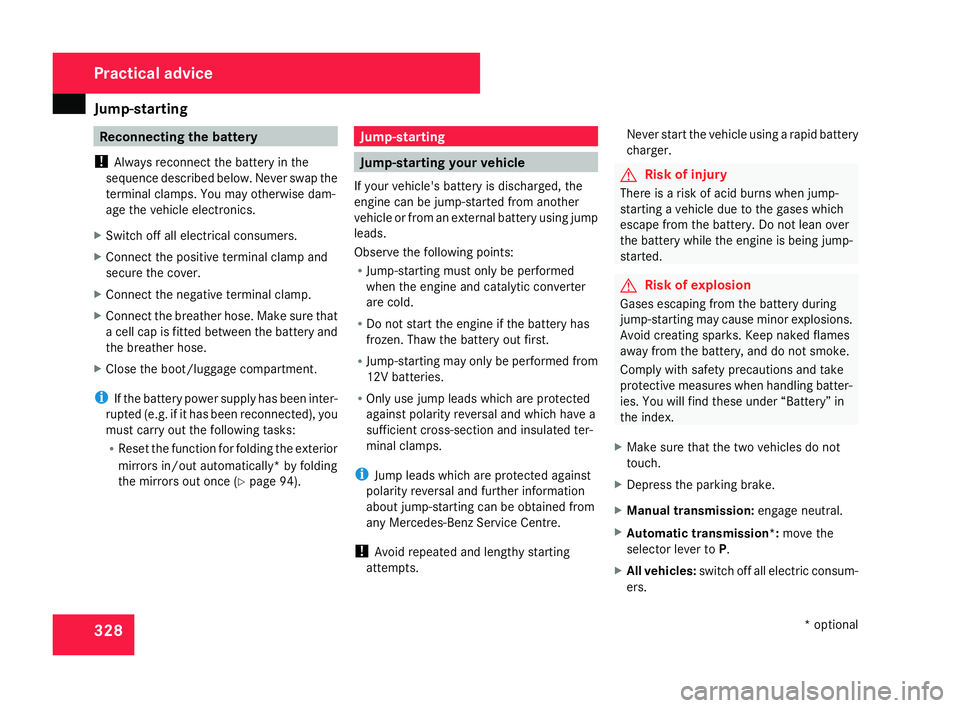

328 Reconnecting the battery
! Always reconnect the battery in the
sequence described below. Never swap the
terminal clamps. You may otherwise dam-
age the vehicle electronics.
X Switch off all electrical consumers .
X Connect the positive terminal clamp and
secure the cover .
X Connect the negative terminal clamp.
X Connect the breather hose. Make sure that
a cell cap is fitted between the battery and
the breather hose.
X Close the boot/luggage compartment.
i If the battery power supply has been inter-
rupted (e.g. if it has been reconnected), you
must carry out the following tasks:
R Reset the function for folding the exterio r
mirrors in/out automatically* by folding
the mirrors out once (Y page 94). Jump-starting
Jump-starting your vehicle
If your vehicle's battery is discharged, the
engine can be jump-started from another
vehicle or from an external battery using jump
leads.
Observe the following points:
R Jump-starting must only be performed
when the engine and catalytic converte r
are cold.
R Do not start the engine if the battery ha s
frozen. Thaw the battery out first.
R Jump-starting may only be performed from
12V batteries .
R Only use jump leads which are protected
against polarity reversal and which have a
sufficient cross-section and insulated ter-
minal clamps.
i Jump leads which are protected against
polarity reversal and further informatio n
about jump-starting can be obtained from
any Mercedes-Benz Service Centre.
! Avoid repeated and lengthy starting
attempts. Never start the vehicle using a rapid battery
charger. G
Risk of injury
There is a risk of acid burns when jump -
starting a vehicle due to the gases which
escape from the battery. Do not lean over
the battery while the engine is being jump-
started. G
Risk of explosion
Gases escaping from the battery during
jump-starting may cause minor explosions.
Avoid creating sparks. Keep naked flames
away from the battery, and do not smoke .
Comply with safety precautions and tak e
protective measures when handling batter-
ies. You will find these under “Battery” in
the index .
X Make sure that the two vehicles do not
touch.
X Depress the parking brake.
X Manual transmission: engage neutral.
X Automatic transmission*: move the
selector lever to P.
X All vehicles: switch off all electric consum-
ers . Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 328

Towing and tow-startin
g 329

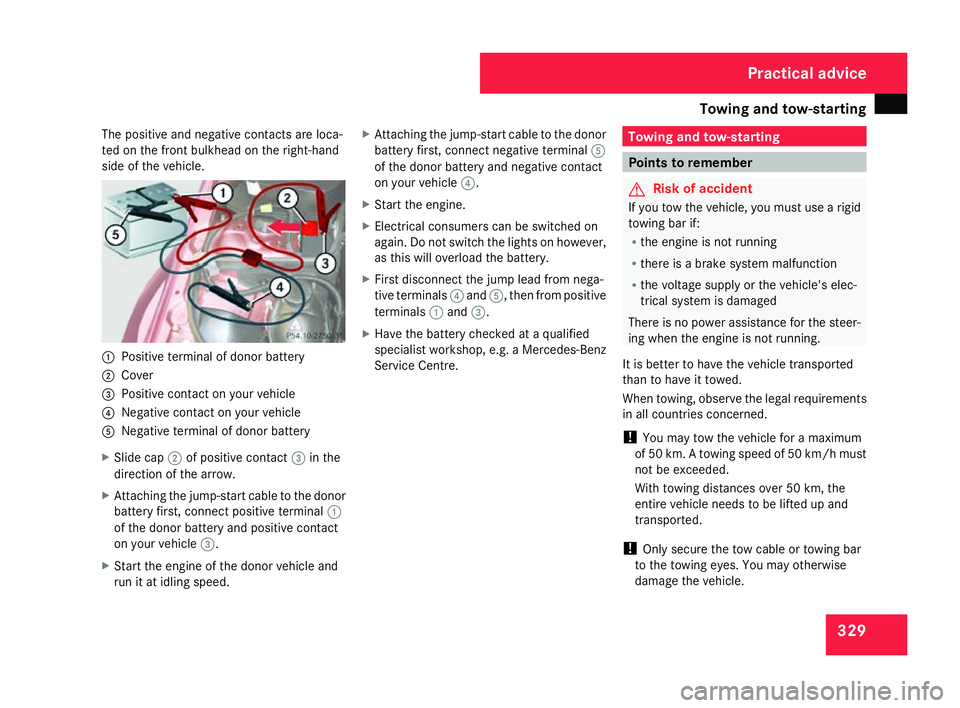

The positive and negative contacts are loca-
ted on the front bulkhead on the right-han d
side of the vehicle. 1
Positive terminal of donor batter y
2 Cove r
3 Positive contact on your vehicle
4 Negative contact on your vehicle
5 Negative terminal of donor battery
X Slide cap 2of positive contact 3in the
direction of the arrow.
X Attaching the jump-start cable to the donor
battery first, connect positive terminal 1
of the donor battery and positive contact
on your vehicle 3.
X Start the engine of the donor vehicle and
run it at idling speed . X
Attaching the jump-start cable to the donor
battery first, connect negative terminal 5
of the donor battery and negative contact
on your vehicle 4.
X Start the engine.
X Electrical consumers can be switched on
again. Do not switch the lights on however ,
as this will overload the battery.
X First disconnect the jump lead from nega -
tive terminals 4and 5, then from positiv e
terminals 1and 3.
X Have the battery checked at a qualified
specialist workshop, e.g. a Mercedes-Benz
Service Centre. Towing and tow-starting
Points to remember
G
Risk of accident
If you tow the vehicle, you must use a rigid
towing bar if:
R the engine is not running
R there is a brake system malfunctio n
R the voltage supply or the vehicle's elec-
trical system is damage d
There is no power assistance for the steer-
ing when the engine is not running.
It is better to have the vehicle transported
than to have it towed.
When towing, observe the legal requirement s
in all countries concerned.
! You may tow the vehicle for a maximum
of 50 km. A towing speed of 50 km/h must
not be exceeded.
With towing distances over 50 km, the
entire vehicle needs to be lifted up and
transported.
! Only secure the tow cable or towing bar
to the towing eyes. You may otherwise
damage the vehicle. Practical advice
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 329

Towing and tow-startin
g330
R
Vehicles with an automatic transmission*
must not be tow-started.
R If the engine does not start, try jump-start-
ing it (Y page 328).
R If it is not possible to jump-start the vehicle ,
have it towed to the nearest qualified spe-
cialist workshop, e.g. a Mercedes-Ben z
Service Centre.
R If the vehicle has suffered transmission
damage, only tow it with the propeller shaft
disconnected.
R The selector lever must be in position Non
vehicles with automatic transmission*.
R If you are towing the vehicle over a consid-
erable distance, this may only be done with
the rear axle raised.
R The ignition must be switched off if you are
towing the vehicle with the front/rear axle
raised. Intervention by ESP ®
could other-
wise damage the brake system.
R Vehicles with 4MATIC* may not be towed
with the front or rear axle raised.
R Before towing the vehicle, make sure that
the battery is connected and charged. Oth-
erwise : -
You cannot switch on the ignition
- You cannot move the selector lever
to N(on vehicles with automatic trans-
mission*)
- You have no support when braking
i Switch off the automatic locking feature
before the vehicle is towed. You could oth-
erwise be locked out when pushing or tow -
ing the vehicle.
Deactivate tow-away protection befor e
towing (Y page 71). Fitting the towing eye
Vehicles with a trailer coupling: your vehi-
cle does not have a rear threaded socket for
mounting the towing eye. If you intend to use
the vehicle for towing, fold out the ball cou-
pling and secure the towline to it
( Y page 220).
Opening the front cover The fixtures for the removable towing eyes
are located in the bumpers. They are locatedat the front and rear under the covers on the
right-hand side of the vehicle.
Front bumper
1
Cove r
X Press the mark on cover 1inwards.
X Take cover 1off the opening but do not
remove it. Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 330

Towing and tow-startin
g 331

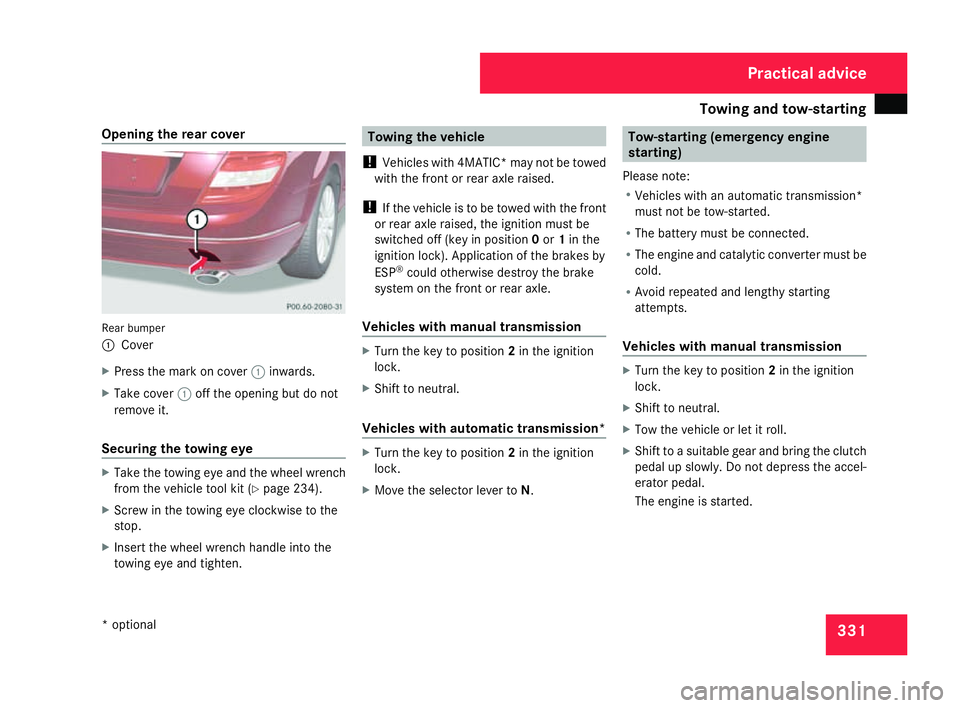

Opening the rear cover
Rear bumper
1
Cove r
X Press the mark on cover 1inwards.
X Take cover 1off the opening but do not
remove it.
Securing the towing eye X
Take the towing eye and the wheel wrench
from the vehicle tool kit (Y page 234).
X Screw in the towing eye clockwise to the
stop .
X Insert the wheel wrench handle into the
towing eye and tighten. Towing the vehicle
! Vehicles with 4MATIC* may not be towed
with the front or rear axle raised.
! If the vehicle is to be towed with the front
or rear axle raised, the ignition must be
switched off (key in position 0or 1in the
ignition lock). Application of the brakes by
ESP ®
could otherwise destroy the brake
system on the front or rear axle.
Vehicles with manual transmission X
Turn the key to position 2in the ignition
lock .
X Shift to neutral .
Vehicles with automatic transmission * X
Turn the key to position 2in the ignition
lock .
X Move the selector lever to N. Tow-starting (emergency engine
starting )
Please note:
R Vehicles with an automatic transmission*
must not be tow-started.
R The battery must be connected.
R The engine and catalytic converter must be
cold.
R Avoid repeated and lengthy starting
attempts .
Vehicles with manual transmission X
Turn the key to position 2in the ignition
lock .
X Shift to neutral .
X Tow the vehicle or let it roll.
X Shift to a suitable gear and bring the clutch
pedal up slowly. Do not depress the accel-
erator pedal.
The engine is started. Practical advice
* optiona l
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 331

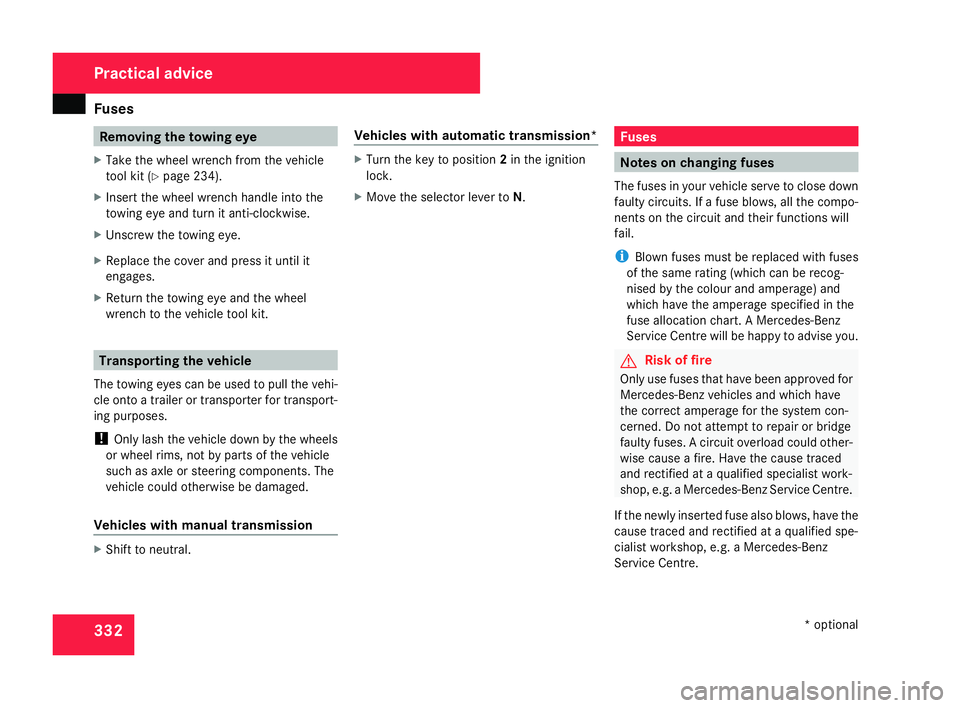

Fuse
s 332 Removing the towing eye
X Take the wheel wrench from the vehicle
tool kit (Y page 234).
X Insert the wheel wrench handle into the
towing eye and turn it anti-clockwise.
X Unscrew the towing eye.
X Replace the cover and press it until it
engages.
X Return the towing eye and the whee l
wrench to the vehicle tool kit .Transporting the vehicle
The towing eyes can be used to pull the vehi-
cle onto a trailer or transporter for transport-
ing purposes.
! Only lash the vehicle down by the wheels
or wheel rims, not by parts of the vehicl e
such as axle or steering components. The
vehicle could otherwise be damaged.
Vehicles with manual transmission X
Shift to neutral . Vehicles with automatic transmission
* X
Turn the key to position 2in the ignition
lock .
X Move the selector lever to N. Fuses
Notes on changing fuses
The fuses in your vehicle serve to close down
faulty circuits. If a fuse blows, all the compo -
nents on the circuit and their functions will
fail .
i Blown fuses must be replaced with fuses
of the same rating (which can be recog -
nised by the colour and amperage) and
which have the amperage specified in the
fuse allocation chart. A Mercedes-Benz
Service Centre will be happy to advise you. G
Risk of fire
Only use fuses that have been approved for
Mercedes-Benz vehicles and which have
the correct amperage for the system con-
cerned. Do not attempt to repair or bridge
faulty fuses. A circuit overload could other-
wise cause a fire. Have the cause trace d
and rectified at a qualified specialist work -
shop, e.g. a Mercedes-Benz Service Centre.
If the newly inserted fuse also blows, have the
cause traced and rectified at a qualified spe-
cialist workshop, e.g. a Mercedes-Benz
Service Centre. Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 332

Fuse
s 333
!
Only use fuses that have been approved
for Mercedes-Benz vehicles and which
have the correct amperage for the system
concerned. Otherwise, components or sys-
tems could be damaged.
The fuses are located in various fuse boxes :
R Dashboard fuse box* on driver's side
R Fuse box in the engine compartment on the
driver's sid e
R Fuse box in the boot/luggage compart-
ment on the right-hand side of the vehicle
Fuse allocation chart The fuse allocation chart is located with the
vehicle tool kit (Y page 234) in the stowage
compartment under the boot/luggage com-
partment floor. The fuse amperage is also
indicated there. Before changing a fuse
X Park the vehicle.
X Switch off all electrical consumers .

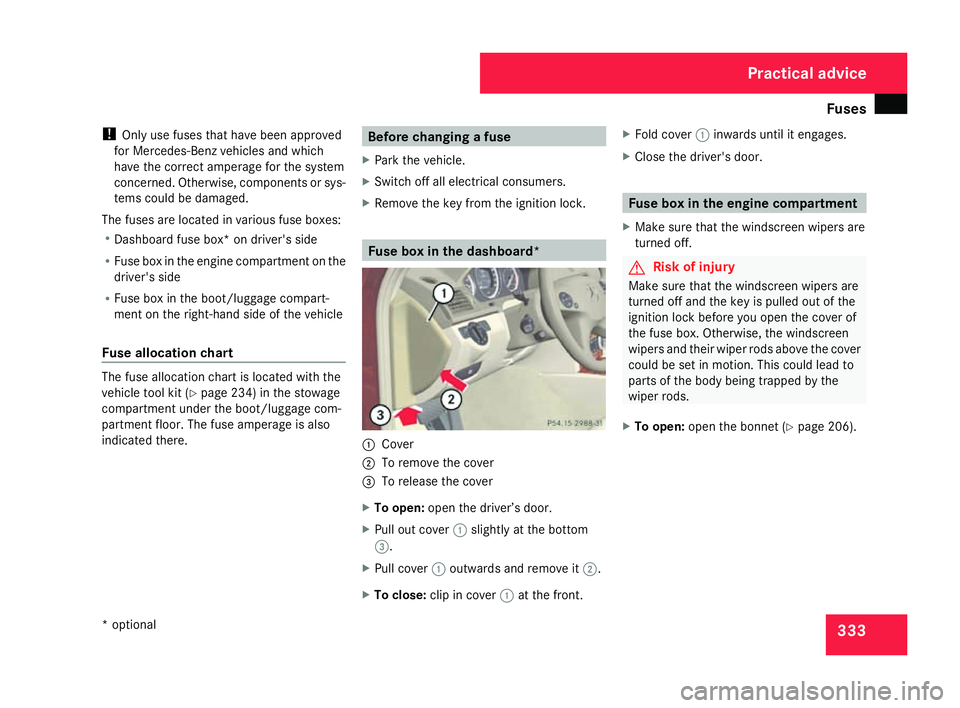

X Remove the key from the ignition lock. Fuse box in the dashboard*
1
Cove r
2 To remove the cover
3 To release the cover
X To open: open the driver’s door.
X Pull out cover 1slightly at the bottom
3 .
X Pull cover 1outwards and remove it 2.
X To close: clip in cover 1at the front. X
Fold cover 1inwards until it engages.
X Close the driver's door . Fuse box in the engine compartment
X Make sure that the windscreen wipers are
turned off. G
Risk of injury
Make sure that the windscreen wipers are
turned off and the key is pulled out of the
ignition lock before you open the cover of
the fuse box. Otherwise, the windscreen
wipers and their wiper rods above the cove r
could be set in motion. This could lead to
parts of the body being trapped by the
wiper rods.
X To open: open the bonnet (Y page 206). Practical advice
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 333

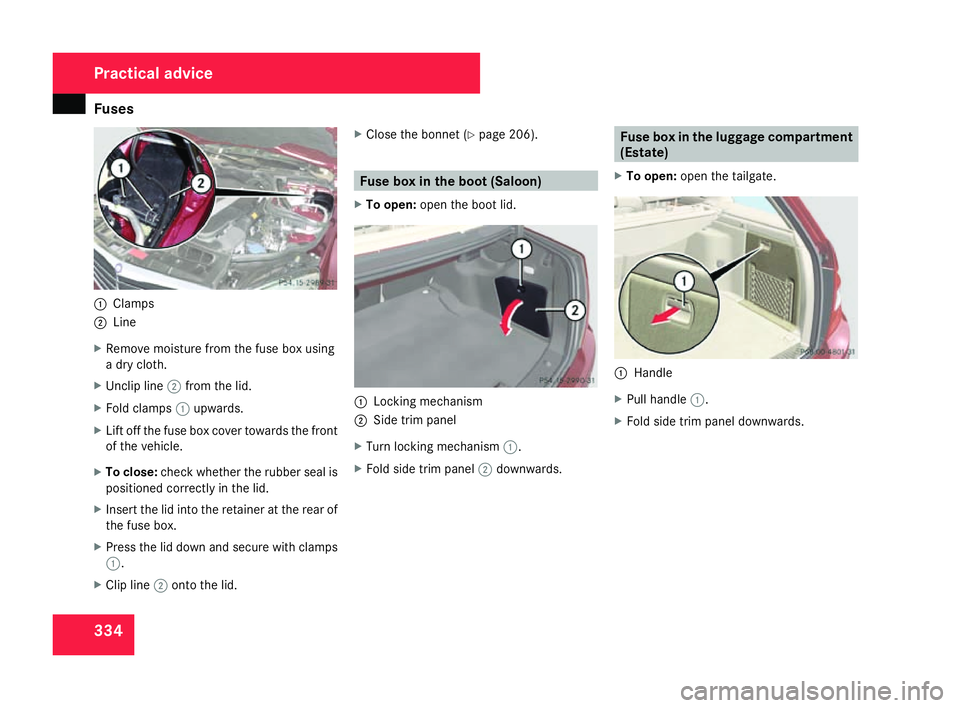

Fuse
s 3341
Clamps
2 Line
X Remove moisture from the fuse box usin g
a dry cloth .
X Unclip line 2from the lid .
X Fold clamps 1upwards.
X Lift off the fuse box cover towards the front
of the vehicle .
X To close: check whether the rubber seal is
positioned correctly in the lid.
X Insert the lid into the retainer at the rear of
the fuse box.
X Press the lid down and secure with clamps
1 .
X Clip line 2onto the lid. X
Close the bonnet (Y page 206). Fuse box in the boot (Saloon)
X To open: open the boot lid. 1
Locking mechanism
2 Side trim panel
X Turn locking mechanism 1.
X Fold side trim panel 2downwards. Fuse box in the luggage compartment
(Estate)
X To open: open the tailgate . 1
Handl e
X Pull handle 1.
X Fold side trim panel downwards. Practical advic
e
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 334

335
Introduction to technical data
.........336
Genuine Mercedes-Benz parts .........336
Vehicle electronics ...........................337
Vehicle identification plates ............339
Engine ................................................ 341
Performance ...................................... 343
Tyres and wheels .............................. 347
Vehicle dimensions ..........................355
Vehicle weights ................................. 355
Trailer coupling* ............................... 358
Service products and capacities .....360 Technical data
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 335

Genuine Mercedes-Benz parts
336 Introduction to technical dat
a
i The technical data was determined in
accordance with EU directives. All data
applies to the vehicle's standard equip-
ment. The data may therefore differ for
vehicles with optional equipment. You can
obtain further information from a
Mercedes-Benz Service Centre. Genuine Mercedes-Benz parts
Mercedes-Benz tests genuine parts and con-
version parts and accessories which have
been specifically approved for your vehicle for
their reliability, safety and suitability.
Despite ongoing market research, Mercedes-
Benz is unable to evaluate other parts.
Mercedes-Benz therefore accepts no respon-
sibility for the use of such parts in Mercedes-
Benz vehicles, even if they have been
independently or officially approved.
In Germany and some other countries, certain
parts are only officially approved for installa-
tion or modification if they comply with legal
requirements. All genuine Mercedes-Ben z
parts meet this requirement.
Observe the suitability of replacement parts
for your vehicle. In many countries, certain
parts which result in a modification to the
vehicle could invalidate the vehicle's general
operating permit . This is the case if:
R
they cause a change of the vehicle typ e
from that for which the vehicle's genera l
operating permit was granted
R other road users could be endangered
R the emission or noise levels are adversely
affected
The use of non-approved parts could affec t
your vehicle's operating safety. Mercedes -
Benz therefore recommends genuine
Mercedes-Benz parts and conversion parts
and accessories that have been approved for
your vehicle . H
Environmental not
e
DaimlerChrysler also supplies recondi-
tioned assemblies and parts which are of
the same quality as new parts. For these ,
the same liability for material defects
applies as with new parts.
Genuine Mercedes-Benz parts and approved
conversion parts and accessories are availa -
ble from Mercedes-Benz Service Centres.
There, you can also receive advice about tech-
nical modifications and have the parts pro-
fessionally fitted.
Always quote the vehicle identification num-
ber and the engine number when orderin gTechni
cal data
204_AKB; 2; 3, en-GB
mkalafa
, 2007-06-26T23:11:51+02:00 - Seite 336

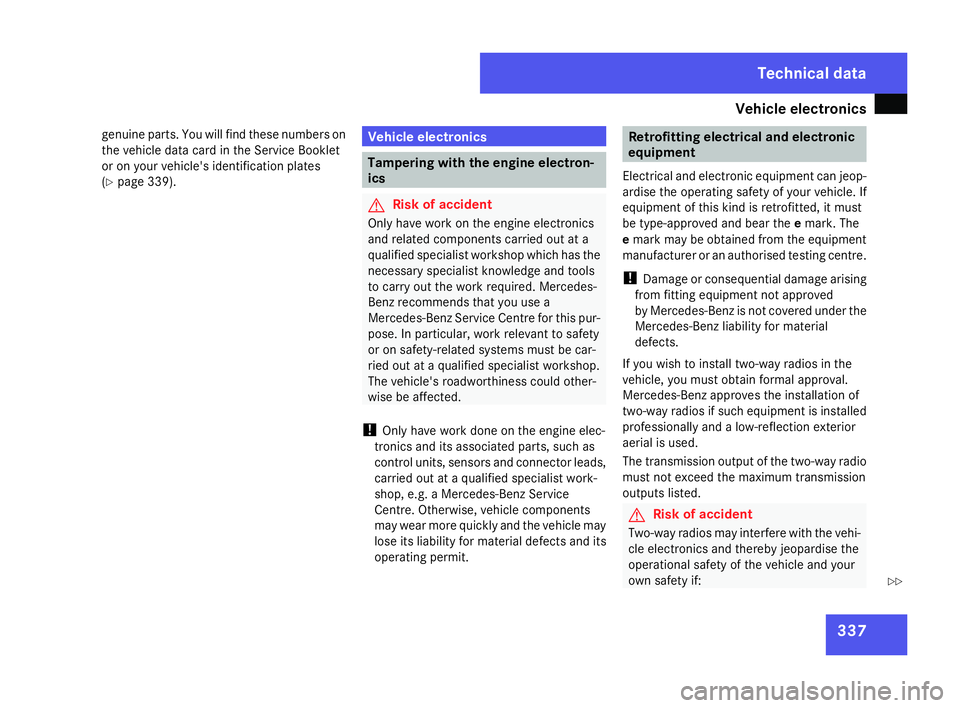

Vehicle electronic
s 337
genuine parts. You will find these numbers on
the vehicle data card in the Service Booklet
or on your vehicle's identification plates
( Y page 339). Vehicle electronics
Tampering with the engine electron-
ics
G
Risk of accident
Only have work on the engine electronics
and related components carried out at a
qualified specialist workshop which has the
necessary specialist knowledge and tools
to carry out the work required. Mercedes-
Benz recommends that you use a
Mercedes-Benz Service Centre for this pur-
pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at a qualified specialist workshop.
The vehicle's roadworthiness could other-
wise be affected.
! Only have work done on the engine elec-
tronics and its associated parts, such as
control units, sensors and connector leads,
carried out at a qualified specialist work-
shop, e.g. a Mercedes-Benz Service
Centre. Otherwise, vehicle components
may wear more quickly and the vehicle may
lose its liability for material defects and its
operating permit. Retrofitting electrical and electronic
equipment
Electrical and electronic equipment can jeop-
ardise the operating safety of your vehicle. If
equipment of this kind is retrofitted, it must
be type-approved and bear the emark. The
e mark may be obtained from the equipment
manufacturer or an authorised testing centre.
! Damage or consequential damage arising
from fitting equipment not approved
by Mercedes-Benz is not covered under the
Mercedes-Benz liability for materia l
defects.
If you wish to install two-way radios in the
vehicle, you must obtain formal approval.
Mercedes-Benz approves the installation of
two-way radios if such equipment is installed
professionally and a low-reflection exterior
aerial is used.
The transmission output of the two-way radio
must not exceed the maximum transmission
outputs listed. G
Risk of accident
Two-way radios may interfere with the vehi-
cle electronics and thereby jeopardise the
operational safety of the vehicle and your
own safety if: Technical data
204_AKB; 2; 3, en-G
B
mkalafa , 2007-06-26T23:11:51+02:00 - Seite 337 Z
