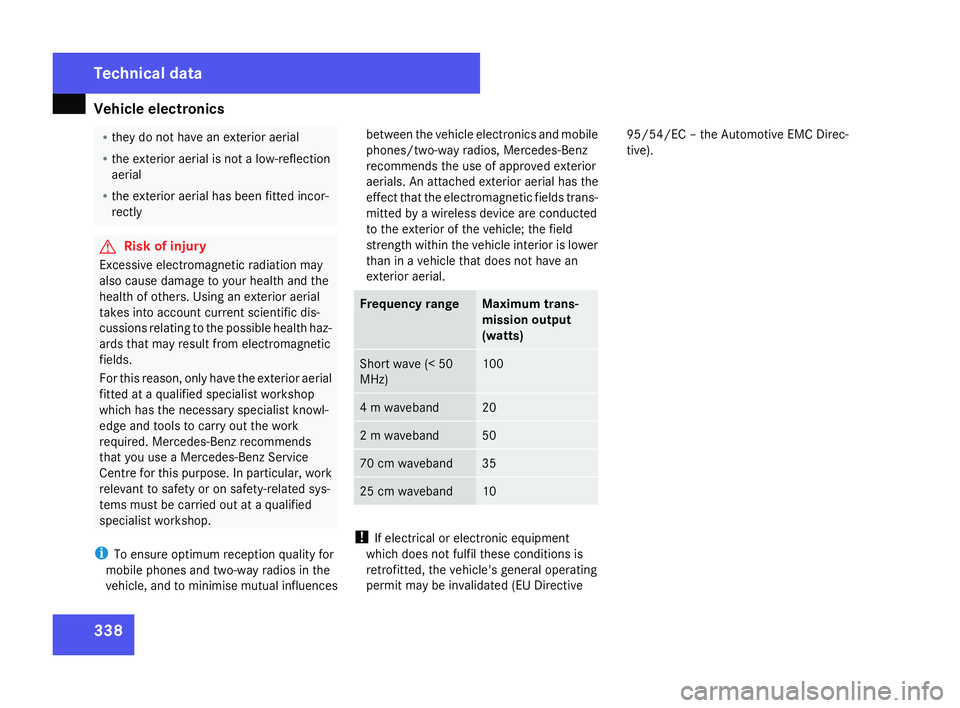

Vehicle electronic
s338 R
they do not have an exterior aerial
R the exterior aerial is not a low-reflection
aerial
R the exterior aerial has been fitted incor-
rectly G
Risk of injury
Excessive electromagnetic radiation may
also cause damage to your health and the
health of others. Using an exterior aeria l
takes into account current scientific dis-
cussions relating to the possible health haz-
ards that may result from electromagnetic
fields .
For this reason, only have the exterior aeria l
fitted at a qualified specialist worksho p
which has the necessary specialist knowl-
edge and tools to carry out the work
required. Mercedes-Benz recommend s
that you use a Mercedes-Benz Service
Centre for this purpose. In particular, work
relevant to safety or on safety-related sys-
tems must be carried out at a qualifie d
specialist workshop.
i To ensure optimum reception quality for
mobile phones and two-way radios in the
vehicle, and to minimise mutual influences between the vehicle electronics and mobile
phones/two-way radios, Mercedes-Benz
recommends the use of approved exterior
aerials. An attached exterior aerial has the
effect that the electromagnetic fields trans-
mitted by a wireless device are conducted
to the exterior of the vehicle; the field
strength within the vehicle interior is lower
than in a vehicle that does not have an
exterior aerial. Frequency range Maximum trans-
mission outpu
t
(watts) Short wave (< 50
MHz
) 100
4 m waveband 20
2 m waveband 50
70 cm waveband 35
25 cm waveband 10
!
If electrical or electronic equipment
which does not fulfil these conditions is
retrofitted, the vehicle's general operating
permit may be invalidated (EU Directive 95/54/EC – the Automotive EMC Direc-
tive)
. Techni
cal data
204_AKB; 2; 3, en-GB
mkalafa
, 2007-06-26T23:11:51+02:00 - Seite 338

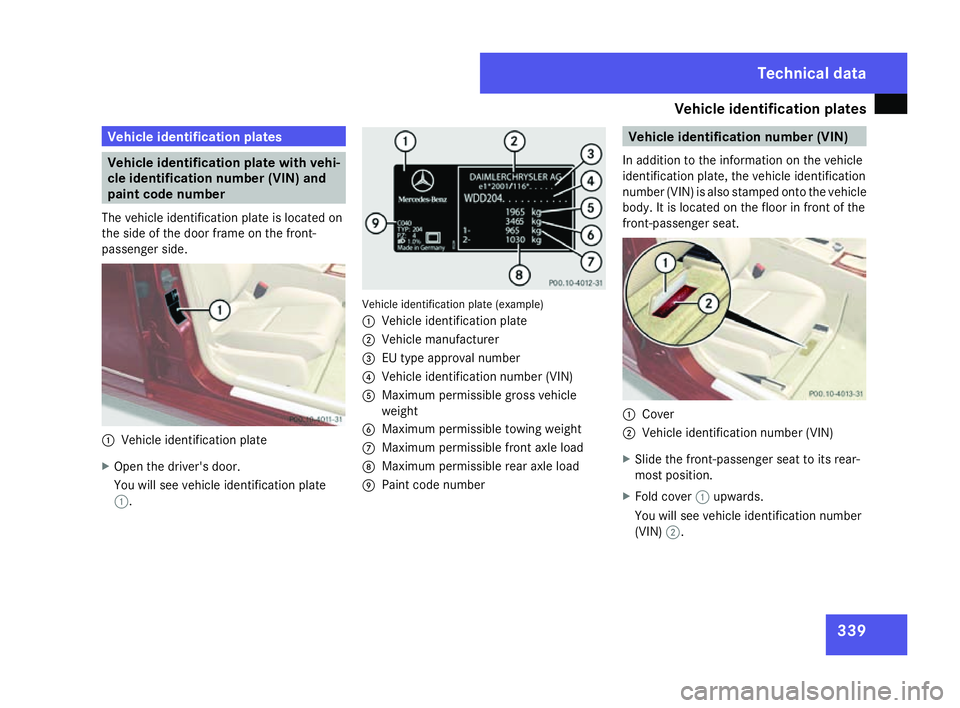

Vehicle identification plate
s 339Vehicle identification plates
Vehicle identification plate with vehi-
cle identification number (VIN) and
paint code number
The vehicle identification plate is located on
the side of the door frame on the front-
passenger side. 1
Vehicle identification plate
X Open the driver's door.
You will see vehicle identification plate
1 . Vehicle identification plate (example)
1
Vehicle identification plate
2 Vehicle manufacturer
3 EU type approval numbe r
4 Vehicle identification number (VIN)
5 Maximum permissible gross vehicle
weight
6 Maximum permissible towing weight
7 Maximum permissible front axle load
8 Maximum permissible rear axle load
9 Paint code number Vehicle identification number (VIN)
In addition to the information on the vehicle
identification plate, the vehicle identification
number (VIN) is also stamped onto the vehicle
body. It is located on the floor in front of the
front-passenger seat. 1
Cove r
2 Vehicle identification number (VIN)
X Slide the front-passenger seat to its rear-
most position.
X Fold cover 1upwards.
You will see vehicle identification number
(VIN) 2. Techni
cal data
204_AKB; 2; 3, en-GB
mkalafa
, 2007-06-26T23:11:51+02:00 - Seite 339

Vehicle identification plate

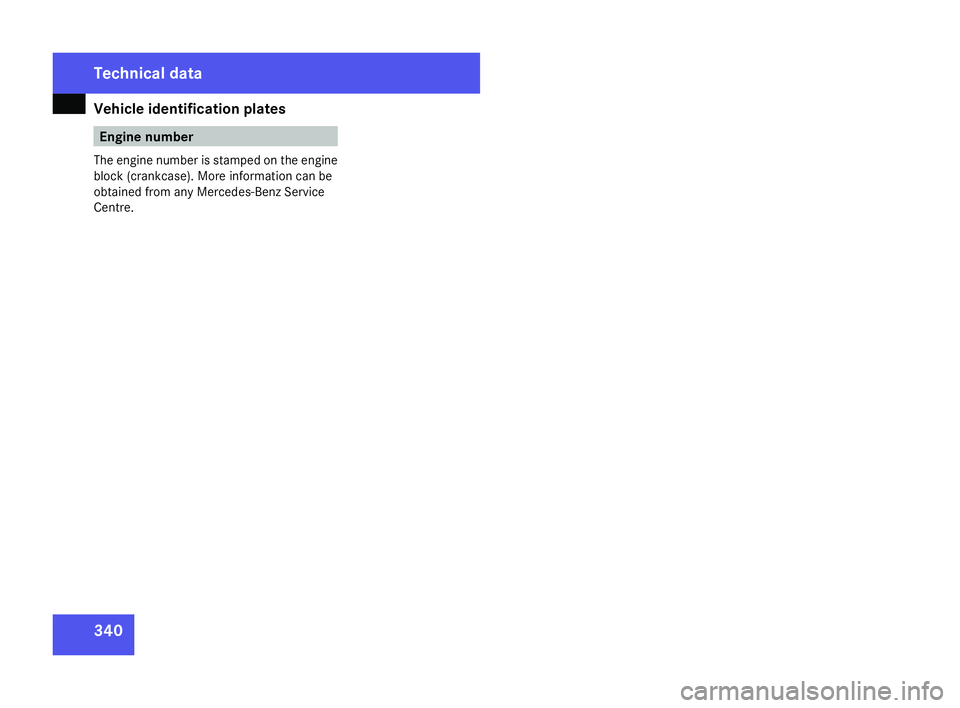

s340 Engine number
The engine number is stamped on the engin e
block (crankcase). More information can be
obtained from any Mercedes-Benz Service
Centre. Technical data
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 340

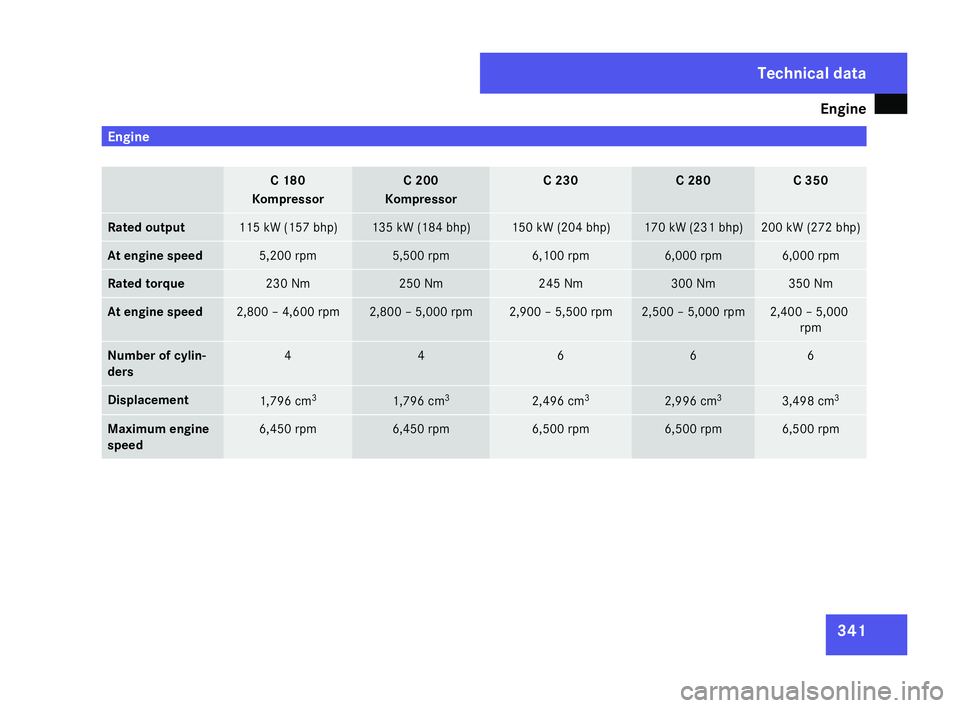

Engine
341Engine
C 180
Kompressor C 200
Kompressor C 230 C 280 C 350
Rated outpu
t 115 kW (157 bhp) 135 kW (184 bhp) 150 kW (204 bhp) 170 kW (231 bhp) 200 kW (272 bhp)
At engine spee
d 5,200 rpm 5,500 rpm 6,100 rpm 6,000 rpm 6,000 rpm
Rated torque 230 Nm 250 Nm 245 Nm 300 Nm 350 Nm
At engine spee
d 2,800 – 4,600 rpm 2,800 – 5,000 rpm 2,900 – 5,500 rpm 2,500 – 5,000 rpm 2,400 – 5,000
rpm Number of cylin-
ders 4 4 6 6 6
Displacement
1,796 cm
3 1,796 cm
3 2,496 cm
3 2,996 cm
3 3,498 cm
3 Maximum engine
spee
d 6,450 rpm 6,450 rpm 6,500 rpm 6,500 rpm 6,500 rpmTechnical data
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 341

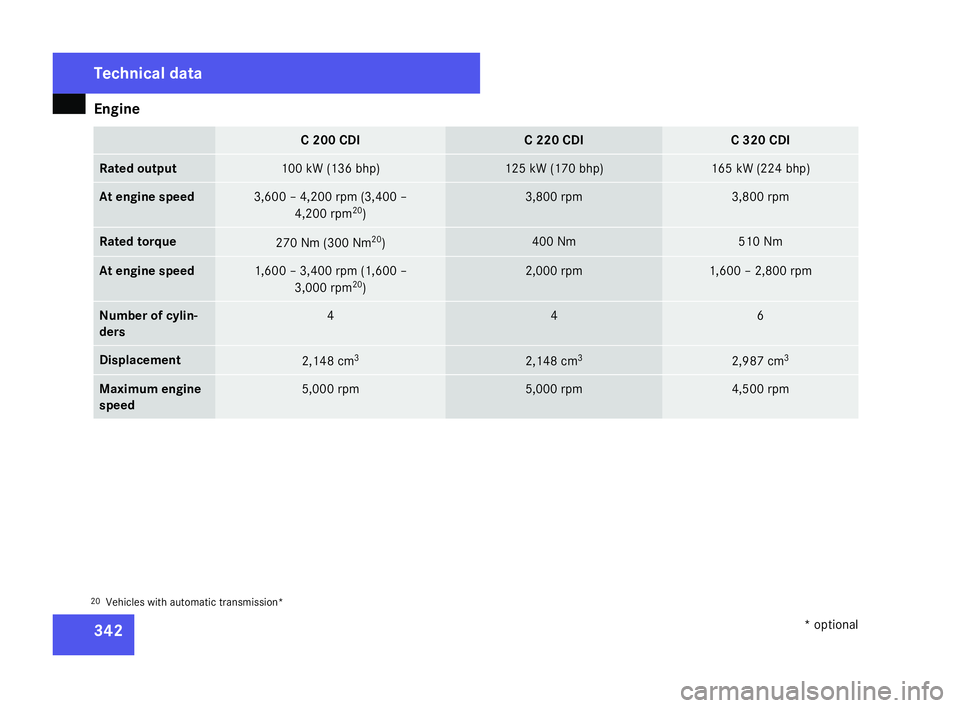

Engine
342 C 200 CDI C 220 CDI C 320 CDI
Rated outpu
t 100 kW (136 bhp) 125 kW (170 bhp) 165 kW (224 bhp)
At engine spee
d 3,600 – 4,200 rpm (3,400
–
4,200 rpm 20
) 3,800 rpm 3,800 rpm
Rated torque
270 Nm (300 Nm
20
) 400 Nm 510 Nm
At engine spee
d 1,600 – 3,400 rpm (1,600
–
3,000 rpm 20
) 2,000 rpm 1,600 – 2,800 rpm
Number of cylin-
ders 4 4 6
Displacement
2,148 cm
3 2,148 cm
3 2,987 cm
3 Maximum engine
spee
d 5,000 rpm 5,000 rpm 4,500 rpm
20
Vehicles with automatic transmission* Technical data
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 342

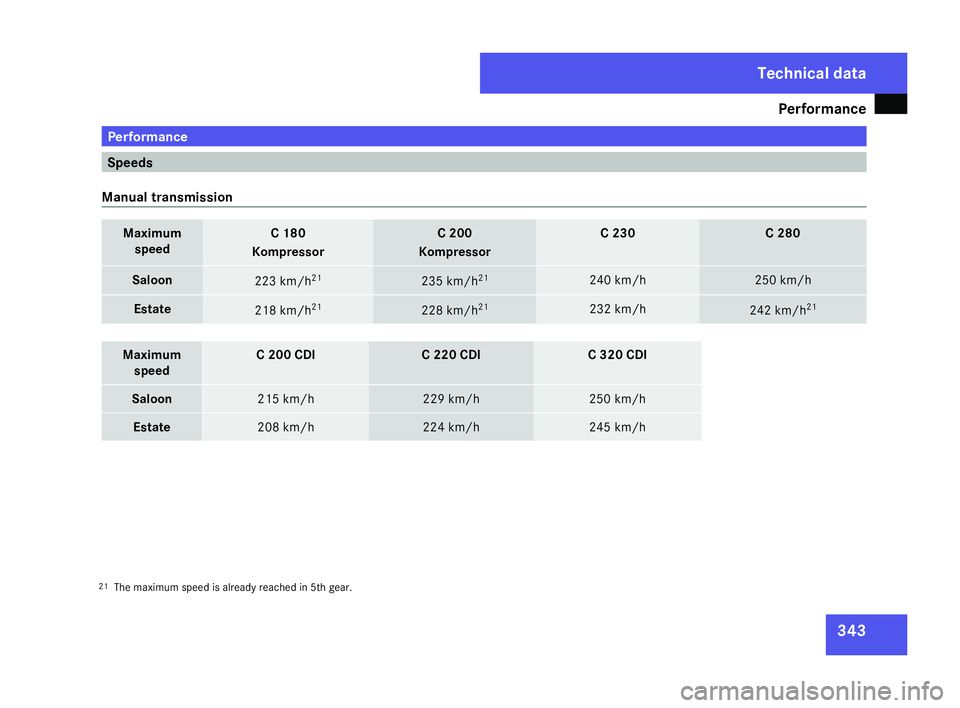

Performance
343Performance
Speeds
Manual transmission Maximum
speed C 180
Kompressor C 200
Kompressor C 230 C 280
Saloon
223 km/h
21 235 km/h
21 240 km/h 250 km/h
Estate
218 km/h
21 228 km/h
21 232 km/h
242 km/h
21 Maximum
spee d C 200 CDI C 220 CDI C 320 CDI
Saloon 215 km/h 229 km/h 250 km/h
Estat
e 208 km/h 224 km/h 245 km/h
21
The maximum speed is already reached in 5th gear. Technical data
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 343

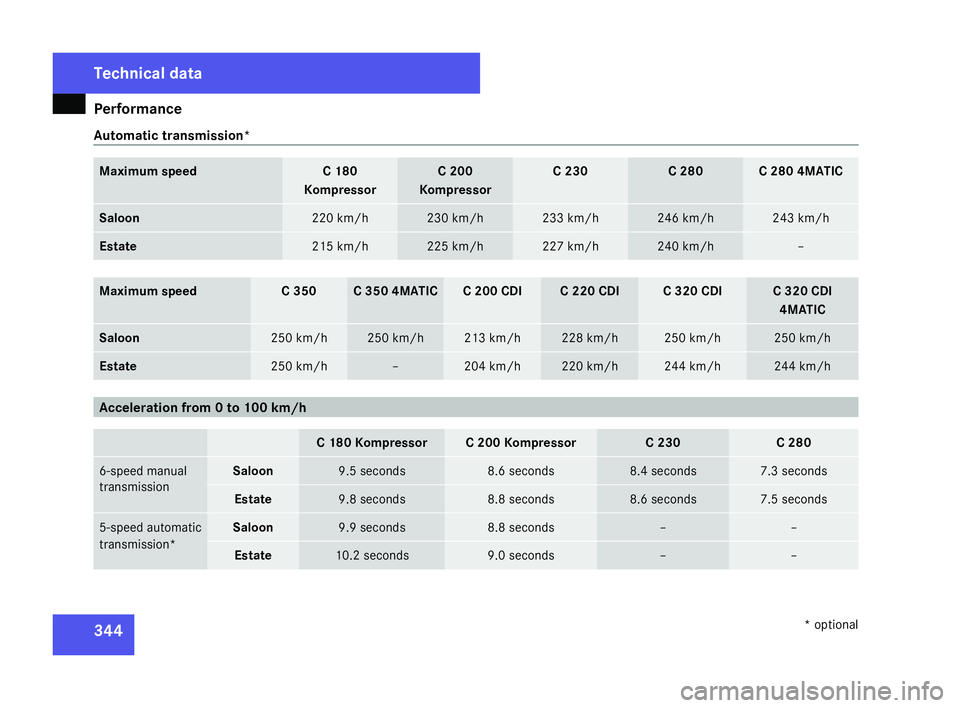

Performance
344
Automatic transmission* Maximum speed C 180
Kompressor C 200
Kompressor C 230 C 280 C 280 4MATIC
Saloon 220 km/h 230 km/h 233 km/h 246 km/h 243 km/h
Estate 215 km/h 225 km/h 227 km/h 240 km/h –
Maximum spee
d C 350 C 350 4MATIC C 200 CDI C 220 CDI C 320 CDI C 320 CDI
4MATIC Saloon 250 km/h 250 km/h 213 km/h 228 km/h 250 km/h 250 km/h
Estat
e 250 km/h – 204 km/h 220 km/h 244 km/h 244 km/h
Acceleration from 0 to 100 km/h
C 180 Kompresso
r C 200 Kompressor C 230 C 280
6-speed manual
transmission Saloon 9.5 seconds 8.6 seconds 8.4 seconds 7.3 seconds
Estat
e 9.8 seconds 8.8 seconds 8.6 seconds 7.5 seconds
5-speed automatic
transmission* Saloon 9.9 seconds 8.8 seconds – –
Estate 10.2 seconds 9.0 seconds – –Techni
cal data
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 344

Performance
345C 180 Kompressor C 200 Kompressor C 230 C 280
7-speed automatic
transmission* Saloon – – 8.6 seconds 7.2 seconds
Estate – – 7.5 seconds
C 280 4MATIC
C 350
3 C 350 4MATIC
6-speed manual
transmission Saloon – – –
Estate – –
7-speed automatic
transmission* Saloon 7.3 seconds 6.4 seconds 6.3 seconds
Estate – 6.5 seconds –
C 200 CDI C 220 CDI C 320 CDI C 320 CDI 4MATIC
6-speed manual
transmission Saloon 10.4 seconds 8.5 seconds 7.7 seconds –
Estate 10.8 seconds 7.9 seconds –
5-speed automatic
transmission* Saloon 10.2 seconds 8.5 seconds – –
Estate 10.6 seconds 8.8 seconds – –Techni
cal data
* optiona l
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 345 8.9 seconds
–
8.9 seconds

Performance
346 C 200 CDI C 220 CDI C 320 CDI C 320 CDI 4MATIC
7-speed automatic
transmission* Saloon – – 6.9 seconds 6.7 seconds
Estate – –Techni
cal data
* optional
204_AKB; 2; 3, en-GB
mkalafa,
2007-06-26T23:11:51+02:00 - Seite 346 7.1 seconds
7.1 seconds

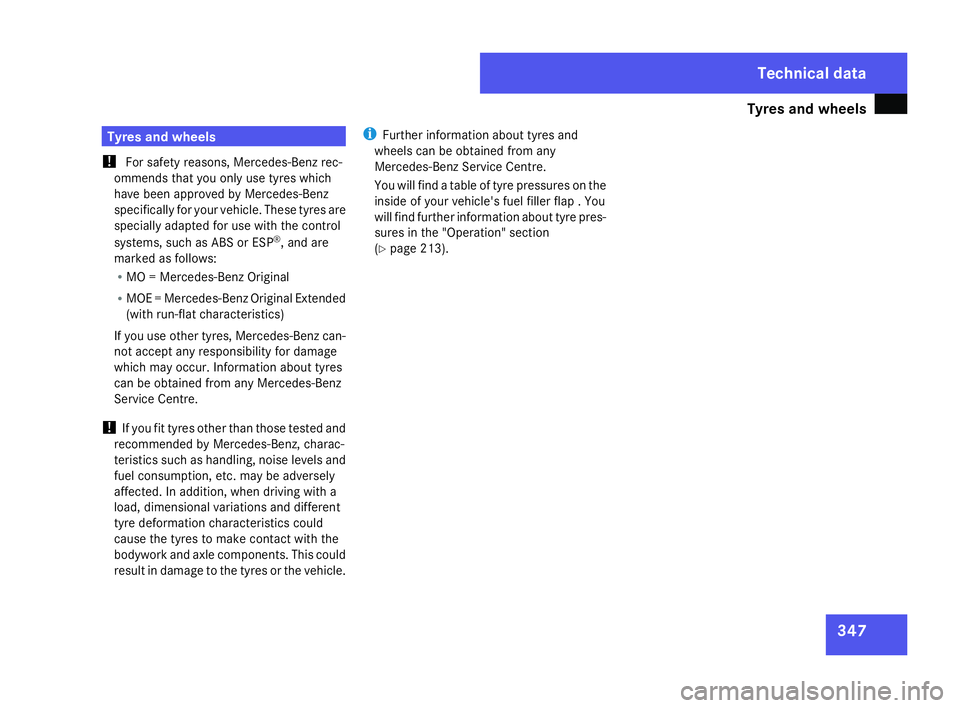

Tyres and wheels
34
7 Tyres and wheels
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres which
have been approved by Mercedes-Benz
specifically for your vehicle. These tyres ar e
specially adapted for use with the control
systems, such as ABS or ESP ®
, and are
marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Extended
(with run-flat characteristics)
If you use other tyres, Mercedes-Benz can-
not accept any responsibility for damage
which may occur. Information about tyres
can be obtained from any Mercedes-Ben z
Service Centre.
! If you fit tyres other than those tested and
recommended by Mercedes-Benz, charac-
teristics such as handling, noise levels and
fuel consumption, etc. may be adversel y
affected. In addition, when driving with a
load, dimensional variations and differen t
tyre deformation characteristics could
cause the tyres to make contact with the
bodywork and axle components. This could
result in damage to the tyres or the vehicle. i
Further information about tyres and
wheels can be obtained from any
Mercedes-Benz Service Centre.
You will find a table of tyre pressures on the
inside of your vehicle's fuel filler flap . You
will find further information about tyre pres-
sures in the "Operation" section
( Y page 213). Technical data
