Display messages
Possible causes/consequences and M
MSolutions

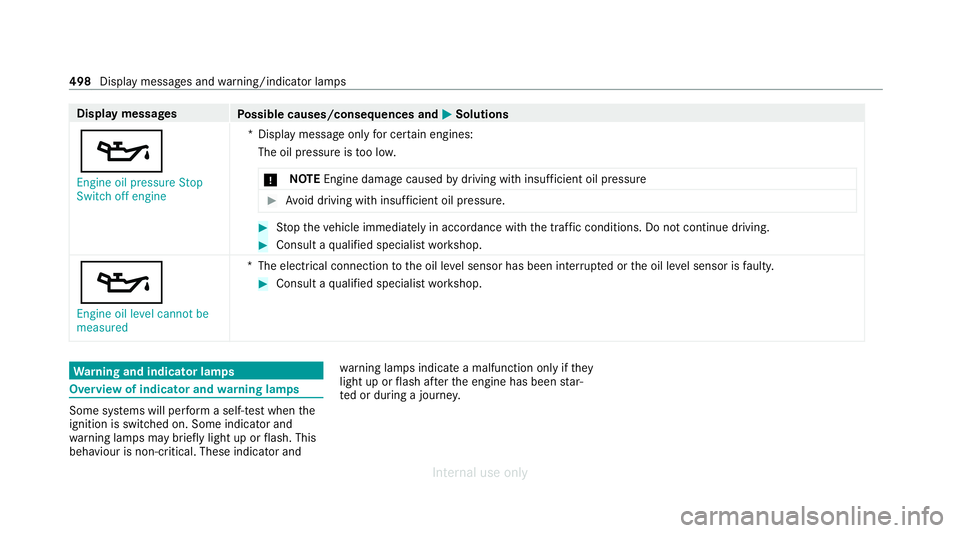

5 Engine oil pressure Stop
Switch off engine *D
isplay message only for cer tain engines:
The oil pressure is too lo w.
* NO
TEEngine damage causedbydriving with insuf ficient oil pressure #
Avoid driving with insuf ficient oil pressure. #
Stop theve hicle immediately in accordance with the traf fic conditions. Do not continue driving. #
Consult a qualified specialist workshop.
5 Engine oil level cannot be
measured *T
he electrical connection tothe oil le vel sensor has been inter rupte d or the oil le vel sensor is faulty. #
Consult a qualified specialist workshop. Wa
rning and indicator lamps Overview of indicator and
warning lamps Some sy
stems will per form a self-test when the
ignition is switched on. Some indicator and
wa rning lamps may briefly light up or flash. This
behaviour is non-critical. These indicator and wa
rning lamps indicate a malfunction only if they
light up or flash af terth e engine has been star‐
te d or during a journe y.498
Display messages and warning/indicator lamps
Internal use only

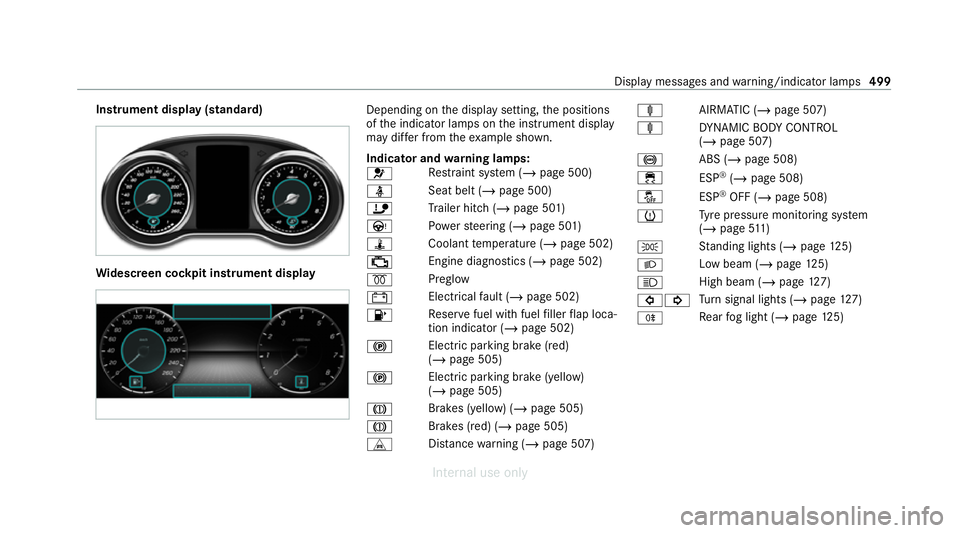

Instrument display (standard)
Wi
descreen cock pit instrument displ ay Depending on
the display setting, the positions
of the indicator lamps on the instrument display
may dif fer from theex ample shown.
Indicator and warning lamps:
6 Re
stra int sy stem (/ page 500)
ü Seat belt (/
page 500)
ï Trailer hit ch (/page 501)
Ù Powe rst eering (/ page 501)
ÿ Coolanttemp erature (/ page 502)
; Engine diagnostics (/
page 502)
% Preglow
# Elect
rical fault (/ page 502)
8 Re
ser vefuel with fuel filler flap loca‐
tion indicator (/ page 502)
! Elect
ric pa rking brake (red)
(/ page 505)
! Electric parking brake (yellow)
(/
page 505)
J Brakes (yellow) (/
page 505)
J Brakes (red) (/
page 505)
L Distance warning (/ page 507) ä
AIRMATIC (/ page 507)
ä DYNA MIC BODY CONTROL
(/ page 507)
! ABS (/
page 508)
÷ ESP®
(/ page 508)
å ESP®
OFF (/ page 508)
h Ty
re pressure monitoring sy stem
(/ page 511)
T St
anding lights (/ page125)
L Low beam (/
page125)
K High beam (/
page127)
#! Tu
rn signal lights (/ page127)
R Re
ar fog light (/ page125) Displ
aymessa ges and warning/indicator lamps 499
Internal use only

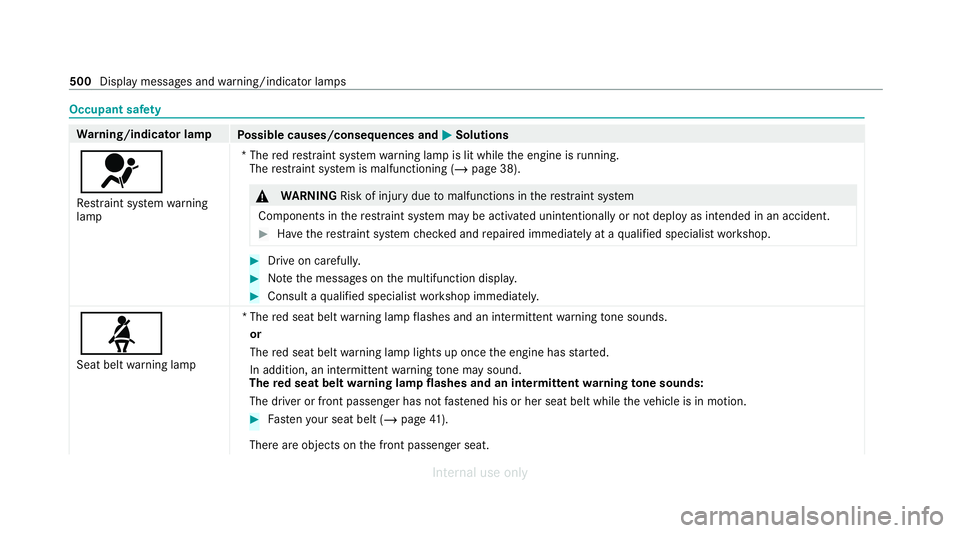

Occupant saf
ety Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions
6 Re stra int sy stem warning
lamp *T
he redre stra int sy stem warning lamp is lit while the engine is running.
The restra int sy stem is malfunctioning (/ page 38). &
WARNING Risk of injury duetomalfunctions in there stra int sy stem
Components in there stra int sy stem may be activated unintentionally or not deploy as intended in an accident. #
Have there stra int sy stem checked and repaired immediately at a qualified specialist workshop. #
Drive on carefully. #
Notethe messages on the multifunction displa y. #
Consult a qualified specialist workshop immediatel y.
ü
Seat belt warning lamp *T
he red seat belt warning lamp flashes and an intermit tent wa rning tone sounds.
or
The red seat belt warning lamp lights up once the engine has star ted.
In addition, an intermittent warning tone may sound.
The red seat belt warning lamp flashes and an intermit tent wa rning tone sounds:
The driver or front passenger has not fastened his or her seat belt while theve hicle is in motion. #
Fasten your seat belt (/ page41).
There are objects on the front passenger seat. 500
Display messages and warning/indicator lamps
Internal use only

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions #

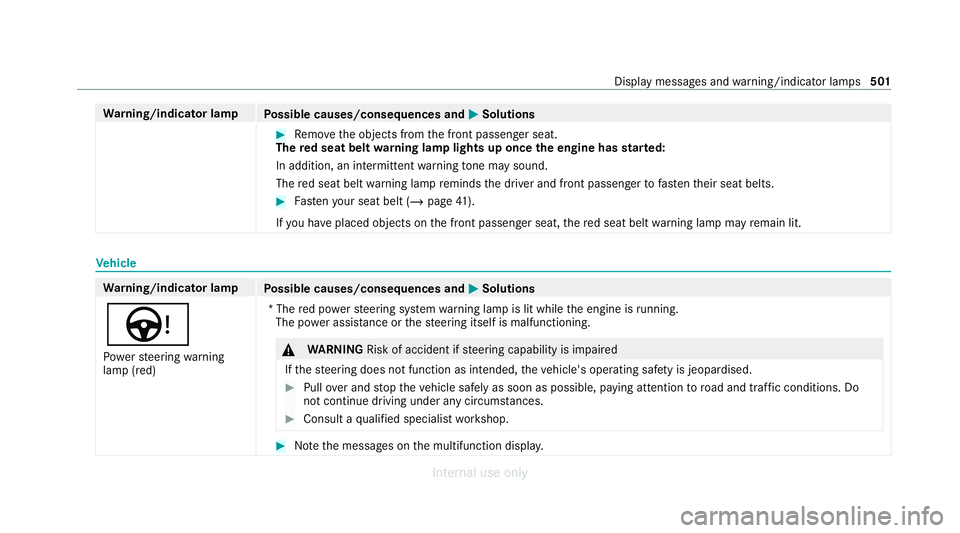

Remo vethe objects from the front passenger seat.
The red seat belt warning lamp lights up once the engine has star ted:
In addition, an intermittent warning tone may sound.
The red seat belt warning lamp reminds the driver and front passenger tofasten their seat belts. #
Fasten your seat belt (/ page41).
If yo u ha veplaced objects on the front passenger seat, there d seat belt warning lamp may remain lit. Ve
hicle Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions
Ù Po we rst eering warning
lamp (red) *T
he red po werst eering sy stem warning lamp is lit while the engine is running.
The po wer assi stance or thesteering itself is malfunctioning. &
WARNING Risk of accident if steering capability is impaired
If th esteering does not function as intended, theve hicle's operating saf ety is jeopardised. #
Pull over and stop theve hicle safely as soon as possible, paying attention toroad and traf fic conditions. Do
not continue driving under any circums tances. #
Consult a qualified specialist workshop. #
Notethe messages on the multifunction displa y. Displ
aymessa ges and warning/indicator lamps 501
Internal use only

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions

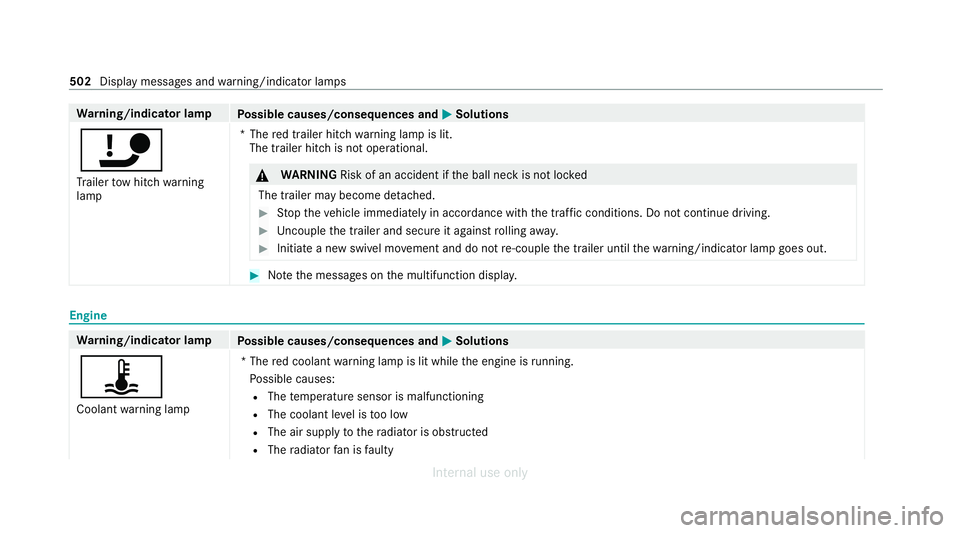

ï Tr ailer tow hit chwarning
lamp *T
hered trailer hitch warning lamp is lit.
The trailer hitch is not operational. &
WARNING Risk of an accident if the ball neck is not loc ked
The trailer may become de tach ed. #
Stop theve hicle immediately in accordance with the traf fic conditions. Do not continue driving. #
Uncouple the trailer and secure it against rolling away. #
Initiate a new swivel mo vement and do not re-couple the trailer until thewa rning/indicator lamp goes out. #
Notethe messages on the multifunction displa y.Engine
Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions
ÿ Coolant warning lamp *T
he red coolant warning lamp is lit while the engine is running.
Po ssible causes:
R The temp erature sensor is malfunctioning
R The coolant le vel is too low
R The air supply tothera diator is obstructed
R The radiator fan is faulty 502
Display messages and warning/indicator lamps
Internal use only

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions
R The coolant pump is faulty
If th ere is an additional warning tone, the coolant temp erature has exceeded 120°C. &
WARNING Risk of burn s when opening the bonn et
If yo u open the bonn etwhen the engine has overheated or when there is a fire inthe engine compartment, the
fo llowing situations may occur:
R You could come into contact with hot gases.
R You could come into contact with other hot, escaping operating fluids. #
Before opening the bonn et, allow the engine tocool down. #
Intheeve nt of a fire inthe engine compartment, keep the bonn etclosed and call thefire service. #
Stop theve hicle immediately in accordance with the traf fic conditions and switch off the engine. Do not continue
driving. #
Notethe messages on the multifunction displa y.
If th e coolant temp erature display is at the lo wer end of thete mp erature scale: #
Consult a qualified specialist workshop.
If th e coolant temp erature display is at the upper end of thete mp erature scale: #
Exit theve hicle and keep a safe dis tance from it until the engine has cooled down. #
Check the coolant le vel (/ page 379). Displ
aymessa ges and warning/indicator lamps 503
Internal use only

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions #

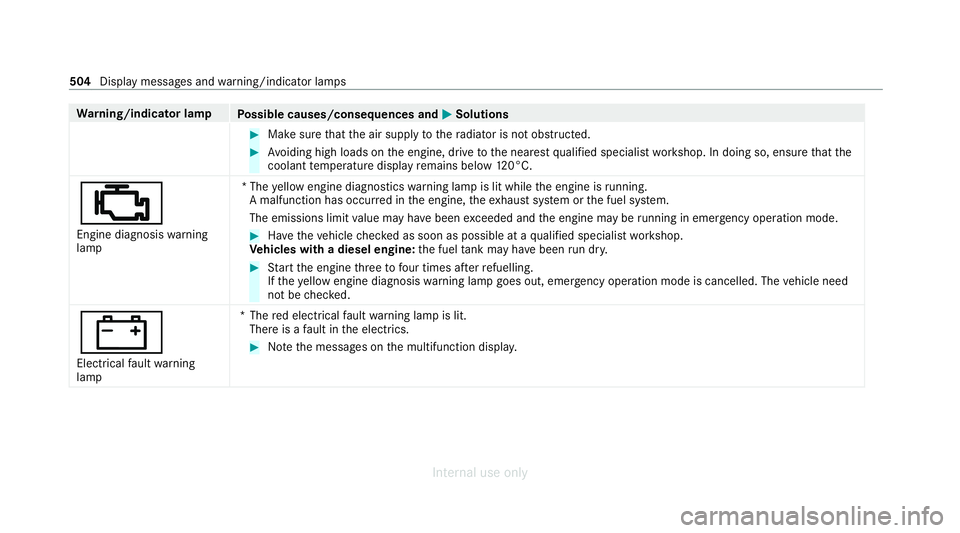

Make sure that the air supply tothera diator is not obstructed. #
Avoiding high loads on the engine, drive tothe nearest qualified specialist workshop. In doing so, ensure that the
coolant temp erature display remains below 120°C.
; Engine diagnosis warning
lamp *T
he yellow engine diagno stics warning lamp is lit while the engine is running.
A malfunction has occu rred in the engine, theex haust sy stem or the fuel sy stem.
The emissions limit value may ha vebeen exceeded and the engine may be running in eme rgency operation mode. #
Have theve hicle checked as soon as possible at a qualified specialist workshop.
Ve hicles with a diesel engine: the fuel tank may ha vebeen run dr y. #
Start the engine thre eto four times af terre fuelling.
If th eye llow engine diagnosis warning lamp goes out, emer gency operation mode is cancelled. The vehicle need
not be checked.
#
Elect rical fault warning
lamp *T
hered elect rical fault warning lamp is lit.
There is a fault in the electrics. #
Notethe messages on the multifunction displa y.504
Display messages and warning/indicator lamps
Internal use only

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions

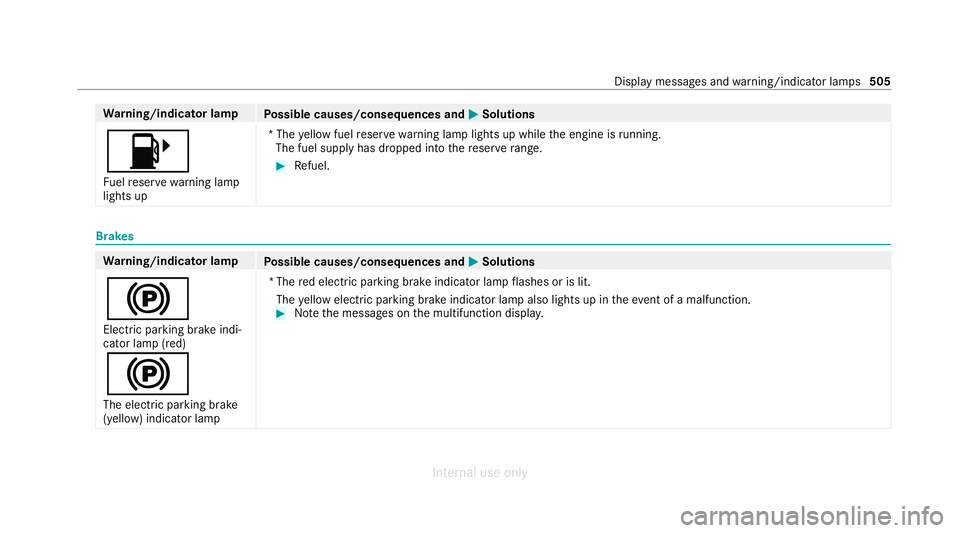

8 Fu elreser ve wa rning lamp
lights up *T
he yellow fuel reser vewarning lamp lights up while the engine is running.
The fuel supply has dropped into there ser verange. #
Refuel. Brakes
Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions
! Elect ric pa rking brake indi‐
cator lamp (red)
!
The elect ric pa rking brake
(yellow) indicator lamp *T
he red elect ric pa rking brake indicator lamp flashes or is lit.
The yellow elect ric pa rking brake indicator lamp also lights up in theev ent of a malfunction. #
Notethe messages on the multifunction displa y. Displ
aymessa ges and warning/indicator lamps 505
Internal use only

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions

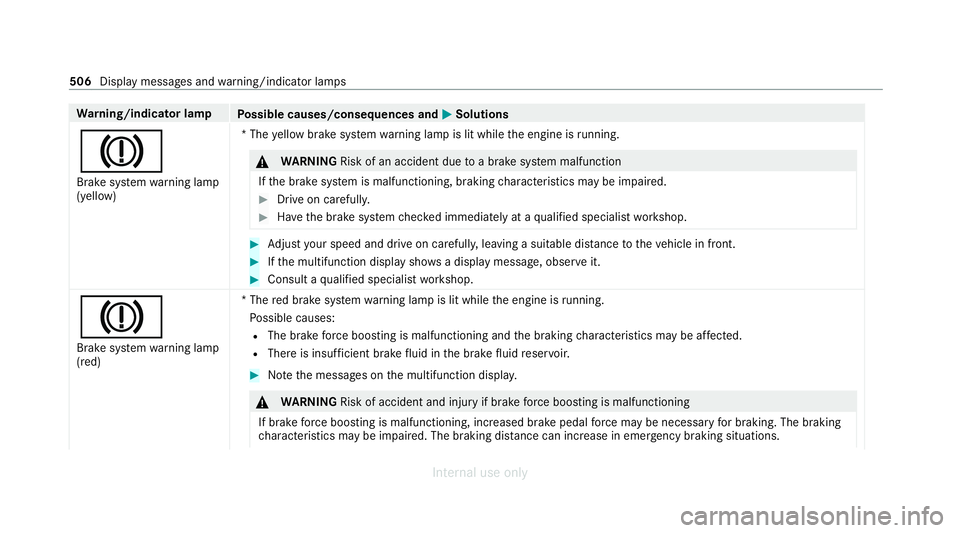

J Brake sy stem warning lamp
(yellow) *T
he yellow brake sy stem warning lamp is lit while the engine is running. &
WARNING Risk of an accident due toa brake sy stem malfunction
If th e brake sy stem is malfunctioning, braking characteristics may be impaired. #
Drive on carefull y. #
Have the brake sy stem checked immediately at a qualified specialist workshop. #
Adjust your speed and drive on carefull y,leaving a suitable dis tance totheve hicle in front. #
Ifth e multifunction display sho wsa display message, obse rve it. #
Consult a qualified specialist workshop.
J Brake sy stem warning lamp
(red) *T
he red brake sy stem warning lamp is lit while the engine is running.
Po ssible causes:
R The brake forc e boosting is malfunctioning and the braking characteristics may be af fected.
R The reis insuf ficient brake fluid in the brake fluid reser voir. #
Notethe messages on the multifunction displa y. &
WARNING Risk of accident and inju ryif brake forc e boosting is malfunctioning
If brake forc e boosting is malfunctioning, increased brake pedal forc e may be necessary for braking. The braking
ch aracteristics may be impaired. The braking dis tance can increase in emergency braking situations. 506
Display messa ges and warning/indicator lamps
Internal use only

Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions #

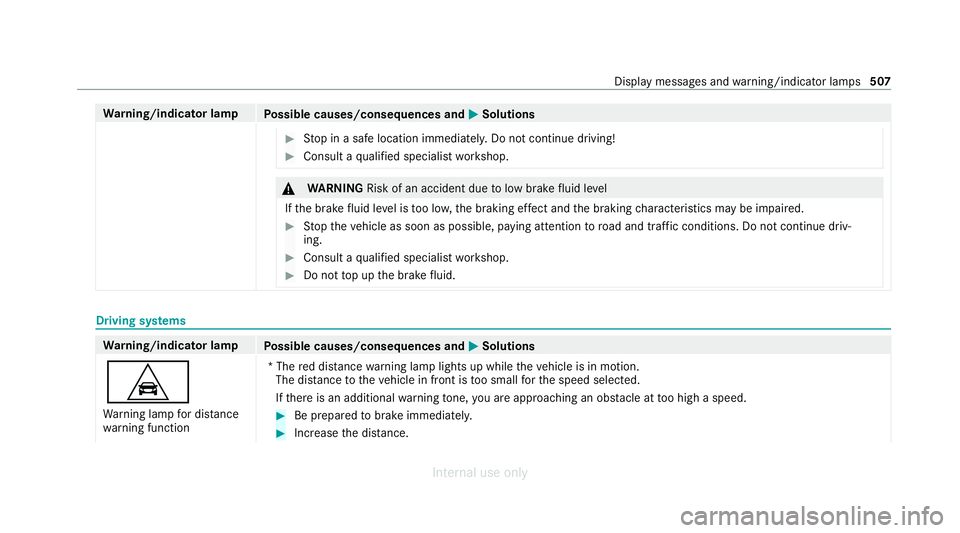

Stop in a safe location immediately. Do not continue driving! #
Consult a qualified specialist workshop. &
WARNING Risk of an accident due tolow brake fluid le vel
If th e brake fluid le vel is too lo w,the braking ef fect and the braking characteristics may be impaired. #
Stop theve hicle as soon as possible, paying attention toroad and traf fic conditions. Do not continue driv‐
ing. #
Consult a qualified specialist workshop. #
Do not top up the brake fluid. Driving sy
stems Wa
rning/indicator lamp
Possible causes/consequences and M
MSolutions
L Wa rning lamp for dis tance
wa rning function *T
he red dis tancewarning lamp lights up while theve hicle is in motion.
The dis tance totheve hicle in front is too small forth e speed selected.
If th ere is an additional warning tone, you are approaching an obs tacle at too high a speed. #
Be prepared tobrake immediatel y. #
Increase the dis tance. Display messa
ges and warning/indicator lamps 507
