MERCEDES-BENZ C230 KOMPRESSOR COUPE 2002 CL203 Owner's Manual

368 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Spare parts service
All authorized Mercedes-Benz Centers maintain a stock
of original spare parts required for maintenance and
repair work. In addition, strategically located parts
distribution centers provide quick and reliable parts
service.
More than 300 000 different spare parts, for
Mercedes-Benz models, are available.
Mercedes-Benz original spare parts are subjected to
stringent quality inspections. Each part has been
specifically developed, manufactured or selected for and
adapted to Mercedes-Benz vehicles.
Therefore, Mercedes-Benz original spare parts should
be installed.
Important!
The use of non-genuine parts and accessories not
authorized by Mercedes-Benz could damage the vehicle
which damage is not covered by the Mercedes-Benz
Limited Warranty or compromise its durability or safety.Warranty coverage
Your vehicle is covered under the terms of the
“warranties” printed in the Service and Warranty
Information booklet and your authorized
Mercedes-Benz Center will exchange or repair any
defective parts originally installed on the vehicle in
accordance with the terms of the following warranties:
1. New vehicle limited warranty
2. Emission systems warranty
3. Emission performance warranty
4. California, Maine, Massachusetts, and Vermont
emission control systems warranty
Replacement parts and accessories are covered by the
Mercedes-Benz Spare Parts and Accessories warranties,
copies of which are available at any Mercedes-Benz
Center.
Loss of Service and Warranty Information Booklet
Should you lose your Service and Warranty Information
booklet, have your authorized Mercedes-Benz Center
arrange for a replacement. It will be mailed to you.

369 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

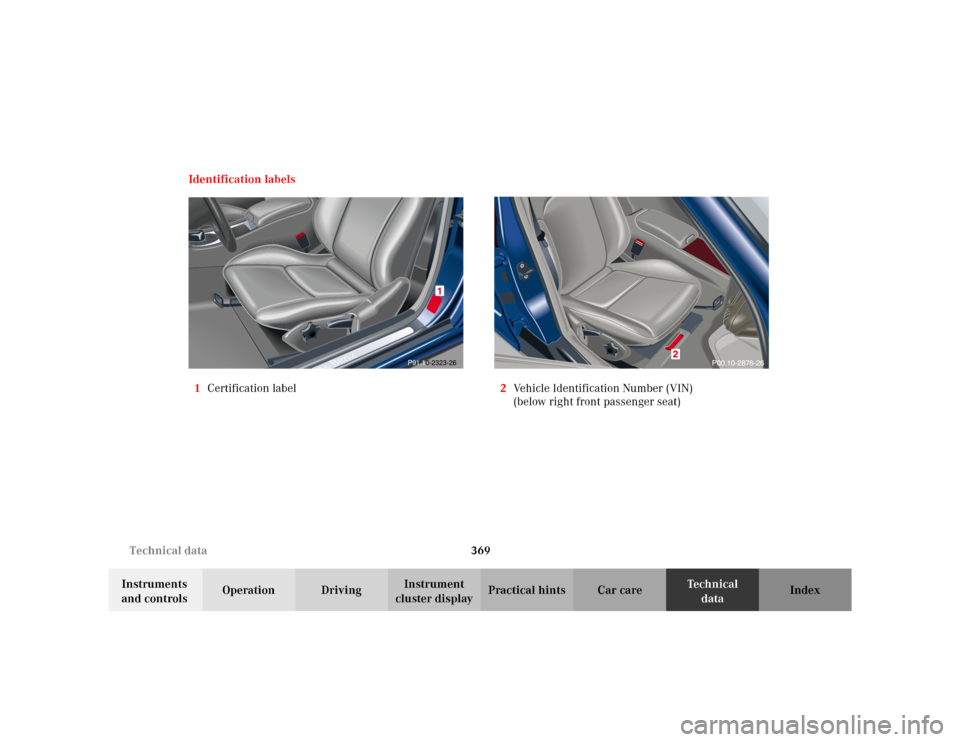

cluster displayPractical hints Car care Index Identification labels
1Certification label2Vehicle Identification Number (VIN)
(below right front passenger seat)
P91.10-2323-26

370 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

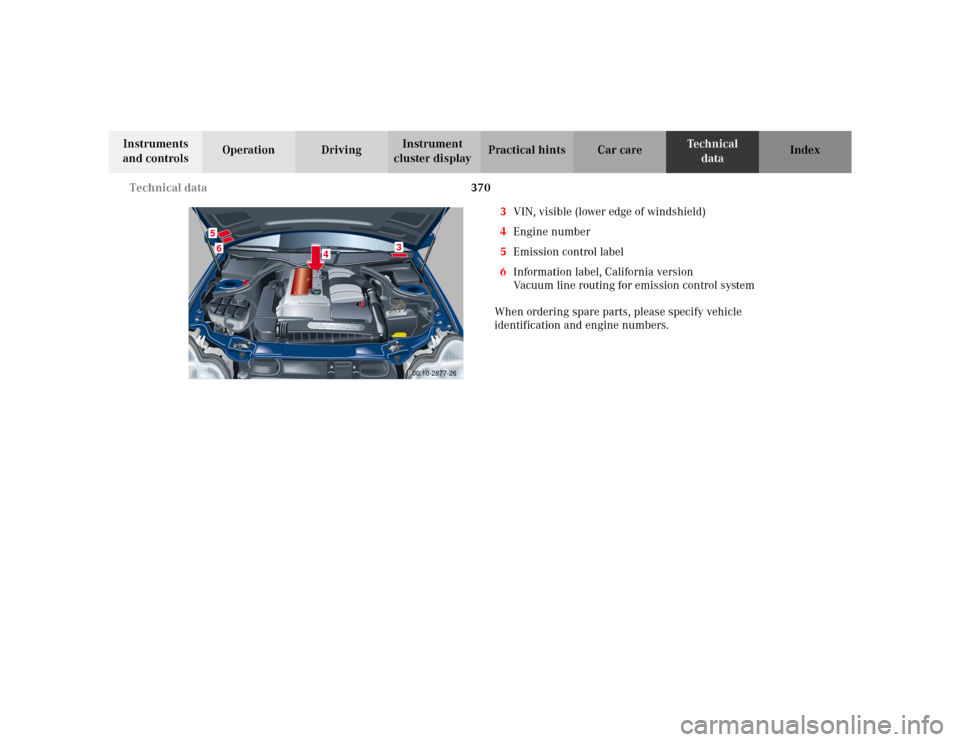

3VIN, visible (lower edge of windshield)
4Engine number
5Emission control label
6Information label, California version
Vacuum line routing for emission control system
When ordering spare parts, please specify vehicle
identification and engine numbers.
4
P00.10-2877-263
65

371 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

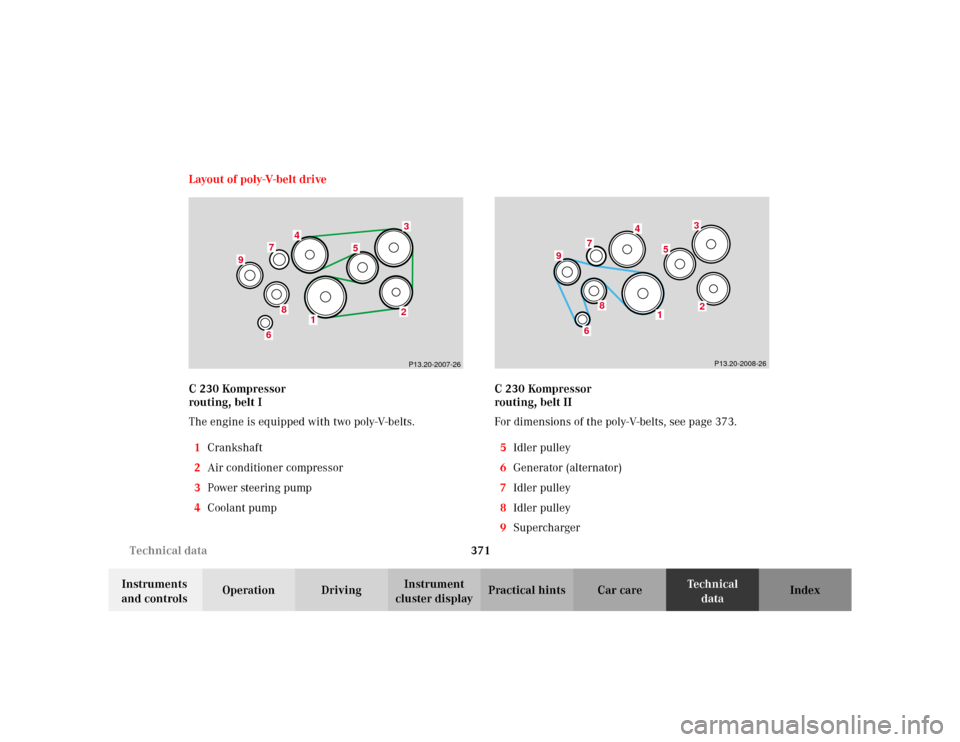

cluster displayPractical hints Car care Index Layout of poly-V-belt drive
C 230 Kompressor
routing, belt I
The engine is equipped with two poly-V-belts.
1Crankshaft
2Air conditioner compressor
3Power steering pump
4Coolant pumpC 230 Kompressor
routing, belt II
For dimensions of the poly-V-belts, see page 373.
5Idler pulley
6Generator (alternator)
7Idler pulley
8Idler pulley
9Supercharger
P13.20-2007-26
9
6
8
7
4
1
5
32
5
32
9
6
8
4
1
7
P13.20-2008-26

372 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

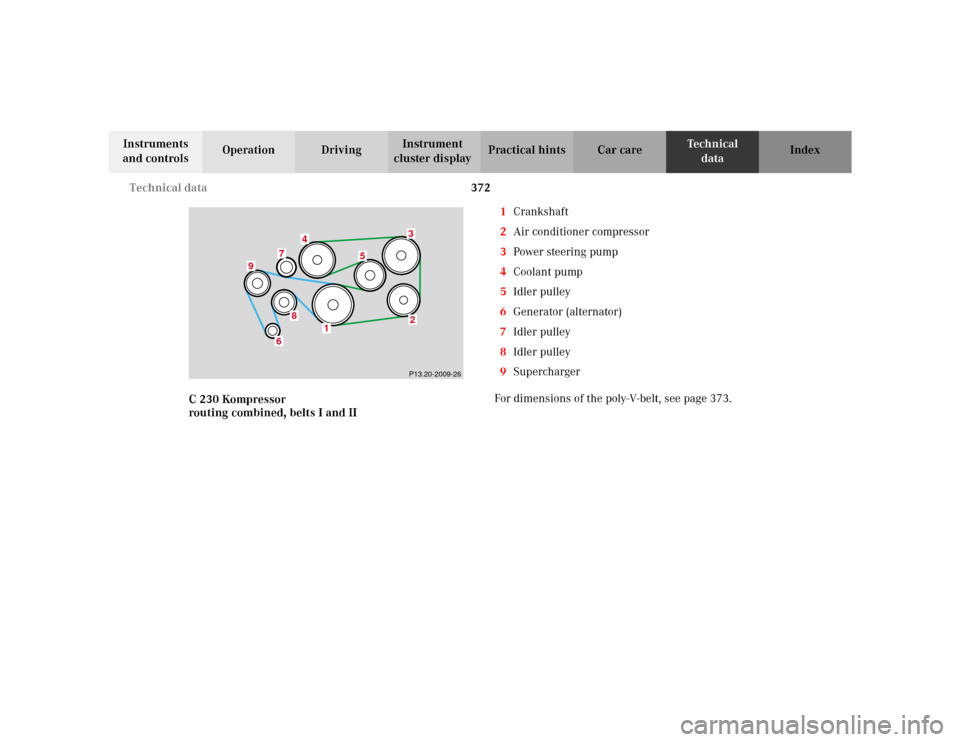

C 230 Kompressor
routing combined, belts I and II1Crankshaft
2Air conditioner compressor
3Power steering pump
4Coolant pump
5Idler pulley
6Generator (alternator)
7Idler pulley
8Idler pulley
9Supercharger
For dimensions of the poly-V-belt, see page 373.
9
6
8
7
4
1
5
32P13.20-2009-26

373 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Technical data
Model C 230 KOMPRESSOR (203.747)
1
Engine111
Mode of operation 4-stroke engine, gasoline injection
No. of cylinders 4
Bore 3.58 in (90.90 mm)
Stroke 3.48 in (88.40 mm)
Total piston displacement 140.1 cu.in. (2295 cm
3)
Compression ratio 9.0:1
Output acc. to SAE J 1349 192 hp / 5500 rpm
(145 kW / 5500 rpm)
Maximum torque acc. to SAE J 1349 207 ft.lb / 2500 – 4800 rpm
(280 Nm / 2500 – 4800 rpm)
Maximum engine speed 6200 rpm
Firing order 1-3-4-2
Poly-V-belt 1875 mm (routing I)
1355 mm (routing II)
1 The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies
and special equipment.

374 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Rims – Tires
1 Must not be used with snow chains.Model C 230 KOMPRESSOR C 230 KOMPRESSOR
(optional)C 230 KOMPRESSOR
Evolution Package
Rims front axle
light alloy rims
Wheel offset7 J x 16 H 2
1.46 in (37 mm)7 J x 16 H 2
1.46 in (37 mm)7
1/2 J x 17
1.46 in (37 mm)
Rims rear axle
light alloy rims
Wheel offset7 J x 16 H 2
1.46 in (37 mm)7 J x 16 H 2
1.46 in (37 mm)7
1/2 J x 17
1.46 in (37 mm)
Radial-ply tires
front axle
rear axleAll season
205 /55 R 16 91 H
205 / 55 R 16 91 H205 /55 R 16 91 V
225 / 50 R 16 92 V
1
225 / 45 R 17 91 W
1
225 / 45 R 17 91 W
1

375 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
2 Must not be used with snow chains.Model C 230 KOMPRESSOR
Rims and winter tires
Rims (light alloy)
Wheel offset7 J x 16 H 2
1.46 in (37 mm)
Radial-ply tires 205 / 55 R 16 91 H M+S
Spare wheel
Rim (light alloy)
Wheel offset4
1/2 B x 15 H 2
0.47 in (12 mm)
Collapsible tire 165-15 89 P
2

376 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Electrical system
We i g h t s (see certification tag)Main Dimensions
C 230 KOMPRESSOR
Generator (alternator) 14 V / 120 A
Starter motor 12V / 1.2 kW
Battery 12V / 100 Ah
Spark plugs
Electrode gap
Tightening torqueNGK IFR 6D 10
0.039 in (1.0 mm)
15 – 22 ft.lb (20 – 30 Nm)
Roof load max. 220 lb (100 kg)
Trunk load max. 220 lb (100 kg)C 230 KOMPRESSOR
Overall vehicle length 171.0 in (4345 mm)
Overall vehicle width 68.0 in (1728 mm)
Overall height 55.4 in (1406 mm)
Wheel base 106.9 in (2715 mm)
Track, front 58.8 in (1493 mm)
Track, rear 57.6 in (1464 mm)

377 Fuels, coolants, lubricants etc. - capacities
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Fuels, coolants, lubricants etc. - capacities
Vehicle components and their respective lubricants must match. Therefore use only brands tested and recommended
by us. Please refer to the Factory Approved Service Products pamphlet, or inquire at your Mercedes-Benz Center.
Capacity Fuels, coolants, lubricants etc.
Engine with oil filter 7.4 US qt (7.0 l) Recommended engine oils
Automatic transmission 8.5 US qt (8.0 l) Automatic transmission fluid
Rear axle 1.2 US qt (1.1 l) Hypoid gear oil SAE 85 W 90
Power steering approx. 1.1 US qt (1.0 l) MB Power steering fluid
Front wheel hubs approx. 2.1 oz (60 g) each High temperature roller bearing grease
Brake system approx. 0.5 US qt (0.5 l) MB Brake fluid (DOT 4+)
Cooling system approx. 6.4 US qt (6.0 l) MB Anticorrosion / antifreeze
Fuel tank
including a reserve of16.4 US gal (62.0 l)
2.1 US gal (8.0 l)Premium unleaded gasoline: Posted Octane 91
(Avg. of 96 RON / 86 MON)
