287 Practical hints
Unlocking/locking in an emergency
Changing batteries
If the batteries in the SmartKey are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Center.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries

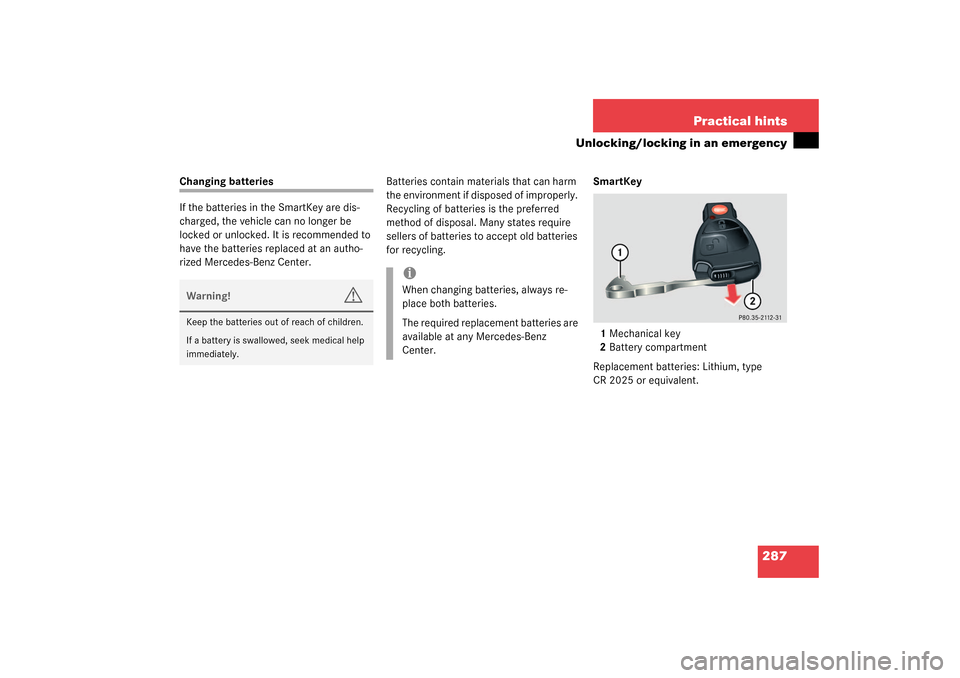

for recycling.SmartKey
1Mechanical key
2Battery compartment
Replacement batteries: Lithium, type
CR 2025 or equivalent.Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen changing batteries, always re-
place both batteries.
The required replacement batteries are
available at any Mercedes-Benz
Center.
S203 MY03_A.book Page 287 Tuesday, January 28, 2003 2:22 PM

288 Practical hintsUnlocking/locking in an emergency

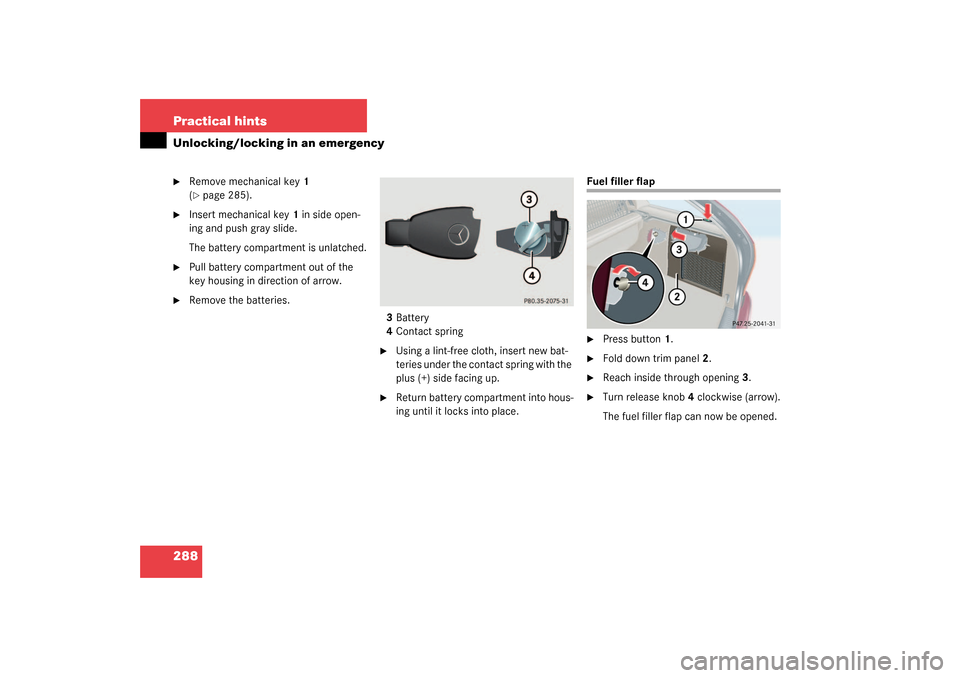

Remove mechanical key1
(page 285).

Insert mechanical key1 in side open-
ing and push gray slide.
The battery compartment is unlatched.

Pull battery compartment out of the
key housing in direction of arrow.

Remove the batteries.
3Battery
4Contact spring

Using a lint-free cloth, insert new bat-
teries under the contact spring with the
plus (+) side facing up.

Return battery compartment into hous-
ing until it locks into place.
Fuel filler flap
Press button1.

Fold down trim panel2.

Reach inside through opening3.

Turn release knob4 clockwise (arrow).
The fuel filler flap can now be opened.
S203 MY03_A.book Page 288 Tuesday, January 28, 2003 2:22 PM

289 Practical hints
Unlocking/locking in an emergency

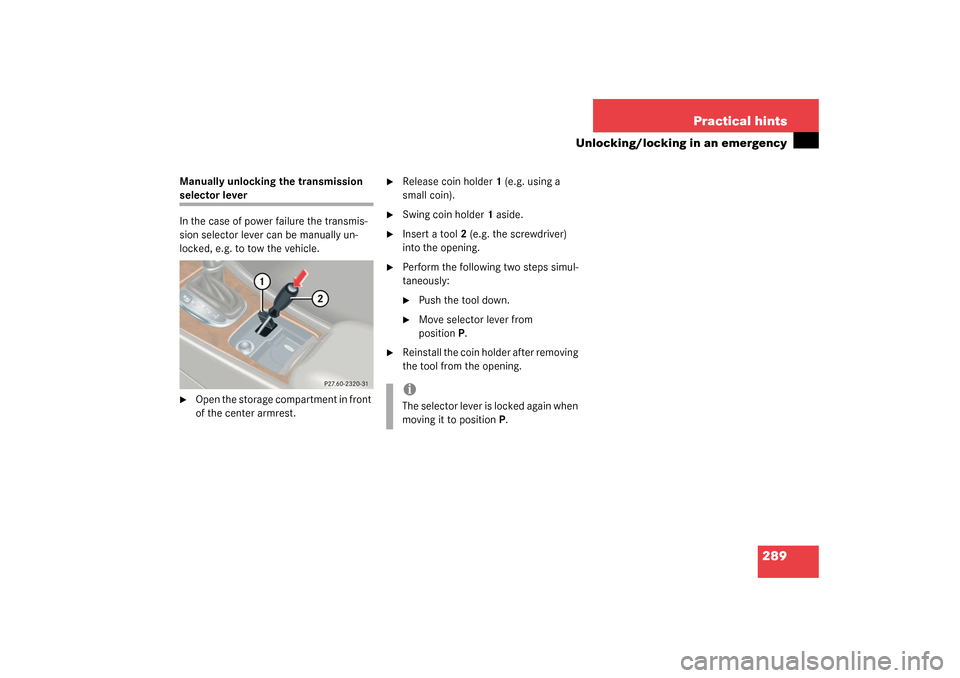

Manually unlocking the transmission selector lever
In the case of power failure the transmis-
sion selector lever can be manually un-
locked, e.g. to tow the vehicle.
Open the storage compartment in front
of the center armrest.

Release coin holder1 (e.g. using a
small coin).

Swing coin holder1 aside.

Insert a tool2 (e.g. the screwdriver)
into the opening.

Perform the following two steps simul-
taneously:
Push the tool down.

Move selector lever from
positionP.

Reinstall the coin holder after removing
the tool from the opening.iThe selector lever is locked again when
moving it to positionP.
S203 MY03_A.book Page 289 Tuesday, January 28, 2003 2:22 PM

290 Practical hintsOpening/closing in an emergency

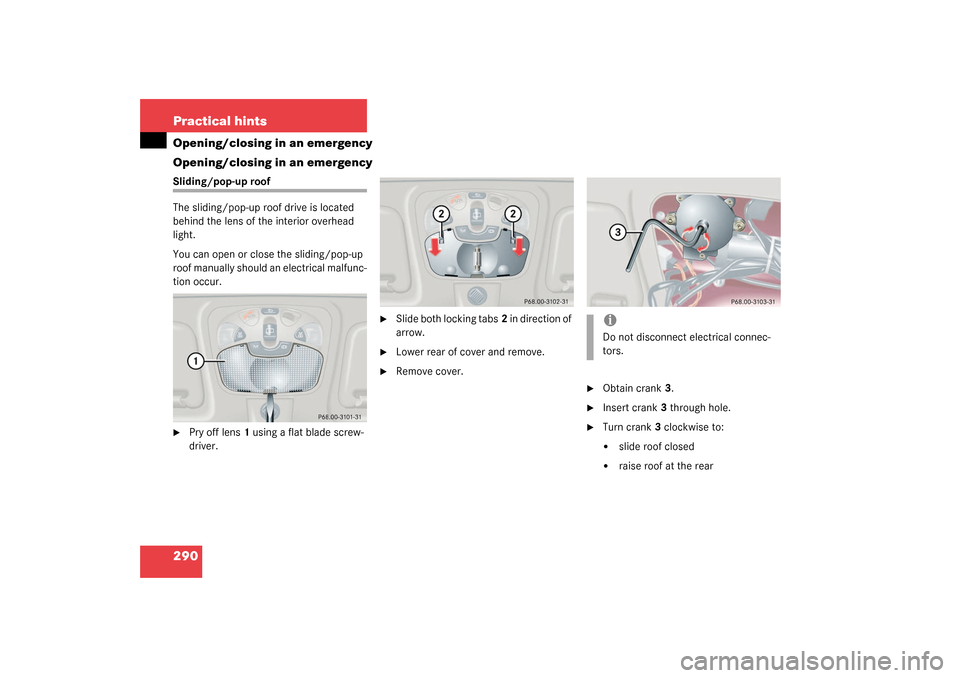

Opening/closing in an emergencySliding/pop-up roof
The sliding/pop-up roof drive is located
behind the lens of the interior overhead
light.
You can open or close the sliding/pop-up
roof manually should an electrical malfunc-
tion occur.
Pry off lens1 using a flat blade screw-
driver.

Slide both locking tabs2 in direction of
arrow.

Lower rear of cover and remove.

Remove cover.

Obtain crank3.

Insert crank3 through hole.

Turn crank3 clockwise to:

slide roof closed


raise roof at the rear
iDo not disconnect electrical connec-
tors.
S203 MY03_A.book Page 290 Tuesday, January 28, 2003 2:22 PM

291 Practical hints
Opening/closing in an emergency

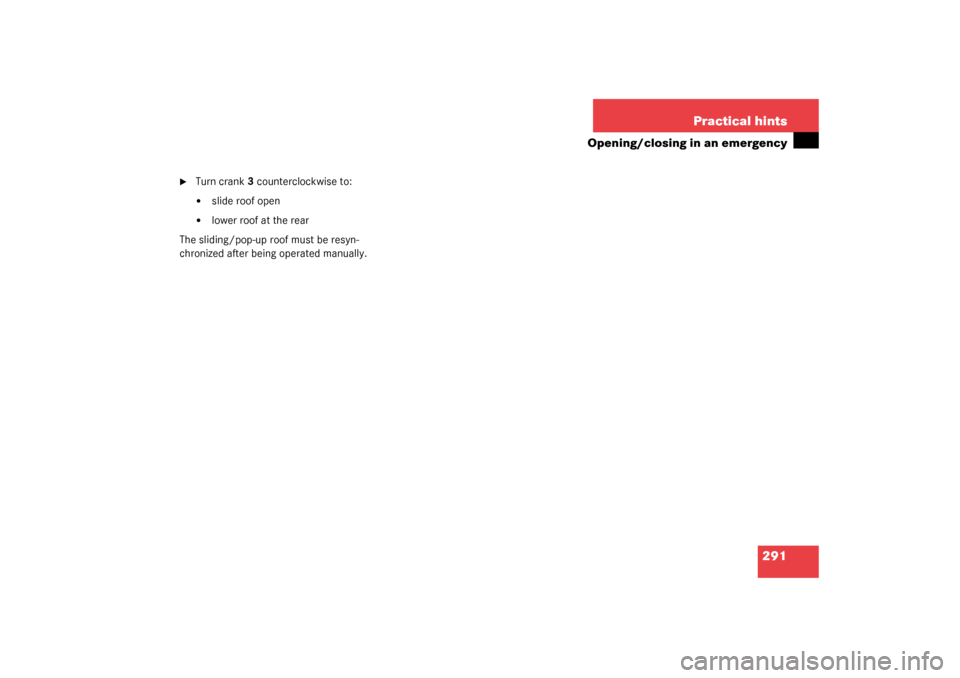

Turn crank3 counterclockwise to:

slide roof open


lower roof at the rear
The sliding/pop-up roof must be resyn-
chronized after being operated manually.
S203 MY03_A.book Page 291 Tuesday, January 28, 2003 2:22 PM

292 Practical hintsReplacing bulbs
Replacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See your autho-
rized Mercedes-Benz Center for headlamp
adjustment.

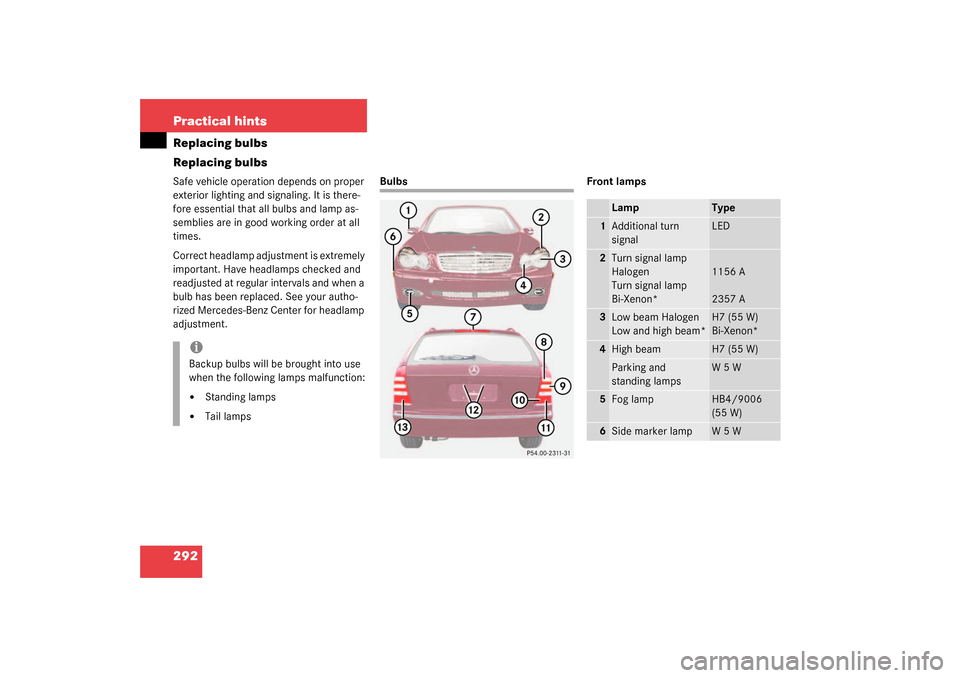

Bulbs Front lamps
iBackup bulbs will be brought into use
when the following lamps malfunction:

Standing lamps


Tail lamps
Lamp
Type
1
Additional turn
signal
LED
2
Turn signal lamp
Halogen
Turn signal lamp
Bi-Xenon*
1156 A
2357 A
3
Low beam Halogen
Low and high beam*
H7 (55 W)
Bi-Xenon*
4
High beam
H7 (55 W)
Parking and
standing lamps
W5W
5
Fog lamp
HB4/9006
(55 W)
6
Side marker lamp
W5W
S203 MY03_A.book Page 292 Tuesday, January 28, 2003 2:22 PM

293 Practical hints
Replacing bulbs

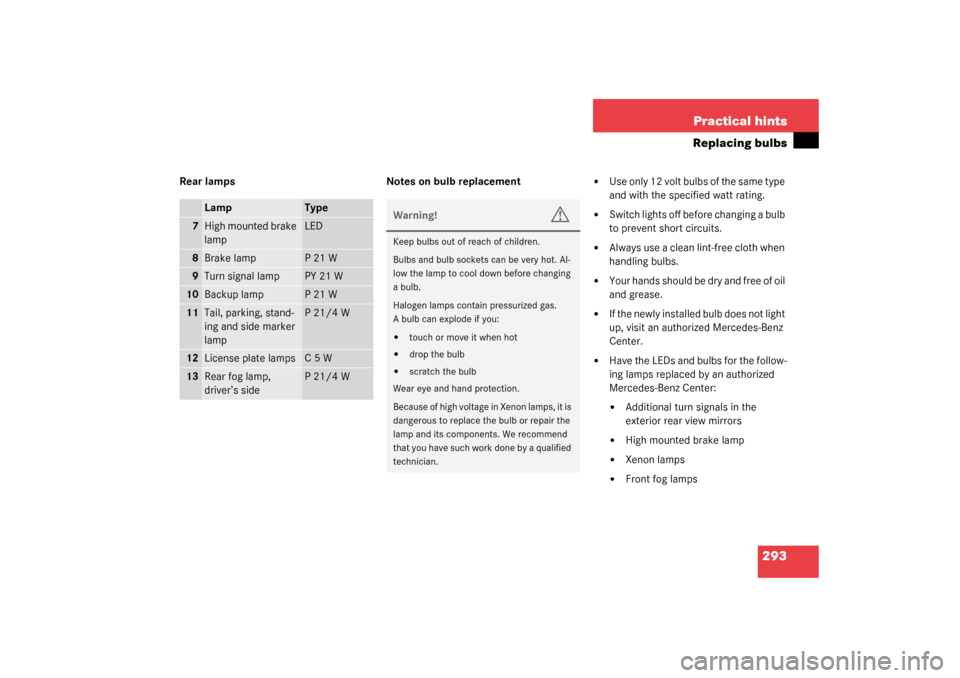

Rear lamps Notes on bulb replacement


Use only 12 volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Center.


Have the LEDs and bulbs for the follow-
ing lamps replaced by an authorized
Mercedes-Benz Center:

Additional turn signals in the
exterior rear view mirrors


High mounted brake lamp


Xenon lamps


Front fog lamps
Lamp
Type
7
High mounted brake
lamp
LED
8
Brake lamp
P21W
9
Turn signal lamp
PY 21 W
10
Backup lamp
P21W
11
Tail, parking, stand-
ing and side marker
lamp
P21/4W
12
License plate lamps
C5W
13
Rear fog lamp,
driver’s side
P21/4W
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
S203 MY03_A.book Page 293 Tuesday, January 28, 2003 2:22 PM

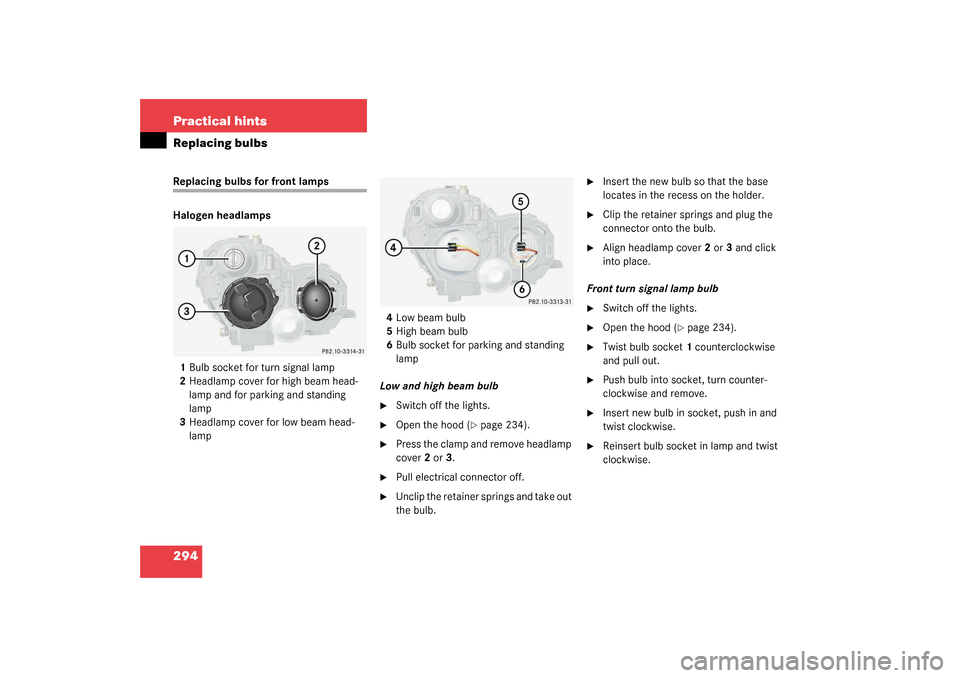

294 Practical hintsReplacing bulbsReplacing bulbs for front lamps
Halogen headlamps
1Bulb socket for turn signal lamp
2Headlamp cover for high beam head-
lamp and for parking and standing
lamp
3Headlamp cover for low beam head-
lamp4Low beam bulb
5High beam bulb
6Bulb socket for parking and standing
lamp
Low and high beam bulb

Switch off the lights.

Open the hood (
page 234).

Press the clamp and remove headlamp
cover2 or 3.

Pull electrical connector off.

Unclip the retainer springs and take out
the bulb.

Insert the new bulb so that the base
locates in the recess on the holder.

Clip the retainer springs and plug the
connector onto the bulb.

Align headlamp cover2 or 3 and click
into place.
Front turn signal lamp bulb

Switch off the lights.

Open the hood (
page 234).

Twist bulb socket1 counterclockwise
and pull out.

Push bulb into socket, turn counter-
clockwise and remove.

Insert new bulb in socket, push in and
twist clockwise.

Reinsert bulb socket in lamp and twist
clockwise.
S203 MY03_A.book Page 294 Tuesday, January 28, 2003 2:22 PM

295 Practical hints
Replacing bulbs

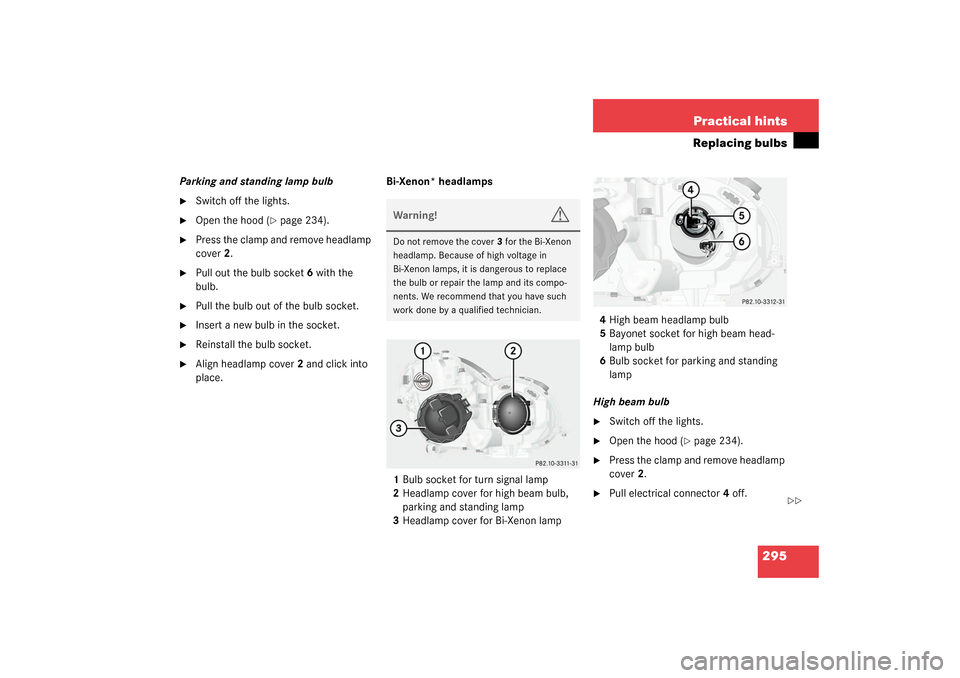

Parking and standing lamp bulb
Switch off the lights.

Open the hood (
page 234).

Press the clamp and remove headlamp
cover2.

Pull out the bulb socket6 with the
bulb.

Pull the bulb out of the bulb socket.

Insert a new bulb in the socket.

Reinstall the bulb socket.

Align headlamp cover2 and click into
place.Bi-Xenon* headlamps
1Bulb socket for turn signal lamp
2Headlamp cover for high beam bulb,
parking and standing lamp
3Headlamp cover for Bi-Xenon lamp4High beam headlamp bulb
5Bayonet socket for high beam head-
lamp bulb
6Bulb socket for parking and standing
lamp
High beam bulb

Switch off the lights.

Open the hood (
page 234).

Press the clamp and remove headlamp
cover2.

Pull electrical connector4 off.
Warning!
G
Do not remove the cover3 for the Bi-Xenon
headlamp. Because of high voltage in
Bi-Xenon lamps, it is dangerous to replace
the bulb or repair the lamp and its compo-
nents. We recommend that you have such
work done by a qualified technician.

S203 MY03_A.book Page 295 Tuesday, January 28, 2003 2:22 PM

296 Practical hintsReplacing bulbs

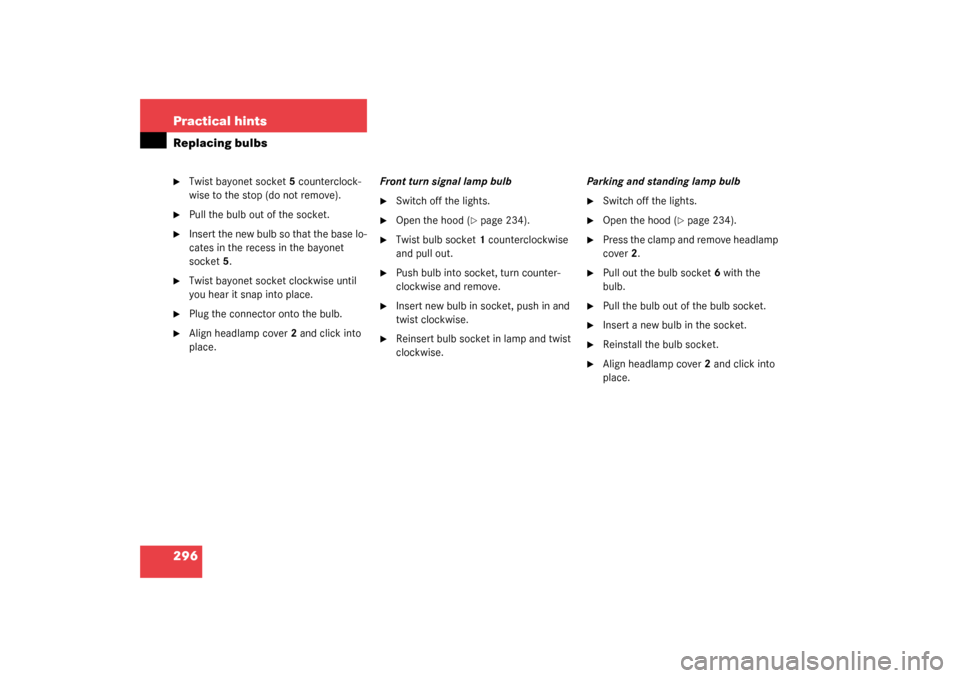

Twist bayonet socket5 counterclock-
wise to the stop (do not remove).

Pull the bulb out of the socket.

Insert the new bulb so that the base lo-
cates in the recess in the bayonet
socket5.

Twist bayonet socket clockwise until
you hear it snap into place.

Plug the connector onto the bulb.

Align headlamp cover2 and click into
place.Front turn signal lamp bulb

Switch off the lights.

Open the hood (
page 234).

Twist bulb socket1 counterclockwise
and pull out.

Push bulb into socket, turn counter-
clockwise and remove.

Insert new bulb in socket, push in and
twist clockwise.

Reinsert bulb socket in lamp and twist
clockwise.Parking and standing lamp bulb

Switch off the lights.

Open the hood (
page 234).

Press the clamp and remove headlamp
cover2.

Pull out the bulb socket6 with the
bulb.

Pull the bulb out of the bulb socket.

Insert a new bulb in the socket.

Reinstall the bulb socket.

Align headlamp cover2 and click into
place.
