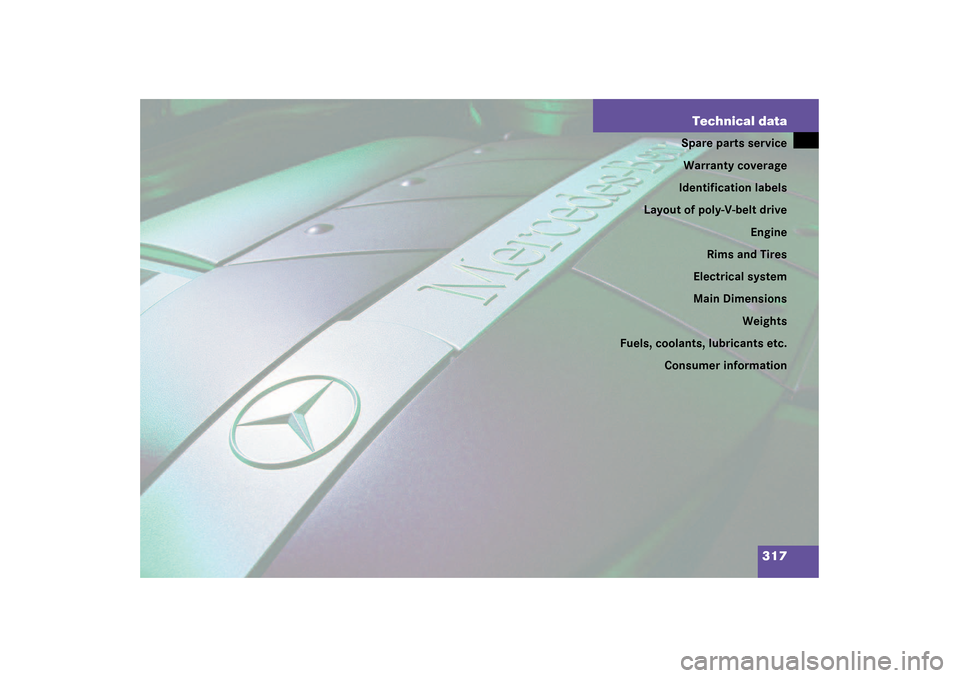

MERCEDES-BENZ C240 4MATIC WAGON 2003 S203 Owner's Manual

317 Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and Tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants etc.
Consumer information
S203 MY03_A.book Page 317 Tuesday, January 28, 2003 2:22 PM

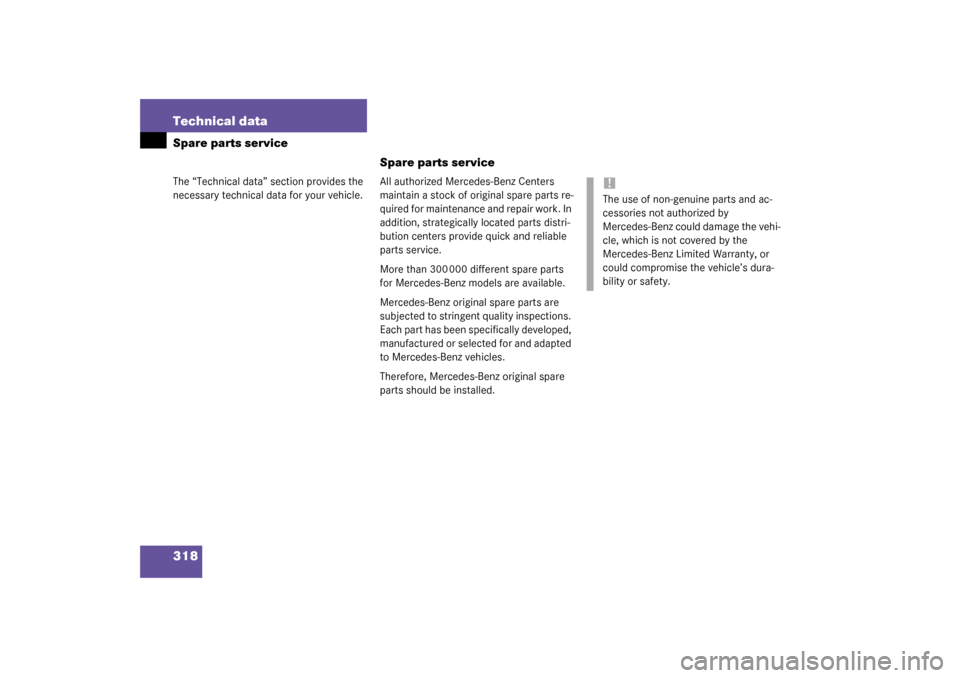

318 Technical dataSpare parts serviceThe “Technical data” section provides the
necessary technical data for your vehicle.
Spare parts serviceAll authorized Mercedes-Benz Centers
maintain a stock of original spare parts re-
quired for maintenance and repair work. In
addition, strategically located parts distri-
bution centers provide quick and reliable
parts service.
More than 300 000 different spare parts
for Mercedes-Benz models are available.
Mercedes-Benz original spare parts are
subjected to stringent quality inspections.
Each part has been specifically developed,
manufactured or selected for and adapted
to Mercedes-Benz vehicles.
Therefore, Mercedes-Benz original spare
parts should be installed.
!The use of non-genuine parts and ac-
cessories not authorized by
Mercedes-Benz could damage the vehi-
cle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.
S203 MY03_A.book Page 318 Tuesday, January 28, 2003 2:22 PM

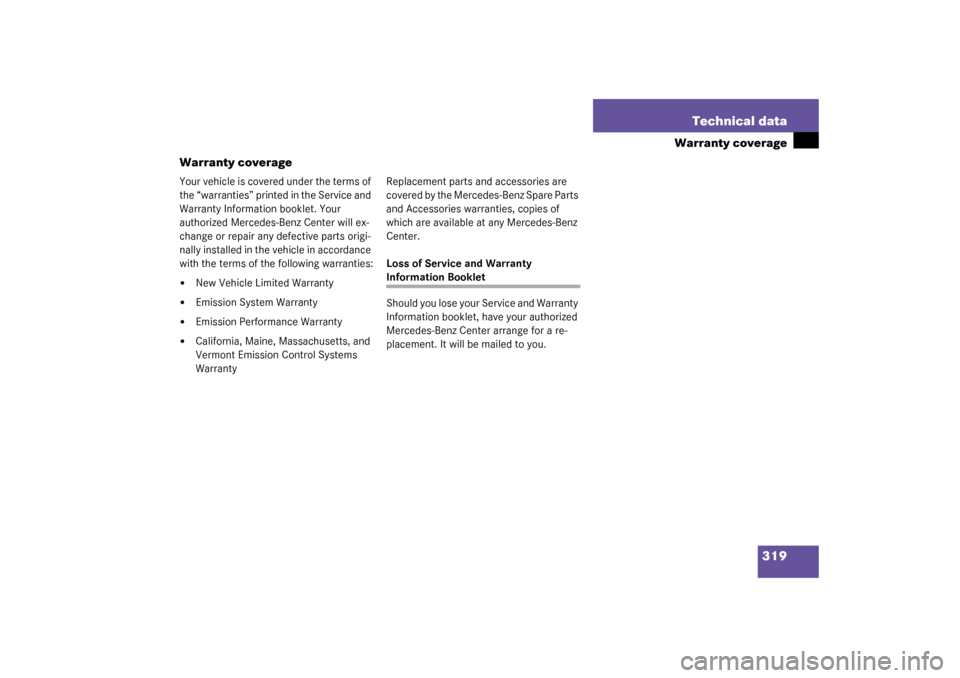

319 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the “warranties” printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Spare Parts
and Accessories warranties, copies of
which are available at any Mercedes-Benz
Center.
Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have your authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.
S203 MY03_A.book Page 319 Tuesday, January 28, 2003 2:22 PM

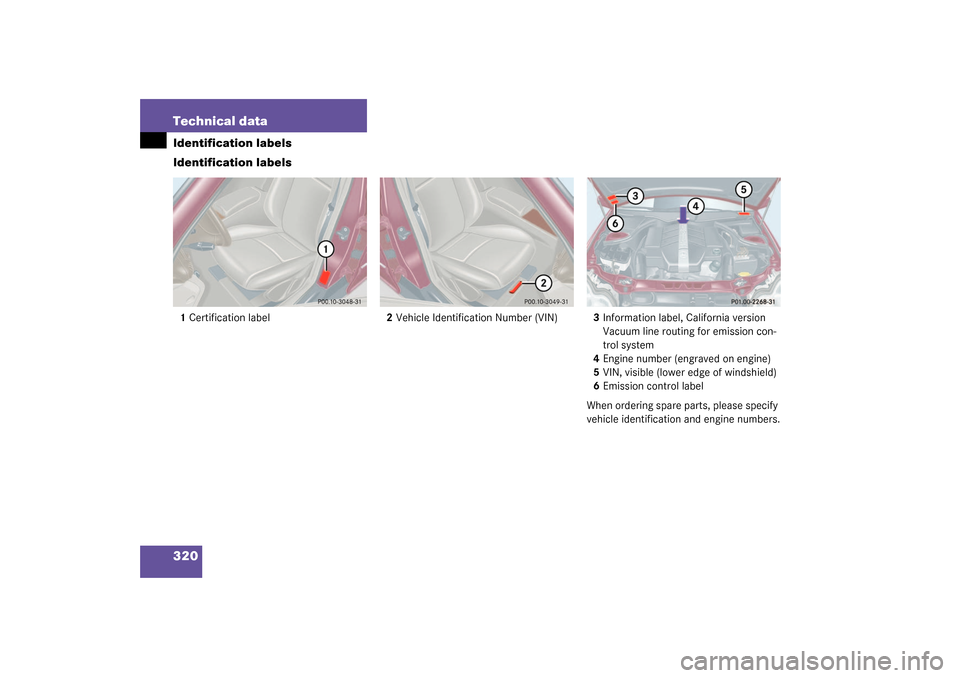

320 Technical dataIdentification labels
Identification labels1Certification label2Vehicle Identification Number (VIN)3Information label, California version
Vacuum line routing for emission con-
trol system
4Engine number (engraved on engine)
5VIN, visible (lower edge of windshield)
6Emission control label
When ordering spare parts, please specify
vehicle identification and engine numbers.S203 MY03_A.book Page 320 Tuesday, January 28, 2003 2:22 PM

321 Technical data

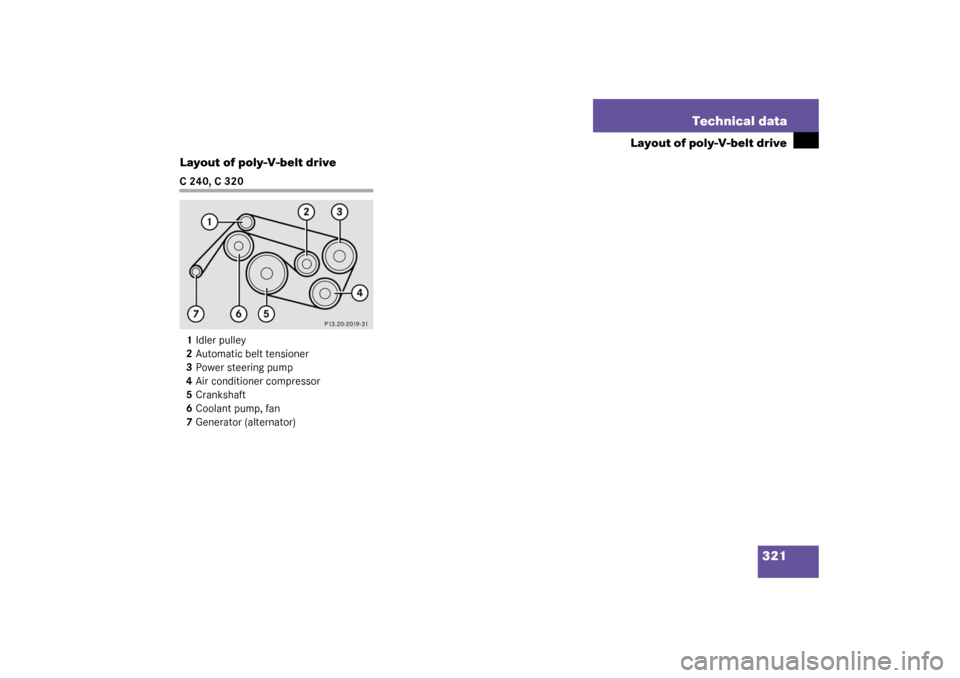

Layout of poly-V-belt drive
Layout of poly-V-belt drive
C240, C320
1Idler pulley
2Automatic belt tensioner
3Power steering pump
4Air conditioner compressor
5Crankshaft
6Coolant pump, fan
7Generator (alternator)
S203 MY03_A.book Page 321 Tuesday, January 28, 2003 2:22 PM

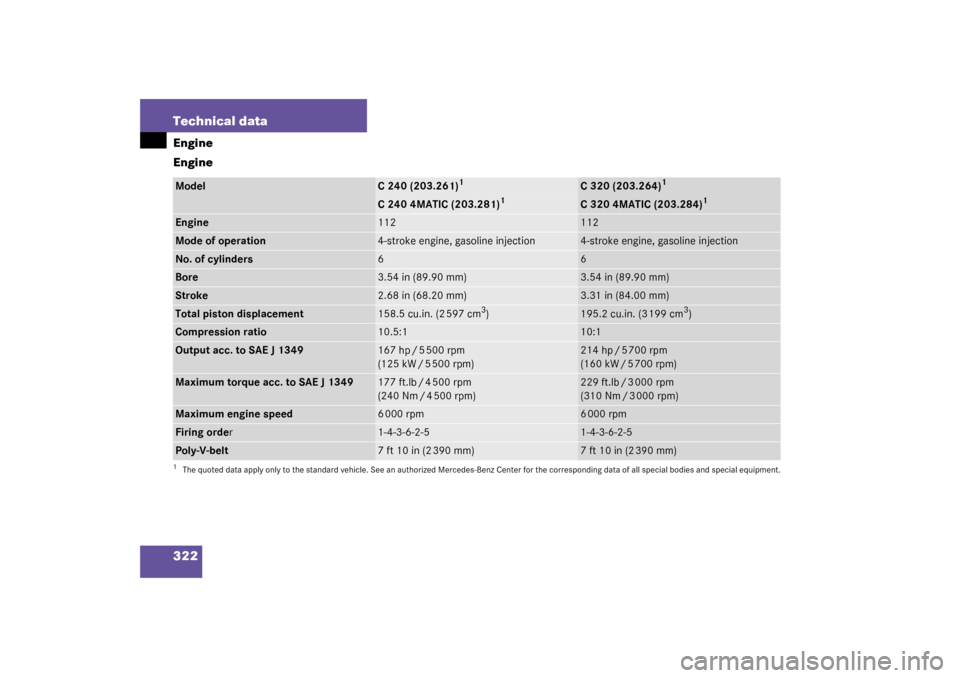

322 Technical dataEngine
EngineModel
C 240 (203.261)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
C 320 (203.264)
1
C 240 4MATIC (203.281)
1
C 320 4MATIC (203.284)
1
Engine
112
112
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
6
6
Bore
3.54 in (89.90 mm)
3.54 in (89.90 mm)
Stroke
2.68 in (68.20 mm)
3.31 in (84.00 mm)
Total piston displacement
158.5 cu.in. (2 597 cm
3)
195.2 cu.in. (3 199 cm
3)
Compression ratio
10.5:1
10:1
Output acc. to SAE J 1349
167 hp / 5 500 rpm
(125 kW / 5 500 rpm)
214 hp / 5 700 rpm
(160 kW / 5 700 rpm)
Maximum torque acc. to SAE J 1349
177ft.lb/4500rpm
(240 Nm / 4 500 rpm)
229 ft.lb / 3 000 rpm
(310 Nm / 3 000 rpm)
Maximum engine speed
6000 rpm
6000 rpm
Firing order
1-4-3-6-2-5
1-4-3-6-2-5
Poly-V-belt
7ft 10in (2390mm)
7 ft 10 in (2 390 mm)
S203 MY03_A.book Page 322 Tuesday, January 28, 2003 2:22 PM

323 Technical data

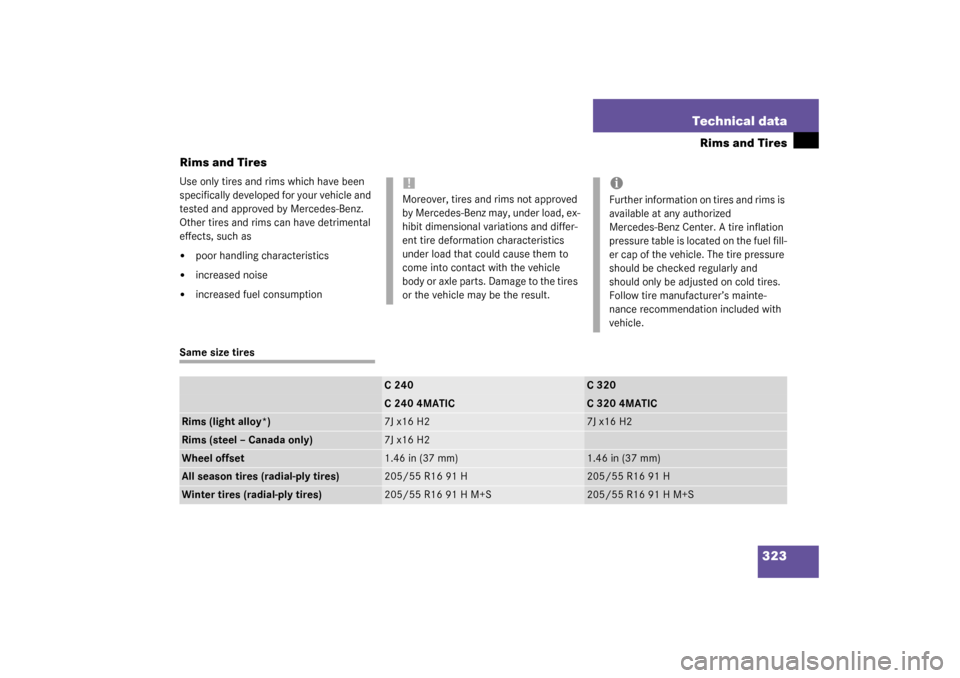

Rims and Tires
Rims and Tires
Use only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
Same size tires
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
under load that could cause them to
come into contact with the vehicle
body or axle parts. Damage to the tires
or the vehicle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er cap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.
C 240
C 320
C 240 4MATIC
C 320 4MATIC
Rims (light alloy*)
7J x16 H2
7J x16 H2
Rims (steel – Canada only)
7J x16 H2
Wheel offset
1.46 in (37 mm)
1.46 in (37 mm)
All season tires (radial-ply tires)
205/55 R16 91 H
205/55 R16 91 H
Winter tires (radial-ply tires)
205/55 R16 91 H M+S
205/55 R16 91 H M+S
S203 MY03_A.book Page 323 Tuesday, January 28, 2003 2:22 PM

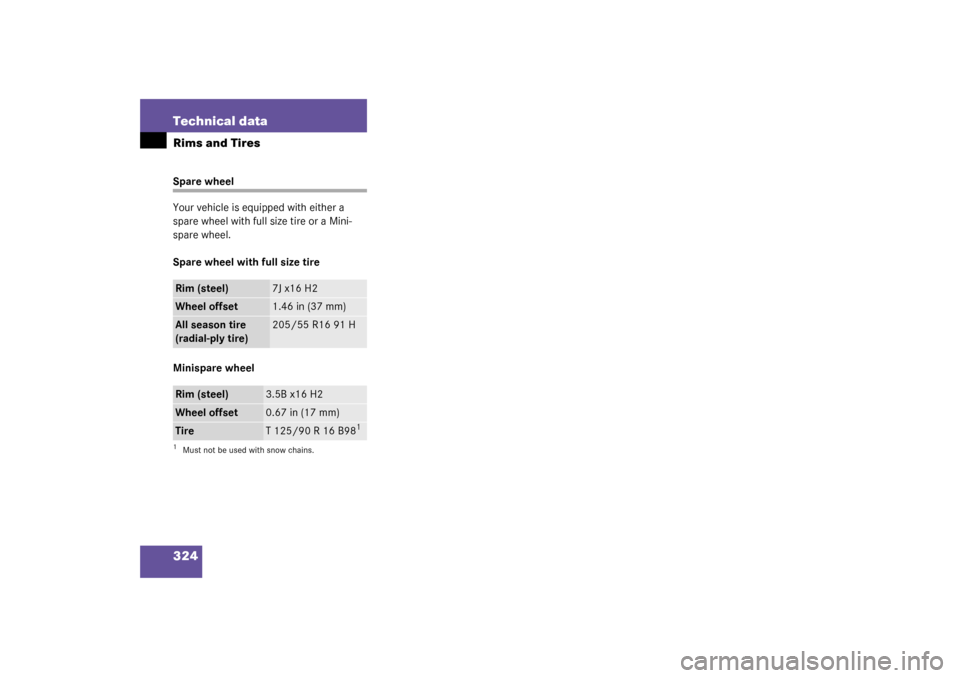

324 Technical dataRims and TiresSpare wheel
Your vehicle is equipped with either a
spare wheel with full size tire or a Mini-
spare wheel.
Spare wheel with full size tire
Minispare wheelRim (steel)
7J x16 H2
Wheel offset
1.46 in (37 mm)
All season tire
(radial-ply tire)
205/55 R16 91 H
Rim (steel)
3.5B x16 H2
Wheel offset
0.67 in (17 mm)
Tire
T 125/90 R 16 B98
1
1Must not be used with snow chains.
S203 MY03_A.book Page 324 Tuesday, January 28, 2003 2:22 PM

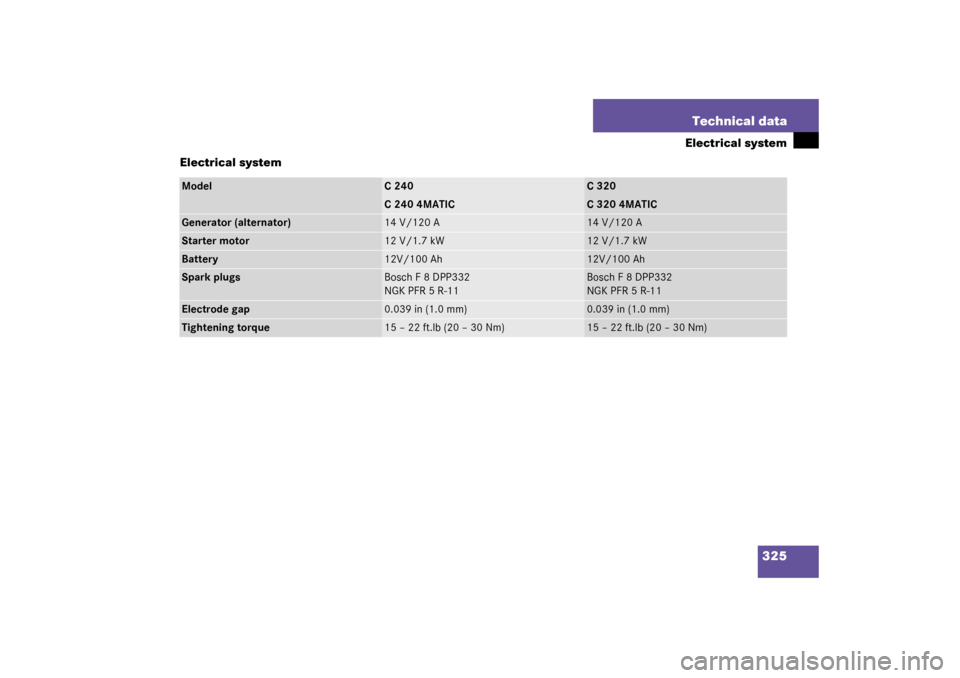

325 Technical data
Electrical system
Electrical system
Model
C 240
C 320
C 240 4MATIC
C 320 4MATIC
Generator (alternator)
14 V/120 A
14 V/120 A
Starter motor
12 V/1.7 kW
12 V/1.7 kW
Battery
12V/100 Ah
12V/100 Ah
Spark plugs
Bosch F 8 DPP332
NGK PFR 5 R-11
Bosch F 8 DPP332
NGK PFR 5 R-11
Electrode gap
0.039 in (1.0 mm)
0.039 in (1.0 mm)
Tightening torque
15 – 22 ft.lb (20 – 30 Nm)
15 – 22 ft.lb (20 – 30 Nm)
S203 MY03_A.book Page 325 Tuesday, January 28, 2003 2:22 PM

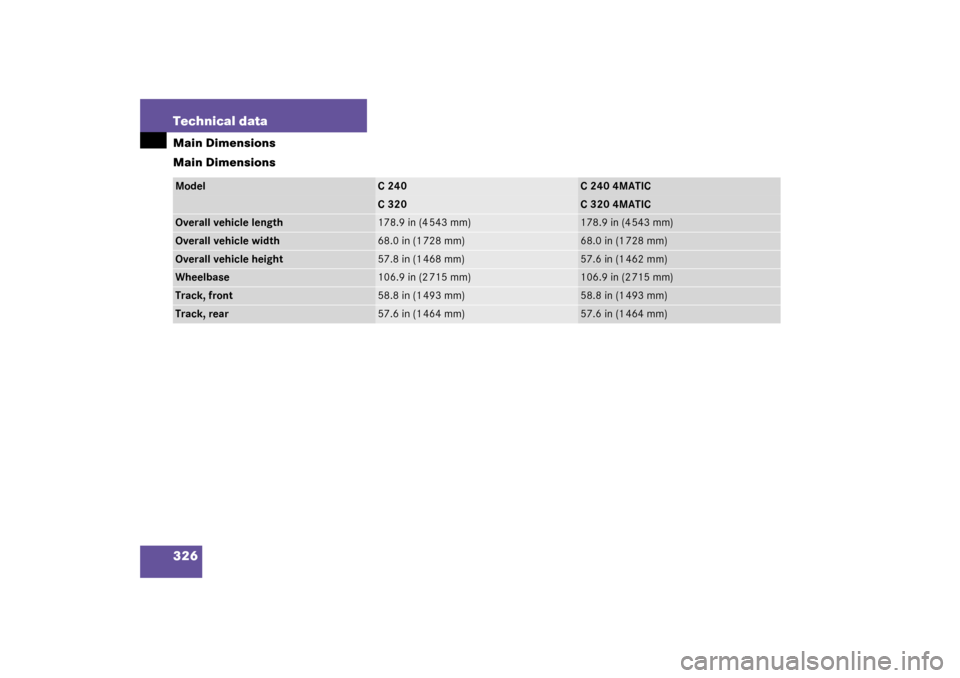

326 Technical dataMain Dimensions
Main DimensionsModel
C 240
C 240 4MATIC
C 320
C 320 4MATIC
Overall vehicle length
178.9 in (4 543 mm)
178.9 in (4 543 mm)
Overall vehicle width
68.0 in (1 728 mm)
68.0 in (1 728 mm)
Overall vehicle height
57.8 in (1 468 mm)
57.6 in (1 462 mm)
Wheelbase
106.9 in (2 715 mm)
106.9 in (2 715 mm)
Track, front
58.8 in (1 493 mm)
58.8 in (1 493 mm)
Track, rear
57.6 in (1 464 mm)
57.6 in (1 464 mm)
