MERCEDES-BENZ C240 4MATIC WAGON 2004 S203 Owner's Manual

161 Controls in detail
Automatic climate control*
Setting the temperature
Use temperature controls1 ande for
the left side or6 and7 for the right side
(page 159) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).Increasing

Push temperature control1
and/or6.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Decreasing

Push temperature control7
and/ore.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
Adding outside air

Turn thumbwheel3 in dashboard
(page 159) to increase airflow of
outside air through air vents for center,
left and right sides and rear passenger
compartment.
iSevere conditions (e.g. strong air
pollution) may require replacement of
the filter before its scheduled interval.
A clogged filter will reduce the air
volume to the interior.
If the vehicle interior is hot, ventilate
the interior before driving off.
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not obstruct air flow by placing
objects on the air flow-through exhaust
slots below the rear window.
iWhen operating the climate control
system in automatic mode, you will
only rarely need to adjust the tempera-
ture, air volume and air distribution.

162 Controls in detailAutomatic climate control*Adjusting air distribution
Use air distribution controls2 and5
(page 159) to separately adjust the air
distribution on each side of the passenger
compartment. The following symbols are
found on the controls:Adjusting manually

Press left or rightU button
(page 159).
The indicator lamp on the button goes
out.
Air distribution can be adjusted
manually.
Adjusting automatically

Press left or rightU button
(page 159).
The indicator lamp on the button
comes on.
The air distribution is adjusted
automatically.
Windshield fogged on the outside

Switch the windshield wipers on
(page 47).

Switch to manual mode.

Turn the air distribution control
toa orY.
Adjusting air volume
Adjusting manually
Seven blower speeds are available.
Press leftM or rightQ s i d e o f a i r
volume control (
page 159) until the
requested blower speed is attained.
The display “AUTO” disappears and the
automatic mode is switched off. The
selected blower speed is shown in the
display.
Adjusting automatically

Press left or rightU button
(page 159).
The indicator lamp on the button
comes on.
The air volume is adjusted
automatically.
Symbol
Function
a
Directs air through the center,
side and rear passenger
compartment air vents
Z
Directs air to the windows
X
Directs air into the entire
vehicle interior
Y
Directs air to the footwells

163 Controls in detail
Automatic climate control*
Maximum cooling MAXCOOL
If the left and right air distribution controls
as well as the airflow volume control are
set toU and there is a high need for
cooling, the display “MAXCOOL” appears.
This provides the fastest possible cooling
of the vehicle interior (when windows and
sliding/pop-up roof* are closed).
Defrosting
Activating
Press buttonP (
page 159).
The indicator lamp on the button
comes on.
or

Switch off air recirculation, if selected.

Press buttonO (
page 159).
The indicator lamp on the button goes
out.

Close center air vents (
page 159).

Adjust side air vents upwards
(page 159).Deactivating

Press buttonP (
page 159).
The indicator lamp on the button goes
out. Defrosting is turned off.
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside. This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.
Activating
Press buttonO (
page 159).
The indicator lamp on the button
comes on.
iThese settings should only be selected
for a short time.
Warning!
G
When the outside temperature is
below 41°F (5°C), only switch to air
recirculation mode for short periods to
prevent window fogging.

164 Controls in detailAutomatic climate control*
Deactivating
Press buttonO (
page 159).
The indicator lamp on the button goes
out.The air recirculation mode is deactivated
automatically:


after five minutes if the outside
temperature is below
approximately 41°F (5°C)


after five minutes if the air conditioning
is turned off


after 30 minutes if the outside
temperature is above
approximately 41°F (5°C)
At outside temperatures above 79°F
(26°C) the system will not automatically
switch back to outside air. A quantity of
outside air is added after approximately
30 minutes.
iIf you keep buttonO pressed, the
side windows and the sliding/pop-up
roof* will close.Warning!
G
Never operate the side windows and the
sliding/pop-up roof* if there is the
possibility of anyone being harmed by the
closing procedure.
In the event that the closing procedure
causes potential danger, the closing of the
side windows can be immediately halted by
pressing or pulling the respective window
switch. The closing of the sliding/pop-up
roof* can be immediately halted by moving
the sliding/pop-up roof* switch in the
overhead control panel in any direction.
The closing of the side windows and
sliding/pop-up roof* can be reversed by
again pressing and holding theO button.
iThe air recirculation mode is activated
automatically:

at high outside temperatures


if the concentration of carbon mon-
oxide and nitrogen oxide in the out-
side air increases, for example in a
tunnel (charcoal filter activated)
Please note that the charcoal filter
must be activated (
page 165) for
the air recirculation mode to be
activated automatically.
If you have turned off the air
conditioning (
page 166) or the out-
side temperature is below 41°F (5°C),
the air recirculation mode will not
switch on automatically.
iIf you keep buttonO pressed, the
side windows and the sliding/pop-up
roof* will return to their previous
position.

165 Controls in detail
Automatic climate control*
Charcoal filter
An activated charcoal filter markedly
reduces bad odors and removes pollutants
from air entering the passenger compart-
ment.
Activating
Press buttone (
page 159).
The indicator lamp on the button
comes on.
The system switches automatically to the
air recirculation mode if the carbon
monoxide (CO) or nitrogen oxide (NO
X)
concentration of the outside air increases
beyond a predetermined level.Deactivating

Press buttone (
page 159).
The indicator lamp on the button goes
out.
The automatic air recirculation mode does
not function if theAC
OFF
mode is selected
or if the outside temperature has fallen
below 41°F (5°C).
The activated charcoal filter should be
switched off when windows fog up on the
inside, or if the passenger compartment
needs to be quickly heated or cooled
down.
iIf you keep buttone pressed, the
side windows and the sliding/pop-up
roof* will close.
Warning!
G
Never operate the side windows and the
sliding/pop-up roof* if there is the
possibility of anyone being harmed by the
closing procedure.
In the event that the closing procedure
causes potential danger, the closing of the
side windows can be immediately halted by
pressing or pulling the respective window
switch. The closing of the sliding/pop-up
roof* can be immediately halted by moving
the sliding/pop-up roof* switch in the
overhead control panel in any direction.
The closing of the side windows and
sliding/pop-up roof* can be reversed by
again pressing and holding thee button.
iIf you keep buttone pressed, the
side windows and the sliding/pop-up
roof* will return to their previous
position.

166 Controls in detailAutomatic climate control*Air conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature set by the operator.Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the automatic
climate control system. The air in the
vehicle will then no longer be cooled or
dehumidified.

Press button° (
page 159).
The indicator lamp on the button
comes on.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condi-
tioning.

Press button° (
page 159).
The indicator lamp on the button goes
out.
The air conditioning uses the
refrigerant R134a. This refrigerant is free
of CFCs which are harmful to the ozone
layer.
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.
!If the air conditioning cannot be turned
on again, this indicates that the air
conditioning is losing refrigerant. The
compressor has turned itself off.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Center.

167 Controls in detail
Automatic climate control*
Residual heat and ventilation*
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
Activating
Turn the SmartKey in the starter switch
to position1 or0, or remove it from
the starter switch.

Press button° (
page 159).
The indicator lamp on the button
comes on.Deactivating

Press button° (
page 159).
The indicator lamp on the button goes
out.
The residual heat is automatically turned
off:


when the ignition is switched on


after about 30 minutes


if the battery voltage drops
iHow long the system will provide
heating depends on the coolant
temperature and the temperature set
by the operator. The blower will run at
speed setting1 regardless of the air
distribution control setting.

168 Controls in detailAutomatic climate control*Rear passenger compartment adjustable air vents
1Left center air vent
2Thumbwheel for air volume control for
center air vents
3Right center air vent
4Closing center air vents
5Opening center air vents
6Switching on blowerAdjusting the air volume

Turn thumbwheel2.iFour blower speeds are available.
The temperature at the center air vents
for the rear passenger
compartment1 and3 is the same as
at the dashboard center air vents.

169 Controls in detail
Audio system
Audio system
Audio and telephone, operation
These instructions are intended to help
you become familiar with your
Mercedes-Benz audio system. They con-
tain useful tips and a detailed description
of the user functions.
Operating safety
Warning!
G
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a stand-
still and operate the system only when road
and traffic conditions permit. Always pay full
attention to traffic conditions first before
operating system controls while driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is cover-
ing a distance of 50 feet (approximately
14 m) every second.
Warning!
G
Any alterations made to electronic compo-
nents can cause malfunctions.
The radio, amplifier, CD changer*, satellite
radio*, telephone* and voice control sys-
tem* are interconnected. When one of the
components is not operational or has not
been removed/replaced properly, the func-
tion of other components may be impaired.
This condition might seriously impair the
operating safety of your vehicle.
We recommend that you have any service
work on electronic components carried out
by an authorized Mercedes-Benz Center.

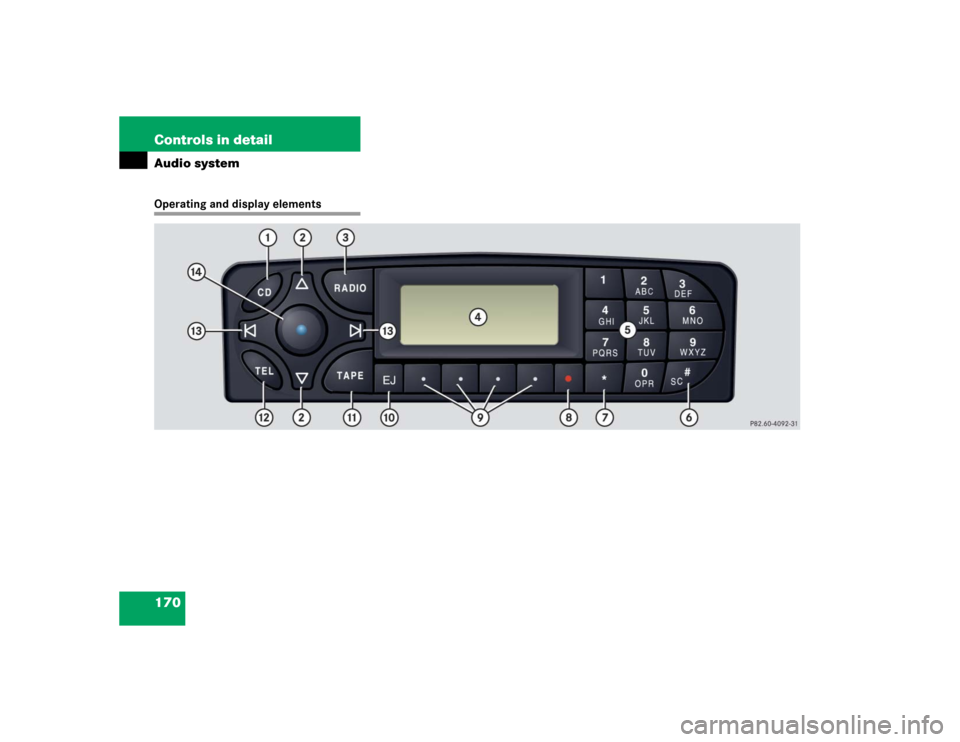

170 Controls in detailAudio systemOperating and display elements
