MERCEDES-BENZ C350 4MATIC 2007 W203 Owner's Manual

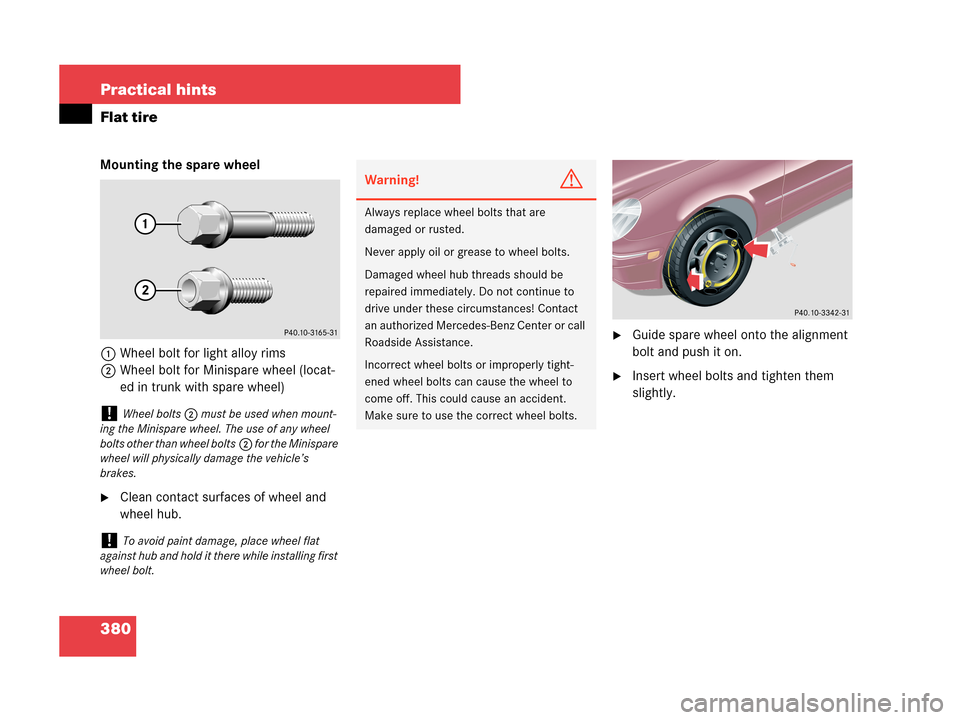

380 Practical hints
Flat tire
Mounting the spare wheel
1Wheel bolt for light alloy rims
2Wheel bolt for Minispare wheel (locat-
ed in trunk with spare wheel)
Clean contact surfaces of wheel and
wheel hub.
Guide spare wheel onto the alignment
bolt and push it on.
Insert wheel bolts and tighten them
slightly.
!Wheel bolts2 must be used when mount-
ing the Minispare wheel. The use of any wheel
bolts other than wheel bolts2 for the Minispare
wheel will physically damage the vehicle’s
brakes.
!To avoid paint damage, place wheel flat
against hub and hold it there while installing first
wheel bolt.
Warning!G
Always replace wheel bolts that are
damaged or rusted.
Never apply oil or grease to wheel bolts.
Damaged wheel hub threads should be
repaired immediately. Do not continue to
drive under these circumstances! Contact
an authorized Mercedes-Benz Center or call
Roadside Assistance.
Incorrect wheel bolts or improperly tight-
ened wheel bolts can cause the wheel to
come off. This could cause an accident.
Make sure to use the correct wheel bolts.

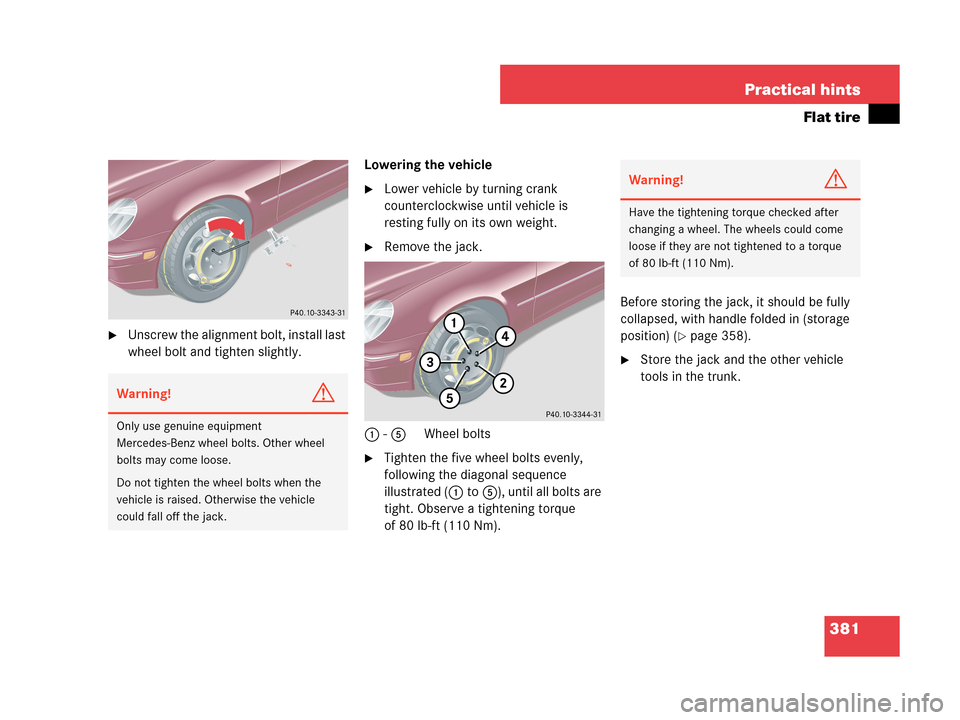

381 Practical hints
Flat tire
Unscrew the alignment bolt, install last
wheel bolt and tighten slightly.Lowering the vehicle
Lower vehicle by turning crank
counterclockwise until vehicle is
resting fully on its own weight.
Remove the jack.
1 - 5Wheel bolts
Tighten the five wheel bolts evenly,
following the diagonal sequence
illustrated (1to5), until all bolts are
tight. Observe a tightening torque
of 80 lb-ft (110 Nm).Before storing the jack, it should be fully
collapsed, with handle folded in (storage
position) (
page 358).
Store the jack and the other vehicle
tools in the trunk.
Warning!G
Only use genuine equipment
Mercedes-Benz wheel bolts. Other wheel
bolts may come loose.
Do not tighten the wheel bolts when the
vehicle is raised. Otherwise the vehicle
could fall off the jack.
Warning!G
Have the tightening torque checked after
changing a wheel. The wheels could come
loose if they are not tightened to a torque
of 80 lb-ft (110 Nm).

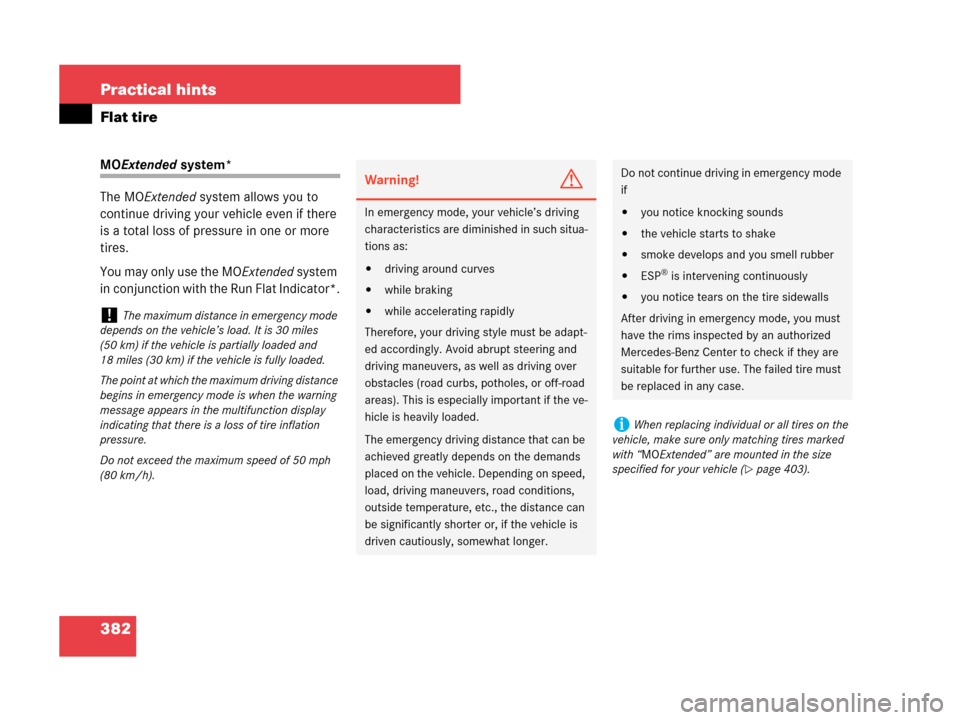

382 Practical hints
Flat tire
MOExtended system*
The MOExtended system allows you to
continue driving your vehicle even if there
is a total loss of pressure in one or more
tires.
You may only use the MOExtended system
in conjunction with the Run Flat Indicator*.
!The maximum distance in emergency mode
depends on the vehicle’s load. It is 30 miles
(50 km) if the vehicle is partially loaded and
18 miles (30 km) if the vehicle is fully loaded.
The point at which the maximum driving distance
begins in emergency mode is when the warning
message appears in the multifunction display
indicating that there is a loss of tire inflation
pressure.
Do not exceed the maximum speed of 50 mph
(80 km/h).
Warning!G
In emergency mode, your vehicle’s driving
characteristics are diminished in such situa-
tions as:

driving around curves

while braking

while accelerating rapidly
Therefore, your driving style must be adapt-
ed accordingly. Avoid abrupt steering and
driving maneuvers, as well as driving over
obstacles (road curbs, potholes, or off-road
areas). This is especially important if the ve-
hicle is heavily loaded.
The emergency driving distance that can be
achieved greatly depends on the demands
placed on the vehicle. Depending on speed,
load, driving maneuvers, road conditions,
outside temperature, etc., the distance can
be significantly shorter or, if the vehicle is
driven cautiously, somewhat longer.
Do not continue driving in emergency mode
if

you notice knocking sounds

the vehicle starts to shake

smoke develops and you smell rubber

ESP® is intervening continuously

you notice tears on the tire sidewalls
After driving in emergency mode, you must
have the rims inspected by an authorized
Mercedes-Benz Center to check if they are
suitable for further use. The failed tire must
be replaced in any case.
iWhen replacing individual or all tires on the
vehicle, make sure only matching tires marked
with “MOExtended” are mounted in the size
specified for your vehicle (
page 403).

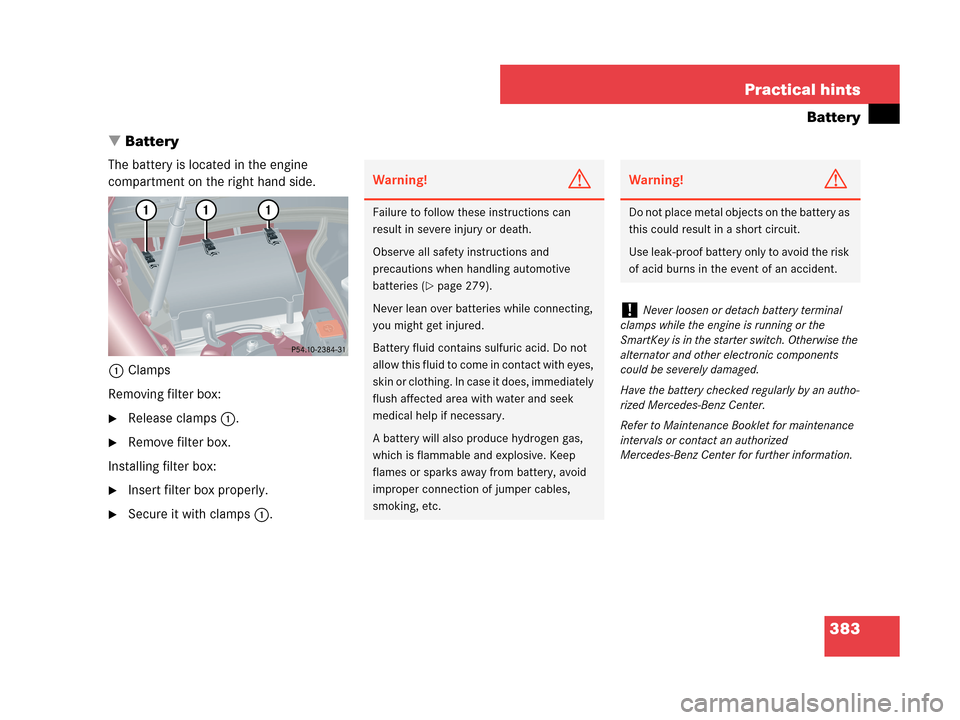

383 Practical hints
Battery
Battery
The battery is located in the engine
compartment on the right hand side.
1Clamps
Removing filter box:
Release clamps1.
Remove filter box.
Installing filter box:
Insert filter box properly.
Secure it with clamps1.
Warning!G
Failure to follow these instructions can
result in severe injury or death.
Observe all safety instructions and
precautions when handling automotive
batteries (
page 279).
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Warning!G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.
!Never loosen or detach battery terminal
clamps while the engine is running or the
SmartKey is in the starter switch. Otherwise the
alternator and other electronic components
could be severely damaged.
Have the battery checked regularly by an autho-
rized Mercedes-Benz Center.
Refer to Maintenance Booklet for maintenance
intervals or contact an authorized
Mercedes-Benz Center for further information.

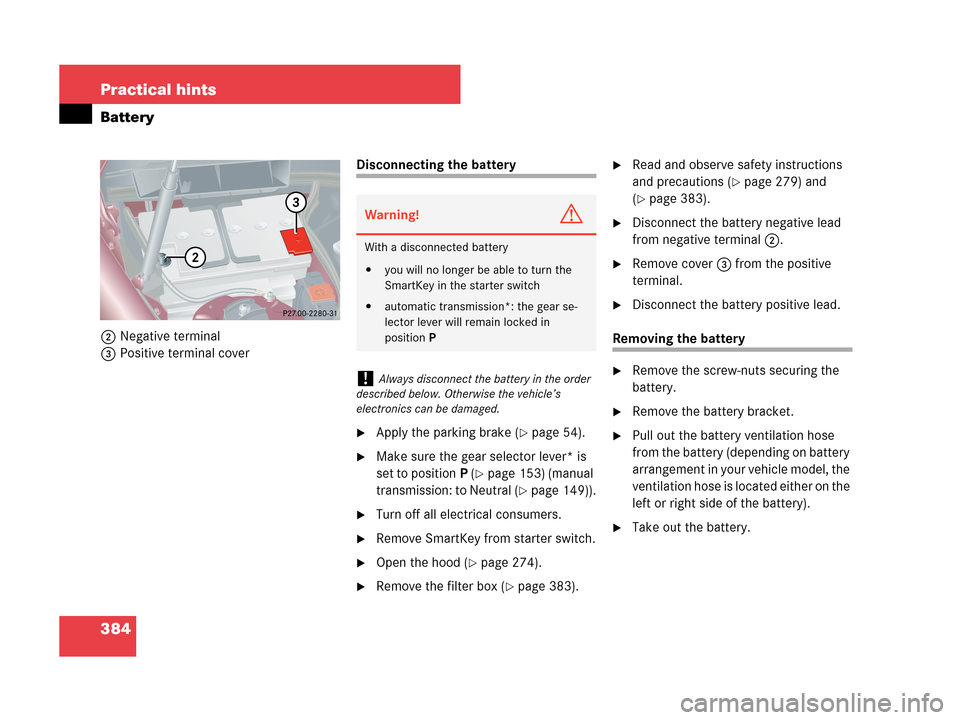

384 Practical hints
Battery
2Negative terminal
3Positive terminal cover
Disconnecting the battery
Apply the parking brake (page 54).
Make sure the gear selector lever* is
set to positionP (
page 153) (manual
transmission: to Neutral (
page 149)).
Turn off all electrical consumers.
Remove SmartKey from starter switch.
Open the hood (page 274).
Remove the filter box (page 383).
Read and observe safety instructions
and precautions (
page 279) and
(
page 383).
Disconnect the battery negative lead
from negative terminal2.
Remove cover3 from the positive
terminal.
Disconnect the battery positive lead.
Removing the battery
Remove the screw-nuts securing the
battery.
Remove the battery bracket.
Pull out the battery ventilation hose
from the battery (depending on battery
arrangement in your vehicle model, the
ventilation hose is located either on the
left or right side of the battery).
Take out the battery.
Warning!G
With a disconnected battery

you will no longer be able to turn the
SmartKey in the starter switch

automatic transmission*: the gear se-
lector lever will remain locked in
positionP
!Always disconnect the battery in the order
described below. Otherwise the vehicle’s
electronics can be damaged.

385 Practical hints
Battery
Charging and reinstalling the batteryCharge battery in accordance with the
instructions of the battery charger
manufacturer.
Reinstall the charged battery. Follow
the previously described steps in
reverse order.
Reconnecting the battery
Turn off all electrical consumers.
Remove SmartKey from starter switch.
Connect the battery positive lead and
fasten its cover3 (
page 384).
Connect the battery negative lead2
(
page 384).
Reinstall the filter box (page 383).Batteries contain materials that can harm
the environment if disposed of improperly.
Large 12 volt storage batteries contain
lead. Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
Warning!G
Never charge a battery while still installed in
the vehicle unless the accessory battery
charge unit approved by Mercedes-Benz is
being used. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.
An accessory battery charge unit specially
adapted for Mercedes-Benz vehicles and
tested and approved by Mercedes-Benz is
available, permitting the charging of the bat-
tery in its installed position. Contact an au-
thorized Mercedes-Benz Center for
information and availability. Charge battery
in accordance with the separate instruc-
tions for the accessory battery charger.
!The battery, its filler caps and the battery
ventilation hose must always be securely in-
stalled when the vehicle is in operation.
!Always connect the battery in the order de-
scribed below. Otherwise the vehicle’s electron-
ics can be damaged.
!Never invert the terminal connections!
iThe following procedures must be carried
out following any interruption of battery power
(e.g. due to reconnection):

Set the clock (page 136).
Vehicles with COMAND*:
See COMAND operator’s manual.

Synchronize side windows (page 222).

Synchronize tilt/sliding sunroof*
(
page 226).

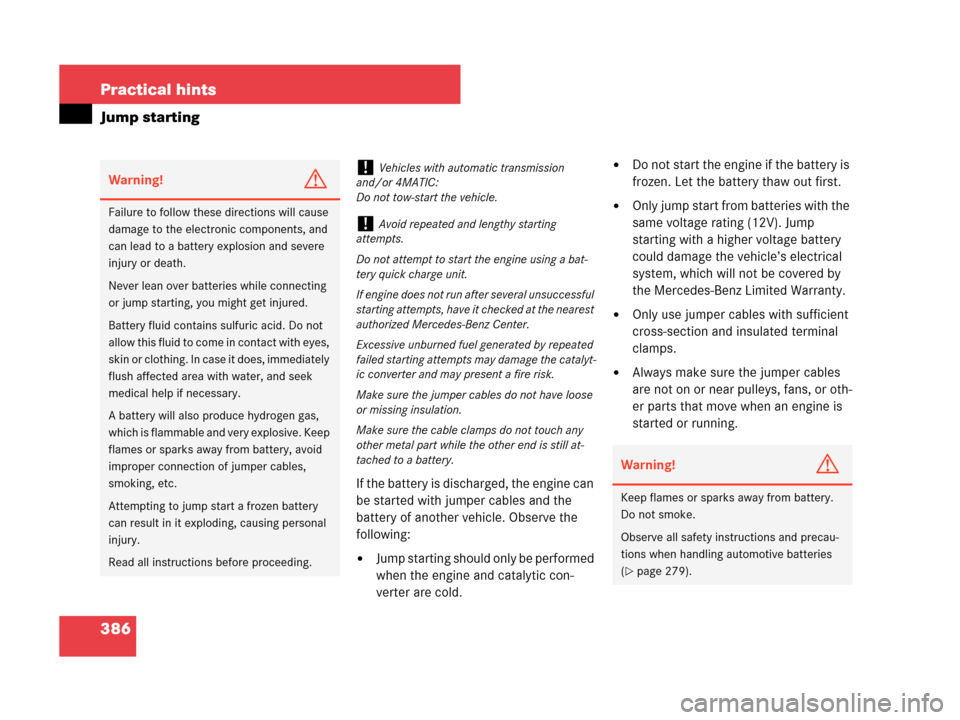

386 Practical hints
Jump starting
If the battery is discharged, the engine can
be started with jumper cables and the
battery of another vehicle. Observe the
following:

Jump starting should only be performed
when the engine and catalytic con-
verter are cold.

Do not start the engine if the battery is
frozen. Let the battery thaw out first.

Only jump start from batteries with the
same voltage rating (12V). Jump
starting with a higher voltage battery
could damage the vehicle’s electrical
system, which will not be covered by
the Mercedes-Benz Limited Warranty.

Only use jumper cables with sufficient
cross-section and insulated terminal
clamps.

Always make sure the jumper cables
are not on or near pulleys, fans, or oth-
er parts that move when an engine is
started or running.
Warning!G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!Vehicles with automatic transmission
and/or 4MATIC:
Do not tow-start the vehicle.
!Avoid repeated and lengthy starting
attempts.
Do not attempt to start the engine using a bat-
tery quick charge unit.
If engine does not run after several unsuccessful
starting attempts, have it checked at the nearest
authorized Mercedes-Benz Center.
Excessive unburned fuel generated by repeated
failed starting attempts may damage the catalyt-
ic converter and may present a fire risk.
Make sure the jumper cables do not have loose
or missing insulation.
Make sure the cable clamps do not touch any
other metal part while the other end is still at-
tached to a battery.
Warning!G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(
page 279).

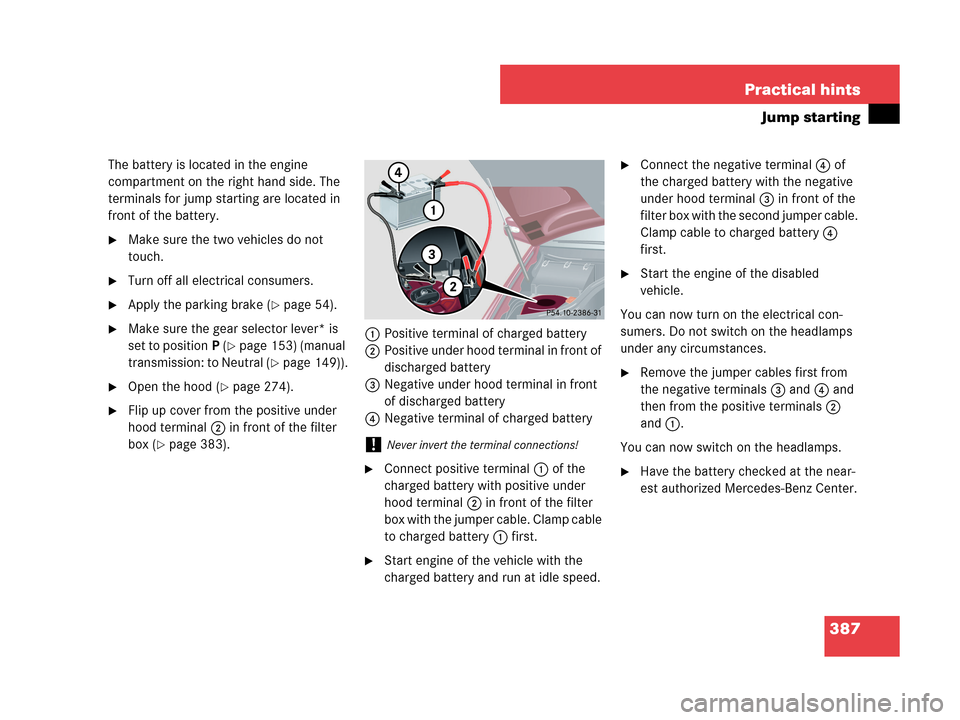

387 Practical hints
Jump starting
The battery is located in the engine
compartment on the right hand side. The
terminals for jump starting are located in
front of the battery.
Make sure the two vehicles do not
touch.
Turn off all electrical consumers.
Apply the parking brake (page 54).
Make sure the gear selector lever* is
set to positionP (
page 153) (manual
transmission: to Neutral (
page 149)).
Open the hood (page 274).
Flip up cover from the positive under
hood terminal2 in front of the filter
box (
page 383).1Positive terminal of charged battery
2Positive under hood terminal in front of
discharged battery
3Negative under hood terminal in front
of discharged battery
4Negative terminal of charged battery
Connect positive terminal1 of the
charged battery with positive under
hood terminal2 in front of the filter
box with the jumper cable. Clamp cable
to charged battery1 first.
Start engine of the vehicle with the
charged battery and run at idle speed.
Connect the negative terminal4 of
the charged battery with the negative
under hood terminal3 in front of the
filter box with the second jumper cable.
Clamp cable to charged battery4
first.
Start the engine of the disabled
vehicle.
You can now turn on the electrical con-
sumers. Do not switch on the headlamps
under any circumstances.
Remove the jumper cables first from
the negative terminals3 and4 and
then from the positive terminals2
and1.
You can now switch on the headlamps.
Have the battery checked at the near-
est authorized Mercedes-Benz Center.
!Never invert the terminal connections!

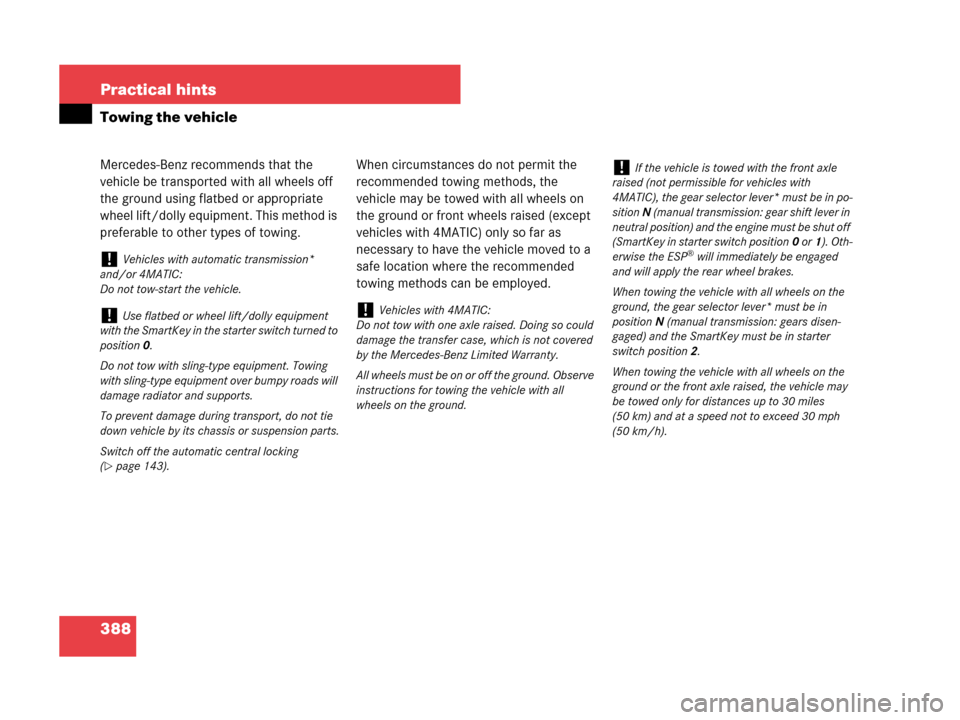

388 Practical hints
Towing the vehicle
Mercedes-Benz recommends that the
vehicle be transported with all wheels off
the ground using flatbed or appropriate
wheel lift/dolly equipment. This method is
preferable to other types of towing.When circumstances do not permit the
recommended towing methods, the
vehicle may be towed with all wheels on
the ground or front wheels raised (except
vehicles with 4MATIC) only so far as
necessary to have the vehicle moved to a
safe location where the recommended
towing methods can be employed.
!Vehicles with automatic transmission*
and/or 4MATIC:
Do not tow-start the vehicle.
!Use flatbed or wheel lift/dolly equipment
with the SmartKey in the starter switch turned to
position0.
Do not tow with sling-type equipment. Towing
with sling-type equipment over bumpy roads will
damage radiator and supports.
To prevent damage during transport, do not tie
down vehicle by its chassis or suspension parts.
Switch off the automatic central locking
(
page 143).
!Vehicles with 4MATIC:
Do not tow with one axle raised. Doing so could
damage the transfer case, which is not covered
by the Mercedes-Benz Limited Warranty.
All wheels must be on or off the ground. Observe
instructions for towing the vehicle with all
wheels on the ground.
!If the vehicle is towed with the front axle
raised (not permissible for vehicles with
4MATIC), the gear selector lever* must be in po-
sition N (manual transmission: gear shift lever in
neutral position) and the engine must be shut off
(SmartKey in starter switch position0 or1). Oth-
erwise the ESP
® will immediately be engaged
and will apply the rear wheel brakes.
When towing the vehicle with all wheels on the
ground, the gear selector lever* must be in
positionN (manual transmission: gears disen-
gaged) and the SmartKey must be in starter
switch position2.
When towing the vehicle with all wheels on the
ground or the front axle raised, the vehicle may
be towed only for distances up to 30 miles
(50 km) and at a speed not to exceed 30 mph
(50 km/h).

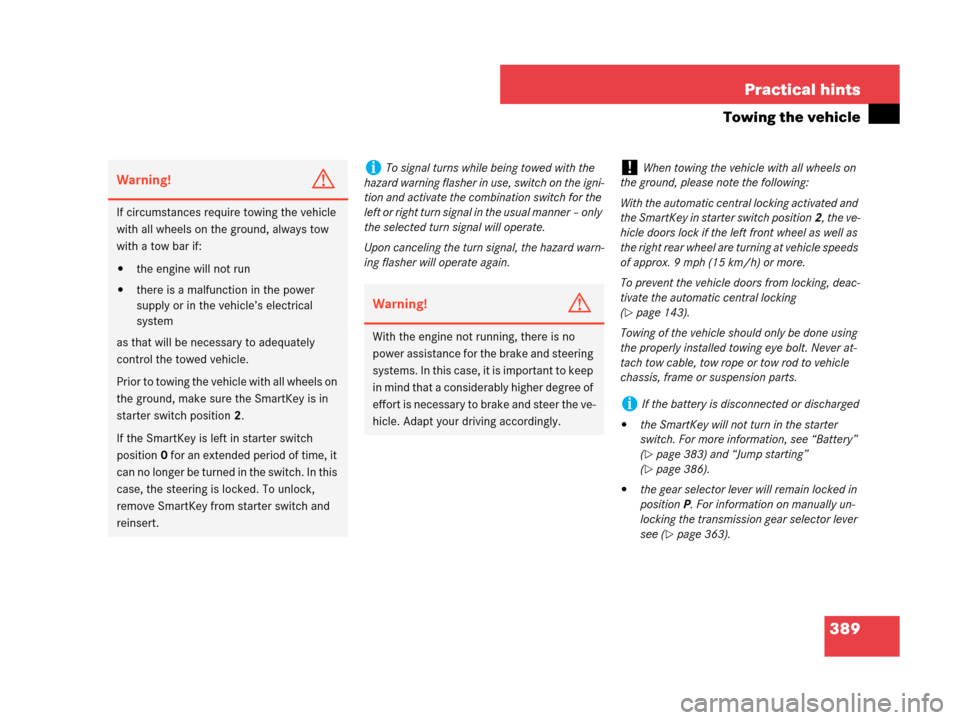

389 Practical hints
Towing the vehicle
Warning!G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run

there is a malfunction in the power
supply or in the vehicle’s electrical
system
as that will be necessary to adequately
control the towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make sure the SmartKey is in
starter switch position2.
If the SmartKey is left in starter switch
position0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock,
remove SmartKey from starter switch and
reinsert.
iTo signal turns while being towed with the
hazard warning flasher in use, switch on the igni-
tion and activate the combination switch for the
left or right turn signal in the usual manner – only
the selected turn signal will operate.
Upon canceling the turn signal, the hazard warn-
ing flasher will operate again.
Warning!G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.
!When towing the vehicle with all wheels on
the ground, please note the following:
With the automatic central locking activated and
the SmartKey in starter switch position2, the ve-
hicle doors lock if the left front wheel as well as
the right rear wheel are turning at vehicle speeds
of approx. 9 mph (15 km/h) or more.
To prevent the vehicle doors from locking, deac-
tivate the automatic central locking
(
page 143).
Towing of the vehicle should only be done using
the properly installed towing eye bolt. Never at-
tach tow cable, tow rope or tow rod to vehicle
chassis, frame or suspension parts.
iIf the battery is disconnected or discharged

the SmartKey will not turn in the starter
switch. For more information, see “Battery”
(
page 383) and “Jump starting”
(
page 386).

the gear selector lever will remain locked in
positionP. For information on manually un-
locking the transmission gear selector lever
see (
page 363).
