MERCEDES-BENZ C55AMG 2006 W203 Owner's Manual

240 Controls in detail
Power windows
Stopping windows
Press or pull respective switch again.
Synchronizing power windows
The power windows must be
resynchronized each time

after the battery has been
disconnected or discharged.

if the power windows cannot be fully
opened (Express-open) or closed
(Express-close).
Switch on the ignition (page 33).
Pull the power window switches until
the side windows are closed.
Hold the switches for approximately
1 second.
The power windows are synchronized.
!
If the upward movement of the window
is blocked during the closing
procedure, the window will stop and
open slightly.
Remove the obstruction, pull the
switch again past the resistance point
and release.
If the window still does not close when
there is no obstruction, then pull and
hold the switch again. The side window
will then close without the obstruction
sensor function.Warning!G
Driver’s door only:
If within 5 seconds you again pull the switch
past the resistance point and release, the
automatic reversal will not function.

241 Controls in detail
Power windows
Summer opening feature
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:

opening the side windows

opening the tilt/sliding sunroof
Aim transmitter eye at the driver’s door
handle. The SmartKey must be in close
proximity to the door handle.
Press and hold button Πuntil the
windows and the tilt/sliding sunroof
have reached the desired position.
Release button Πto interrupt proce-
dure.
Convenience closing featureAim transmitter eye at the driver’s door
handle. The SmartKey must be in close
proximity to the door handle.
Press and hold button ‹ until the
windows and the tilt/sliding sunroof
are completely closed.
Release the ‹ button to stop
procedure.
Make sure all windows and the tilt/sliding
sunroof are properly closed before leaving
the vehicle.
Warning!G
When closing the windows and the tilt/slid-
ing sunroof, make sure that there is no dan-
ger of anyone being harmed by the closing
procedure.
If potential danger exists, proceed as fol-
lows:

Release button ‹ to s t op t h e c lo s in g
procedure. To open, press and hold
buttonŒ. To continue the closing
procedure after making sure that there
is no danger of anyone being harmed by
the closing procedure, press and hold
button‹.

242 Controls in detail
Power tilt/sliding sunroof
Opening and closing the power
tilt/sliding sunroof
The tilt/sliding sunroof can be opened and
closed electrically. The switch for the
tilt/sliding sunroof is on the overhead
control panel.
Sunroof switch
1Push up to raise sunroof at rear
2Pull down to lower sunroof at rear
3Push forward to slide sunroof closed
4Push back to slide sunroof openWith the sunroof closed or tilted open, a
screen can be slid into the roof opening to
guard against sun rays. When sliding the
sunroof open, the screen will also retract.
Screen
Warning!G
When closing the tilt/sliding sunroof, make
sure there is no danger of anyone being
harmed by the closing procedure.
The opening/closing procedure of the
tilt/sliding sunroof can be immediately
halted by releasing the switch or, if the
switch was moved past the resistance point
and released, by moving the switch in any
direction.
The tilt/sliding sunroof is made out of glass.
In the event of an accident, the glass may
shatter. This may result in an opening in the
roof.
In a vehicle rollover, occupants not wearing
their seat belts or not wearing them properly
may be thrown out of the opening. Such an
opening also presents a potential for injury
for occupants wearing their seat belts
properly as entire body parts or portions of
them may protrude from the passenger
compartment.

243 Controls in detail
Power tilt/sliding sunroof
Switch on the ignition (page 33).Opening and closing the power
tilt/sliding sunroof
To open, close, raise, or lower the
tilt/sliding sunroof, move the sunroof
switch to resistance point in the
required direction of arrows1 to4.
Release the sunroof switch when the
tilt/sliding sunroof has reached the
desired position.
Fully opening (Express-open) and
closing (Express-close) the power
tilt/sliding sunroof
To open or close the tilt/sliding
sunroof, move the sunroof switch past
the resistance point in the required
direction of arrow1 to4 and
release.
The tilt/sliding sunroof opens or closes
completely.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment can cause an
accident and/or serious personal injury.
!
To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the tilt/sliding
sunroof.
Do not open the tilt/sliding sunroof if
there is snow or ice on the roof, as this
could result in malfunctions.
The tilt/sliding sunroof can be opened
or closed manually should an electrical
malfunction occur (
page 389).
i
You can also open or close the tilt/slid-
ing sunroof using the SmartKey, see
“Summer opening feature”
(
page 241) and “Convenience clos-
ing feature” (
page 241).
Depending on current position, the
tilt/sliding sunroof may also open or
close when the air recirculation
button, in the control panel of the
climate control (
page 175) or auto-
matic climate control* (Canada only)
(
page 191), or the charcoal filter
buttone in the control panel of the
automatic climate control* (Canada
only) (
page 193) is pressed and held.

244 Controls in detail
Power tilt/sliding sunroof
Stopping the power tilt/sliding sunroof
during Express-operation
Move the sunroof switch in any
direction.Synchronizing the power tilt/sliding
sunroof
The tilt/sliding sunroof must be
synchronized

after the battery has been
disconnected or discharged

after the tilt/sliding sunroof has been
closed manually (
page 389)

after a malfunction

if the tilt/sliding sunroof does not open
smoothly
Switch on the ignition (page 33).
Move and hold the sunroof switch in di-
rection of arrow1 (
page 242) until
the tilt/sliding sunroof is fully raised at
the rear.
Hold the sunroof switch for
approximately 1 second.
Check the Express-open feature
(
page 243).
If the tilt/sliding sunroof opens
completely, the tilt/sliding sunroof is
synchronized. Otherwise repeat the
above steps.
i
If the movement of the tilt/sliding
sunroof is blocked during the closing
procedure, the tilt/sliding sunroof will
stop and reopen slightly.

245 Controls in detail
Driving systems
Driving systems
The driving system of your vehicle is
described on the following pages:

Cruise control, with which the vehicle
can maintain a preset speed.
For information on the BAS, ABS and ESP
®,
see “Driving safety systems” (
page 82).
Cruise control
The cruise control automatically maintains
the speed you set for your vehicle.
The use of cruise control is recommended
for driving at a constant speed for extend-
ed periods of time. You can set or resume
cruise control at any speed over 20 mph
(30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever on the left-hand side of the steering
column (
page 22).
Warning!G
The cruise control is a convenience system
designed to assist the driver during vehicle
operation. The driver is and must always re-
main responsible for the vehicle’s speed and
for safe brake operation.
Only use cruise control if the road, traffic
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.

The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.

Deactivate cruise control when driving
in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

246 Controls in detail
Driving systems
1Sets current or higher speed
2Sets current or lower speed
3Cancels cruise control
4Resumes at last set speed
Setting current speed
Accelerate or decelerate to the desired
speed.
Briefly lift1 or depress2 the cruise
control lever.
The current speed is set.
Remove your foot from the accelerator
pedal.
Cruise control is activated.Canceling cruise control
There are several ways to cancel cruise
control:
Step on the brake pedal.
Cruise control is canceled. The last
speed set is stored for later use.
or
Briefly push the cruise control lever to
position3.
Cruise control is canceled. The last
speed set is stored for later use.
i
On uphill or downhill grades, cruise
control may not be able to maintain the
set speed. Once the grade eases, the
set speed will be resumed.
!
Moving the gear selector lever to
positionN while driving also cancels
cruise control. However, the gear
selector lever should not be moved to
positionN while driving, except to
coast when the vehicle is in danger of
skidding (e.g. on icy roads).
i
The last stored speed is canceled when
you turn off the engine.

247 Controls in detail
Driving systems
Setting a higher speed
Lift cruise control lever to position1
and hold it up until the desired speed is
reached.
Release cruise control lever.
The new speed is set.
Setting a lower speed
Depress cruise control lever to
position2 and hold it down until the
desired speed is reached.
Release cruise control lever.
The new speed is set.Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster
Briefly tip cruise control lever in
direction of arrow1.
Slower
Briefly tip cruise control lever in
direction of arrow2.Setting to last stored speed
(“Resume” function)
Briefly push cruise control lever to
position4.
The cruise control resumes the last set
speed.
Remove your foot from the accelerator
pedal.
i
Depressing the accelerator pedal does
not deactivate cruise control. After
brief acceleration (e.g. for passing),
cruise control will resume the last
speed set.
i
When you use the cruise control lever
to decelerate, the transmission will
automatically downshift if the engine’s
braking power does not brake the
vehicle sufficiently.
Warning!G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to preset
speed could cause an accident and/or seri-
ous injury to you and others.

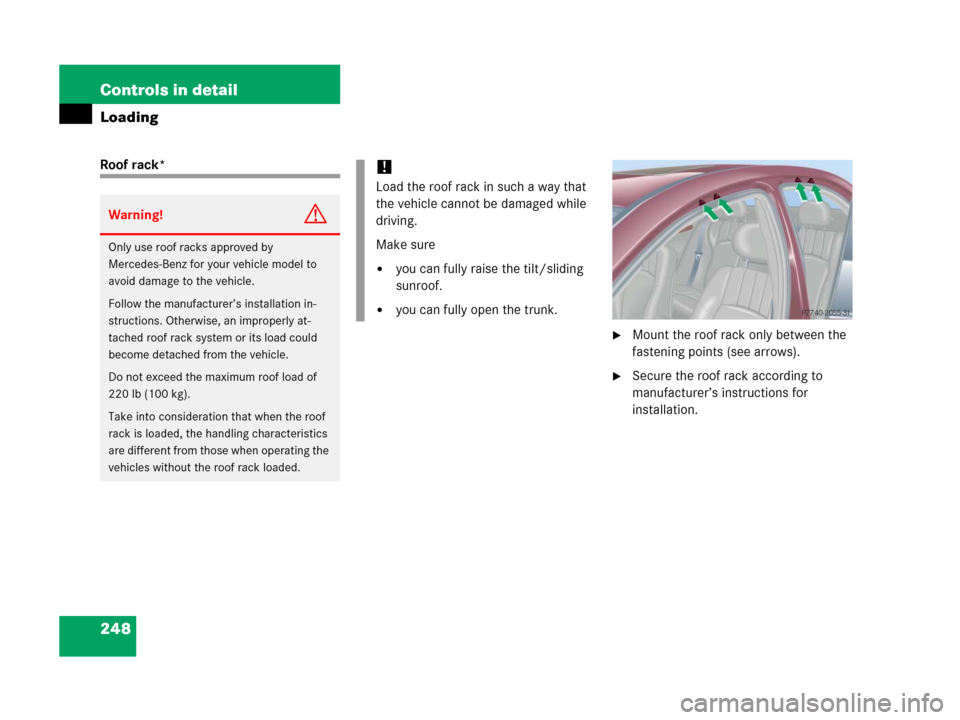

248 Controls in detail
Loading
Roof rack*
Mount the roof rack only between the
fastening points (see arrows).
Secure the roof rack according to
manufacturer’s instructions for
installation.
Warning!G
Only use roof racks approved by
Mercedes-Benz for your vehicle model to
avoid damage to the vehicle.
Follow the manufacturer’s installation in-
structions. Otherwise, an improperly at-
tached roof rack system or its load could
become detached from the vehicle.
Do not exceed the maximum roof load of
220 lb (100 kg).
Take into consideration that when the roof
rack is loaded, the handling characteristics
are different from those when operating the
vehicles without the roof rack loaded.
!
Load the roof rack in such a way that
the vehicle cannot be damaged while
driving.
Make sure

you can fully raise the tilt/sliding
sunroof.

you can fully open the trunk.

249 Controls in detail
Loading

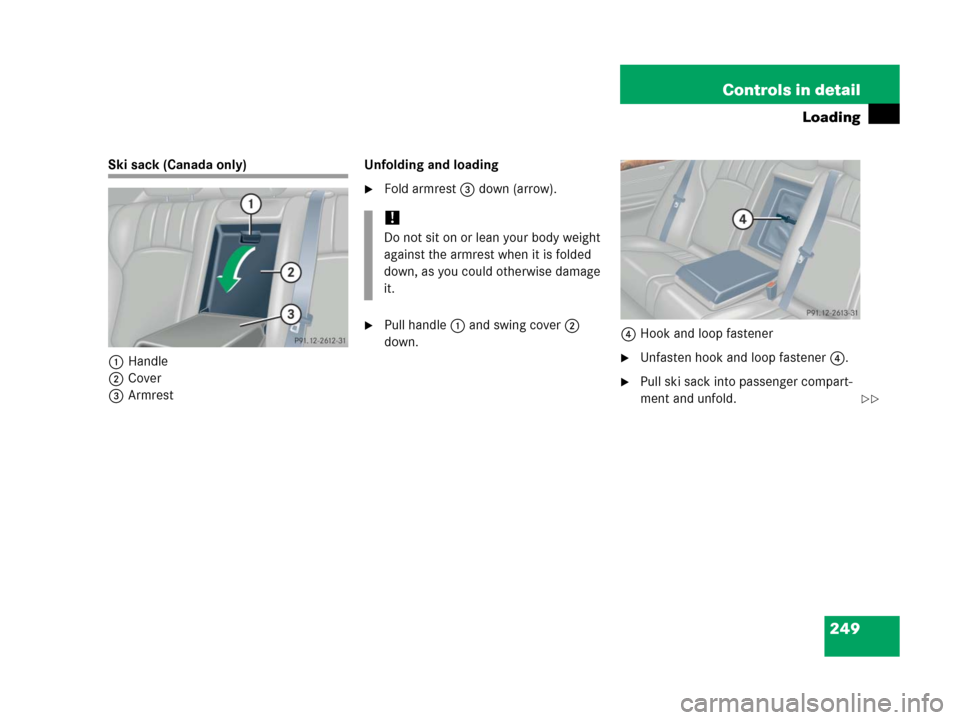

Ski sack (Canada only)
1Handle
2Cover
3ArmrestUnfolding and loading
Fold armrest3 down (arrow).
Pull handle1 and swing cover2
down.4Hook and loop fastener
Unfasten hook and loop fastener4.
Pull ski sack into passenger compart-
ment and unfold.
!
Do not sit on or lean your body weight
against the armrest when it is folded
down, as you could otherwise damage
it.
