navigation system MERCEDES-BENZ CL-Class 2002 C215 Comand Manual

Telephone
Telephone111
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings Dialing using COMAND
Phone book, names:
To access the phone book in the main telephone menu:
Use the rotary/pushbutton
to highlight menu field
(2) and press it to confirm.1Input line is empty – activates the “Phone book”
selection menu, page 112
When up to 3 letters are entered in the input line
the relevant page of the “Phone book” (names) will
be opened, page 112.
Use the rotary/pushbutton
to highlight the
letters one after the other and press to confirm. The
letters will be entered in the input line.
2Activates the “Phone book” selection menu or
opens the phone book (names).
Note:
The phone book will also be opened if the rotary/
pushbutton
is pressed for longer than
2 seconds after input of the last letter.
P82.85.6447-26
1
2
08-TELEFON-25-US.pm509.07.2004, 14:21 Uhr 111

112 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
The relevant page of the phone book will be accessed
after input of up to 3 letters in the telephone main
menu.
4Marked entry, sorted alphabetically
5Symbol, page back in the list
6Symbol, page forward in the list
Note:
The phone book stored in the phone is memory being
read downloaded. Use the rotary/pushbutton
to
highlight the desired entry and press to confirm. The “Phone book” selection menu will be activated.
3Opens the first page of the phone book (names)
Press the rotary/pushbutton
and confirm the
marked menu field “Read phone book”. The phone book
will be opened.
Select the desired entry, see information on the right.
P82.85-6067-26
3
P82.85-6068-26
4
56
08-TELEFON-25-US.pm509.07.2004, 14:21 Uhr 112

Telephone
Telephone113
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings Begin dialing:
Press the rotary/pushbutton
(to confirm the “Send”
button). The “End” button is highlighted.
Ending a call, use one of the three ways:
• Press the rotary/pushbutton
to confirm the
“End” button
• Press
• Press
.
The main telephone menu will appear with information
on the name selected.
P82.85.6448-26
08-TELEFON-25-US.pm509.07.2004, 14:21 Uhr 113

114 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Phone book, telephone number:
Use the rotary/pushbutton
to highlight the “ABC/
123” menu field and press to confirm. The menu for
entering the telephone number will appear.7Input line is empty – activates the “Phone book”
selection menu, page 125
When up to 3 digits are entered in the input line to
dial the memory location, the relevant page of the
“Phone book” (telephone numbers) will be opened,
page 115
Use the numerical keys
through
to
highlight the digits one after the other and press to
confirm. Enter the digits in the input line.
8Activates the “Phone book” selection menu or
opens the phone book (telephone numbers)
To activate the “Phone book” selection menu, open the
phone book:
Use the rotary/pushbutton
to highlight menu field
(8) and press to confirm.
P82.85-6070-26
7
8
08-TELEFON-25-US.pm509.07.2004, 14:21 Uhr 114

Telephone
Telephone115
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings 9Entries, sorted according to memory location
Memory locations in the telephone: M01-M09
Use the rotary/pushbutton
to highlight and confirm
the desired entry.
The main telephone menu will appear indicating the
selected number and memory location.
Begin dialing, page 107
Conducting a call, page 108.To select the memory location directly:
Enter up to 2 digits using the
through
number keys in the main telephone menu.
Use the rotary/pushbutton
to highlight and confirm
the “Phone Book” menu field.
The phone book (numbers list), which is stored in the
telephone, will be appear.
Use the rotary/pushbutton to highlight the desired
entry and press to confirm.
The main telephone menu will appear indicated the
selected phone number.
Begin dialing, ending a call, page 113.
Note:
If there is no entry in the numbers list, the message
“No entry in list” appears in the telephone menu.
P82.85-6071-26
9
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 115

116 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Redial
Dialing using the multifunction steering wheel1The telephone is ready for operation
2Number in the redial memory
3Number in the redial memory – dialing has begun
4Dialing is completed
5Memory location number, the last 10 numbers
dialed are stored
L01, the number dialed last
L01 to L10, numbers dialed previously
The telephone is switched on.
Press
or
repeatedly until the corresponding
telephone menu (1) appears on the screen.
Press
, the redial memory is activated and the last
number dialed will appear on the screen.
P82.85-6113-27
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 116

Telephone
Telephone117
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings Press
when the desired number appears in the
display (2).
Dialing will begin (3).
When dialing has been completed, the number will
remain on the display.
Press to end the call. The ready entry will appear
in the display (1).
Press or
to display the next system or
previous system. Press
or
, to page forwards or backwards
through the redial memory.
The number selected will appear on the screen with the
corresponding memory location.
Note:
If you do not wish to place a call, press
. The
process will be cancelled and the display will appear (1).
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 117

118 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Dialing with COMAND
6Memory location L01 – L10, the last 10 numbers
dialed are stored
L01, the last number dialed
L01 – L10, the numbers dialed previously
7An empty triangle marks the start of the list
8An empty triangle marks the end of the listUse the rotary/pushbutton
to highlight and confirm
the “Last Calls” menu field in the main telephone menu
or press the rotary/pushbutton
when the “Send”
button is marked and when there is a blank input line.
The redial memory will be activated.
Turn the rotary/pushbutton
to select the desired
phone number.
Select the number by pressing the rotary/pushbutton
.
P82.85-6072-26
2
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 118

Telephone
Telephone119
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings Begin dialing:
Press the rotary/pushbutton
to confirm the “Send”
button. The “End” button will now be highlighted. The
message “Dialing” will appear.
Note:
If the list is empty, the message “No entry in list” will
appear.
Ending a call, use one of the three ways:
• Press the rotary/pushbutton
to confirm the
“End” button
• Press
• Press
. The main telephone menu is activated and the phone
number or name selected will appear.
P82.85-6073-26
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 119

120 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction

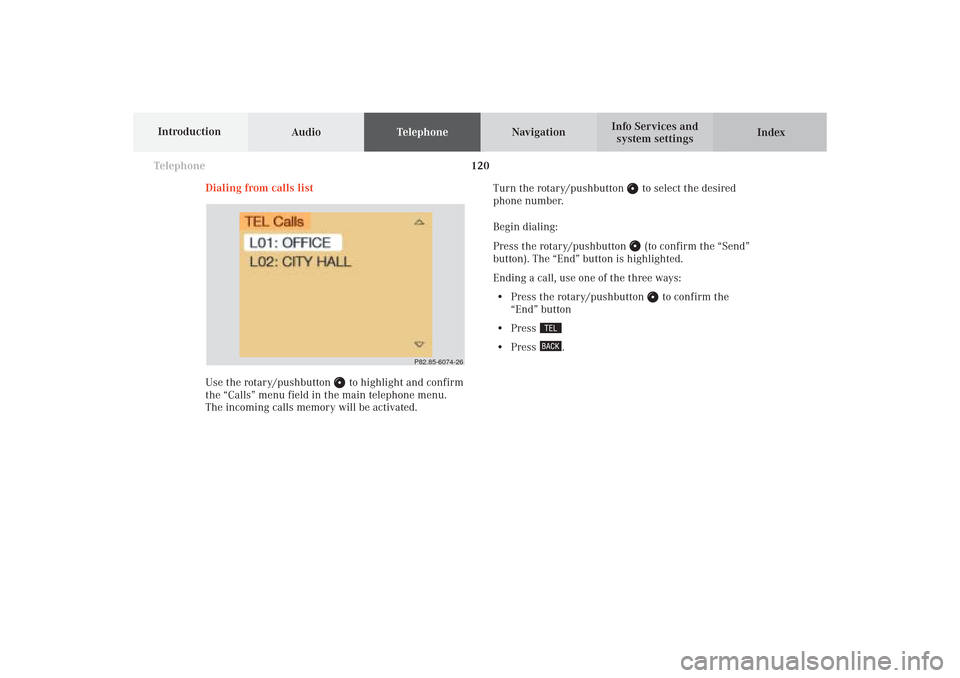

Dialing from calls list
Use the rotary/pushbutton
to highlight and confirm
the “Calls” menu field in the main telephone menu.
The incoming calls memory will be activated.Turn the rotary/pushbutton
to select the desired
phone number.
Begin dialing:
Press the rotary/pushbutton (to confirm the “Send”
button). The “End” button is highlighted.
Ending a call, use one of the three ways:
• Press the rotary/pushbutton
to confirm the
“End” button
• Press
• Press
.
P82.85-6074-26
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 120
