navigation system MERCEDES-BENZ CL-Class 2002 C215 Comand Manual

71
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings CD operationEntering, altering and deleting CD names
1Input line
2Symbols list (letters, digits, special characters)
3Delete symbol
4Character selected appears magnified,
magnified “M” is starting point
5“Delete Names” function
This function can be used to allocate a name to a CD (e.g.
CD title). The name will be recognized and displayed by
COMAND after removal and re-insertion of a CD.Naming the CDs inserted in the magazine:
Use the rotary/pushbutton
to highlight the “CD
Naming” menu field in the main CD menu and press to
confirm your selection.
The “CD Naming” menu will appear on the screen.
Use the rotary/pushbutton to highlight the desired
characters (letters, numbers) and press the knob
briefly to confirm. When you have selected a character,
it will appear in magnified form (4), and when
confirmed it will appear in the input line (1).
The input marker indicates the current position.
Delete the character entered last:
Use the rotary/pushbutton to highlight the delete
symbol (3), then confirm by pressing. The input marker
moves to the left as it deletes. Repeat this process as
often as desired, then enter the correct character.
Deleting a complete name:
Use the rotary/pushbutton to highlight the delete
symbol (3), then confirm by pressing longer than
2 seconds.
Altering a name:
Delete one character at a time or the entire name. Then
enter the new name.
P82.85-2553-26
5
4
3
2
1
06-CD-US.pm509.07.2004, 14:09 Uhr 71

72
AudioTelephone Navigation
Index Info Services and
system settings Introduction
CD operation
Notes:
The CD names are saved in the names list in alphabeti-
cal order. If the name memory is full, the following
message will appear: “Attention, name memory is full;
new entry only possible after deleting old one”
Confirm the message by pressing the menu field
marked “OK”. The input menu will appear again.
Use the “Delete Names” menu field to clear the
memory, page 73.
P82.85-2987-26
Press the rotary/pushbutton
longer than 2 seconds
to confirm the name. The main CD menu will appear on
the screen.
The name of the CD currently playing will appear above
the track number.
The CD will retain this name even if it is inserted into a
different magazine slot.
06-CD-US.pm509.07.2004, 14:09 Uhr 72

73
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings CD operationDelete CD name
Use the rotary/pushbutton
to highlight the “Delete
Names” menu field in the “CD Naming” menu and
confirm it.
The list of CD names will appear on the screen.
Use the rotary/pushbutton to highlight the name
you wish to delete.Press the rotary/pushbutton
briefly to delete the
name. The following entry will then move up one
position.
Press the rotary/pushbutton longer than 2 seconds
to return to the CD main menu.
Paging forward in the name memory:
• Highlight the
symbol and confirm
• Move the cursor with the rotary/pushbutton
above the last page entry and past the
symbol.
Paging backward in the name memory:
• Highlight the
symbol and confirm
• Move the cursor with the rotary/pushbutton
above the first page entry and past the
symbol.
P82.85-2555-26
06-CD-US.pm509.07.2004, 14:09 Uhr 73

74
AudioTelephone Navigation
Index Info Services and
system settings Introduction
CD operation
Selecting playback mode
Use the rotary/pushbutton
to highlight the
“Settings” menu field in the main CD menu and
press to confirm.
The “Settings” menu will appear.
A checkmark indicates the active function.The “Standard” function is active (CD playback in
ascending order). This function is automatically
selected when another CD has been selected.
Note:
It is only possible to select one playback mode at a
time.
P82.85-2556-26
06-CD-US.pm509.07.2004, 14:09 Uhr 74

75
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings CD operationMagazine Mix
Select the “Magazine mix” function to play all of the
tracks of all of the CDs in the magazine slots 1-6 in
random order.
Use the rotary/pushbutton
to highlight the “Magazi-
ne mix” function and press it to confirm. This function
will be marked with a checkmark.
Press
to return to the main CD menu.
“Magazine mix” will appear in the main CD menu.Track repeat
Select the “Track Repeat” function to repeat the current
track until you switch the function off.
“Track Repeat” will appear in the main CD menu.
Play CD tracks in random order
Select the “Track-Mix” function to play back the tracks
on the CD currently selected in random order.
The message “Track-Mix” appears in the CD main
menu.
CD repeat
Select the “CD Repeat” function to repeat the current
CD until you switch the function off again.
“CD Repeat” will appear in the main CD menu.
P82.85-2989-26
06-CD-US.pm509.07.2004, 14:10 Uhr 75

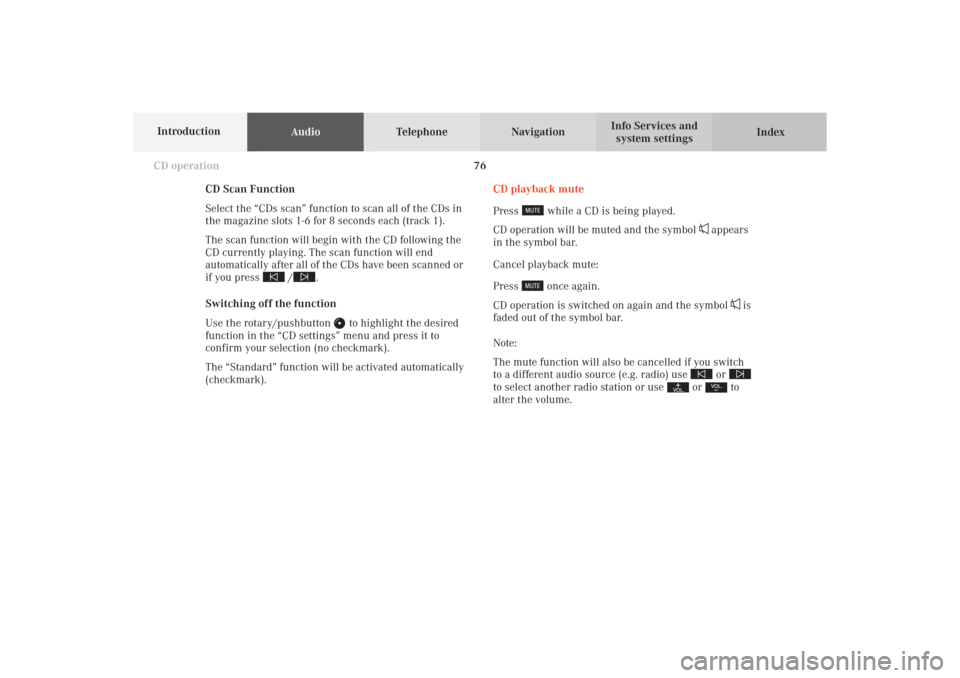

76
AudioTelephone Navigation
Index Info Services and
system settings Introduction
CD operation
CD Scan Function
Select the “CDs scan” function to scan all of the CDs in
the magazine slots 1-6 for 8 seconds each (track 1).
The scan function will begin with the CD following the
CD currently playing. The scan function will end
automatically after all of the CDs have been scanned or
if you press /
.
Switching off the function
Use the rotary/pushbutton
to highlight the desired
function in the “CD settings” menu and press it to
confirm your selection (no checkmark).
The “Standard” function will be activated automatically
(checkmark).CD playback mute
Press
while a CD is being played.
CD operation will be muted and the symbol
appears
in the symbol bar.
Cancel playback mute:
Press
once again.
CD operation is switched on again and the symbol
is
faded out of the symbol bar.
Note:
The mute function will also be cancelled if you switch
to a different audio source (e.g. radio) use
or
to select another radio station or use
or
to
alter the volume.
06-CD-US.pm509.07.2004, 14:10 Uhr 76

77
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings CD operationError messages
1CD changer error messages“No CD changer” – The system cannot detect the CD
changer; contact a Mercedes-Benz Center (1)
“No magazine” –There is no magazine inserted in the
CD changer; load CDs into the magazine and insert the
magazine into the CD changer (1)
“Magazine empty” –There are no CDs in the magazine;
load CDs into the magazine and insert the magazine
into the CD changer (1)
“Being activated” – The CD changer is not yet ready for
operation (1).
“Reading error” – The system cannot read the CD
which has been inserted (2), e.g. audio CD
P82.85-7746-26
1
06-CD-US.pm509.07.2004, 14:10 Uhr 77

78
AudioTelephone Navigation
Index Info Services and
system settings Introduction
CD operation
“Error” – an error other than those described here has
occurred (1, 2)
If an error occurs in the operation of the CD drive or
the CD changer, the system will automatically switch to
the other component after 3 seconds.
CD operation will resume when the error has been
corrected.
If it is not possible to play the CD which has been
selected in the CD changer (“Error” message), the
system will automatically select the next CD in the
magazine.“Temperature for CD operation is too high” – CD
operation will switch off automatically after 3 seconds;
press the corresponding key to select a different audio
source (1, 2)
06-CD-US.pm509.07.2004, 14:10 Uhr 78

79
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings CD operationTips on caring for your CDs
Handle CDs only as illustrated. Avoid touching the CD surface with your fingers!
P82.85-2106-26
P82.85-2108-26
06-CD-US.pm509.07.2004, 14:10 Uhr 79

80
AudioTelephone Navigation
Index Info Services and
system settings Introduction
CD operation
P82.85-2107-26
P82.85-2109-26
Do not use rubbing alcohol or solvents to clean the CDs. Clean CDs with a dry, lint-free cloth. Wipe them from
the inside to the outer edge. Never wipe the CD in a
circular motion.
