MERCEDES-BENZ CL-CLASS 2007 Owners Manual

140 Control systems
COMAND telephone*
Selecting subentries
Select an entry with the + symbol and
press n.
The + symbol changes to / and the
subentries are displayed.
Rotate ymz or slide qmr until the de-
sired subentry is highlighted.
Displaying details of an entry
COMAND can also show a shortened entry
in its entirety. For entries featuring suben-
tries, the detailed view is only available for
the subentries and not for the main entry.
Select entry (page 139).
Select “Options”
“Details”.
The detailed view appears.
Closing detailed view: Slide qmr or
omp or press n or back button L
in the center console (
page 82).Starting to dial the number of an entry
Select entry (page 139).
Press n.
or
Press s on the telephone keypad.
A list appears if the entry contains sub-
entries.
Select desired subentry.
Press n again.
or
Press s on the telephone key-
pad.Assigning a New Entry in the Address
Book
Select “Options”
“New Entry” in the
COMAND phone book list.
Selecting a number category:
Select a category, e.g. “Home”.
Selecting a telephone category:
Select a category, e.g. “Land Line”.
Confirming selection: Select “Save”.
The input menu appears with the data
fields.
iThis function is used to create a new entry in
the address book and to enter the data (first
name, last name and telephone number) manu-
ally.
ProCarManuals.com

141 Control systems
COMAND telephone*
1Data field
2Input mark (cursor)
3Input characters
Changing data field: Slide qmr re-
peatedly until desired data field is high-
lighted.
or
Select [ or ] repeatedly until de-
sired data field is highlighted.
Entering data into a field: Select all
characters one by one from the input
characters line 3.
Toggling upper and lower case for
the input characters: Select & or
(.
Changing language for the input
characters: Select !.
Select desired language.
Changing character set for the input
characters: Select #.
Depending on the previous setting, you
will change to letters with special char-
acters or to numbers with special char-
acters.
Displaying special characters as in-
put characters: Select !
“Sym-
bols”.
Returning input characters to nor-
mal characters: Select !
the
desired language.
Moving cursor in the data field:
SelectY or Z.
Deleting individual characters:
Select) and briefly press n.
The character to the left of the cursor is
deleted.
Deleting an entire entry: Select )
and press and hold n until the entry is
deleted.
Saving an entry: Select ?.
Canceling an entry: Select “Back”.
If one of the data fields contains data, a
prompt will appear asking whether you
want to save the entry.
Select “Yes” or “No”.
The entry will either be saved or
not, depending on your selection.
ProCarManuals.com

142 Control systems
COMAND telephone*
Deleting an entry
The deletion rules may vary, depending on
the entry selected:

Upper entry selected from the address
book:
the entry is deleted from the COMAND
phone book and also from the address
book, if the address book entry only
contains telephone numbers.

Subentry of an address book entry se-
lected:
the subentry is deleted from the
COMAND phone book and from the ad-
dress book.
Deleting: Select entry (page 139).
Select “Options”
“Delete”.
A prompt appears asking whether the
entry should be deleted.
Select “Yes” or “No”.
Once “Yes” has been selected, the en-
try will be deleted according to the
rules mentioned above.
Saving a phone book entry from the
mobile phone in the address book
Saving as a new address book entry
Select phone book entry from mobile
phone (
page 139).
Select “Options”
“Save”
“New En-
try”.
Selecting a number category:
Select a category, e.g. “Home”.
Selecting a telephone category:
Select a category, e.g. “Land Line”.
Confirming selection: Select “Save”.
The input menu appears with the data
fields. The data field for the telephone
number is filled in automatically. The
data field for the last name is also filled
when the entry to be saved contains a
name.
iIt is not possible to delete a phone book en-
try from the mobile phone using the COMAND
phone book.
iThis function is used to save an existing
phone book entry from the mobile phone in the
address book. The following options are avail-
able:

Saving as a new address book entry

Adding a telephone number to an existing
address book entry
iAll entries with the following category sym-
bols are phone book entries in the mobile phone.

= symbol for “Mobile” category

= symbol for “Home” category

= symbol for “Work” category

= symbol for “Fax” category

= symbol for “Pager” category

= symbol for “Main” category
ProCarManuals.com

143 Control systems
COMAND telephone*
1Data field
2Input mark (cursor)
3Input characters
Proceed as described in the “Changing
data field” paragraph in the “Assigning
a New Entry in the Address Book” sec-
tion (
page 140).Adding a telephone number to an exist-
ing address book entry
Select phone book entry from mobile
phone (
page 139).
Select “Options”
“Save”
“Add”.
Selecting a number category:
Select a category, e.g. “Home”.
Selecting a telephone category:
Select a category, e.g. “Land Line”.
Confirming selection: Select “Save”.
The search menu for address book en-
tries appears.
Search for desired entry using smart
speller function.
After selecting an entry, press n.
If there are fewer than four numbers
assigned to the selected entry in the
selected number category, COMAND
will save the data.
If four numbers are saved for the se-
lected entry, a prompt will appear ask-
ing whether you want to overwrite one
of the existing numbers.
Select “Yes” or “No”.
If you select “Yes”, a selection list will
appear containing the four existing
numbers.
Select number to be overwritten.
COMAND overwrites the selected num-
ber with the new data.
iAll entries with the following category sym-
bols are phone book entries in the mobile phone.

= symbol for “Mobile” category

= symbol for “Home” category

= symbol for “Work” category

= symbol for “Fax” category

= symbol for “Pager” category

= symbol for “Main” category
iThere is a detailed description of how to
search for an address book entry in the “Search-
ing for an address book entry” section
(
page 217).
ProCarManuals.com

144 Control systems
COMAND telephone*
Adding a telephone number to an ad-
dress book entry
Select address book entry
(
page 139).
Select “Options”
“Add Number”.
Selecting a number category:
Select a category, e.g. “Home”.
Selecting a telephone category:
Select a category, e.g. “Land Line”.
Confirming selection: Select “Save”.
If four numbers are saved for the entry
in the selected number category, a
prompt will appear asking whether one
of the existing numbers should be over-
written.
Select “Yes” or “No”.
If you select “Yes”, a selection list
will appear containing the four ex-
isting numbers.
Select number to be overwritten.
The input menu appears with the
data field for entering the new tele-
phone number.
Entering digits: Select all digits one
by one from the input characters.
Moving cursor in the data field:
SelectY or Z.
Deleting individual digits: Select)
and briefly press n.
The digit to the left of the cursor is de-
leted.
Deleting an entire number:
Select) and press and hold n until
the number is deleted.
Saving entry: Select?.
Canceling an entry: Select “Back”.
If you have already entered data, a
prompt will appear asking whether the
entry should be saved.
Select “Yes” or “No”.
The entry will either be saved or
not, depending on your selection.
iThis function is used to add a telephone
number to an existing address book entry. The
telephone number can be entered manually.
iAll entries with the symbol or without a
symbol are address book entries.
i“Add Number” does not function if you have
selected the main entry for an address book en-
try with subentries.
ProCarManuals.com

145 Control systems
COMAND telephone*
SMS messages (Short Message
Service)
SMS functions
The following functions are available:

Receive

Read
The following conditions must be fulfilled
in order to use the functions:

The mobile phone is inserted in the cra-
dle and switched on.

The PIN has been entered (only GSM
mobile phones).

The mobile phone is logged into a mo-
bile network.

Mobile phone book must be download-
ed and available in COMAND.Inbox
Calling up the SMS inbox
Select “Telephone”
“Telephone”.
The main telephone menu appears.
1Symbol for unread messages in the
SMS inbox
Select “Text Message”.
The SMS inbox appears.1Date and time the highlighted SMS
message was received
2To call up options
3Highlighted SMS message
4Symbol for unread SMS message
5Back to main telephone menu
iThe symbol only appears for those mes-
sages which are received while the mobile phone
is inserted in the cradle.
i“Text Message” does not function if the
SMS inbox contains no SMS messages. The SMS
inbox only shows the messages which are re-
ceived while the mobile phone is inserted in the
cradle.
ProCarManuals.com

146 Control systems
COMAND telephone*
Selecting an SMS message
Rotate ymz or slide qmr and then
pressn.
Showing abbreviated sender display in
full
Select SMS message
“Options”

“Details”.
The detailed view appears.
Closing detailed view: Slide qmr or
press n.Calling an SMS sender
Select SMS message
“Options”

“Call”.
The telephone connects the call.
Saving SMS sender as new COMAND
address book entry
Selecting an SMS message: In the
SMS inbox, select a message
“Op-
tions”
“Save Number”
“New En-
try”.
Selecting a number category:
Select a category, e.g. “Home”.
Selecting a telephone category:
Select a category, e.g. “Land Line”.
Saving: Select “Save”.
The input menu appears with the data
fields. The data field for the telephone
number is filled in automatically.1Data field
2Input mark (cursor)
3Input characters
Proceed as described in the “Changing
data field” paragraph in the “Assigning
a New Entry in the Address Book” sec-
tion (
page 140).
Adding an SMS sender’s telephone num-
ber to an existing address book entry
Selecting an SMS message: In the
SMS inbox, select a message
“Op-
tions”
“Save Number”
“Add”.
iThe SMS messages are sorted by the date
and time they were received. The most recent
message is at the top of the list.
If the name and telephone number of the sender
is saved in the address book or phone book of
the mobile phone, you will see the name of the
sender in the SMS inbox. Otherwise, you will see
the telephone number of the sender.
ProCarManuals.com

147 Control systems
COMAND telephone*
Proceed as described in the “Selecting
a number category” paragraph in the
“Adding a telephone number to an ex-
isting address book entry” section
(
page 143).
Exiting the SMS inbox
Select “Back”.
The main telephone menu appears.
Reading an SMS message
In the SMS inbox, select an SMS mes-
sage and press n.
The SMS message appears.Using data in a text message
Selecting data from the text:
Rotateymz or slide qmr.
Using data: Press n
“Use”.
If you have selected a telephone num-
ber, the telephone connects the call.
If you have selected a navigable ad-
dress, it is transferred to the navigation
system.
Calling an SMS sender
Press n
“Call”.
The telephone connects the call.Saving SMS sender as new address book
entry
Press n
“Save Number”
“New
Entry”.
Proceed as described in the “Selecting
a number category” paragraph in the
“Saving SMS sender as new address
book entry” section (
page 146).
Adding an SMS sender’s telephone num-
ber to an existing address book entry
Press n
“Save Number”
“Add”.
Proceed as described in the “Selecting
a number category” paragraph in the
“Adding a telephone number to an ex-
isting address book entry” section
(
page 143).
Closing an SMS message and returning
to SMS inbox
Press n
“Back”.
iIf the SMS message contains telephone
numbers or navigable address data, you can se-
lect this data and place a telephone call or trans-
fer the address data to the navigation system.
iThis function is not possible with all SMS
senders.
iThis function is not possible with all SMS
senders.
ProCarManuals.com

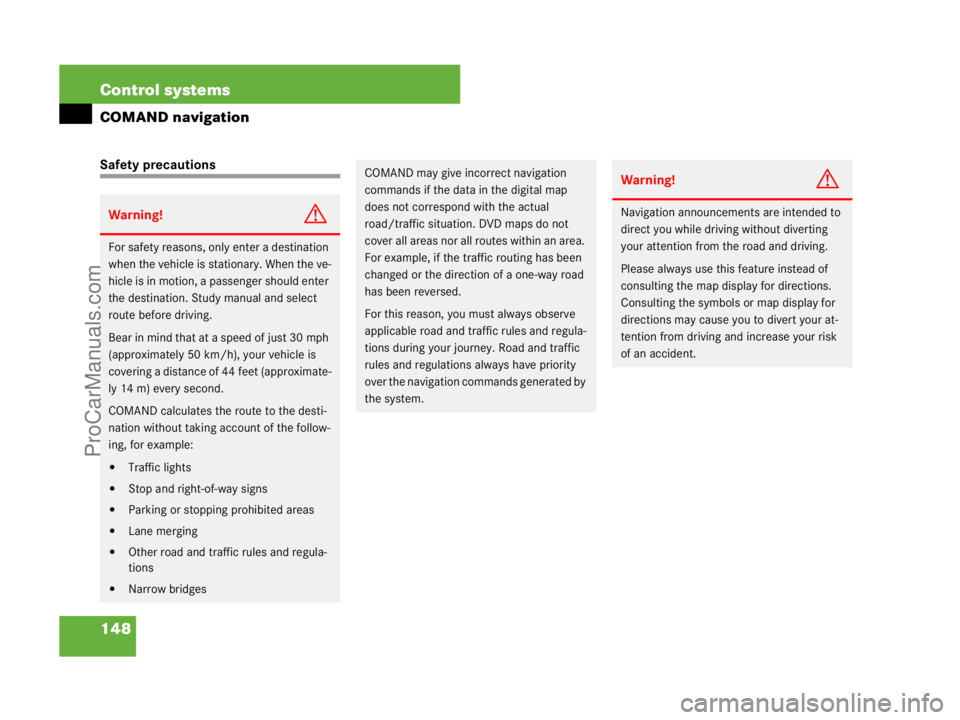

148 Control systems
COMAND navigation
Safety precautions
Warning!G
For safety reasons, only enter a destination
when the vehicle is stationary. When the ve-
hicle is in motion, a passenger should enter
the destination. Study manual and select
route before driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
COMAND calculates the route to the desti-
nation without taking account of the follow-
ing, for example:

Traffic lights

Stop and right-of-way signs

Parking or stopping prohibited areas

Lane merging

Other road and traffic rules and regula-
tions

Narrow bridges
COMAND may give incorrect navigation
commands if the data in the digital map
does not correspond with the actual
road/traffic situation. DVD maps do not
cover all areas nor all routes within an area.
For example, if the traffic routing has been
changed or the direction of a one-way road
has been reversed.
For this reason, you must always observe
applicable road and traffic rules and regula-
tions during your journey. Road and traffic
rules and regulations always have priority
over the navigation commands generated by
the system.Warning!G
Navigation announcements are intended to
direct you while driving without diverting
your attention from the road and driving.
Please always use this feature instead of
consulting the map display for directions.
Consulting the symbols or map display for
directions may cause you to divert your at-
tention from driving and increase your risk
of an accident.
ProCarManuals.com

149 Control systems
COMAND navigation (introduction)
COMAND navigation (introduction)
Map software
The digital maps generated by the map
software become outdated in the same
way as conventional road maps. Optimum
route guidance can only be provided by the
navigation system in conjunction with the
most up-to-date map software.
Information about new map software ver-
sions can be obtained from an authorized
Mercedes-Benz Center.Updating the map software
You can update the map software yourself
using a DVD.
Notes about handling DVDs

Only hold discs by the edge.

Handle discs carefully to prevent read
problems.

Avoid getting scratches, fingerprints
and dust on discs.

Use a commercially-available cleaning
cloth to clean discs. Do not wipe them
with a circular motion, but only in
straight lines from the center out-
wards.

Place discs back in their boxes after
use.

Protect discs from heat and direct sun-
light.
Updating process
The updating process has the following
phases:

Loading a DVD into the DVD changer
(
page 150)

Updating process (page 151)
iThe updating process can take between 10
and 60 minutes, depending on the size of the
map software. If the radio was switched on be-
fore you started the updating process, you can
still adjust the volume. You can also use
COMAND to operate the automatic air condition-
ing and to cancel the process. Other functions
are not operational.
If possible, carry out the update when the vehicle
is stationary.
ProCarManuals.com
