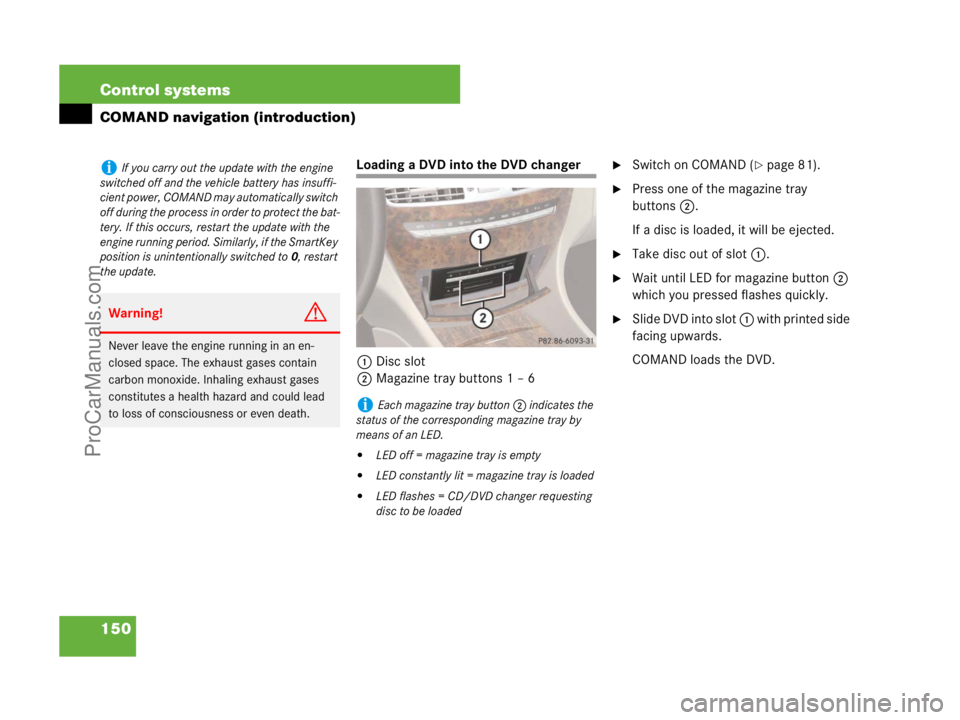

Loading a DVD into the DVD changer
1Disc slot
2Magazine tray buttons 1 – 6Switch on COMAND (page 81).
Press one of the magazine tray
buttons2.
If a disc is loaded, it will be ejected.
Take disc out of slot 1.
Wait until LED for magazine button 2
which you pressed flashes quickly.
Slide DVD into slot 1 with printed side
facing upwards.
COMAND loads the DVD.
iIf you carry out the update with the engine
switched off and the vehicle battery has insuffi-
cient power, COMAND may automatically switch
off during the process in order to protect the bat-
tery. If this occurs, restart the update with the
engine running period. Similarly, if the SmartKey
position is unintentionally switched to 0, restart
the update.
Warning!G
Never leave the engine running in an en-
closed space. The exhaust gases contain
carbon monoxide. Inhaling exhaust gases
constitutes a health hazard and could lead
to loss of consciousness or even death.
iEach magazine tray button 2 indicates the
status of the corresponding magazine tray by
means of an LED.

LED off = magazine tray is empty

LED constantly lit = magazine tray is loaded

LED flashes = CD/DVD changer requesting
disc to be loaded
ProCarManuals.com

151 Control systems
COMAND navigation (introduction)
Updating
After you have loaded the DVD, you will
see a message to the effect that the disc
does not contain a recognizable audio for-
mat.
Confirming message: Press n.
COMAND checks whether the map
software on the DVD is compatible with
the vehicle’s navigation system and
whether it is compatible with the cur-
rent system software.
Map software is compatible with the
navigation system and the current sys-
tem software
COMAND now checks whether the map
data on the DVD is already installed.
Map data is not yet installed
You will see a comparison of the version
statuses in the display and a prompt will
appear asking whether you want to contin-
ue with the update.
Select “Yes” or “No”.
If you select “No”, COMAND automati-
cally ejects the DVD and the map data
is not updated.
Take DVD out of the slot.
If you select “Yes”, the map data is up-
dated.
Map data is already installed
You will see a message that the map data
is already installed and a prompt will ap-
pear asking you whether you want to con-
tinue with the update.
Select “Yes” or “No”.
If you select “No”, COMAND automati-
cally ejects the DVD and the map data
is not updated.
Take DVD out of slot.
If you select “Yes”, the existing map
data is saved again.Updating the map data

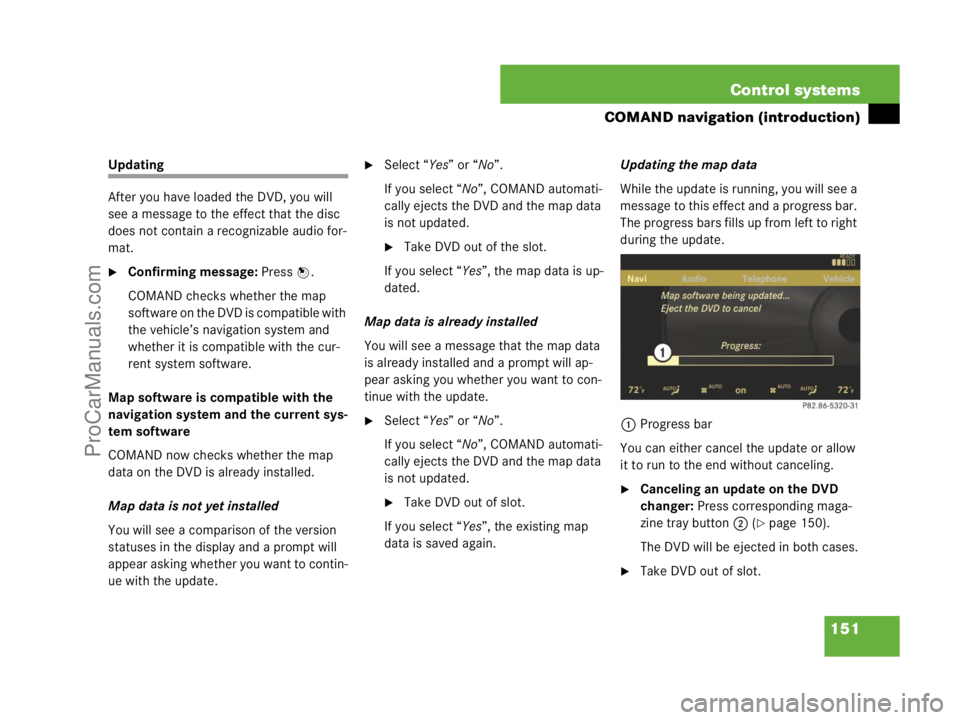

While the update is running, you will see a
message to this effect and a progress bar.
The progress bars fills up from left to right
during the update.
1Progress bar
You can either cancel the update or allow
it to run to the end without canceling.Canceling an update on the DVD
changer: Press corresponding maga-
zine tray button 2 (
page 150).
The DVD will be ejected in both cases.
Take DVD out of slot.
ProCarManuals.com

152 Control systems
COMAND navigation (introduction)
To allow the update to run to the
end without canceling: Take no fur-
ther action.
If the update is successfully complet-
ed, you will see a message to this ef-
fect.
Confirming message: Press n.
COMAND ejects the DVD.
Take DVD out of slot.
The update is complete.
If the update is not successfully complet-
ed, you will see a message that the map
update is not possible.
Confirming message: Press n.
COMAND ejects the DVD.
Take DVD out of slot.The update may not be successfully com-
pleted for the following reasons:

DVD dirty or scratched
Clean DVD.
See the “Notes about handling
DVDs” section (
page 149).
Restart update.

Overheating due to excessive tempera-
tures in the vehicle interior
Wait until vehicle interior has
cooled down.
Restart update.

The storage medium (hard disk) inte-
grated in COMAND is defective.
Consult an authorized
Mercedes-Benz Center.Map software is not compatible with
the navigation system
You will see a message that the update is
not possible.
Confirming message: Press n.
COMAND ejects the DVD.
Take DVD out of slot.
Load a DVD which is compatible with
the vehicle’s navigation system.
Map software is not compatible with
the current system software
You will see a message that the system
software and the map software are not
compatible.
Confirming message: Press n.
COMAND ejects the DVD.
Take DVD out of slot.
Have the system software updated at
an authorized Mercedes-Benz Center.
iIf the update is canceled, the navigation sys-
tem remains fully operational with the previous
map data. You can restart the update at a later
date. It will then continue from the point where it
was canceled.iThe navigation system remains fully opera-
tional with the previous map data.
iThe map software cannot be updated until
the system software has been updated.
ProCarManuals.com

153 Control systems
COMAND navigation (introduction)
General notes
Operational readiness of the navigation
system following a system software
update by an authorized
Mercedes-Benz Center
After a system software update by an au-
thorized Mercedes-Benz Center, the in-
stalled map software may no longer be
compatible. If this is the case, the naviga-
tion system will not be operational.
You will know if this is the case, when the
following message will appear when you
switch to navigation mode: “The system
software has been updated. The map soft-
ware must be updated now. Please insert
the DVD with the map software.”
Updating map software: Proceed as
described in the “Updating the map
software” section (
page 149). Use
map software which is compatible with
the system software.Initial use or use following a system
software update
In both these cases, the navigation system
must determine the position of the vehicle.
You may have to drive for a while before
precise route guidance is possible.
GPS reception
Correct functioning of the navigation sys-
tem depends on GPS reception, among
other things. In certain situations, GPS re-
ception may be impaired, there may be in-
terference or no reception at all, e.g. in
tunnels, in multistory parking garages or
there is snow covering the trunk lid where
the GPS antenna is located. If there is
snow on the trunk lid it should be removed.Route guidance after vehicle transpor-
tation
COMAND has to redetermine the position
of the vehicle if the vehicle has been trans-
ported (e.g. by ferry, by train or after tow-
ing).
Positioning takes place automatically even
when COMAND is switched off. The dura-
tion varies from one case to another.
Route guidance may be restricted as fol-
lows during vehicle positioning:

Navigation announcements, route
guidance displays and displayed street
names are not consistent with the ac-
tual location of the vehicle.

COMAND does not generate navigation
announcements.

Instead of the route guidance displays,
you see the “Off Road” display and a di-
rection arrow. The direction arrow
shows the compass heading to the des-
tination.
iPlease note that the update must be allowed
to run to the end in this case. If you interrupt it,
the navigation system will continue to be non-op-
erational.
ProCarManuals.com

154 Control systems
COMAND navigation (introduction)
When positioning is complete, route guid-
ance is once again possible using naviga-
tion announcements and route guidance
displays.
Interrupting the journey during route
guidance
The following applies if you interrupt the
journey during route guidance and contin-
ue the journey later:

COMAND resumes route guidance au-
tomatically if you continue the journey
within 2 hours.

Route guidance is canceled if you con-
tinue the journey after more than
2 hours. It will be necessary to resume
the canceled route guidance manually
(
page 203).Hard disk errors
COMAND has an integrated hard disk on
which the map software is saved.
If an area of the hard disk has an error,
COMAND can no longer access the map
data in this area, for example, when calcu-
lating a route.
The message “Navigation Unavailable.
Please refer to the operating instructions.”
appears.
Deleting message: Switch COMAND
off and back on.
Units of measurement
The units of measurement in navigation
mode are identical to those set in the in-
strument cluster.
Input restrictions
The input restrictions are imposed starting
at a particular vehicle speed. The restric-
tions are canceled as soon as the speed
drops below a certain value.
When the restriction is active, certain oper-
ations or entries are not possible.
You will notice this by the fact that some
menu items cannot be selected or certain
operations will not be possible.
iThe journey is interrupted if you park the ve-
hicle and switch off COMAND.
The journey is continued when you switch
COMAND back on and start driving on.
iIf you switch the navigation system off/on,
it will be operational again until it has to access
the faulty area of the hard disk again. The mes-
sage will then appear again. Consult an autho-
rized Mercedes-Benz Center.
ProCarManuals.com

155 Control systems
COMAND navigation (introduction)

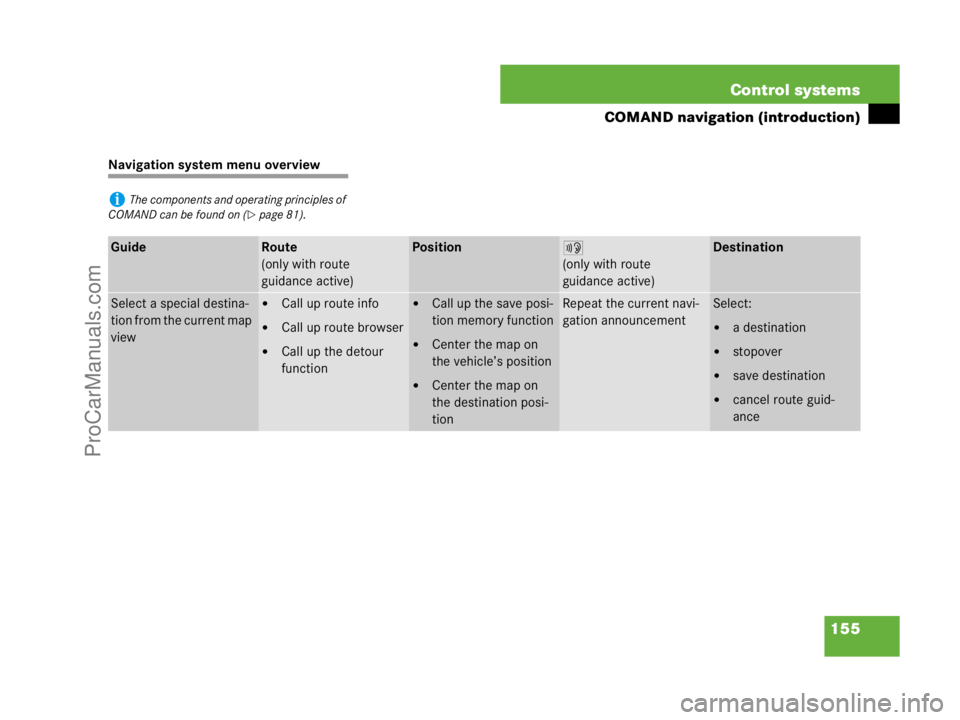

Navigation system menu overview
iThe components and operating principles of
COMAND can be found on (
page 81).
GuideRoute
(only with route
guidance active)Position6
(only with route
guidance active)Destination
Select a special destina-
tion from the current map
view
Call up route info

Call up route browser

Call up the detour
function

Call up the save posi-
tion memory function

Center the map on
the vehicle’s position

Center the map on
the destination posi-
tion
Repeat the current navi-
gation announcementSelect:

a destination

stopover

save destination

cancel route guid-
ance
ProCarManuals.com

156 Control systems
COMAND navigation (introduction)
Calling up the map display and switch-
ing to navigation mode
Press the N shortcut button once or
twice.
or
In the main function line, select “Navi”.
Both of these will call up the map display.
You will see the map with the menu system

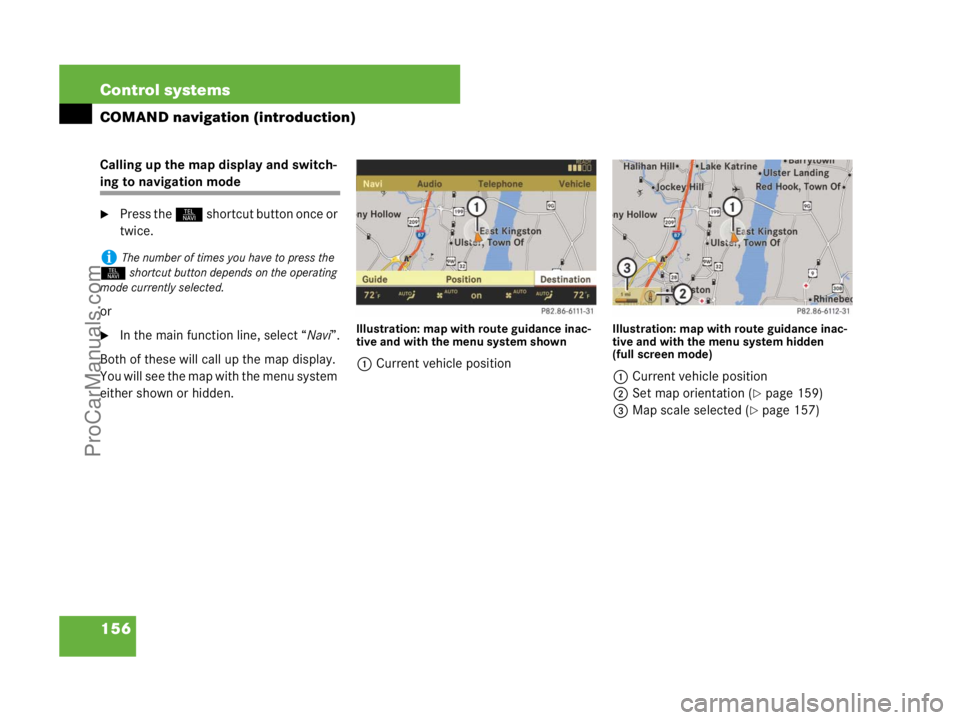

either shown or hidden.Illustration: map with route guidance inac-
tive and with the menu system shown
1Current vehicle position
Illustration: map with route guidance inac-
tive and with the menu system hidden
(full screen mode)
1Current vehicle position
2Set map orientation (
page 159)
3Map scale selected (
page 157)
iThe number of times you have to press the
N shortcut button depends on the operating
mode currently selected.
ProCarManuals.com

157 Control systems
COMAND navigation (introduction)
Hiding or showing the menu system
Hiding: Slide qm.
The “Full Screen” menu item appears in
the main area of the display; it is auto-
matically selected.
Press n.
The menu system is hidden. The map
can be seen in the full screen.
Showing: Press n in the full-screen
map display.Adjusting the map scale
Rotate ymz until the desired map
scale is set.

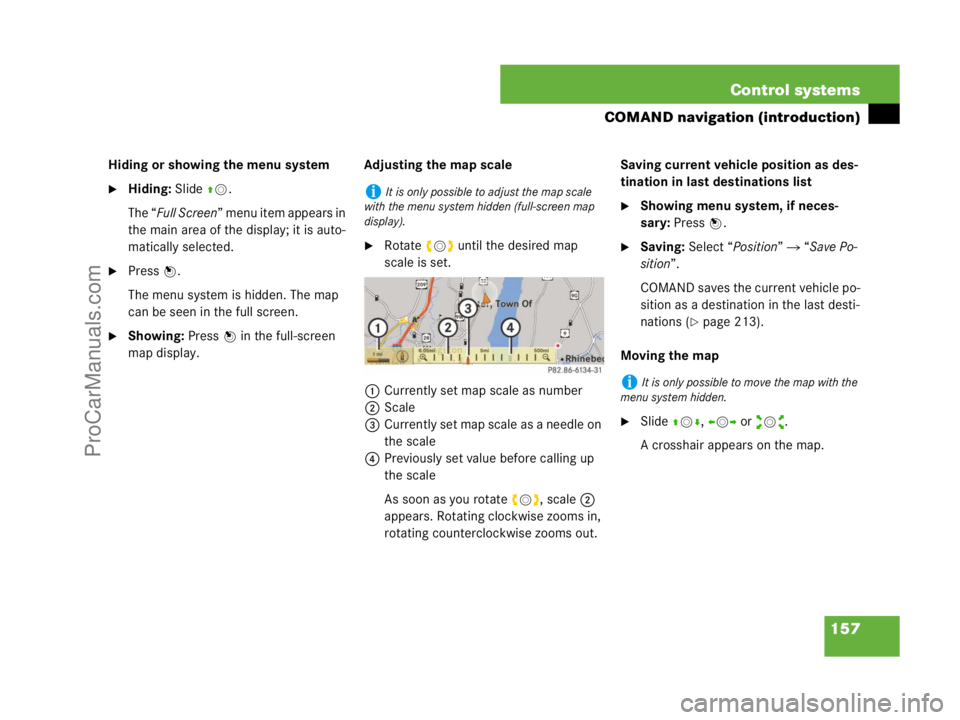

1Currently set map scale as number
2Scale
3Currently set map scale as a needle on
the scale
4Previously set value before calling up
the scale
As soon as you rotate ymz, scale 2
appears. Rotating clockwise zooms in,
rotating counterclockwise zooms out.Saving current vehicle position as des-
tination in last destinations list
Showing menu system, if neces-
sary: Press n.
Saving: Select “Position”
“Save Po-
sition”.
COMAND saves the current vehicle po-
sition as a destination in the last desti-
nations (
page 213).
Moving the map
Slide qmr, omp or wmx.
A crosshair appears on the map.
iIt is only possible to adjust the map scale
with the menu system hidden (full-screen map
display).
iIt is only possible to move the map with the
menu system hidden.
ProCarManuals.com

158 Control systems
COMAND navigation (introduction)

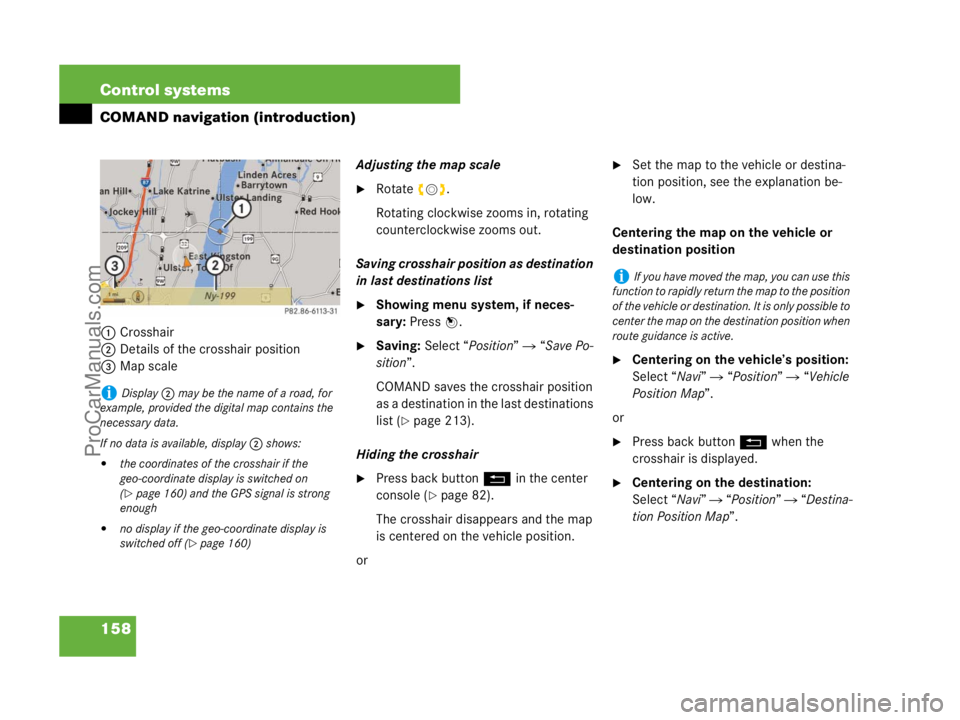

1Crosshair
2Details of the crosshair position
3Map scaleAdjusting the map scale
Rotate ymz.
Rotating clockwise zooms in, rotating
counterclockwise zooms out.
Saving crosshair position as destination
in last destinations list
Showing menu system, if neces-
sary: Press n.
Saving: Select “Position”
“Save Po-
sition”.
COMAND saves the crosshair position
as a destination in the last destinations
list (
page 213).
Hiding the crosshair
Press back button L in the center
console (
page 82).
The crosshair disappears and the map
is centered on the vehicle position.
or
Set the map to the vehicle or destina-
tion position, see the explanation be-
low.
Centering the map on the vehicle or
destination position
Centering on the vehicle’s position:
Select “Navi”
“Position”
“Vehicle
Position Map”.
or
Press back button L when the
crosshair is displayed.
Centering on the destination:
Select “Navi”
“Position”
“Destina-
tion Position Map”.
iDisplay 2 may be the name of a road, for
example, provided the digital map contains the
necessary data.
If no data is available, display 2 shows:

the coordinates of the crosshair if the
geo-coordinate display is switched on
(
page 160) and the GPS signal is strong
enough

no display if the geo-coordinate display is
switched off (
page 160)
iIf you have moved the map, you can use this
function to rapidly return the map to the position
of the vehicle or destination. It is only possible to
center the map on the destination position when
route guidance is active.
ProCarManuals.com

159 Control systems
COMAND navigation (introduction)
Basic settings
Map orientation

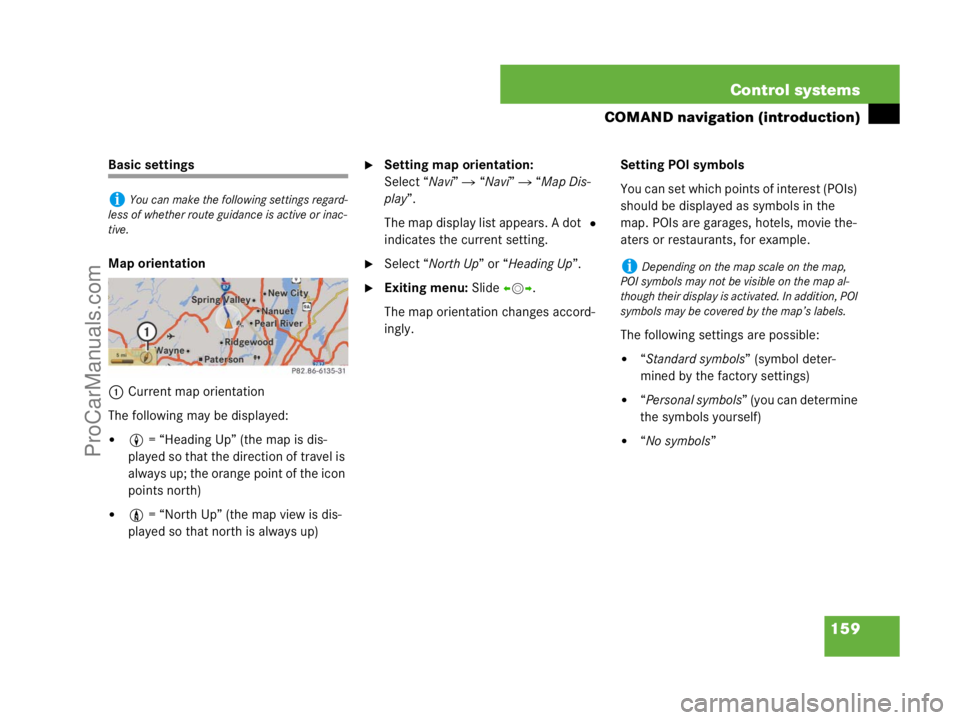

1Current map orientation
The following may be displayed:

8 = “Heading Up” (the map is dis-
played so that the direction of travel is
always up; the orange point of the icon
points north)

9 = “North Up” (the map view is dis-
played so that north is always up)
Setting map orientation:
Select “Navi”
“Navi”
“Map Dis-
play”.
The map display list appears. A dot R
indicates the current setting.
Select “North Up” or “Heading Up”.
Exiting menu: Slide omp.
The map orientation changes accord-
ingly.Setting POI symbols
You can set which points of interest (POIs)
should be displayed as symbols in the
map. POIs are garages, hotels, movie the-
aters or restaurants, for example.
The following settings are possible:

“Standard symbols” (symbol deter-
mined by the factory settings)

“Personal symbols” (you can determine
the symbols yourself)

“No symbols”
iYou can make the following settings regard-
less of whether route guidance is active or inac-
tive.
iDepending on the map scale on the map,
POI symbols may not be visible on the map al-
though their display is activated. In addition, POI
symbols may be covered by the map’s labels.
ProCarManuals.com
