MERCEDES-BENZ CL-Class 2014 C217 Owner's Manual

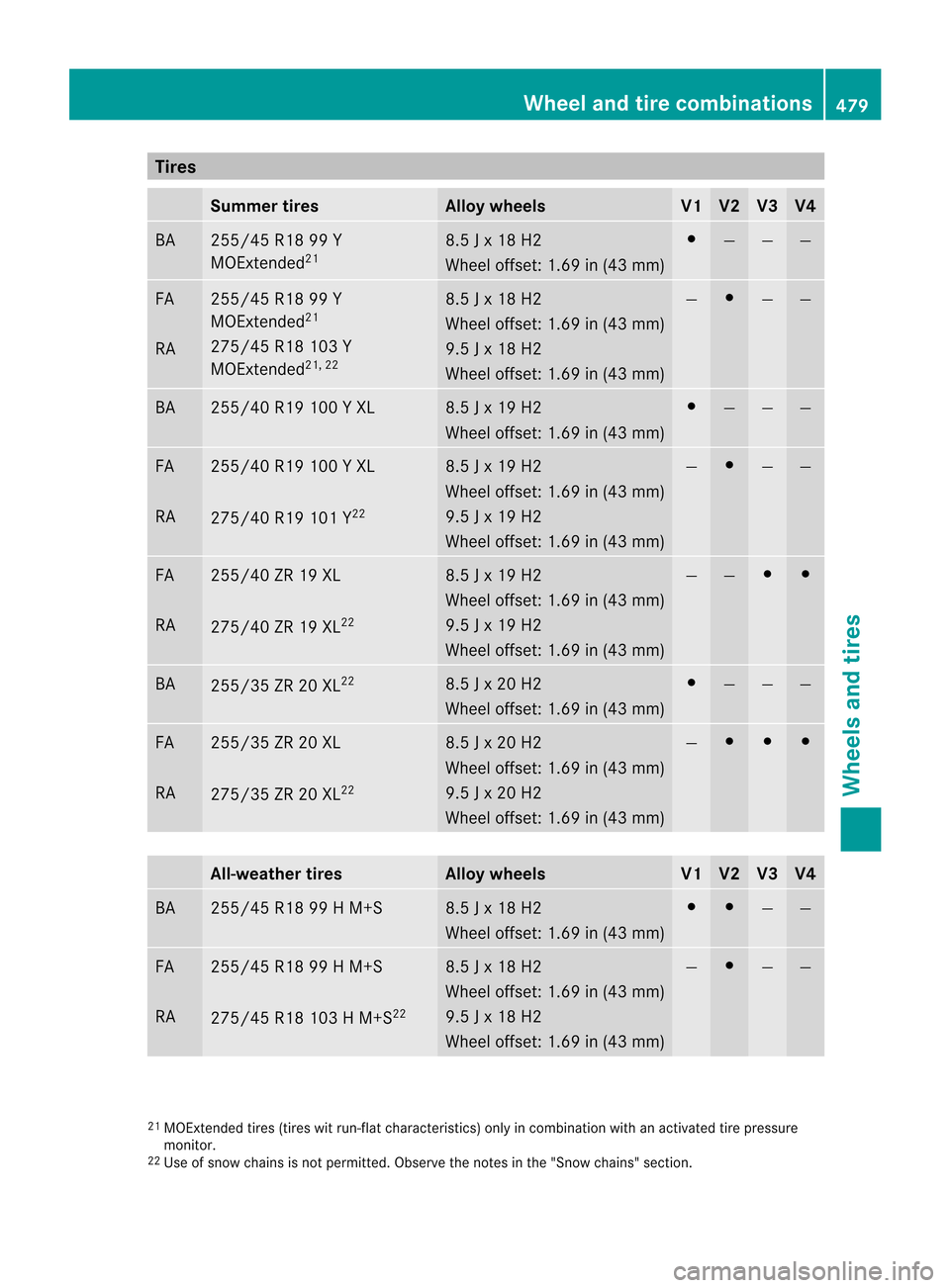

Tires
Summer tires Allo
ywheels V1 V2 V3 V4
BA 255/45 R18 99 Y
MOExtended
21 8.5 J x 18 H2
Wheel offset: 1.69 in
(43 mm) #
— — —
FA
RA 255/45 R18 99 Y
MOExtended
21
275/45 R18 103 Y
MOExtended 21, 22 8.5 J x 18 H2
Wheel offset: 1.69 in
(43 mm)
9.5 J x 18 H2
Wheel offset: 1.69 in (43 mm) — #
— —
BA 255/40 R19 100 Y XL 8.5 J x 19 H2
Wheel offset: 1.69 in
(43 mm) #
— — —
FA
RA 255/40 R19 100 Y XL
275/40 R19 101 Y
22 8.5 J x 19 H2
Wheel offset: 1.69 in
(43 mm)
9.5 J x 19 H2
Wheel offset: 1.69 in (43 mm) — #
— —
FA
RA 255/40 ZR 19 XL
275/40 ZR 19 XL
22 8.5 J x 19 H2
Wheel offset: 1.69 in
(43 mm)
9.5 J x 19 H2
Wheel offset: 1.69 in (43 mm) — — # #
BA
255/35 ZR 20 XL
22 8.5 J x 20 H2
Wheel offset: 1.69 in
(43 mm) #
— — —
FA
RA 255/35 ZR 20 XL
275/35 ZR 20 XL
22 8.5 J x 20 H2
Wheel offset: 1.69 in
(43 mm)
9.5 J x 20 H2
Wheel offset: 1.69 in (43 mm) — # # #
All-weather tires Alloy wheels V1 V2 V3 V4
BA 255/45 R18 99 H M+S 8.5 J x 18 H2
Wheel offset: 1.69 in
(43 mm) # #
— —
FA
RA 255/45 R18 99 H M+S
275/45 R18 103 H M+S
22 8.5 J x 18 H2
Wheel offset: 1.69 in
(43 mm)
9.5 J x 18 H2
Wheel offset: 1.69 in (43 mm) — #
— —
21
MOExtended tires (tires wit run-fla tcharacteristics) only in combination with an activated tire pressure
monitor.
22 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section. Wheel and tire combinations
479Wheels and tires Z

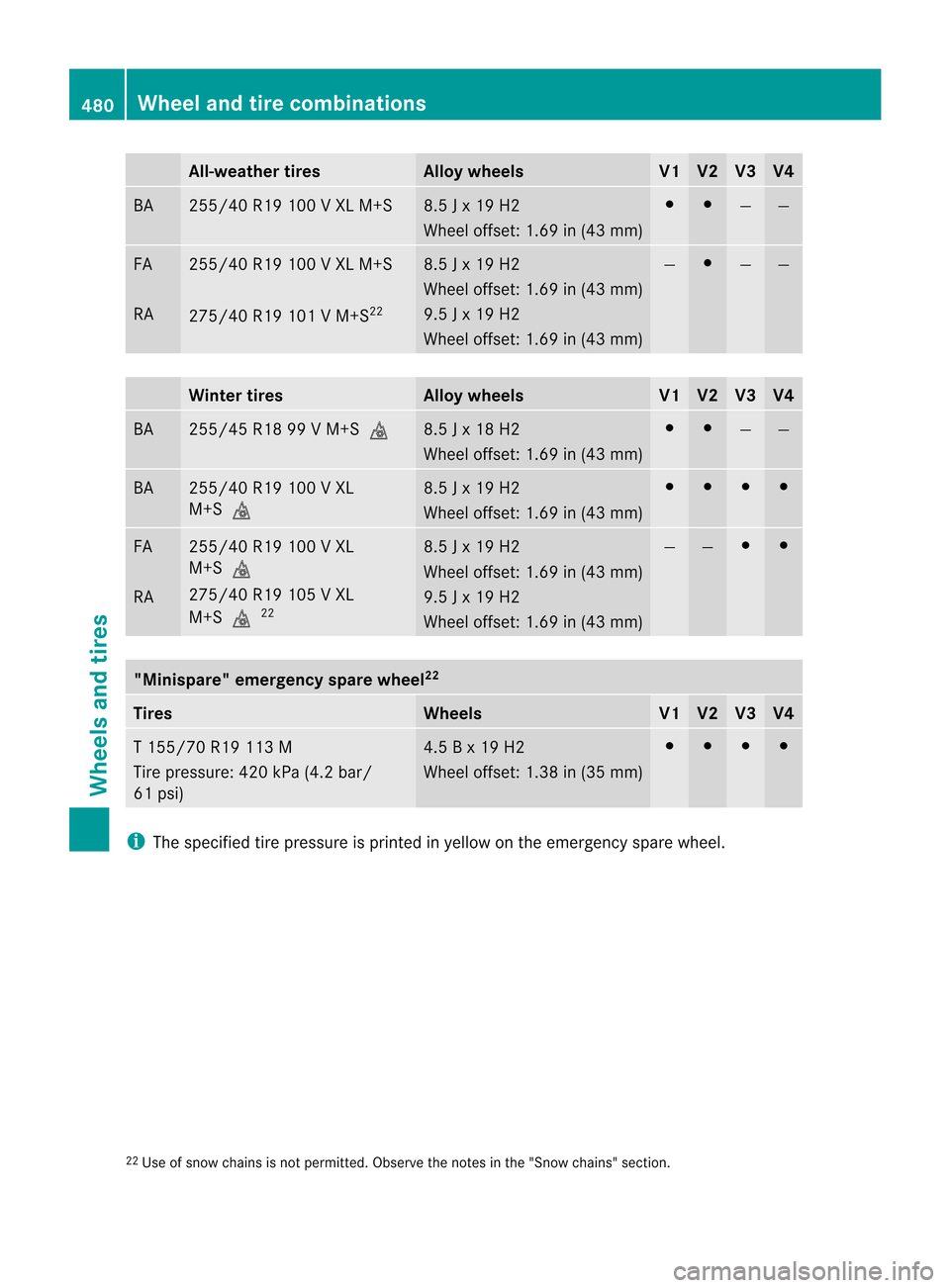

All-weather tires Alloy wheels V1 V2 V3 V4
BA 255/40 R19 100 V XL M+S 8.5 J x 19 H2
Wheel offset: 1.69 in
(43 mm) # #
— —
FA
RA 255/40 R19 100 V XL M+S
275/40 R19 101 V M+S
22 8.5 J x 19 H2
Wheel offset: 1.69 in
(43 mm)
9.5 J x 19 H2
Wheel offset: 1.69 in (43 mm) — #
— —
Winter tires Alloy wheels V1 V2 V3 V4
BA 255/45 R18 99 V M+S
i 8.5 J x 18 H2
Wheel offset: 1.69 in
(43 mm) # #
— —
BA 255/40 R19 100 V XL
M+Si 8.5 J x 19 H2
Wheel offset: 1.69 in
(43 mm) # # # #
FA
RA 255/40 R19 100 V XL
M+Si
275/40 R19 105 V XL
M+Si
22 8.5 J x 19 H2
Wheel offset: 1.69 in
(43 mm)
9.5 J x 19 H2
Wheel offset: 1.69 in (43 mm) — — # #
"Minispare" emergency spare wheel
22Tires Wheels V1 V2 V3 V4
T 155/70 R19 113 M
Tire pressure: 420 kPa (4.2 bar/
61 psi) 4.5 B x 19 H2
Wheel offset: 1.38 in
(35 mm) # # # #
i
The specified tire pressure is printed in yellow on the emergency spare wheel.
22 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section. 480
Wheel and tire combinationsWheels and tires

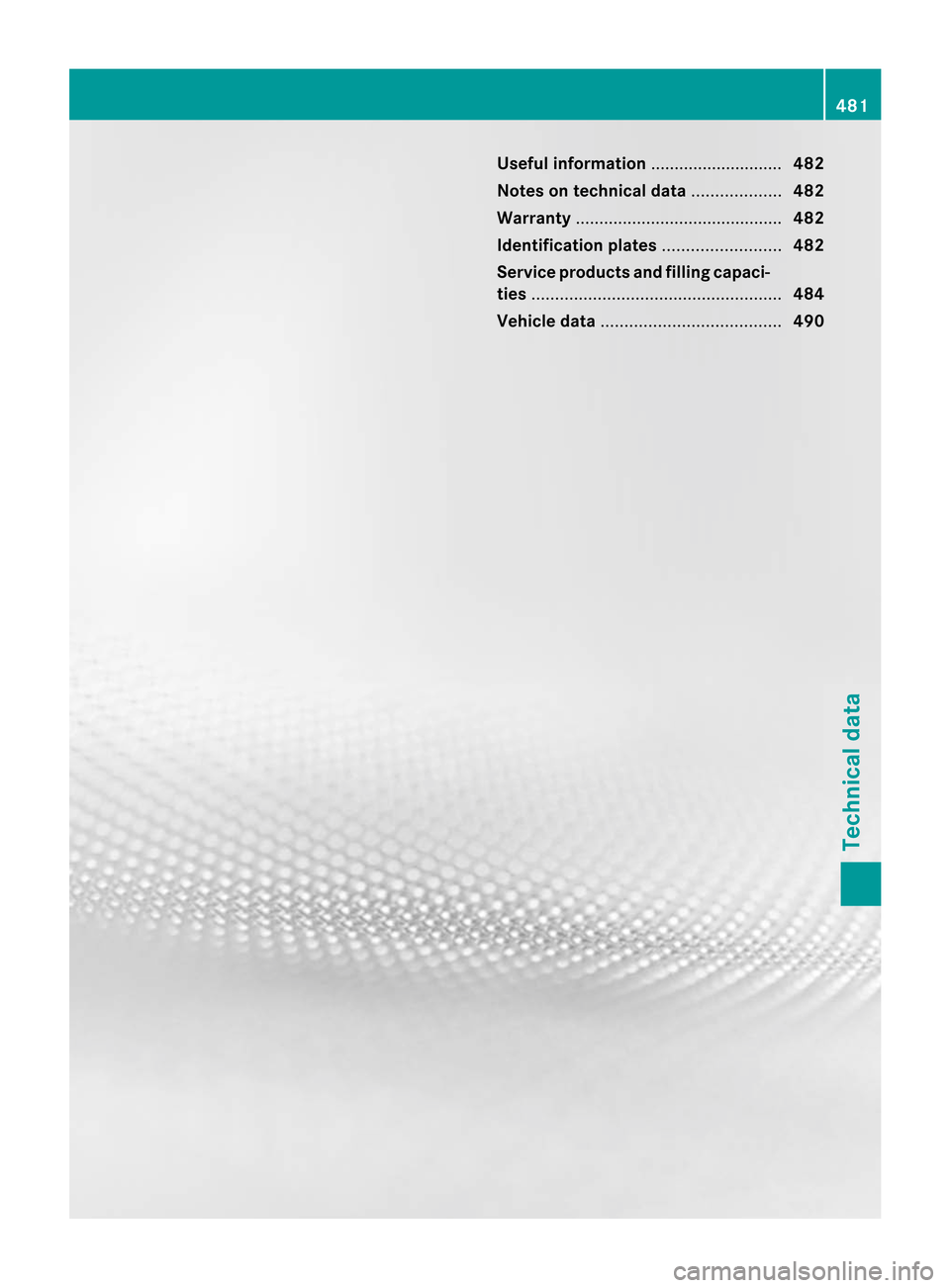

Useful information
............................482
Notes on technical data ...................482
Warranty ............................................ 482
Identification plates .........................482
Service products and filling capaci-
ties ..................................................... 484
Vehicle data ...................................... 490 481Technical data

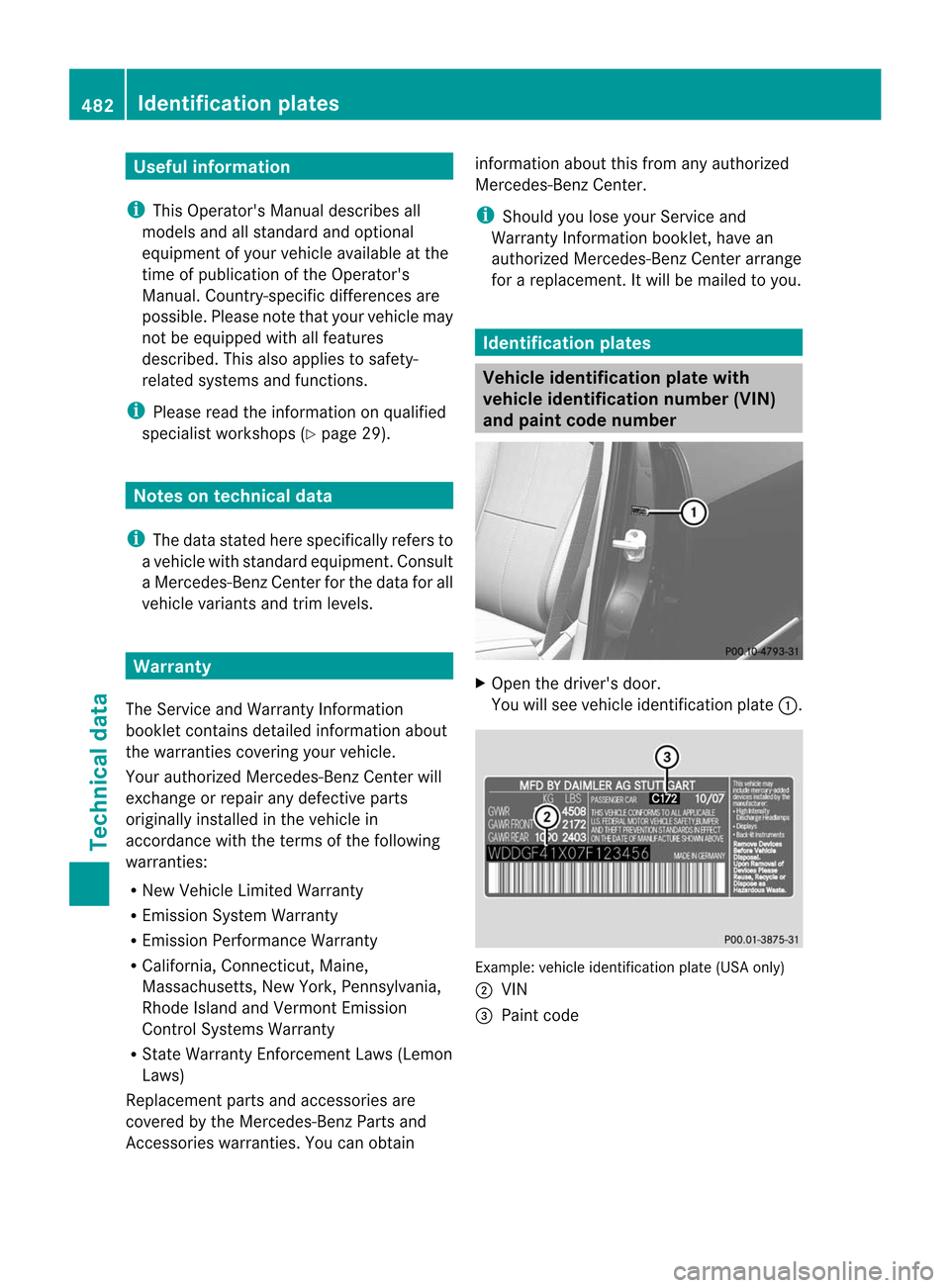

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Please read the information on qualified
specialist workshops (Y page 29).Notes on technical data
i The data stated here specifically refers to
a vehicle with standard equipment .Consult
a Mercedes-Benz Center for the data for all
vehicle variants and trim levels. Warranty
The Service and Warranty Information
booklet contains detailed information about
the warranties covering your vehicle.
Your authorized Mercedes-Benz Center will
exchange or repair any defective parts
originally installed in the vehicle in
accordance with the terms of the following
warranties:
R New Vehicle Limited Warranty
R Emission System Warranty
R Emission Performance Warranty
R California, Connecticut, Maine,
Massachusetts, New York, Pennsylvania,
Rhode Island and Vermont Emission
Control Systems Warranty
R State Warranty Enforcement Laws (Lemon
Laws)
Replacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties. You can obtain information about this from any authorized
Mercedes-Benz Center.
i
Should you lose your Service and
Warranty Information booklet, have an
authorized Mercedes-Benz Center arrange
for a replacement .Itwill be mailed to you. Identification plates
Vehicle identification plate with
vehicle identification number (VIN)
and paint code number
X
Open the driver's door.
You will see vehicle identification plate :. Example: vehicle identification plate (USA only)
;
VIN
= Paint code 482
Identification platesTechnical data

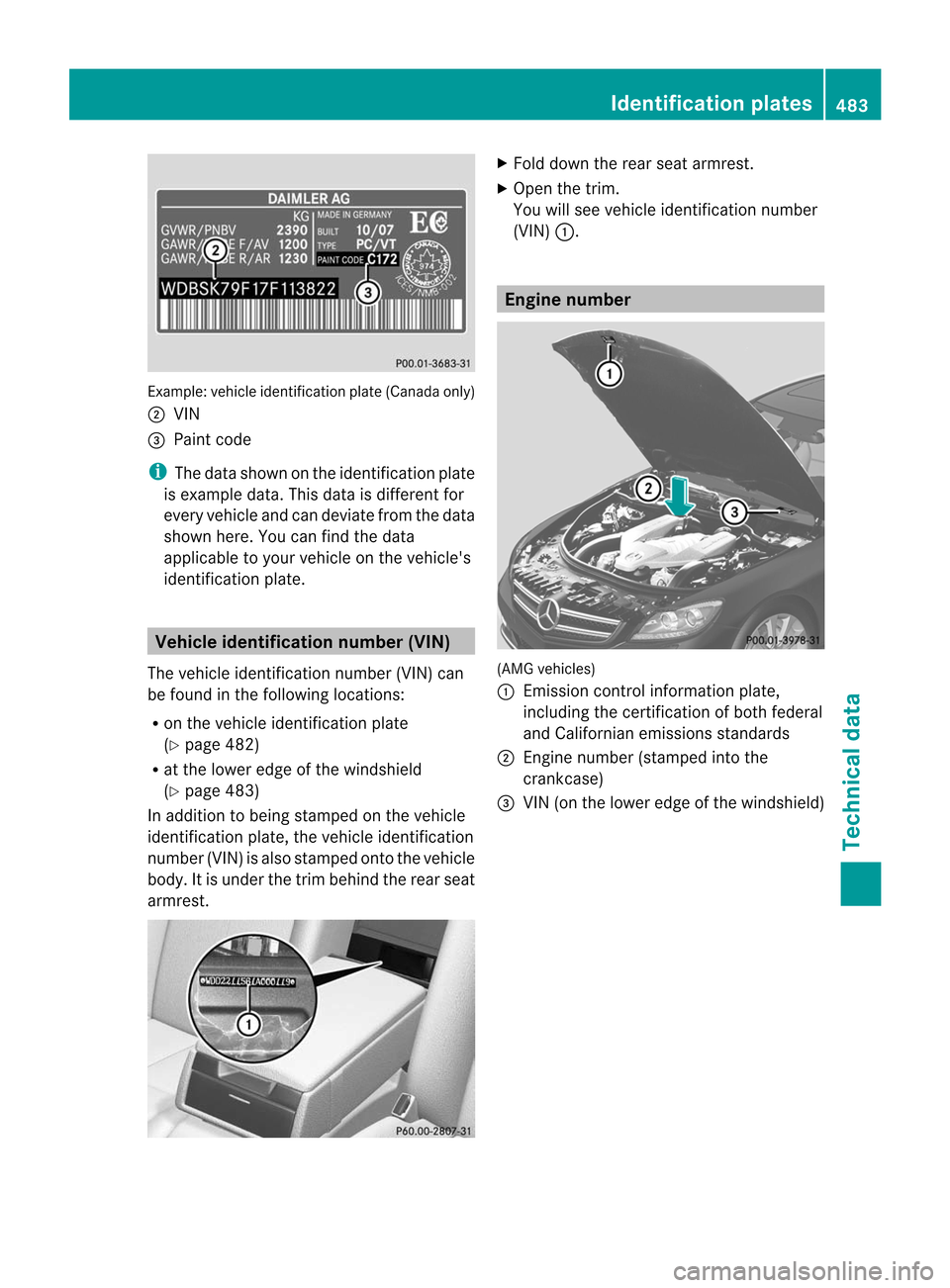

Example: vehicle identification plate (Canada only)
;
VIN
= Paint code
i The data shown on the identificatio nplate
is example data. This data is differen tfor
every vehicle and can deviate from the data
shown here. You can find the data
applicable to your vehicle on the vehicle's
identification plate. Vehicle identification number (VIN)
The vehicle identification number (VIN) can
be found in the following locations:
R on the vehicle identification plate
(Y page 482)
R at the lower edge of the windshield
(Y page 483)
In addition to being stamped on the vehicle
identification plate, the vehicle identification
number (VIN) is also stamped onto the vehicle
body. It is under the trim behind the rear seat
armrest. X
Fold down the rear seat armrest.
X Open the trim.
You will see vehicle identification number
(VIN) :. Engine number
(AMG vehicles)
:
Emission control information plate,
including the certification of both federal
and Californian emissions standards
; Engine number (stamped into the
crankcase)
= VIN (on the lower edge of the windshield) Identification plates
483Technical data

:

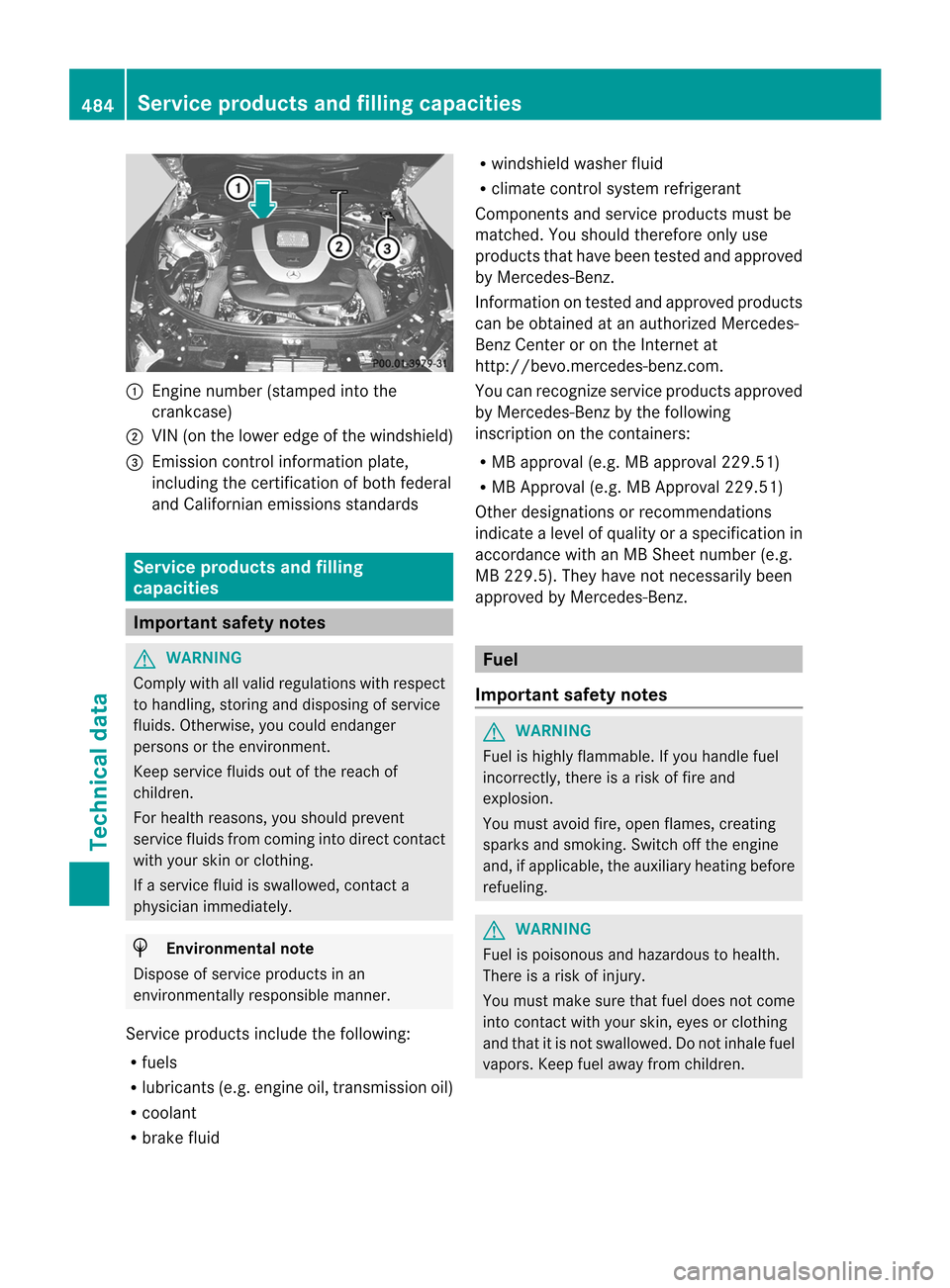

Engine numbe r(stamped into the
crankcase)
; VIN (on the lower edge of the windshield)
= Emission control information plate,
including the certification of both federal
and Californian emissions standards Service products and filling
capacities Important safety notes
G
WARNING
Comply with all valid regulations with respect
to handling, storing and disposing of service
fluids. Otherwise, you could endanger
persons or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct contact
with your skin or clothing.
If a service fluid is swallowed, contact a
physiciani mmediately. H
Environmental note
Dispose of service products in an
environmentally responsible manner.
Service products include the following:
R fuels
R lubricants (e.g. engine oil, transmission oil)
R coolant
R brake fluid R
windshield washer fluid
R climate control system refrigerant
Components and service products must be
matched. You should therefore only use
products that have been tested and approved
by Mercedes-Benz.
Information on tested and approved products
can be obtained at an authorized Mercedes-
Benz Center or on the Internet at
http://bevo.mercedes-benz.com.
You can recognize service products approved
by Mercedes-Benz by the following
inscription on the containers:
R MB approval (e.g. MB approval 229.51)
R MB Approval (e.g. MB Approval 229.51)
Other designations or recommendations
indicate a level of quality or a specification in
accordance with an MB Sheet number (e.g.
MB 229.5). They have not necessarily been
approved by Mercedes-Benz. Fuel
Important safety notes G
WARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there is a risk of fire and
explosion.
You must avoid fire, open flames, creating
sparks and smoking. Switch off the engine
and, if applicable, the auxiliary heating before
refueling. G
WARNING
Fuel is poisonous and hazardous to health.
There is a risk of injury.
You must make sure that fuel does not come
into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors .Keep fuel away from children. 484
Service products and filling capacitiesTechnical data

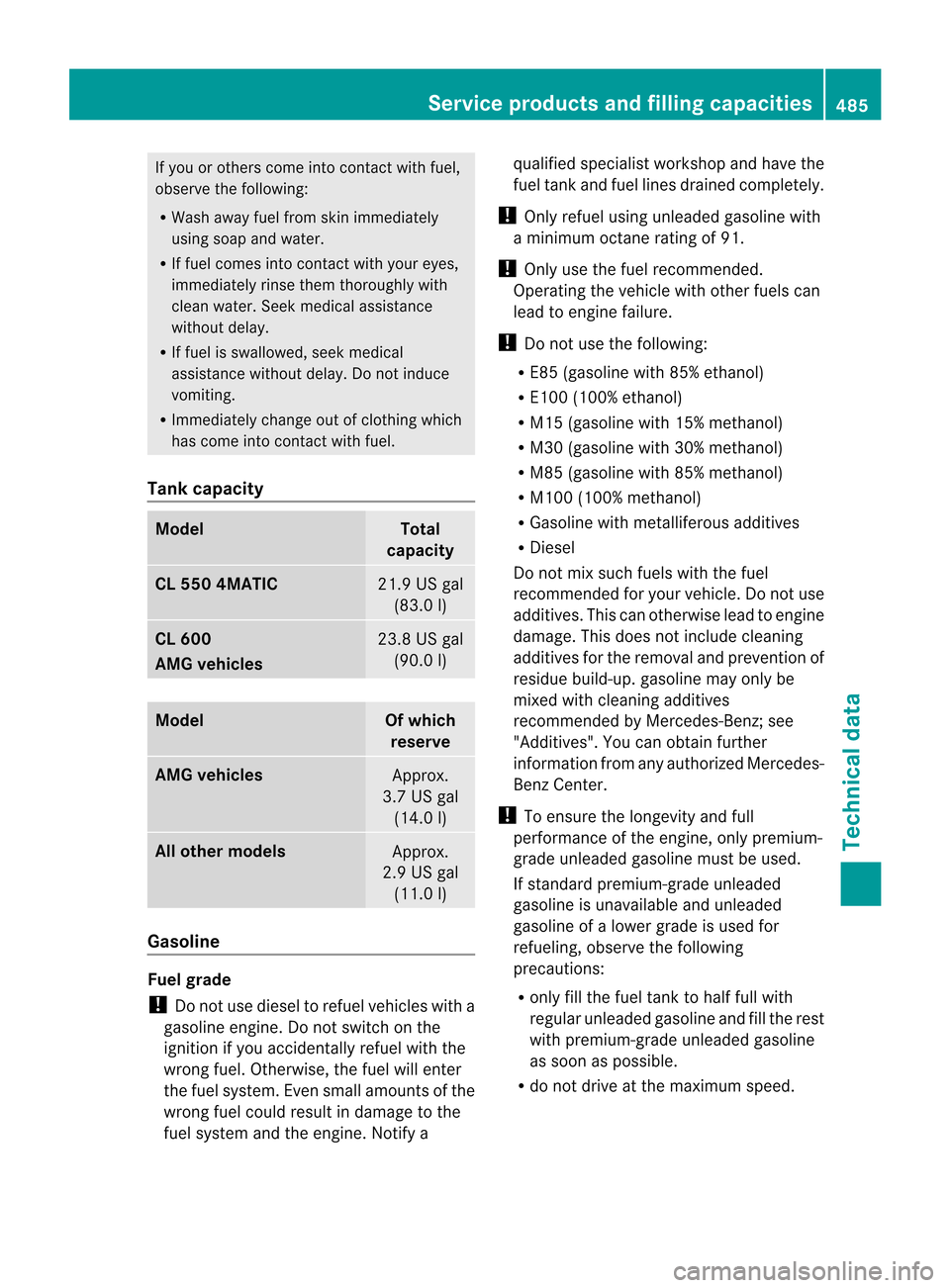

If you or others come into contact with fuel,
observe the following:
R Wash away fuel from skin immediately
using soap and water.
R If fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medica lassistance
without delay.
R If fuel is swallowed, seek medical
assistance without delay.Don ot induce
vomiting.
R Immediately change out of clothing which
has come into contact with fuel.
Tank capacity Model Total
capacity CL 550 4MATIC
21.9 US gal
(83.0 l) CL 600
AMG vehicles
23.8 US gal
(90.0 l) Model Of which
reserve AMG vehicles
Approx.
3.7 US gal (14.0 l) All other models
Approx.
2.9 US gal (11.0 l) Gasoline
Fuel grade
!
Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the
ignition if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter
the fuel system. Even small amounts of the
wrong fuel could result in damage to the
fuel system and the engine. Notify a qualified specialist workshop and have the
fuel tank and fuel lines drained completely.
! Only refuel using unleaded gasoline with
a minimum octane rating of 91.
! Only use the fuel recommended.
Operating the vehicle with other fuels can
lead to engine failure.
! Do not use the following:
R E85 (gasoline with 85% ethanol)
R E100 (100% ethanol)
R M15 (gasoline with 15% methanol)
R M30 (gasoline with 30% methanol)
R M85 (gasoline with 85% methanol)
R M100 (100% methanol)
R Gasoline with metalliferous additives
R Diesel
Do not mix such fuels with the fuel
recommended for your vehicle. Do not use
additives. This can otherwise lead to engine
damage. This does not include cleaning
additives for the removal and prevention of
residue build-up. gasoline may only be
mixed with cleaning additives
recommended by Mercedes-Benz; see
"Additives". You can obtain further
information from any authorized Mercedes-
Benz Center.
! To ensure the longevity and full
performance of the engine, only premium-
grade unleaded gasoline must be used.
If standard premium-grade unleaded
gasoline is unavailable and unleaded
gasoline of a lower grade is used for
refueling, observe the following
precautions:
R only fill the fuel tank to half full with
regular unleaded gasoline and fill the rest
with premium-grade unleaded gasoline
as soon as possible.
R do not drive at the maximum speed. Service products and filling capacities
485Technical data Z

R
avoid sudde nacceleration and engine
speeds above 3000 rpm.
R neve rrefuel using fuel with an octane
number lower than 87. Otherwise,
engine failure could occur.
Using mixtures of methanol and ethanol is not
permitted. E10 fuel or E15 fuel (unleaded
gasoline with 10% or 15% ethanol) can be
used.
You will usually find information about the fuel
grade on the pump. If you cannot find the
label on the pump, ask the staff for
assistance.
i For further information, consult a
qualified specialist workshop or on the
Internet at http://www.mbusa.com (USA
only).
Information on refueling (Y page 287).
Additives
! Operating the engine with fuel additives
added later can lead to engine failure. Do
not mix fuel additives with fuel. This does
not include additives for the removal and
prevention of residue buildup. gasoline
must only be mixed with additives
recommended by Mercedes-Benz .Comply
with the instructions for use on the product
label. More information about
recommended additives can be obtained
from any authorized Mercedes-Benz
Center.
Mercedes-Benz recommends that you use
fuel brands that have the additives.
The quality of the fuel available in some
countries may not be sufficient .Residue
could build up as a result. In such cases, and
in consultation with an authorized Mercedes-
BenzC enter, the gasoline may be mixed with
the cleaning additive recommended by
Mercedes-Benz (part no. A000989254512).
You must observe the notes and mixing ratios
specified on the container. Engine oil
Points to remember !
Never use engine oil or an oil filter of a
specification other than is necessary to
fulfill the prescribed servic eintervals. Do
not change the engine oil or oil filter in
order to achieve longe rreplacement
intervals than those prescribed. You could
otherwise cause engine damage or damage
to the exhaust gas aftertreatment.
Follow the instructions in the service
interval display regarding the oil change.
Otherwise, you may damage the engine and
the exhaust gas aftertreatment.
The engine oils are matched to the
performance of Mercedes-Benz engines and
service intervals. You should therefore only
use engine oils and oil filters that are
approved for vehicles with maintenance
systems.
For a list of approved engine oils and oil filters,
consult an authorized Mercedes-Benz
Center .Orvisit the website
http://bevo.mercedes-benz.com.
The table shows which engine oils have been
approved for your vehicle. Model Engine
model MB
Approval
CL 550 4MATIC
278 229.5
CL 600
275
CL 63 AMG
23 157
CL 65 AMG
23 275
i
MB approval is indicated on the oil
containers.
Filling capacities The following values refer to an oil change
including the oil filter.
23 Only SAE 0W-40/SAE 5W-40 engine oils may be used. 486
Service products and filling capacitiesTechnical data

Model Capacity
CL 550 4MATIC
9.0 US qt (8.5 l)
CL 63 AMG
10.0 US qt (9.5 l)
24 CL 600
CL 65 AMG
9.5 US qt (9.0 l)
Additives
!
Do not use any additives in the engine oil.
This could damage the engine.
Engine oil viscosity Viscosity describes the flow characteristics
of a fluid. If an engine oil has a high viscosity,
this means that it is thick; a low viscosity
means that it is thin.
Select an engine oil with an SAE classification
(viscosity) suitable for the prevailing outside
temperatures. The table shows you which
SAE classifications are to be used. The low-
temperature characteristics of engine oils
can deteriorate significantly, e.g. as a result
of aging, soot and fuel deposits. It is therefore
strongly recommended that you carry out
regular oil changes using an approved engine
oil with the appropriate SAE classification. Brake fluid
G
WARNING
Over a period of time, the brake fluid absorbs
moisture from the air; this lowers its boiling
point.
If the boiling point of the brake fluid is too low,
vapor pockets may form in the brake system
when the brakes are applied hard (e.g. when
driving downhill). This would impair braking
efficiency.
You should have the brake fluid renewed at
regular intervals. The brake fluid change
intervals can be found in the Maintenance
Booklet.
Only use brake fluid approved by Mercedes-
Benz. Information about approved brake fluid
can be obtained at any qualified specialist
workshop or on the Internet at
http://bevo.mercedes-benz.com. Coolant
Important safety notes G
WARNING
Antifreeze is highly flammable.F ire, open
flames and smoking are prohibited when
handling antifreeze.
If antifreeze comes into contact with hot
engine parts, it may ignite and you could burn
yourself .Do not spill any antifreeze on hot
engine parts.
! Only add coolant that has been premixed
with the desired antifreez eprotection. You
could otherwise damage the engine.
Further information on coolants can be
found in the Mercedes-Benz Specifications
for Service Products, MB Specifications for
Service Products 310.1, e.g. on the
Internet at
http://bevo.mercedes-benz.com. Or
contact a qualified specialist workshop.
24 Including external oil cooler. Service products and filling capacities
487Technical data Z

!
Always use a suitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the engine cooling system is not
sufficiently protected from corrosion and
overheating.
The coolant is a mixture of water and
antifreeze/corrosion inhibitor. It performs
the following tasks:
R corrosion protection
R antifreeze protection
R raising the boiling point
If the coolant has antifreeze protection down
to -35 ‡ (-37 †), the boiling point of the
coolant during operation is approximately
266 ‡ (130 †).
The antifreeze/corrosion inhibitor
concentration in the engine cooling system
should:
R be at least 50%. This will protect the engine
cooling system against freezing down to
approximately -35 ‡ (-37 †).
R not exceed 55% (antifreeze protection
down to -49 ‡ [-45 †]). Otherwise, heat
will not be dissipated as effectively.
If the vehicle has lost coolant, add equal
amounts of water and antifreeze/corrosion
inhibitor. Mercedes-Benz recommends an
antifreeze/corrosion inhibitor concentrate in
accordance with MB Specifications for
Service Products 310.1.
The coolant is checked with every
maintenance interval at a qualified specialist
workshop.
i When the vehicle is first delivered, it is
filled with a coolant mixture that ensures
adequate antifreeze and corrosion
protection. Capacity Model Capacity
CL 550 4MATIC
Approx. 14.5 US qt
(13.7 l) CL 600
Approx. 15.3 US qt
(14.5 l) CL 63 AMG
Approx. 12.2 US qt
(11.5 l) CL 65 AMG
Approx. 14.7 US qt
(13.9 l) i
Use MB 325.0 or MB 326.0 corrosion
inhibitor/antifreeze. Washer fluid
G
WARNING
Washer solvent/antifreeze is highly
flammable. Do not spill washer solvent/
antifreeze on hot engine parts, because it may
ignite and burn. You could be seriously
burned.
! Only use washer fluid that is suitable for
plastic lamp lenses, e.g. MB SummerFit or
MB WinterFit. Unsuitable washer fluid
could damage the plastic lenses of the
headlamps.
! Do not add distilled or de-ionized water to
the washer fluid container. Otherwise, the
level sensor may be damaged.
! Only MB SummerFit and MB WinterFit
washer fluid should be mixed together. The
spray nozzles may otherwise become
blocked.
At temperatures above freezing:
X Fill the washer fluid reservoir with a mixture
of water and windshield washer fluid, e.g.
MB SummerFit.
X Add 1 part MB SummerFit to 100 parts
water. 488
Service products and filling capacitiesTechnical data
