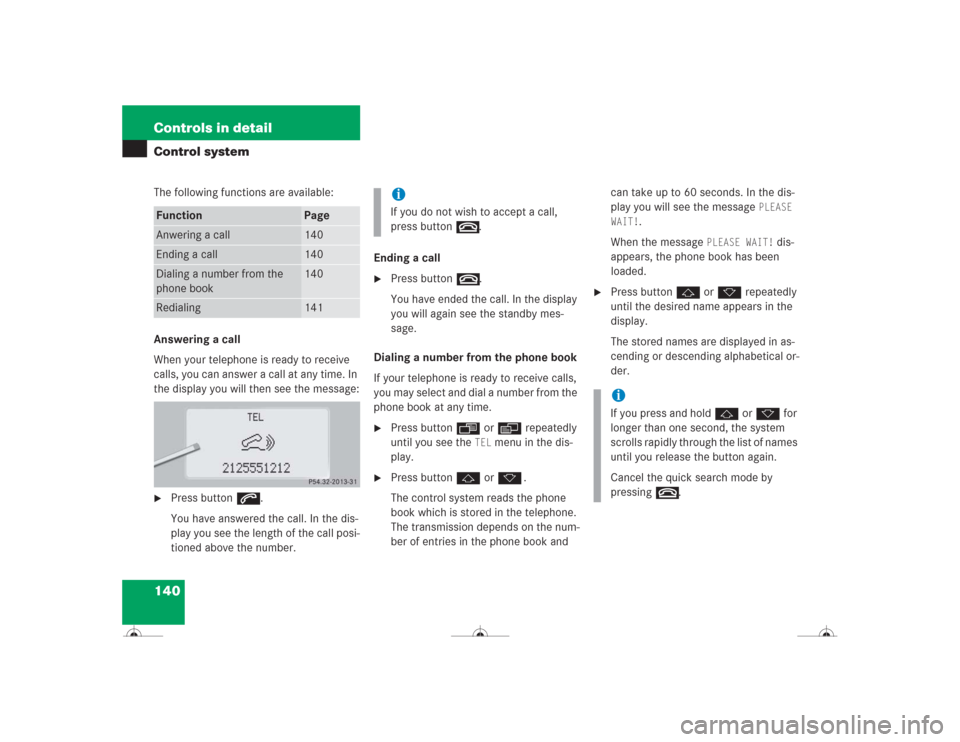

140 Controls in detailControl systemThe following functions are available:
Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the display you will then see the message:
Press buttons.
You have answered the call. In the dis-
play you see the length of the call posi-
tioned above the number.Ending a call

Press buttont.
You have ended the call. In the display
you will again see the standby mes-
sage.
Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.

Press buttonÿ orè repeatedly
until you see the
TEL
menu in the dis-
play.

Press buttonj ork.
The control system reads the phone
book which is stored in the telephone.
The transmission depends on the num-
ber of entries in the phone book and can take up to 60 seconds. In the dis-
play you will see the message
PLEASE
WAIT!
.
When the message
PLEASE WAIT!
dis-
appears, the phone book has been
loaded.

Press buttonj ork repeatedly
until the desired name appears in the
display.
The stored names are displayed in as-
cending or descending alphabetical or-
der.
Function
Page
Anwering a call
140
Ending a call
140
Dialing a number from the
phone book
140
Redialing
141
iIf you do not wish to accept a call,
press buttont.
iIf you press and holdj ork for
longer than one second, the system
scrolls rapidly through the list of names
until you release the button again.
Cancel the quick search mode by
pressingt.

141 Controls in detail
Control system

Press buttons.
The system dials the selected phone
number.

If the connection is successful, the
name of the party you called and
the duration of the call will appear
in the display.


If no connection is made, the con-
trol system stores the dialed num-
ber in the redial memory.Redialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.

Press buttonè orÿ repeatedly
until you see the
TEL
menu in the dis-
play.

Press buttons.
In the display you see the first number
in the redial memory.

Press buttonj ork repeatedly
until the desired name appears in the
display.

Press buttons.
The control system dials the selected
phone number.
NAVI menu
In the
NAVI
menu, you will see the naviga-
tion system’s status.

Press buttonè orÿ repeatedly
until you see the message
NAVI
in the
display.


If the navigation system is switched off,
the message
NAVI OFF
is shown in the
display.


If the navigation system is on and no
destination has been entered, you will
see the current direction in which the
vehicle is moving and the names of
streets in the display.
Please refer to the COMAND manual for in-
structions on how to activate the route
guidance system.
iIf you do not want to use the telephone,
press buttont.

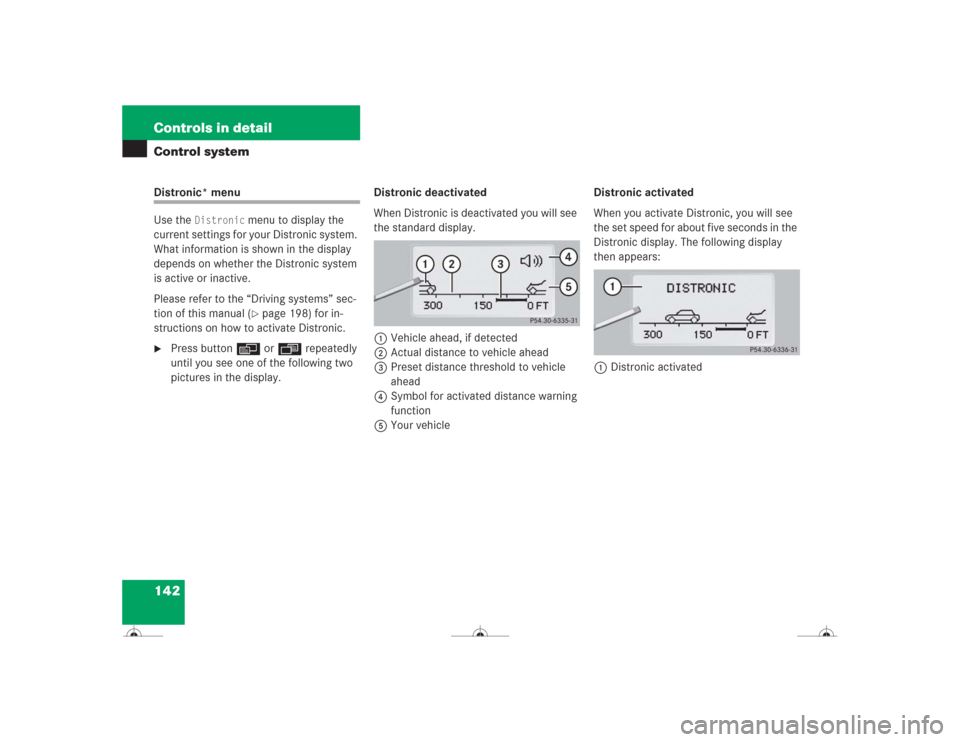

142 Controls in detailControl systemDistronic* menu
Use the
Distronic
menu to display the
current settings for your Distronic system.
What information is shown in the display
depends on whether the Distronic system
is active or inactive.
Please refer to the “Driving systems” sec-
tion of this manual (page 198) for in-
structions on how to activate Distronic.

Press buttonè orÿ repeatedly
until you see one of the following two
pictures in the display.Distronic deactivated
When Distronic is deactivated you will see
the standard display.
1Vehicle ahead, if detected
2Actual distance to vehicle ahead
3Preset distance threshold to vehicle
ahead
4Symbol for activated distance warning
function
5Your vehicleDistronic activated
When you activate Distronic, you will see
the set speed for about five seconds in the
Distronic display. The following display
then appears:
1Distronic activated

143 Controls in detail
Control system

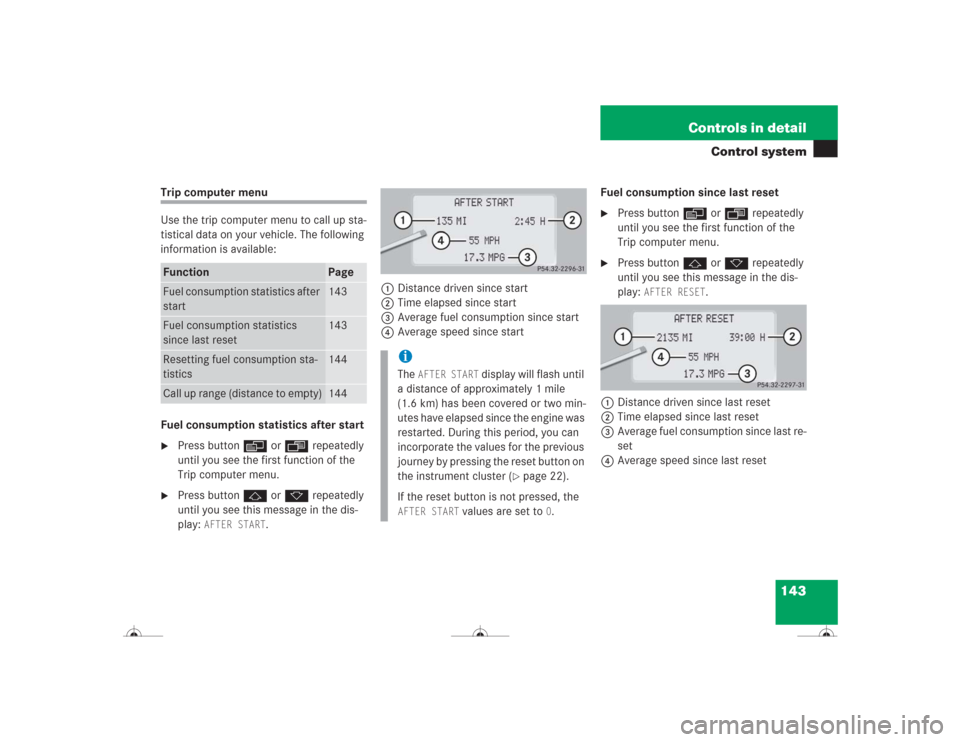

Trip computer menu
Use the trip computer menu to call up sta-
tistical data on your vehicle. The following
information is available:
Fuel consumption statistics after start
Press buttonè orÿ repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
AFTER START
.1Distance driven since start
2Time elapsed since start
3Average fuel consumption since start
4Average speed since startFuel consumption since last reset

Press buttonè orÿ repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
AFTER RESET
.
1Distance driven since last reset
2Time elapsed since last reset
3Average fuel consumption since last re-
set
4Average speed since last reset
Function
Page
Fuel consumption statistics after
start
143
Fuel consumption statistics
since last reset
143
Resetting fuel consumption sta-
tistics
144
Call up range (distance to empty)
144
iThe
AFTER START
display will flash until
a distance of approximately 1 mile
(1.6 km) has been covered or two min-
utes have elapsed since the engine was
restarted. During this period, you can
incorporate the values for the previous
journey by pressing the reset button on
the instrument cluster (
page 22).
If the reset button is not pressed, the
AFTER START
values are set to
0.

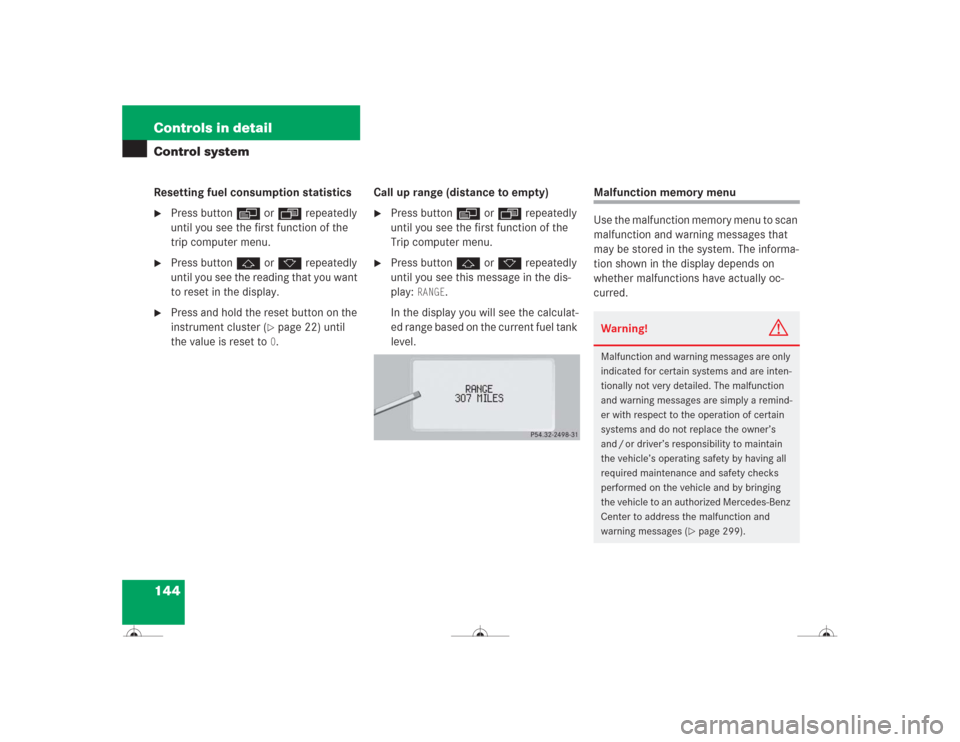

144 Controls in detailControl systemResetting fuel consumption statistics
Press buttonè orÿ repeatedly
until you see the first function of the
trip computer menu.

Press buttonj ork repeatedly
until you see the reading that you want
to reset in the display.

Press and hold the reset button on the
instrument cluster (
page 22) until
the value is reset to 0.Call up range (distance to empty)

Press buttonè orÿ repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
RANGE
.
In the display you will see the calculat-
ed range based on the current fuel tank
level.
Malfunction memory menu
Use the malfunction memory menu to scan
malfunction and warning messages that
may be stored in the system. The informa-
tion shown in the display depends on
whether malfunctions have actually oc-
curred.Warning!
G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and / or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 299).

145 Controls in detail
Control system

Press buttonè orÿ repeatedly
until you see the malfunction message
memory in the display.
No malfunction messages
If no malfunctions have occurred, the mes-
sage in the display is:
NO MALFUNCTIONMalfunctions have occurred
If malfunctions have occurred, you will see
the number of malfunctions in the display:
1Number of malfunctions

Press buttonj ork.
The stored messages will now be dis-
played in order in wich the malfunc-
tions have occurred. See the “Practical
hints” section for malfunction and
warning messages (
page 299).
Should any malfunctions occur while driv-
ing, the number of malfunctions will reap-
pear in the display when the SmartKey in
the starter switch is turned to position0 or
removed from the starter switch.
Settings menu
In the
SETTINGS
menu there are two func-
tions:


The function
RESET WITH R BUTTON FOR
3 SEC.
, with which you can reset all the
settings to the original factory settings.


A collection of submenus with which
you can make individual settings for
your vehicle.

Press buttonè orÿ repeatedly
until the
SETTINGS
menu appears in the
display.
iThe message memory will be cleared
when you turn the SmartKey in the
starter switch to position1 or2. You
will then only see high priority malfunc-
tions (
page 299).

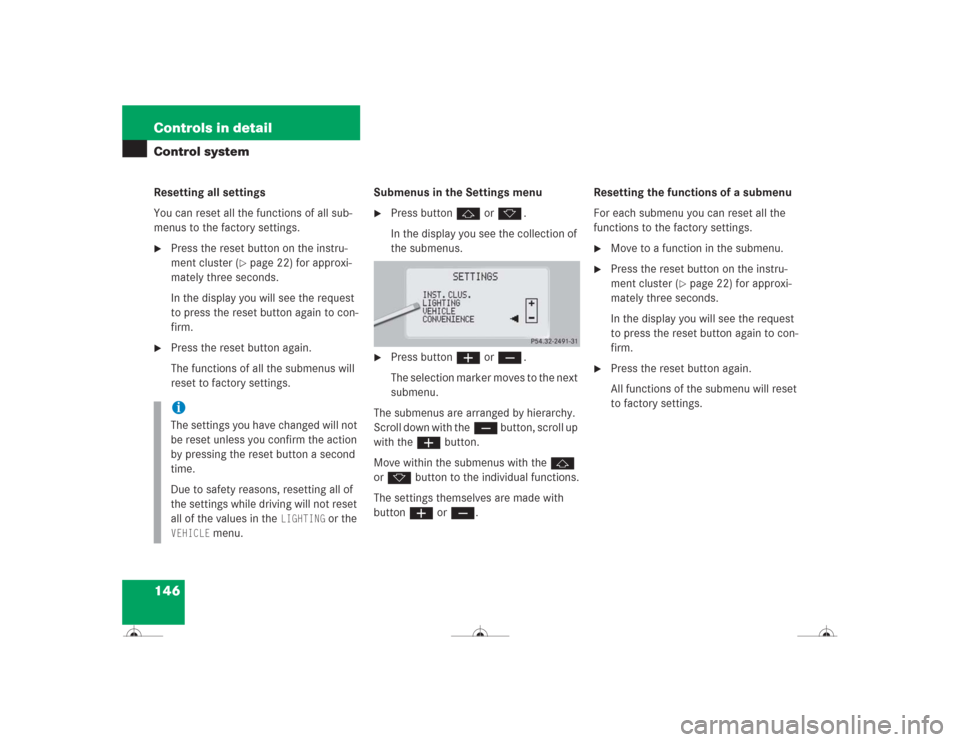

146 Controls in detailControl systemResetting all settings
You can reset all the functions of all sub-
menus to the factory settings.
Press the reset button on the instru-
ment cluster (
page 22) for approxi-
mately three seconds.
In the display you will see the request
to press the reset button again to con-
firm.

Press the reset button again.
The functions of all the submenus will
reset to factory settings.Submenus in the Settings menu

Press buttonj ork.
In the display you see the collection of
the submenus.

Press buttonæorç.
The selection marker moves to the next
submenu.
The submenus are arranged by hierarchy.
Scroll down with theç button, scroll up
with theæ button.
Move within the submenus with thej
ork button to the individual functions.
The settings themselves are made with
buttonæ orç.Resetting the functions of a submenu
For each submenu you can reset all the
functions to the factory settings.

Move to a function in the submenu.

Press the reset button on the instru-
ment cluster (
page 22) for approxi-
mately three seconds.
In the display you will see the request
to press the reset button again to con-
firm.

Press the reset button again.
All functions of the submenu will reset
to factory settings.
iThe settings you have changed will not
be reset unless you confirm the action
by pressing the reset button a second
time.
Due to safety reasons, resetting all of
the settings while driving will not reset
all of the values in the
LIGHTING
or the
VEHICLE
menu.

147 Controls in detail
Control system

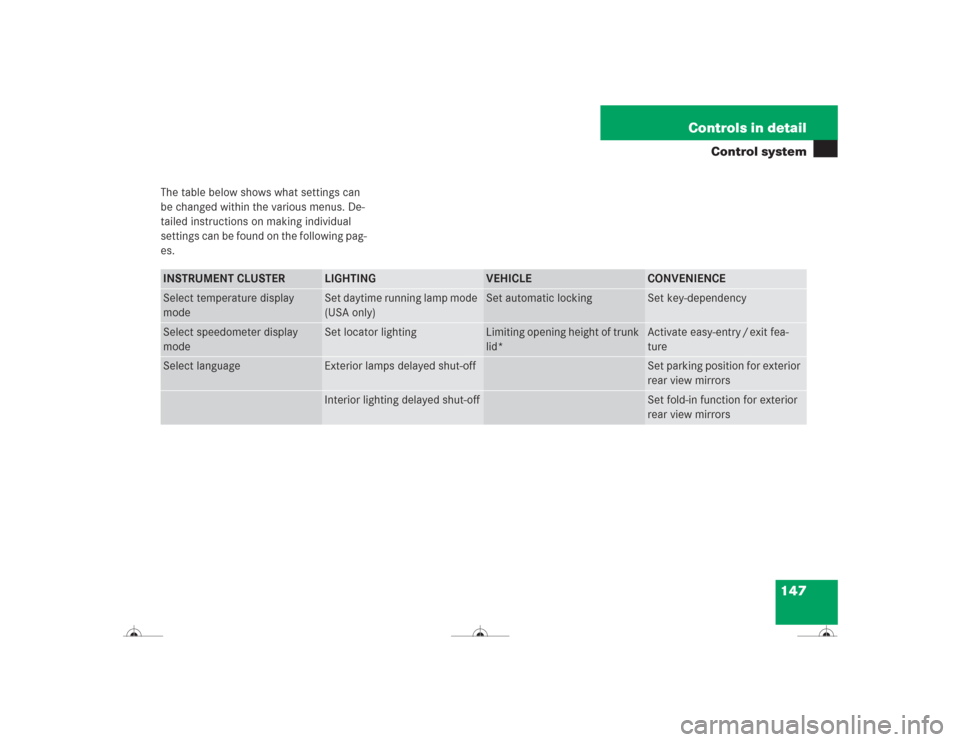

The table below shows what settings can
be changed within the various menus. De-
tailed instructions on making individual
settings can be found on the following pag-
es.INSTRUMENT CLUSTER
LIGHTING
VEHICLE
CONVENIENCE
Select temperature display
mode
Set daytime running lamp mode
(USA only)
Set automatic locking
Set key-dependency
Select speedometer display
mode
Set locator lighting
Limiting opening height of trunk
lid*
Activate easy-entry / exit fea-
ture
Select language
Exterior lamps delayed shut-off
Set parking position for exterior
rear view mirrors
Interior lighting delayed shut-off
Set fold-in function for exterior
rear view mirrors

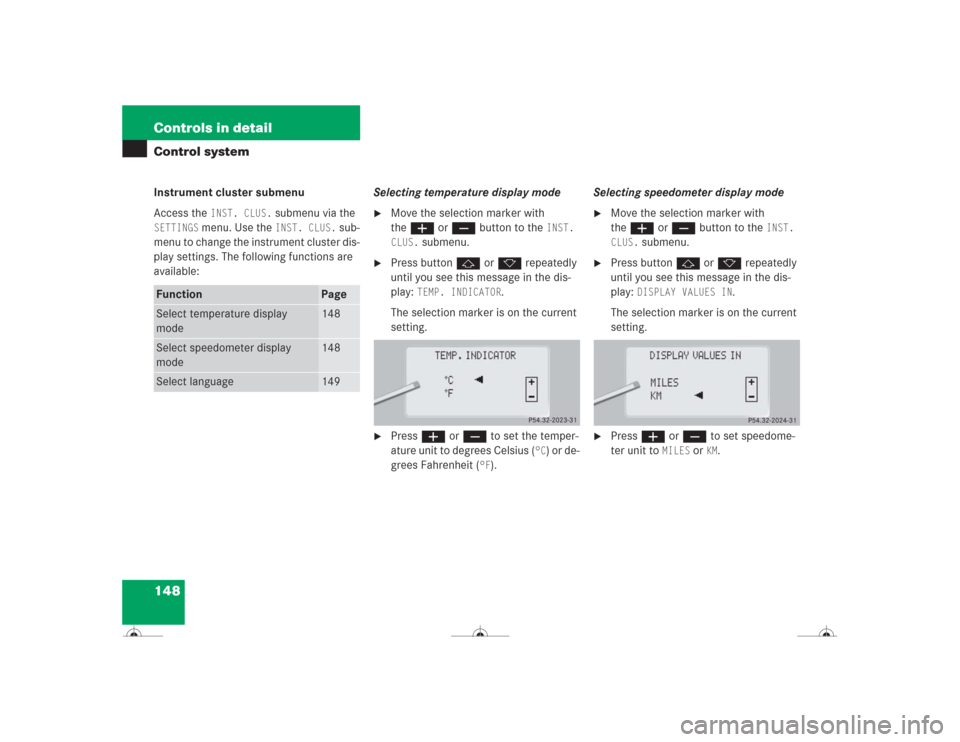

148 Controls in detailControl systemInstrument cluster submenu
Access the
INST. CLUS.
submenu via the
SETTINGS
menu. Use the
INST. CLUS.
sub-
menu to change the instrument cluster dis-
play settings. The following functions are
available:Selecting temperature display mode

Move the selection marker with
theæ orç button to the
INST.
CLUS.
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
TEMP. INDICATOR
.
The selection marker is on the current
setting.

Pressæ orç to set the temper-
ature unit to degrees Celsius (
°C) or de-
grees Fahrenheit (
°F).Selecting speedometer display mode

Move the selection marker with
theæ orç button to the
INST.
CLUS.
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
DISPLAY VALUES IN
.
The selection marker is on the current
setting.

Press æ or ç to set speedome-
ter unit to
MILES
or
KM.
Function
Page
Select temperature display
mode
148
Select speedometer display
mode
148
Select language
149

149 Controls in detail
Control system

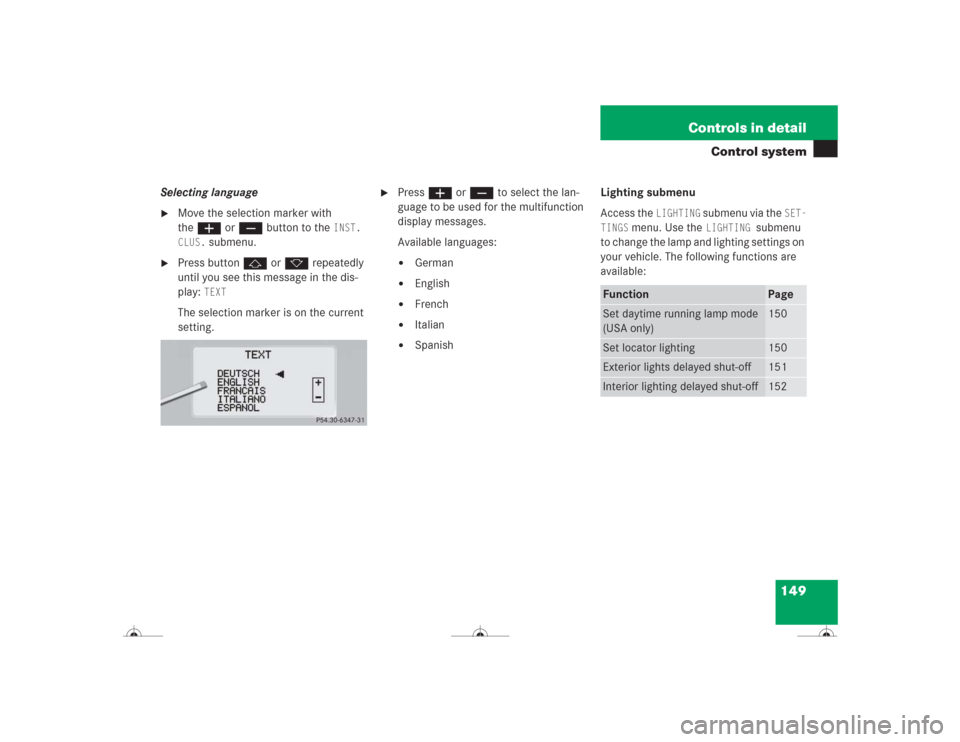

Selecting language
Move the selection marker with
theæ orç button to the
INST.
CLUS.
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
TEXT
The selection marker is on the current
setting.

Pressæ orç to select the lan-
guage to be used for the multifunction
display messages.
Available languages:

German


English


French


Italian


SpanishLighting submenu
Access the
LIGHTING
submenu via the
SET-
TINGS
menu. Use the
LIGHTING
submenu
to change the lamp and lighting settings on
your vehicle. The following functions are
available:
Function
Page
Set daytime running lamp mode
(USA only)
150
Set locator lighting
150
Exterior lights delayed shut-off
151
Interior lighting delayed shut-off
152
