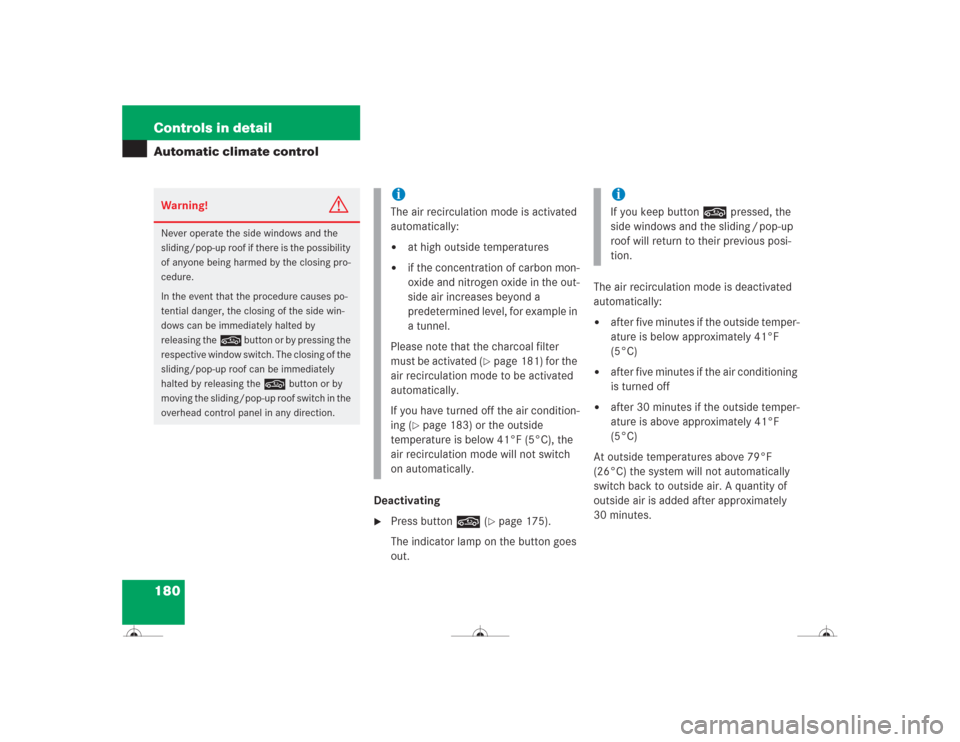

180 Controls in detailAutomatic climate control
Deactivating
Press button, (
page 175).
The indicator lamp on the button goes
out.The air recirculation mode is deactivated
automatically:


after five minutes if the outside temper-
ature is below approximately 41°F
(5°C)


after five minutes if the air conditioning
is turned off


after 30 minutes if the outside temper-
ature is above approximately 41°F
(5°C)
At outside temperatures above 79°F
(26°C) the system will not automatically
switch back to outside air. A quantity of
outside air is added after approximately
30 minutes.
Warning!
G
Never operate the side windows and the
sliding/pop-up roof if there is the possibility
of anyone being harmed by the closing pro-
cedure.
In the event that the procedure causes po-
tential danger, the closing of the side win-
dows can be immediately halted by
releasing the, button or by pressing the
respective window switch. The closing of the
sliding/pop-up roof can be immediately
halted by releasing the, button or by
moving the sliding/pop-up roof switch in the
overhead control panel in any direction.
iThe air recirculation mode is activated
automatically:

at high outside temperatures


if the concentration of carbon mon-
oxide and nitrogen oxide in the out-
side air increases beyond a
predetermined level, for example in
a tunnel.
Please note that the charcoal filter
must be activated (
page 181) for the
air recirculation mode to be activated
automatically.
If you have turned off the air condition-
ing (
page 183) or the outside
temperature is below 41°F (5°C), the
air recirculation mode will not switch
on automatically.
iIf you keep button, pressed, the
side windows and the sliding / pop-up
roof will return to their previous posi-
tion.

181 Controls in detail
Automatic climate control
Charcoal filter
An activated charcoal filter markedly re-
duces bad odors and removes pollutants
from air entering the passenger compart-
ment.
Activating
Press buttone (
page 175).
The indicator lamp on the button
comes on.
Deactivating

Press buttone (
page 175).
The indicator lamp on the button goes
out.The system switches automatically to the
air recirculation mode if the carbon
monoxide (CO) or nitrogen oxide (NO
X)
concentration of the outside air increases
beyond a predetermined level, for example
in a tunnel.
The automatic air recirculation mode does
not function if ± mode is selected or if
the outside temperature has fallen below
41°F (5°C).
The activated charcoal filter should be
switched off when windows fog up on the
inside, or if the passenger compartment
needs to be quickly heated or cooled
down.
iIf you keep buttone pressed, the
side windows and the sliding / pop-up
roof will close.
Warning!
G
Never operate the side windows and the
sliding/pop-up roof if there is the possibility
of anyone being harmed by the closing pro-
cedure.
In the event that the procedure causes po-
tential danger, the procedure can be imme-
diately halted by releasing thee button
or by pressing the respective window
switch. The closing of the sliding/pop-up
roof can be immediately halted by releasing
thee button or by moving the slid-
ing/pop-up roof switch in the overhead con-
trol panel in any direction.
iIf you keep buttone pressed, the
side windows and the sliding / pop-up
roof will return to their previous posi-
tions.

182 Controls in detailAutomatic climate controlRear window defroster
The rear window defroster uses a large
amount of power. To keep battery drain to
a minimum, switch off the defroster as
soon as the rear window is clear. The de-
froster is automatically deactivated after
approximately 6 to 17 minutes of opera-
tion depending on the outside tempera-
ture.
Activating
Press buttonF (
page 175).
The indicator lamp on the button
comes on.
Deactivating

Press buttonF (
page 175) again.
The indicator lamp on the button goes
out.Deactivating the climate control sys-
tem
Deactivating
It is possible to completely deactivate the
automatic climate control system.
Press button M (
page 175).
The display shows “0”.
Reactivating
There are several ways to reactivate the
automatic climate control system:

Press one of the following buttons,
M, P, U, a temperature con-
trol switch (
page 175) or air volume
switch 9 on the climate control pan-
el.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.!If the rear window defroster switches
off too soon and the indicator lamp
starts flashing, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster au-
tomatically turns itself back on.

183 Controls in detail
Automatic climate control
Air conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature set by the operator.
Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the automatic
climate control system. The air in the vehi-
cle will then no longer be cooled or dehu-
midified.
Press button± (
page 175).
The indicator lamp on the button±
comes on.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.

Press± again (
page 175).
The indicator lamp on the button±
goes out.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
Residual heat and ventilation
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
Activating
Turn the SmartKey in the starter switch
to position1 or0, or remove it from
the starter switch.

Press buttonT (
page 175).
The indicator lamp on buttonT
comes on.
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.
!If the± button on the automatic cli-
mate control panel starts to flash, this
indicates that the air conditioning is
losing refrigerant. The compressor has
turned itself off. The air conditioning
cannot be turned on again.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Center.

184 Controls in detailAutomatic climate controlDeactivating
Press buttonT (
page 175).
The indicator lamp on buttonT
goes out.
The residual heat is automatically turned
off:


when the ignition is switched on


after about 30 minutes


if the battery voltage dropsVentilated storage compartment
(except CL 55 AMG)
The storage compartment under the front
armrest (
page 222) can be ventilated
when the automatic air conditioning is
switched on. The switch is located inside
the storage compartment in the front. The
air temperature is about the same as that
of the center air vents.
The air volume is dependent on the setting
of:


Air distribution control


Air volume control


Air vents in the dashboard
The air temperature is about the same as
that of the dashboard air vents. It cannot
be regulated separately.Switching ventilation on

Open the storage compartment in front
of the armrest, see “Storage compart-
ment below the front armrest”
(page 222)

Push upper portion of switch.
Switching ventilation off

Open the storage compartment in front
of the armrest, see “Storage compart-
ment below the front armrest”
(page 222)

Push lower portion of switch.
iHow long the system will provide heat-
ing depends on the coolant tempera-
ture and the temperature set by the
operator. The blower will run at speed
setting1 regardless of the air
distribution control setting.
!Do not obstruct the air vent in the stor-
age compartment.iThe compartment can get very warm
due to its confined space. When storing
heat sensitive objects in the compart-
ment, close the air vent while heating
the passenger compartment.

185 Controls in detail
Automatic climate control
Rear passenger compartment adjust-able air vents
1Left center air vent, adjustable
2Right center air vent adjustable
3Thumbwheel for center air vents with
adjustable booster blowerTo open center air vents and to adjust the
booster blower:

Turn thumbwheel3.iThe booster blower allows air volume
speed to the rear passenger compart-
ment to be increased at four different
levels.
The temperature at the air vents for
rear passenger compartment1
and2 is the same as at the dashboard
center air vents.

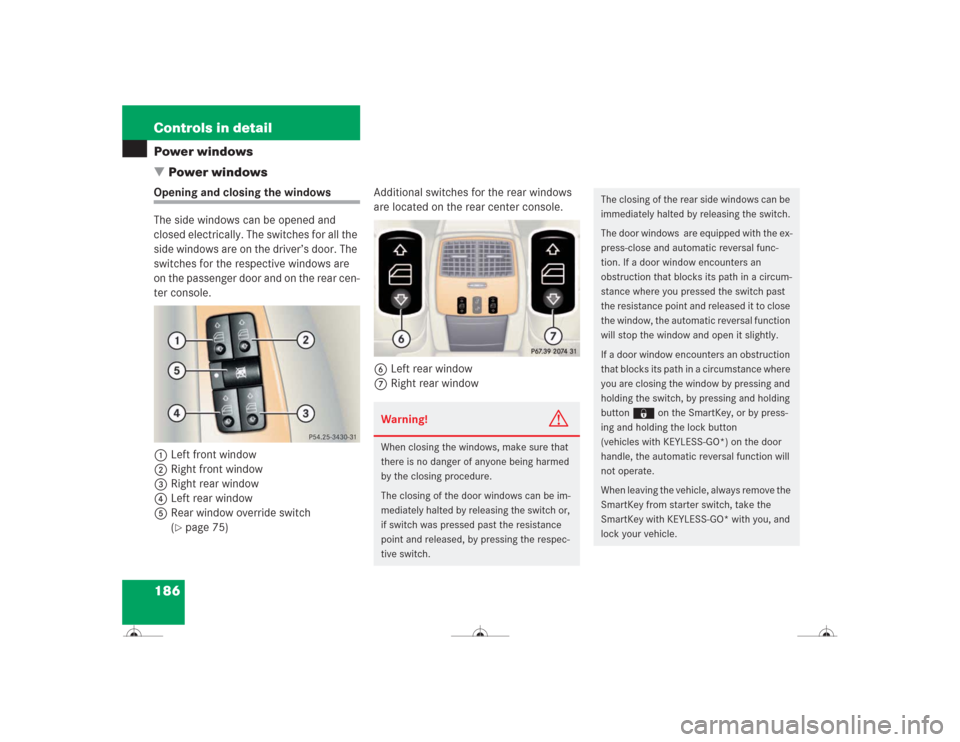

186 Controls in detailPower windows
Power windowsOpening and closing the windows
The side windows can be opened and
closed electrically. The switches for all the
side windows are on the driver’s door. The
switches for the respective windows are
on the passenger door and on the rear cen-
ter console.
1Left front window
2Right front window
3Right rear window
4Left rear window
5Rear window override switch
(
page 75)Additional switches for the rear windows
are located on the rear center console.
6Left rear window
7Right rear window
Warning!
G
When closing the windows, make sure that
there is no danger of anyone being harmed
by the closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if switch was pressed past the resistance
point and released, by pressing the respec-
tive switch.
The closing of the rear side windows can be
immediately halted by releasing the switch.
The door windows are equipped with the ex-
press-close and automatic reversal func-
tion. If a door window encounters an
obstruction that blocks its path in a circum-
stance where you pressed the switch past
the resistance point and released it to close
the window, the automatic reversal function
will stop the window and open it slightly.
If a door window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pressing and
holding the switch, by pressing and holding
button ‹ on the SmartKey, or by press-
ing and holding the lock button
(vehicles with KEYLESS-GO*) on the door
handle, the automatic reversal function will
not operate.
When leaving the vehicle, always remove the
SmartKey from starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle.

187 Controls in detail
Power windows

Switch on ignition.Opening the windows

Press switch1 to 4 at the
symbolk to the resistance point.
The corresponding window will move
downwards until you release the
switch.
Closing the windows

Press switch1 to 4 at the
symbolj to the resistance point.
The corresponding window will move
upwards until you release the switch.Fully opening the windows
(Express-open)

Press switch1 to 4 at the
symbolk past the resistance point
and release.
The corresponding window opens com-
pletely.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment can
cause an accident and/or serious personal
injury.iYou can also open or close the win-
dows using the:

SmartKey (Summer opening/Con-
venience feature) (
page 188)


button, in the control panel of
the automatic climate control
(page 175)


buttone in the control panel of
the automatic climate control
(page 175)
iYou can still operate the windows when
the SmartKey is in starter switch
position0 or has been removed:

until the driver’s or passenger door
is opened


for no more than five minutes
Warning
G
If you press and hold the switch up when
closing the door window, and upward move-
ment of the window is blocked by some ob-
struction including but not limited to arms,
hands, fingers, etc., the automatic reversal
will not operate.

188 Controls in detailPower windowsFully closing the door windows
(Express-close)
Press switch1 to 2 at the
symbolj past the resistance point
and release.
The corresponding window closes com-
pletely.
Stopping windows

Press respective switch again.Opening and closing the windows with
the SmartKey
The sliding/pop-up roof (
page 191) will
also be opened or closed when you oper-
ate the power windows with the SmartKey.

Aim transmitter eye at the driver’s door
handle.
!If the upward movement of the window
is blocked during the closing proce-
dure, the window will stop and open
slightly.
Remove the obstruction, press the
switchj again past the resistance
point and release.
If the window still does not close when
there is no obstruction, then hold the
switchj down. The side window
will then close without the obstruction
sensor function.
Warning!
G
Driver's door only:
If within five seconds you again press the
switch past the resistance point and re-
lease, the automatic reversal will not func-
tion.
Warning!
G
Never operate the windows or sliding /
pop-up roof if there is the possibility of any-
one being harmed by the opening or closing
procedure.
In the event that the procedure causes po-
tential danger, the procedure can be imme-
diately halted by releasing the remote
control button. To reverse direction of
movement, press Œ for opening or ‹
for closing.

189 Controls in detail
Power windows
Opening (Summer opening feature)
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:

opening the sliding/pop-up roof


opening the side windows


turning on the seat ventilation* for the
driver’s seat
To do so, follow the instructions below:

Press and hold button Πafter un-
locking the vehicle.
The windows and sliding / pop-up roof
begin to open after approximately one
second.

Release the Πbutton to stop proce-
dure.Closing (Convenience feature)

Press and hold button ‹ after lock-
ing the vehicle.
The windows and sliding / pop-up roof
begin to close after approximately one
second.

Release the ‹ button to stop proce-
dure.
Make sure that all side windows and the
sliding / pop-up roof are properly closed
before leaving the vehicle.Closing the windows with the
SmartKey with KEYLESS-GO*
(Convenience feature)
The sliding/pop-up roof (
page 191) will
also be closed when the power windows
are operated with KEYLESS-GO.

Press and hold lock button at door
(page 57) until the side windows and
the sliding / pop-up roof are closed.
Warning!
G
When closing the windows and the
sliding /pop-up roof, make sure that there is
no danger of anyone being harmed by the
closing procedure.
The windows will not automatically reopen if
blocked during convenience closing.
