MERCEDES-BENZ CL500 2004 C215 Owner's Manual

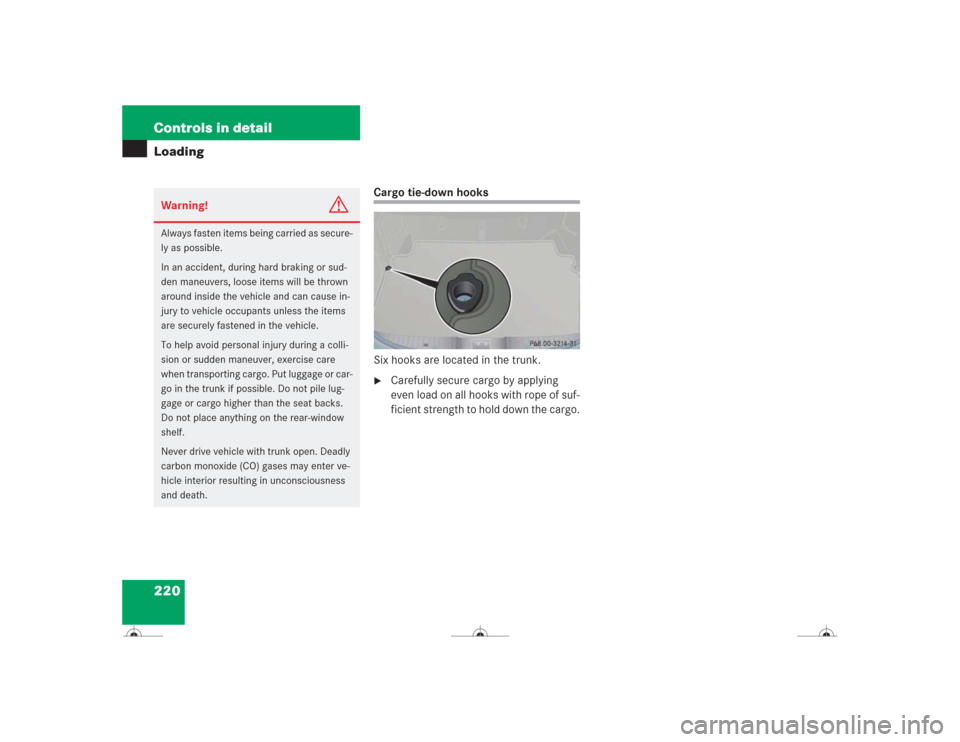

220 Controls in detailLoading
Cargo tie-down hooks
Six hooks are located in the trunk.
Carefully secure cargo by applying
even load on all hooks with rope of suf-
ficient strength to hold down the cargo.
Warning!
G
Always fasten items being carried as secure-
ly as possible.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle and can cause in-
jury to vehicle occupants unless the items
are securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo. Put luggage or car-
go in the trunk if possible. Do not pile lug-
gage or cargo higher than the seat backs.
Do not place anything on the rear-window
shelf.
Never drive vehicle with trunk open. Deadly
carbon monoxide (CO) gases may enter ve-
hicle interior resulting in unconsciousness
and death.

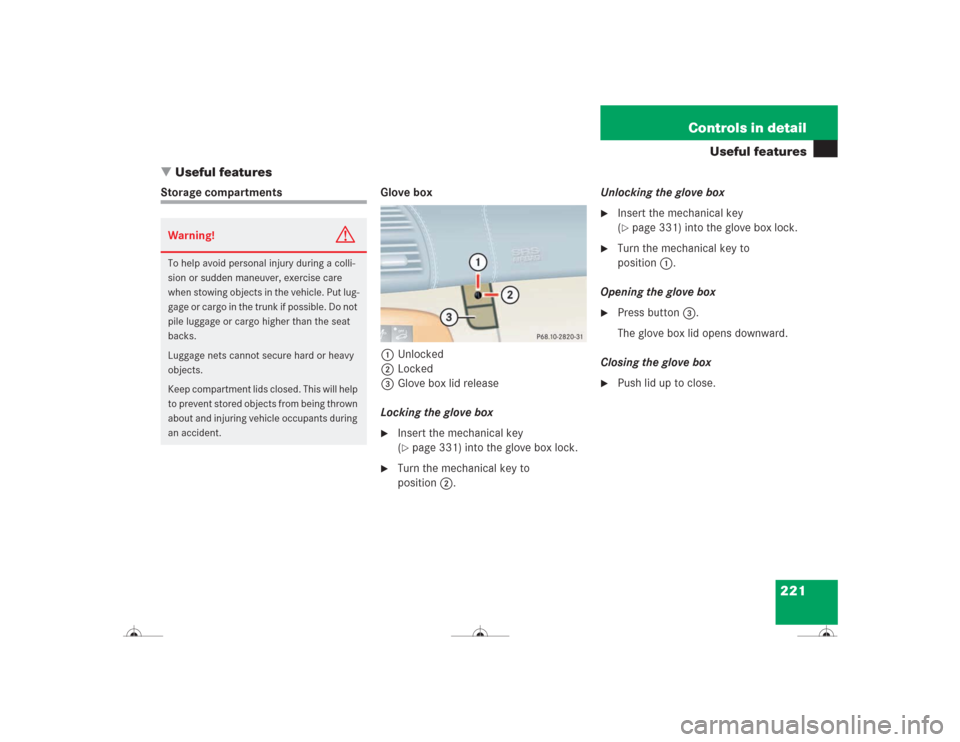

221 Controls in detail
Useful features
Useful features
Storage compartments Glove box
1Unlocked
2Locked
3Glove box lid release
Locking the glove box

Insert the mechanical key
(page 331) into the glove box lock.

Turn the mechanical key to
position2.Unlocking the glove box

Insert the mechanical key
(page 331) into the glove box lock.

Turn the mechanical key to
position1.
Opening the glove box

Press button3.
The glove box lid opens downward.
Closing the glove box

Push lid up to close.
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when stowing objects in the vehicle. Put lug-
gage or cargo in the trunk if possible. Do not
pile luggage or cargo higher than the seat
backs.
Luggage nets cannot secure hard or heavy
objects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.

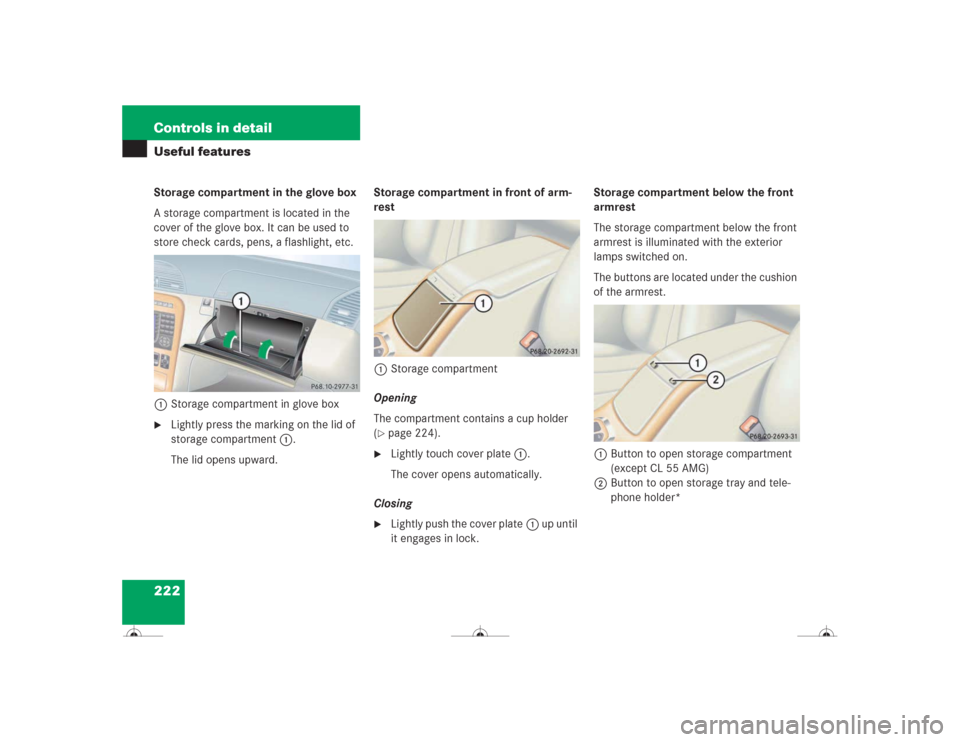

222 Controls in detailUseful featuresStorage compartment in the glove box
A storage compartment is located in the
cover of the glove box. It can be used to
store check cards, pens, a flashlight, etc.
1Storage compartment in glove box
Lightly press the marking on the lid of
storage compartment1.
The lid opens upward.Storage compartment in front of arm-
rest
1Storage compartment
Opening
The compartment contains a cup holder
(
page 224).

Lightly touch cover plate1.
The cover opens automatically.
Closing

Lightly push the cover plate1 up until
it engages in lock.Storage compartment below the front
armrest
The storage compartment below the front
armrest is illuminated with the exterior
lamps switched on.
The buttons are located under the cushion
of the armrest.
1Button to open storage compartment
(except CL 55 AMG)
2Button to open storage tray and tele-
phone holder*

223 Controls in detail
Useful features
Opening storage compartment
(except CL 55 AMG)
Press button1 and lift the armrest.Opening storage tray and telephone
holder*
The tray contains a coin holder.

Press button2 and lift up the armrest.Storage compartment between rear
seats
1Cover
Opening

Slide cover1 rearward.
Closing

Slide cover1 forward.
iThe storage compartment can be heat-
ed or cooled.
The compartment can get very warm
due to its confined space. When storing
heat-sensitive objects in the compart-
ment, close the air vent (
page 184)
while heating the passenger compart-
ment.
!Do not obstruct the air vent in the stor-
age compartment.
!Do not let bank cards, credit cards or
other cards with a magnetic strip come
near the storage tray as a magnet built
into the tray could erase or change the
information on the card.

224 Controls in detailUseful featuresStorage compartments under the front
seats
1Lid
2Buttons
Opening
Press buttons2 together and fold
lid1 down.
Closing

Close lid1 until both buttons2 of
lock engage.Cup holder in front of seat armrest
Folding out cup holder
1Button for folding out the cup holder

Open the storage compartment in front
of the armrest (
page 222).

Push button1.
The cup holder opens automatically.
2Button for folding out the second cup
holder

Push button2.
The second cup holder folds out in the
direction indicated by the arrow.
Warning!
G
When not in use, keep the cup holder closed
while traveling. Place only containers that fit
into the cup holder to prevent spills. Use lids
on open containers and do not fill containers
to a height where the contents, especially
hot liquids, could spill during vehicle maneu-
vers.

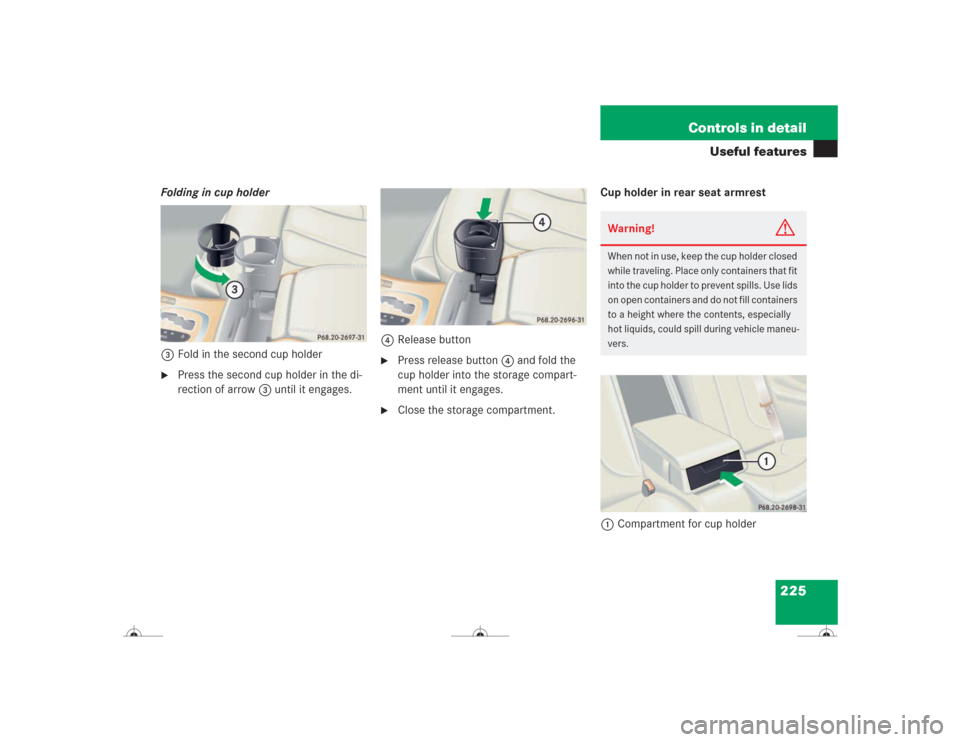

225 Controls in detail
Useful features
Folding in cup holder
3Fold in the second cup holder
Press the second cup holder in the di-
rection of arrow3 until it engages.4Release button

Press release button4 and fold the
cup holder into the storage compart-
ment until it engages.

Close the storage compartment.Cup holder in rear seat armrest
1Compartment for cup holder
Warning!
G
When not in use, keep the cup holder closed
while traveling. Place only containers that fit
into the cup holder to prevent spills. Use lids
on open containers and do not fill containers
to a height where the contents, especially
hot liquids, could spill during vehicle maneu-
vers.

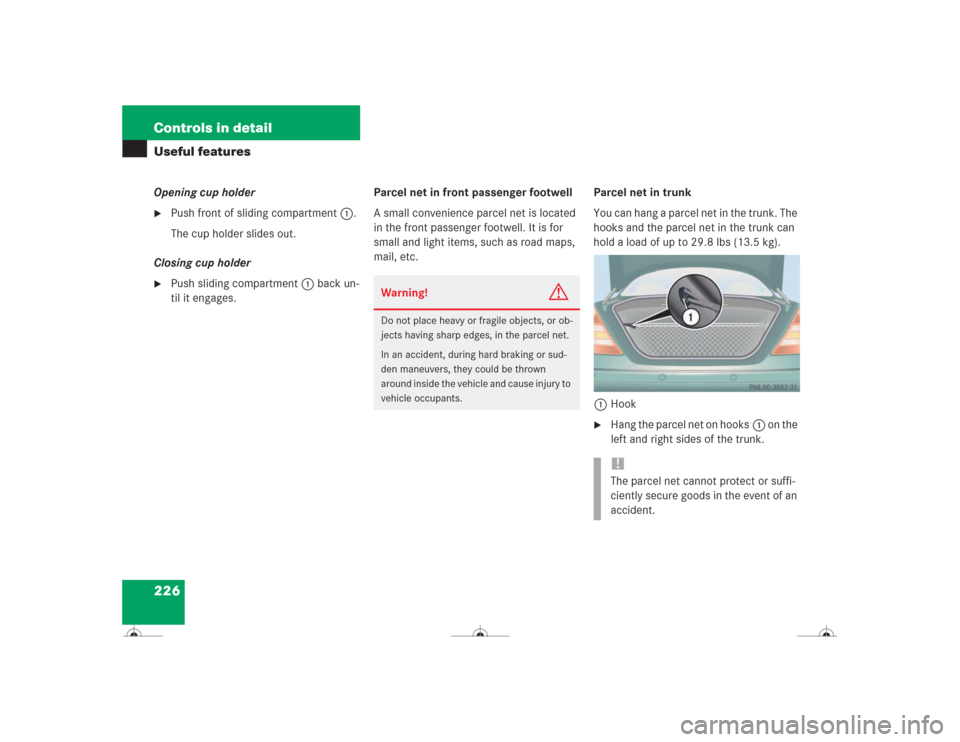

226 Controls in detailUseful featuresOpening cup holder
Push front of sliding compartment1.
The cup holder slides out.
Closing cup holder

Push sliding compartment1 back un-
til it engages.Parcel net in front passenger footwell
A small convenience parcel net is located
in the front passenger footwell. It is for
small and light items, such as road maps,
mail, etc.Parcel net in trunk
You can hang a parcel net in the trunk. The
hooks and the parcel net in the trunk can
hold a load of up to 29.8 lbs (13.5 kg).
1Hook

Hang the parcel net on hooks1 on the
left and right sides of the trunk.
Warning!
G
Do not place heavy or fragile objects, or ob-
jects having sharp edges, in the parcel net.
In an accident, during hard braking or sud-
den maneuvers, they could be thrown
around inside the vehicle and cause injury to
vehicle occupants.
!The parcel net cannot protect or suffi-
ciently secure goods in the event of an
accident.

227 Controls in detail
Useful features
Ashtrays
Center console ashtray
1Button for disengaging ashtray
Opening ashtray
Briefly touch cover plate.
The ashtray opens automatically.Removing ashtray insert

Secure vehicle from movement by set-
ting the parking brake. Move the gear
selector lever to positionN.
Now you have more room to remove
the insert.

Push sliding button1 to the right.
The ashtray is disengaged and slides
out a short way.

Remove insert from ashtray frame.
Reinstalling the ashtray insert

Install insert by pushing back into the
frame until it engages.Rear seat ashtray
1Latch
Opening ashtray

Pull at top of cover to open ashtray.
Removing ashtray insert

Pull latch1 to disengage ashtray in-
sert and remove it.
Reinstalling the ashtray insert

Install ashtray insert.

Close the ashtray.
Warning!
G
Remove front ashtray only with vehicle
standing still. Set the parking brake to se-
cure vehicle from movement. Move gear se-
lector lever to positionN. With gear selector
lever in positionN, turn off the engine.

228 Controls in detailUseful featuresCigarette lighter
1Cigarette lighter
Make sure the ignition is switched on.
All the lamps in the instrument cluster
should come on.

Push in cigarette lighter1.
The lighter will pop out automatically
when hot.
Heated steering wheel*
The steering wheel heating warms up the
leather area of the steering wheel.
The stalk with the heated steering wheel
switch is on the lower left-hand side of the
steering wheel.
1Switching on
2Indicator lamp
3Switching off
Warning!
G
Never touch the heating element or sides of
the lighter; they are extremely hot. Hold the
knob only.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and / or serious personal injury.iThe lighter socket can be used to ac-
commodate electrical accessories up
to a maximum 85 W.

229 Controls in detail
Useful features
Switching on
Switch on ignition.
All the lamps in the instrument cluster
should come on.

Turn switch at the tip of stalk in direc-
tion of arrow1.
The steering wheel is heated. Indicator
lamp2 comes on.
Switching off

Turn switch at the tip of stalk in direc-
tion of arrow3.
The steering wheel heating is turned
off. Indicator lamp2 goes out.
Telephone*
Radio transmitters, such as a portable tele-
phone or a citizens band unit, should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
The external antenna must be approved by
Mercedes-Benz. Please contact an autho-
rized Mercedes-Benz Center for informa-
tion on the installation of an approved
external antenna. Refer to the radio trans-
mitter operation instructions regarding use
of an external antenna.
iThe steering wheel heating does not
turn off automatically.
Warning!
G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and / or serious
personal injury.
Warning!
G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his / her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.
Only operate the COMAND (Cockpit Man-
agement and Data System)
1 if road, weather
and traffic conditions permit.
1Observe all legal requirements.
