260OperationEngine compartment
Engine compartmentHood
Opening
The hood lock release lever is located in
the driver’s footwell to the left of the park-
ing brake pedal.
1Release lever

Pull release lever 1 in direction of ar-
row.
The hood is unlocked and handle 2
will extend out of the radiator grille.
2Handle for opening the hood

Pull handle 2 to its stop out of radiator
grille.

Pull up on the hood (do not pull up on
the handle) and then release it.
The hood will be automatically held
open at shoulder height.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, never open the hood if the
wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for ap-
proximately 30 seconds or even restart af-
ter the engine has been turned off. Stay
clear of fan blades.

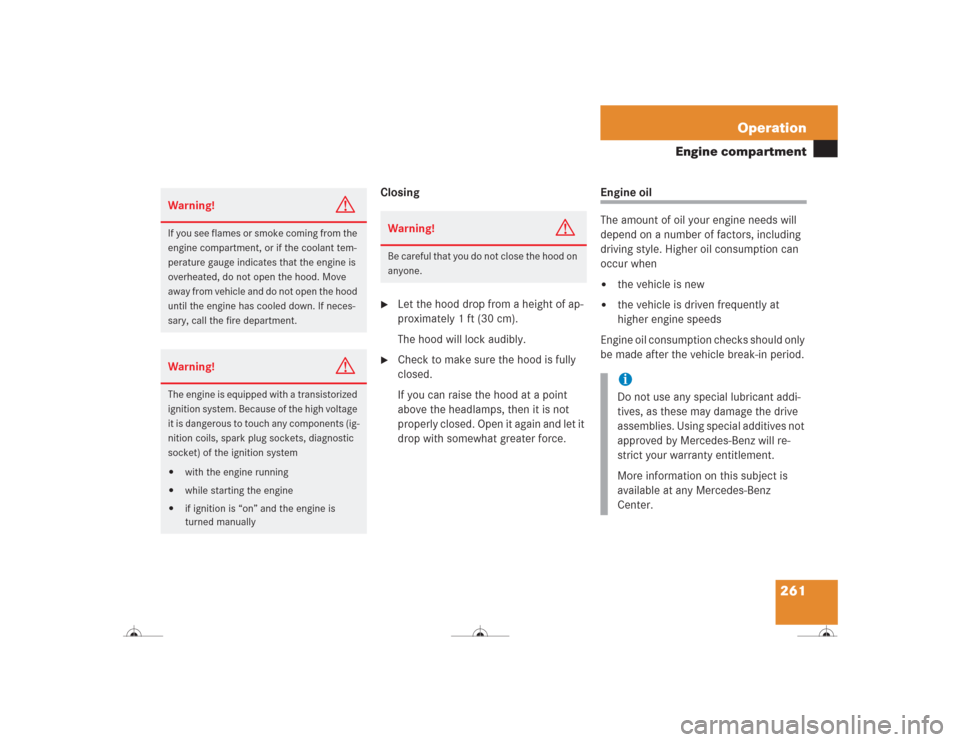

261 Operation
Engine compartment
Closing
Let the hood drop from a height of ap-
proximately 1 ft (30 cm).
The hood will lock audibly.

Check to make sure the hood is fully
closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new


the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.
Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled down. If neces-
sary, call the fire department.Warning!
G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components (ig-
nition coils, spark plug sockets, diagnostic
socket) of the ignition system

with the engine running


while starting the engine


if ignition is “on” and the engine is
turned manually
Warning!
G
Be careful that you do not close the hood on
anyone.
iDo not use any special lubricant addi-
tives, as these may damage the drive
assemblies. Using special additives not
approved by Mercedes-Benz will re-
strict your warranty entitlement.
More information on this subject is
available at any Mercedes-Benz
Center.

262OperationEngine compartmentChecking the engine oil level with the
control system
When checking the oil level the vehicle
must

be parked on level ground


be at normal operating temperature


have been stationary for at least five
minutes with the engine turned off
To check the engine oil level via the multi-
function display, do the following:

Turn the SmartKey in the starter switch
to position2 or press the KEYLESS-GO
start/stop button* twice.
The standard display (
page 134) should
appear in the multifunction display.

Press buttonk or j on the
steering wheel until the following mes-
sage is seen in the multifunction dis-
play:CORRECT MEASUREMENT
ONLY IF VEH. LEVEL
After about three seconds this mes-
sage is displayed:ENGINE OIL LEVEL
MEASURING NOW!One of the following messages will sub-
sequently appear in the indicator:

ENGINE OIL LEVEL
OK


ADD 1.0 QT. TO
REACH MAX. OIL LEVEL!(Canada:
1.0 LITER
)


ADD 1.5 QTS. TO
REACH MAX. OIL LEVEL!(Canada:
1.5 LITERS
)


ADD 2.0 QTS. TO
REACH MAX. OIL LEVEL!(Canada:
2.0 LITERS
)

If necessary, add engine oil.
For adding engine oil see (
page 265).
For more information on engine oil, see
“Technical data” section (
page 372) and
(
page 374).iIf you want to interrupt the checking
procedure, press the k or j but-
ton on the multifunction steering
wheel.

263 Operation
Engine compartment
Other display messages
If the SmartKey or KEYLESS-GO start/stop
button* is not in position 2, the following
message will appear:FOR ENGINE OIL LEVEL
IGNITION ON!
Switch on ignition.
If you see the message:
PERF. SERV ON TIME
If engine is at normal operating
temperature, wait five minutes before
repeating check procedure.

If engine is not yet at normal operating
temperature, wait 30 minutes before
repeating check procedure.If you see the message:
ENGINE OIL LEVEL
NOT WHEN ENGINE ON!
Turn off the engine.

If the engine is at normal operating
temperature, wait five minutes before
checking oil.

If the engine is not yet at normal oper-
ating temperature, you must wait
30 minutes before checking oil.
If there is excess engine oil with the engine
at normal operating temperature, the fol-
lowing message will appear:
ENGINE OIL LEVEL
REDUCE OIL LEVEL
Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center.For more information on messages in the
display concerning engine oil, see the
“Practical hints” section (
page 310).
!Excess oil must be siphoned or drained
off. It could cause damage to the en-
gine and catalytic converter not cov-
ered by the Mercedes-Benz Limited
Warranty.iPerform the engine oil level check with
the dipstick (CL 500, and CL 55 AMG
only) if it cannot be completed with the
control system .
In this case we recommend that you
have the system checked at a
Mercedes-Benz Center.

264OperationEngine compartmentChecking the engine oil level with the
oil dipstick (CL 500, CL 55 AMG only)
When checking the oil level the vehicle
must

be parked on level ground


be at normal operating temperature


have been stationary for at least five
minutes with the engine turned off
To check the engine oil level with the oil
dipstick, do the following:

Open the hood (
page 260).

Pull out oil dipstick1 (
page 265).

Wipe oil dipstick1 clean.

Fully insert oil dipstick1 into the dip-
stick guide tube.

Pull out oil dipstick1 again after ap-
proximately three seconds to obtain
accurate reading.
Oil dipstickThe oil level is correct when it is between
the lower (min) and upper (max) mark of
the oil dipstick.

If necessary, add engine oil.
For adding engine oil see (
page 265).
For more information on engine oil, see the
“Technical data” section (
page 372) and
(
page 374).
For more information on messages in the
display concerning engine oil, see the
“Practical hints” section (
page 310)
iThe engine oil level can be checked by
either the oil dipstick or via the multi-
function display in the instrument clus-
ter (
page 262). The amount of engine
oil needed is shown more precisely in
the multifunction display.
iThe filling quantity between upper and
lower oil dipstick marking level is ap-
proximately 2.1 US qt (2.0 l).

265 Operation
Engine compartment
Adding engine oil
CL 500, CL 55 AMG1Oil dipstick
2Filler cap
Unscrew filler cap2 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw filler cap2 back on filler neck.
CL 6001Filler cap
Unscrew filler cap 1 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.
!Only use approved engine oils. For a
listing of approved engine oils, refer to
the Factory Approved Service Products
pamphlet in your vehicle literature port-
folio.
In addition, check the oil filler cap for
important information pertaining to the
engine oil needing to meet a specific
Mercedes-Benz specification
(e.g. MB 229.5). If such information is
printed on the oil filler cap, only use an
engine oil from the list of approved en-
gine oils in the Factory Approved Ser-
vice Products pamphlet that meets the
specification indicated on the oil filler
cap.
Using engine oils of other specification
may cause the FSS to incorrectly deter-
mine the next service interval and will
result in engine damage not covered by
the Mercedes-Benz Limited Warranty.
!Excess oil must be siphoned or drained
off. It could cause damage to the en-
gine and catalytic converter not cov-
ered by the Mercedes-Benz Limited
Warranty.

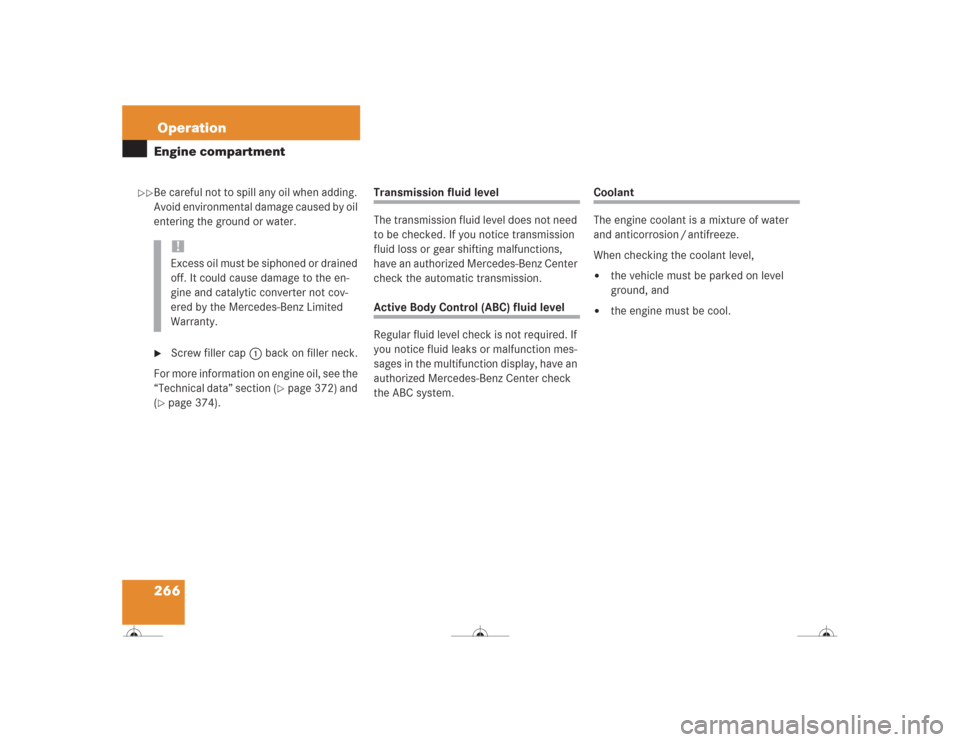

266OperationEngine compartmentBe careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.
Screw filler cap1 back on filler neck.
For more information on engine oil, see the
“Technical data” section (
page 372) and
(
page 374).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.Active Body Control (ABC) fluid level
Regular fluid level check is not required. If
you notice fluid leaks or malfunction mes-
sages in the multifunction display, have an
authorized Mercedes-Benz Center check
the ABC system.
Coolant
The engine coolant is a mixture of water
and anticorrosion / antifreeze.
When checking the coolant level,

the vehicle must be parked on level
ground, and


the engine must be cool.
!Excess oil must be siphoned or drained
off. It could cause damage to the en-
gine and catalytic converter not cov-
ered by the Mercedes-Benz Limited
Warranty.

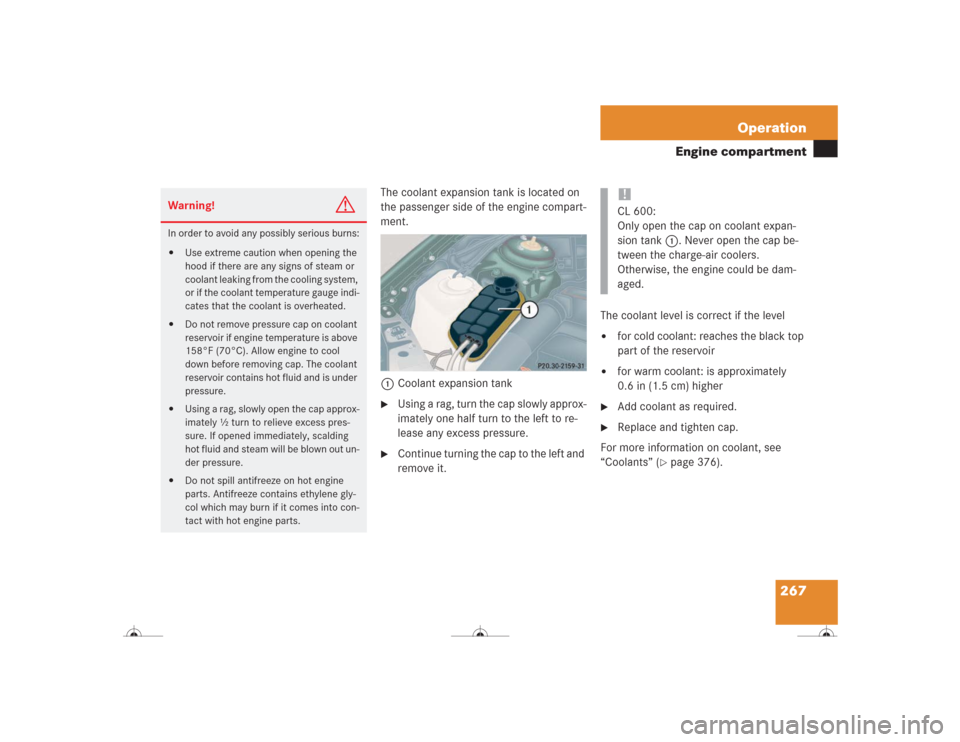

267 Operation
Engine compartment
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Coolant expansion tank
Using a rag, turn the cap slowly approx-
imately one half turn to the left to re-
lease any excess pressure.

Continue turning the cap to the left and
remove it.The coolant level is correct if the level


for cold coolant: reaches the black top
part of the reservoir


for warm coolant: is approximately
0.6 in (1.5 cm) higher

Add coolant as required.

Replace and tighten cap.
For more information on coolant, see
“Coolants” (
page 376).
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if engine temperature is above
158°F (70°C). Allow engine to cool
down before removing cap. The coolant
reservoir contains hot fluid and is under
pressure.


Using a rag, slowly open the cap approx-
imately ½ turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.
!CL 600:
Only open the cap on coolant expan-
sion tank1. Never open the cap be-
tween the charge-air coolers.
Otherwise, the engine could be dam-
aged.

268OperationEngine compartmentBattery
Your vehicle’s battery is located in the
trunk under the right hand wheel well cov-
er panel (
page 348).
The battery should always be sufficiently
charged in order to achieve its rated ser-
vice life. Refer to Service Booklet for bat-
tery maintenance intervals.
If you use your vehicle mostly for short-dis-
tance trips, you will need to have the bat-
tery charge checked more frequently.
When replacing the battery, always use
batteries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Center about
steps you need to observe.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
G
Observe all safety instructions
and precautions when handling
automotive batteries.
A
Risk of explosion
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clear
water and seek medical help if
necessary.
E
Wear eye protection.
C
Keep children away.
F
Follow the instructions in this
Operator's Manual.

269 Operation
Engine compartment
Windshield washer system and headlamp cleaning system
The windshield washer reservoir is located
in the engine compartment.
1Washer fluid reservoir
Fluid for the windshield washer system and
the headlamp cleaning system is supplied
from the windshield washer reservoir. It
has a capacity of approx. 7.1 US qt. (6.7 l).
During all seasons, add MB Windshield
Washer Concentrate “S” to water. Premix
the windshield washer fluid in a suitable
container.

Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available premixed wind-
shield washer solvent / antifreeze, de-
pending on ambient temperatures).
Always use washer solvent/antifreeze
where temperatures may fall below
freezing point. Failure to do so could re-
sult in damage to the washer sys-
tem/reservoir.
For more information, see “Windshield and
headlamp washer system” (
page 379).
Warning!
G
Washer solvent /antifreeze is highly flamma-
ble. Do not spill washer solvent /antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.
!Only use washer fluid which is suitable
for plastic lenses. Improper washer
fluid can damage the plastic lenses of
the headlamps.iIf the windshield washer system on
your vehicle is heated*, a fluid mixture
produced to resist freezing at tempera-
tures of approximately 14°F (–10°C)
should be sufficient.
