MERCEDES-BENZ CL600 2002 C215 Owner's Manual

198 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

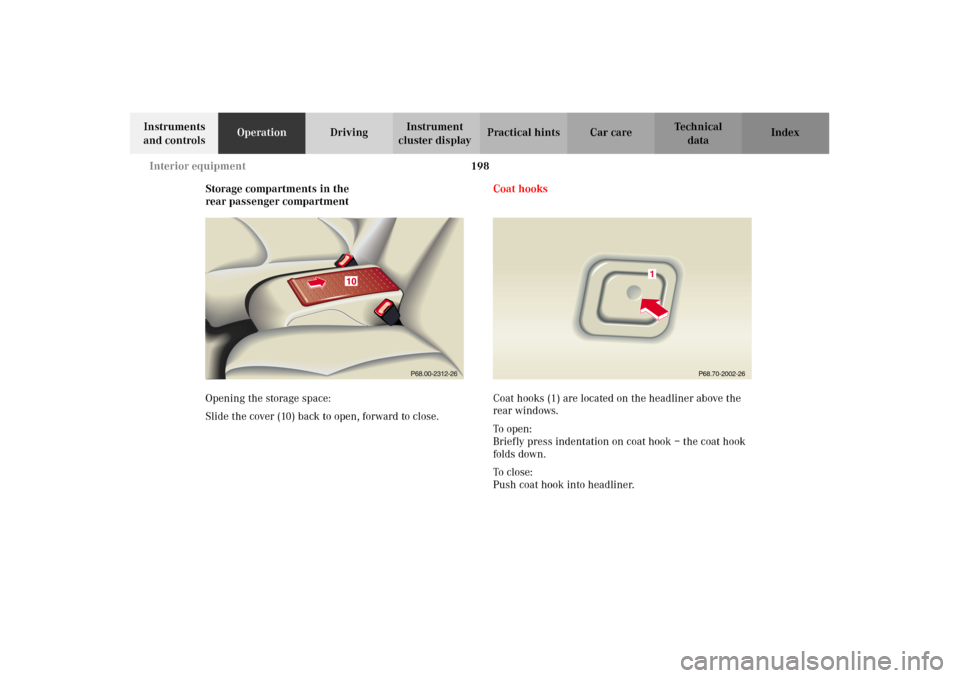

Storage compartments in the
rear passenger compartment
Opening the storage space:
Slide the cover (10) back to open, forward to close.Coat hooks
Coat hooks (1) are located on the headliner above the
rear windows.
To o p e n :
Briefly press indentation on coat hook – the coat hook
folds down.
To c l o s e :
Push coat hook into headliner.
P68.70-2002-26
1
J_OM_215.book Seite 198 Mittwoch, 30. Mai 2001 2:01 14

199 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

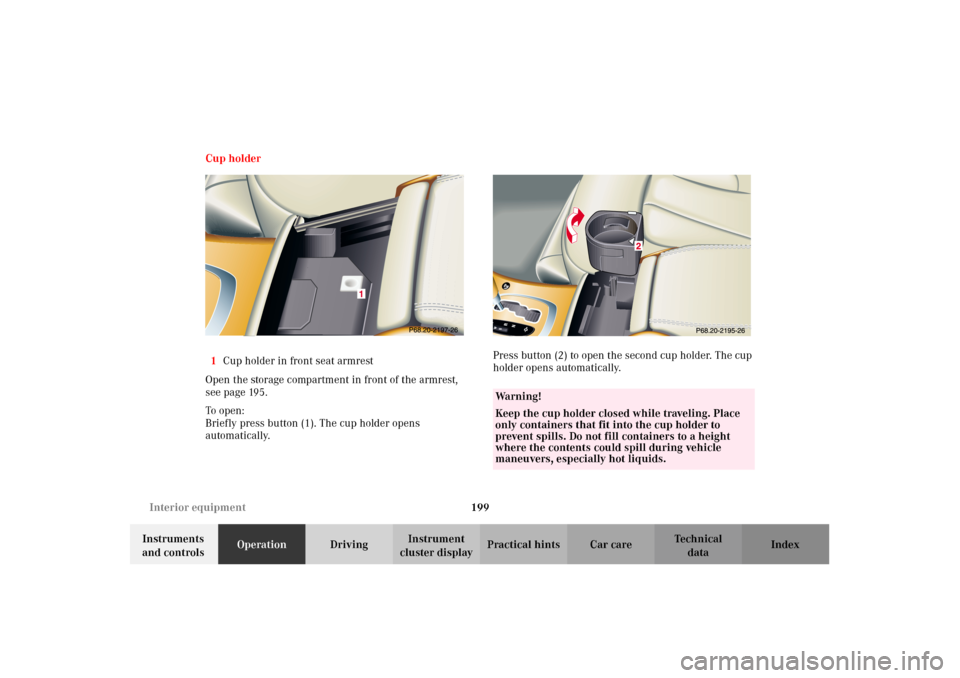

cluster displayPractical hints Car care Index Cup holder
1Cup holder in front seat armrest
Open the storage compartment in front of the armrest,
seepage195.
To o pen :
Briefly press button (1). The cup holder opens
automatically.Press button (2) to open the second cup holder. The cup
holder opens automatically.
Wa r n i n g !
Keep the cup holder closed while traveling. Place
only containers that fit into the cup holder to
prevent spills. Do not fill containers to a height
where the contents could spill during vehicle
maneuvers, especially hot liquids.
J_OM_215.book Seite 199 Mittwoch, 30. Mai 2001 2:01 14

200 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

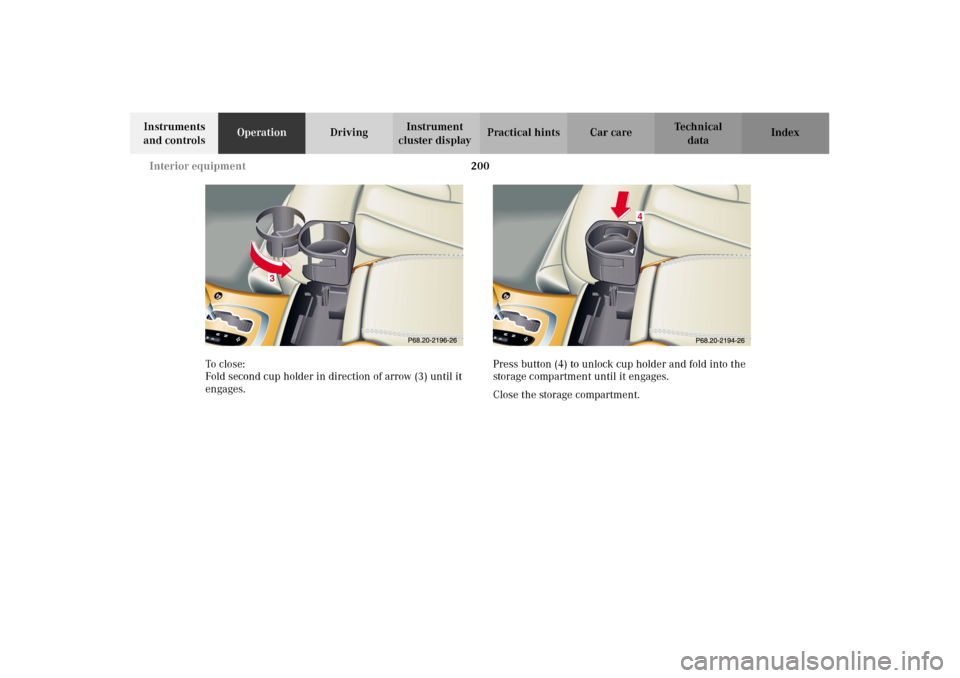

To c lo se:
Fold second cup holder in direction of arrow (3) until it
engages.Press button (4) to unlock cup holder and fold into the
storage compartment until it engages.
Close the storage compartment.
4
J_OM_215.book Seite 200 Mittwoch, 30. Mai 2001 2:01 14

201 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

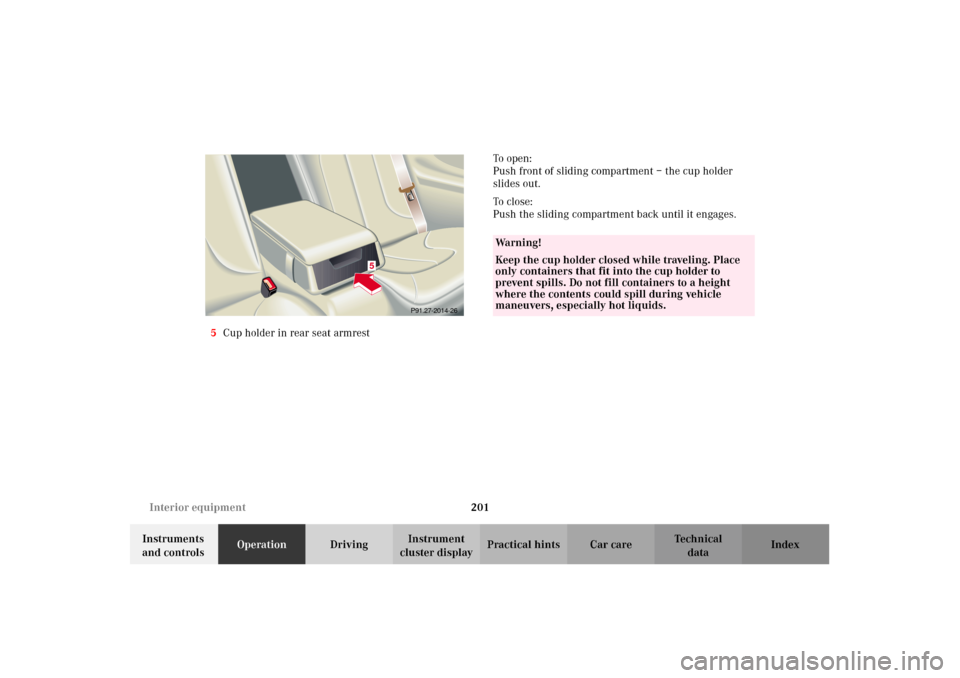

cluster displayPractical hints Car care Index 5Cup holder in rear seat armrestTo o p e n :
Push front of sliding compartment – the cup holder
slides out.
To c l o s e :
Push the sliding compartment back until it engages.
P91.27-2014-26
5
Wa r n i n g !
Keep the cup holder closed while traveling. Place
only containers that fit into the cup holder to
prevent spills. Do not fill containers to a height
where the contents could spill during vehicle
maneuvers, especially hot liquids.
J_OM_215.book Seite 201 Mittwoch, 30. Mai 2001 2:01 14

202 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

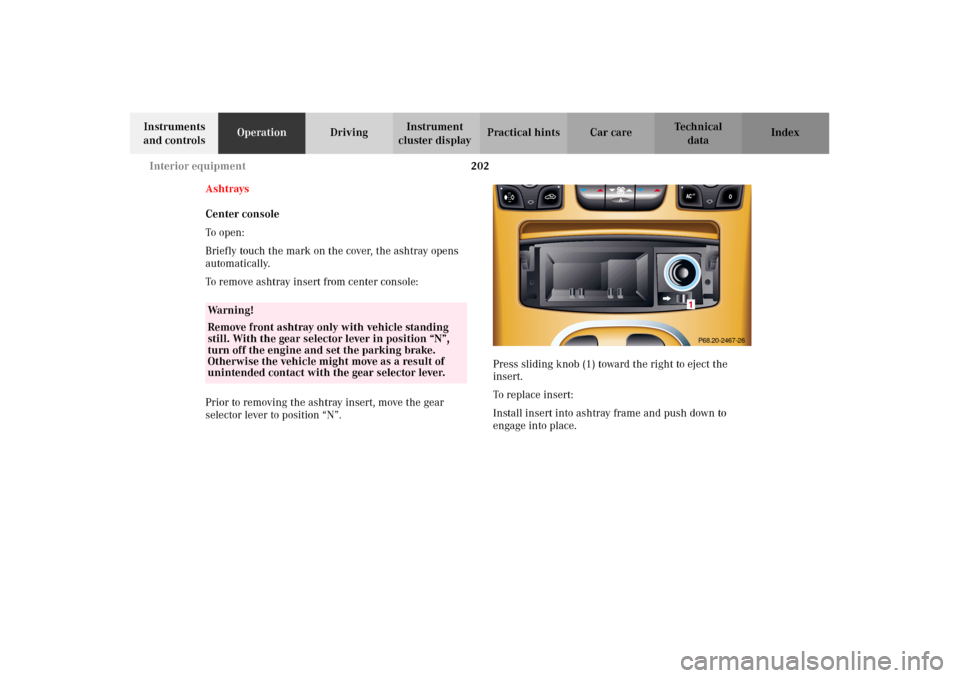

Ashtrays
Center console
To o pen :
Briefly touch the mark on the cover, the ashtray opens
automatically.
To remove ashtray insert from center console:
Prior to removing the ashtray insert, move the gear
selector lever to position “N”.Press sliding knob (1) toward the right to eject the
insert.
To replace insert:
Install insert into ashtray frame and push down to
engage into place.
Wa r n i n g !
Remove front ashtray only with vehicle standing
still. With the gear selector lever in position “N”,
turn off the engine and set the parking brake.
Otherwise the vehicle might move as a result of
unintended contact with the gear selector lever.
P68.20-2467-261
J_OM_215.book Seite 202 Mittwoch, 30. Mai 2001 2:01 14

203 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

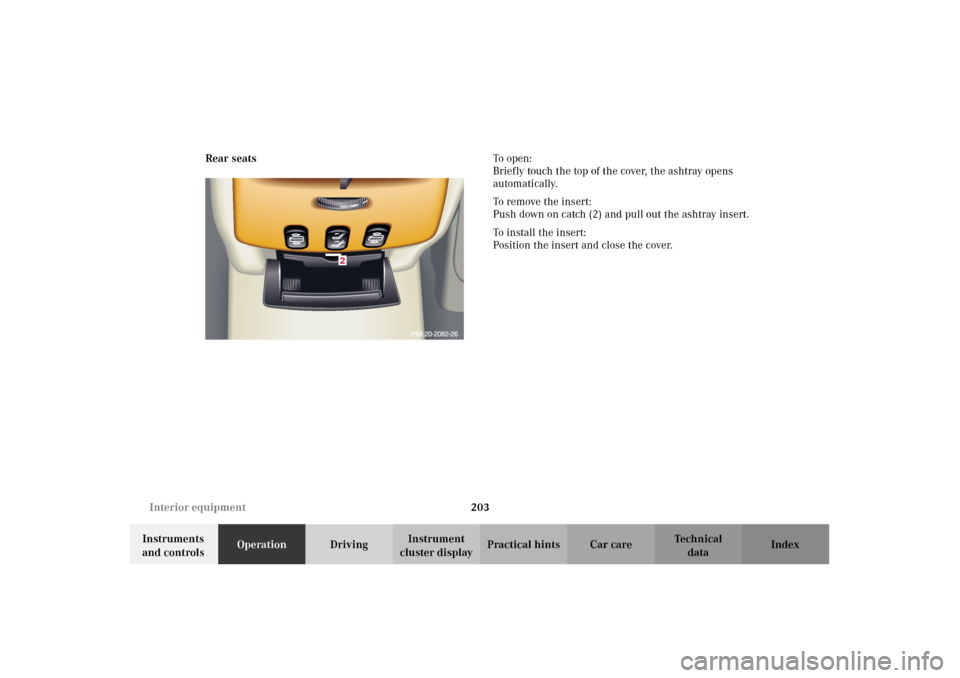

cluster displayPractical hints Car care Index Rear seatsTo o p e n :
Briefly touch the top of the cover, the ashtray opens
automatically.
To remove the insert:
Push down on catch (2) and pull out the ashtray insert.
To install the insert:
Position the insert and close the cover.
2
J_OM_215.book Seite 203 Mittwoch, 30. Mai 2001 2:01 14

204 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

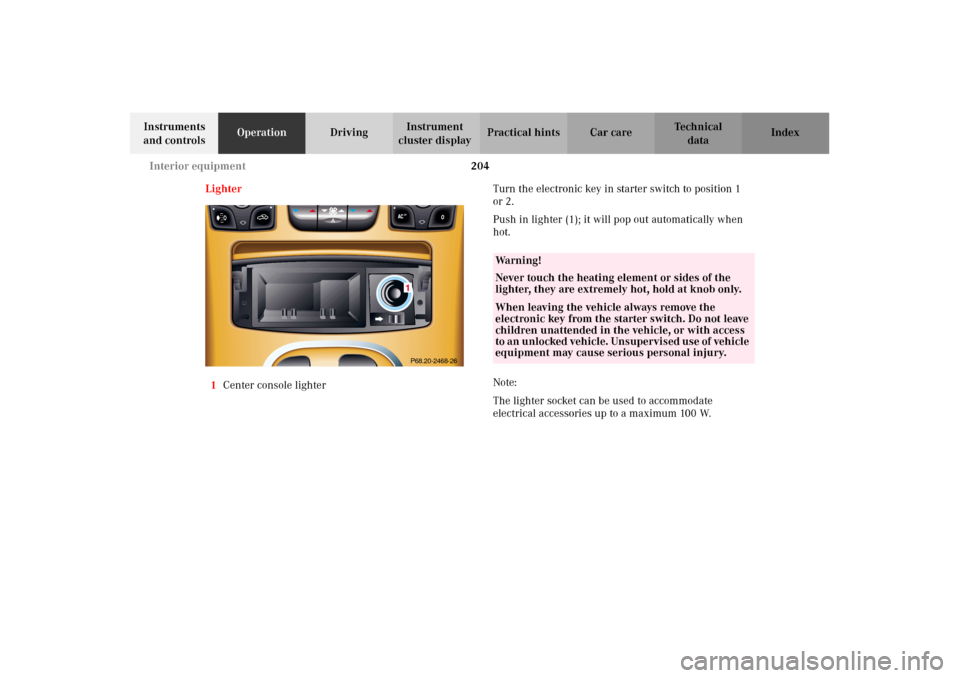

Lighter
1Center console lighterTurn the electronic key in starter switch to position 1
or 2.
Push in lighter (1); it will pop out automatically when
hot.
Note:
The lighter socket can be used to accommodate
electrical accessories up to a maximum 100 W.
P68.20-2468-261
Wa r n i n g !
Never touch the heating element or sides of the
lighter, they are extremely hot, hold at knob only.When leaving the vehicle always remove the
electronic key from the starter switch. Do not leave
children unattended in the vehicle, or with access
to an unl ocked vehic l e. Uns upervi s ed us e of vehi cl e
equipment may cause serious personal injury.
J_OM_215.book Seite 204 Mittwoch, 30. Mai 2001 2:01 14

205 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

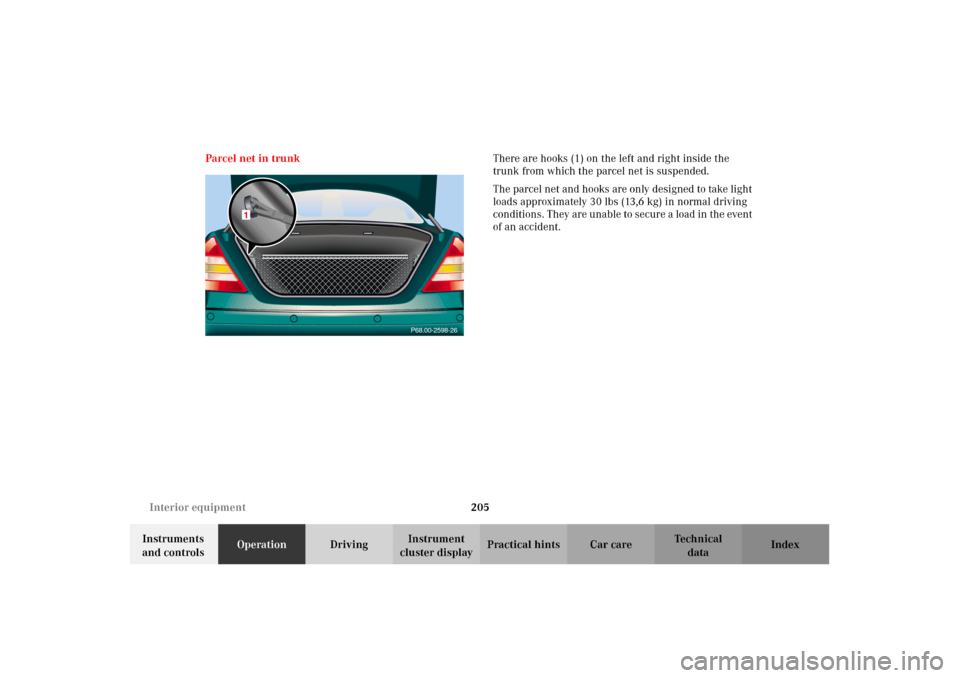

cluster displayPractical hints Car care Index Parcel net in trunkThere are hooks (1) on the left and right inside the
trunk from which the parcel net is suspended.
The parcel net and hooks are only designed to take light
loads approximately 30 lbs (13,6 kg) in normal driving
conditions. They are unable to secure a load in the event
of an accident.
P68.00-2598-26
1
J_OM_215.book Seite 205 Mittwoch, 30. Mai 2001 2:01 14

206 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

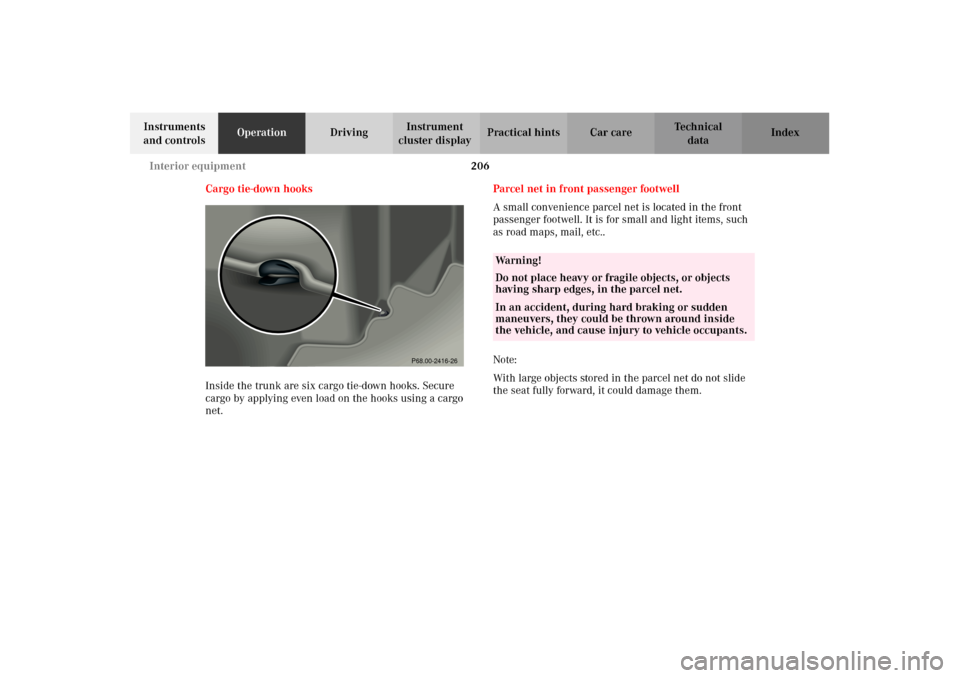

Cargo tie-down hooks
Inside the trunk are six cargo tie-down hooks. Secure
cargo by applying even load on the hooks using a cargo
net.Parcel net in front passenger footwell
A small convenience parcel net is located in the front
passenger footwell. It is for small and light items, such
as road maps, mail, etc..
Note:
With large objects stored in the parcel net do not slide
the seat fully forward, it could damage them.
P68.00-2416-26
Wa r n i n g !
Do not place heavy or fragile objects, or objects
having sharp edges, in the parcel net.In an accident, during hard braking or sudden
maneuvers, they could be thrown around inside
the vehicle, and cause injury to vehicle occupants.
J_OM_215.book Seite 206 Mittwoch, 30. Mai 2001 2:01 14

207 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Telephone, general
See separate instruction manual for instructions on how
to operate the telephone.
Wa r n i n g !
A driver’s attention to the road must always be his/
her primary focus when driving. For your safety
and the safety of others, we recommend that you
pull over to a safe location and stop before placing
or taking a telephone call. If you choose to use the
telephone while driving, please use the hands-free
device and only use the telephone when road and
traffic conditions permit.Some jurisdictions prohibit the driver from using a
cellular telephone while driving a vehicle.Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is covering
a distance of approximately 50 feet (approximately
14 m) every second.
Never operate radio transmitters equipped with a
built-in or attached antenna (i.e. without being
connected to an external antenna) from inside the
vehicle while the engine is running. Doing so could
lead to a malfunction of the vehicle’s electronic
system, possibly resulting in an accident and
personal injury.
