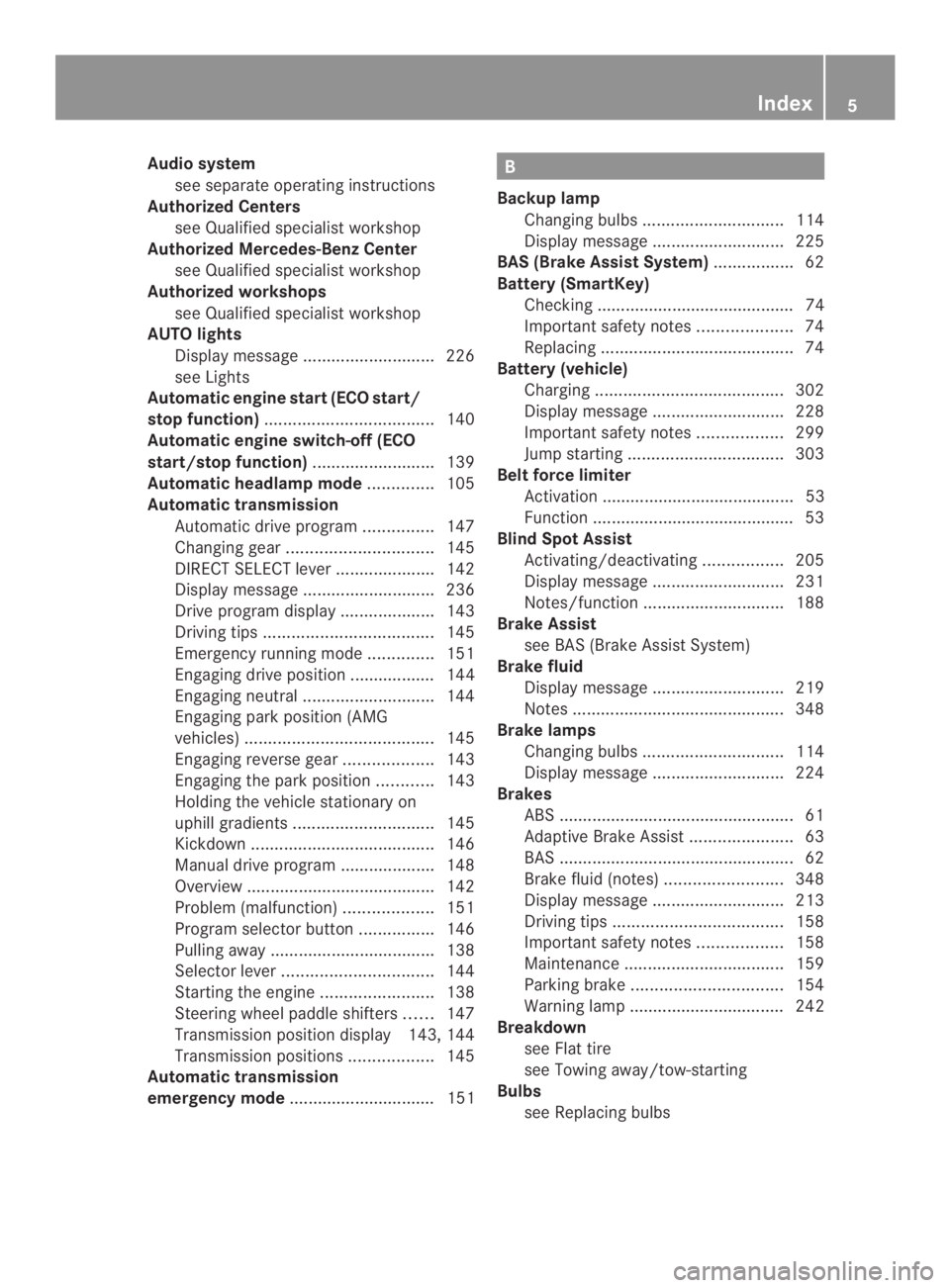

Audio system
see separate operating instructions
Authorized Centers
see Qualified specialist workshop
Authorized Mercedes-Benz Center
see Qualified specialist workshop
Authorized workshops
see Qualified specialist workshop
AUTO lights
Display message............................226
see Lights
Automatic engine start (ECO start/
stop function)....................................140
Automatic engine switch-off (ECO
start/stop function)..........................139
Automatic headlamp mode..............105
Automatic transmission
Automatic drive program...............147
Changing gear...............................145
DIRECT SELECT lever.....................142
Display message............................236
Drive program display....................143
Driving tips....................................145
Emergency running mode..............151
Engaging drive position .................. 144
Engaging neutral............................144
Engaging parkposition (AMG
vehicles)........................................145
Engaging reversegear...................143
Engaging the parkposition............143
Holding the vehicle stationary on
uphill gradients..............................145
Kickdown.......................................146
Manual drive program....................148
Overview........................................142
Problem (malfunction)...................151
Programselectorbutton................146
Pulling away...................................138
Selector lever................................144
Starting the engine........................138
Steering wheel paddle shifters......147
Transmission position display143, 144
Transmissionpositions..................145
Automatic transmission
emergency mode............................... 151
B
Backup lamp
Changing bulbs..............................114
Display message............................225
BAS (Brake Assist System).................62
Battery (SmartKey)
Checking .......................................... 74
Important safety notes....................74
Replacing.........................................74
Battery (vehicle)
Charging........................................302
Display message............................228
Important safety notes..................299
Jump starting.................................303
Belt force limiter
Activation ......................................... 53
Function ...........................................53
Blind SpotAssist
Activating/deactivating.................205
Display message............................231
Notes/function..............................188
Brake Assist
see BAS (Brake Assist System)
Brake fluid
Display message............................219
Notes.............................................348
Brake lamps
Changing bulbs..............................114
Display message............................224
Brakes
ABS..................................................61
Adaptive Brake Assist......................63
BAS..................................................62
Brake fluid (notes).........................348
Display message............................213
Driving tips....................................158
Important safety notes..................158
Maintenance..................................159
Parking brake................................154
Warning lamp ................................. 242
Breakdown
see Flat tire
see Towing away/tow-starting
Bulbs
see Replacing bulbs
Index5

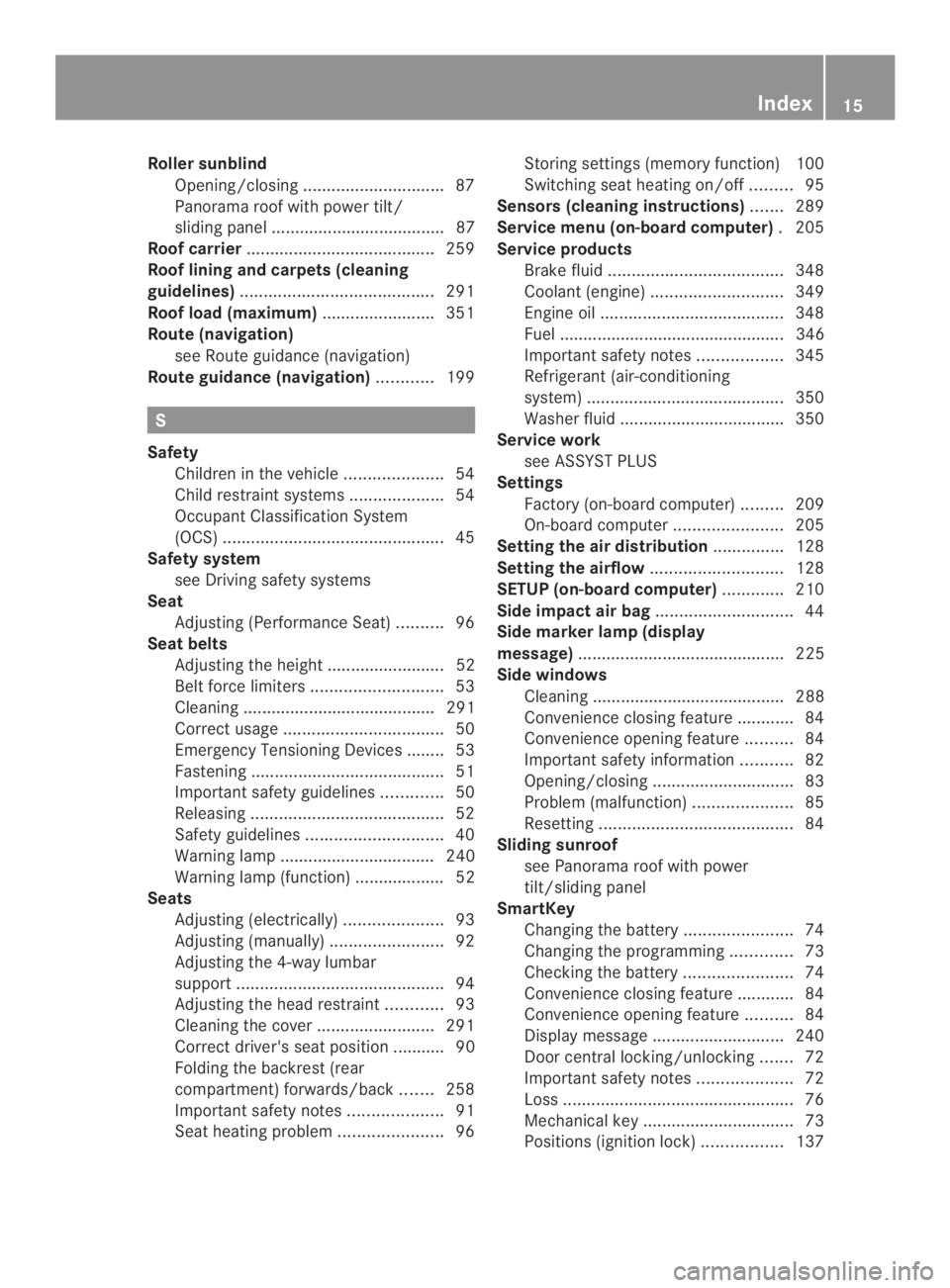

Rollersunblind
Opening/closing..............................87
Panorama roof with power tilt/
sliding panel ..................................... 87
Roof carrier........................................259
Roof lining and carpets (cleaning
guidelines).........................................291
Roof load (maximum)........................351
Route (navigation)
see Route guidance (navigation)
Route guidance (navigation)............199
S
Safety
Childreninthe vehicle.....................54
Child restraint systems....................54
Occupant Classification System
(OCS)...............................................45
Safety system
see Driving safety systems
Seat
Adjusting (Performance Seat)..........96
Seat belts
Adjusting the height ......................... 52
Belt force limiters............................53
Cleaning ......................................... 291
Correct usage..................................50
Emergency Tensioning Devices ........53
Fastening.........................................51
Important safety guidelines.............50
Releasing.........................................52
Safety guidelines.............................40
Warning lamp ................................. 240
Warning lamp (function) ................... 52
Seats
Adjusting (electrically).....................93
Adjusting (manually)........................92
Adjusting the 4-way lumbar
support............................................94
Adjusting the head restraint............93
Cleaning the cover.........................291
Correct driver's seat position ........... 90
Folding the backrest (rear
compartment) forwards/back.......258
Important safety notes....................91
Seat heating problem......................96
Storing settings (memory function) 100
Switching seatheating on/off.........95
Sensors (cleaning instructions).......289
Service menu (on-board computer).205
Service products
Brake fluid.....................................348
Coolant (engine)............................349
Engine oil.......................................348
Fuel ................................................ 346
Important safety notes..................345
Refrigerant (air-conditioning
system)..........................................350
Washer fluid ...................................350
Service work
see ASSYST PLUS
Settings
Factory (on-board computer).........209
On-board computer.......................205
Setting the air distribution...............128
Setting the airflow............................128
SETUP (on-board computer).............210
Side impact air bag.............................44
Side marker lamp (display
message)............................................ 225
Side windows
Cleaning ......................................... 288
Convenience closing feature............84
Convenience opening feature..........84
Important safety information...........82
Opening/closing..............................83
Problem (malfunction).....................85
Resetting.........................................84
Sliding sunroof
see Panorama roof with power
tilt/sliding panel
SmartKey
Changing the battery.......................74
Changing the programming.............73
Checking the battery.......................74
Convenience closing feature............84
Convenience opening feature..........84
Display message............................240
Door central locking/unlocking.......72
Important safety notes....................72
Loss.................................................76
Mechanical key................................73
Positions (ignition lock).................137
Index15

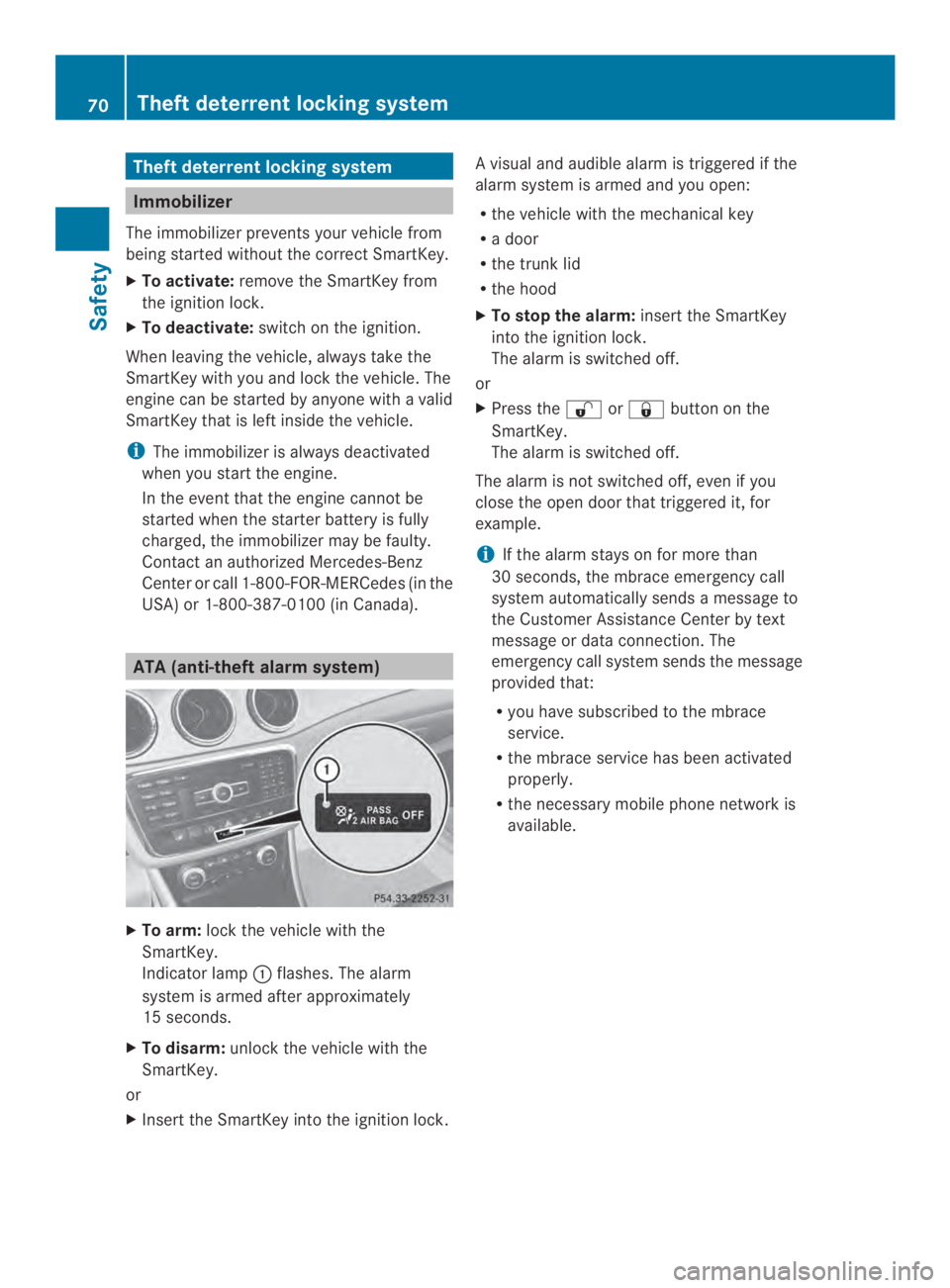

Theft deterrent locking system
Immobilizer
The immobilizerprevents yourvehicle from
being started without the correct SmartKey.
XTo activate:remove the SmartKey from
the ignition lock.
XTo deactivate:switch on the ignition.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. The
engine can be started by anyone with a valid
SmartKey that is left inside the vehicle.
iThe immobilizer is always deactivated
when you start the engine.
In the event that the engine cannot be
started when the starter battery is fully
charged, the immobilizer may be faulty.
Contactanauthorized Mercedes-Benz
Centerorcall 1-800-FOR-MERCedes (in the
USA) or 1-800-387-0100 (in Canada).
ATA (anti-theft alarm system)
XTo arm:lockthe vehicle with the
SmartKey.
Indicator lampflashes. The alarm
system is armed after approximately
15 seconds.
XTo disarm:unlock the vehicle with the
SmartKey.
or
XInsert the SmartKey into the ignition lock.
Avisual and audible alarm is triggered if the
alarm system is armed and you open:
Rthe vehicle with the mechanical key
Ra door
Rthe trunk lid
Rthe hood
XTo stop the alarm:insert the SmartKey
into the ignition lock.
The alarm is switched off.
or
XPress theor\nbutton on the
SmartKey.
The alarm is switched off.
The alarm is not switched off, even if you
close the open door that triggered it, for
example.
iIf the alarm stays on for more than
30 seconds, the mbraceemergency call
system automatically sendsamessage to
the Customer Assistance Center by text
message or data connection.The
emergency call system sends the message
provided that:
Ryou have subscribed to the mbrace
service.
Rthe mbrace service has been activated
properly.
Rthe necessary mobile phone network is
available.
70Theft deterrent locking system
Safety

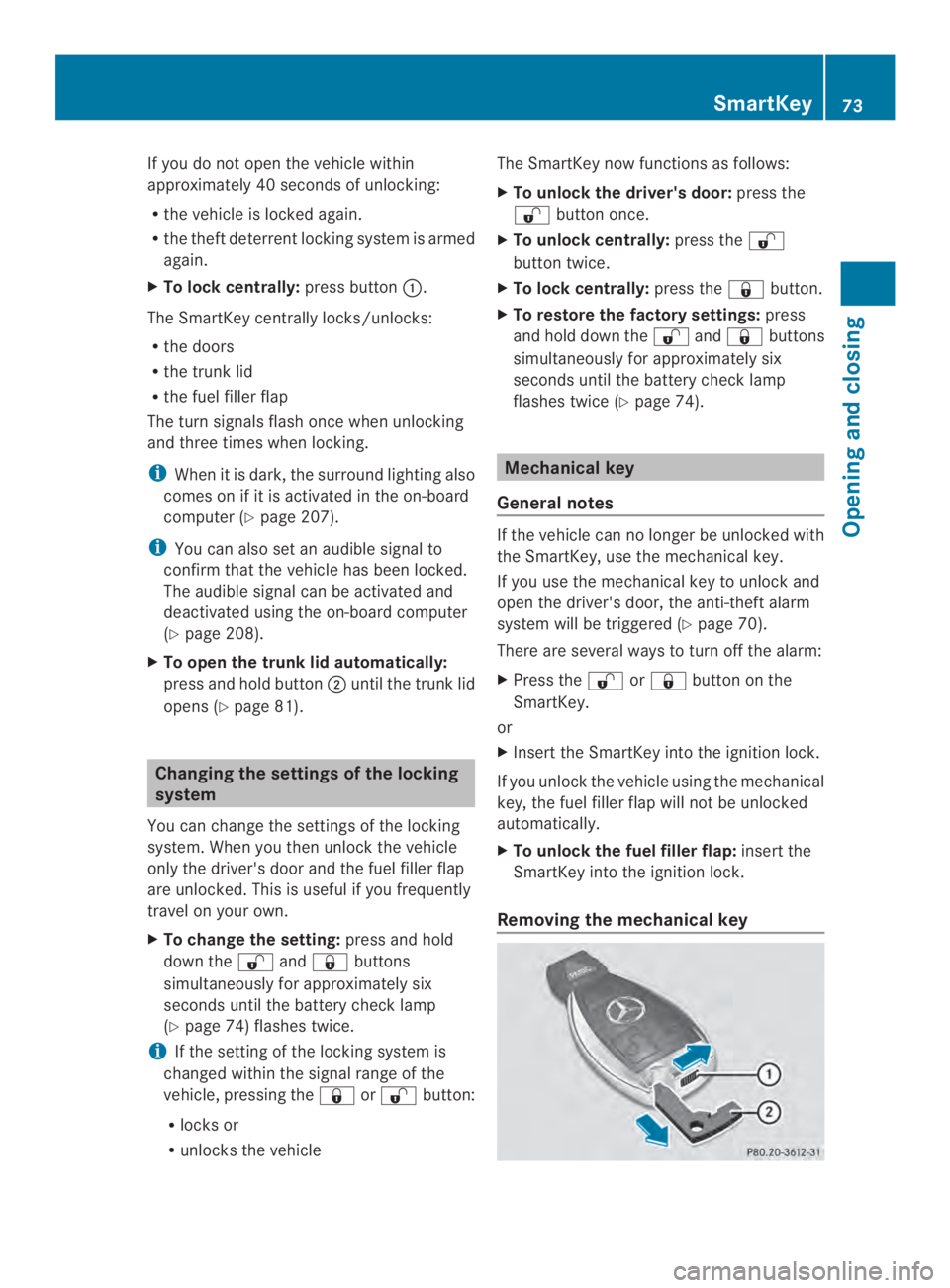

If you do not open the vehicle within
approximately 40 seconds of unlocking:
Rthe vehicle is locked again.
Rthe theft deterrent locking system is armed
again.
XTo lockcentrally:press button.
The SmartKey centrally locks/unlocks:
Rthe doors
Rthe trunk lid
Rthe fuel filler flap
The turnsignals flash oncewhen unlocking
and three times when locking.
iWhen it is dark, the surround lighting also
comes on if it is activated in the on-board
computer (Ypage 207).
iYou can also set an audible signal to
confirm that the vehicle has been locked.
The audible signal can be activated and
deactivated using the on-board computer
(Ypage 208).
XTo open the trunk lid automatically:
press and hold buttonuntil the trunk lid
opens (Ypage 81).
Changing the settings of the locking
system
You can change the settings of the locking
system. When you then unlock the vehicle
only the driver's door and the fuel filler flap
are unlocked. This is useful if you frequently
travel on your own.
XTo change the setting:press and hold
down theand\nbuttons
simultaneously for approximately six
seconds until the battery check lamp
(Ypage 74) flashes twice.
iIf the setting of the locking system is
changed within the signal range of the
vehicle, pressing the\norbutton:
Rlocks or
Runlocks the vehicle
The SmartKey now functions as follows:
XTo unlock the driver's door:press the
button once.
XTo unlock centrally:press the
button twice.
XTo lock centrally:press the\nbutton.
XTo restore the factory settings:press
and hold down theand\nbuttons
simultaneously for approximately six
seconds until the battery check lamp
flashes twice (Ypage 74).
Mechanical key
General notes
If the vehicle can no longer be unlocked with
the SmartKey, use the mechanical key.
If you use the mechanical key to unlock and
open the driver's door, the anti-theft alarm
system will be triggered (Ypage 70).
There are several ways to turn off the alarm:
XPress theor\nbutton on the
SmartKey.
or
XInsert the SmartKey into the ignition lock.
If you unlock the vehicle using the mechanical
key, the fuel filler flap will not be unlocked
automatically.
XTo unlock the fuel filler flap:insert the
SmartKey into the ignition lock.
Removing the mechanical key
SmartKey73
Opening and closing
Z

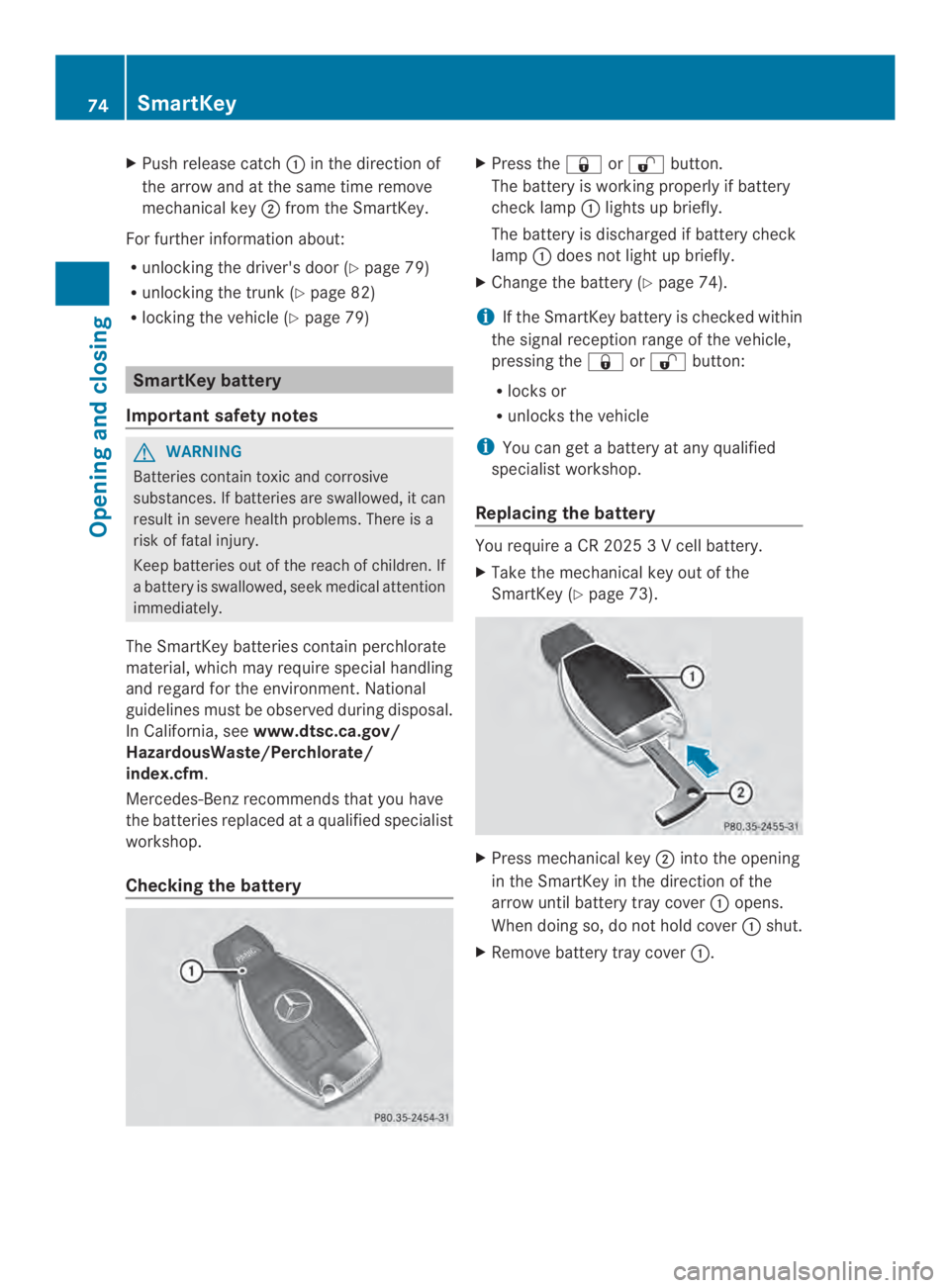

XPush release catchin the direction of
the arrow and at the same time remove
mechanical keyfrom the SmartKey.
For further information about:
Runlocking the driver's door (Ypage 79)
Runlocking the trunk (Ypage 82)
Rlocking the vehicle (Ypage 79)
SmartKey battery
Important safety notes
GWARNING
Batteries contain toxic and corrosive
substances. If batteries are swallowed, it can
result in severe health problems. There is a
risk of fatal injury.
Keep batteries out of the reach of children. If
a battery is swallowed, seek medical attention
immediately.
The SmartKey batteries contain perchlorate
material, which may require special handling
and regard for the environment. National
guidelines must be observed during disposal.
In California, seewww.dtsc.ca.gov/
HazardousWaste/Perchlorate/
index.cfm.
Mercedes-Benz recommends that you have
the batteries replaced at a qualified specialist
workshop.
Checking the battery
XPress the\norbutton.
The battery is working properly if battery
check lamplights up briefly.
The battery is discharged if battery check
lampdoes not light up briefly.
XChange the battery (Ypage 74).
iIf the SmartKey battery is checked within
the signal reception range of the vehicle,
pressing the\norbutton:
Rlocks or
Runlocks the vehicle
iYou can get a battery at any qualified
specialist workshop.
Replacing the battery
You require a CR 2025 3 V cell battery.
XTake the mechanical key out of the
SmartKey (Ypage 73).
XPress mechanical keyinto the opening
in the SmartKey in the direction of the
arrow until battery tray coveropens.
When doing so, do not hold covershut.
XRemove battery tray cover.
74SmartKey
Opening and closing

XRepeatedly tap the SmartKey against your
palm until battery"falls out.
XInsertthe new battery with the positive
terminal facing upwards. Use a lint-free
cloth to do so.
XMake sure that the surface of the battery is
free from lint, grease and all other forms of
contamination.
XInsert the front tabs of battery tray
coverand then press to close it.
XInsert the mechanical key into the
SmartKey.
XCheck the function of all SmartKey buttons
on the vehicle.
SmartKey75
Opening and closing
Z

Problems with the SmartKey
ProblemPossible causes/consequences and
Solutions
You cannot lock or
unlock the vehicle
using the SmartKey.
The SmartKey battery is discharged or nearly discharged.
XTry again to lock/unlock the vehicle using the remote control
function of the SmartKey. Point the tip of the SmartKey at the
driver's door handle from close range and press theor
\nbutton.
If this does not work:
XCheck the SmartKey battery and replace it if necessary
(Ypage 74).
XUnlock (Ypage 79) or lock (Ypage 79) the vehicle using the
mechanical key.
There is interference from a powerful source of radio waves.
XTry again to lock/unlock the vehicle using the remote control
function of the SmartKey. Point the tip of the SmartKey at the
driver's door handle from close range and press the/
\nbutton.
The SmartKey is faulty.
XUnlock (Ypage 79) or lock (Ypage 79) the vehicle using the
mechanical key.
XHave the SmartKey checked at a qualified specialist workshop.
You have lost a
SmartKey.
XHave the SmartKey deactivated at a qualified specialist
workshop.
XReport the loss immediately to the vehicle insurers.
XIf necessary, have the locks changed as well.
You have lost the
mechanical key.
XReport the loss immediately to the vehicle insurers.
XIf necessary, have the locks changed as well.
76SmartKey
Opening and closing

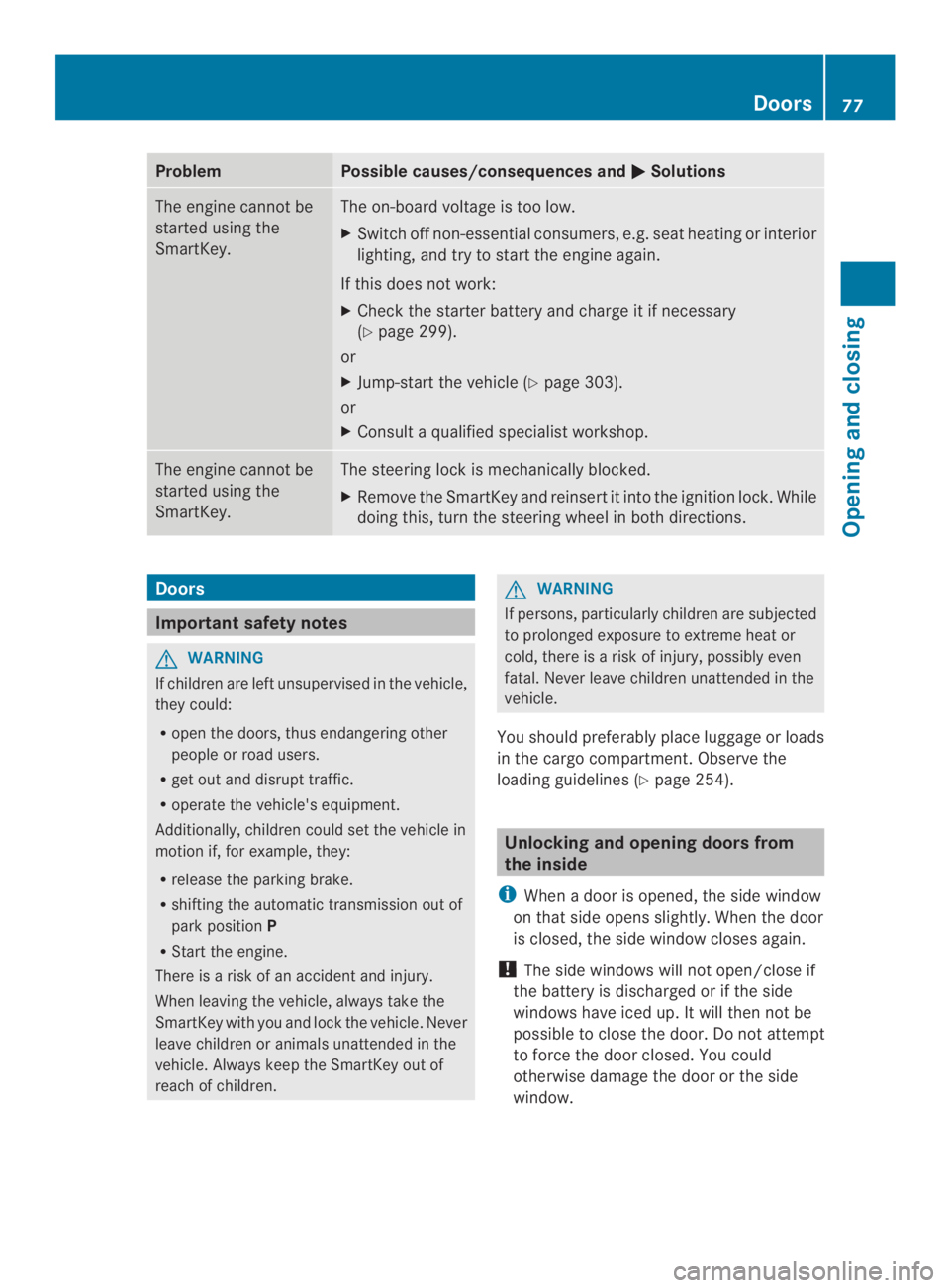

ProblemPossible causes/consequences and
Solutions
The engine cannot be
started using the
SmartKey.
The on-board voltage is too low.
XSwitch off non-essential consumers, e.g. seat heating or interior
lighting, and try to start the engine again.
If this does not work:
XCheck the starter battery and charge it if necessary
(Ypage 299).
or
XJump-start the vehicle (Ypage 303).
or
XConsult a qualified specialist workshop.
The engine cannot be
started using the
SmartKey.
The steering lock is mechanically blocked.
XRemove the SmartKey and reinsert it into the ignition lock. While
doing this, turn the steering wheel in both directions.
Doors
Important safety notes
GWARNING
If children are left unsupervised in the vehicle,
they could:
Ropen the doors, thus endangering other
people or road users.
Rget out and disrupt traffic.
Roperate the vehicle's equipment.
Additionally, children could set the vehicle in
motion if, for example, they:
Rrelease the parking brake.
Rshifting the automatic transmission out of
park positionP
RStart the engine.
There is a risk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children or animals unattended in the
vehicle. Always keep the SmartKey out of
reach of children.
GWARNING
If persons, particularly children are subjected
to prolonged exposure to extreme heat or
cold, there is a risk of injury, possibly even
fatal. Never leave children unattended in the
vehicle.
You should preferably place luggage or loads
in the cargo compartment. Observe the
loading guidelines (Ypage 254).
Unlocking and opening doors from
the inside
iWhen a door is opened, the side window
on that side opens slightly. When the door
is closed, the side window closes again.
!The side windows will not open/close if
the battery is discharged or if the side
windows have iced up. It will then not be
possible to close the door. Do not attempt
to force the door closed. You could
otherwise damage the door or the side
window.
Doors77
Opening and closing
Z

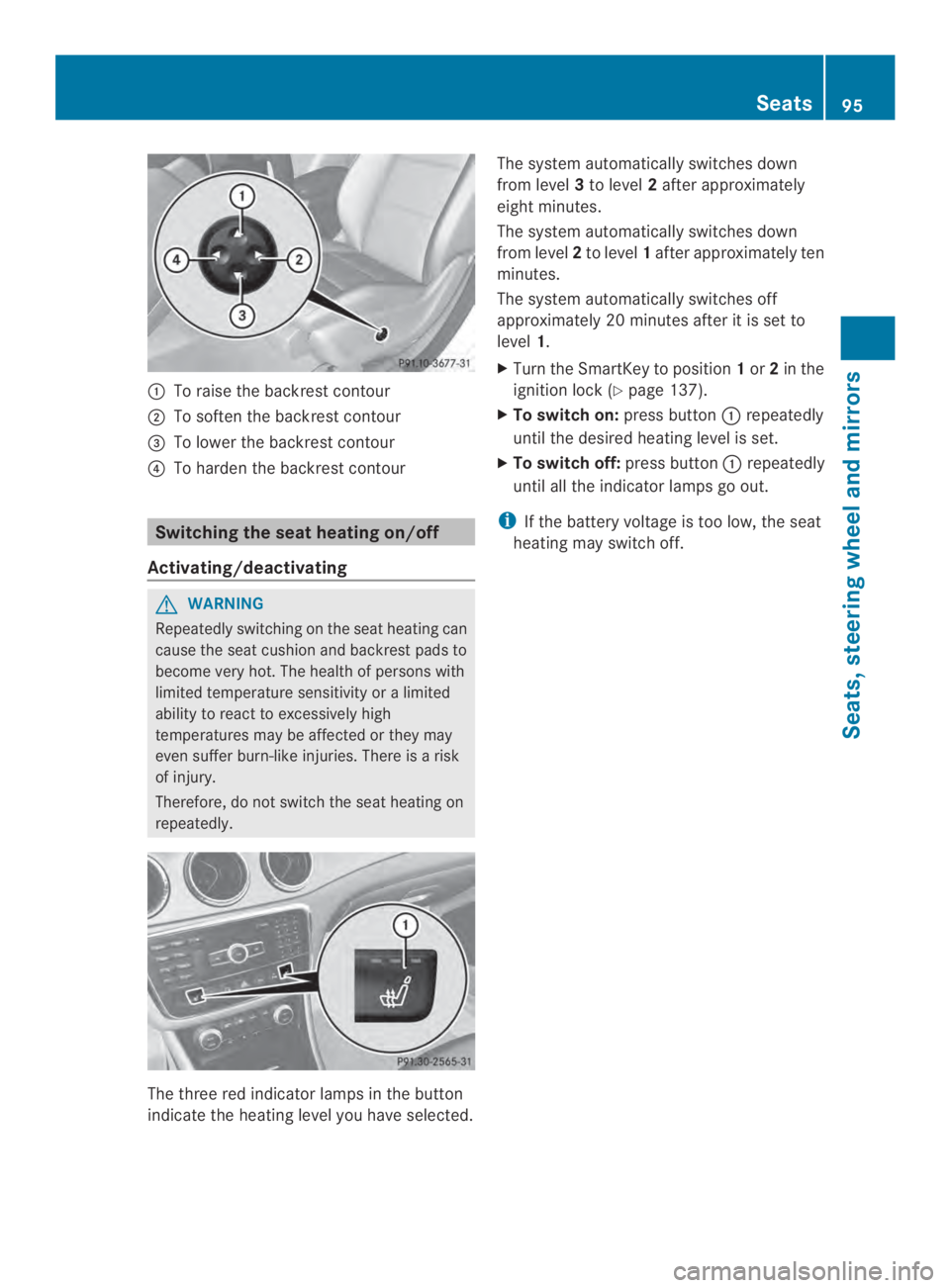

To raise the backrest contour
To soften the backrest contour
"To lower the backrest contour
!To harden the backrest contour
Switching the seat heating on/off
Activating/deactivating
GWARNING
Repeatedly switching on the seat heating can
cause the seat cushion and backrest pads to
become very hot. The health of persons with
limited temperature sensitivity or a limited
ability to react to excessively high
temperatures may be affected or they may
even suffer burn-like injuries. There is a risk
of injury.
Therefore, do not switch the seat heating on
repeatedly.
The three red indicator lamps in the button
indicate the heating level you have selected.
The system automatically switches down
from level3to level2after approximately
eight minutes.
The system automatically switches down
from level2to level1after approximately ten
minutes.
The system automatically switches off
approximately 20 minutes after it is set to
level1.
XTurn the SmartKey to position1or2in the
ignition lock (Ypage 137).
XTo switch on:press buttonrepeatedly
until the desired heating level is set.
XTo switch off:press buttonrepeatedly
until all the indicator lamps go out.
iIf the battery voltage is too low, the seat
heating may switch off.
Seats95
Seats, steering wheel and mirrors
Z

Problems with the seat heating
ProblemPossible causes/consequences and
Solutions
The seat heating has
switched off
prematurely or cannot
be switched on.
The on-board voltage is too low because too many electrical
consumers are switched on.
XSwitch off electrical consumers that you do not need, such as
the rear window defroster or interior lighting.
Once the battery is sufficiently charged, the seat heating will
switch back on automatically.
AMG Performance Seat
To adjust the contour of the seat and for
improved lateral support, you can individually
adjust the front seats.
Adjusting the seat cushion length
XTo extend the seat cushion:press
button.
XTo retract the seat cushion:press
button.
Adjusting the side bolsters of the seat
cushion
XTo set the side bolsters of the seat
cushion narrower:press button".
XTo set the side bolsters of the seat
cushion wider:press button!.
Adjusting the seat backrest side
bolsters
XTo set the side bolsters of the seat
cushion narrower:press button.
XTo set the side bolsters of the seat
cushion wider:press button .
Steering wheel
Important safety notes
GWARNING
You could lose control of your vehicle if you
do the following while driving:
Radjust the driver's seat, head restraint,
steering wheel or mirrors
Rfasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint,
steering wheel and mirror and fasten your
seat belt before starting the engine.
GWARNING
Children could injure themselves if they
adjust the steering wheel. There is a risk of
injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
96Steering wheel
Seats, steering wheel and mirrors
