Conditions for activation You can activat eR ACE START if:R
th ed oors, hood and th et ru nk lid are closed.R
th ee ng in eisr unnin ga nd th et ra nsmission,
all-wheel driv ec lutch and th ee ng in ea re at
operatin gt em perature.R
th es te ering wheel is in th es tr aight-ahead
position. R
th ev ehicle is stationar ya nd th eb rak ep edal is
depressed (lef tf oot).R
th et ra nsmission is in position [ .R
driv ep rogram S , S+ or RACE is selected
( Y
page 129)
Activating RACE START X
Depres st he brak ep edal wit hy our left foot
and keep it depressed. X
Pull and hold bot hs te ering wheel paddle shift-
ers. X
The RAC ES TART Confirm: Paddle UP
Cancel :P addle DOWN message appear si n
th em ultifunction display.X
Release bot hs te ering wheel paddle shifters.
i If th ea ctivation condition sa re no longer ful-
filled, RACE START is canceled. The RACE
START Not Possible See Operator's
Manual message appear sint he multifunction
display. X
To cancel: pull th el eft steering wheel paddle
shifte r( Y
page 136).
or X
To confirm: pull th er igh ts te ering wheel pad-
dle shifte r( Y
page 136).
The RACE START Available Depress gas
pedal message appear sint he multifunction
display.
i If you do no td epress th ea ccelerato rp edal
within af ew seconds, RACE START is can-
celed. The multifunction display shows the
RAC ES TART Canceled message.X
Fully depress th ea ccelerato rp edal.
The engin es pee disi ncreased.
The RACE START Release brake to start
message appear sint he multifunction display.
i If you do no tr elease th eb rak ep edal within
as hort time, RACE START will be canceled. The multifunction display shows the RACE
START Canceled message.X
Tak ey our foo to ff th eb rake, but keep the
accelerato rp edal depressed.
The vehicle pulls away at maximum acceler-
ation.
The RACE START Active message appear si n
th em ultifunction display.
RACE START is deactivate dw hen th ev ehicle
reaches as pee dofa pproximately 50 km/h.
RACE START is deactivate di mmediately if you
release th ea ccelerato rp edal durin gR ACE
START or if any of th ea ctivation condition sa re
no longer fulfilled. The RAC ES TART Not Pos‐
sible See Operator' sM anual or RACE
START Canceled message appear sint he mul-
tifunctio nd isplay.
i If RACE START is used repeatedly within a
short period of time, it is only available again
after th ev ehicle has been driven ac ertain
distance.
AMG adaptiv es port suspension sys-
tem
General notes The electronicall yc ontrolled damping system
work sc ontinuously. This improve sd riving
safety and ride comfort.
The damping is tuned individually to each wheel
and depends on: R
your driving style, e.g .s portyR
th er oad surface condition ,e .g .b umpsR
your individua ls electio no f Sport or Comfort
The suspension settin gisa djusted usin gt he
correspondin gb utto nint he cente rc onsole.
i The mod ec an also be set usin gt he AMG
DYNAMIC SELECT controller ( Y
page 129).
Eac ht im ey ou start th ee ng in ew it ht he Smart-
Key or th eS ta rt/Sto pb utton, Comfort mod ei s
activated. For further informatio na bout starting
th ee ng ine, see ( Y
page 125).Driving systems 159
Driving and parking Z

Sport mode
The firmer settin goft he suspension tuning in
Sport mode ensures even better contact with
the road. Select this mode when employing a
sporty driving style, e.g. on winding country
roads. X
Press button C .
Indicator lamp D lights up. You have selected
Sport mode.
The AMG Suspension System SPORT
mes-
sage appears in the multifunction display.
Comfort mode In Comfort mode, the driving characteristics of
your vehicle are more comfortable. Select this
mode if you favor am ore comfortable driving
style, but also when driving fast on straight
roads, e.g. highways. X
Press button C again so that indicator
lamp D goes out.
You have selected Comfort mode.
The AMG
Suspension System COMFORT mes-
sage appears in the multifunction display.
4MATIC
! Never tow the vehicle with one axle raised.
This may damage the differential. Damage of
this sort is not covered by the Mercedes-Benz
Limited Warranty. All wheels must remain
either on the ground or be fully raised.
Observe the instructions for towing the vehi-
cle with all wheels in full contact with the
ground.
4MATIC, together with ESP ®
,i mproves the trac-
tion of your vehicle whenever ad rive wheel
spins due to insufficient grip. If you fail to adapt your driving style, 4MATIC can
neither reduce the risk of accident nor override
the laws of physics. 4MATIC cannot take
account of road, weather and traffic conditions.
4MATIC is only an aid. You are responsible for
the distance to the vehicle in front ,f or vehicle
speed, for braking in good time and for staying in
your lane.
If ad rive wheel spins due to insufficient grip: R
Only depress the accelerator pedal as far as
necessary when pulling away. R
Accelerate less when driving.
i In wintry driving conditions, the maximum
effect of 4MATIC can only be achieved if you
use winter tires (M+S tires), with snow chains
if necessary.
DYNAMIC BODY CONTROL
General notes DYNAMI CB ODY CONTROL offers improved
driving comfort and continuously controls the
calibration of the dampers. The
damping characteristics adapt to the current
operating and driving situation.
The damping is tuned individually to each wheel
and depends on: R
your driving style, e.g. sporty R
the road surface conditions R
the drive program selected
The drive program can be set using the
DYNAMI CS ELECT button ( Y
page 128).
Selecting Comfort mode In the Comfort drive program, the driving char-
acteristic sofy our vehicle are more comforta-
ble. Therefore, select this drive program if you
prefer am ore comfortable driving style. Also
select the Comfort drive program when driving
fast on straight roads, e.g. on straight stretches
of highway. X
Press DYNAMI CS ELECT button ( Y
page 128)
as many times as necessary until the Com-
fort drive program is selected.160
Driving systems
Driving and parking

Selecting Sport mode The firmer settin goft he suspension tuning in
the Sport drive program ensures even better
contact with the road. Select this drive program
when employing as porty driving style, e.g. on
winding countr yr oads.X
Press DYNAMI CS ELECT button ( Y
page 128)
as many times as necessary until the Sport
drive program is selected.
Parking Assist PARKTRONIC
Important safety notes Parking Assist PARKTRONIC is an electronic
parking aid with ultrasound. It monitor st he area
around your vehicle using six sensors in the
front bumper and six sensors in the rear
bumper. Parking Assist PARKTRONIC visually
and audibly indicates the distance between your
vehicle and an object.
Parking Assist PARKTRONIC is only an aid. It is
not ar eplacement for your attention to your
immediate surroundings. You are always
responsible for safe maneuvering, parking and
exiting ap arking space. Make sure that there
are no persons, animals or object sint he maneu-
vering area while maneuvering and parking in/
leaving parking spaces.
! When parking, pay particular attention to
object sa bove or below the sensors, such as
flower pots or trailer drawbars. Parking Assist
PARKTRONIC does not detect such objects
when they are in the immediate vicinity of the
vehicle. You could damage the vehicle or the
objects.
The sensors may not detect snow and other
object st hat absorb ultrasonic waves.
Ultrasonic sources such as an automatic car
wash, the compressed-air brakes of at ruck or
ap neumatic drill could cause Parking Assist
PARKTRONIC to malfunction.
Parking Assist PARKTRONIC may not function
correctly on uneven terrain.
Parking Assist PARKTRONIC is activated auto-
matically when you: R
switch on the ignition R
shift the transmission to position [ , ^ or
\\ R
release the electric parking brake Parking Assist PARKTRONIC is deactivated at
speeds above 11 mph (18 km/h). It is reactiva-
ted at lower speeds.
Range of the sensors General notes Parking Assist PARKTRONIC does not take into
account obstacles located: R
below the detection range, e.g. people, ani-
mals or objects. R
above the detection range, e.g. overhanging
loads, tail section sorl oading ramps of trucks.
C
Sensors in the front bumper, left-hand side
(example)
The sensors must be free from dirt, ice or slush.
They can otherwise not function correctly. Clean
the sensors regularly ,t aking care not to scratch
or damage them ( Y
page 265).Driving systems 161
Driving and parking Z

Range
C
Detection rang eoff ront sensorsD
Detection rang eofr ea rs ensors
Front sensors
Center Approx. 40 in (approx.
100 cm)
Corners Approx. 24 in (approx.
60 cm)
Rear sensors
Center Approx. 48 in (approx.
120 cm)
Corners Approx. 32 in (approx.
80 cm)
Minimum distance
Center Approx. 8i n( ap prox. 20 cm)
Corners Approx. 6i n( ap prox. 15 cm)
If there is an obstacl ew it hin this range, the rel-
evant warning display sl ig ht up and aw ar ning
tone sounds. If the distance falls below the min-
imum, the distance may no longer be shown. Warning displays
C
Segments on the left-hand sid eoft he vehi-
cle D
Segments on the right-hand sid eoft he vehi-
cle

becomes .W hen the minimum distance is
reached, you hear ac ontinuous warning tone.
Deactivating or activating Parking
Assist PARKTRONIC
C
Indicator lampD
Deactivates or activates Parkin gA ssist
PARKTRONIC If indicator lamp C is lit, Parkin gA ssist
PARKTRONI Ci sd eactivated.
i Parkin gA ssist PARKTRONI Cisa utomati-
cally activated when you turn the SmartKey to
position 2 in the ignition lock.
Problems with Parking Assist PARKTRONIC Problem
Possible causes/consequences and P Solutions
Only the red segments in
the Parkin gA ssist
PARKTRONI Cw arning
displays are lit. You also
hear aw arning ton ef or
approximately two sec-
onds.
Parkin gA ssist
PARKTRONI Ci st hen
deactivated and the indi-
cator lamp on the
PARKTRONI Cb utton
lights up. Parkin gA ssist PARKTRONI Ch as malfunctioned and has been deacti-
vated. X
If problems persist ,h ave Parkin gA ssist PARKTRONI Cc hecked at a
qualified specialist workshop.
Only the red segments in
the Parkin gA ssist
PARKTRONI Cw arning
displays are lit. Parking
Assist PARKTRONI Ci s
then deactivated. The Parkin gA ssist PARKTRONI Cs ensor sa re dirty or ther eisi nter-
ference. X
Clean the Parkin gA ssist PARKTRONI Cs ensor s( Y
page 265).X
Switc ht he ignition back on.
The problem may be caused by an external source of radio or ultra-
sound waves. X
Check to see if Parkin gA ssist PARKTRONI Cw orks at ad ifferent
location. Driving systems 163
Driving and parking Z

Parking Pilot
General notes Parking Pilot is an electronic parking aid with
ultrasound. It measures the road on both sides
of the vehicle. Ap arking symbol indicates as uit-
able parking space. Active steering intervention
and brake application can assist you during
parking and when exiting ap arking space. Park-
ing Assist PARKTRONIC is also available
( Y
page 161).
Important safety notes Parking Pilot is only an aid. It is not ar eplace-
ment for your attention to your immediate sur-
roundings. You are always responsible for safe
maneuvering, parking and exiting ap arking
space. Make sure that no persons, animals or
object sa re in the maneuvering range.
When Parking Assist PARKTRONIC is deactiva-
ted, Parking Pilot is also unavailable.
G WARNING
While parking or pulling out of ap arking
space, the vehicle swings out and can drive
onto areas of the oncomin gl ane. This could
result in ac ollision with another road user.
There is ar isk of an accident.
Pay attention to other road users. Stop the
vehicle if necessary or cancel the Parking Pilot
parking procedure.
! If unavoidable ,y ou should drive over obsta-
cles such as curbs slowly and not at as harp
angle. Otherwise, you may damage the
wheels or tires.
Parking Pilot may also display spaces not suita-
ble for parking, e.g.: R
where parking or stopping is prohibited R
in front of driveways or entrances and exits R
on unsuitable surfaces
Parking tips: R
On narrow roads, drive as close to the parking
space as possible. R
Parking spaces that are littered or overgrown
might be identified or measured incorrectly. R
Parking spaces that are partially occupied by
trailer drawbars might not be identified as
such or be measured incorrectly. R
Snowfall or heavy rain may lead to ap arking
space being measured inaccurately. R
Pay attention to the warning messages of
Parking Pilot PARKTRONIC during the parking
procedure ( Y
page 162). R
You can intervene to correct the steering pro-
cedure at any time. Parking Pilot will then be
canceled. R
When transporting al oad that protrudes from
your vehicle, you must not use Parking Pilot. R
Never use Parking Pilot when snow chains are
mounted. R
Make sure that the tire pressures are always
correct .T his has ad irect influence on the
parking characteristics of the vehicle.
Use Parking Pilot for parking spaces that are: R
that are paralle loratr ight-angles to the direc-
tion of travel R
on straight roads, not bends R
on the same level as the road, e.g. not on the
pavement
Detecting parking spaces Object sl ocated above the detection range of
Parking Pilot will not be detected when the park-
ing space is measured. These are not taken into
account when the parking procedure is calcula-
ted, e.g. overhanging loads, truck overhangs or
loading ramps. Parking Pilot may therefore
guide you into the parking space too early.
Parking Pilot does not assist you parking in
spaces perpendicular to the direction of travel if: R
two parking spaces are located directly next
to one another R
the parking space is directly next to al ow
obstacle such as al ow curbR
you forward-park
Parking Pilot does not assist you parking in
spaces paralle lorp erpendicular to the direction
of travel if: R
the parking space is on ac urbR
the system reads the parking space as being
blocked, for example by foliage or grass pav-
ing blocks R
the area is too small for the vehicle to maneu-
ver into R
the parking space is bordered by an obstacle,
e.g. at ree, ap ost or at railer
For further information on the detection range
( Y
page 161).164
Driving systems
Driving and parking

G WARNING
If there are objects above the detection range: R
Parking Pilot may steer in too early R
the vehicl em ay not stop in front of these
objects
You may caus eac ollision as ar esult. There is
ar isk of an accident.
If objects are located above the detection
range, stop and deactivate Parking Pilot.
C

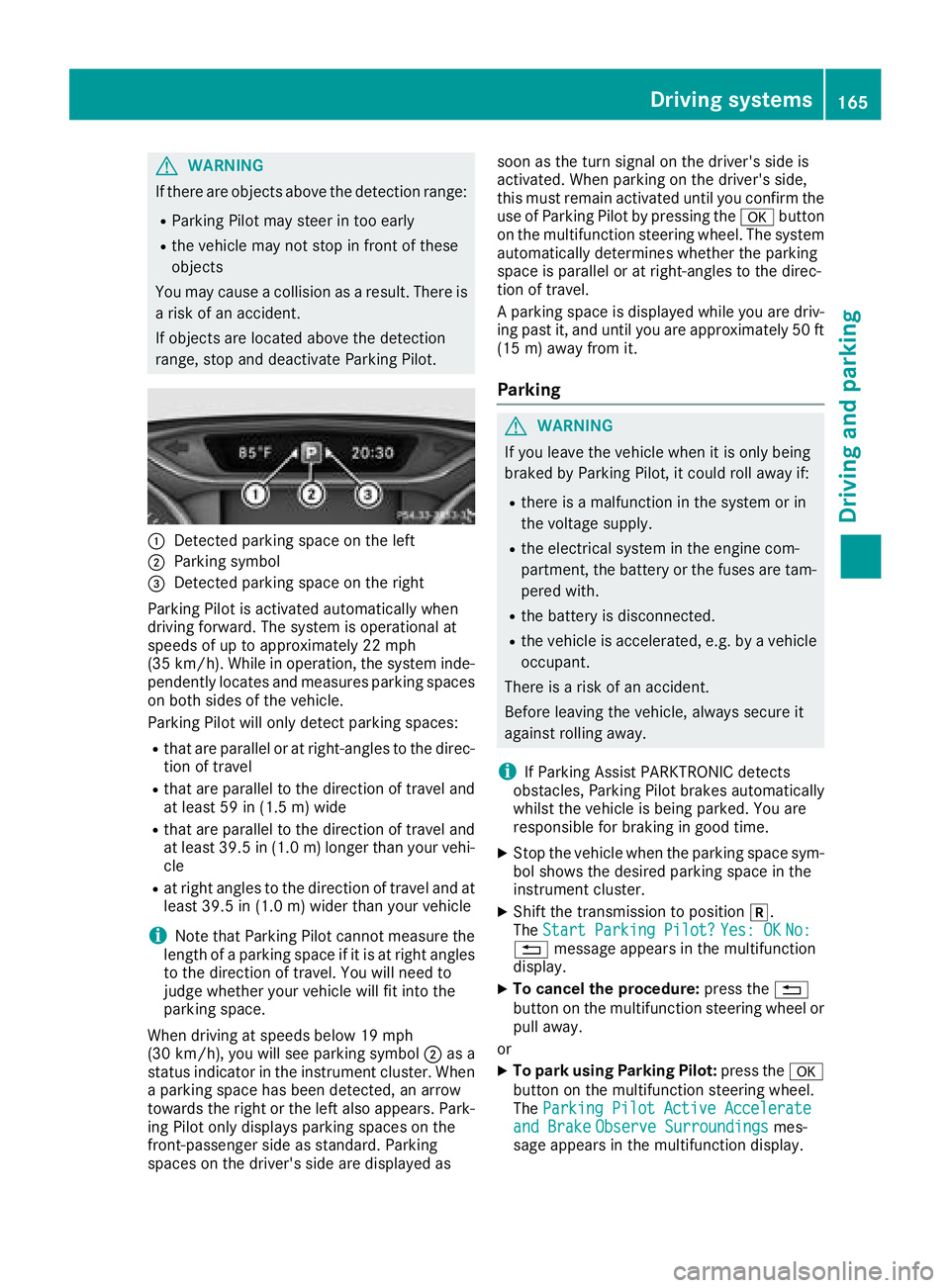

Detected parking space on the leftD
Parking symbol

X
Let go of the multifunction steering wheel. X
Back up the vehicle ,b eing ready to brake at all
times. When backing up, drive at as peed
belo wa pproximately 6m ph (10 km/h). Oth-
erwise, Parking Pilo tisc anceled immediately.
Parking Pilo tb rakes the vehicle to as tandstill
when the vehicle approaches the rear border
of the parking space.
Maneuvering may be required in tight parking
spaces.
The Parking Pilot Active Select D
Observe Surroundings messag ea ppears in
the multifunction display. X
Shift the transmission to position [ while
the vehicle is stationary.
Parking Pilo ti mmediately steers in the other
direction.
The Parking Pilot Active Accelerate
and Brake Observe Surroundings mes-
sage appears in the multifunction display.
i You wil la chieve the best results by waiting
for the steering procedure to complete before
pulling away. X
Drive forward sa nd be ready to brake at all
times.
Parking Pilo tb rakes the vehicle to as tandstill
when the vehicle approaches the front border
of the parking space.
Maneuvering may be required in tight parking
spaces.
The Parking Pilot Active Select R
Observe Surroundings messag ea ppears in
the multifunction display.
As soon as the parking procedure is complete,
the Parking Pilot Finished message
appears and aw arning tone sounds. The vehicle
is now parked.
The vehicle is kept stationary withou tt he driver
having to depres st he brake pedal. The braking
effect is canceled when you depres st he accel-
erator pedal.
Parking Pilo tnol onger supports you with steer-
ing interventions and brake applications. When
Parking Pilo tisf inished ,y ou must steer and
brake again yourself. Parking Assist
PARKTRONIC is still available.
Parking tips: R
The way you rv ehicle is positioned in the park-
ing space after parking is dependent on vari-
ous factors. These include the positio na nd
shape of the vehicle sp arked in front and behind it and the conditions of the location. It
may be the case that Parking Pilo tg uides you
too far into ap arking space, or not far enough
into it. In some cases, it may also lea dy ou
across or onto the curb. If necessary ,y ou
shoul dc ancel the parking procedure with
Parking Pilot. R
You can also preselect transmission position
[ .T he vehicle redirects and does not drive
as far into the parking space. Should the
transmission change take place too early, the
parking procedure is canceled. As ensible
parking positio nc an no longer be achieved
from this position.
Exitin gap arking spaceIn order for Parking Pilo ttos upport you when
exiting the parking space: R
you need to have parked using Parking Pilot. R
the border of the parking space must be high
enough at the front and the rear. Ac urb stone
is too small ,f or example. R
the border of the parking space must not be
too wide, as the positio noft he vehicle must
not exceed an angle of 45° to the starting
positio nasitism aneuvered into the parking
space. R
am aneuvering distance of at least 3.3 ft
(1.0 m) must be available.
Parking Pilo tc an assist you with exiting ap ark-
ing space only if you have parked the vehicle
parallel to the direction of travel using Parking
Pilot.
i If Parking Assist PARKTRONIC detects
obstacles, Parking Pilo tb rakes automatically
whilst the vehicle is exiting the parking space.
You are responsible for braking in good time. X
Start the engine. X
Release the electric parking brake. X
Switch on the turn signal in the direction you
wil ld rive out of the parking space. X
Shift the transmission to position [ or ^ .
The Start Parking Pilot? Yes: OK No:
8 messag ea ppears in the multifunction
display. X
To cancel the procedure: press the 8
button on the multifunction steering whee lo r
pul la way.
or166
Driving systems
Driving and parking

X
To exit ap arking spac eu sing Parking
Pilot: press the v button on the multi-
functio ns teering wheel.
The Parkin gP ilot Active Accelerate
and Brake Observ eS urroundings mes-
sage appears in the multifunctio nd is play.X
Let go of the multifunctio ns teering wheel.X
Pull away ,b ei ng ready to brake at al lt imes. Do
not exceed am ax imu ms peed of approx-
imatel y6m ph (10 km/h )w he ne xiting ap ar k-
ing space. Otherwise, Parking Pilo ti sc an-
celed immediately. X
Depending on the message or as required,
shift the transmission to position [ or ^ .
Parking Pilo ti mmediatel ys teers in the other
direction. The Parkin gP ilot Active
Accelerat ea nd Brake Observ eS ur‐
roundings message appears in the multi-
functio nd is play.
i Yo uw il la chieve the best results by waiting
for the steering procedur etoc omplete before
pulling away.
If yo ub ac ku pa fte ra ctivation, the steering
whee lism ove dtot he straight-ahea dp osi-
tion. X
Driv ef orward sa nd reverse as prompte db y
the Parking Assist PARKTRONIC warning dis-
plays, severa lt ime sifn ecessary.
Once yo uh av ee xited the parking space com-
pletely, the steering whee lism ove dtot he
straight-ahea dp osition. Yo uh ea rat one and the
Parking Pilot Finished message appears in
the multifunctio nd is play .Y ou will then have to
stee ra nd merge into traffic on your own. Park-
ing Assist PARKTRONIC is stil la vailable .Y ou can
take ove rt he steering before the vehicl eh as
exited the parking space completely. Thi si s
useful, for exampl ew he ny ou recognize tha titi s
already possibl etop ul lo ut of the parking space.
Canceling Parking Pilot X
Stop the movement of the multifunction
steering whee lors tee ry ours elf.
Parking Pilo ti sc ancele di mmediately. The
Parking Pilot Canceled message appears
in the multifunctio nd is play.
or X
Press the PARKTRONIC button ( Y
page 163).
Parking Assist PARKTRONIC is switched off
and Parking Pilo ti si mmediatel yc anceled.
The Parkin gP ilot Canceled message
appears in the multifunctio nd is play. Parking Pilo ti sc ancele da ut omaticall yw he n:R
the electri cp ar king brake is engaged R
transmission position ] is selectedR
parking using Parking Pilo ti snol on ger pos-
sible R
yo ua re driving faster tha n6 mph (10 km/h)R
aw heel spins, ESP ®
intervene sorf ails .I n
such cases the

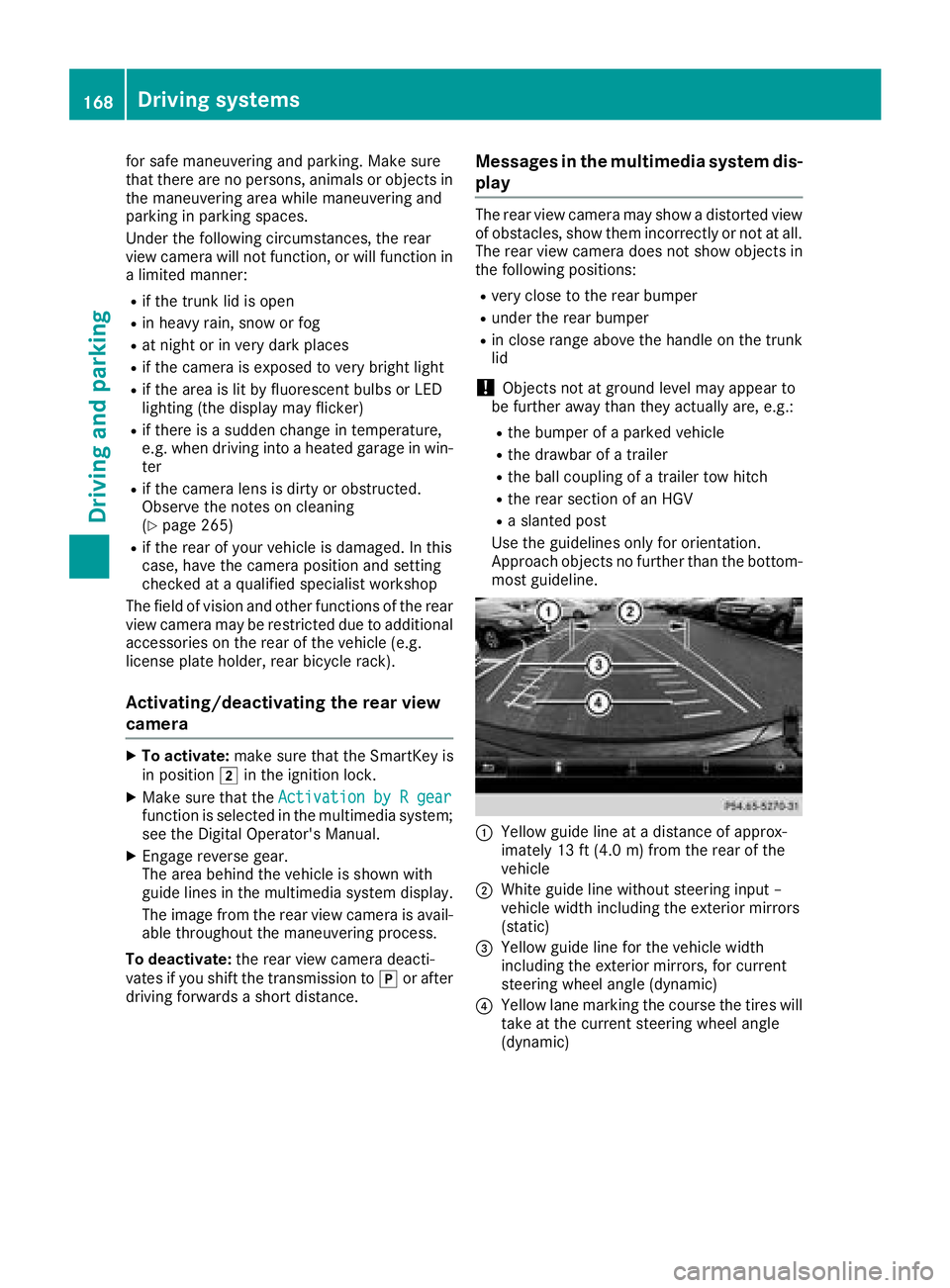

for safe maneuvering and parking. Make sure
that there are no persons, animals or objects in
the maneuvering area while maneuvering and
parking in parking spaces.
Under the following circumstances, the rear
view camera wil ln ot function, or wil lf unction in
al imited manner: R
if the trunk lid is open R
in heavy rain, snow or fog R
at night or in very dark places R
if the camera is expose dtov ery bright lightR
if the area is lit by fluorescent bulbs or LED
lighting (the display may flicker) R
if there is as udden change in temperature,
e.g. when driving into ah eated garage in win-
ter R
if the camera lens is dirty or obstructed.
Observe the notes on cleaning
( Y
pag e2 65)R
if the rear of you rv ehicl eisd amaged. In this
case, have the camera position and setting
checked at aq ualified specialist workshop
The fiel dofv ision and other functions of the rear
view camera may be restricted due to additional
accessories on the rear of the vehicl e( e.g.
license plate holder, rear bicycle rack).
Activating/deactivating the rear view
camera X
To activate: make sure that the SmartKey is
in position H in the ignition lock.X
Make sure that the Activation by Rg ear
function is selected in the multimedi as ystem;
see the Digita lO perator's Manual.X
Engage reverse gear.
The area behind the vehicl eiss how nw ith
guide lines in the multimedi as ystem display.
The image from the rear view camera is avail-
abl et hroughou tt he maneuvering process.
To deactivate: the rear view camera deacti-
vates if you shift the transmission to ] or after
driving forwards as hort distance. Messages in the multimedia system dis-
play The rear view camera may show ad istorted view
of obstacles, show them incorrectly or not at all.
The rear view camera does not show objects in
the following positions: R
very close to the rear bumper R
under the rear bumper R
in close range above the handl eont he trunk
lid
! Objects not at ground leve lm ay appear to
be further away than they actually are, e.g.: R
the bumper of ap arked vehicleR
the drawbar of at railerR
the bal lc oupling of at railer tow hitchR
the rear section of an HGV R
as lanted post
Use the guidelines only for orientation.
Approach objects no further than the bottom-
most guideline.
C
Yellow guide line at ad istance of approx-
imately 13 ft (4.0 m) from the rear of the
vehicle D
White guide line without steering inpu t–
vehicl ew idth including the exterior mirrors
(static)
